Totai 16/DK1025 User manual

For Outdoor Use Only
Important: Read these instructions for use carefully so as to familiarise yourself with
the appliance before connecting it to its gas container. It is also important to follow the
assembly instructions. Keep these instructions for future reference
LPGSASA PERMIT NUMBER 1051 RSA- A-147/1- 12/
Safe Appliance
LP Gas Safety Association
INSTRUCTIONS FOR USE AND ASSEMBLY
PRECAUTIONS
·Leak test all connections after each cylinder
refill
·Never check for leaks with a match or open
flame
·Do not store or use petrol or other flammable
vapours and liquids in the vicinity of this or
other any other appliance
·Any LPG cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance
WARNING
HAZARDOUS FIRE OR EXPLOSION MAY
RESULT IF INSTRUCTIONS ARE IGNORED
It is the consumer’s responsibility to see that the
heater is properly assembled, installed, and
taken care of. Failure to follow instructions in this
manual could result in serious bodily injury
and/or property damage
FOR YOUR SAFETY
IF YOU SMELL GAS:
·Turn of gas supply at the cylinder.
·Extinguish all naked flames
·Do not operate any electrical appliances.
·Ventilate the area.
·Check for leaks as detailed in this manual
·If odour persists, contact your dealer or gas
supplier immediately.
Model: 16/DK1025
Outdoor Patio Heater

- -2
PLEASE READ THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION
CAUTION
Do not use the patio heater indoor, as it may cause personal injury or property damage.
This outdoor heater in not intended to be installed on recreational vehicles and/or boats.
Installation and services should only be a done qualified person.service
Improper installation, adjustment, alteration can cause personal injury or property damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other than the factory recommended replacement.
Do not store or use petrol or other flammable vapours with, in, or near the heater.
The complete gas system and all connections should be inspected for leaks before use, and at least annually by a
qualified service technician.
All leak tests should be done with a soapy water solution. If there is a leak then bubble will form at that point. Never
use an open flame to check for gas leaks.
Do not use the heater until all connections have been leak tested.
If you smell gas, turn off the gas supply at the cylinder and check all connections for leaks using a soapy water
solution. Tighten the leaking connection and then recheck again with a soapy water solution. If you cannot find the
source of the leak, call a qualified service technician and do not use the appliance until it has been declared safe to
do so.
Do not move or transport the heat whilst it is operating.
do not touch or move the heater after it has been turned off until it has cooled down.
Do not cover up the ventilation opening in the cylinder compartment.
Do not paint the radiant screen, control panel or top canopy reflector.
Control compartment, burner and circulation air passageways must be kept clean.
Frequent cleaning may be necessary as required.
The LPG Cylinder should be turned off when the heater is not in use.
Check the heater immediately if any of the following occurs:
- The heater does not reach temperature.
- The burner makes popping noises during operation (a slight noise is normal when the heater is extinguished).
- A smell of gas in conjunction with yellow tipping o flames.
Any guard or other protective device removed for servicing must be replaced before using the heater.
Adults and children should stay away from high temperatures areas of the heater to avoid burns of clothing igniting.
Children should be carefully supervised when near the heater
Always change the cylinder in well ventilated areas and away from any sources of ignition e.g. open flames.
Check that the regulator seal is in place and in good condition whenever the cylinder is changed.
Never obstruct or cover the ventilation apertures in the cylinder housing.
Always close the cylinder control valve when the heater is not in use.
In the event of a gas leakage do not use the heater. Call a qualified service technician to examine the heater before
using the heater.
Check the condition of the flexible gas hose at least once per year for sign of cracking, bulging, splitting of other
signs of deterioration. Replace if necessary.
In the event of a burn-back, where the flame burns back to the jet, mmediately turn off the gas supply at the controli
valve on the panel. fter ensuring the flame is extinguished, re-light the appliance in the ormal manner. Should theA n
appliance again burn back, close the ontrol valve and call a service technician. Do not use the appliance gainc a
until the service technician has declared that it is safe to do so.

- -3

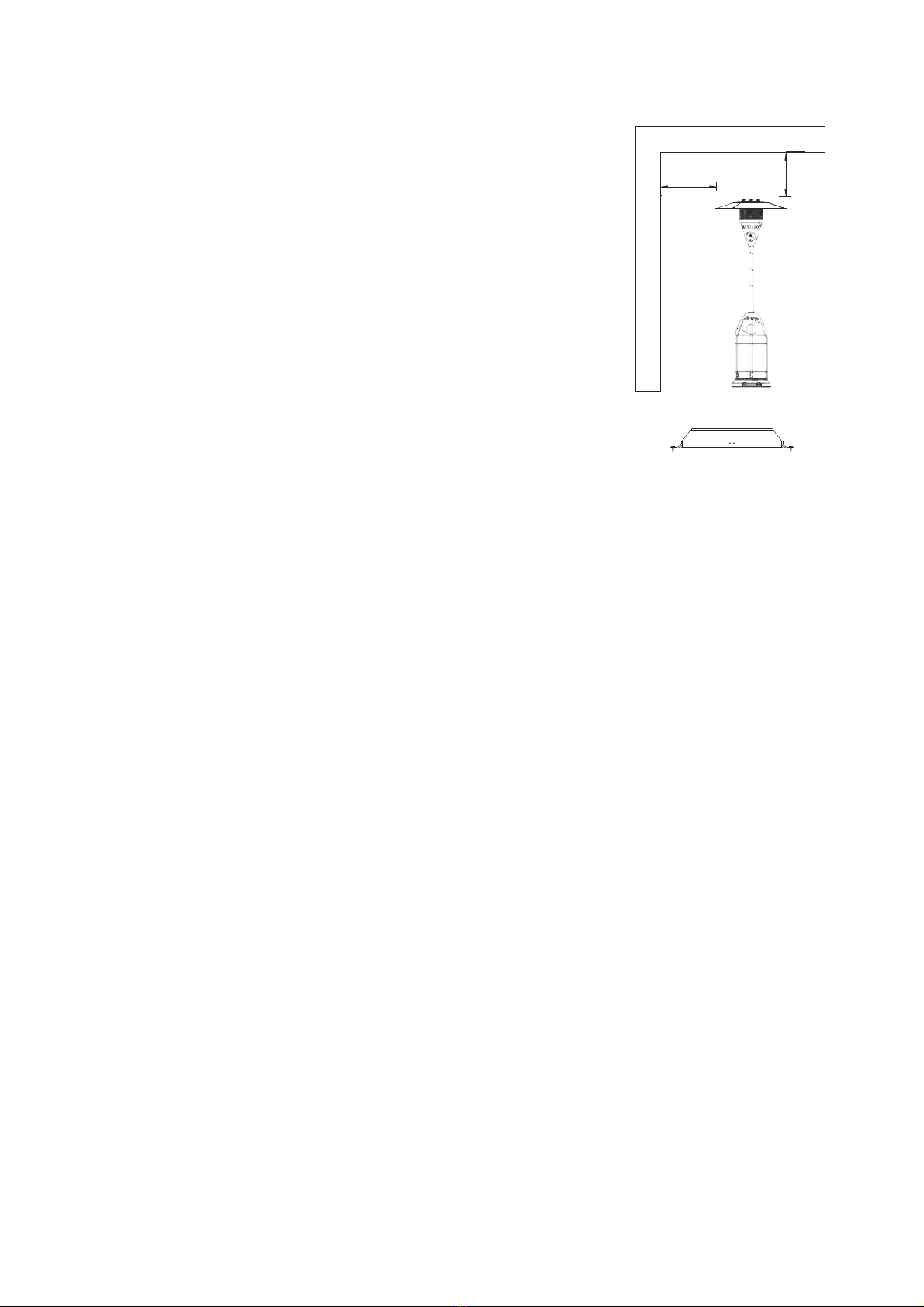

CEILING
W A L L
100 cm
100 cm
Fortification of base to the ground
Use a 9 kg LPG cylinder only
The hose must comply with the requirements of SANS 1156-2 or BS 2312
A dented, rusted or damaged LPG cylinder may be hazardous and should not be used
Never use a cylinder with a damaged valve connection
The cylinder valve must have a horizontal outlet with a G5/8 left hand thread to suit the regulator
Never connect the cylinder directly to the heater . A regulator must always be used
The regulator must comply with the requirements of SANS 1237.
The heater is for outdoor use only. Always ensure that adequate fresh air
ventilation is provided.
Always maintain proper clearance to combustible materials, i.e. top 100 cm
and sides 100 cm minimum.
Heater must be placed on level firm ground.
Never operate heater in an explosive atmosphere like in areas where petrol or
other flammable liquids or vapours are stored.
To protect heater from strong wind, anchor the base securely to the ground
with screws.
HEATER STAND AND LOCATION
GAS REQUIREMENTS
LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness
check must be performed at the installation site due to possible mishandling in shipment or excessive
pressure being applied to the heater.
Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied with a
spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-
check.
Never leak test while smoking.

OPERATION AND STORAGE
TO TURN ON THE HEATER
1. Open the Cylinder control valve
2. Press and turn the variable control knob to PILOT position (anti clockwise 90o)
3. Press down the variable control knob and hold for 30 seconds. Whilst holding down
the variable control knob, press the ignitor button several times until the pilot flame
lights. Release the variable control knob after the pilot flame lights.
Note:
If a new cylinder has been connected, please allow 1 at least minute for the air in the
gas pipeline to purge out through the pilot hole.
When lighting the plot flame make sure that the variable control knob is continuously
pressed down while pressing the ignitor button. The variable control knob can be
released after the pilot flame lights.
The pilot flame can be seen and checked from the small round window with a sliding
cover located at the bottom of the flame screen ( to the left or right side of the
controller).
If the pilot flame does not light or it goes out, repeat step 3.
4. After the pilot flame lights, turn the variable control knob to maximum and leave it
there for 5 mins. or more before turning the knob to the desired temperature position.
TO TURN Off THE HEATER
1. Turn the variable control knob to the Pilot position.
2. Press and turn the variable control knob to the OFF position.
3. Close the valve on the LPG cylinder.
Storage
1. Always close the cylinder control valve after use.
2. Remove the regulator and hose assembly
3. Store the cylinder in a clean dry place outside of and enclosed space. Never store the
cylinder in a basement area or below ground level.
Ignitor
Variable control knob
IGNITOR
4

- -5

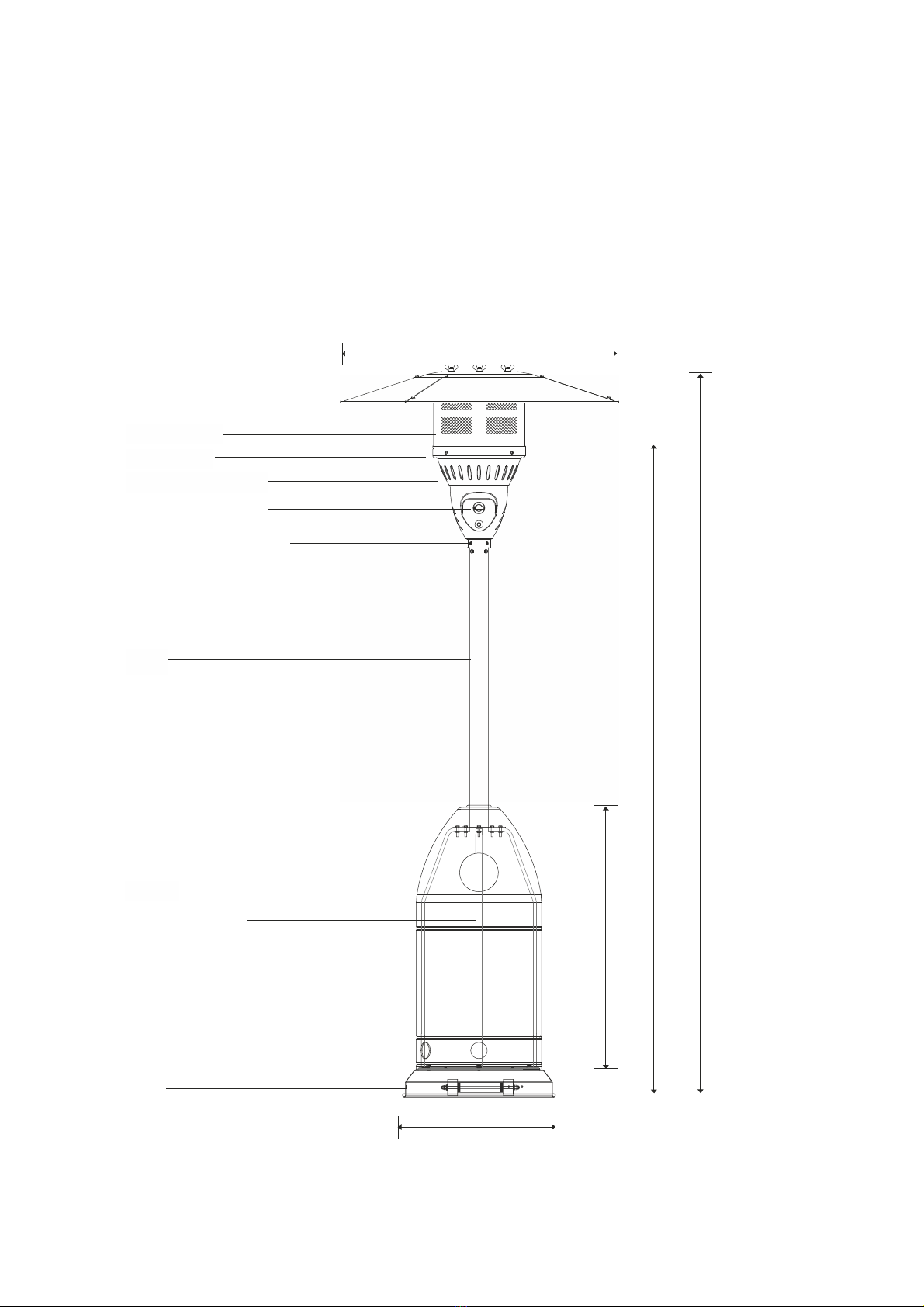

813 mm
460 mm
2222 mm
2003 mm
765 mm
CLEANING AND CARE
PARTS AND SPECIFICATIONS
Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with
cleaners that are combustible or corrosive.
Remove debris from the burner to keep it clean and safe for use.
Cover the burner unit with the optional protective cover when the heater is not in
use.
Reflector
Post
Cylinder
Stand
Cylinder housing support
Flame Screen
Burner Base
Air admittance fence
Gas valve controller
Base of control housing

- 6 -
ASSEMBLY PARTS
Tools needed:
Open end wrench 10 & 13 mm
Adjustable opening wrench (2) 20 cm long
Slip joint pliers 23 cm long
Philips screwdriver w/ medium blade
Spray bottle of soap solution for leakage test
Parts supplied:
3 pcs ground fixer
6
Stand with LPG cylinder housing and 3 post brackets.
9 Cup Nuts (M6 mm), 9 Small Screws (M6 x 10 mm), 9 Small Flat Washers (Ø 6 mm)
for Reflector Assembly.
6 Large Bolts and Flange Nuts (M6) for Support Legs/Main Pole Assembly.
3 Medium Bolts (M8 x 15 mm) for Support Legs/Stand Assembly.
3 Reflector Spacers and Wing Nuts, 9 Large Flat Washers for Reflector and burner Assembly.
pcs M6 x 10 mm ground fixer bolts & nuts

- 7 -
ASSEMBLY PROCEDURES
STEP 1
1-1. Put the 3 pcs post brackets on each position on the base as
shown in the picture.
1-2. Use 3 Medium Bolts(M8x15) to join the post brackets and stand.
STEP 2
2-1. Put the post on the top of 3 pcs post brackets.
2-2. Use 6 Large Bolts and Flange Nuts (M6) to connect the post to the
3 pcs post brackets. Tighten the bolts and nuts.
STEP 3
Place the tank housing on the stand.
Bolt
Post
STEP 2
Nut
Tank housing
STEP 3
Bolt
Stand
Square metal
support
STEP 1

- 8 -
STEP 4
4-1. Remove the 4 bolts from the burner.
4-2. Put the gas hose through into the post.
4-3. Fix the burner unit to the post by the 4 bolts.
STEP 5
5-1. Check whether the connection of vertical post and burner are
assembled according to instructions, and all bolts and nuts are
tightened.
5-2. Put 6pcs Large Flat Washers on 3 Reflector Spacers.
Fasten the reflector with 3 pcs Large Flat Washers and 3 pcs Wing Nuts.
STEP 4
Bolt
STEP 5
STEP 6-2
Reflector
Wing nut
Reflector Spacer
STEP 6-1
STEP 6-2
4 SLICES ALU.REFLECTOR INSTALLATION
Warning: remove protective cover before assemble.
6-1

- 9 -

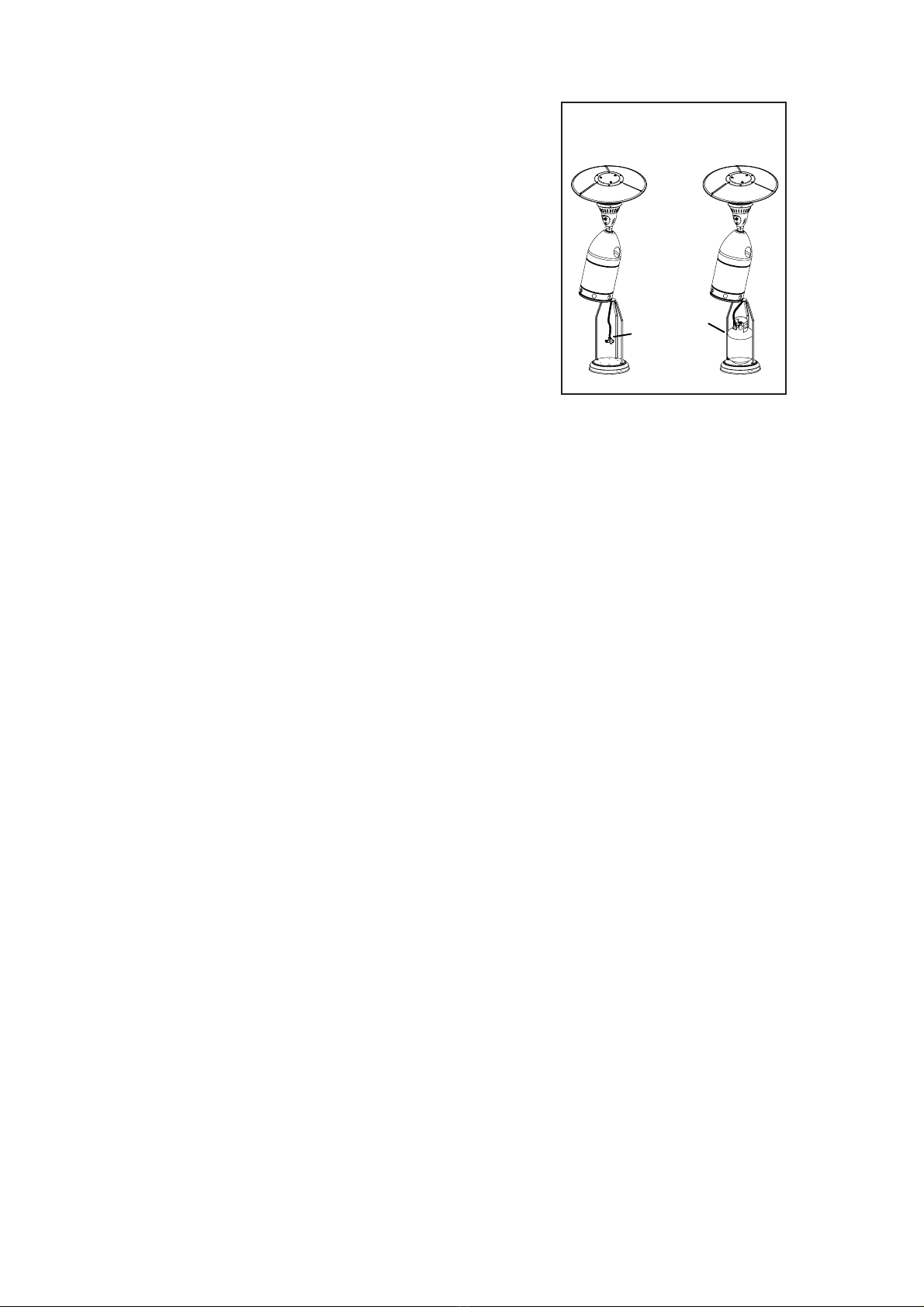

STEP 7
7-1. Bring up the housing and rest it on the post plate.cylinder
7-2. Connect the regulator to the gas tank and tighten it with adjustable
wrench.
7-3. Connect the end thread of inlet gas hose to the regulator.
7-4. Put LPG on the stand.cylinder
STEP 7
Regulator
Gas tank

Distributed by: D.K.Gas Appliances. PO Box 34191 Erasmia 0023
website: email: [email protected]
www.totai.co.za Issue 1a-2015
Name TOTAI
Model
Heat Output 13.0 KW
Gas Types LPG
Injector Size Ø 1.90mm x 1
Operating Pressure 2.8 kPa
Gas Consumption (at Max ) 940 g/h
PROBLEM PROBABLE CAUSE SOLUTION
Gas valve may be OFF Turn the gas valve ON
LPG cylinder empty Refill LPG cylinder
Orifice blocked Clean or replace Orifice
Air in supply system Purge air from lines
Pilot will not light
Loose connection Check all fittings
Debris around pilot Clean dirty area
Loose connection Tighten connection .
Thermocouple bad Replace Thermocouple
Gas leak in line Check connections
Pilot will not stay on
Lack of gas pressure LPG cylinder is near empty
Gas pressure is low LPG cylinder is near empty
Orifice blocked Remove, clean and replace
Control knob not ON Turn knob to ON .
Thermocouple bad Replace Thermocouple
Burner will not light
Pilot light assembly bent
or not in correct location .
Place pilot light in correct ositip on
and retry
Repairs to the patio heater may only be carried out by a qualified technician
TAMPERING:
Under no circumstances are you allowed to tamper with the jet sizes or modify anything on
the appliance. Not only is it dangerous , it will also nullify your warranty
NOTE:
GAS-PRESSURE REGULATOR—This appliance is designed to operate on a gas pre sures
of 2,8 kPa. A suitable bullnose regulator that complies with the requirements of SANS 1237
must be used with this appliance
Technical Specifications
Troubleshooting
FOR OUTDOOR USE ONLY
Specifications are subject to change without prior notice
16/DK1025
