Enders Ecoline 5560 User guide

ECOLINE
Expand your life
ECOLINE
PATIO HEATER
Infrared outdoor heater
Assembly and instruction manual
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 1 17.03.2009 13:35:36 Uhr

2
SW 7
SW 8
SW 13
SW 17
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
I. Assembly and instruction manual
Please store this instruction manual in a safe place for future use.
Please read the instruction manual carefully before using the patio heater.
Please pay particular attention to the safety instructions. The materials
and construction methods used in this device have been chosen to ensure
against malfunctions when used properly.
For safety reasons please wear safety gloves
whilst assembling the heater.
Assembly instructions for your patio heater
can be found on pages 8-18.

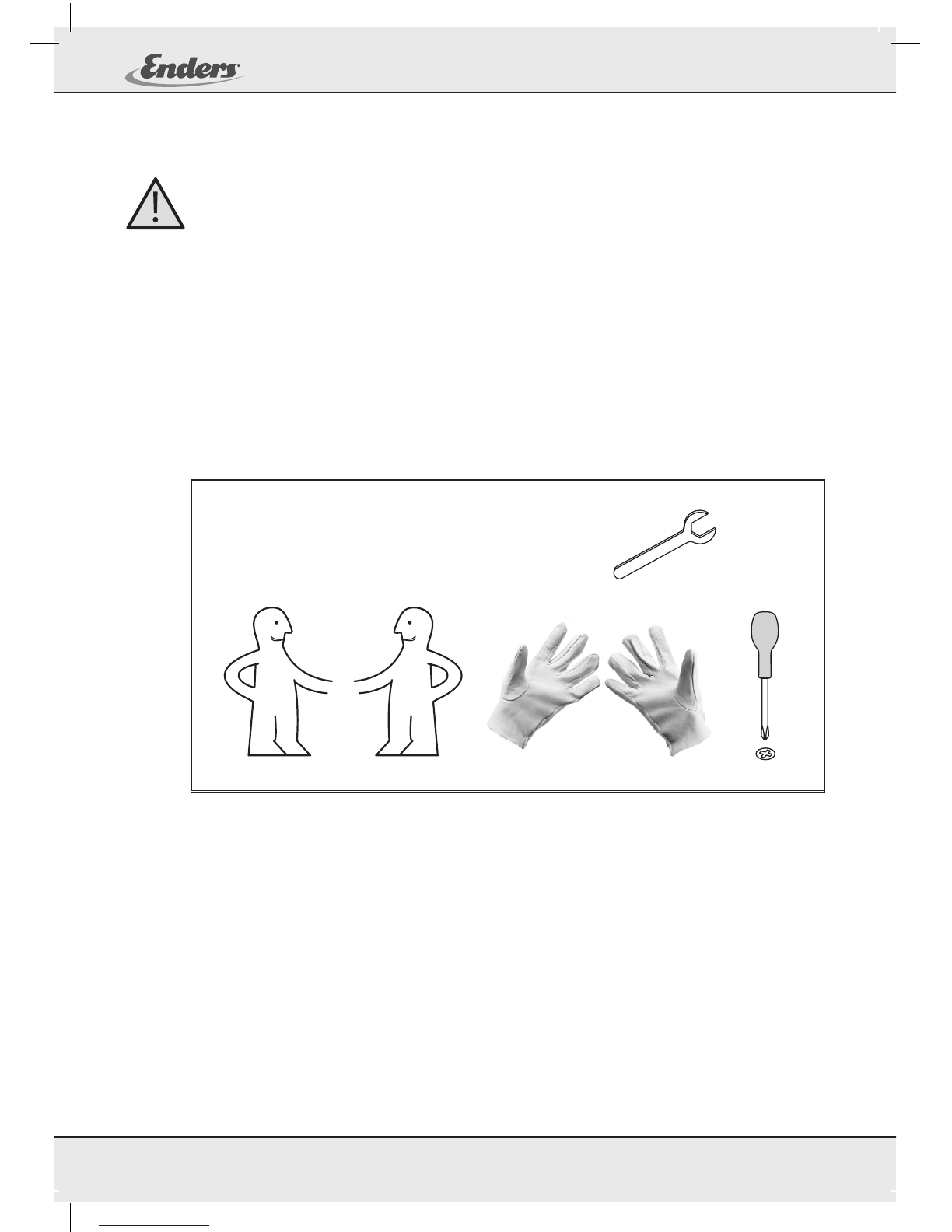

For assembly you will need:
II. Connecting the unit to the gas canister (Fig. 2)
The following parts are necessary to connect the appliance to the gas bottle:
- commercial propane/butane gas - liquid gas canister (5,10 or 13 kg)
- xed-valueDIN-DVGWapprovedpressureregulator(supplied),
1.5 kg/h, suitable for the gas canister, for operating pressure see
factory settings on the patio heater.
- DIN-DVGWapproved1.40mhose(supplied)
- approved leakage locating spray or foaming agent
 (e.g.EndersGas-Control-Sprayitemno.1196orsuds).
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 2 17.03.2009 13:35:36 Uhr

3Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
Gas canister connection:
1. Attach the pressure regulator (1) to the gas cylinder.
2. Connectthehosing(4)totheconnectoronthepressureregulator
using the clamp (20) provided.
3. Connectthegashosefromtheburner(5)tothegashosefromtheregulator(4)
using the quick coupler (6) provided.
4. Withtheregulatorvalve(2)open,checkthatnoneoftheconnectionpointsare
leaking gas. If there is no bubble formation, no leaks are present.
Never inspect for leaks when the heater is in use!
5. At this point the instruction manual supplied for the gas pressure regulator
should also be referred to.
The liquid gas canister should only be replaced in a well-ventilated room,
  awayfromnakedames(candles,cigarettes,etc)!
GB
31 Hose clamp
2 Regulator valve
Fig. 2
6Gashosetoregulator
1 Regulator
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 3 17.03.2009 13:35:36 Uhr

4Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
III.Note on commercial use
AccordingtoGermansafetyregulationsBGVD34(VBG21),aDIN30693
approvedhoseruptureguardandasafetypressureregulatorwithanexcess
pressurevalvemustbettedwhenusingtheheaterinacommercialsetting(e.g.
at fetes). A hose rupture guard and a safety pressure regulator are not supplied.
IV. Operating instructions
1. Open the canister valve (3)
2. Thetoggleswitchoftheburnerthatwillbeignitedmustbeinthe„ON“position!
Press the safety pilot button at the back of the pole until it
it catches and at the same time press the red piezo ignition button at
the front of the pole.
Keep the safety pilot button pressed for about 20 seconds
 afterignition.Thisactivatestheamecontrol.
In the rare case that the heater does not ignite after the piezo ignition button has
 beenpressed4or5times,repeattheprocedure5minutes
later.
Note:
Itispossibletoignitetheunitusingotherprimers(matches,resticks)
through the opening in the grid.
V. Switching off
1. To switch of the unit, close the canister valve (3).
2. To turn off a single burner, the toggle switch above the piezo ignition
button should be in the „OFF“ position.
VI. Turning on and turning off a single burner
Bothburnerscanbeturnedonoroffindependentlyofeachother.
TurningonisdescribedinpointIV.
TurningoffisdescribedinpointV.
VII. Storage tips
Remove the pressure regulator with the gas hose from the gas canister
by turning the cap nut (1) clockwise.
Always check that the sealants are intact.
If you discover or suspect damage,
contact your supply or lling station.
Never keep liquid gas canisters in the house,
underground or in airless rooms!
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 4 17.03.2009 13:35:36 Uhr

5Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
VIII. Important safety information
Note: Only use outdoors or in well-ventilated rooms.
 (Thedenitionofawell-ventilatedroomisthatatleast25%ofthesurrounding
area is open. The surrounding area is the sum of all wall surfaces.)
1. The unit must be installed and the liquid gas canister stored
according to the applicable regulations.
2. Thepatioheatermaynotbeusedinlivingareas,basements,ofcespaces
or similar.
3. The patio heater may only be used for heating purposes.
4. Theunitmustbeplacedonalevelandsolidsurface.
5. Keep all liquid gas bottles out of direct sunlight.
6. The unit must be placed in an area that has a volume of
at least 20 m3 per kW of nominal thermal stress and be well
ventilated (covered patio, beer tents, etc.)

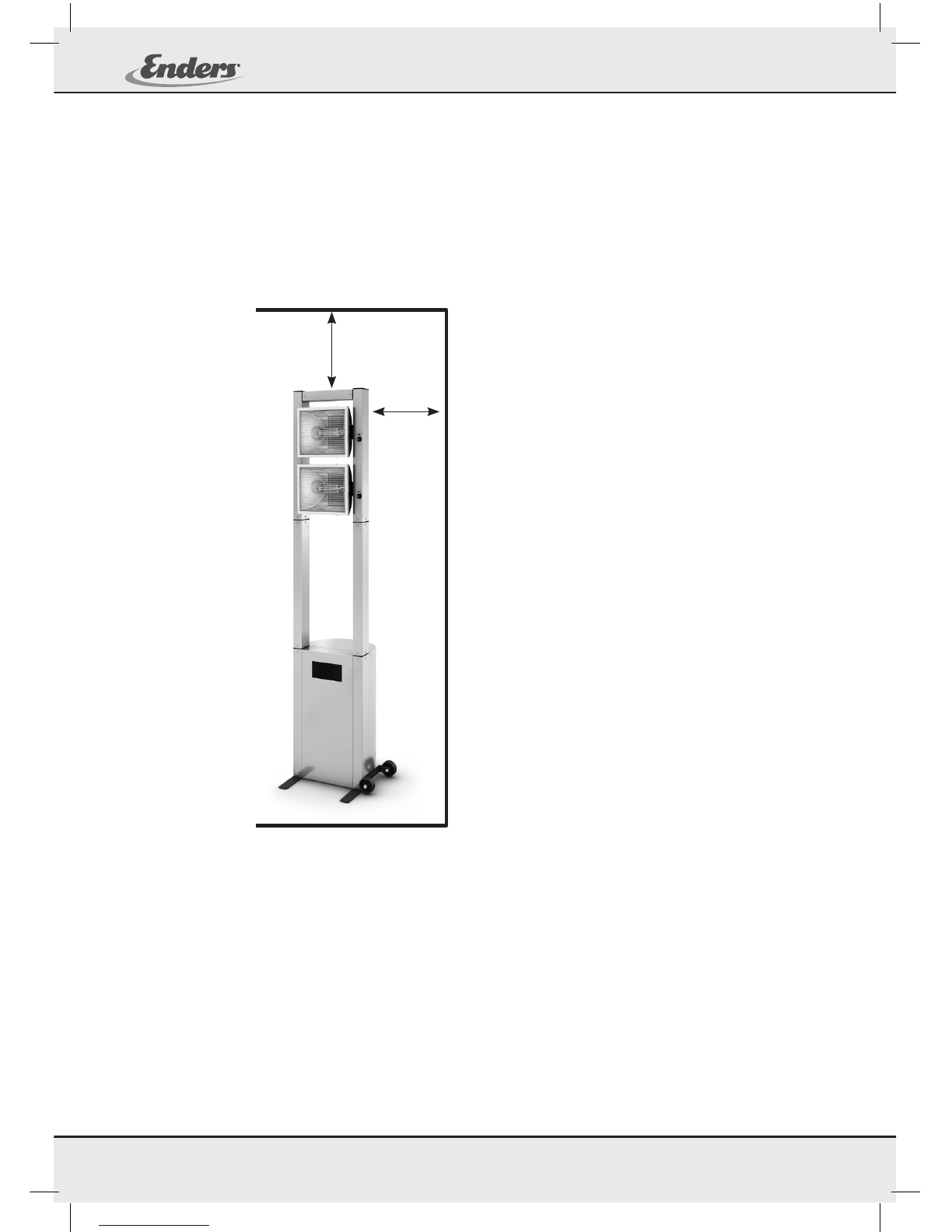

7. When in use, the unit must be placed at a safe distance from combustible
materials. The distance between the heat source
and combustible materials must not be less than 2 m in the direction of radiation.
 Distanceinotherdirectionstocombustiblematerialsmustnotbelessthan1m.
8. Checktheexistenceandthecondition(i.e.nodamage)
of the sealant on the canister valve,
 particularlywhenchangingthecanister.Donotuseanyadditionalsealants.
9. The patio heater may only be operated using an intermediary pressure regulator
 withanacceptableexitpressure(seetheunitratingplateandthefactory
settings).
10. Check the sealant of all connections immediately after assembly.
 Afoamingagent(EndersGas-Control-Spray,itemno.1196
or suds) should be used.
11. Repairs and maintenance of gas-technical components may only be carried out
by authorised professionals.
12. In case of malfunction, the canister valve (3)
should be closed.
13. The patio heater should be switched off and the canister removed from
the canister holder before moving the unit to another location.
14. Thegashosemustnotbebent.
15. The gas hose should be inspected for damage at least once a month
and each time the canister is changed.
16. Thegashoseshouldbeinspectedeveryveyearsbyanauthorised
specialist.
17. If the gas hose is damaged, it must be replaced by
a hose of the same quality and length.
18. The ventilation holes on the container sleeve of the
canister must not be covered.
19. Donotmovetheunitwhenitisswitchedon.
20. Onlyusethegastypesandcanistersrecommendedbythemanufacturer!
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 5 17.03.2009 13:35:36 Uhr

6
1 m
1 m
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
21. In case of strong wind, make sure that the unit
can not fall over.
22. When the unit is on, the gas canister should always be placed
in the designated container sleeve.
23. The use of gloves is recommended to prevent injury that may result
from sharp edges.
IX. Environmental recommendations and disposal measures
Beforedisposingofthepatioheater,itshouldrstbedismantledintoitsindividual
components. Metals, synthetic materials and the burner should be recycled.
X. Causes of malfunction
The patio heater is equipped with a tilt prevention device, making possible to encapsulate
the gas feed can in a ball during transit. In order to activate the gas feed, shake the burner
head gently so that the ball returns to its original position.
Ceiling
Wall
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 6 17.03.2009 13:35:37 Uhr

7Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
XII. Warranty
We offer a 2 year warranty on the operational function of the unit.
In order to claim on the warranty, the unit must have been properly handled
andofcialproofofpurchasemustbeshown.
We reserve the right to make technical and colour-related changes.
XIII. Manufacturer
EndersColsmanAG
Brauck1 58791Werdohl-Kleinhammer,Germany
Postfach4156 58791Werdohl-Kleinhammer,Germany
Tel.:  +49-(0)2392-978231
Fax:  +49-(0)2392-978270
E-mail: [e-mail]
Internet : www.enders-colsman.de
XIV. Warranty and Service Address
ENDERSUKLtd
Unit17,GlenmoreBusinessCentre/RangeRoad
Witney,OXONOX290AA/HELPLINE01993708495
[e-mail] for assistance and advice
XI. Technical data
This unit is authorised and approved in accordance with the
ECGasAppliancesDirective90/396/EWG.
Gastype:   (G30/G31)
Nominalthermalstress(Hs): approx.2x2kW
Connectedload:   approx.156g/hor312g/h
Height:    approx.2.10m
Countries Category mbar preset
DE,AT,CZ,HU,CY,MT I3B/P 50
DK,FI,LT,SE I3B/P 30
BE,CH,ES,FR,GB,
GR,IE,IT,LU,PT I3+ 28-30/37 X
PL I3P 37
IS,NL,NO,HU,CZ, I3B/P 28-30
SK,RO,EE,SI,LV
NL I3P 50
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 7 17.03.2009 13:35:37 Uhr

8
11 (5560/5570)
12 22 2x
23 2x
242x
25 2x
28
17
26 2x
27 2x
1314
15
28x(5560/5570)
24x(5580)
16
12x(5560/5570)
8x(5580)
18
4x
30
4x
19
6x
20 4x
21 4x
2
29
4
5
3
1
6
7
8
9
10
32
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
31 1x
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 8 17.03.2009 13:35:40 Uhr

9
14
19 12
17
810
30
1
2
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 9 17.03.2009 13:35:42 Uhr

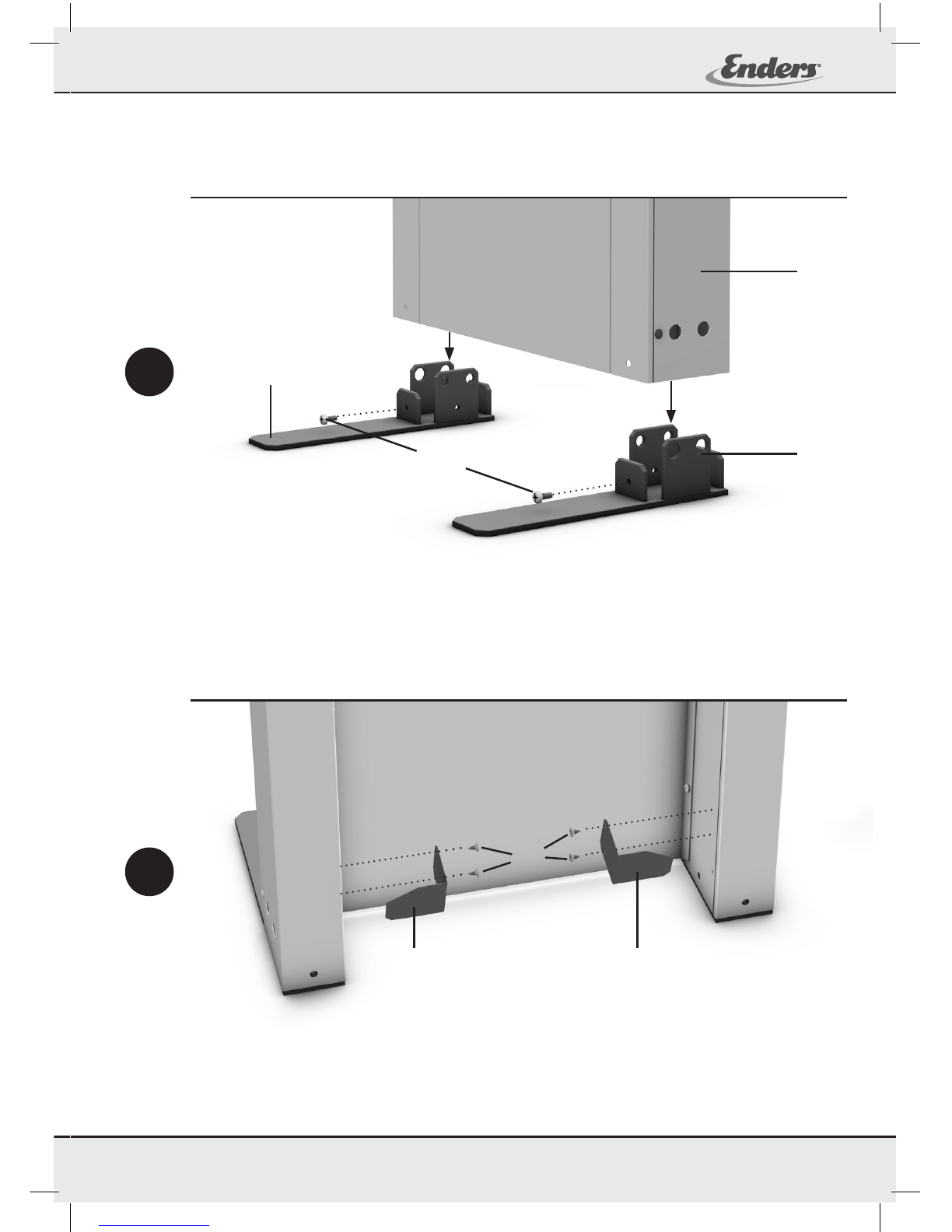

10
13
19
19
19
3
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 10 17.03.2009 13:35:43 Uhr

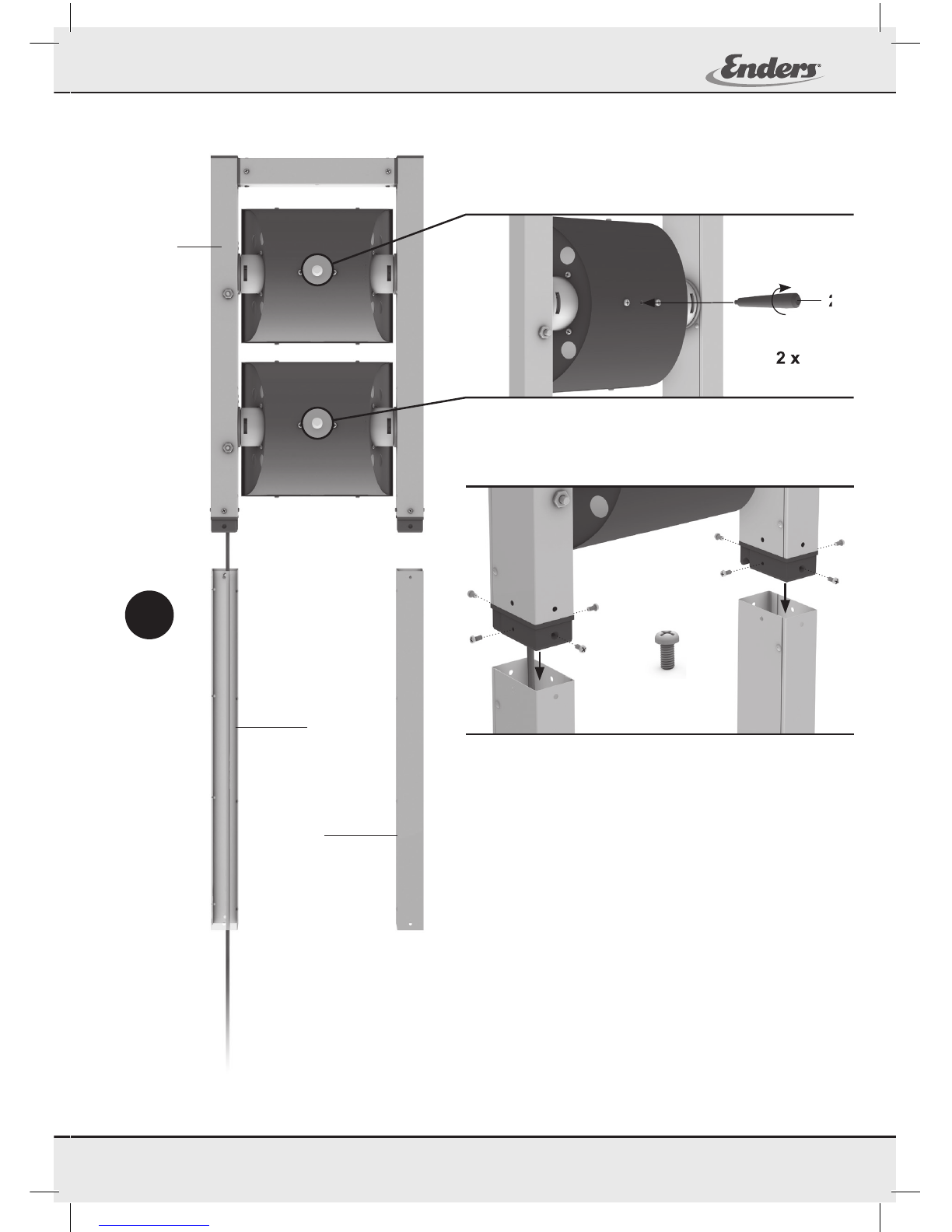

11
4
15
8x
2
1
29
2 x
3
29
2 x
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 11 17.03.2009 13:35:43 Uhr

12
15
8x
5
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 12 17.03.2009 13:35:45 Uhr

13
6
7
15
16
21
20
20
7
9
20
20 18
4
18
18
18
5
21
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 13 17.03.2009 13:35:46 Uhr

14
16 15
6
15
15
15
15
16
10
8
9
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
Applies only
to models
5560
5570
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 14 17.03.2009 13:35:48 Uhr

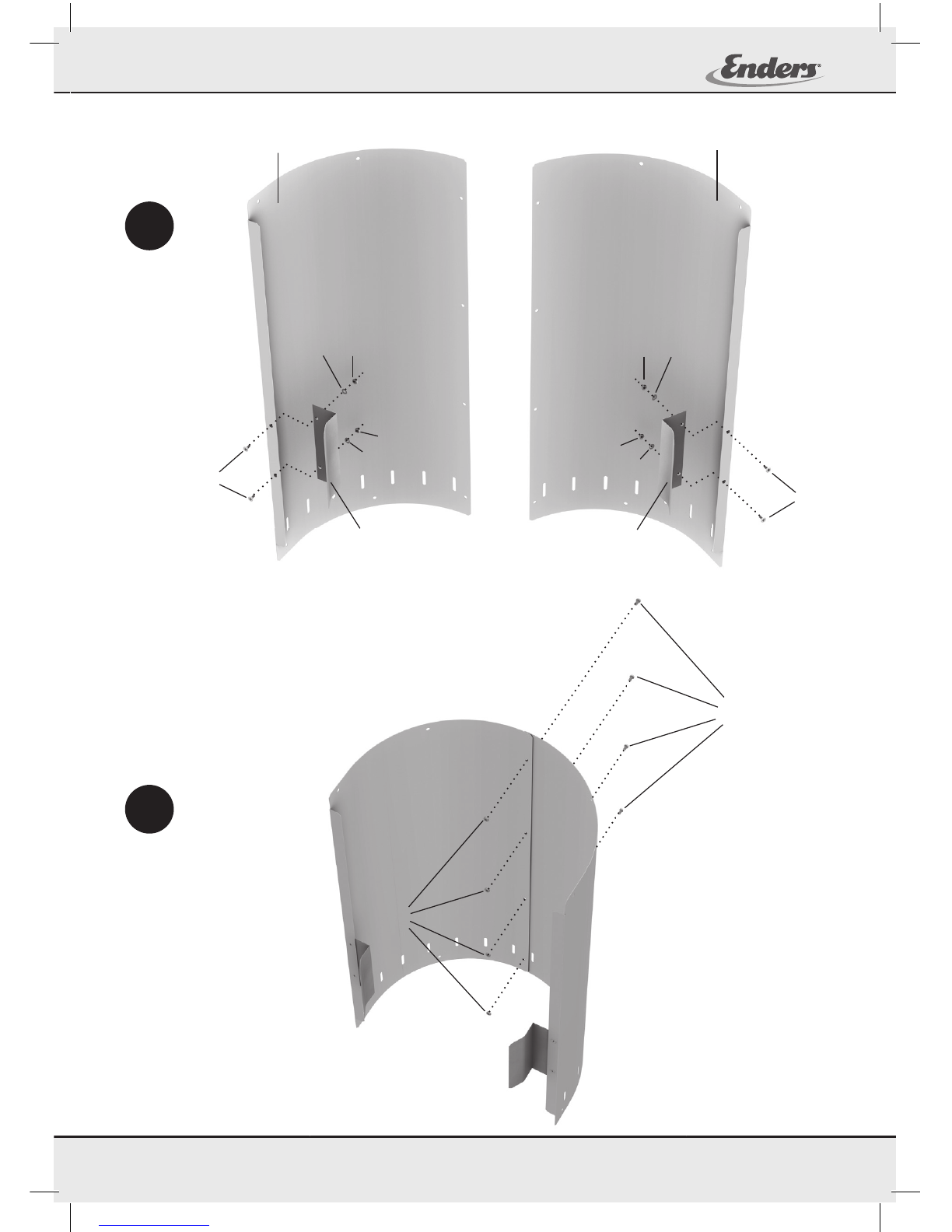

15
22
26
25
23
27
24
24
27
23
25
26
22
11
12
Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
GB
5560_5570_5580_Ecoline_DE_GB_FR_170309.indd 15 17.03.2009 13:35:49 Uhr

16 Assembly instructions ECOLINE 5560/5570/5580 17-03-2009
ENDERS Colsman AG
Brauck1
D-58791Werdohl-Kleinhammer
Telefon: (0049)-(0)2392-978231
Telefax: (0049)-(0)2392-978270
E-mail: [email protected]
Internet: www.enders-colsman.de
ENDERS UK Ltd
Unit17,GlenmoreBusinessCentre
Range Road
Witney, OXON OX29 0AA
HELPLINE01993708495
[email protected] for assistance and advice
GB
