TOTALINE P102-BB14A Manual

Manufacturer reserves the right to
discontinue, or change at any time,
specifications or designs without notice
and without incurring obligations.
REPLACEMENT COMPONENTS DIVISION
© CARRIER CORPORATION 3/01 LITERATURE NUMBER AC-1SI
PRINTED IN U.S.A. CATALOG NUMBER 570-617
Part Numbers: P102-BB14A, P102-BB20
IF YOU NEED HELP call toll free: 1-800-267-8305
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,2
Cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2,3
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Media Air Cleaner Installation . . . . . . . . . . . . . . . . . . . . 2
OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Filter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFETY CONSIDERATIONS
Read and follow manufacturer instructions carefully. Im-
proper installation may damage media air cleaner.
Recognize safety information. This is the safety alert sym-
bol . When the safety alert symbol is present on equipment
or in the instruction manual, be alert to the potential for person-
al injury.
Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety alert symbol.
DANGER identifies the most serious hazards which will result
in severe personal injury or death. WARNING signifies a haz-
ard which could result in personal injury or death. CAUTION
is used to identify unsafe practices which would result in minor
personal injury or property damage.
Installation and servicing of air-conditioning equipment can
be hazardous due to system pressure and electrical compo-
nents. Only trained and qualified service personnel should in-
stall, repair, or service air-conditioning equipment.
Untrained personnel can perform the basic maintenance
functions of replacing filters. All other operations should be
performed by trained service personnel. When working on air-
conditioning equipment, observe precautions in the literature,
tags and labels attached to the unit, and other safety precautions
that may apply.
Follow all safety codes. Wear safety glasses and work
gloves.
GENERAL
The Builder’s Box Media Air Cleaner is designed to re-
move atmospheric and household dust, pollen, mold spores,
bacteria, fungi, insecticide dust, animal dander, coal dust,
mites, cooking smoke and grease, tobacco smoke, and other
particles down to 0.3 micron (1/84,000 in.)
Airborne pollutants are carried through the return air ducts
of the heating/cooling system to the media air cleaner. The par-
ticles are captured by the filter.
The media air cleaner can be easily upgraded to an electronic
air cleaner for additional air filtration. Additional clearance
above the media air cleaner is required for electronic air cleaner
upgrade.
Regular maintenance (replacement of filters) is required by
the home owner.
COMPONENTS
See Fig. 1 for a description of the media air cleaner. See
Table 1 for media air cleaner specifications.
Cabinet — The cabinet is constructed of heavy gage galva-
nized steel. Holes are provided in the cabinet for easy mounting
in the ductwork or air-handling equipment. See Fig. 2 for cabi-
net dimensions.
Filter — The filter is constructed of polyolefin fibers that
will not shred or absorb moisture. The unique design of the fil-
ter includes a structured density gradient with a polarized
charge for higher initial and sustained efficiency. The filter me-
dia is supported by an open steel mesh and enclosed by a high
strength, beverage board. The filters have an Underwriters’
Laboratories Class 2 rating.
The efficiency of the filter is based on ASHRAE (American
Society of Heating, Refrigeration and Air Conditioning Engi-
neers) Standard 52.2P. The maximum velocity is 500 ft/min.
An arrow indicates direction of airflow.
IMPORTANT: Read entire instructions before
installing the builder’s box media air cleaner.
Before beginning any installation or modification, be cer-
tain that the main line electrical disconnect switch is in the
OFF position. Electric shock could result. Tag disconnect
switch with suitable warning labels.
INSTALLATION,
OPERATION, AND
MAINTENANCE
INSTRUCTIONS
Residential Duct Mount
Builder’s Box
Media Air Cleaner

2
Table 1 — Specifications
INSTALLATION
Location — The media air cleaner must be installed in the
return air duct, as close to the blower compartment as possible.
This location provides the most even airflow across the filter
and allows the media air cleaner to keep the system motor and
blower clean. See Fig. 3. When choosing location, there must
be adequate room to remove filters.
NOTE: Be sure to notify home owner not to install any device
within 3 ft from the side of the media air cleaner after installa-
tion is complete. Regular servicing of the media air cleaner is
required. A 3 ft clearance is required to remove filters for
maintenance or replacement.
Table 2 — Media Air Cleaner Pressure Drop
(in. wg)
INSTALLATION LOCATION WITH HUMIDIFIER — If
a separate humidifier is purchased, it should be installed in the
furnace warm air duct. However, a humidifier may be installed
in the return air duct without causing problems to the media air
cleaner. Care must be taken to ensure that the humidifier does
not leak, as this may cause damage to the media air cleaner and
mineral deposits on the filter.
An atomizing-type humidifier should only be installed
downstream of the media air cleaner. If the atomizing-type hu-
midifier is installed upstream, high humidity, salts, and miner-
als may damage the filter and cause service problems.
If the atomizing-type humidifier must be installed upstream,
the atomizing-type humidifier must be installed as far from the
media air cleaner as possible.
INSTALLATION LOCATION WITH AIR CONDI-
TIONER — Whenever possible, the media air cleaner should
be installed upstream of the cooling coil. This location will
clean the air before it reaches the evaporator coil.
Media Air Cleaner Installation — Perform the fol-
lowing to install the media air cleaner.
1. Remove the existing furnace filter. Thoroughly clean
the blower compartment and ductwork where the
media air cleaner is to be installed.
2. Remove access door by unscrewing plastic knob. Slide
the filter out of the cabinet.
3. Place cabinet in ductwork. Holes are provided to
attach cabinet to ductwork or equipment. If the adjoin-
ing ductwork is flanged, install the screws so that the
screw heads are inside the cabinet. This will help pre-
vent damage to filters during removal for cleaning.
When the air duct does not fit the media air cleaner
opening, a gradual transition is recommended to
reduce air turbulence through the media air cleaner and
to increase its efficiency. There should not be more
than 20 degrees of expansion used on each side of
the transition fitting. Do not reduce ductwork to a
smaller media air cleaner or it will increase the veloc-
ity of airflow.
4. If the media air cleaner is installed adjacent to an
elbow or angel fitting, turning vanes are recommended
to improve air distribution across the filter.
5. After media air cleaner has been secured, seal seams
airtight with duct tape or caulking to prevent dust from
entering the system.
6. Replace filter. Make sure arrow on filter is pointing
towards the fan. Replace the access door.
PART NUMBER P102-BB14A P102-BB20
House Size Area < 3000 ft2
< 278.70 m2
> 3000 ft2
> 278.70 m2
Airflow up to 1400 CFM
up to 2379 m3/hr
up to 2000 CFM
up to 3398 m3/hr
Duct Size 16 x 25 in.
405 x 635 mm
20 x 25 in.
510 x 635 mm
IMPORTANT: The media air cleaner will cause
more of a restriction of your heating or cooling sys-
tem than a regular furnace filter due to its increased
efficiency. As the filter collects contaminants, the
pressure drop increases. The media air cleaner is not
recommended in systems where pressure drop is
critical. See Table 2 for pressure drop information.
PART NUMBER CFM PRESSURE DROP (in. wg)
P102-BB14A 700
1400
0.077
0.26
P102-BB20 1000
2000
0.079
0.26
PLASTIC
KNOB

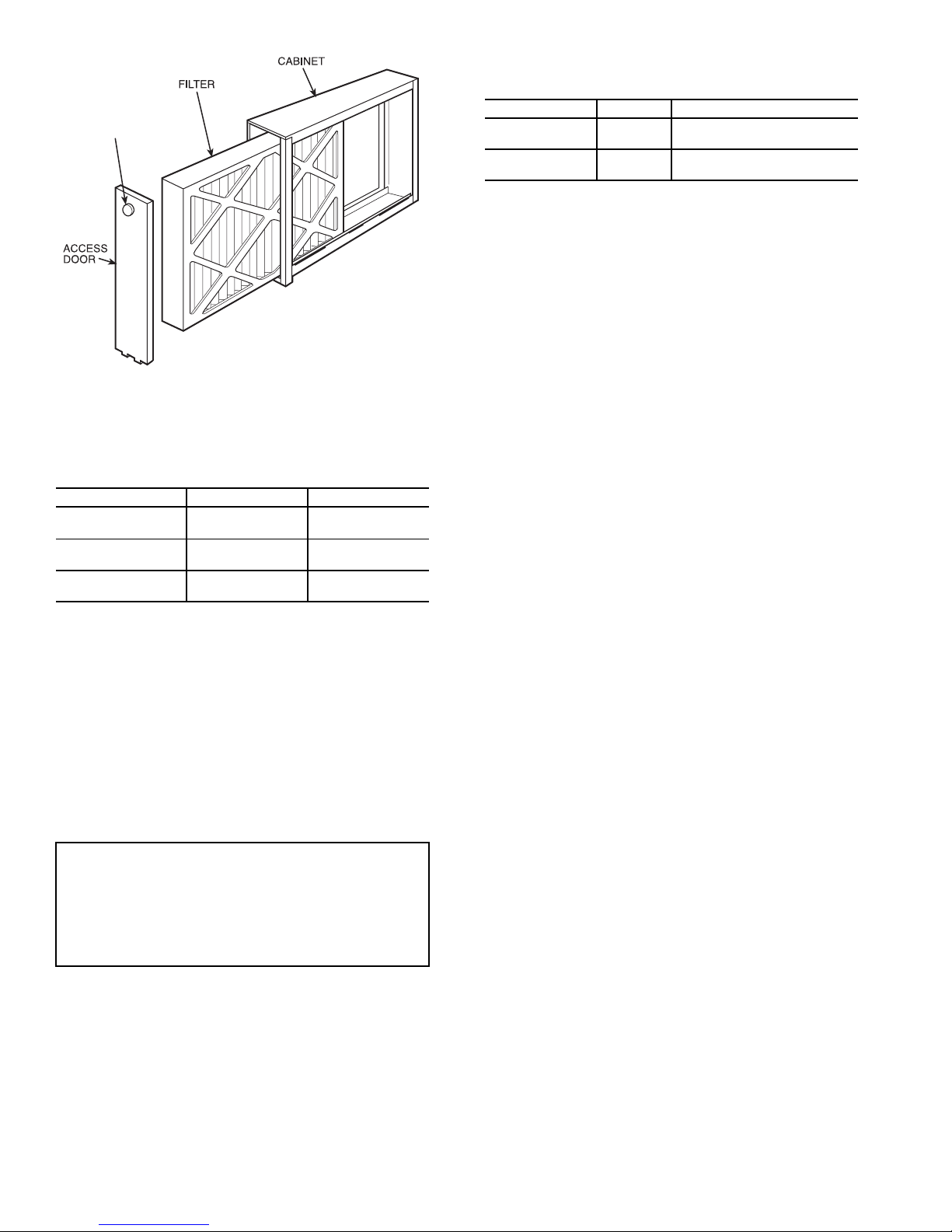

Fig. 1 — Media Air Cleaner

3
B
C
A
D
CC
7 1/2"
ACCESS DOOR
LEFT TO RIGHT
OR
RIGHT TO LEFT
AIR FLOW
RETURN AIR
RETURN AIR
MEDIA AIR
CLEANER
RETURN AIR
MEDIA
AIR
CLEANER
RETURN AIR
Fig. 2 — Dimensions
UNIT ABCD
P102-BB14A 171/16
(435)
26
(660)
1
(25)
21/8
(55)
P102-BB20 22
(560)
26
(660)
11/4
(30)
23/8
(60)
NOTE: Provide a 3 ft (.914 m) clearance for filter removal.
Fig. 3 — Media Air Cleaner Installation Location

4
OPERATION
For maximum performance of the media air cleaner, these
steps should be followed:
• run your heating/cooling system fan continuously
• remove furniture or carpets which block return air grilles
throughout your house, so that air moves freely to the
furnace
• check for proper operation of the blower fan on the
furnace
• ensure that the filter is not clogged.
After installation of the media air cleaner, you may notice
some white dust on table tops and shelves. Most heavy
particles (such as lint) settle quickly and do not get filtered
through the media air cleaner. To reduce lint and dust, use
continuous fan operation and keep return vents unrestricted to
create an efficient airflow.
MAINTENANCE
It is very important that the scheduled maintenance be done
by the home owner. If the filter is not changed on a regular
basis, the media air cleaner will not operate effectively.
Filter Replacement — The filter will need to be re-
placed once or twice a year, depending on the amount of con-
taminants in the air. See Table 2. If the filter becomes clogged,
airflow through the system may be restricted. This may cause
service problems with the furnace or air conditioner.
To replace the filter:
1. Turn off furnace fan.
2. Open media air cleaner access door by unscrewing
plastic knob.
3. Remove filter from cabinet and discard.
4. Install new filter. Make sure arrow points toward the
furnace fan.
5. Replace access door.
6. Turn on furnace fan.
Table 2 — Replacement Filters
Make sure to turn furnace off before performing any main-
tenance or removing air components.
PART NUMBER REPLACEMENT
FILTER PART NO. FILTER SIZE (in.)
P102-BB14A P102-1625BB 153/8x 251/2x 51/4
P102-BB20 P102-2025BB 201/4x 253/8x 51/4

5
MEDIA AIR CLEANER
LIMITED ONE-YEAR WARRANTY
LIMITED ONE-YEAR WARRANTY — This CARRIER CORPORATION product is warranted to be free from
defects in material and workmanship under normal use and maintenance for one year. The warranty does not
apply to replacement of the disposable media filter, which will need to be replaced once or twice a year depend-
ing on usage. A new or remanufactured part to replace the defective part will be provided without charge for the
part itself, through a qualified servicing CARRIER CORPORATION dealer or service PROVIDED the defective
part is returned to our distributor.
THIS WARRANTY DOES NOT INCLUDE ANY ADDITIONAL LABOR ALLOWANCE, or other costs incurred
for diagnosis, repairing, removing, installing, shipping, servicing, or handling of either defective parts or replace-
ment parts. SUCH COSTS MAY BE COVERED BY a separate warranty provided by the installer.
LIMITATIONS OF WARRANTIES — ALL IMPLIED WARRANTIES (INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY) ARE HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED
WARRANTY IS GIVEN. THE EXPRESSED WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE
AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER
PERSON WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING NORMAL WORK-
ING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR REMANUFACTURED, ASSUME AS THEIR
WARRANTY PERIOD ONLY THE REMAINING TIME PERIOD OF THIS WARRANTY.
CARRIER WILL NOT BE REPONSIBLE FOR:
1. Normal maintenance as outlined in the installation instructions including replacement of media filters.
2. Damage or repairs required as a consequence of faulty installation or application by others.
3. Damage or repair needed as a consequence of any misapplication, abuse, improper servicing, unauthorized
alteration or improper operations
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive atmosphere, or other conditions
beyond the control of CARRIER CORPORATION.
5. Parts not supplied or designated by CARRIER CORPORATION.
6. CARRIER CORPORATION products installed outside the continental U.S.A., Alaska, Hawaii and Canada.
7. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY
NATURE WHATSOEVER. Some states do not allow the exclusion of incidental or consequential damages, so
the above limitation may not apply to you.
Model No. Unit Serial No.
Date of Installation Installed by
Name of Owner Address of Installation
Replacement Components Division • Carrier Corporation
Syracuse, New York

Manufacturer reserves the right to
discontinue, or change at any time,
specifications or designs without notice
and without incurring obligations.
REPLACEMENT COMPONENTS DIVISION
©CARRIER CORPORATION 3/01 LITERATURE NUMBER AC-1SI
PRINTED IN U.S.A. CATALOG NO. 570-617
Your Assurance of Quality
ALL Totaline® products are backed with a one-year
warranty by Carrier Corporation, the world’s largest
manufacturer of air conditioning, heating, and
refrigeration products.
