Smartmi Air Purifier User Manual

1
Warning
READ AND SAVE THESE INSTRUCTIONS
· When the power cord is damaged, it must be replaced with a genuine
power cord purchased from the manufacturer or after-sales service
department.
· This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
· Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
· To reduce the risk of fire or electric shock, do not use this appliance with
any solid-state speed control device.
· This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician. Do
not attempt to defeat this safety feature.

2
Precautions
· Turn off and unplug the purifier before moving it.
· The purifier cannot turn on when the fan grille and the filter compartment cover are not installed properly.
· Maintain a distance of at least 20 cm between the air inlets and walls or other objects.
· The purifier must be placed on firm and flat floor.
· Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
· Frequently remove dust, hair, and other particles from the outer mesh screen of the filter, so as to reduce the chance of
bacteria growth.
· Remove dust, hair, and particles from the purifier's air inlets to prevent a reduction of air intake.
· Cover the air outlet to prevent dust, hair, and other particles from falling in when the purifier is left unused for a long time.
To avoid fire, electric shocks, or other damage, use the power cord and electrical outlet as instructed below:
· Do not excessively pull, twist or bend the power cord, as this may expose or break the cord's core.
· The power cord must be plugged into a suitable electrical outlet.
· Use the power cord that is provided with the purifier, do not use any third party power cords.
· Always unplug the purifier before carrying out maintenance to or moving the air purifier.
· Immediately stop using the purifier when it makes unusual sounds, gives off bad odors, overheats, or its fan rotates
irregularly.
· Do not stick your fingers or foreign objects into the protective parts, movable parts, air inlets, or air outlets.
· Keep objects such as hairs or fabrics away from the purifier to avoid blocking the air inlets or air outlets.
· Do not sit on, lean on or tilt the purifier.
· When using in conjunction with gas-fueled appliances (such as gas stoves, gas heaters), please ventilate sufficiently to avoid
carbon monoxide poisoning.
· Do not pour liquids, nor throw powders or other small substances into the purifier's air outlet.
Do not use the purifier in the following circumstances, as they may result in electric shocks, fire, or other damage:
· Near open flames, such as candles, incense burners, stoves, fireplaces, cigarettes, firecrackers, lighters, multipurpose
torches, candle lighters, or fire pans.
· Near appliances that generate high temperatures, such as electric heaters, fan heaters, electric foot warmers,electric stoves,
electric irons.
· Make sure no inflammable objects get into the purifier.
· In unstable locations where the purifier can easily fall over.
· In environments that are extremely hot, humid, or damp, such as bathrooms.
· To reduce the risk of fire or electric shock, do not use this appliance with any solid-state speed control device.

Product Overview
Screen wakeup button
TVOC sensor
Laser particulate
matter sensor
Filter cover
Power port
Temperature and
humidity sensor
OLED display
screen
Power button /
Operation mode
selection button
Front view Rear view
Fan grille
3
Read this manual carefully before use, and retain it for future reference.
Note: In this manual, the illustrations of the product and its accessories and the user interface are schematic diagrams for reference only.
The actual product may vary from that shown in the schematic diagrams due to product updates and upgrades. Please refer to the actual product.

Product Overview

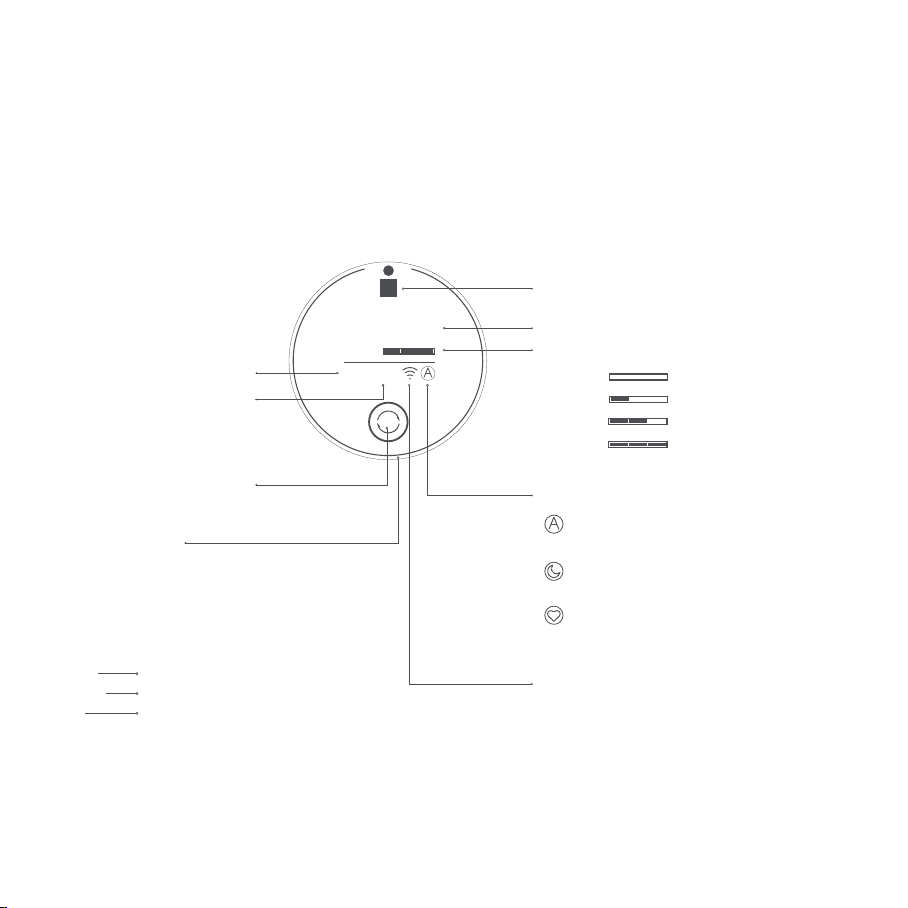

Screen display
4
Power button / Operation
mode selection button
Auto: Purification rate setting automatically
adjusts depending on IAQ.
Sleep: Purifier operates in ultra-low noise mode
for a favorable sleeping environment.
Favorite: Purification area and rate can be
configured and stored using the mobile app.
Operation mode
TVOC status indicator
PM2.5 level
Gesture control module
Temperature
Humidity
Wi-Fi status indicator
Air quality indicator
≤60
61—300
301—400
≥401
Green, orange, or red is displayed according to
the PM 2.5 level detected. Specifically, when
this value reaches certain threshold levels, the
corresponding color is displayed.
25℃
025
PM2.5
TVOC
35%
One of the colors below will display
according to the PM2.5 value
Green
Orange
Red
0-35 μg/m3
36-55 μg/m3
56 μg/m3and above

Installation
Placing the humidifier at an appropriate place Connecting to power supply
Note: For optimal air purification, keep doors and windows
closed during use.
Connect power cord to the power port at
the bottom of the main unit. Then connect
the power cord to a power socket.
To allow the purifier to operate as effectively as
possible, maintain a suitable distance between its air
inlet and obstructions such as walls (see figure above).
20cm
20cm
10cm
5

6
Use

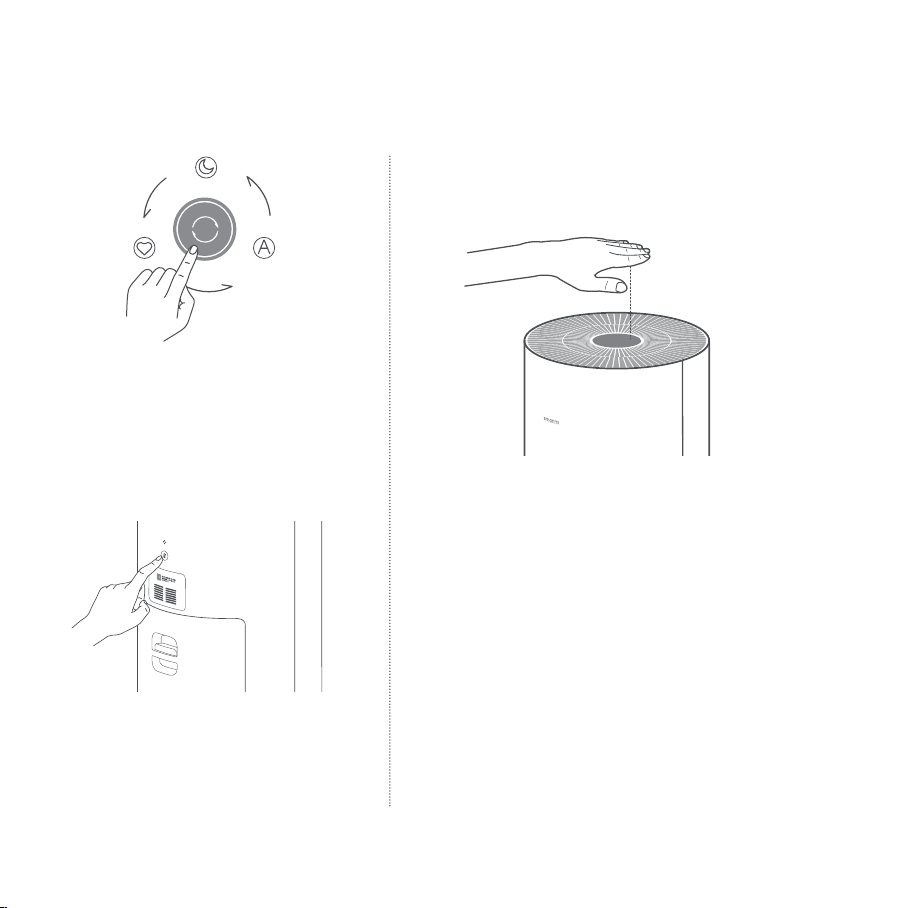

Power button / Operation mode
selection button
Powering off
Gesture control operations
QR code for installing "Mi Home/Xiaomi Home” app
Displaying remaining filter life (%)
Operation mode selection
Touch to power on the device. After
powering on, gently touch this button
to select operation mode; long press
(for 2 s) to power off the device.
While the device is powered on, hold your hand above the
screen for 6 s to power off it.
Gesture detection range:
less than 20 cm.
On the home page, air swipe up to display the QR code for
installing the "Mi Home/Xiaomi Home" app. Air swipe down to
return to the home page. The home page will be displayed if no
instruction is detected within 10 s.
On the home page, air swipe down to view remaining filter life
(%), and up to return to the home page. The home page will
be displayed if no instruction is detected within 10 s.
On the home page, air swipe left or right to select the operation
mode. The home page will be displayed if no instruction is
detected within 3 s.
Note: The gesture control function needs to be turned on in the app,
please install app first.
Screen wakeup button
Press the screen wakeup button at
the rear of the main unit to adjust
display brightness, or enable or
disable the display.

7
Resetting Wi-Fi
If your phone cannot connect to the purifier, press the
power operation mode selection and screen wakeup
buttons simultaneously, and hold for 5 s. An alert tone
will indicate that the Wi-Fi has been reset successfully.
Note: For details on how to replace
the filter, see "Filter Replacement"
instructions on rear side of filter cover.
Filter status reminder
Please install a
genuine filter
98% of filter life
remaining
2% of filter life
remaining
Note: Since it contains activated carbon, when saturated, the
filter will retain the odor of the harmful gases it has absorbed.
Leaving a used filter in a place with adequate light and
ventilation will allow the activated carbon to recover, partially
restoring the filter's absorption capability. Timely replacement
of the filter once the recommended filter life is over is advised.
Filter installation reminder
Filter not detected, or installed
filter is not genuine.
Filter life reminder
When the purifier detects
remaining filter life more than
10%, disconnect the power
and open the filter cover;
the filter life remaining will be
displayed on the screen.
1
2
Filter replacement reminder
Filters should be replaced
every 6–12 months. When
the purifier detects remaining
filter life of 10% or less, the
screen will display a QR code,
and the percentage filter life
remaining, each time the
purifier is powered on.
3
Connect with Mi Home / Xiaomi Home App
Scan the QR code to download and install the
app. You will be directed to the connection
setup page if the app is installed already. Or
search "Mi Home / Xiaomi Home" in the app
Store to download and install it.
Open Mi Home / Xiaomi Home app, tap "+" on
the upper right, and then follow prompts to add
your device.
*The app is referred to as Xiaomi Home app in
Europe (except for Russia). The name of the
app displayed on your device should be taken
as the default.
Note: The version of Mi Home app might have
been updated, please follow the instructions
based on the current app version.
This product works with Mi Home / Xiaomi Home app*.
Control your device with Mi Home / Xiaomi Home app.
Use

Maintenance and care

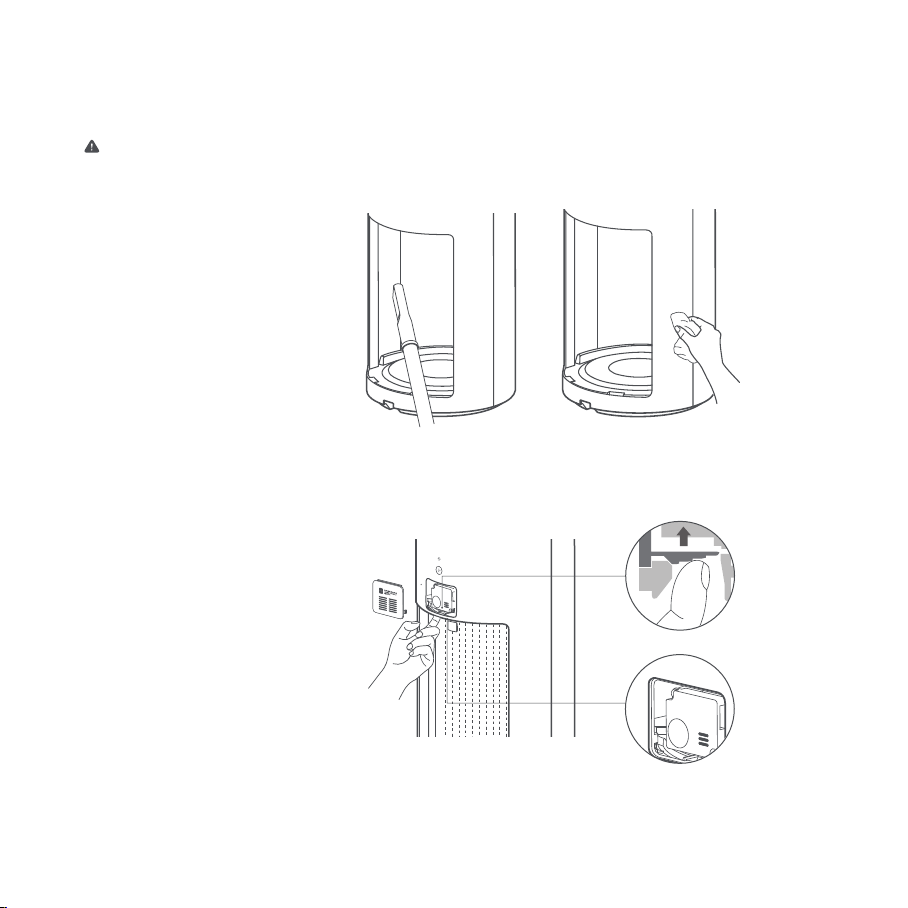

Cleaning the filter housing
Cleaning laser particulate matter sensor
To maintain optimal ventilation
and purification efficiency, remove
any dust on the ventilation holes
and housing walls using a vacuum
cleaner or soft cloth.
The catch of the particulate matter (PM)
sensor cover flap is on the rear cover just
above the filter housing. Press the catch
upwards and open the sensor flap (see
Figure a).
Clean the filter screen and sensor (located
as in Figure b) using an air blow gun or hair
dryer.
Power off purifier and disconnect it from the power supply before performing the following operations.
Note: Do NOT clean with hot air.
Note: Do not spray liquid onto the purifier's
casing, or wipe it using a wet cloth. This
could lead to drops of water leaking into the
base of the device.
8
Figure a
Figure b

Specifications
*Tested for particulate matter by third party lab as according to GB/T 18801-2015
Name Smartmi Air Purifier Rated Voltage 120 V~ Clean Air Delivery Rate
(CADR Particles) 400 m3/h
Model KQJHQ01ZM Rated Frequency 60 Hz
Formaldehyde Clean
Air Delivery Rate
(CADR Formaldehyde)
60 m3/h
Item
Dimensions φ260 × 535 mm Rated Power 40 W Particle Purification Efficiency High
Net Weight Approx. 4.9 kg Noise Level 64 dB(A) Formaldehyde Purification
Efficiency High
Recommended
Surface 28–48 m2* Wireless Connectivity Wi-Fi IEEE 802.11 b/g/n 2.4GHz
9

FCC ID:2AP98-KQJHQ01ZM
Contains FCC ID : 2AC7Z-ESPWROOM32D
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Limited by local law regulations, version for North America does not have region selection option.
To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the
antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
10

V-20201106-Y
Manufactured by: Beijing Smartmi Electronic Technology Co., Ltd.
Address:Room 201-203, Unit 6, Building A, No. 66,Zhufang Road, Qinghe, Haidian District, Beijing
