TotalPond A20010 User manual

1
ITEM # A20010
Starter Pond Kit

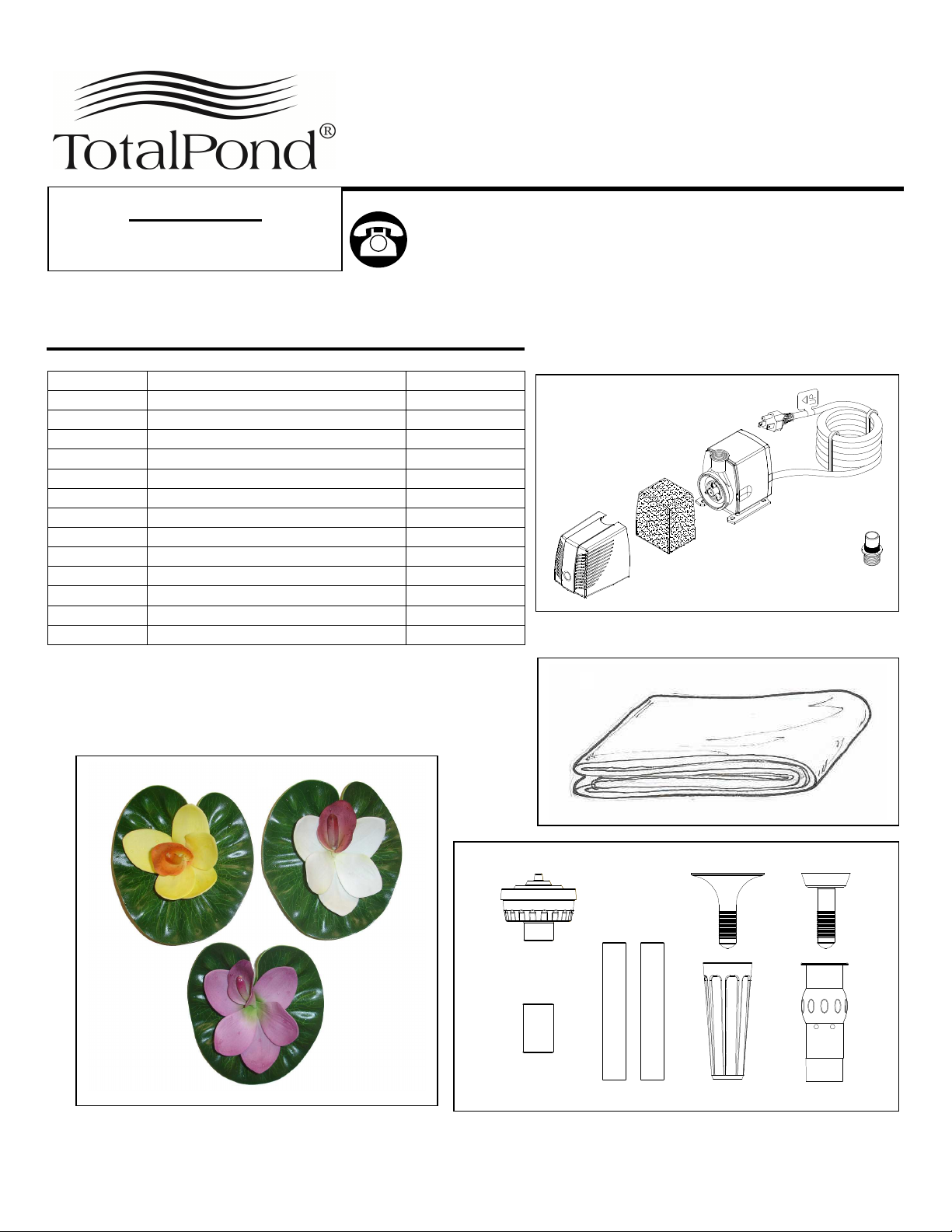

PACKAGE CONTENTS
Part Description Quantity
A Pump 1
B Adapter 1
C Filter block 1
D Filter cover 1
E Coupler 1
F 3-tier fountain head 1
G Extension tube 2
H Fountain head base 1
I Waterbell fountain head 1
J Trumpet fountain head 1
K Foam-jet fountain head 1
L PVC pond liner (7 ft. x 10 ft.) 1
M Floating Lilies 3
Questions, problems, missing parts?
Before returning
to your retailer, call our customer service department at
1-888-412-6001, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail]. Or
visit our website www.totalpond.com.
D
C
F
G
B
A
H
J
K
G
I
L
M
E
REMINDER
CALL 1-888-412-6001
BEFORE RETURNING TO STORE.

2
WARNINGS AND CAUTIONS – PUMP
WARNING
•Risk of electrical shock. This pump is supplied with a grounding conductor and grounding–type
attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly
grounded, grounding-type receptacle (GFCI).
•Do not exceed the voltage shown on the pump.
•Always disconnect pump from the power source before beginning any maintenance or work on the
pump.
•Inspect cord for damage before installation and/or maintenance. Replace the entire pump assembly if
damage is found.
•Do not remove the grounding pin from the power cord plug.
•To reduce the risk of electric shock, use only on portable, self-contained fountains no larger than 5 ft. in
any dimension.
•Risk of electrical shock – This pump has not been investigated for use in swimming pools or marine
areas.
CAUTION
•This pump has been evaluated for use with water only.
•Use a proper power source as indicated on the pump label.
•Keep the cord away from high temperatures or other heat sources.
•Do not pump heated liquids.
•Do not let the pump run dry. Pump must be completely submerged for proper operation and cooling.
•Operate in fresh water only. Avoid heavily chlorinated water and water with high pH levels.
•Do not lift the pump by its power cord.
PREPARATION
–
LINER
Before installing your pond liner, make sure it is in good condition with no tears or holes. If you find any
damage, do not attempt to install the liner. Contact customer service for a replacement.
•Estimated Assembly Time: 2 hours
•Tools Required for Assembly: Sand, Shovel.
NOTES
–
LINER
Calculate the dimensions of your pond. Your pond should be at least 18 in. deep at the deepest point.
Allow for a 10 in. overlap around the perimeter of the pond. The 7 ft. x 10 ft. liner will create a pond that is
approximately 3 ft. x 6 ft. x 18 in. deep. It will hold approximately 200 gal. of water.
INSTALLATION INSTRUCTIONS
–
LINER
1. Use sand to mark the outline of your pond. Fig. 1
Fig. 1

3

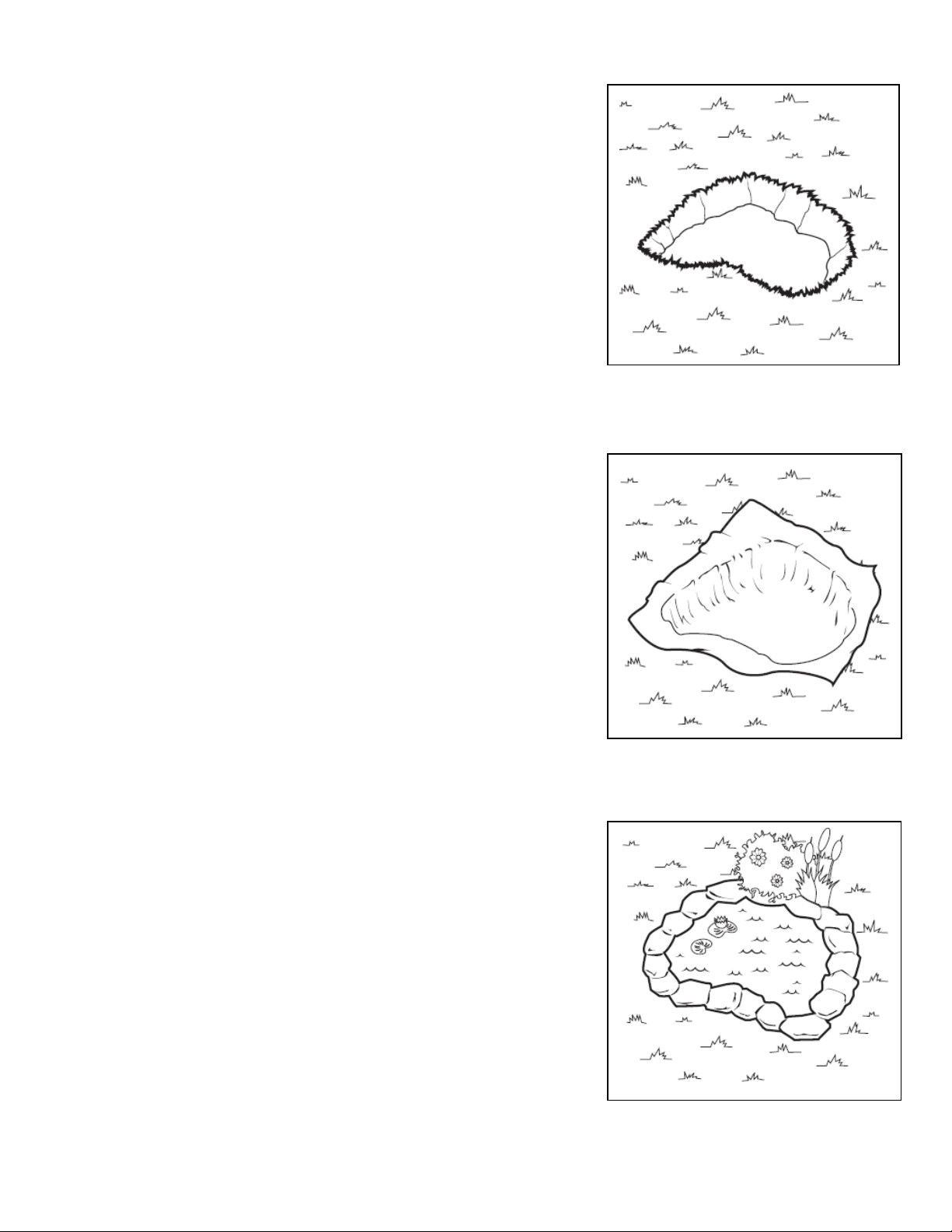

2. Dig out your pond and remove any debris or rocks that might
damage your liner. Add approximately 2 in. of sand to the
pond area. The sand functions as a cushion beneath your
pond liner. Spread the sand over the entire area and
compact it. Fig. 2
Fig. 2
3. Open the liner and drape it across the pond area, making
sure to leave at least 10 in. of overlap around the perimeter of
the hole. Begin to fill the pond with water, smoothing out any
wrinkles as you do this. Fig. 3
Fig. 3
4. When the pond is full, bury the excess liner in a small trench
around your pond with stones and rocks, according to your
landscape design. Fig. 4
Fig. 4

4
ASSEMBLY INSTRUCTIONS
–
PUMP AND PREFILTER
1. Place the filter block inside the filter cover. Fig. 5
Fig. 5
2. Connect the pre-filter to the pump. Fig. 6
Fig. 6
ASSEMBLY INSTRUCTIONS
–
FOUNTAIN HEAD KIT
1. Connect the two extension tubes with the coupler. Fig. 7
Fig. 7
Filter block
Filter cover
Pump
Pre-Filter
Extension
tube
Extension
tube
Coupler

5

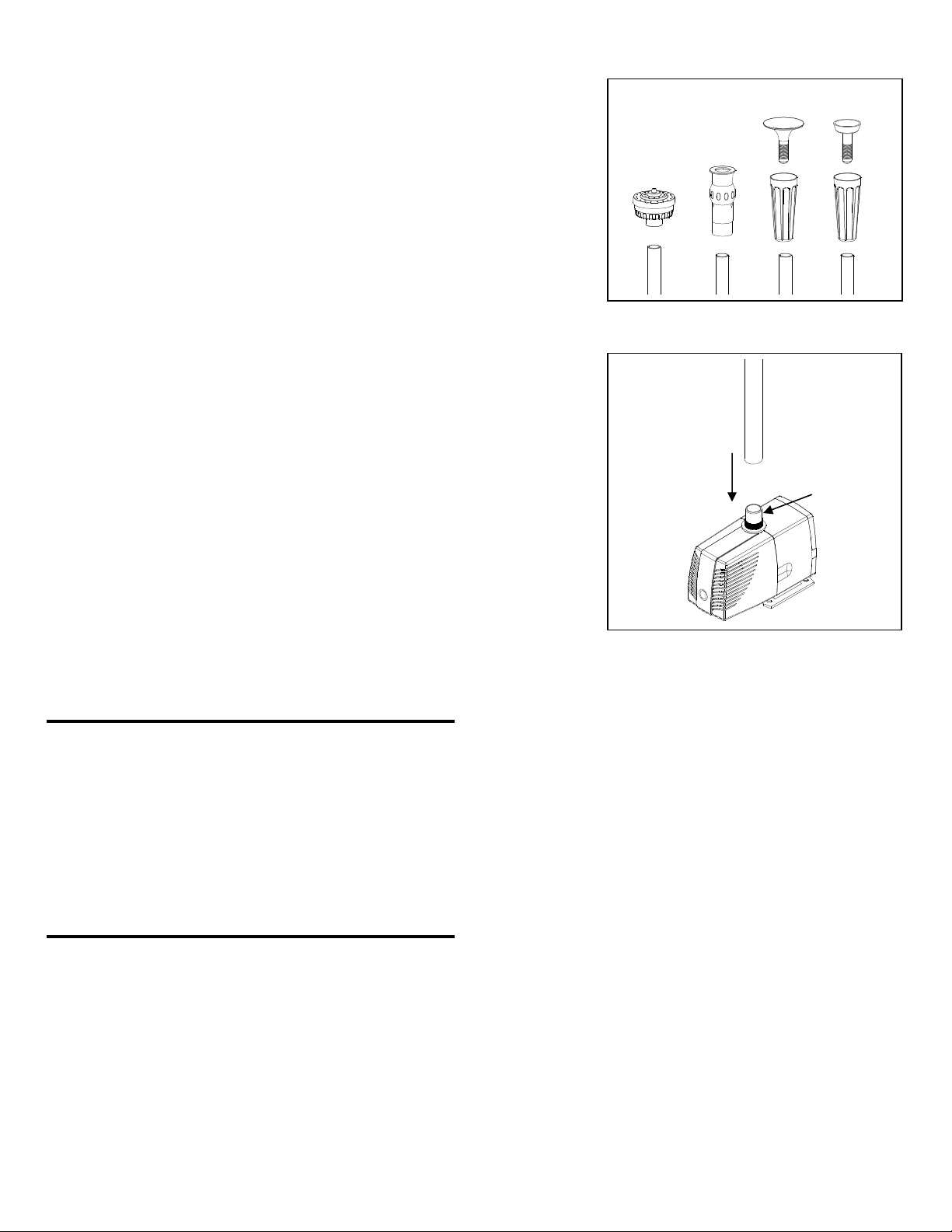

2. Choose a fountain head for the desired water effect, and
assemble your choice as shown in Fig. 8
Fig. 8
3. Insert the assembled fountain head kit onto the outlet of the
pump using the adaptor supplied in the kit. Fig. 9
Fig. 9
CARE AND MAINTENANCE
Pump
•Keep water clean to prolong the life of the pump. Use of distilled water will reduce mineral deposits.
•Regular cleaning of the pump may be necessary depending upon the environment in which it is
operated. Clean the pump when it is visibly soiled or when a drop in performance is detected.
•Before cleaning, always disconnect the pump from the power source.
•Remove all parts from the pump and clean in warm, soapy water.
•Disassemble the pump cover and remove the impeller cover to expose the impeller assembly.
Remove the impeller assembly by gently pulling on the impeller blades. Use a soft cloth or brush
to clean the impeller assembly and the inside of the impeller housing.
TROUBLESHOOTING
If the pump fails to operate:
•Check to make sure the power cord is plugged in and the pump is getting power.
•Check the pump outlet and any tubing, fountains, spitters etc. for kinks or obstructions.
•Remove the inlet screen and/or pump cover, and impeller cover to expose the impeller. Turn
the impeller to ensure that it is not broken or jammed.
If the performance of the pump is not satisfactory or the pump does not flow evenly:
•Check to make sure the pump is completely submerged in water.
•Check to make sure the impeller and the housing are clean.
G
F
K
H H
I
Extension tube
Adapter
Pump
G G G
J

6

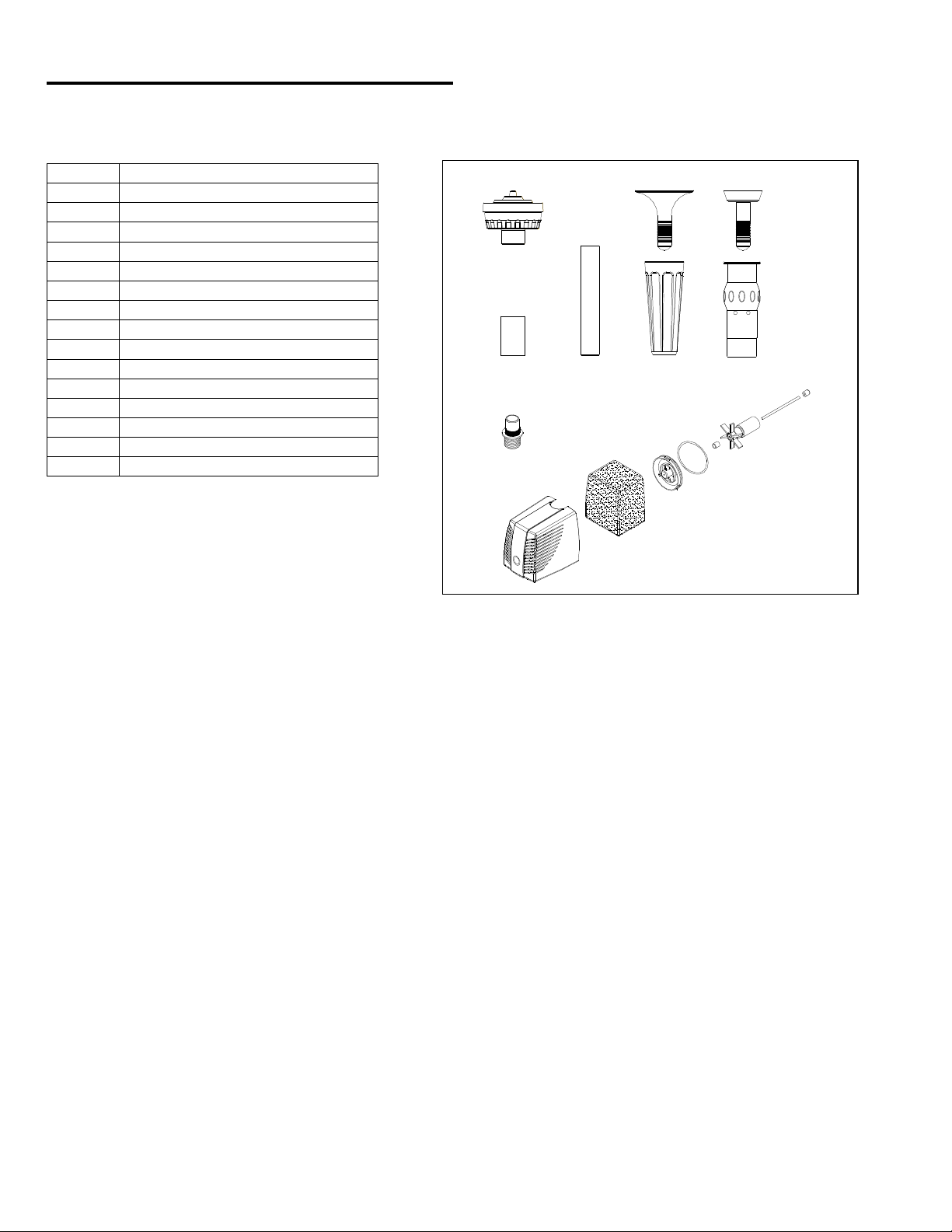

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department
at 1-888-412-6001, 8 a.m.-6 p.m., EST, Monday-Friday.
Printed in China
Part Description
B Adapter
C Filter block
D Filter cover
E Coupler
F 3-tier fountain head
G Extension tube
H Fountain head base
I Waterbell fountain head
J Trumpet fountain head
K Foam-jet fountain head
N Impeller cover
O O-ring
P Shaft support
Q Impeller assembly
R Shaft
J
K
I
G
H
B
C
D
E
F
N
O
P
P
Q
R

7
LIMITED WARRANTY
All pumps and electrical products are warranted to the user against defective material and workmanship,
under normal working conditions. This warranty period begins on the date of purchase by the original
purchaser.
All TotalPond® electrical products are warranted to the user against defective material and workmanship,
under normal working conditions for 1 year from the date of purchase. All TotalPond® liners are warranted
to the user against defective workmanship, under normal working conditions for 20 years from the date of
purchase. All other TotalPond® product is warranted to the user against defective material and
workmanship, under normal working conditions for 90 days.
Application
Warranty covers only properly installed and maintained units. Pump warranty is limited to applications
pumping fresh water in a pond or fountain only. Other liquid applications or extreme temperature uses
must be approved in writing by the manufacturer. Receipt and product date code are required for warranty
claims.
Warranty Claim
Warranty claims must be made by calling customer service (at 1-888-412-6001). If the item is
determined to be defective, you will be given authorization to return the defective part(s), freight pre-paid,
along with proof of purchase.
Disposition
The manufacturer will make a good faith effort for prompt disposition regarding all warranty claims.
Returned product will be inspected to determine cause of failure before warranty is applied. Warranty does
not cover any costs associated with the shipping, handling, installation or removal of products or parts
subject to this warranty. For products damaged in transit, a claim should be filed with the carrier.
Disclaimer
Any oral statements made about the product by the seller, the manufacturer, the representatives, or any
other parties do not constitute warranties, should not be relied upon by the user, and are not part of the
contract for sale. The seller’s and manufacturer’s only obligation, and buyer’s only remedy shall be for the
manufacturer to either replace and/or repair at the manufacturer’s sole discretion, the product as described
above. Neither seller nor the manufacturer shall be liable for injury, loss or damages for lost profits, lost
sales, injury to person or property, or any other incidental or consequential loss arising from any cause
whatsoever, no matter whether based upon warranty, contract, negligence or other misuse, and the buyer
and user agree that no other remedy shall be available to them. Before using, the buyer and user shall
determine the suitability of the product for the intended use, and assume all risk and liability whatsoever in
connection therewith. The warranty and remedy described in this limited warranty is an exclusive warranty
and remedy in lieu of any other warranty or remedy expressed or implied. All other warranties and
remedies are hereby expressly excluded, including but not limited to any implied warranty of
merchantability of fitness for any particular purpose. This warranty gives the buyer and user specific legal
rights, and buyer and user may also have other rights which vary from state to state. Some states do not
allow exclusions or limitations of incidental or consequential damages, so the above limitations or
exclusions may not apply to you.
