Toto Link CP150 User manual

Manufacturer: ZIONCOM ELECTRONICS (SHENZHEN) LTD.
ADD: Room 702, Unit D, 4 Building Shenzhen Software Industry Base,
Xuefu Road, Nanshan District, Shenzhen, Guangdong, China.
Website: http://www.totolink.net
Copyright ⓒ TOTOLINK., All rights reserved.
Information in this docutment is subject to change without prior notice.
V2.0 | 2008
User Guide
Wireless Outdoor CPE
Suitable for: CP150, CP300

Contents
01
1.1 Device Mounting 01
1.2 Network Connection 02
1.3 Port, Button, LED Indicators Description 03
06
05
08
08
11
13
15
04
FAQs 19
1. Hardware Installation
2. Typical Application
5.3 Repeater Mode
5.4 WISP Mode
5.2 Client Mode
3. Set Up PC
4. Configure the Device
5. Working Modes
5.1 AP Mode

0201
1. Hardware Installation
1.1 Device Mounting
Pole Mount
Wall Mount
1. Attach the groove part of the device to the pole.
2. Thread through the hole of CP300 and ties the
straps firmly on the pole.
1. Drive the nail into the wall and make sure the nail
position is exactly matching the device.
2. Hang the CP300 on the wall.
1.2 Network Connection
PC
Note
1.Locate a suitable mounting site for your CPE. For choosing the best location, select an
elevated location where trees, buildings and large steel structures will not obstruct the
antenna signals and which offers maximum line-of-sight prop-agation with the users.
2.Adjust the direction of your CPE for a best signal. Place the straps through the slots on
the back of the CPE and then around the pole. Tighten the Straps.
3.Please make sure the two CPEs are placed face to face, otherwise the wireless signal
strength might be weak.
PoE Power Adaptor
DCP026
Switch

03 04

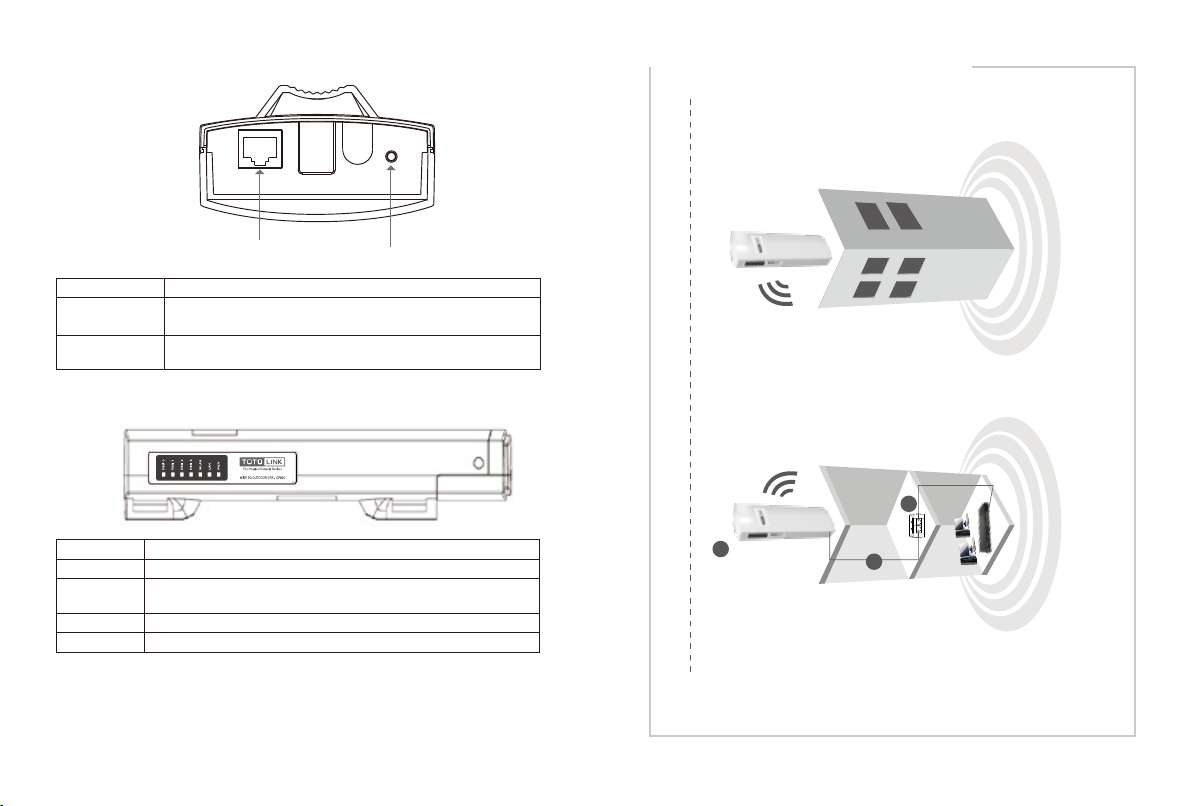

1.3 Port, Button, LED Indicators Description
Port and Button
LAN
Reset
Description
This port is used to access RJ45 cable to connect to PoE Power
Adapter, meanwhile realize data transmission.
With the CPE powered on, press and hold the button for about 10
seconds, the CPE will reboot to factory default settings.
LED Indicator
POWER
LAN
WLAN
Signal
Description
The POWER LED will light blue when properly connected to a power source.
This Ethernet LED will light solid blue when an active Ethernet connection
is made to the LAN port and flash when there is activity.
This WLAN LED flash blue when the wireless function working.
These LEDs display the signal strength.
RJ45 PORT
(PoE Supported) RESET
2. Typical Application
WISP
CP300
Switch
Computer
Computer
PoE Power Adapter
Cable
CP300
1
DCP026
2
3

0605
Choose “Use the following IP
address”, input the IP address in
the same network segment with
your router’s default IP address,
as below, then click “OK”.
3. Set Up PC
Double-click “Internet Protocol
Version 4 (TCP/IPv4)”
Right-click “My Network
Places”, click “Properties”
Right-click “Local Area
Connection”, click “Properties”
05
4. Configure the Device
Please set up the CPE following below steps.
Run the Web browser.
Type 192.168.1.1 in the Web browser address bar, then press Enter.
Input User Name and Password and click “Login”.
(By default, both are “admin” in lower case)

07 08
Select the proper Operation Mode as your requirement.
TOTOLINK CPE supports multiple Operation Modes to satisfy
diversified network requirements, including AP Mode, Client Mode,
Repeater Mode and WISP Mode. The following guide introduces
typical scenarios of each mode. Please choose the proper
Operation Mode according to your needs.
5.1 AP Mode
5.Working Modes
Scenario 1
Tablet
Router
Switch
Switch Switch
Server
PC PC PC
Smart phone
Access Point
Laptop
Campus network

09 10
Scenario 2
Scenario 3
Access Point
LAN: 192.168.7.2
WISP
LAN: 192.168.1.1
WAN: Dynamic IP
WISP
LAN: 192.168.1.1
WAN: PPPoE
WISP
LAN: 192.168.1.1
WAN: Static IP
Router
LAN: 192.168.7.1
AP Settings
Connect two office areas
1) Go to the CPE’s Operation Mode page.
2) Choose “AP Mode”, setup the CPE’s SSID,Channel and Key
(pass word), click Finishd.
Access Point
LAN: 192.168.1.1
Client
LAN: 192.168.1.2
PC IP Camera
Access Point
LAN: 192.168.1.1
Client
LAN: 192.168.1.2
Switch Switch
PC PC PC PC
Office NetworkOffice Network

11 12
3) After the settings, please connect the PoE Power Adapter LAN port
to upper level network device
5.2 Client Mode
Client Settings
Scenario 1
Connect two office areas
1）Go to CPE’s Operation Mode page.
2）Choose “Client ”, click “Wi-Fi Scan” to check all available wireless
networks around
3 ) Choose the SSID you need to connect. Enter correct Password,
click “Finished”.
Access Point
LAN: 192.168.1.1
Client
LAN: 192.168.1.2
PC IP Camera
Access Point
LAN: 192.168.1.1
Client
LAN: 192.168.1.2
Switch Switch
PC PC PC PC
Office NetworkOffice Network

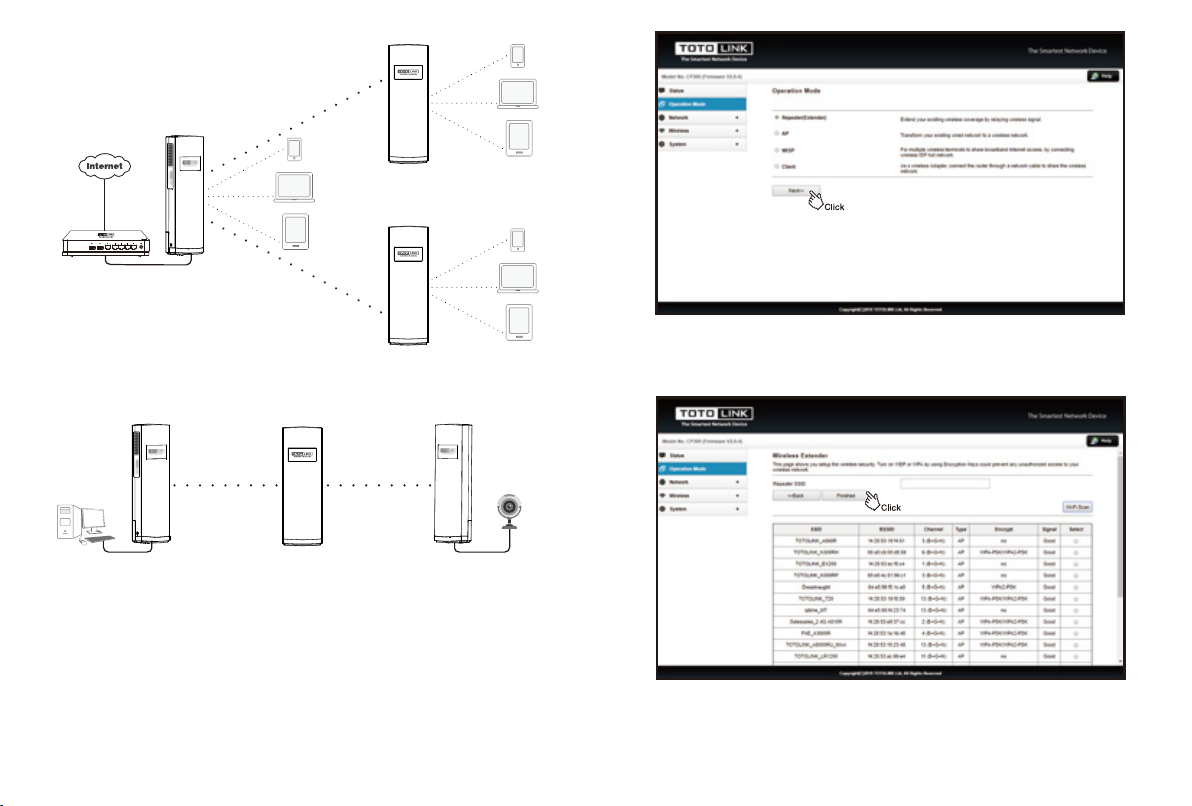

5.3 Repeater Mode
1413
Repeater Settings
1）Go to CPE’s Operation Mode page.
2）Choose “Repeater”, click “Wi-Fi Scan” to check all available wireless
networks
Scenario 1
Scenario 2
Router
LAN: 192.168.7.1
Access Point
LAN: 192.168.7.2
SSID: abc
Repeater
LAN: 192.168.7.3
SSID: abc
Repeater
LAN: 192.168.7.4
SSID: abc
Smart Phone
Tablet PC
Laptop
Smart Phone
Tablet PC
Laptop
IP Camera
Repeater
LAN: 192.168.1.11
PC
Access Point
LAN: 192.168.1.1
Repeater
LAN: 192.168.1.10
SSID: abc SSID: abc
4) Setup the expanded network SSID and password. Click “Finished”.
3）Select the SSID that you want to connect, enter correct key. Then
click “Next” to setup the expanded network parameters.

5.4 WISP Mode
15 16
WISP Settings
1）Go to CPE’s Operation Mode page.
2）Choose “WISP”, click “Wi-Fi Scan”, the device will check all available
ISP wireless networks around.
5) Now setup your PC’s LAN card IP address to “Obtain the IP address
automatically. Or you can access the Wi-Fi network through wireless
devices.
Scenario 1
WISP
AP Client Router
LAN: 192.168.1.1
WAN: PPPoE/Dynamic IP/
Static IP
Smart phone
Tablet PC
PC
Laptop
3 ) Select the ISP Wi-Fi you need to connect. Enter correct Password,
Then click “Finished”.

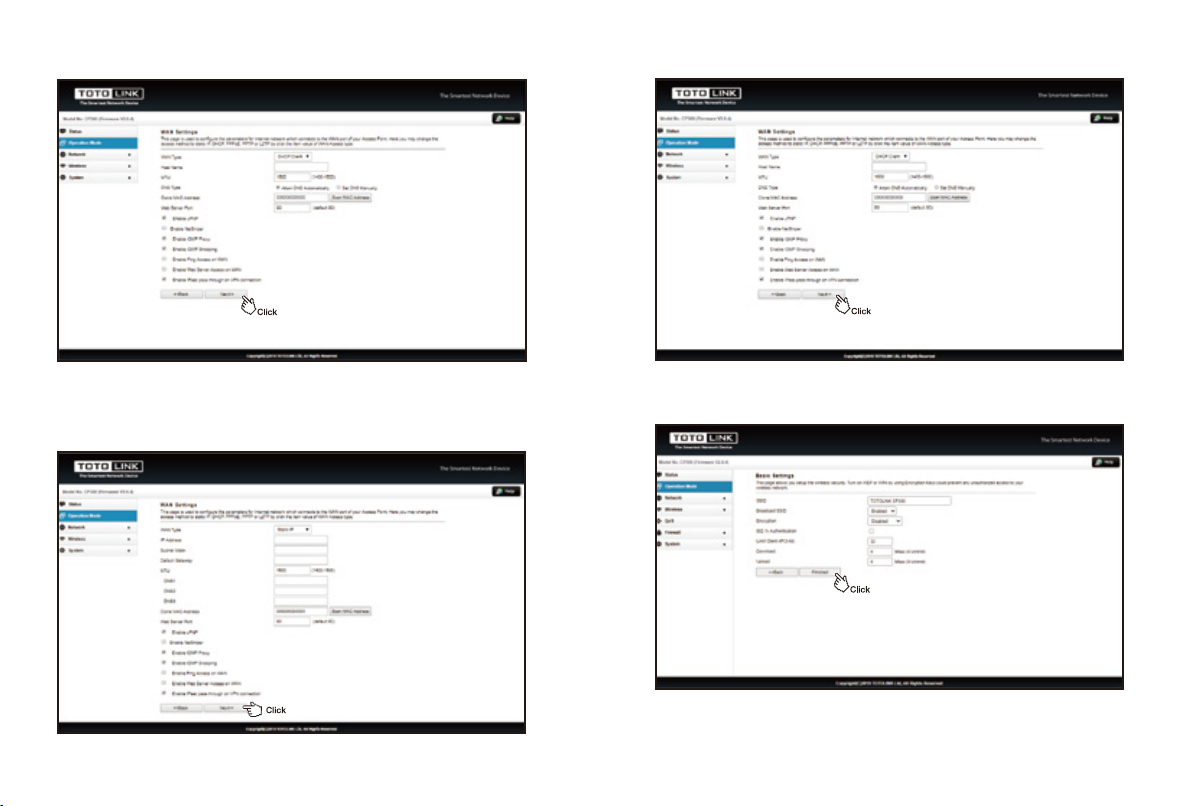

4 ) Choose WAN Method:

17 18
①DHCP, the device will obtain IP address from ISP router automatically.
Click “Next” to setup the CPE’s wireless parameters.
②If your ISP provides static IP address, please choose “Static IP”, and
input corresponding parameters, click “Next” to setup the wireless
parameters.
③PPPoE, please input the User Name and PASSWORD provided by
your ISP, click “Next” to setup the wireless parameters.
5) Setup the SSID and Key, click “Finished”.

19
6) Now setup your PC’s LAN card IP address to “Obtain the IP address
automatically.” Or you can access the Wi-Fi network through wireless
devices.
FAQ
1. How to reset the CPE to factory default Settings?
2. What Can I do If I forgot the CPE’s Web Login User
Name and Password?
Default IP address: 192.168.1.1
User Name: admin
Password: admin
Keep the CPE powered on, press and hold the RESET button on CPE
for about 8 seconds, then the CPE will be restored to the factory default
settings.
In case you changed your CPE’s Login User Name and Password, we
suggest you reset your CPE to factory default settings by above
operations. Then use the following parameters to login the CPE’s Web
interface:
RESET
Press the RESET button for about
8 seconds until the signal strength
indicators blink
