Toto YH116 User manual

Paper holder
Instruction manual
Please read these “Safety Precautions” carefully before use, and use the product correctly.
Safety Precautions (Be sure to observe these instructions.)
YH116
If the wall has uneven areas, use spacers (such as at washers) to secure a at surface.Request about installation
In the case of paper rolls with tube, which is φ120 mm or less in outside diameter and 114 mm in
width, use ones of φ38 mm in inside diameter. You can use paper rolls without tube if they are
φ32 to 38 mm in inside diameter.
Request about use
Required
Caution about installation
Use a plywood sheet that is 12 mm or more in thickness on the mounting surface.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
When the mounting surface is a concrete base, use TOTO-designated xing bracket [Part
No. T110D28 Resin Plug 20 pieces (φ6 x 30, prepared hole: φ6)] or commercially
available plugs for concrete, which is suitable for the mounting screws.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
Make sure that the product has no backlash after the installation is complete.
If the product has backlash, it could come off or the wall could collapse, which could result in user’s fall
and injury.
Use the supplied wall-mounting screws for installation.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
When the mounting surface is a thin wall, mount a reinforcing wooden block that is 30
mm or more in thickness before installation.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
MeaningSymbol
The symbol indicates something that
is “Prohibited.”
The symbol on the left indicates “Do not
disassemble.”
The symbol indicates something that
“Must be implemented.”
The symbol on the left indicates
“Required.”
Prohibit
Required
Caution about use
Do not put a heavy object other than toilet paper rolls on the core rod.
Doing so could cause the installed product to be unstable and drop, and may result in injury.
Do not hang from or lean on the parts of the product.
Doing so could cause the installed product to be unstable and drop, and may result in injury.
Do not disassemble the items other than those described in this manual.
Doing so could cause the product to be broken.
If the product has any abnormality such as backlash during use, stop using it
immediately and contact the installation service shop, sales shop to receive inspection.
Failure to do so could cause the product to fall and may result in injury.
Do not
disassemble
2021.4
YP03209 T1
■Request to the contractor
Please install the product correctly in accordance with the
instructions in this instruction manual.
After installation, enter your shop name and the date of installation
in the warranty, and then be sure to hand over this instruction
manual to the customer.
■Request to the customer
Please read this instruction manual carefully and use the product
correctly.
As this instruction manual contains a warranty, please keep it
carefully.
●After reading, keep this instruction manual in a place where users can
read it anytime.
●This instruction manual shows various symbols to correctly and safely
use the product in order to prevent harm to you and other people, and
damage to property. The meanings of those symbols are as follows:
●The following symbols are used to classify and
explain instruction that must be followed.
CAUTION
When this appears next a topic, this indicates that
ignoring this symbol and mishandling the product
could result in injury or property damage alone.
CAUTION
CAUTION
★To customer
Please contact the sales shop for replacement parts and warranty.
1

3
2
Finished wall surface
Finished oor surface
<Fixing bracket list>
Part No.
Name
Shape
Quantity 20 pieces
φ6×30
T110D28
Resin plug
(Unit: mm)
(Unit: mm)
Wall-mounting screw positions
95
51
Finished wall surface
Finished wall surface
11.5
77
70
42
134
62
51
95
130
(94)
Cleanser
Alkaline
acid
cleaner
Thinner
CAUTION

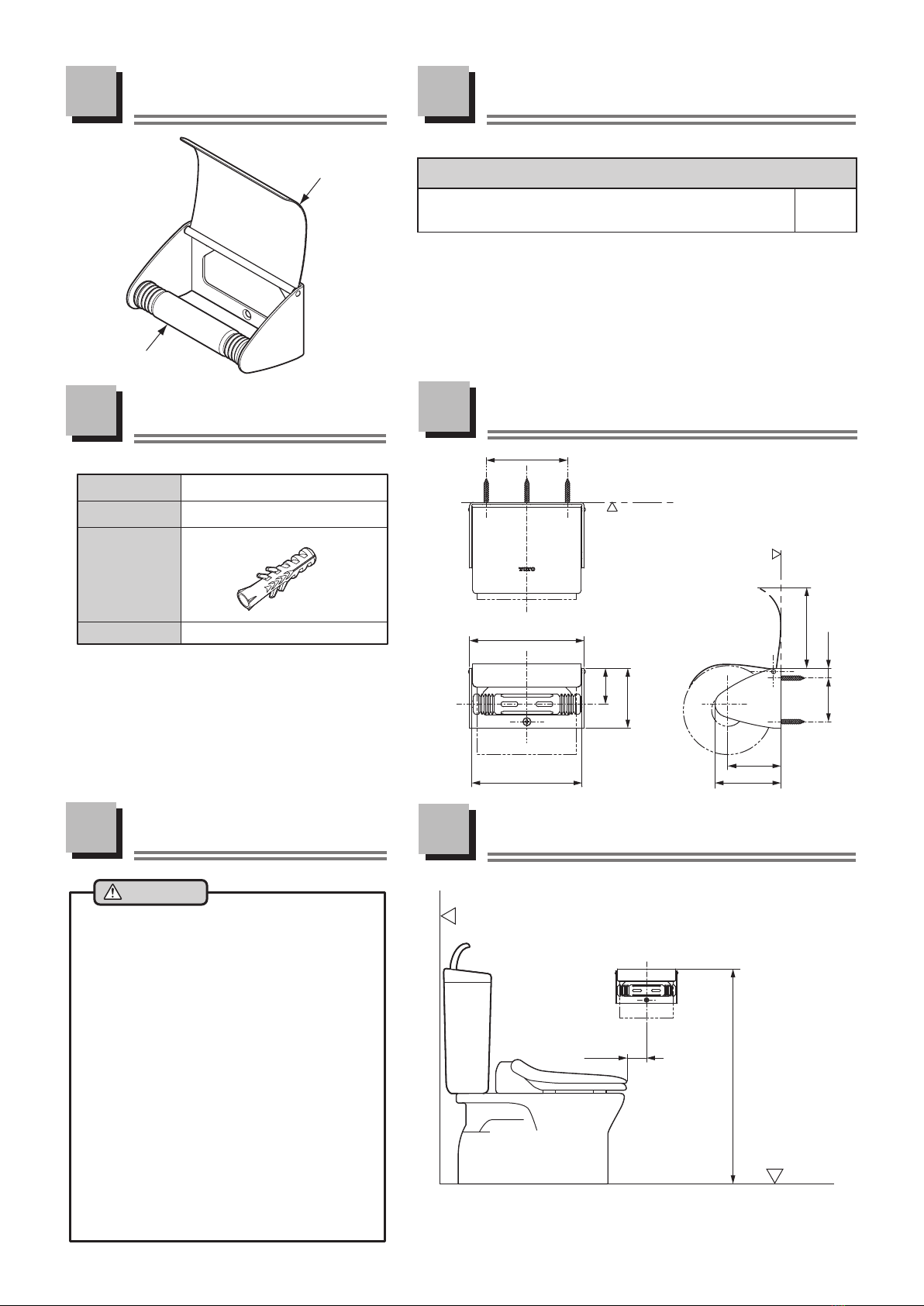

Names of Parts Checking the Accessories
Product Dimensions
Mounting Position
Fixing Bracket
(Optional Part)
Preparation for
Installation
■Make sure that you have the following parts:
Core rod
Paper cutting plate Accessory parts
Wall-mounting screw (at head tapping screw φ4.5 x 30) 3 pieces
700
100
Mounting Method
■ How to set paper rolls
●Wipe with a cloth dampened with appropriately-diluted neutral detergent,
and then wipe with a cloth dampened with water. After that, wipe off moisture
clean with a dry cloth.
Normal cleaning
●After wetting a cloth with water or lukewarm water, wring it out thoroughly
and then use it to wipe the product.
Cleaning when the product is very dirty
Precautions for cleaning
Do not use the following things that can damage the surface of the product.
●Acid cleaner, alkaline cleaner, and chlorine bleach
●Solvents such as thinner and benzine ●Cleaners containing rough particles such as cleanser and polishing powder
●Nylon scrubbing brush, other brushes, etc.
Cleaning Method
How to Use
①Mark hole positions in such a way that the product is
placed vertically.
Wall-mounting screw
(at head tapping screw φ4.5 x 30): 3 pieces
*If the wall has uneven areas, use spacers (such as at washers)
to secure a at surface.
(Unit: mm)
②Make prepared holes and fix the product using 3 supplied
wall-mounting screws (flat head tapping screw φ4.5 × 30).
■Use the supplied wall-mounting screws for
installation.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
■Make sure that the product has no backlash
after the installation is complete.
If the product has backlash, it could come off or
the wall could collapse, which could result in
user’s fall and injury.
■Use a plywood sheet that is 12 mm or
more in thickness on the mounting surface.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
■When the mounting surface is a thin wall,
mount a reinforcing wooden block that is
30 mm or more in thickness before
installation.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
■When the mounting surface is a concrete
base, use TOTO-designated xing bracket
[Part No. T110D28 Resin Plug 20 pieces
(φ6 x 30, prepared hole: φ6)] or
commercially available plugs for concrete,
which is suitable for the mounting screws.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
CAUTION
①Lift the paper cutting plate.
②Put the core rod through the paper roll, push-contract the core rod,
and set the paper roll on the paper holder.
③Lower the paper cutting plate.

3
2
Finished wall surface
Finished oor surface
<Fixing bracket list>
Part No.
Name
Shape
Quantity 20 pieces
φ6×30
T110D28
Resin plug
(Unit: mm)
(Unit: mm)
Wall-mounting screw positions
95
51
Finished wall surface
Finished wall surface
11.5
77
70
42
134
62
51
95
130
(94)
Cleanser
Alkaline
acid
cleaner
Thinner
CAUTION
Names of Parts Checking the Accessories
Product Dimensions
Mounting Position
Fixing Bracket
(Optional Part)
Preparation for
Installation
■Make sure that you have the following parts:
Core rod
Paper cutting plate Accessory parts
Wall-mounting screw (at head tapping screw φ4.5 x 30) 3 pieces
700
100
Mounting Method
■ How to set paper rolls
●Wipe with a cloth dampened with appropriately-diluted neutral detergent,
and then wipe with a cloth dampened with water. After that, wipe off moisture
clean with a dry cloth.
Normal cleaning
●After wetting a cloth with water or lukewarm water, wring it out thoroughly
and then use it to wipe the product.
Cleaning when the product is very dirty
Precautions for cleaning
Do not use the following things that can damage the surface of the product.
●Acid cleaner, alkaline cleaner, and chlorine bleach
●Solvents such as thinner and benzine ●Cleaners containing rough particles such as cleanser and polishing powder
●Nylon scrubbing brush, other brushes, etc.
Cleaning Method
How to Use
①Mark hole positions in such a way that the product is
placed vertically.
Wall-mounting screw
(at head tapping screw φ4.5 x 30): 3 pieces
*If the wall has uneven areas, use spacers (such as at washers)
to secure a at surface.
(Unit: mm)
②Make prepared holes and fix the product using 3 supplied
wall-mounting screws (flat head tapping screw φ4.5 × 30).
■Use the supplied wall-mounting screws for
installation.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
■Make sure that the product has no backlash
after the installation is complete.
If the product has backlash, it could come off or
the wall could collapse, which could result in
user’s fall and injury.
■Use a plywood sheet that is 12 mm or
more in thickness on the mounting surface.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
■When the mounting surface is a thin wall,
mount a reinforcing wooden block that is
30 mm or more in thickness before
installation.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
■When the mounting surface is a concrete
base, use TOTO-designated xing bracket
[Part No. T110D28 Resin Plug 20 pieces
(φ6 x 30, prepared hole: φ6)] or
commercially available plugs for concrete,
which is suitable for the mounting screws.
Failure to do so could cause the installed
product to be unstable and drop, and may
result in injury.
CAUTION
①Lift the paper cutting plate.
②Put the core rod through the paper roll, push-contract the core rod,
and set the paper roll on the paper holder.
③Lower the paper cutting plate.

Paper holder
Instruction manual
Please read these “Safety Precautions” carefully before use, and use the product correctly.
Safety Precautions (Be sure to observe these instructions.)
YH116
If the wall has uneven areas, use spacers (such as at washers) to secure a at surface.Request about installation
In the case of paper rolls with tube, which is φ120 mm or less in outside diameter and 114 mm in
width, use ones of φ38 mm in inside diameter. You can use paper rolls without tube if they are
φ32 to 38 mm in inside diameter.
Request about use
Required
Caution about installation
Use a plywood sheet that is 12 mm or more in thickness on the mounting surface.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
When the mounting surface is a concrete base, use TOTO-designated xing bracket [Part
No. T110D28 Resin Plug 20 pieces (φ6 x 30, prepared hole: φ6)] or commercially
available plugs for concrete, which is suitable for the mounting screws.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
Make sure that the product has no backlash after the installation is complete.
If the product has backlash, it could come off or the wall could collapse, which could result in user’s fall
and injury.
Use the supplied wall-mounting screws for installation.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
When the mounting surface is a thin wall, mount a reinforcing wooden block that is 30
mm or more in thickness before installation.
Failure to do so could cause the installed product to be unstable and drop, and may result in injury.
MeaningSymbol
The symbol indicates something that
is “Prohibited.”
The symbol on the left indicates “Do not
disassemble.”
The symbol indicates something that
“Must be implemented.”
The symbol on the left indicates
“Required.”
Prohibit
Required
Caution about use
Do not put a heavy object other than toilet paper rolls on the core rod.
Doing so could cause the installed product to be unstable and drop, and may result in injury.
Do not hang from or lean on the parts of the product.
Doing so could cause the installed product to be unstable and drop, and may result in injury.
Do not disassemble the items other than those described in this manual.
Doing so could cause the product to be broken.
If the product has any abnormality such as backlash during use, stop using it
immediately and contact the installation service shop, sales shop to receive inspection.
Failure to do so could cause the product to fall and may result in injury.
Do not
disassemble
2021.4
YP03209 T1
■Request to the contractor
Please install the product correctly in accordance with the
instructions in this instruction manual.
After installation, enter your shop name and the date of installation
in the warranty, and then be sure to hand over this instruction
manual to the customer.
■Request to the customer
Please read this instruction manual carefully and use the product
correctly.
As this instruction manual contains a warranty, please keep it
carefully.
●After reading, keep this instruction manual in a place where users can
read it anytime.
●This instruction manual shows various symbols to correctly and safely
use the product in order to prevent harm to you and other people, and
damage to property. The meanings of those symbols are as follows:
●The following symbols are used to classify and
explain instruction that must be followed.
CAUTION
When this appears next a topic, this indicates that
ignoring this symbol and mishandling the product
could result in injury or property damage alone.
CAUTION
CAUTION
★To customer
Please contact the sales shop for replacement parts and warranty.
1
