Toto YKH20R User manual

Required
Required
Caution about installation
Make sure that the product has no backlash after the installation is complete.
If the product has backlash, it could come off or the wall could collapse, which could result in user’s fall and
injury.
Use the supplied wall-mounting screws (truss head tapping screw φ4 x 35) for installation.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
If the product has backlash during use, stop using it immediately and contact the
installation service shop, sales shop to receive inspection.
Failure to do so could cause the product to drop and a user to fall, which could lead to injury or serious
accident.
Use a plywood sheet that is 12 mm or more in thickness on the mounting surface.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
When the mounting surface is a thin wall, mount a reinforcing wooden block that is 30 mm or
more in thickness before installation.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
When installing the product on a partition wall, place a reinforcing wooden block of 30 mm or
more in thickness in the tapping-screw-xing position.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
When the mounting surface is a tile or concrete wall, use a commercially available plugs for
concrete, etc.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
Do not hook heavy things other than luggage on it.
Doing so could cause the installed product to be unstable and drop, which could result in injury.
Caution about use
Do not hang from or lean on the parts of the product.
Doing so could cause the installed product to be unstable and drop, which could result in injury.
Prohibit
Instruction manual
Safety Precautions (Be sure to observe these instructions.)
●The following symbols are used to classify and
explain instruction that must be followed.
Please read these “Safety Precautions” carefully before use, and use the product correctly.
The symbol indicates something
that is “Prohibited.”
The symbol on the left indicates “Do
not disassemble.”
The symbol indicates something
that “Must be implemented.”
The symbol on the left indicates
“Required.”
MeaningSymbol
Single Hook/Doorstop Hook/
Double Hook
YKH20R･YKH21R･YKH21WR
Do not disassemble or modify items other than those described in this manual.
Doing so could damage the product and may result in injury.
Do not
disassemble
■Request to the contractor
Please install the product correctly in accordance with the
instructions in this instruction manual.
After installation, enter your shop name and the date of
installation in the warranty, and then be sure to hand over this
instruction manual to the customer.
■Request to the customer
Please read this instruction manual carefully and use the
product correctly.
As this instruction manual contains a warranty, please keep it
carefully.
●After reading, keep this instruction manual in a place where users can
read it anytime.
●This instruction manual shows various symbols to correctly and safely
use the product in order to prevent harm to you and other people, and
damage to property. The meanings of those symbols are as follows:
CAUTION
When this appears next a topic, this indicates that
ignoring this symbol and mishandling the product
could result in injury or property damage alone.
CAUTION
CAUTION
1

●Wipe with a cloth dampened with appropriately-diluted neutral detergent,
and then wipe with a cloth dampened with water. After that, wipe off moisture
clean with a dry cloth.
★To customer
Please contact the sales shop for replacement parts and warranty.
Preparation for Installation
Mounting Method
■Make sure that you have the following parts:
3
Normal cleaning
●After wetting a cloth with water or lukewarm water, wring it out thoroughly
and then use it to wipe the product.
Cleaning when the product is very dirty
Precautions for cleaning
Do not use the following things that can damage the surface of the product.
●Acid cleaner, alkaline cleaner, and chlorine bleach
●Solvents such as thinner and benzine
●Cleaners containing rough particles such as cleanser and polishing powder
●Nylon scrubbing brush, other brushes, etc.
Cleaning Method
Wall-mounting screw
(truss head tapping screw φ4 x 35)2 pieces
Accessory parts
2

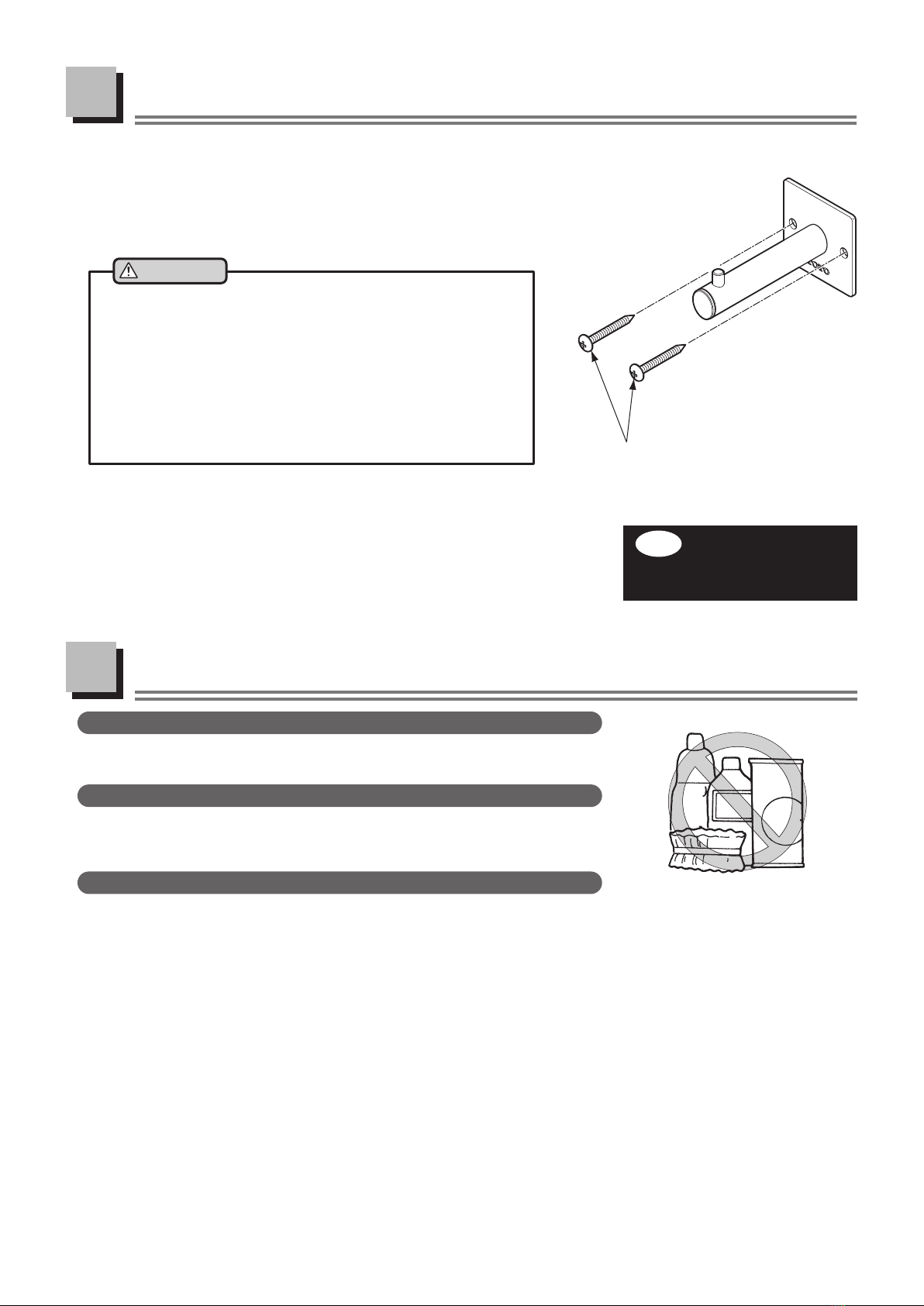

①Mark the positions of wall-mounting screws.
②Make prepared holes and x the product body using 2 supplied wall-mounting screws
(truss head tapping screw φ4 x 35).
Product Dimensions and Accessories
<YKH20R> Single hook
<YKH21WR> Double hook
<YKH21R> Doorstop hook
Wall-mounting screw (truss head tapping screw φ4 x 35): 2 pieces
Reference mounting height
*Toilet booth: Finished oor surface + 1,600
*Ostomates’ toilet package or next to the urinal: Finished oor surface + 1,000
*Next to the washbasin: Finished oor surface + 900
Wall-mounting screw (truss head tapping screw φ4 x 35): 2 pieces
Reference mounting height
Finished oor surface + 1,700
86 37 6.56.5
50
50
100
100
37 6.56.5
50
50
Wall-mounting screw (truss head tapping screw φ4 x 35): 2 pieces
Reference mounting height
Finished oor surface + 1,700
87 6.56.5
100
50
Wall-mounting screw
(truss head tapping screw φ4 x 35): 2 pieces
Use a screwdriver with a bit
length of 100 mm or longer.
Tip
*The gure shows YKH20R.
Cleanser
Alkaline
acid
cleaner
Thinner
■Use a plywood sheet that is 12 mm or more in thickness on the mounting surface.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
■When the mounting surface is a thin wall, mount a reinforcing wooden block that is 30 mm or more in
thickness before installation.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
■When installing the product on a partition wall, place a reinforcing wooden block of 30 mm or more in
thickness in the tapping-screw-xing position.
Failure to do so could cause the installed product to be unstable and drop.
■When the mounting surface is a tile or concrete wall, use a commercially available plugs for concrete, etc.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
■Use the supplied wall-mounting screws (truss head tapping
screw φ4 x 35) for installation.
Failure to do so could cause the installed product to be
unstable and drop, which could result in injury.
■Make sure that the product has no backlash after the
installation is complete.
If the product has backlash, it could come off or the wall could
collapse, which could result in user’s fall and injury.
Finished wall surface Finished wall surface
φ16 φ16
Finished wall surface
φ16
CAUTION
CAUTION
2021.4
YP03218 T1

●Wipe with a cloth dampened with appropriately-diluted neutral detergent,
and then wipe with a cloth dampened with water. After that, wipe off moisture
clean with a dry cloth.
★To customer
Please contact the sales shop for replacement parts and warranty.
Preparation for Installation
Mounting Method
■Make sure that you have the following parts:
3
Normal cleaning
●After wetting a cloth with water or lukewarm water, wring it out thoroughly
and then use it to wipe the product.
Cleaning when the product is very dirty
Precautions for cleaning
Do not use the following things that can damage the surface of the product.
●Acid cleaner, alkaline cleaner, and chlorine bleach
●Solvents such as thinner and benzine
●Cleaners containing rough particles such as cleanser and polishing powder
●Nylon scrubbing brush, other brushes, etc.
Cleaning Method
Wall-mounting screw
(truss head tapping screw φ4 x 35)2 pieces
Accessory parts
2
①Mark the positions of wall-mounting screws.
②Make prepared holes and x the product body using 2 supplied wall-mounting screws
(truss head tapping screw φ4 x 35).
Product Dimensions and Accessories
<YKH20R> Single hook
<YKH21WR> Double hook
<YKH21R> Doorstop hook
Wall-mounting screw (truss head tapping screw φ4 x 35): 2 pieces
Reference mounting height
*Toilet booth: Finished oor surface + 1,600
*Ostomates’ toilet package or next to the urinal: Finished oor surface + 1,000
*Next to the washbasin: Finished oor surface + 900
Wall-mounting screw (truss head tapping screw φ4 x 35): 2 pieces
Reference mounting height
Finished oor surface + 1,700
86 37 6.56.5
50
50
100
100
37 6.56.5
50
50
Wall-mounting screw (truss head tapping screw φ4 x 35): 2 pieces
Reference mounting height
Finished oor surface + 1,700
87 6.56.5
100
50
Wall-mounting screw
(truss head tapping screw φ4 x 35): 2 pieces
Use a screwdriver with a bit
length of 100 mm or longer.
Tip
*The gure shows YKH20R.
Cleanser
Alkaline
acid
cleaner
Thinner
■Use a plywood sheet that is 12 mm or more in thickness on the mounting surface.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
■When the mounting surface is a thin wall, mount a reinforcing wooden block that is 30 mm or more in
thickness before installation.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
■When installing the product on a partition wall, place a reinforcing wooden block of 30 mm or more in
thickness in the tapping-screw-xing position.
Failure to do so could cause the installed product to be unstable and drop.
■When the mounting surface is a tile or concrete wall, use a commercially available plugs for concrete, etc.
Failure to do so could cause the installed product to be unstable and drop, which could result in injury.
■Use the supplied wall-mounting screws (truss head tapping
screw φ4 x 35) for installation.
Failure to do so could cause the installed product to be
unstable and drop, which could result in injury.
■Make sure that the product has no backlash after the
installation is complete.
If the product has backlash, it could come off or the wall could
collapse, which could result in user’s fall and injury.
Finished wall surface Finished wall surface
φ16 φ16
Finished wall surface
φ16
CAUTION
CAUTION
2021.4
YP03218 T1
