Touchstone Chesmont Series User manual

CHESMONT SERIES ELECTRIC FIREPLACE MANTEL
Model # :
80033 –Chesmont White
80034 –Chesmont Black
OWNER’S MANUAL
AC 110-120V 60Hz 1500W
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
2

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
3
Table of Contents
Contents
General Information................................................................................................................................................... 5
CSA Approval Listing Information ........................................................................................................................... 5
Fireplace Specifications............................................................................................................................................ 5
Dimensional Drawings ............................................................................................................................................. 6
Unpacking Your Fireplace......................................................................................................................................... 7
Parts and Hardware ................................................................................................................................................. 7
Tools Required...................................................................................................................................................... 7
What’s in the Box ................................................................................................................................................. 7
Unpacking and Setup................................................................................................................................................ 7
Testing the Fireplace Prior to Installation............................................................................................................. 8
3-prong Outlet Installation.................................................................................................................................... 8
Installation................................................................................................................................................................... 9
Choosing Installation Location................................................................................................................................. 9
Choosing Wall Location....................................................................................................................................... 9
Removing The Wall Mount Bracket From Fireplace.............................................................................................. 10
Removing The Glass Panel and Install Media........................................................................................................ 11
Wall Mounted Installation ...................................................................................................................................... 13

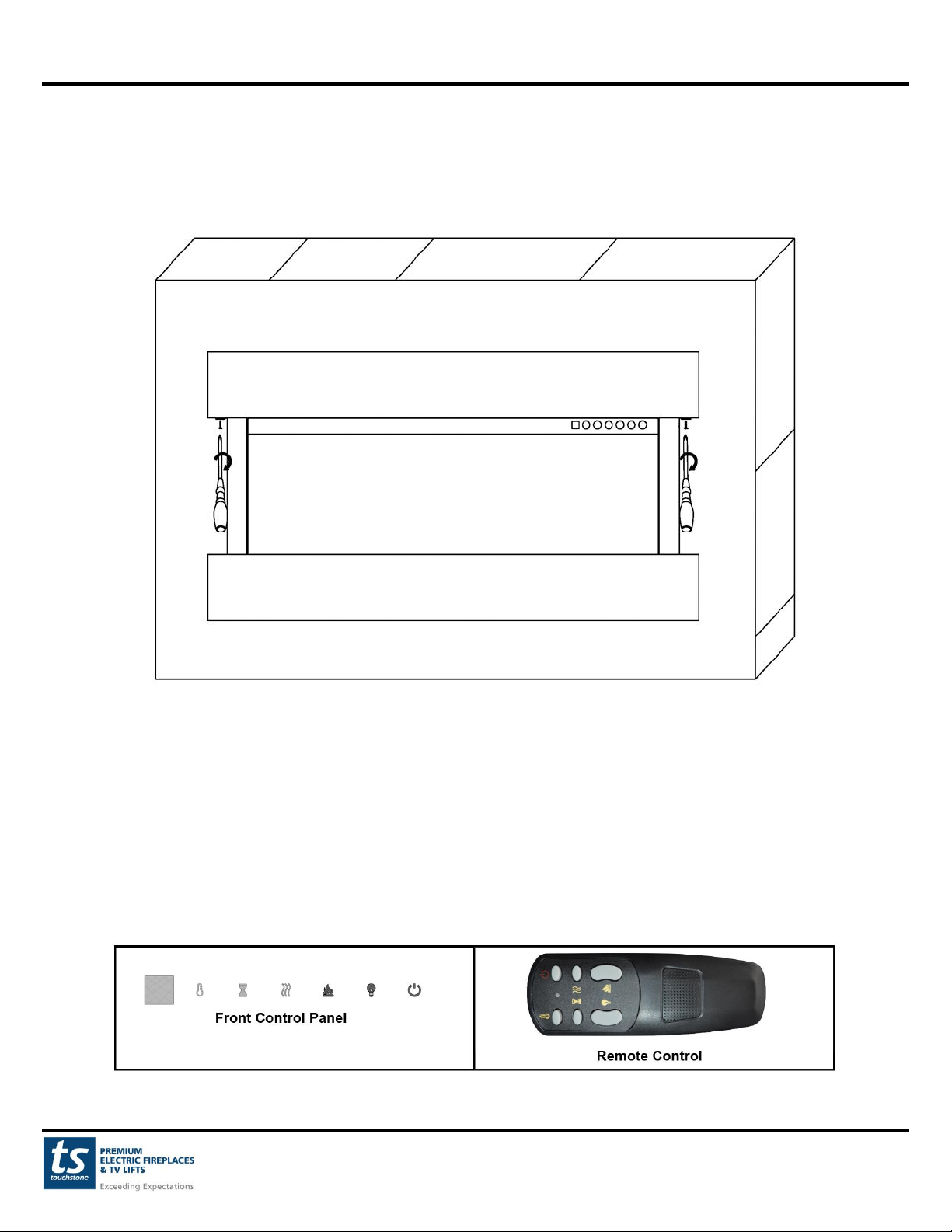

Operating Fireplace.................................................................................................................................................. 15
Methods of Operation............................................................................................................................................. 15

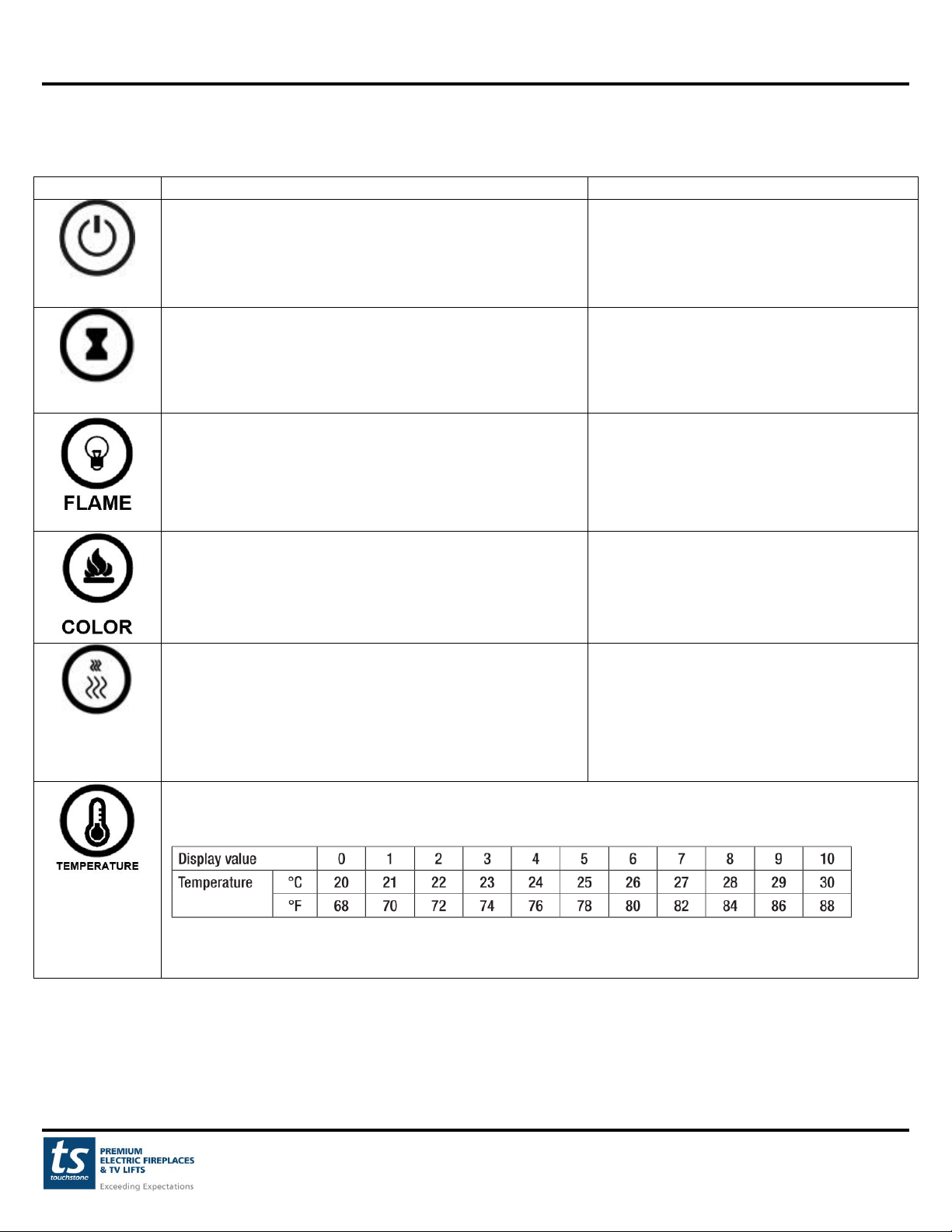

Control Panel and Remote Control Functions.................................................................................................... 16
Remote Control Operation...................................................................................................................................... 17
Temperature Limiting Control................................................................................................................................ 17
Care and Maintenance ............................................................................................................................................. 18
Cleaning.................................................................................................................................................................. 18
Maintenance............................................................................................................................................................ 18
Warranty ....................................................................................................................Error! Bookmark not defined.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
4
IMPORTANT SAFETY INFORMATION
WARNING!
•THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS
•Do not operate fireplace before reading and understanding operating instructions. Failure to operate
fireplace according to operating instructions could cause fire or injury.
•Risk of burns. This fireplace is HOT when in operation and heating element is ON. Power to the fireplace
should be turned off and the fireplace allowed to cool before servicing. To disconnect power to the
fireplace, turn controls to off, then remove plug from outlet.
•Do not install damaged, incomplete, or substitute components.
•Young children should be carefully supervised when they are in same room with fireplace. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to the fireplace, install an
adjustable safety gate to keep toddlers, young children and other at risk individuals away from the fireplace
and hot surfaces.
•Clothing and other flammable material should not be placed on or near the fireplace.
•Due to high temperatures, the fireplace should be located out of traffic and away from furniture and
draperies.
•Ensure that you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
•It is imperative that that the control compartments, circulating blower, and its passageway is the fireplace is
kept clean.
•Under no circumstances should this fireplace be modified.
•Do not use the fireplace if any part has been under water.
•Do not operate the fireplace with the glass panel removed, cracked or broken.
•Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys and
should be kept away from children and infants.
•Servicing should only be done while the fireplace is disconnected from the power outlet.
•Unplug fireplace if not being used for an extended period of time.
•Do not operate this fireplace with a damaged cord or plug after the fireplace malfunctions, has been
dropped, or damaged in any manner.
•Do not use outdoors.
•Never locate fireplace where it may fall into a bathtub or other water container.
•Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord
away from traffic area and where it will not be tripped over.
•Connect to properly grounded outlets only.
•Do not insert foreign objects into any ventilation or exhaust opening as this may cause and electric shock,
fire, or damage to the fireplace.
•To prevent a possible fire, do not block the air intakes or exhaust in any manner. Do not use on soft
surfaces, like a carpet, where openings may be blocked.
•Ensure clearances to combustibles are maintained when building a mantel or shelves above the fireplace.
Elevated temperatures on the wall or in the air above the fireplace can cause melting, discoloration or
damage to the decorations, a TV or other electronic components.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
5
General Information
CSA Approval Listing Information
This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room
appliances in the United States and Canada. If you need assistance during installation, please contact our technical
support department at 800-215-1990 option 2.
Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the
Canadian Electric Code, CSA C22.1 in Canada.
Fireplace Specifications
Model Number
80033
80034
Description
Chesmont White
Chesmont Black
Voltage
120v AC
120v AC
Watts
Max 1500W
Max 1500W
Amps
15 AMP Grounded
Circuit
15 AMP Grounded
Circuit
Fireplace Width
50”
50”
Fireplace Height
20 3/8”
20 3/8”
Fireplace Depth
7 1/8”
7 1/8”
Net Weight
60 lbs.
60 lbs.
Shipping Weight
78 lbs.
78 lbs.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
6
Dimensional Drawings
80033/80034 –Dimensions

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
7
Unpacking Your Fireplace
Parts and Hardware
Tools Required
•Phillips-head screwdriver
•Stud finder
•Level
•Tape measure
•Electric drill
•1/4”wood drill bit
What’s in the Box
Unpacking and Setup
Unpacking Instructions:
•Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts
list to make sure no parts are missing. If parts are missing, please contact technical support at
800-215-1990 opt 2. for replacement parts.
NOTE: Dispose of plastic bag, as it may cause choking hazard with young children. Do not let children play
with plastic bag.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
8
Wiring
Touchstone Wall Mounted Electric Fireplaces come with a 3-prong plug which plugs into any standard 110v outlet.
Testing the Fireplace Prior to Installation
•Before installing the fireplace, test the fireplace to make sure that it operates properly.
•Plug fireplace into approved outlet and power on fireplace. Once fireplace is tested, continue with
installation.
•If you have any problems, please contact technical support at 800-215-1990 opt 2.
3-prong Outlet Installation
•Only use this fireplace on a 120V AC, 15-Amp grounded circuit. Never overload the circuit. If this
fireplace trips the circuit breaker, unplug all other appliances on the same circuit before the next use. Avoid
plugging other appliances into the same circuit as this fireplace.
•Always check the fireplace plug and connections before each use.
•Never plug this fireplace into an outlet that is cracked or has any loose wires or connections. Plugging this
fireplace into a faulty outlet could result in the outlet overheating or catching fire.
•Make sure this plug fits securely into the outlet. Faulty wall outlet connections or loose plugs can cause the
outlet to overheat. If the outlet or faceplate is hot, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlet.
•The power cord supplied with the heater has three prongs: two flat blades (live and neutral) and one round
pin (ground). If a 3-slot receptacle is not available, an adapter MUST be used. The adapter MUST be
properly grounded to the outlet box (see figure below).
NOTE: Adapter NOT INCLUDED.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
9
Installation
WARNINGS
•Due to high temperatures, keep the fireplace out of high traffic locations.
•Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 36”
away from the front of the fireplace.
•Never install the fireplace where it may fall into a bathtub or other body of water.
•Wear safety gloves and safety glasses for protection during installation. Broken glass may cause injury or
harm.
•Prevent contact with loose insulation. Do not install the fireplace against a vapor barrier or exposed
insulation.
•Do not expose the fireplace to the elements (rain, etc).
Choosing Installation Location
Choosing Wall Location
•Measure wall location to ensure that fireplace will fit on desired wall location.
•Minimum clearances (measurements taken from front of glass panel):
Bottom of Fireplace to Floor: 0”
Top of Fireplace: 0”
Sides of Fireplace: 0”
Top of Fireplace: 0”
Back of Fireplace: 0”
Top of Fireplace: 0”
•Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
•See Safety Information on pages 3 for warnings about safe placement, safe installation, and proper use of
this product.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
10
Removing The Wall Mount Bracket From Fireplace
Tools:
- Phillips-head screw driver
Instructions:
1. Remove the fireplace from the packaging and place it on a flat, non-abrasive surface.
2. Remove the wall mount bracket from the back of the fireplace. To remove the bracket, use a Philips-head
screwdriver to remove the 4 screws numbered 1-4 in the illustration shown below:
3. Place the mounting bracket and screws off to the side for mounting to the wall. Wall mounting instructions are
located on p.13 of this manual.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
11

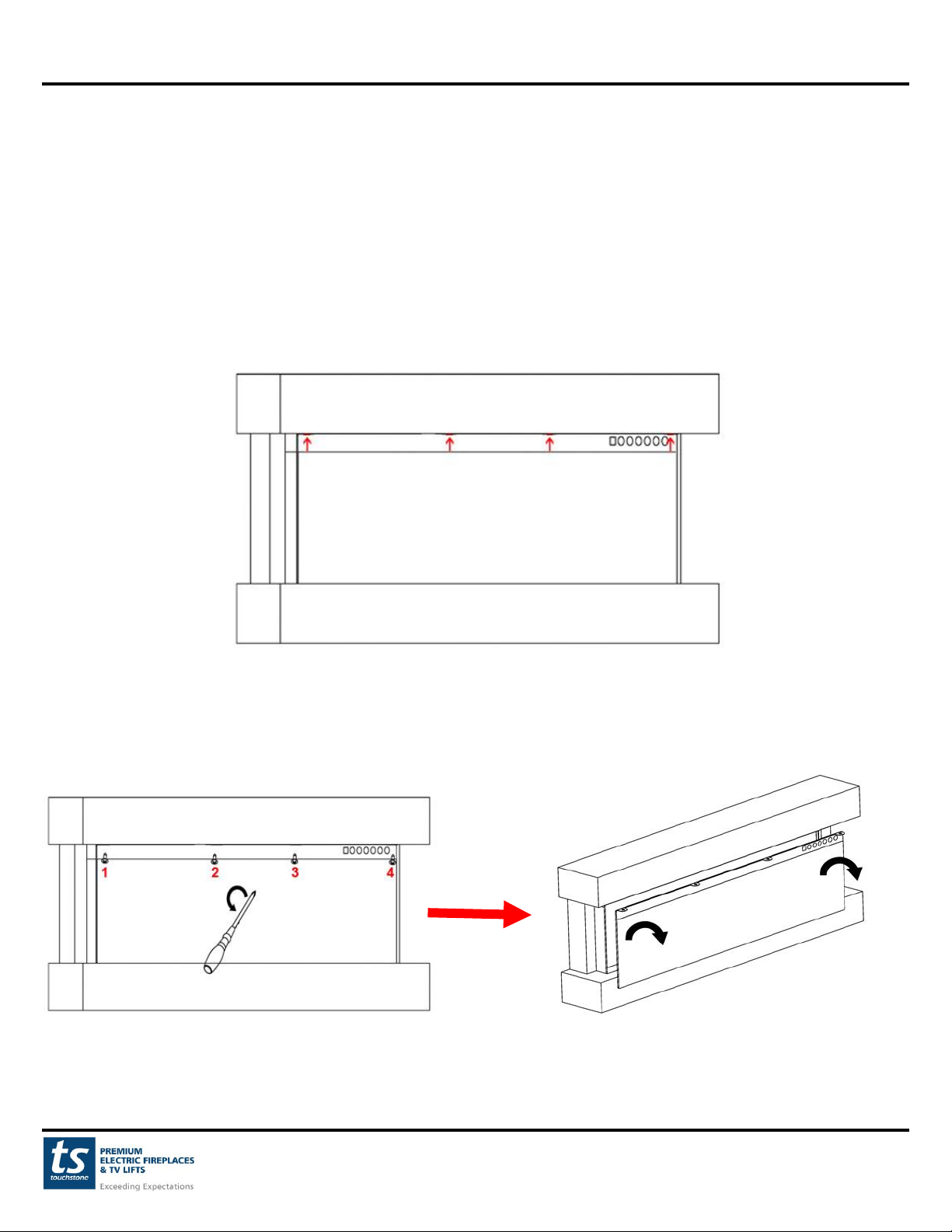

Removing The Glass Panel and Install Media
Prior to installation on the wall, it is best to remove the glass panel. Please remove glass panel as per instructions
below:
Tools Needed:
- Phillips Screwdriver
Instructions:
1. Locate the 4 screws securing the front glass panel to the fireplace. The screws are located on the underside of the top
portion of the mantel.
Front View of Fireplace
2. Loosen and remove the 4 screws holding the glass panel to the fireplace and remove the glass panel. Save the 4
screws in a safe spot for reinstallation later.
NOTE: Hold the glass panel in place when removing the last screw so that the glass panel does not fall.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
12
Removing The Glass Panel and Install Media –cont.
3. Install the crystal glass and/or driftwood media.
4. Once the crystal glass and/or driftwood media is installed, reinstall the glass panel using the 4 screws removed in
step 2.
5. Once the glass panel is installed, the fireplace is ready to be mounted.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
13

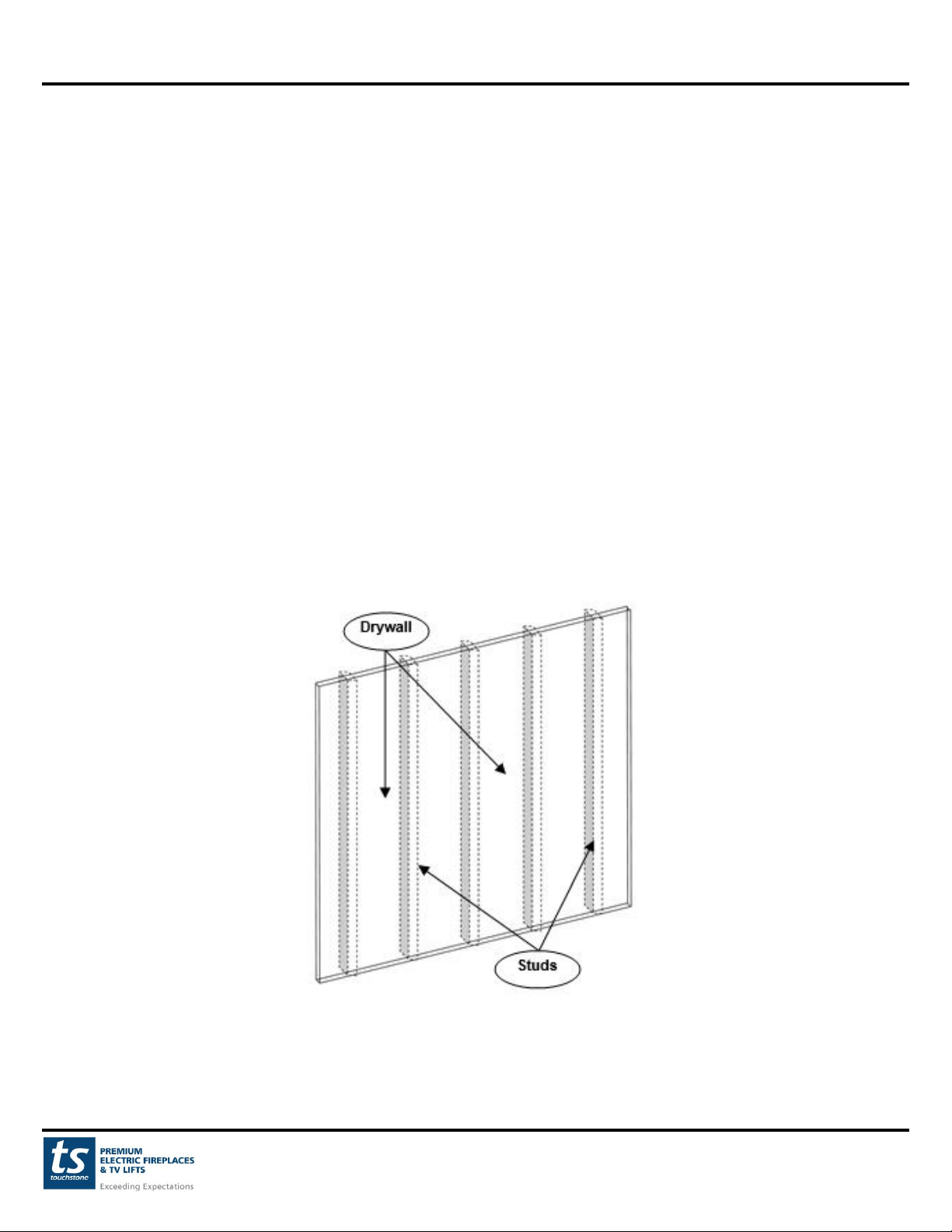

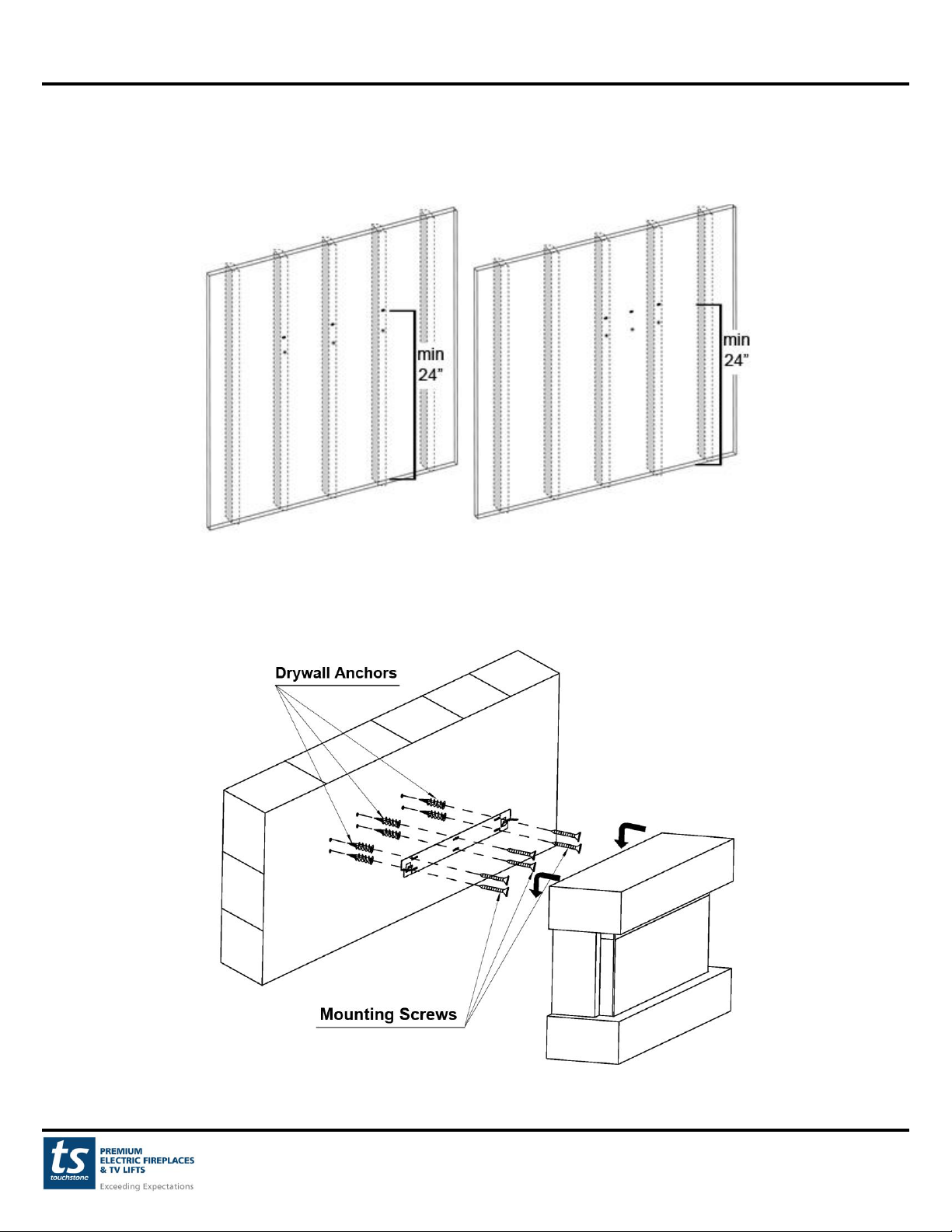

Wall Mounted Installation
•Due to many different finish materials used on walls, it is highly recommended that you consult your local
builder before you install this fireplace on the wall.
•Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
Instructions
1. Select a location that is not prone to moisture and is located at least 36” away from combustible materials, such
as curtains, drapes, furniture, bedding, paper, etc.
2. With glass panel removed (see p.11 for instructions on removing glass panel), have two people hold the fireplace
against the wall to determine the final location.
3. Place the unit face down on a soft, non-abrasive surface. Locate the mounting bracket that was removed on p.10.
4. Locate the wall studs using an electronic stud-finder. When hanging the wall bracket, it is recommended to
fasten the mounting bracket to 3 studs. If fastening to 3 studs, no dry anchors would need to be used. If fastening
to only 2 studs, then dry wall anchors would need to be used to fasten the mounting bracket to the wall. Make mark
on the wall at least 24” above the ground.
Note: The minimum height from the bottom of the fireplace, once hung on the wall, to the surface below must be at
least 6”. To meet this criteria, the wall mount bracket should be hung no lower than 24” from the ground to the
top of the mounting bracket when hung on the wall.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
14
Wall Mounted Installation –cont.
5. Align the mounting bracket with the mark on the wall and mark the location of the mounting holes on the wall,
making sure to line up with at least 2 studs. It is recommended to fasten the mounting bracket to 3 studs, if
possible.
6. Attach the mounting bracket to the wall using the screws provided. If fastening to 3 studs, no dry anchors would
need to be used. If fastening to only 2 studs, then at least 2 dry wall anchors would need to be used to fasten the
mounting bracket to the wall.
Wall Mounted Installation –cont.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
15
7. Once the bracket is secured to the wall, the fireplace may now be hung on the bracket.
8. Once the fireplace is mounted on the bracket, install the locking screws to secure the bracket to the fireplace
mantel.
Operating Fireplace
Once the fireplace has been plugged into a grounded outlet, the fireplace is now ready for operation. Ensure that
the house circuit breakers for the power supply are turned on.
Methods of Operation
This electric fireplace can be operated by the CONTROL PANEL, located in the upper right corner of the front
glass panel, or by the REMOTE CONTROL. The operation and functions of both methods are the same

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
16
Methods of Operation –cont.
Control Panel and Remote Control Functions
BUTTON
FUNCTION
ACTION & INDICATION
POWER
ON: Enables control panel functions and remote control.
Turns on the flame effect.
OFF: Disables control panel functions and remove control.
Turns off the flame effect.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off. Unit
goes to standby. All functions turn off.
TIMER
TIMER button: Control time settings to turn off fireplace
at selected time.
Settings range from 0.5 hours to 7.5 hours.
1. Press once. Indicator light turns on.
Timer is set to 0.5 hours.
2. Press again until desired setting is
reached. Indicator lights show setting.
FLAME button: Makes flame effect dimmer and brighter.
NOTE: Flame effect stays on until power button is turned
off. Flame effect must be on for heater to turn on.
1. Press once: Each press of the flame button
changes the flame brightness.
2. Press again until desired setting is
reached. Flame effect continues to get
brighter each time button is pressed.
COLOR button: Changes color of the flame
NOTE: Color effect stays on until power button is turned
off. Flame effect must be on for heater to turn on.
1. Press once: Flame effect changes color.
2. Press again until desired setting is
reached. 3 total colors (orange, blue, and
blue/orange).
HEATER
HEATER button: Turns heater on and off.
NOTE: The heater only works when the flame effect is on.
NOTE: To prevent overheating, the heater fan will blow
cool air for 8-10 seconds before the heater turns on, and
after the heater turns off.
1. Press once. Indicator lights up. Fan blows
cool air for 10 seconds and 750W heater
turns on and blows warm air.
2. Press again: Indicator lights up. 1500W
heater turns on and blows hot air.
3. Press again. Heater turns off.
1. Press once: Touch panel indicator becomes active.
2. Press again until desired setting is reached. Digital display shows setting below
NOTE: Press the button for 5 seconds to switch between °C and °F

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
17
Remote Control Operation
•This remote control uses two AAA batteries (Not included).
•Instructions for battery installation are located in the remote control battery compartment.
•To improve operation of the remote control, aim the remote control at the front of the fireplace. DO NOT
PRESS the buttons too quickly. Give the unit time to respond to each command.
•NOTICE: NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the
heater will automatically TURN OFF. To reset, please do the following:
1. Unplug the power cord from the outlet.
2. Turn ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes for fireplace to cool down.
3. Inspect the fireplace to make sure no vents are blocked or clogged with dust or lint. If they are, use a vacuum to
clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional. If the outlet is OK, please
contact our customer support department at 800-215-1990.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
18
Care and Maintenance
Cleaning
•ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing
maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury.
•NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal
injury.
Metal:
•Buff using a soft cloth, slightly dampened with citrus oil-based product.
•DO NOT use brass polish or household cleaners, as these products will damage the metal trim.
Glass:
•Use a good quality glass cleaner sprayed onto a cloth or towel. Dry thoroughly with a paper towel or lint-
free cloth.
•NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
•Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
•Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
•NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
•RISK OF ELECTRIC SHOCK! DO NOT OPEN any panels. No user-serviceable parts inside!
•ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing
maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury.
Electrical and Moving Parts:
•The fan motors are lubricated at the factory and will not require lubrication.
•Electrical components are integrated in the fireplace and are not serviceable by the customer.
Storage:
•Store fireplace in a clean, dry place when not in use.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
19
Warranty
Touchstone Home Products Limited Warranty
Touchstone Home Products®, Inc offers a one (1) year limited warranty on all our electric fireplaces. The one (1)
year warranty starts on the date of purchase and expires 1 calendar year from the original date of purchase.
Electrical components, such as fan motor, heater motor, control board, remote control, LED lights and control panel
are covered under warranty for one year from date of purchase. Touchstone Home Products® will provide
replacement parts free of charge during the first year of the warranty.
Touchstone Home Products® will not be responsible for installation, labor, or any other expenses related to the
reinstallation of a warranted part, and such expenses are not covered under warranty.
Conditions and Limitations
Touchstone Home Products®, Inc warrants our electric fireplaces to be free of defects in material and workmanship
to the original purchaser only. Registering your warranty is not necessary. Just provide your proof of purchase
along with the model fireplace to make a warranty claim.
Warranty coverage begins on the date of purchase.
The factory warranty is non-transferrable.
Touchstone Home Products®, Inc does not cover damages caused by abuse, accident, alterations, lack of
maintenance, misuse, or neglect. Parts installed from other manufacturers will void the warranty.
Touchstone will repair or replace any fireplace or fireplace part that is deemed defective or becomes defective
during normal use within one (1) year after the date of purchase.
Replacement parts and replacement fireplace units are covered under a 90-day warranty or the remainder of the
original one (1) year manufacturer’s warranty from original date of purchase, whichever is greater.
Touchstone Home Products®, Inc does not warrant its products against damage caused by third parties.
The warranty does not cover paint scratches, cosmetic blemishes, dents, corrosion, or other normal wear and tear
associated with the fireplace. Damage to fireplace or other components due to water, weather damage, long periods
of dampness, condensation, damaging chemicals or cleaners are not covered under warranty.
Touchstone Home Products®, Inc limited warranty does not cover accidental breakage of fireplace glass panel.
Extended warranty coverage for the fireplace is available by contacting Touchstone Home Products® directly at 1-
800-215-1990.

Chesmont Series Electric Fireplace
www.touchstonehomeproducts.com 800.215.1990
Rev. 200123
20
Affix Serial Number Label Here
