STEPS
1) The standard position of the screen with respect to the planter is centered front-to-back. If
your configuration is different (offset), the installation will be nearly identical with the exception
of the illustrations in this instruction.

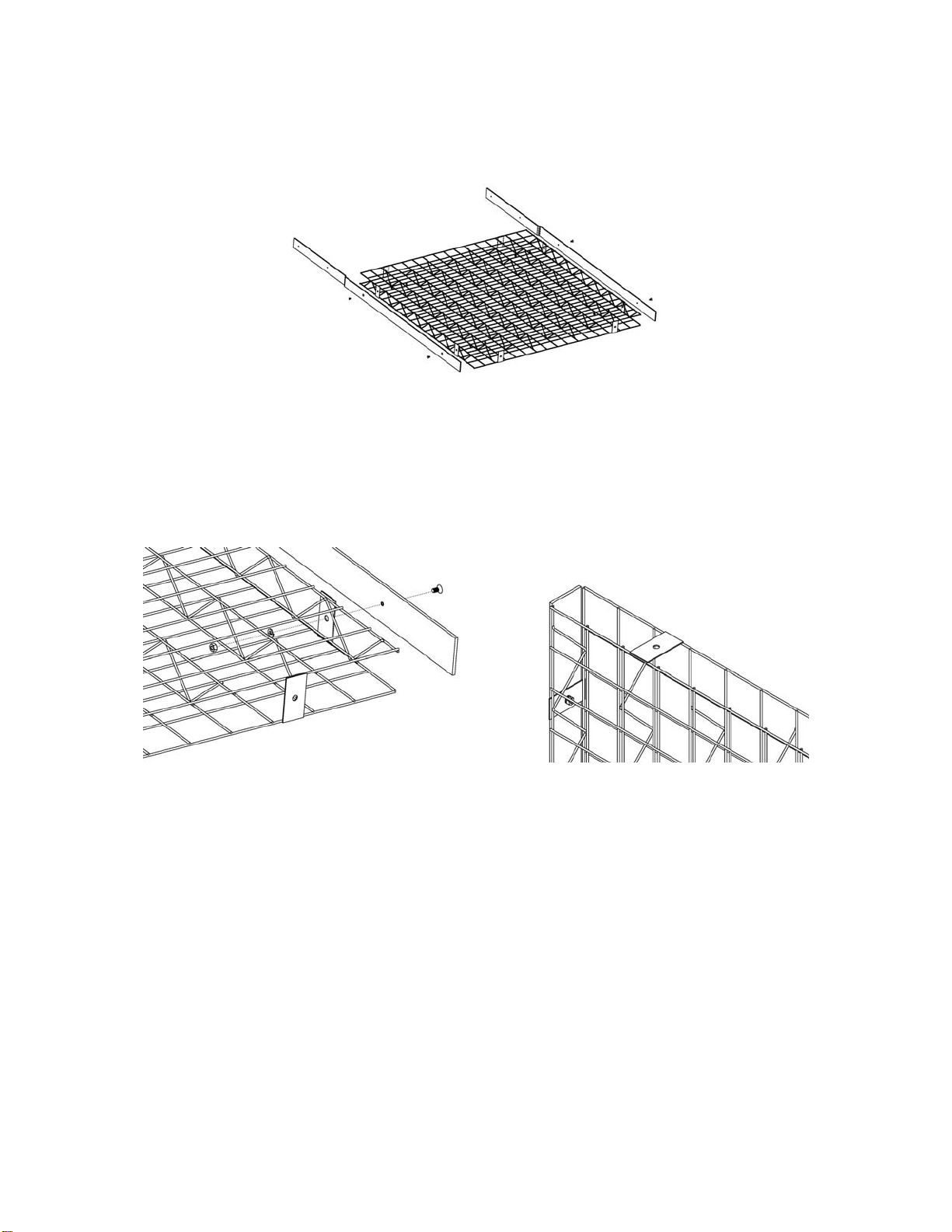

Assembly begins with the VTG panel(s) and upright brackets. It is recommended that you lay
the VertiGreen panel on a flat surface. This allows one person to attach the upright posts to
the panel. The longer leg of the post is placed on one side of the 48” x 48” panel or on the 48”
(short) side of the 72” x 48” panel. The mounting points of the upright bracket should align to
the joiner brackets on the side of the VTG panel and the countersink on the upright should face
the outside.
With the holes aligned, insert the flathead screw from the outside of the upright and through
the bracket on the panel. Place a lock washer over the screw and hand-tighten a hex nut into
place. Use your tools to secure the hardware once both sets of hardware are in place and the
uprights are aligned straight with the panel. Follow the same process for the other upright and
other side of the panel.
If you have a 96” long planter, this will require a similar assembly, but you will be attaching two
48” x 48” VTG panels together to create one 96” x 48” panel. This is done using the panel
connection bracket at both the top and bottom of adjoining panels. Place the two panels side-
by-side, place the connection brackets at the top and bottom spanning both panels. Using a
short ¼” hex bolt, lock washer, and nut, attach the connection bracket to the joiner brackets on
the panels. Hand tighten until all hardware has been installed and then tighten making certain
