USER’S MANUAL
MANUAL DEL USUARIO
MANUAL DO USUÁRIO
OUTBOARD ENGINE
MOTOR FUERA DE BORDA
MOTOR DE POPA
2 STROKE / 2 TIEMPOS / 2
TEMPOS

2

3
INDEX / INDICE / SUMÁRIO
SAFETY SYMBOLS / SIMBOLOS DE SEGURANÇA / SIMBOLOS DE SEGURIDAD......6
1MAIN COMPONENTS AND GENERAL RECOMMENDATIONS....................................7
2OPERATION ....................................................................................................................9
3PRE-OPERATION CHECKS .........................................................................................12
4FUEL SUPPLY ...............................................................................................................13
5TURNING ON THE ENGINE.........................................................................................13
6CHANGING DIRECTION...............................................................................................18
7STOPPING THE ENGINE .............................................................................................19
8MAINTENANCE.............................................................................................................23
9TRANSPORTATION AND STORAGE...........................................................................30
10 PRINCIPALES COMPONENTES Y RECOMENDACIONES GENERALES.............32
11 OPERACION .................................................................................................................34
12 VERIFICACONES PRÉ-OPERACION ......................................................................37
13 ABASTECIMENTO EL MOTOR FUERA DE BORDA ...............................................37
14 ENCENDIENDO EL MOTOR.....................................................................................38
15 CAMBIO DE DIRECCION..........................................................................................43
16 PARANDO EL MOTOR..............................................................................................44
17 MANTENIMIENTO .....................................................................................................48
18 TRANSPORTANDO Y ALMACENANDO...................................................................55
19 PRINCIPAIS COMPONENTES E RECOMENDAÇÕES GERAIS ............................57
20 OPERAÇÃO...............................................................................................................59
21 VERIFICAÇÕES PRÉ- OPERAÇÃO.........................................................................62
22 ABASTECIMENTO DE COMBUSTÍVEL ...................................................................62
23 LIGANDO O MOTOR.................................................................................................63
24 MUDANDO DE DIREÇÃO.........................................................................................67
25 PARANDO O MOTOR ...............................................................................................69
26 MANUTENÇÃO..........................................................................................................73
27 TRANSPORTANDO E ARMAZENANDO ..................................................................80

4
PREFACE
Thank you for purchasing TOYAMA product.
This manual covers the operation and maintenance of a Toyama product. The information and
specifications included in this publication were in effect at the time of approval for printing. No part
of this publication may be reproduced without written permission. This manual should be
considered a permanent part of this product and should remain with it. The illustration may vary
according to the type.
Keep this owner’s manual handy, so you can refer to it at any time. This owner’s manual is
considered a permanent part of the product and should remain with the product if resold.
If a problem should arise, or if you have any questions about the product, consult you authorized
dealer.
PROLOGO
Gracias por comprar este Producto TOYAMA.
Este manual cubre la operación y el mantenimiento de este producto.La información y las
especificaciones incluidas en esta publicación son efectivas para la fecha de aprobación de
impresión.
Ninguna parte de esta publicación puede ser reproducida sin autorización.Este manual debe ser
considerado parte permanente del producto y debe mantenerse con el producto en caso de ser
revendido.Algunos detalles podrán cambiar dependiendo del modelo.
Conserve este manual a la mano para que usted se pueda referir a él em cualquier momento.
En caso de presentarse algún problema, o si usted tienen alguna pregunta sobre el producto,
contacte a su distribuidor TOYAMA.
PREFACIO
Obrigado por adquirir um Produto TOYAMA.
Este manual contém informações para operação e manutenção do seu produto. As informações
e especificações incluídas nesta publicação estavam em vigor no momento da aprovação para
impressão. Nenhuma parte desta publicação pode ser reproduzida sem permissão por escrito. A
ilustração pode variar de acordo com cada modelo de equipamento.
Mantenha este manual do proprietário sempre disponível, para que consiga consultá-lo a
qualquer momento. Este manual é considerado uma parte permanente do seu produto e deve
acompanhar o equipamento ao ser revendido.
Ao surgir um problema, ou se você tem dúvidas sobre o seu produto, consulte o seu revendedor
autorizado TOYAMA.

5
SPECIFICATIONS / ESPECIFICAÇÕES / ESPECIFICACIONES
Modelo / Model
TM2.6TS
TM3.6TS
TM.5.8TS
TM9.8TS
TM15TS
TM25TS
MOTOR DE POPA 2 TEMPOS / OUTBOARD MOTOR 2 CYCLE
Tipo do Motor / Engine
type :
Outboard, 2 Strokes, Gasolyne, Monocylinder
Motor de Popa, 2 Tempos, Gasolina, Monocilindro
Motor fuera de borda, 2 Tiempos, Gasolina Monocilindrico
Cilindrada /
Displacement [cm³] :
50
74,6
102
169
246
496
Sistema de
Refrigeração /
Enfriamiento / Cooling
system :
água /
water
água /
water
água / water
água / water
água / water
água / water
Potência máxima /
Maximum power [HP]:
2,6
3,6
5,8
9,8
15
25
Rotação Máxima /
Maximum speed [rpm]:
4000-
5000
4200 ~
5300
4500 ~ 5500
5000 ~ 6000
4500 ~ 5500
4500 ~ 5500
Tanque de combustível
/ Tanque de
combustible / Fuel tank
capacity [L]:
1,2
1,5
2,7
12
24
24
Sistema de partida /
Sistema de arranque /
Starting system:
Manual retrátil / Recoil start
Marcha / Gear
frente /
adelante /
forward
neutro -
frente /
Neutral -
adelante /
Neutral -
forward
Neutro -
frente - ré /
Neutro - frente
- ré /
Neutro - frente
- ré /
Neutro - frente
- ré /
Neutral -
adelante -
reverso /
Neutral -
forward -
reverse
Neutral -
adelante -
reverso /
Neutral -
forward -
reverse
Neutral -
adelante -
reverso /
Neutral -
forward -
reverse
Neutral -
adelante -
reverso /
Neutral -
forward -
reverse
Shift gear relation /
Relação de
engrenagem / Relación
de engranaje
27/13
27/13
28/13
27/13
27/13
27/13
Tipo Eixo / Tipo Eje /
Shaft type
curta /
corto /
short
curta /
corto /
short
curta / corto
/ short
curta / corto /
short
curta / corto /
short
curta / corto /
short
Hélice / Propeler
3-7.25x5"
3 - 7 1/2"
x 7"
3 - 7.8" x
8.0"
3 - 8.9" x 8.3"
3 - 9.1/4" x 11"
3 - 9.7/8" x
11.1/4"
Logistica Logistic
Dimensões caixa
(CxLxA)/ Dimensiones
caja / Dimensions box
(lxwxh) [mm] :
950 x 495
x 265
968 x 597
x 292
1058x565x4
10
1050x585x400
1080x675x395
1228x715x410
Peso líquido/ Peso neto
/ Net weight [kg]
caixa / caja / box [mm] :
9,8
14,5
20
26
36
52
Peso bruto / Gross
weight [kg]
caixa / caja / box [mm] :
12,9
17,2
25
34
53
63

6

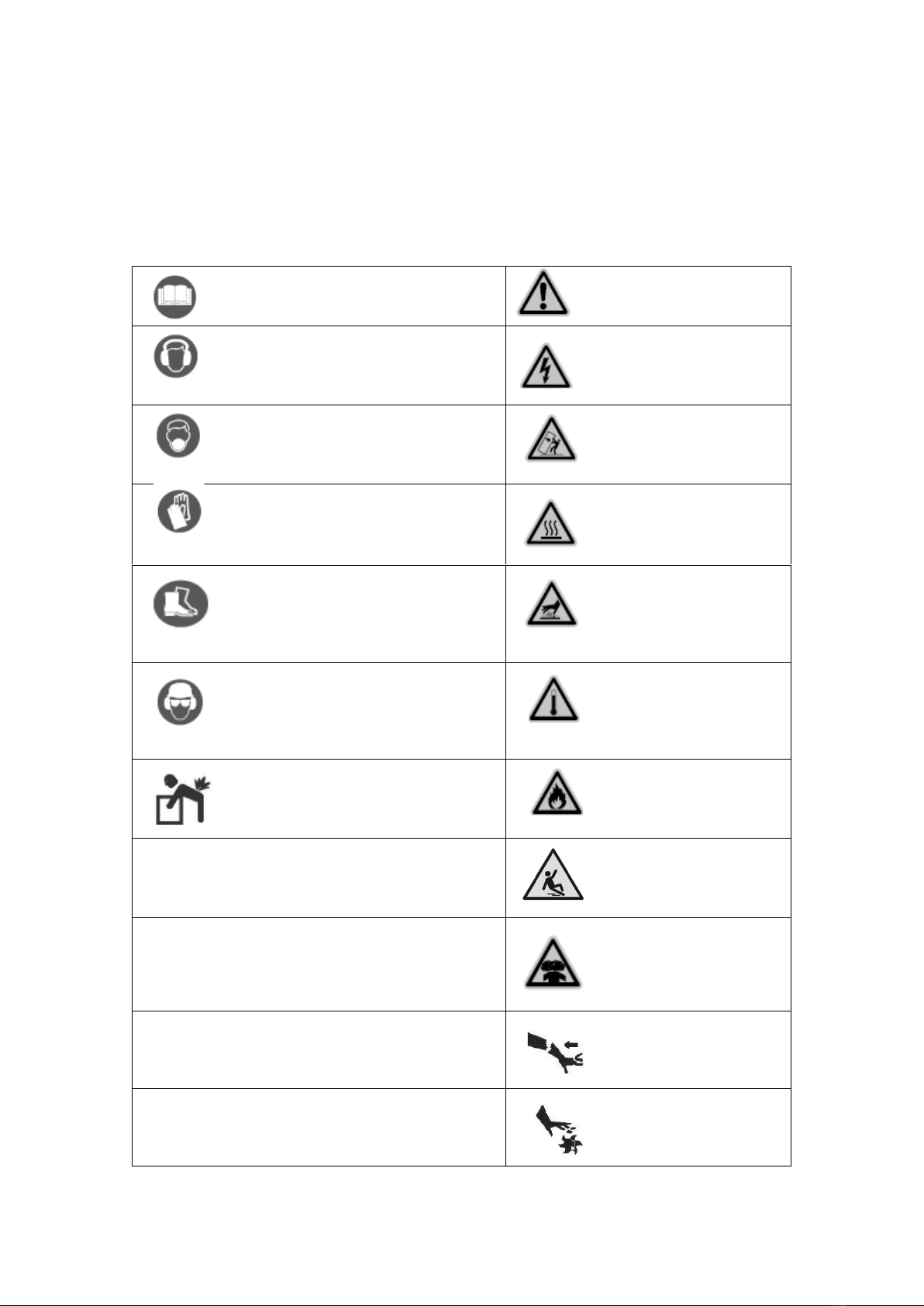

SAFETY SYMBOLS / SIMBOLOS DE SEGURANÇA / SIMBOLOS DE SEGURIDAD
The following symbols are intended to remind you of the safety precautions to be followed.
Los siguientes símbolos tienen el objetivo de recordarle las precauciones de seguridad que
deben respetarse.
Os símbolos seguintes tem o objetivo de lembra-lo sobre as precauções de segurança que
devem ser respeitadas
LEIA O MANUAL
LEA EL MANUAL
READ MANUAL
AVISO
AVISO
WARNING
USAR PROTEÇÃO DE OUVIDO
UTILICE PROTECCIÓN AURICULAR
WEAR EAR PROTECTORS
RISCO ELÉTRICO
RIESGO ELÉCTRICO
WARNING ELECTRICITY
USAR PROTEÇÃO RESPIRATÓRIA
UTILICE PROTECCIÓN RESPIRATORIA
RESPIRATORY PROTECTION
RISCO DE TOMBAMENTO
RIESGO DE
DEZLIZAMIENTO
TIPOVER HAZARD
LUVAS DE SEGURANÇA DEVEM SER
USADAS
DEBEN SER UTILIZADOS GUANTES DE
SEGURIDAD
SAFETY GLOVES MYST BE WORN
RISCO DE QUEIMADURA
RIESGO DE QUEMADURA
BURN HAZARD
CALÇADOS DE PROTEÇÃO DEVEM SER
USADOS
DEBEN SER UTILIZADOS CALÇADOS
PROTECTORES
PROTECTIVE FOOTWEAR MUST BE
WORN
SUPERFICIE QUENTE
SUPERFICIE CALIENTE
HEAT/HOT SURFACE
PROTEÇÃO PARA OS OLHOS, OUVIDOS
E CABEÇA DEVEM SER USADOS
DEBE SER UTILIZADA PROTECCIÓN
PARA LOS OJOS, OIDOS Y CABEZA
EAR, EYE AND HEAD PROTECTION
MUST BE WORN
ALTA TEMPERATURA
ALTA TEMPERATURA
HIGH TEMPERATURE
RISCO DE LESÃO
RIESGO DE LESION
RISK OF INJURY
MATERIAL INFLAMÁVEL
MATERIAL INFLAMABLE
FLAMMABLE MATERIAL
RISCO DE ESCORREGAR
RIESGO DE DESLIZAR
RISK OF SLIPPING
AR COM CONTAMINANTES
AIRE COM
CONTAMINATES
TOXIC AIR
REBOTE
CONTRAGOLPE
KICKBACK
PARTES MÓVEIS
PARTES MOBILES
ROTATING PARTS

7
1 MAIN COMPONENTS AND GENERAL RECOMMENDATIONS
COMPONENTS
1. Engine cover
2. Engine cover lock
3. Anti cavitation
4. Propeller
5. Water inlet for cooling
6. Support
7. Steering friction screw
8. Outboard clamp
9. Handle
10. Engine stop switch
11. Starting handle
12. Fuel hose conector
13. Safety notices
14. Throttle handle
15. Throttle friction adjustment
16. Fixing screw
17. Engine oil drain plug
18. Shift lever
19. External fuel tank*
** (illustrative scheme only - there may be differences in models in this manual)For models
accompanying external fuel tank:
1. Fuel tank cap
2. Fuel hose connector
3. Breather valve
4. Fuel gauge
1
3
2
4

8

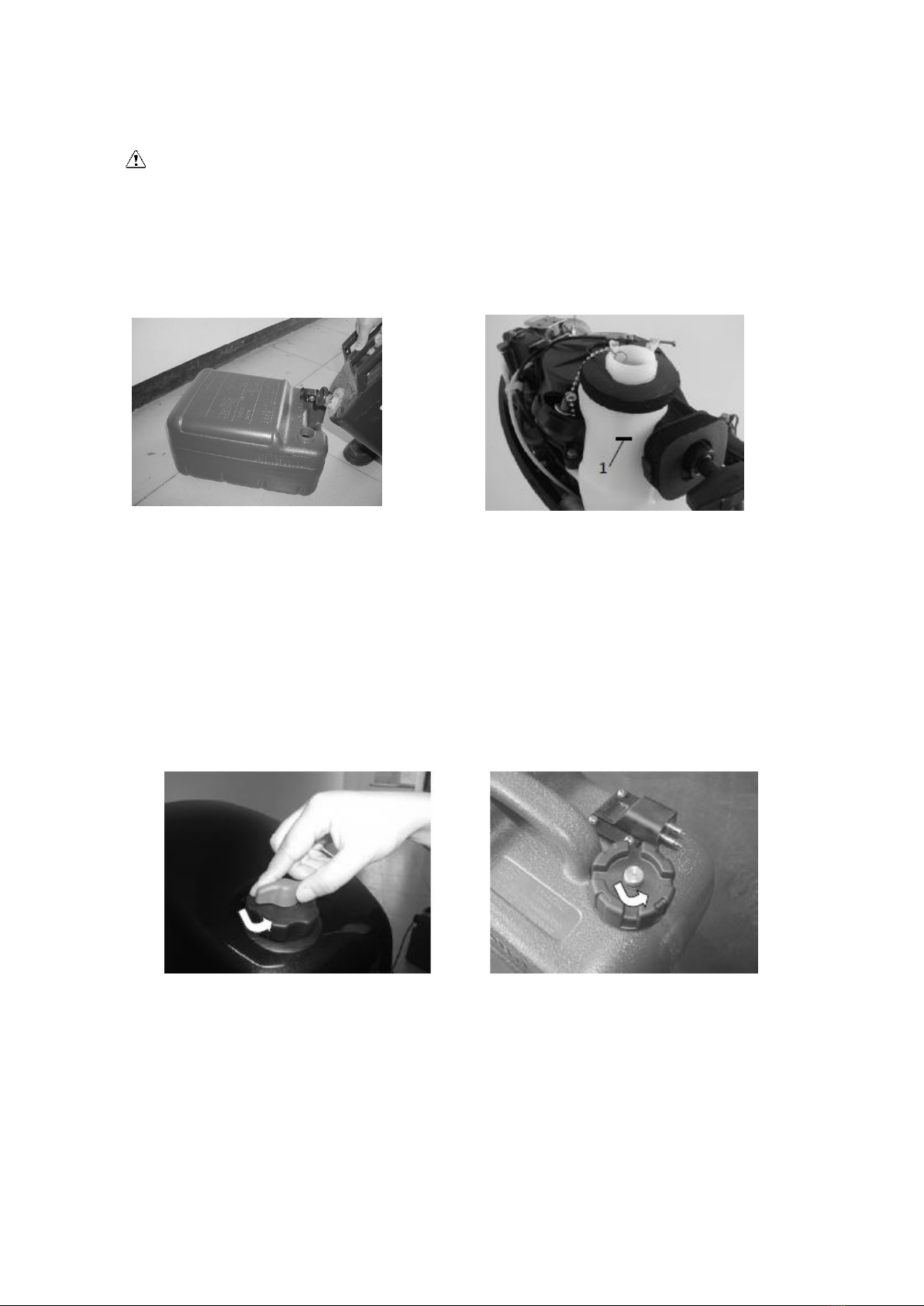

For models that include internal fuel tank:
1. Breather valve
2. Fuel tank cap
3. Internal fuel tank
4. Fuel cock
Warning: The fuel tank that comes with the engine can only be used when the engine is running,
and not be used for storage. Close the fuel cock when using the external tank. Disconnect the
fuel hose when using the internal tank.
INSTRUCTIONS FOR FUEL SUPPLY
Recommended Gasoline:
Normal and without lead
If using leaded gasoline, valves and other engine parts should be inspected after every 100
hours of operation
.
ATTENTION:
⚫Do not smoke during filling, and keep away from sparks, flames or other forms of
ignition.
⚫Switch off the engine before refueling
⚫Store in well ventilated areas; remove the external fuel tank from the boat to refuel it.
⚫Do not overfill the fuel tank.
⚫Be careful not to spill fuel, if it spills clean immediately.
⚫Tighten the fuel cap securely after refueling.
⚫In case of ingestion of gasoline, inhalation of fuel vapor or contact with eyes, seek
medical advice immediately.
⚫If you spill gasoline on the skin, wash immediately with soap and running water. If you
spill on clothing, change clothing immediately.

9
Engine oil
Recommended oil engine: Outboard Engine Oil 2 stroke TC-W3
Gasoline and oil mixture
Adaptation period
25:1
Gasoline
1L
12L
14L
24L
Engine oil 2T
0.04L
0.48L
0.56L
0.96L
After adaptation period
50:1
Gasoline
1L
12L
14L
24L
Engine oil 2T
0.02L
0.24L
0.28L
0.48L
ATTENTION:
Be sure to mix properly gasoline with engine oil or it may cause serious engine damage
SELECTING THE PROPELLER
The performance of your outboard will be critically affected by your choice of propeller, an
improper choice can adversely affect performance.
The outboard is equipped with propellers chosen to perform more than a range of
applications, but there may be specific situations where helixes with different characteristics may
be more appropriate.
The Toyama Representatives can advise you about which propeller to use on the outboard
that best suits your specific situation.
For higher loads and lower rotations a smaller pitch propeller is more suitable. In the same
way a larger pitch propeller is more suitable for small loads.
2 OPERATION

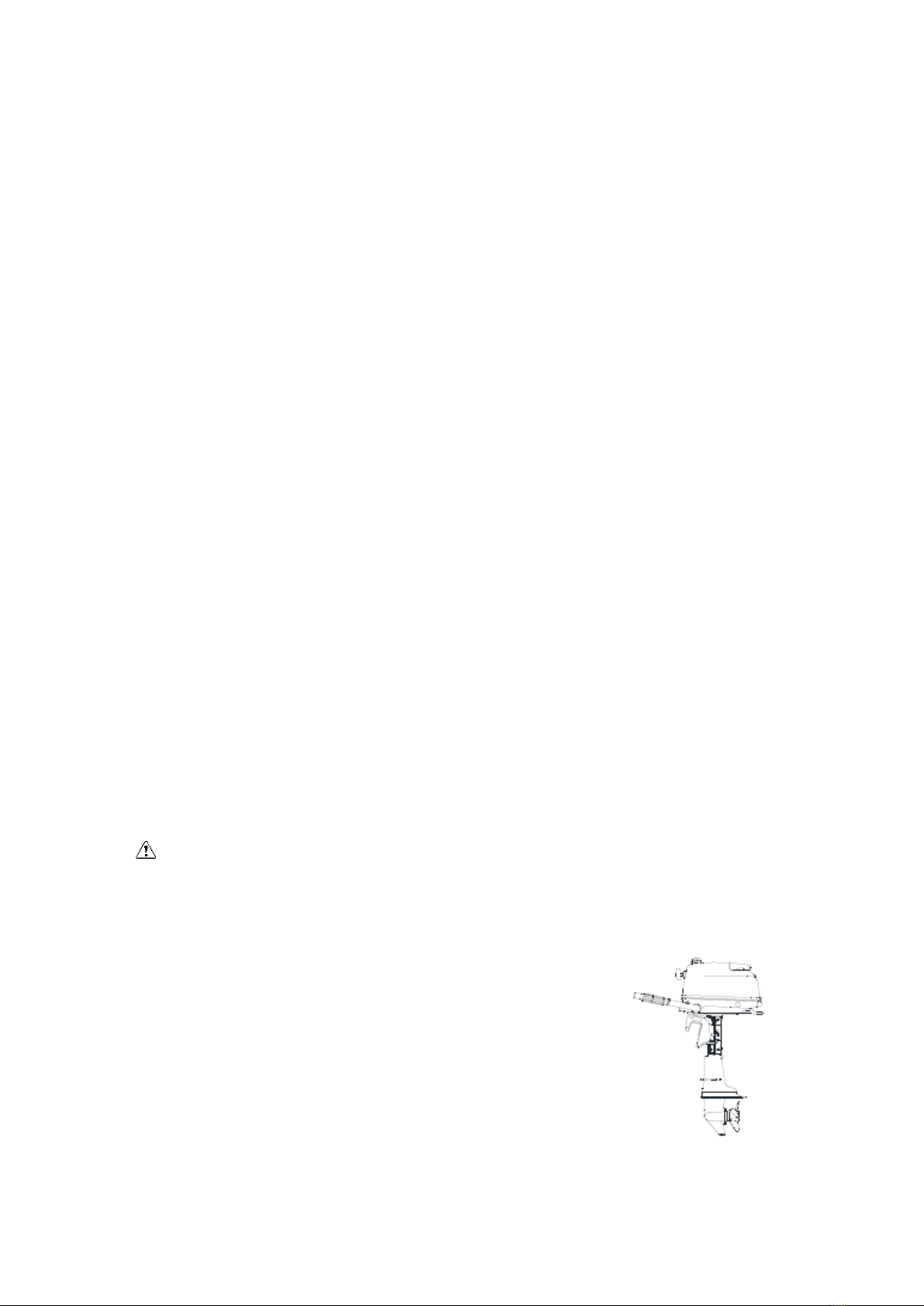

INSTALLATION
Fit the outboard in the center line of the boat (keel line). For boats without a center line and
that are asymmetrical, consult your dealer.
1. Center line

10
NOTE:
During the water tests check the buoyancy of the boat, at rest, at its maximum load.
Check that the water level is sufficiently below the exhaust so that there is no water flowing
through the power, when the water rises due to the waves and the engine is not turned off.
ATTENTION:
•Overloading the boat engine can cause severe instabilities. Do not install an outboard
with more power than the maximum rating on the boat's capacity plate. If the boat does
not have a capacity plate, consult the boat manufacturer.
•Incorrect assembly of the outboard may result in hazardous conditions. For permanently
mounted models, your dealer or other person with experience in proper handling must
mount the engine. If you are mounting the engine, you should be trained by an
experienced person. For portable models, your dealer or other person with experience in
proper outboard assembly should show you how to mount the engine.
•The information presented in this section is for reference only. Proper assembly depends,
in part, on the experience and specific combination of boat-motor.
HEIGHT ASSEMBLY
The outboard mounting height significantly affects boat performance and speed. If the
mounting height is too high, cavitation tends to occur, thus reducing propulsion. If the mounting
height is too low, the water resistance will increase, reducing engine efficiency.
Assembly the outboard so that the anti-collision plate is between the bottom of the boat and
a level 25 mm below it.
NOTE:
The optimal outboard height is affected by the combination of the boat, engine and the
intended use. Testing at a different height can help determine the optimal assembly height. For
more information, consult your TOYAMA dealer or TOYAMA for our SAC.

11
OUTBOARD ENGINE FIXATION
1. Position the engine as centered as possible. Tighten the clamps securely and
continuously. Due to the vibration of the engine, it may happen that the fixing screws
on the boat may eventually come loose, always check the tightening of the same.
ATTENTION
•Loose attachment screws may allow the outboard to come loose or move over the boat's
transom. This may cause loss of control of the vessel.
•Always make sure the bolts are tight and tight, checking the recoil occasionally when
using the engine.
2. Tie a rope or chain to prevent engine loss if it accidentally loosens from the boat and
falls into the water. Attach one end to the proper location of the engine and another
end to a safe point on the boat.
3. Secure the securing bracket to the crossbar with the appropriate screws. For details,
consult your dealer TOYAMA.
ATTENTION:
Avoid using improper bolts, nuts, and washers. After tightening, test the motor operation and
recheck the tightening.
OUTBOARD ENGINE FIRST USE
Your new engine needs a softening period to allow the surfaces of the parts to adjust. Correct
engine adaptation will ensure proper performance and long life of the outboard.

12
ATTENTION
Failure to do so may result in reduced service life, loss of performance or even serious
damage to the outboard.
1. First hour of operation:
2. Operate the engine at a speed of 2000 rpm or approximately half acceleration.
3. Next two hours of operation:
4. Operate the engine at a speed of 3000 rpm or approximately ¾ acceleration.
5. Next 8 hours of use:
6. Avoid continuous operation with full throttle for more than five minutes.
7. After this period the engine normally operates.
3 PRE-OPERATION CHECKS
Fuel
•Check that there is enough fuel for your trip.
•Ensure that there is no leakage of fuel or gasoline vapors.
•Check the fuel connections and make sure they are tight.
•Ensure that the fuel tank is positioned on a level and secure surface and that the hoses
are not twisted or crumpled. Tank and hose must be long from sharp objects.
Control
•Check throttle and steering for proper operation before starting engine.
•The controls should work smoothly, without slack.
•Make sure that there are no loose or damaged connections.
•Check operation of start and stop switches when outboard is in the water.
Engine
•Check engine and attachment.
•Check for loose and faulty screws.
•Check the propeller for faults.
Attention:
If any item on the pre-operation check is not working properly, repair it before operating
the outboard. Otherwise accidents may occur.
WARNING:
Do not start the engine out of the water as it will overheat the engine,
causing serious damage or serious accident.
✓Checking the engine oil level
✓Position the motor upright (not tilted)
✓Check the oil level using the dipstick, making sure the level is
between the lower and upper dipstick markers. Add oil if the
level is below the lower limit or drain if it is above the upper
limit.
✓Check according to the model of your outboard

13
4 FUEL SUPPLY
Attention：
Gasoline and its vapors are highly flammable and explosive. Always keep away from sparks,
cigarettes, flames or other sources of ignition. Check fuel hose for leaks, cracks or any faulty
function.
1. Remove the fuel tank cap.
2. Carefully fill the tank with fuel. On models where the fuel tank is internal, complete up to the
upper limit 1.
External fuel tank Internal fuel tank
3. Close the cap tightly after filling the tank. Clean up any spilled fuel.
5 TURNING ON THE ENGINE
1. Open the fuel tank breather plug. Turn the plug counterclockwise to the inner fuel tank and
two to three turns in the same direction to the outer fuel tank. Allow the internal pressure
in the tank to match the ambient pressure. This step is important to allow atmospheric air
to enter the tank and occupy the fuel space as it is consumed by the engine.
Internal fuel tank External fuel tank

14

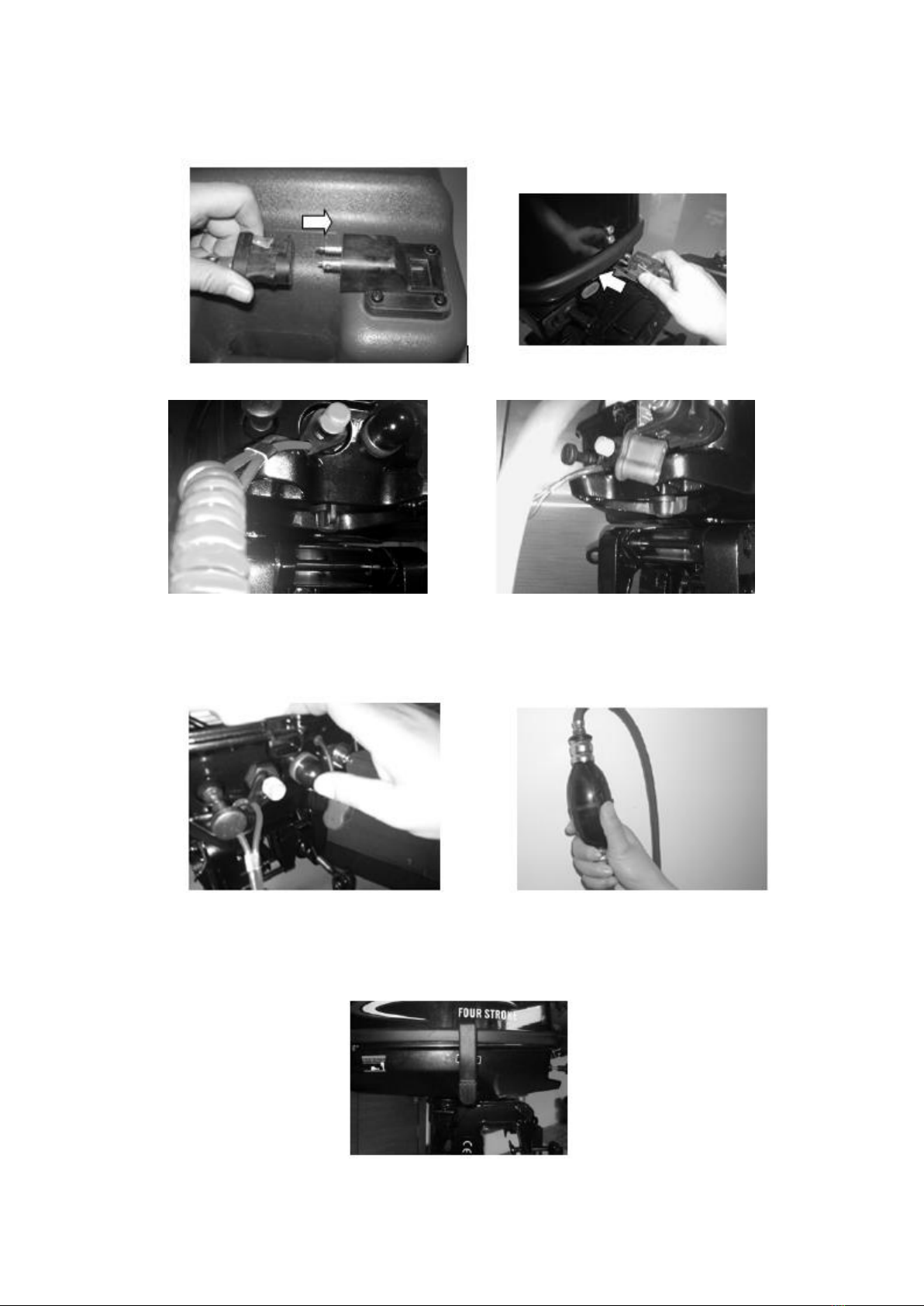

2. Connect the fuel hose to the tank and engine. Make sure it is firmly seated (* This step is
only for engines connected to external fuel tanks).
3. Open the fuel cock.
Internal fuel tank External fuel tank
4. Press the primer (manual fuel pump) until you feel a resistance, the pump becomes rigid,
indicating that the fuel has reached the engine.
Internal fuel tank External fuel tank
5. Set the gear lever to neutral (NEUTRAL).

15
Attention:
⚫The motor must be started at Neutral N, otherwise damage may occur at the same time.
⚫Do not attach the lanyard of the emergency stop switch to easily removable clothing. Avoid
twisting the cord and be careful that it does not attach to other parts of the engine.
⚫Avoid accidentally pulling the rope during normal operation. Loss of engine power means
loss of steering control. In addition, without engine power, the boat can decelerate rapidly.
This can cause people and objects on the boat to be thrown forward.
NOTE:
Adapt the lanyard of the engine emergency stop switch to a safe
location on your clothing, arm or leg. Then insert the locking plate
into the engine stop switch. This plate is located at one end of the
emergency stop switch cord.
6. Set the throttle lever to the starting position (Manual Start)
Manual starter
7. If the engine is cold, pull the throttle button (1) to provide a richer fuel mixture to the engine
(throttle closed).
NOTE:
It is not necessary to drown the engine when starting a hot engine.
If the engine continues with the choke closed after starting, the engine will not perform properly
and may even shut down. Therefore, after starting the engine, return the choke knob to its starting
position.

16
8. Pull the starter handle slowly until you feel a resistance, and then pull it out quickly and
firmly. Repeat this procedure if necessary..
9. After the engine is started, slowly return the choke to its starting position.
10. Slowly return the throttle grip to the fully closed position.
WARNING:
When the engine is cold, it must be heated.
If the engine does not start on the first attempt, repeat the procedure.
If the engine does not start after 4 or 5 attempts, open the throttle a small amount (between
1/8 and 1/4), and try again.
Never turn the drive switch to the START position when the engine is already running.
HEATING THE ENGINE
1. After starting the engine, let it idle for 3 minutes to warm up. Failure to do so will decrease
engine life. Gradually turn the choke knob to the starting position when the engine warms up.
2. Check for the presence of a constant flow of water from the cooling hole.
WARNING
If water is not flowing out of the check hole while the engine is running, turn off the engine and
check that the cooling water inlet at the bottom of the case or pilot water cooling hole is blocked.
If the problem cannot
be found and corrected, consult your authorized dealer.
MARCH
Attention: Before engaging the gears, make sure there are no obstacles or persons
nearby.

17

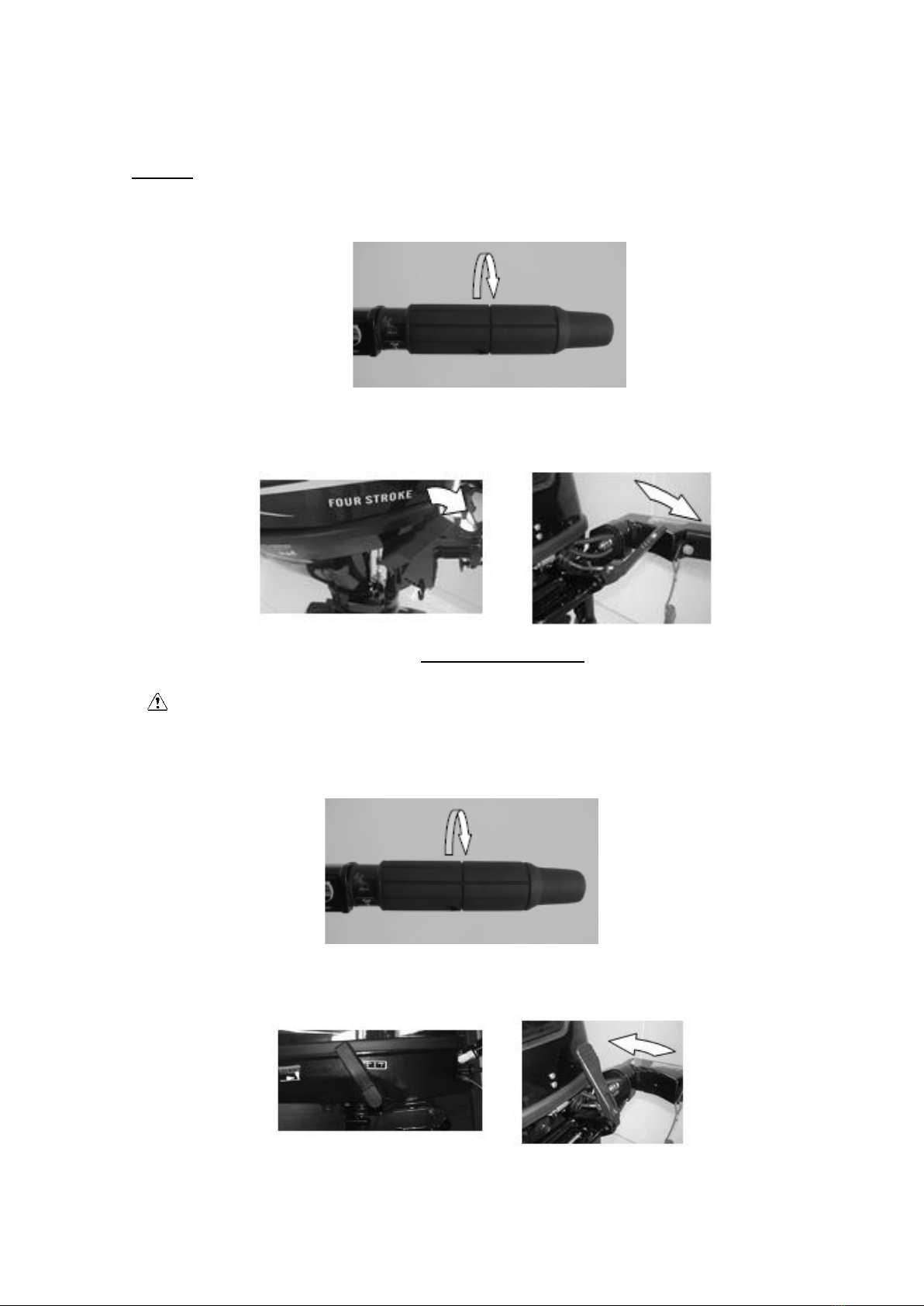

WARNING
Before engaging the gears, turn the throttle grip to the starting position (idle or low speed)
Forward
1. Set the throttle lever to the fully closed position (initial position).
2. Shift the gearshift lever quickly and steadily from neutral to forward gear
Reverse (*if equipped)
WARNING:
When operating in reverse, go slowly. Do not accelerate more than half the full speed or the boat
may lose stability, causing loss of control or an accident.
1. Set the throttle lever to the fully closed position (initial position).
2. Move the gearshift lever firmly from neutral to Ré.

18
NOTE:
Make sure that the tilt lever is in the lock / position down. Check the tightening of the clamps to
ensure that the vessel will not turn.
6 CHANGING DIRECTION
Change of direction
To change direction, move the rudder to the left or right as needed.
Speed change
Turn the throttle lever counterclockwise to increase speed and time to slow down.
Throttle Indicator
The acceleration indication (1) is attached to the throttle lever. The fuel consumption
curve on the throttle indicator shows the relative amount of fuel consumed for each
throttle position. Choose the setting that offers the best performance and fuel economy
and the desired operation.
Adjusting the friction screw
The throttle friction regulator is on the rudder lever, which provides adjustable resistance
to throttle grip movement, and can be adjusted according to operator preference.
To increase the resistance, turn the adjustment clockwise. To decrease the resistance,
turn off the time adjuster. When constant speed is desired, press the adjuster to maintain
the desired throttle setting.
N
F

19
ATTENTION:
Do not overtighten the friction regulator. If there is too much resistance, it may be difficult to
move the throttle lever, which could result in an accident.
7 STOPPING THE ENGINE
NOTE:
Before switching off the outboard, allow it to cool for a few minutes at low speed or at low
speed. Stopping it immediately after intense use of high speed and speed can damage the engine.
PROCEDURE
Press and hold the outboard stop button until it is completely off.
NOTE:
If the outboard is equipped with a stop by a rope, it can also be switched off by pulling it
out and removing the catch present.
Securely tighten the fuel tank breather valve and close the fuel.

20
Close and disconnect the fuel COCK.
ADJUSTING THE ENGINE POSITION
The motor has four or five holes present for adjusting the motor angle.
1. Turn off the engine.
2. Remove the position adjusting screw while tilting the engine slightly.
3. Replace the screw in the desired position (perform tests in different
positions to find the position that best fits the intended conditions of use).
ATTENTION:
Make sure that the engine is turned off and completely stopped.
Operate your handling carefully.
Be careful not to crimp body parts when removing and replacing the set screw.
Be careful when changing position. Gradually increase the speed after the change to verify that
the boat is stable. Inadequate angles can lead to loss of boat control.
NOTE:
Position the outboard at an angle that ensures balance and stability during navigation. An
excessively large angle of balance is incorrect as it causes the bow to raise (1). On the other
hand, an excessively small angle of equilibrium causes the bow to be submerged (2). It is worth
noting that the most appropriate balance angle depends on the combination of the outboard, boat,
propeller and operating condition.
Positioning it
If your outboard is stationary for a period of time or anchored in shallow water, it should
be tilted upwards to protect the propeller and transmission case, avoiding collision damage and
reducing corrosion.
ATTENTION:
•Make sure that people around you are at a safe distance from the engine to prevent
accidents.
•Make sure that the fuel tank cap breather valve is tightly closed, and that the fuel cock is
in the "closed" position if the engine is tilted to prevent leaks.
