TABLE OF CONTENTS
114
LIMITATIONS OF THIS QUICK REFERENCE GUIDE 1
BASIC OPERATION 2
DESTINATION INPUT 3
By Address 3
DESTINATION INPUT - POINTS OF INTEREST (POI) 5
Points of Interest by Name 5
Points of Interest by Category 6
DESTINATION INPUT - TELEPHONE NUMBER 7
Business or Registered Memory Points 7
REGISTER HOME 8
ADDITIONAL NAVIGATION FEATURES 10
Search Area 10
Route Preferences 10
3 Routes 10
Screen Preferences 10
Beep Setting 11
Volume Setting 11
Keyboard Setting 11
Screen Transition 11
Freeway Exit Info Mode 11
Estimated Distance and Time 12
Operation of Your Vehicle Emergency Screen 12
XM NAVTRAFFIC®13
This Quick Reference Guide is designed to provide information
on the basic operation and key features of the navigation system.
The Quick Reference Guide is not intended as a substitute for
the Navigation Owner’s Manual. We strongly encourage you to
review the Navigation Owner’s Manual so you will have a better
understanding of the navigation system capabilities and limitations.
LIMITATIONS OF THIS QUICK REFERENCE GUIDE
Press the
MENU
panel button,
and then touch .
step1Select preferences.
step2
XM NAVTRAFFIC®PREFERENCES
Show XM
NavTrafoc
Information:
Auto Avoid Trafoc:
Traf oc Voice
Guidance:
Show Free
Flowing Trafoc:
1
4
3
2
1
4
3
2
Touch to display trafoc information on the map.
Tr a f oc pow is displayed by color lines right along the side of the
freeways:
Free pow trafoc
Light trafoc jam
Heavy trafoc jam
Touch to make selecting another route offered by the system
when heavy or moderate trafoc is detected on the guidance route.
Touch to have trafoc information provided using voice
guidance.
Touch to show free powing trafoc illustrated by green arrows
on the map.
412031M1.indd 2 12/20/07 4:59:06 PM

BASIC OPERATION
2

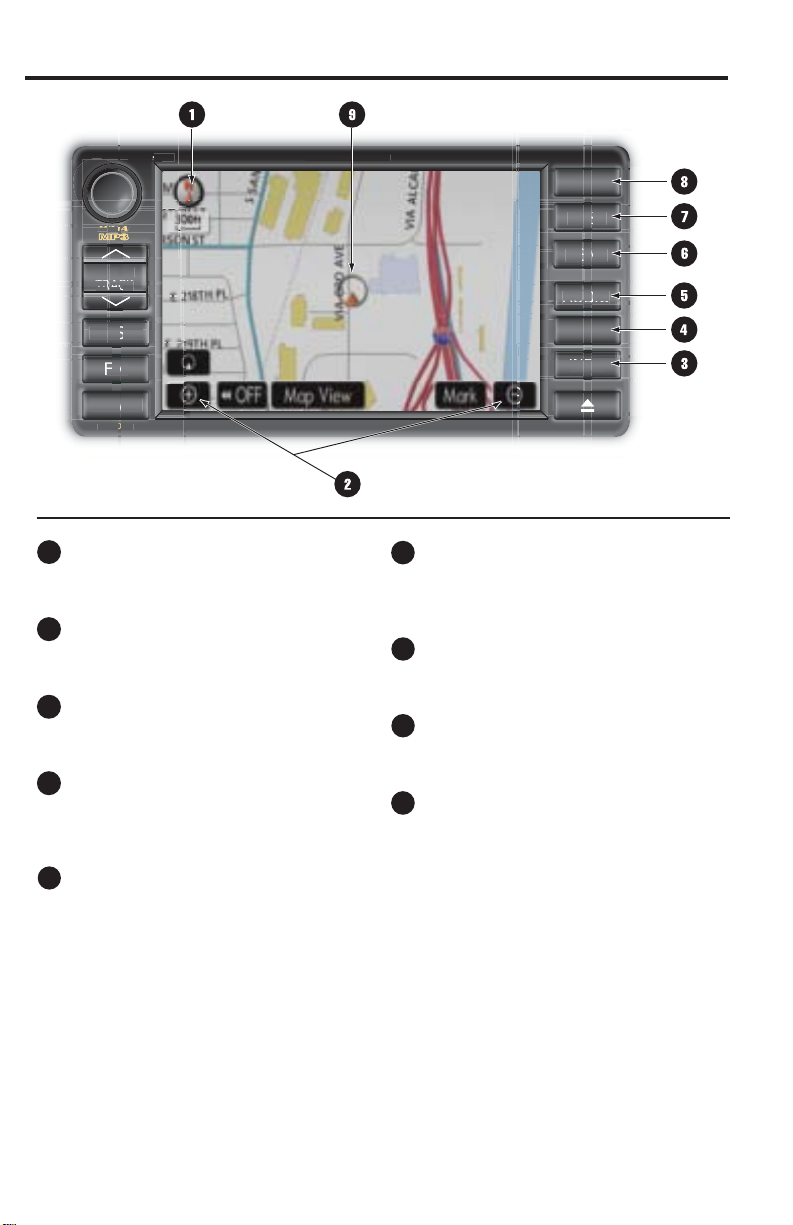

NORTH UP OR COMPASS MODE Icon
Touch to change the map display between
North-up or Head-up perspectives.
ZOOM IN/ZOOM OUT Icons
Touch to magnify or reduce the
map scale.
INFO Button
Access Maintenance, Telephone,
Calendar, Language, and Screen Settings.
DISPLAY/TILT Button
Adjust the contrast, brightness or
turn off the screen. Change the angle
of the screen for best viewing.
AUDIO Button
Set the radio station presets, adjust the
balance and tone controls.
MENU Button
Access Voice Guidance Volume, Select
User, My Places, Setup and Suspend
Guidance.
DESTINATION Button
Input the destination by one of several
methods and initiate route guidance.
MAP/VOICE Button
Repeat the last voice guidance prompt
or cancel one touch scroll.
CURRENT VEHICLE POSITION Mark
Indicates the current position of the
vehicle and its directional heading.
£
Ó
Î
{
x
È
Ç
n

AM•SAT
DISC•AUX
INFO
AUDIO
MENU
DEST
TUNE SEEK
FM
TRACK
PWR•VOL
VOICE NAVIGATION
WMA
TOYOTA
SAT
SAT
AM
AM
S
S
M•
•S
S
S
M
S
A
UX
A
D
IS
C
C
•
A
NU
N
ME
E
EN
M
M
F
FM
A
W
WM
MA
OT
OT
A
A
O
O
TOY
TOY
YO
YO
O
O
E
EK
E
CK
CK
CK
C
C
C
TU
N
N
TR
TR
TR
TR
R
R
R
R
W
WM
MA
E
S
S
RA
AC
RA
AC
A
AC
C
RA
RA
A
AC
A
AC
PWR
PWR
•
VOL
VO
VO
I
C
E NAVI
G
ATI
O
N
ST
S
D
E
ES
MAP
VOICE
DIO
DIO
DIO
O
F
F
D
D
D
AU
AU
AU
IN
IN
F
F
D
D
D
DISP
TILT
412031M1.indd 3 12/20/07 4:59:06 PM

DESTINATION INPUT

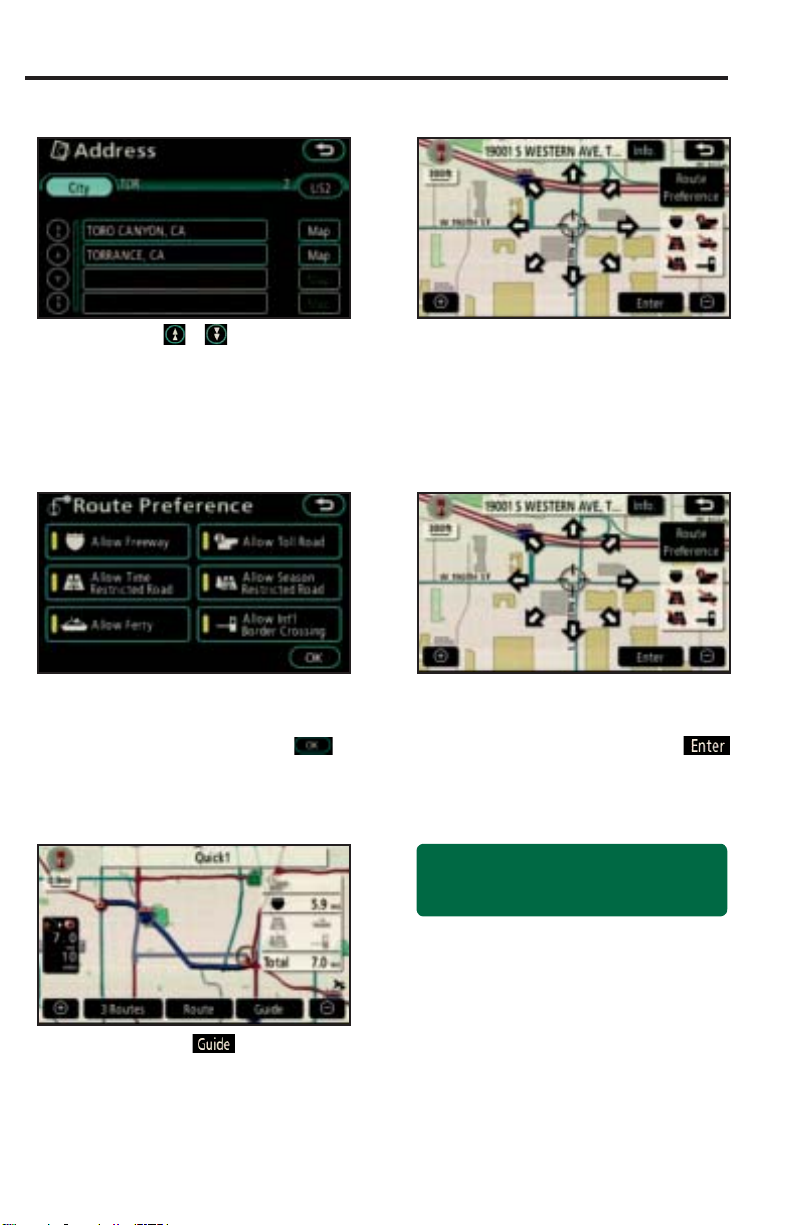

BY ADDRESS

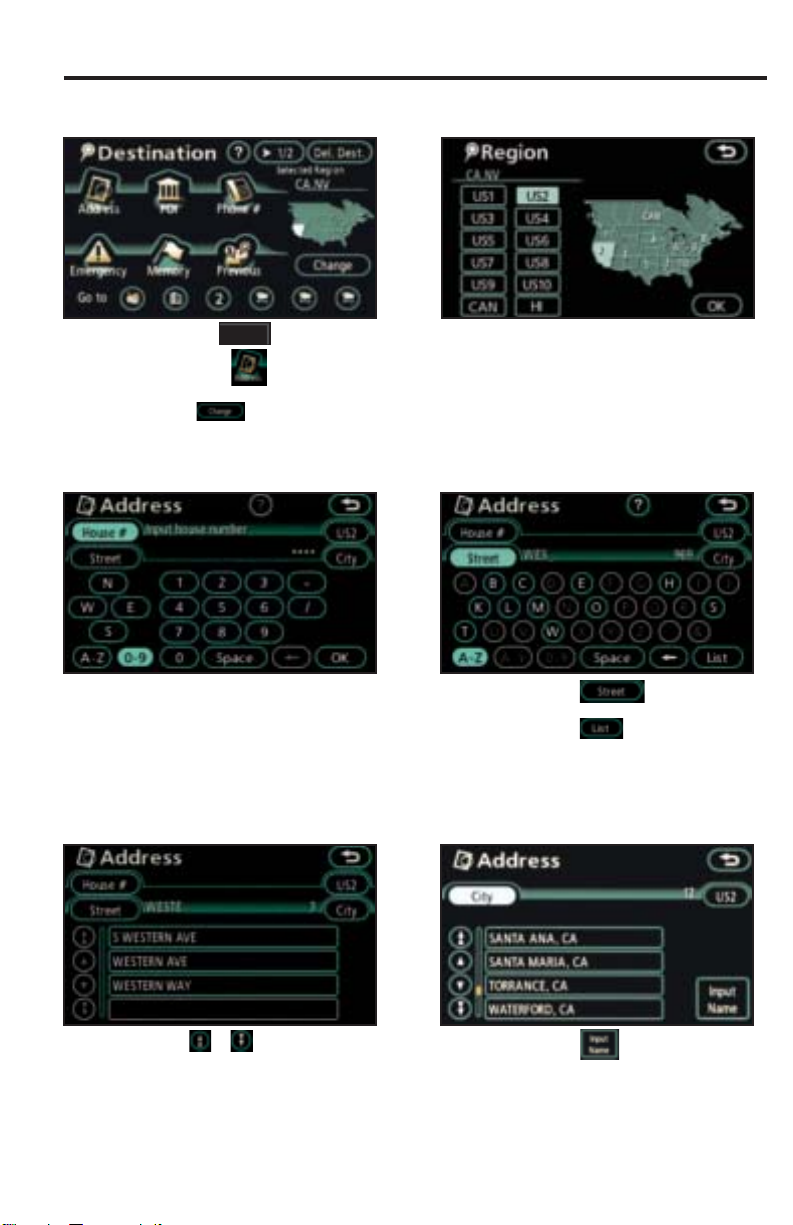

Press the
DEST
panel button
followed by and move to
step 3. To change Search Area,
touch and move to step 2.
Input the house number using the
number keys.
Touch and input the
street name using the letter keys.
Touch to see all of the
available options.
Use or to scroll up or down
one page if necessary. Touch the
desired street.
Touch to type in the city
name or select from a previously
registered city. If the city is not
available try the next largest city in
the vicinity.
Select the appropriate Search
Area, then touch OK to confirm the
selection.
3
step 1step 2
step 3step 4
step 5step 6
412031M1.indd 4 12/20/07 4:59:25 PM

DESTINATION INPUT
BY ADDRESS
Quick Tip - Enter the street name without
prefixes such as North or the letter N. The
system will display all of the options available.
If necessary, use the arrow
keys to adjust the position on
the map to put you closer to
your destination. Touch
to confirm the position.
Select the desired Route Preference
by touching the Route Preference icon.
Select the desired Route
Preference(s) for the trip. When
the yellow bar appears, the route
has been selected. Touch to
confirm your selection.
Use or to scroll up or down
one page if necessary. Touch the
desired city.
Touch .
4
step 7step 8
step 9step 10
step 11
412031M1.indd 5 12/20/07 4:59:26 PM

DESTINATION INPUT - POINTS OF INTEREST (POI)
POINTS OF INTEREST BY NAME
Quick Tip - If the POI isn’t listed in the database verify the
spelling and Search Area for accuracy.
Quick Tip - Touching the button next to the POI name will
display the address and telephone number.
Press the
DEST
panel button
followed by icon to access
points of interest by name.
Touch .
Input the POI name using the letter
keys and then touch .
Use or to scroll up or down
one page if necessary. Touch the
desired selection.
Select the desired Route Preference
and then touch .
5
step1step 2
step 3step 4
step 5Touch . step 6
412031M1.indd 6 12/20/07 4:59:27 PM

DESTINATION INPUT - POINTS OF INTEREST (POI)

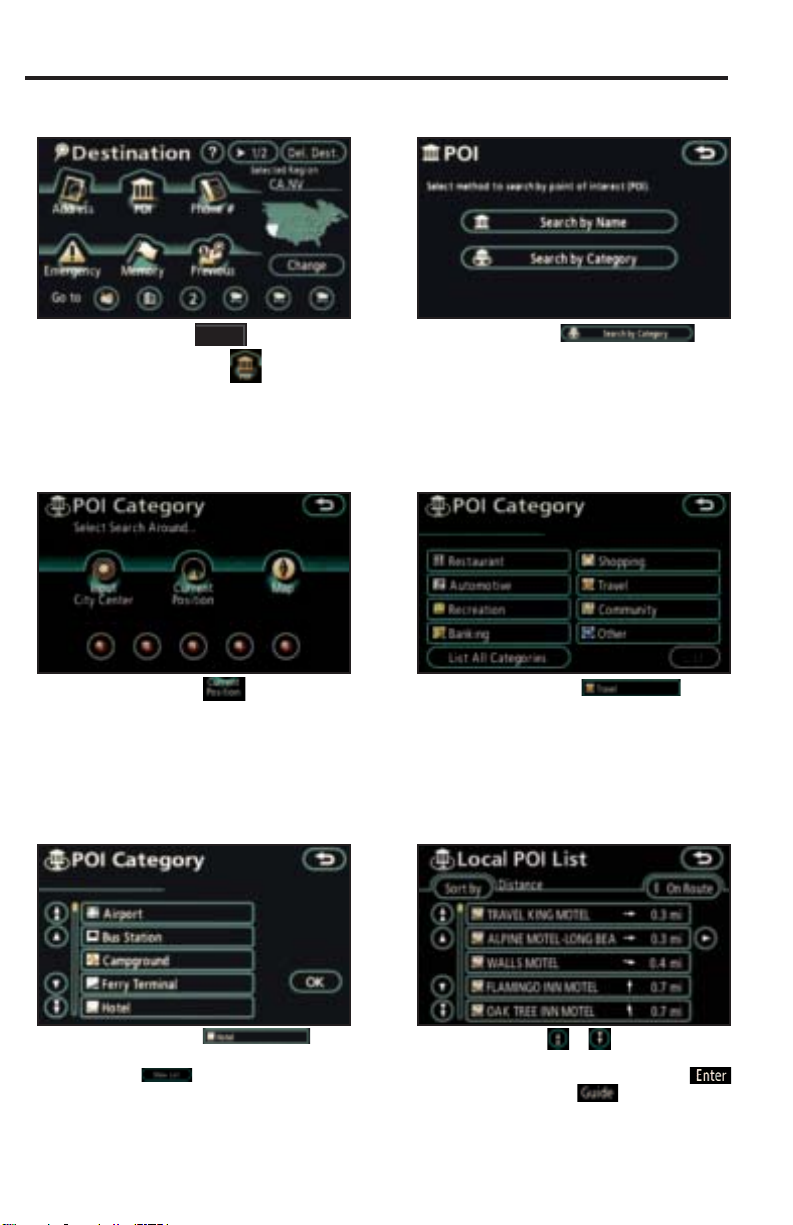

POINTS OF INTEREST BY CATEGORY
Press the
DEST
panel button
followed by the icon to access
the points of interest by category.
Touch .
Touch the icon to search
for points of interest in the vicinity.
Touch the icon.
Touch the icon
followed by OK and then touch
to see the points of
interest in the vicinity.
6
step 1step 2
step 3step 4
step 5Use or to scroll up or down
one page if necessary. Touch the
point of interest followed by
and then .
step 6
412031M1.indd 7 12/20/07 4:59:29 PM

DESTINATION INPUT - TELEPHONE NUMBER

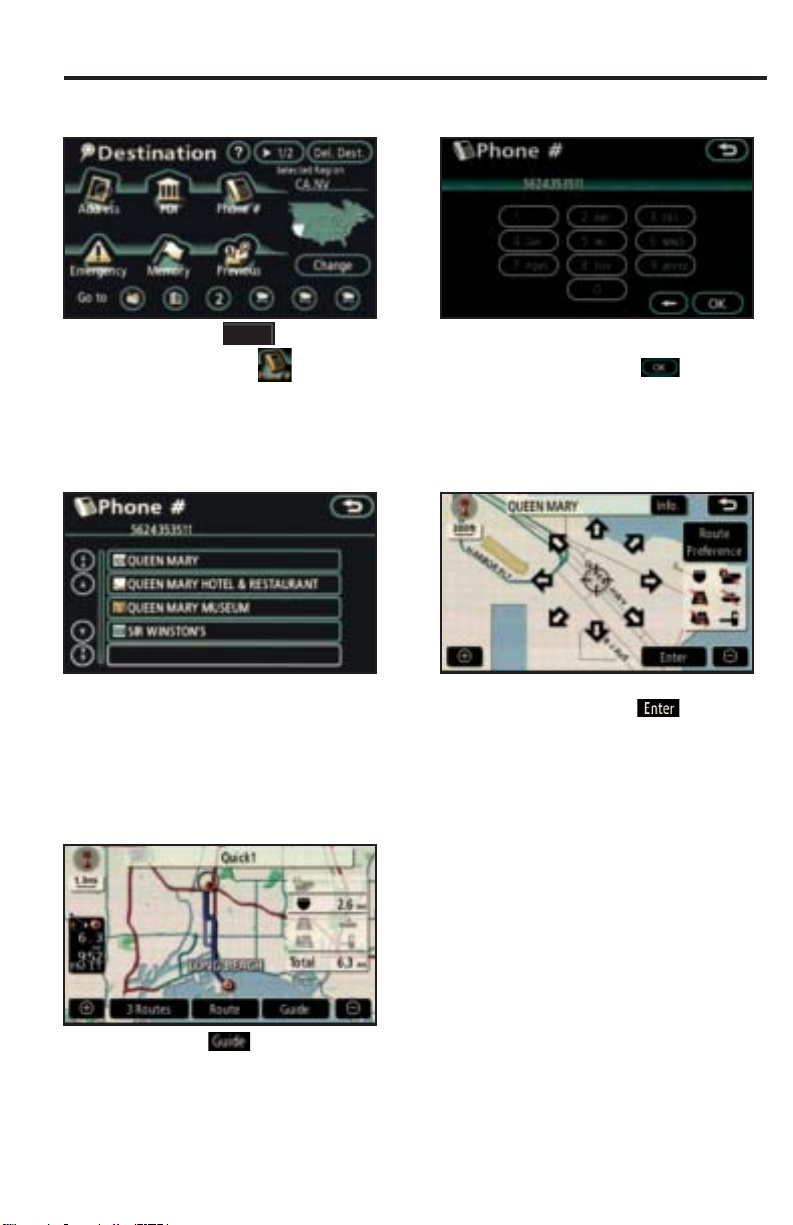

BUSINESS OR REGISTERED MEMORY POINTS
Press the
DEST
panel button
followed by the icon.
Input the area code and telephone
number using the number keys
followed by the icon. It is not
necessary to dial “1.”
Select the business or assigned
memory point from the screen.
Select the desired Route Preference
and then touch .
Touch .
7
step 1step 2
step 3step 4
step 5
412031M1.indd 8 12/20/07 4:59:30 PM

8
Press the
MENU
panel button
followed by the icon to
register your home.
Touch to input your home
address.
Make sure that you are in the
desired Search Area. Touch the
icon to begin address input.
Input the house number using the
number keys.
Touch and input the street
name using the letter keys. Touch
to see all of the available
options.
Touch or select
from a previously registered city.
step 1step 2
step 3step 4
step 5step 6
REGISTER HOME
Tip - For security reasons, use a point close to
your home instead of your actual home address.
412031M1.indd 8 12/20/07 4:59:30 PM

9
REGISTER HOME
If necessary use the arrow keys
to adjust the position on the
map. Touch to confirm the
position.
Touch at the top left of the
screen to change the home icon.
Touch the desired icon for
your home.
Touch at the bottom of
the screen. Press the
MAP
VOICE
panel button to complete the
registration of your home.
step 8
step 9step 10
step 11
Touch the desired city.
step 7
412031M1.indd 7 12/20/07 4:59:29 PM

10
Once the address has been inputted, select the
desired route preference(s) for the trip. For example,
if Allow Toll Roads is not selected, the system will
route over non-toll roads which may take longer to
reach the destination.
SEARCH AREA
ROUTE PREFERENCES
Prior to inputting the desired address select the
appropriate Search Area by pressing .
If the incorrect Search Area is chosen, the system
will either find an address that closely matches in
that area or will indicate that the address cannot
be found.
Select the appropriate Search Area, then touch OK to
confirm the selection.
Touch to select from seven different screen
viewing options. Three screen preferences are
available when the map is visible and four additional
are available during route guidance only. Please
refer to the list of screen preferences located below.
3 ROUTES
SCREEN PREFERENCES
One of the three routes may be chosen for the trip.
Quick 1 offers the shortest route by time; Quick 2
is the second fastest route. Short is the most direct
route based upon driven mileage.
*The system does not account for traffic signals or
traffic flow.
ADDITIONAL NAVIGATION FEATURES
Single Map
Dual Map
Compass
* Turn List
* Arrow
* Freeway
Information
* Intersection
Guidance
* Selections available
when in guidance
mode.
412031M1.indd 6 12/20/07 4:59:27 PM

11
ADDITIONAL NAVIGATION FEATURES

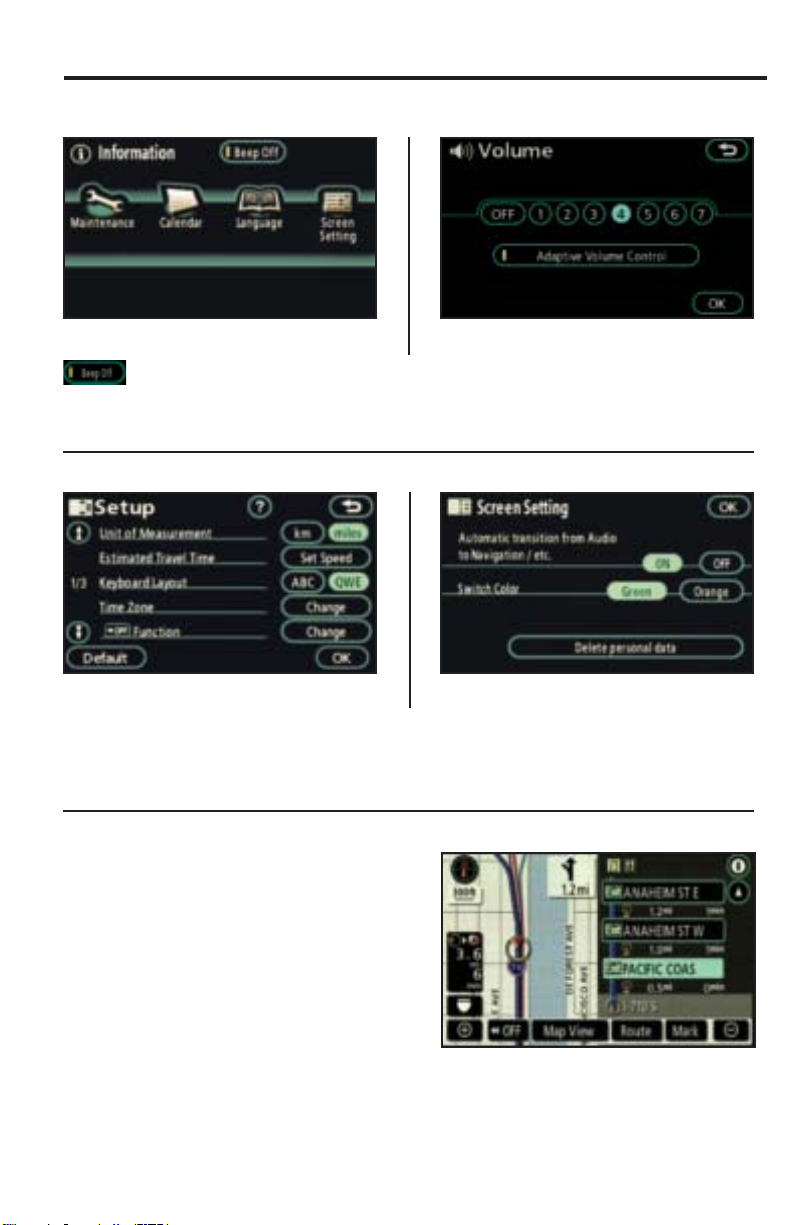

KEYBOARD SETTING
PRESS MENU > SETUP
Set the layout of the keyboard as alphabetical
or standard QWERTY keyboard. Touch OK to confirm
your selection.
PRESS MENU > VOLUME
The Volume feature allows for the adjustment of
the voice guidance commands. Touch the desired
volume level and touch OK to confirm your selection.
BEEP SETTING VOLUME SETTING
SCREEN TRANSITION
PRESS INFO > SCREEN SETTING
Touch OFF to prevent the system from reverting
to the map display. Once the screen transition is
switched off, the audio or climate control screen
(if equipped) will remain without reverting to the
map display. Touch OK to confirm your selection.
PRESS INFO > BEEP OFF
Switch off the confirmation tone by touching
at the top of the screen. When the yellow
bar appears this feature has been disabled.
FREEWAY EXIT INFO MODE
During Route Guidance on a Freeway or Toll Road,
a variety of points of interest such as Gas Stations,
Restaurants or Hotels can be viewed during your trip.
To access this feature, select Freeway Exit Info Mode
from the Screen Preferences. Upcoming freeway
exits will be listed by the number or name along with
the POIs in the vicinity of the exit ramp.
Select the desired exit from the list to see the POIs at
that particular exit.
* This feature is only available while in Route Guidance and travelling on a freeway or Toll Road.
412031M1.indd 5 12/20/07 4:59:26 PM

12
ADDITIONAL NAVIGATION FEATURES

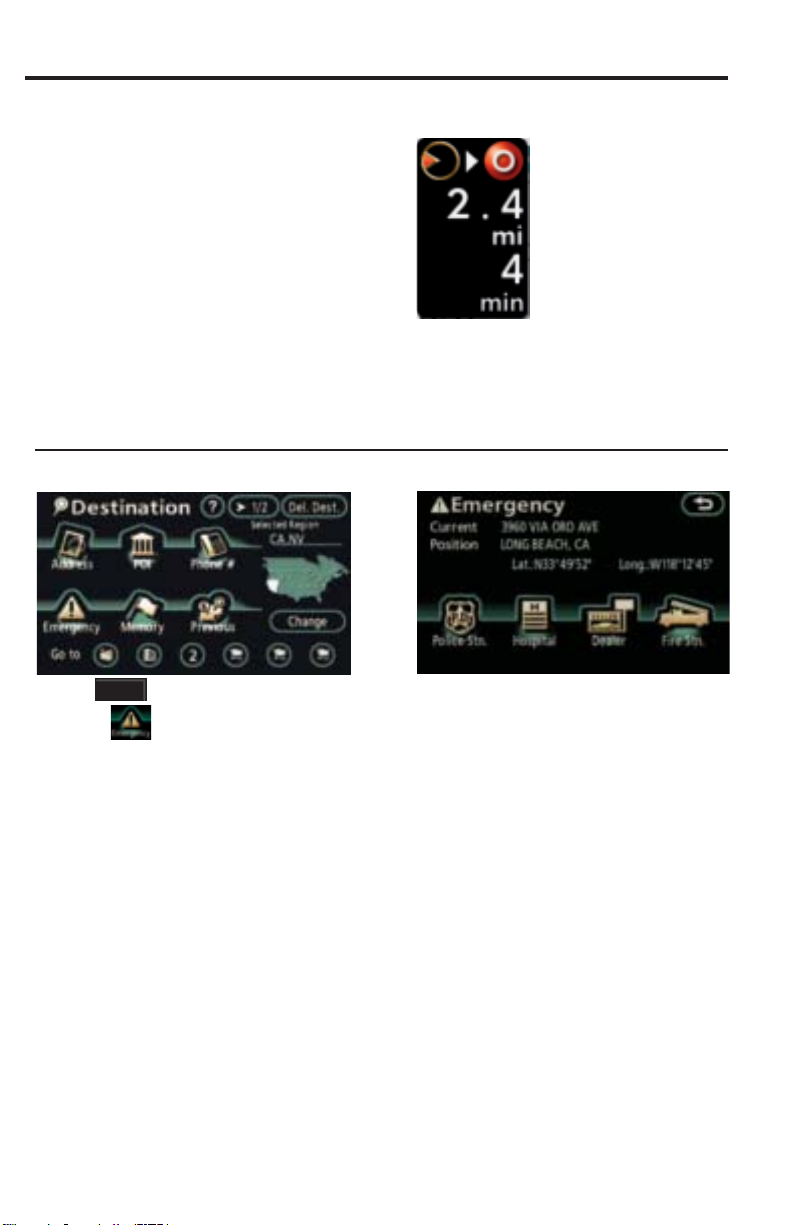

OPERATION OF YOUR VEHICLE EMERGENCY SCREEN:
Once selected, the system will provide a list of
locations sorted by distance. If the vehicle is in
motion, the system will route you to the nearest
location automatically.
Press the
DEST
button on the navigation face
plate. Touch which will provide four different
choices: • Police Stn. • Hospital • Dealer • Fire Stn.
Touch to select the desired destination.
ESTIMATED DISTANCE AND TIME*
The navigation system will provide an estimate
of the distance and time to the destination
based upon the suggested route during
guidance. The system automatically calculates
the remaining miles until you arrive at the
destination. Based upon the distance traveled,
the system will also provide an estimated time
until arriving at your destination.
The system can be customized to match
your driving habits. To adjust the speed for
residential, main streets or freeways please
refer to the Navigation Owner’s Manual for a
complete description of this feature.
* The system does not account for traffic
signals or traffic flow.
412031M1.indd 4 12/20/07 4:59:25 PM

13
Tr a f oc pow.
Accidents, disabled vehicles and weather-related issues.
Road construction and road closures.
CAUTION
XM NavTrafoc®is an optional subscription service that can send trafoc
information gathered by a variety of sources to vehicles with Navigation
Systems via XM’s satellite network. Displayed trafoc information can help your
drive by providing freeway trafoc and incident information in nearly 80 markets
(and expanding) across the U.S.
New Corolla Matrix owners with factory-installed navigation receive a 90-day
complimentary trial subscription from XM.
Tr a f oc information provided by XM NavTrafoc®:
http://www.xmradio.com/navtrafoc/index.xmc
XM NAVTRAFFIC®
412031M1.indd 3 12/20/07 4:59:06 PM
