1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the “POWER” switch is in AC-
CESSORY or ON mode, the initial
screen will be displayed and the sys-
tem will begin operating.
zAfter a few seconds, the “CAUTION”
screen will be displayed.
zAfter about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. (If a button other than the “MAP/
VOICE” button is pressed, the function’s
corresponding screen will be displayed.)
zImages shown on the initial screen can
be changed to suit individual prefer-
ences. (See page 48.)
CAUTION
●When the vehicle is stopped with the
hybrid system operating, always apply
the parking brake for safety.
MAINTENANCE INFORMATION
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the “Maintenance Reminder” screen
will be displayed when the navigation
system is turned on.
zThis screen goes off if the screen is not
operated for several seconds.
zTo prevent this screen from being dis-
played again, touch “Do Not Display
This Message Again”.
zTo register maintenance information,
see “MAINTENANCE” on page 121.

27
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
2. TOUCH SCREEN OPERATION
This system is operated mainly by the
buttons on the screen. (Referred to as
screen buttons in this manual.)
zWhen a screen button is touched, a
beep sounds. (To set the beep sound,
see page 43.)
NOTICE
●To prevent damaging the screen, lightly
touch the screen buttons with your finger
pad.
●Do not operate or rub the screen with a
ballpoint pen, a mechanical pencil, fin-
ger nail, a pointy and/or hard object
because this will damage the screen.
●Do not use objects other than your finger
to touch the screen.
●When wiping the touch screen, it is
advisable to wipe with a soft and dry
cloth wrapped around the finger. Do not
use chemical cleaners to clean the
touch screen. Also, be careful not to
apply excessive force on the screen.
INFORMATION
●If the system does not respond to touch-
ing a screen button, move your finger
away from the screen and then touch it
again.
●Dimmed screen buttons cannot be oper-
ated.
●To operate the touch screen, press
touch screen buttons properly with finger
pad.
●When dew condensation occurs inside
the touch screen, it is sometimes difficult
to operate the display properly. In such
case, please leave the screen
untouched and do not operate the touch
screen until dew condensation disap-
pears.
●The displayed image may become
darker and moving images may be
slightly distorted when the screen is
cold.
●In extremely cold conditions, the map
may not be displayed and the data input
by a user may be deleted. Also, the
screen buttons may be harder than
usual to depress.
●When the screen is viewed through
polarized sunglasses, a rainbow pattern
may appear on the screen duo to optical
characteristics of the screen. If this is
disturbing, please operate the screen
without polarized sunglasses.

28
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22
3. INPUTTING LETTERS AND NUMBERS/LIST SCREEN OPERATION
1Touch “A-Z” to display the alphabet
keys.
2Touch the keys directly to enter letters
or numbers.
: Touch to erase one character.
Touch and hold to continue erasing char-
acters.
zOn certain letter entry screens, letters can
be entered in upper or lower case.
1Touch “Other” to display symbol keys.
2Touch the symbol keys directly to enter
symbols.
: Touch to erase one symbol. Touch
and hold to continue erasing symbols.
When searching for an address or
name, or entering data, letters and
numbers can be input via the screen.
zKeyboard layout can be changed. (See
page 47.)
TO INPUT LETTERS AND
NUMBERS
Icon Function
Touch to enter in lower case.
Touch to enter in upper case.
TO INPUT SYMBOLS

29
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
1Touch “OK” to search for an address
or a name.
zMatching items from the database are
listed even if the entered address or name
is incomplete.
zThe list will be displayed automatically if
the maximum number of characters is
entered or the number of matching items
is 5 or less.
TO DISPLAY THE LIST
INFORMATION
●The number of matching items is shown
on the right side of the screen. If the
number of matching items is more than
999, the system displays “∗∗∗” on the
screen.
LIST SCREEN OPERATION
When a list is displayed, use the appro-
priate screen button to scroll through
the list.
Icon Function
Touch to skip to the next or previ-
ous page.
Touch and hold or to scroll
through the displayed list.
This indicates the displayed
screen’s position.
If appears to the right of an
item name, the complete name is
too long to display.
Touch to scroll to the end of the
name.
Touch to move to the begin-
ning of the name.

30
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22

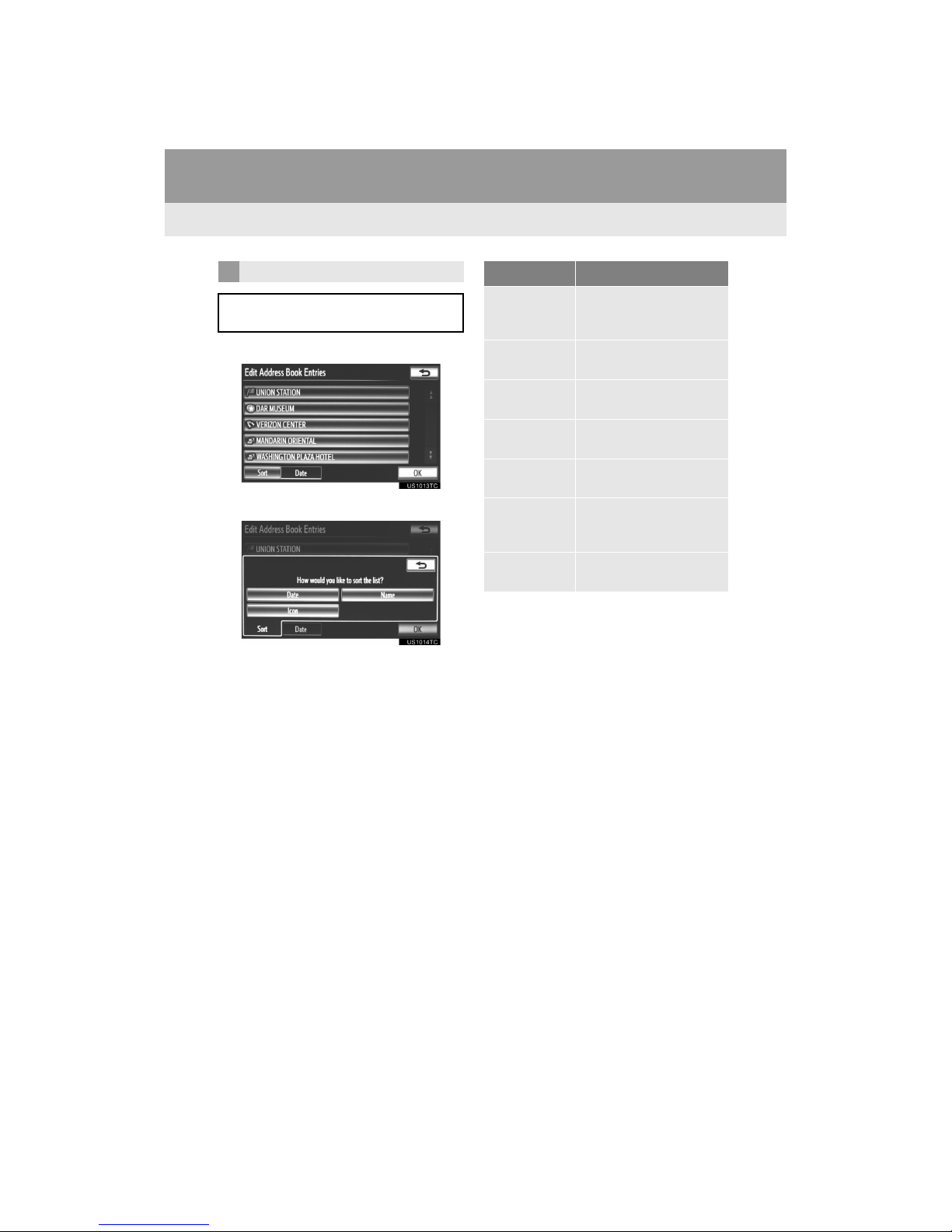

1Touch “Sort”.
2Touch the desired sorting criteria.
SORTING
The order of a list displayed on the
screen can be rearranged.
Screen button Function
“Distance”
Touch to sort in order of
distance from the current
position.
“Date” Touch to sort in order of
date.
“Category” Touch to sort in order of
category.
“Icon” Touch to sort in order of
icon.
“Name” Touch to sort in order of
name.
“Brand”
Touch to sort in order of
brand name. (XM func-
tions)
“Price” Touch to sort in order of
price. (XM functions)

31
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
4. SCREEN ADJUSTMENT
1Press the “SETUP” button.
2Touch “Display”.
XAdjusting the screen display
“Camera”: Touch to adjust the image
the camera displays.
XAdjusting the image the camera displays
“Map·Menu”: Touch to return to the
screen display settings.
1Touch “”or “”to select the desired
function (“Contrast” or “Brightness”).
The contrast and brightness of the
screen display and the image the cam-
era displays can be adjusted. The dis-
play can also be turned off, and/or
changed to either day or night mode.
(For information regarding audio/video
screen adjustment, see “AUDIO
SCREEN ADJUSTMENT” on page
226.)
SCREEN SETTINGS
ADJUSTMENT
ADJUSTING SCREEN DISPLAY
AND CAMERA SETTINGS
CONTRAST AND BRIGHTNESS
ADJUSTMENT
The contrast and brightness of the
screen can be adjusted according to
the brightness of your surroundings.
The display can also be turned off.

32
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22
2Touch the desired screen button to ad-
just contrast and brightness.
3After adjusting the screen, touch
“OK”.
zThe screen goes off when “Screen Off” is
touched. To turn the “Display” screen back
on, press any button. The selected screen
appears.
1To display the screen in day mode,
even with the headlight switch on,
touch “Day Mode” for brightness and
contrast control.
zIf the instrument panel light control switch
is turned fully to upper, the displays condi-
tion is not changed to night mode even if
headlight switch is turned on.
Screen button Function
“Contrast” “+” Touch to strengthen the
contrast of the screen.
“Contrast” “-” Touch to weaken the
contrast of the screen.
“Brightness” “+” Touch to brighten the
screen.
“Brightness” “-” Touch to darken the
screen.
CHANGING BETWEEN DAY
AND NIGHT MODE
Depending on the position of the head-
light switch, the screen changes to day
or night mode.
INFORMATION
●If the screen is set to day mode with the
headlight switch turned on, this condition
is memorized even with the hybrid sys-
tem turned off.

33
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
5. MAP SCREEN OPERATION
zThe current position mark ( ) appears in
the center or bottom center of the map
screen.
zA street name will appear on the bottom of
the screen, depending on the scale of the
map ( ).
zThe screen can be returned to this map
screen that shows the current position at
any time, from any screen by pressing the
“MAP/VOICE” button.
zUse the scroll feature to move the desired
point to the center of the screen for look-
ing at a point on the map that is different
from the current position.
zIf a finger touches and holds the map
screen, it will continue scrolling in that
direction until the finger is removed.
zA street name, city name, etc. of the
touched point will be shown, depending
on the scale of the map ( ). Distance
from the current position to will also be
shown ( ).
CURRENT POSITION
DISPLAY
When starting the navigation system,
the current position is displayed first.
This screen displays the current posi-
tion and a map of the surrounding ar-
ea.
zTo correct the current position manually,
see page 118.
INFORMATION
●While driving, the current position mark
is fixed on the screen and the map
moves.
●The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
INFORMATION
●After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.
SCREEN SCROLL
OPERATION
When any point on the map is touched,
that point moves to the center of the
screen and is shown by the cursor
mark ( ).

34
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22
1Touch “Enter ”.
zThe screen changes and displays the map
location of the selected destination and
the route preference. (See “STARTING
ROUTE GUIDANCE” on page 75.)
1Touch “Mark”.
2This screen is displayed.
zThe registered point is shown by on the
map.
zAfter the screen is scrolled, the map
remains centered at the selected loca-
tion until another function is activated.
The current position mark will continue
to move along your actual route and
may move off the screen. When the
“MAP/VOICE” button is pressed, the
current position mark returns to the cen-
ter of the screen and the map moves as
the vehicle proceeds along the desig-
nated route.
zWhen the scroll feature is used, the cur-
rent position mark may disappear from
the screen. Press the “MAP/VOICE”
button to display the current position on
the map screen.
TO SET THE CURSOR
POSITION AS A DESTINATION
A specific point on the map can be set
as a destination using the scroll func-
tion.
TO REGISTER THE CURSOR
POSITION AS AN ADDRESS
BOOK ENTRY
Address book entry registration en-
ables easy access to a specific point.
zTo change the icon or name, etc., see
“EDITING ADDRESS BOOK ENTRIES”
on page 103.
INFORMATION
●Up to 100 address book entries can be
registered. If there is an attempt to regis-
ter more than 100 address book entries,
an error message will appear.

35
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
zTo display information about an icon, set
the cursor on it.

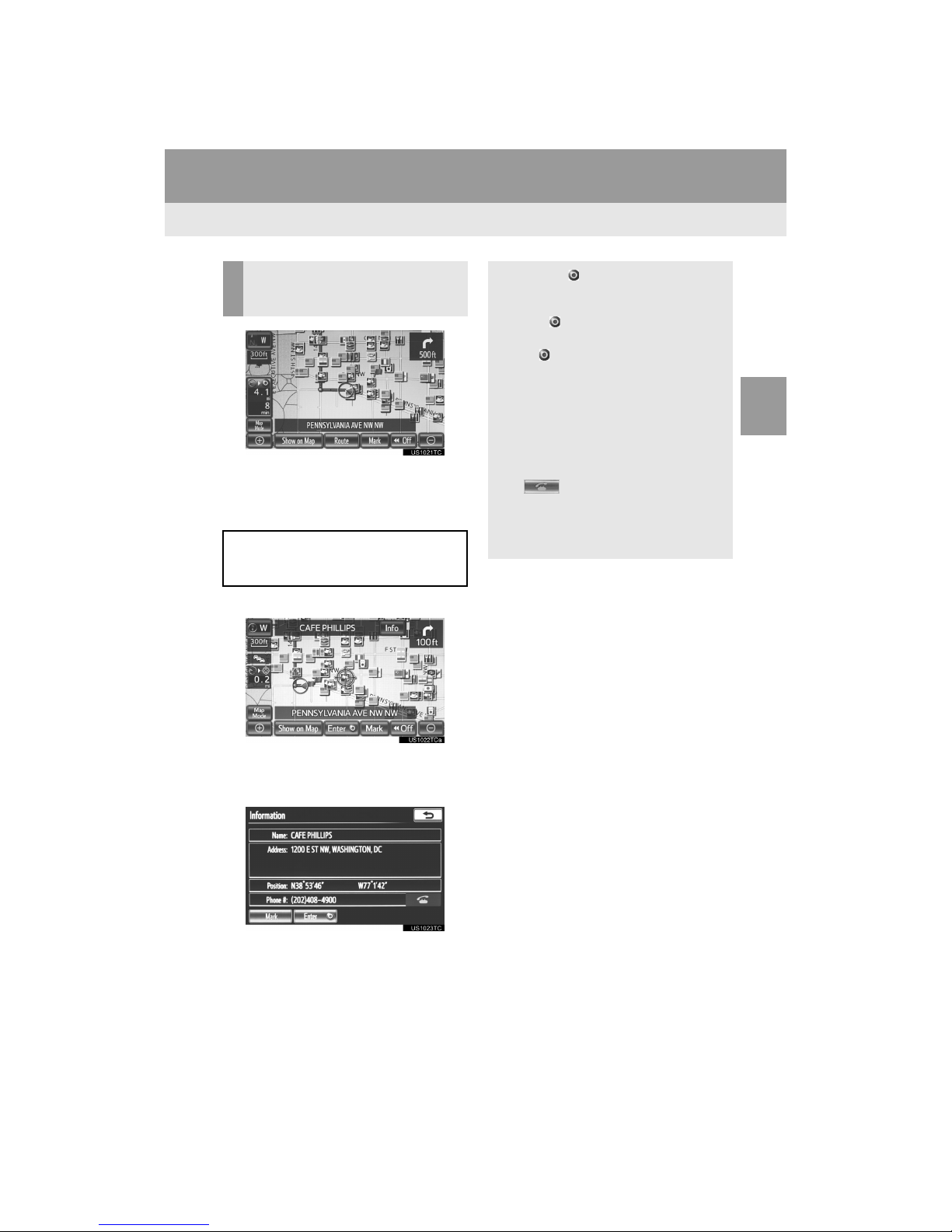

■POI INFORMATION
1Touch “Info”.
2Information such as the name, ad-
dress, position and phone number are
displayed.
TO SEE INFORMATION ABOUT
THE ICON WHERE THE
CURSOR IS SET
When the cursor is set on a POI icon,
the name and “Info” are displayed at
the top of the screen.
zIf “Enter ” is touched, the cursor
position will be set as a destination.
zIf a destination has already been set,
“Enter ” and “Add to Route” will be
displayed.
“Enter ”: Touch to delete the existing
destination(s) and set a new one.
“Add to Route”: Touch to add a desti-
nation.
zTo register this POI as an address book
entry, touch “Mark”. (See “REGISTER-
ING ADDRESS BOOK ENTRIES” on
page 103.)
zIf is touched, the registered
phone number can be called.
zThe desired POI can be displayed on
the map screen. (See “DISPLAY POI
ICONS” on page 93.)

36
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22
■ADDRESS BOOK ENTRY INFOR-
MATION
1Touch “Info”.
2Information such as the name, ad-
dress, position and phone number are
displayed.
When the cursor is set on an address
book entry icon, the name and “Info”
are displayed at the top of the screen.
zIf “Enter ” is touched, the cursor
position will be set as a destination.
zIf a destination has already been set,
“Enter ” and “Add to Route” will be
displayed.
“Enter ”: Touch to delete the existing
destination(s) and set a new one.
“Add to Route”: Touch to add a desti-
nation.
zTo edit an address book entry, touch
“Edit”. (See “EDITING ADDRESS
BOOK ENTRIES” on page 103.)
zTo delete an address book entry, touch
“Delete”.
zIf is touched, the registered
phone number can be called.

37
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
■DESTINATION INFORMATION
1Touch “Info”.
2Information such as the name, ad-
dress, position and phone number are
displayed.
zTo delete a destination, touch “Delete”.
■XM NavTraffic®TEXT INFORMA-
TION
1Touch “Info”.
2Traffic information will be displayed on
the screen.
zTo display detailed traffic event informa-
tion, touch “Detail”.
When the cursor is set on a destination
icon, the name and “Info” are dis-
played on the top of the screen.
zIf is touched, the registered
phone number can be called.
When the XM NavTraffic®icon on the
map screen is touched, the XM
NavTraffic®information bar will appear
on the upper part of the screen.

38
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22
1Touch “Map Mode”.
2Touch the screen buttons to select the
desired configuration.
zDepending on the conditions, certain
screen configuration buttons cannot be
selected.

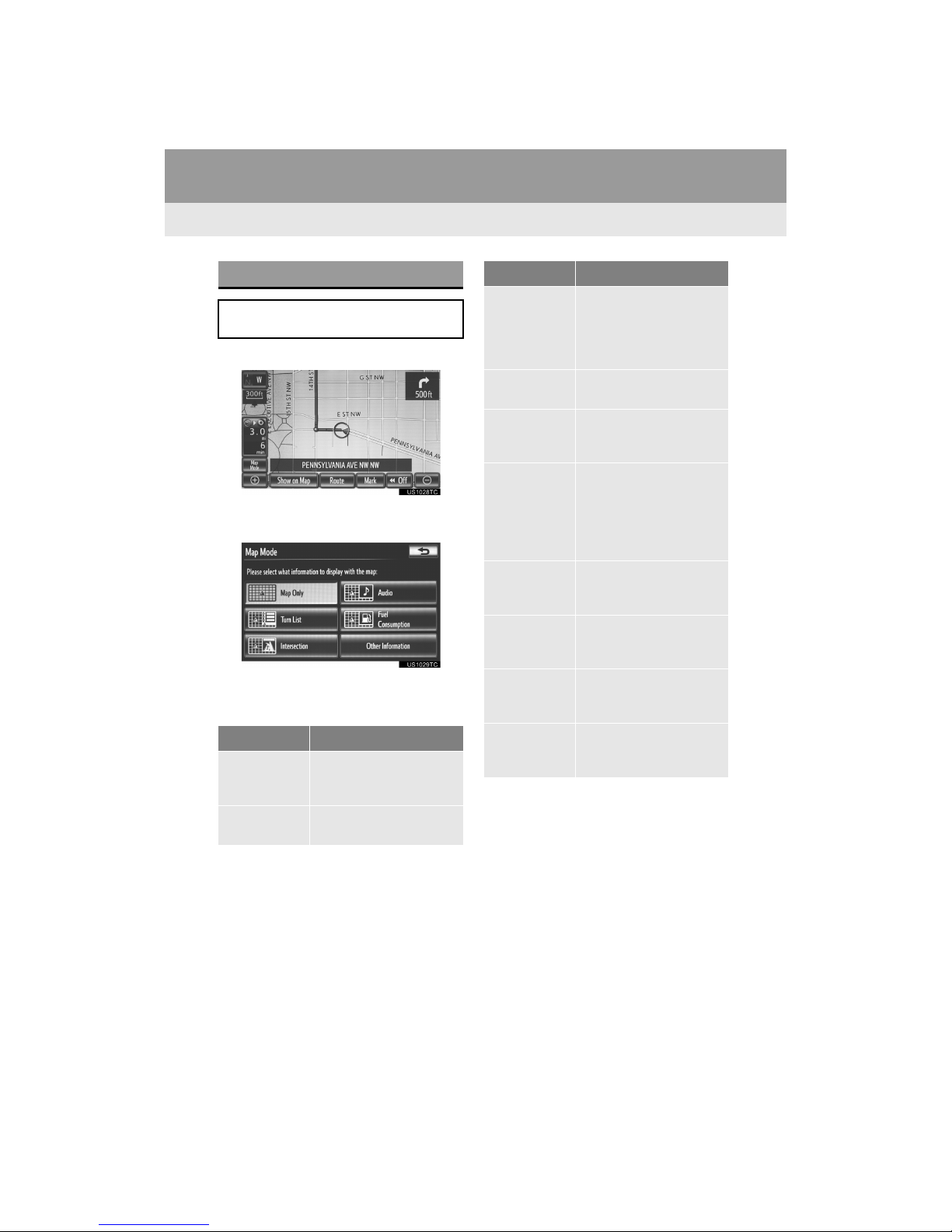

SWITCHING THE SCREENS
Any of the screen configurations can
be selected.
Screen button Function
“Map Only”
Touch to display the single
map screen. (See page
39.)
“Turn List” Touch to display the turn
list screen. (See page 81.)
“Intersection”
Touch to display the inter-
section guidance screen
or the guidance screen on
the freeway. (See page
80.)
“Audio” Touch to display the audio
screen. (See page 39.)
“Fuel Con-
sumption”
Touch to display the fuel
consumption screen. (See
page 39.)
“Other Infor-
mation”
Touch to display the fol-
lowing 4 screen configura-
tions: “Dual map”,
“Compass”, “Turn-by-Turn
Arrow” and “Freeway Exit
List”.
“Dual map”
Touch to display the dual
map screen. (See page
39.)
“Compass”
Touch to display the com-
pass mode screen. (See
page 40.)
“Turn-by-Turn
Arrow”
Touch to display the turn-
by-turn arrow screen.
(See page 81.)
“Freeway Exit
List”
Touch to display the free-
way exit list screen. (See
page 79.)
Screen button Function

39
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
■MAP ONLY
zThe screen shows the single map.
■AUDIO
zInformation on the current radio station or
track is displayed.
■FUEL CONSUMPTION
zTouching “”or “”allows selection of
the desired mode (“Energy Monitor” or
“Consumption”).
■DUAL MAP
zThis screen shows the dual map. The map
on the left is the main map.
SCREEN CONFIGURATIONS
This is a regular map screen.
zWhile on a different screen, touching
“Map Only” will display the single map
screen.
The audio screen and the map screen
are displayed.
zIf a different screen is displayed, touch
“Audio” on the “Map Mode” screen.
zFor audio system operation, refer to
“AUDIO/VIDEO SYSTEM OPERA-
TION”. (See page 192.)
The fuel consumption screen and the
map screen are displayed.
zIf a different screen is displayed, touch
“Fuel Consumption” on the “Map
Mode” screen.
zFor an explanation on each fuel con-
sumption mode, refer to “FUEL CON-
SUMPTION”. (See page 284.)
The map screen can be split into two.
zWhile on a different screen, touching
“Dual map” will display the dual map
screen.

40
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22

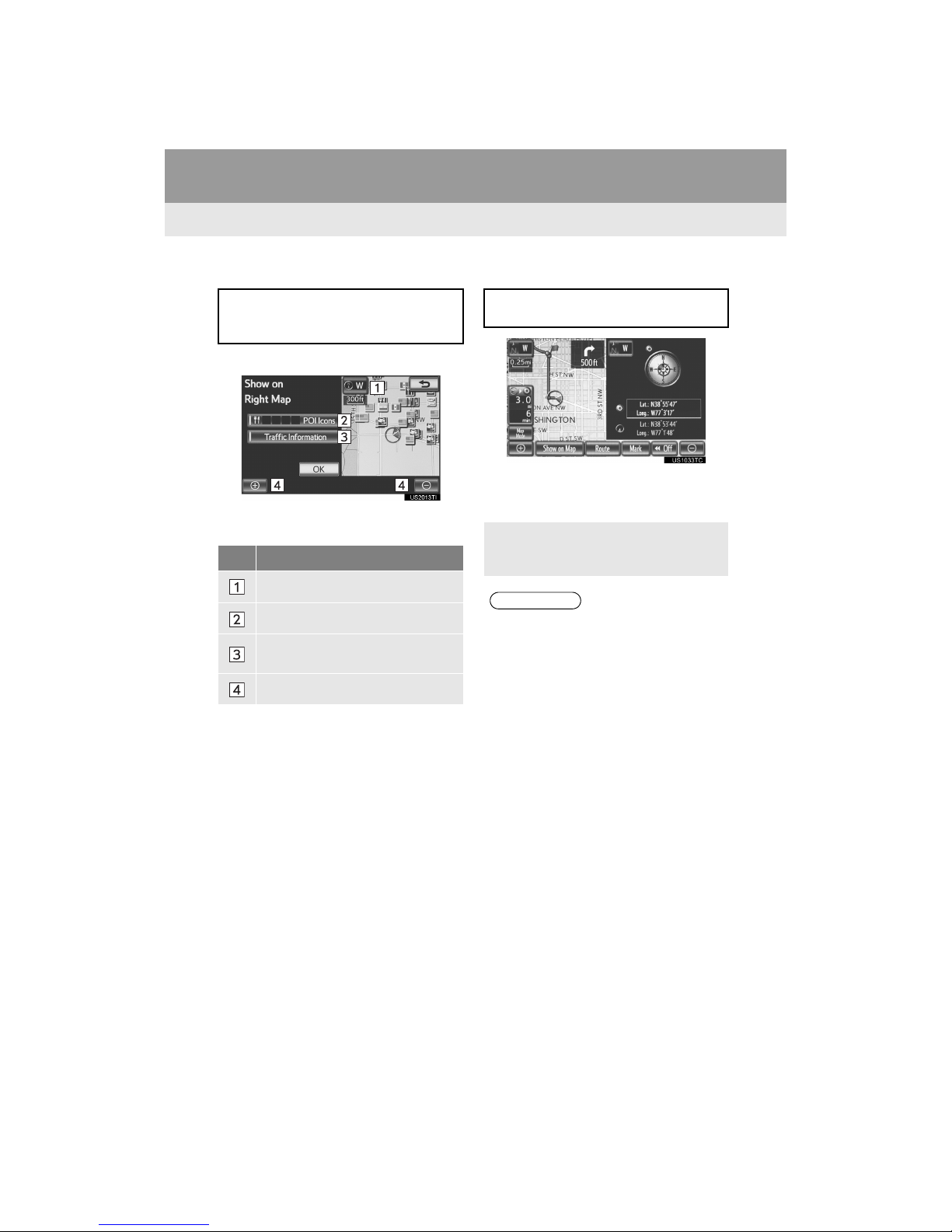

■EDITING RIGHT MAP
1Touch the desired screen button.
zThe following procedures can be per-
formed on this screen:
2Touch “OK” when editing is complet-
ed.
zThe screen returns to the dual map
screen.
■COMPASS
zInformation about the destination, current
position and a compass is displayed on
the screen.
The right side map can be edited by
touching any point on the right side
map.
No. Function
Changing the orientation of the map
Displaying POI icons
Showing XM NavTraffic®information
(See page 301.)
Changing the map scale
The current position is indicated with a
compass.
zWhile on a different screen, touching
“Compass” will display the compass
mode screen.
INFORMATION
●The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
●When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the compass mode screen.

41
1. BASIC INFORMATION BEFORE OPERATION
2
BASIC FUNCTION
PRIUS (US) NAVI 47719U
12.02.24 09:22
1Touch or to change the scale
of the map screen.
zThe scale bar and indicator at the bottom
of the screen indicate the map scale
menu. The scale range is from 150 ft. (50
m) to 250 miles (400 km).
zTouch and hold or to continue
changing the scale of the map screen.
zThe scale of the map screen can be
changed by touching the scale bar
directly. This function is not available while
driving.
1Touch or .
XNorth-up screen
XHeading-up screen
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
MAP SCALE
INFORMATION
●The map scale is displayed under the
north-up or heading-up symbol at the
top left of the screen.
●When the map scale is at the maximum
range of 250 miles (400 km), is not
shown. When the map scale is at the
minimum range of 150 ft. (50 m), is
not shown.
ORIENTATION OF THE MAP
The orientation of the map can be
changed from north-up to heading-up
by touching the orientation symbol at
the top left of the screen.
zBoth the north-up and heading-up sym-
bols display the vehicles direction as a
letter (e.g. N for north).

42
1. BASIC INFORMATION BEFORE OPERATION
PRIUS (US) NAVI 47719U
12.02.24 09:22
STANDARD MAP ICONS
Icon Name
Island
Park
Industry
Business facility
Airport
Military
University
Hospital
Stadium
Shopping mall
Golf
