TP-Link GPON OLT P1200-08 User manual

Configuration Guide
GPON OLT P1200-08
Version: V1.0

I
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered
trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-Link
Technologies Co., Ltd. Copyright © 2017 TP-Link Technologies Co., Ltd.All rights reserved.
http://www.tp-link.com

II
CONTENTS
1IntendedAudience....................................................................................................................... 1
1.1 Command Conventions.................................................................................................. 1
1.2 Keyword Operation Conventions................................................................................... 1
1.3 Symbol Conventions...................................................................................................... 1
1.4 Terms Conventions ............................................................................错误!未定义书签。
1.5 Prompt................................................................................................错误!未定义书签。
2Overview of the System .............................................................................................................. 3
3System Access............................................................................................................................ 3
3.1 Overview ........................................................................................................................ 3
3.2 Console Access.............................................................................................................. 3
3.3 Telnet Access ................................................................................................................. 4
4Upgrade OLT Version.................................................................................................................. 5
5Application Example.................................................................................................................... 6
5.1 Data Plan........................................................................................................................ 7
5.2 Creating the GPON ONT profile .................................................................................... 7
5.3 Add an ONT to OLT........................................................................................................ 9
5.4 Check ONT Status........................................................................................................ 10
5.5 Configuring Bridging ONT............................................................................................ 10
5.6 Configuring service on Gateway ONT......................................................................... 12

1
1 Intended Audience
This document helps to learn configuration procedures of various services of TP-Link P1200-08
GPON OLT.
1.1 Command Conventions
The command conventions that may be found in this document are defined as follows.
Convention
Description
Boldface
The keywords of a command line are in boldface.
Italic
Command arguments are in italics.
[ ]
Items (keywords or arguments) in brackets [ ] are optional.
( x | y | ... )
Optional items are grouped in braces and separated by
vertical bars. One item is selected.
[ x | y | ... ]
Optional items are grouped in brackets and separated by
vertical bars. One item is selected or no item is selected.
<x-y>
One number from x to y can be selected
$
A line starting with the $ sign is comments.
1.2 Keyword Operation Conventions
Convention
Description
String with < >
It is key name. For example, <Enter>, <Tab>,
<Backspace>, <a>, <?> etc, it means to press the key
button
<Key 1 + Key 2>
It means to press the key at same time. For example <
Ctrl+Alt+A> means to press “Ctrl”, “Alt”, “A” button together.
<Key 1 , Key 2>
It means to press the first button, then release, and press
the second button. For example < Alt, F> means to press
“Alt” first, then release “Alt” button, and then press “A”
button.
1.3 Symbol Conventions
The symbols that may be found in this document are defined as follows.：

2
This warning symbol means danger. You are in a situation that could cause bodily
injury or broke the equipment. Before you work on any equipment, be aware of the hazards
involved with electrical circuitry and be familiar with standard practices for preventing
accidents by making quick guide based on this guide.
Indicates a hazard with a high level of risk, which if not avoided, it will result in death
or serious injury on human body.
Provides additional information to emphasize or supplement important points of
the main text.

3
2 Overview of the System
This section describes each of the devices in our GPON environment. The GPON FTTx system is
an all-optical, fiber-to-the-x system that can deliver triple-play services such as data, voice, video
to residential and business subscribers.
The GPON FTTx system consists of the following network components.
Optical Line - the optical line termination unit, located in the central office and provide GPON
interface for access service.
The model number is P1200-08
Optical Network Terminals - the optical network terminal located at the subscriber premises.
The model numbers are:
—TX-6610, GPON SFU with 1 GE port
—TX-6961, 300Mbps Wireless N GPON Router
—TX-VG1530, 300Mbps Wireless N GPON HGU with VoIP
—XR500v,AC1200 Wireless GPON HGU with VoIP
Optical passives
—PLC passive splitters
—FWDM for 1550nm video overlay GPON
3 System Access
3.1 Overview
The CLI of OLT can be used via local terminal connection or a remote session using Telnet. The
OLT supports three methods users to use CLI to do the configuration:
1、Local access to the OLT through the RS232 console port on front panel.
2、Dedicated local Telnet connection to the OLT by using the management port on OLT front
panel (outband interface).
3、Remote access over the provider’s Ethernet/IP network by using Telnet. Therefore, an inband
management channel, i.e., a specific management VLAN has to be configured.

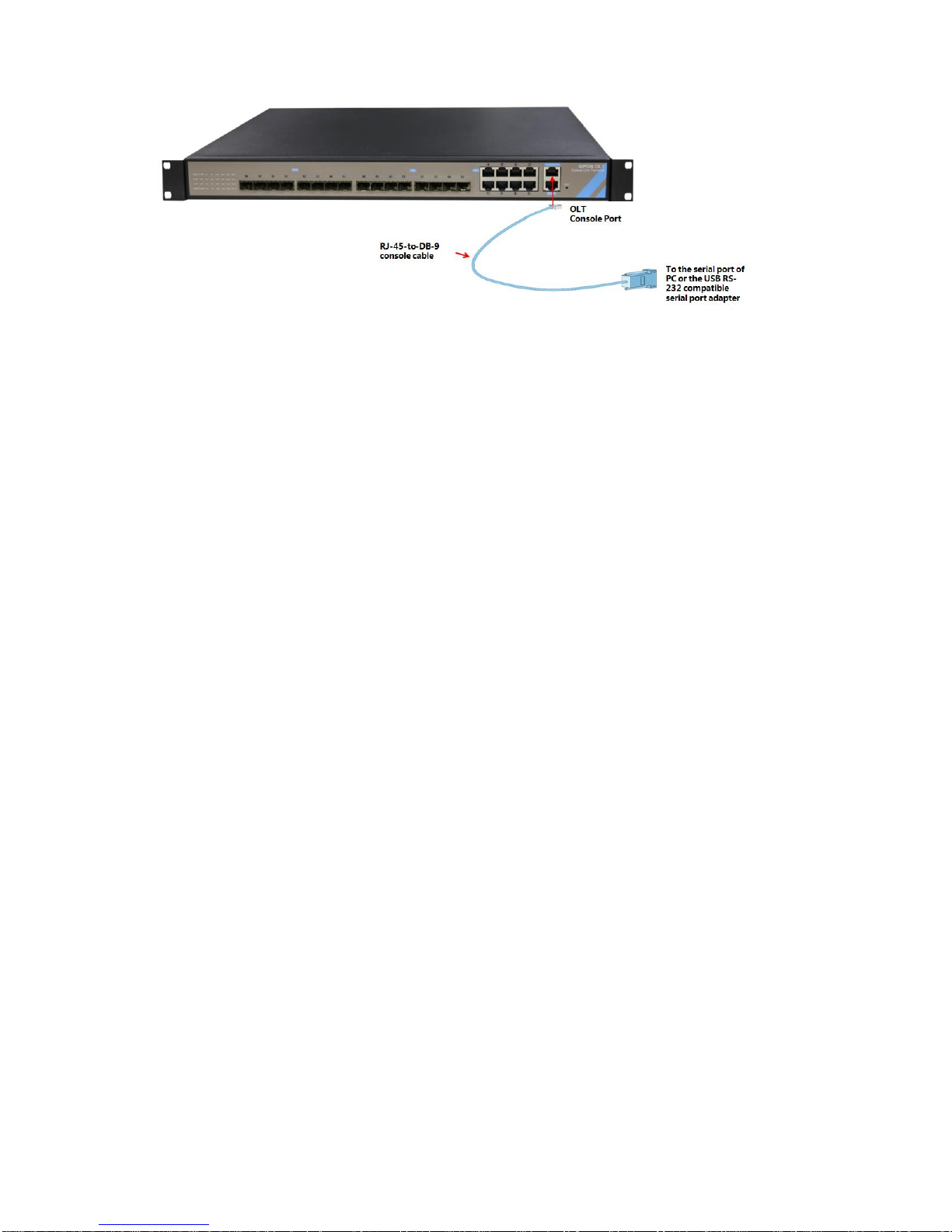

3.2 Console Access
OLT provides a RJ45 type console interface marked as “CONSOLE”.
Console access requires:
Console cable: RJ45-to-DB9 console cable.
Terminal emulation software: HyperTerminal, or some other tools with the same function.
The console cable is connected between the serial port of the host and the console port on the
device. Most computers and notebooks no longer include built-in serial ports. If the host does not
have a serial port, you can use a USB-to-RS232 convertor to expand a serial port for your

4
computer.
Run a VT terminal emulation software (e.g. HyperTerminal) with the attributes
Band Rate: 9600
Data Bit:8
Parity Check: NO
Stop Bit: 1
Flow Control: NO
When the OLT start up, the terminal program will display the login prompt automatically.
Access the OLT as follows:
1、After starting the terminal session, the login prompt is displayed:
OLT>username:
2、Enter the username and the password to move into the User mode. The default username is
“root” and the default password is “admin”.
OLT>username: root
Password: (entered characters are hidden)
OLT>
3、To configure and manage the system, enter the enable mode with command enable:
OLT>enable
OLT#
3.3 Telnet Access
There are two ways for TELNET access.
Outband Interface Access ：You should configure your PC IP to 192.168.1.X (Except
192.168.1.100), connect to the MGMT port of OLT with ethernet, login the OLT with the default
OLT management IP (Default IP : 192.168.1.100). Default username is “root”and the password is
“admin”.
Inband Interface Access：You should login via console, and create a dedicated management
VLAN for inband management, assigned an IP address to this interface, add the uplink port which
the management PC is connected to this management VLAN. In the following example, the
management PC will connect to the GE9 port and access the OLT through VLAN 100.

5
OLT> enable
OLT# config
OLT(config)# vlan 100
OLT(config)# interface vlanif 100
OLT(interface-vlanif-100)# ip address 192.168.1.99 255.255.255.0
OLT(interface-vlanif-100)# exit
OLT(config)# interface ge
OLT(interface-ge)# vlan access 9 100
OLT(interface-ge)# exit
4 Upgrade OLT Firmware
For OLT firmware upgrade, you need a FTPserver (we useWFTPD as FTPServer in the following
example) for FW download. Connects PC with the OLT`s console port, the FTP server connects
with MGMT port. FTP default login name and password is admin/admin, FTP server IP set to
192.168.1.222.
Checks the FTP server connected well by PING FTP server through the OLT.
FTP server configuration：
Security -> User/Rights Security Dialog -> User Name (set to admin) -> Change Password (set to
admin) -> Home (choice the file folder of the upgrade software).

6
Use the command “load packetfile ftp server-ip-address user-name user-password filename” in
Config Mode to upgrade the OLT as below.
OLT(config)# load packetfile ftp 192.168.1.222 admin admin
P1200-08_FW_V1.0.3_151015_1420.img
Broadcast message from root:
Upgrade is in process.
File [P1200-08_FW_V1.0.3_151015_1420.img] download .......... OK
File [P1200-08_FW_V1.0.3_151015_1420.img] upgrade .......... OK
5 Application Example
This section describes basic concepts related to the fiber to the home (FTTH) solution from the
user side to the network side in FTTH networking using PON transmission.
We will give two examples of the configuration. One is layer 2 configuration, another is the layer 3
configuration.

7
5.1 Data Plan
The subsequent examples are configured based on the following data plan.
Data Plan
Service Classification
Data
DBA Profile
Profile ID：10
Profile Type：Type3
Assured Bandwidth：8Mbit/s
Maximum Bandwidth：20Mbit/s
ONT Line Profile
Profile ID：10
T-CONT ID：1
Internet access service GEM Port ID：11
VoIP service GEM Port ID：12
IPTV service GEM Port ID：13
ONT Service Profile
Service Profile：10
ONT Capacity：4 Eth Port, 1 POTS
Network Data
PON Port：1
ONT ID：1、2
5.2 Create the GPON ONT profile
GPON ONT profiles include the DBA profile, line profile, service profile, traffic profile.
DBA profile: A DBA profile describes GPON traffic parameters.A T-CONT is bound to a DBA
profile for dynamic bandwidth allocation, improving upstream bandwidth utilization.
Line profile:A line profile describes the binding between the T-CONT and the DBAprofile, the
QoS mode of the traffic stream, and the mapping between the GEM port and the ONT side
service.
Service profile: A service profile provides the service configuration channel for the ONT that is
managed by using optical network terminal management and control interface (OMCI).
Traffic profile: A traffic profile on GPON OLT is mainly applied to the ONU port for the port
speed limit.Applying to anACL for speed limits for a particular message. This profile can
