TP-Link TL-WPA4220NET User manual

CONTENTS
English�������������������������������������������������������������������������1
Français�����������������������������������������������������������������������9

1
English
Note: The product model shown in this QIG for WiFi Powerline
Extender 3-pack Kit is “TL-WPA4220NET”, as an example.

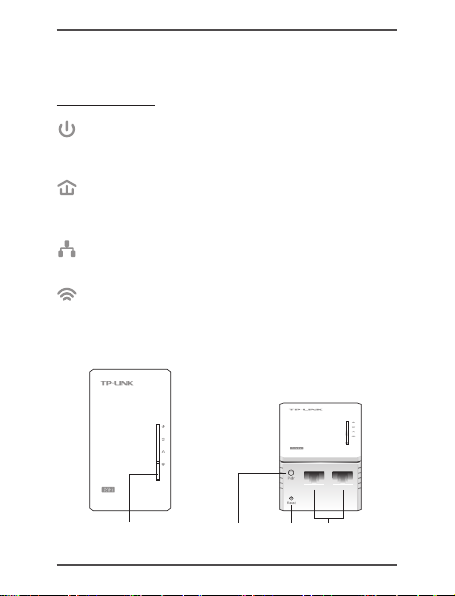

LED Indicators
Power
On: The device is on.
Off: The device is off.
Blinking: The device is pairing.
Powerline
On: The device is connected to a powerline network.
Off: The device isn’t connected to any powerline network.
Blinking: The device is transferring data.
Ethernet
On: At least one Ethernet port is connected.
Off: No Ethernet port is connected.
Wi-Fi
Off: The wireless function is disabled.
Blinking quickly: The wireless function is enabled.
Blinking every second: The device is cloning Wi-Fi settings
from a router.
AV500
AV500
Wi-Fi/Wi-Fi Clone
Button
Pair
Button
Reset
Button
Ethernet
Ports

2
English

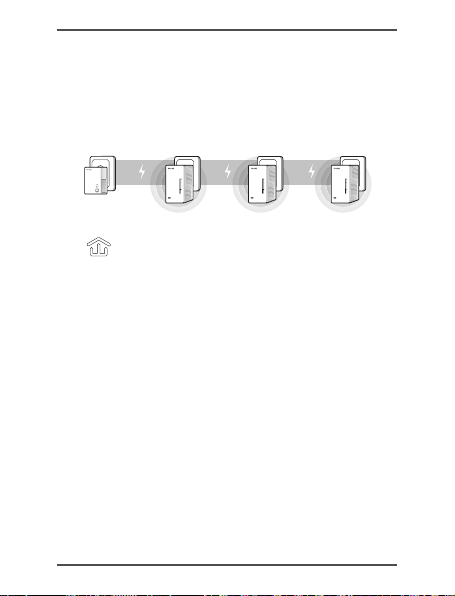

A powerline network requires at least two powerline devices. We use
the powerline adapter TL-PA4010 as an example to work with TL-
WPA4220.
Note: If your home or ofce already has powerline adapters, remove
them rst, install TL-WPA4220 using Method 1 or Method 2, and then
add your existing adapters to the powerline network.
For non-passthrough powerline device
AV500AV500
For passthrough powerline device

3
English
Method 1: Plug and Play
Create a New Wireless Network
1. Write down the default wireless network name (SSID) and
password of TL-WPA4220.
Wireless Network Name (SSID)*:
TP-LINK_XXXXXX
Wireless Password:
XXXXXXXX
* The default SSID is TP-LINK_XXXXXX. (XXXXXX indicates the last six
unique characters of the WLAN MAC address.)

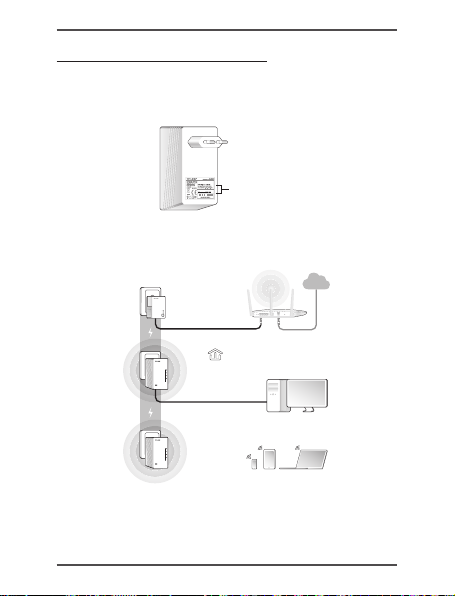

2. Connect your devices as follows.
AV500
AV500
LAN
Internet
WAN
SSID:
ABCDE
SSID:
TP-LINK_xxxxxx
SSID:
TP-LINK_yyyyyy
All the Powerline LEDs will
turn solid within 1 minute.
TL-PA4010
TL-WPA4220
TL-WPA4220
Enjoy! Use the default SSID (TP-LINK_xxxxxx or TP-LINK_yyyyyy)
and password you wrote down to access the Internet.
If the Powerline LEDs don’t turn solid, reset all the powerline devices, or
create a powerline network by referring to FAQ->Q1.

4
English
Read this to install additional devices
1. Make sure the additional devices use factory default settings. If
not, please reset them.
2. Plug them into the outlets and wait about 1 minute until their
Powerline LEDs turn solid.
AV500 AV500AV500
Installation is completed when all the
Powerline LEDs turn solid.
Additional Device
TL-WPA4220TL-WPA4220
TL-PA4010
If the Powerline LEDs do not turn solid, please follow the instructions in
FAQ->Q1:
1. For the two devices connected before, use the Pair Button to create a
powerline network (Q1->A). (Skip this step if you have already done this.)
2. For additional devices, use the Pair Button to join the existing powerline
network (Q1->B).

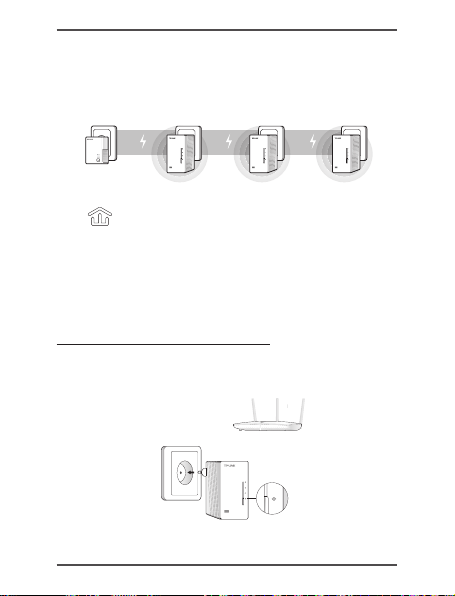

Method 2: Setup via Wi-Fi Clone
Extend the Router's Wireless Network
1. Plug TL-WPA4220 into a wall socket near your router.
AV500
TL-WPA4220
Blink quickly in about
15 seconds.
Wireless Router
(supporting WPS)

5
English
2. Press the WPS button on your router, and within 1 minute, press
the Wi-Fi Clone button on your TL-WPA4220.
AV500
Wireless Router
TL-WPA4220
• Blink every second after pressing
the Wi-Fi Clone button.
• Blink quickly within 1 minute when
Wi-Fi Clone is completed.
WPS
TL-WPA4220 will automatically copy the wireless network name and
password of the router when Wi-Fi clone is completed.
For another TL-WPA4220, follow step 1 and step 2 to complete Wi-Fi
Clone.
3. Connect your devices as follows.
AV500
AV500
LAN
Internet
WAN
SSID:
ABCDE
SSID:
ABCDE
SSID:
ABCDE
All the Powerline LEDs will
turn solid within 1 minute.
TL-PA4010
TL-WPA4220
TL-WPA4220
Enjoy! Use the router's SSID (ABCDE) and password to access the
Internet.
If the Powerline LEDs don’t turn solid, reset all the powerline devices, or
create a powerline network by referring to FAQ->Q1.

6
English
Read this to install additional devices
1. Make sure the additional devices use factory default settings. If
not, please reset them.
2. If the additional devices have Wi-Fi Clone function, follow step 1
and 2 of Method 2 to install them. If not, skip this.
3. Plug them into the outlets and wait about 1 minute until their
Powerline LEDs turn solid.
AV500 AV500AV500
Installation is completed when all the
Powerline LEDs turn solid.
Additional Device
TL-WPA4220TL-WPA4220
TL-PA4010
If the Powerline LEDs do not turn solid, please follow the instructions in
FAQ->Q1:
1. For the two devices connected before, use the Pair Button to create a
powerline network (Q1->A). (Skip this step if you have already done this.)
2. For additional devices, use the Pair Button to join the existing powerline
network (Q1->B).

7
English
FAQ (Frequently Asked Questions)
Q1. How do I use the Pair button to create or join a powerline
network?
You can use the Pair button on only two devices at a time.
A. To create a powerline network
1. Press the Pair button on TL-WPA4220. The Power LED will
blink.
2. Within 2 minutes, press the Pair button on TL-PA4010. The Power
LED will blink.
3. In about 1 minute, all the Powerline LEDs will turn solid.
B. To join an existing powerline network
1. Press the Pair button on a third powerline device. The Power LED
will blink.
2. Within 2 minutes, press the Pair button on either TL-WPA4220 or
TL-PA4010 you have paired. The Power LED will blink.
3. In about 1 minute, all the Powerline LEDs will turn solid.
Q2. How do I reset TL-WPA4220?
With TL-WPA4220 turned on, use a pin to press and hold the Reset
button for more than 5 seconds.
The Power LED will be off momentarily before turning solid and the
Wi-Fi LED will blink quickly. This indicates that the reset process is
completed.
Q3. How do I customize the wireless settings on the web
management page?
1. Find the utility on the provided CD (for Windows only) or download
it from our ofcial website.
2. Open the utility and click "Connect".
3. Log in to the web management page using the default user name
and password (admin/admin).
4. Congure the SSID and click "Save" on the "Wireless>Wireless
Settings" page.

8
English
5. Configure the password and click "Save" on the "Wireless>
Wireless Security" page.
6. Click "click here" at the page bottom to reboot the extender.
Q4. What can I do if my computer can’t access the Internet after
it is connected to a powerline adapter/extender?
Check the following:
1. Connect your computer to the modem or router to test the Internet
connection.
2. Make sure the hardware connection is correct.
3. Make sure the Powerline LEDs light up on all of your adapters/
extenders. If not, create or join a powerline network by referring to
FAQ->Q1.
4. Make sure your computer is set to "Obtain an IP address
automatically".
If your computer still can’t access the Internet after following
these steps, please contact our technical support.

9
Français
Remarque: Ce guide pour Kit de 3 adaptateurs CPL AV500 Wi-Fi
utilise le TL-WPA4220NET en exemple.
Indicateurs DELs
Power (Alimentation)
Allumé : L'appareil est sous tension.
Eteint : L'appareil est hors tension.
Clignote : L'appareil est en cours d'appairage.
Powerline (CPL)
Allumé : L'appareil est connecté à un réseau CPL.
Eteint : L'appareil n'est pas connecté à un réseau CPL.
Clignote : L'appareil transfère des données.
Ethernet
Allumé : Au moins, un des ports Ethernet de l’appareil est
connecté.
Eteint : Aucun des ports Ethernet de l'appareil n'est connecté.
Wi-Fi
Eteint : La fonction Wi-Fi est désactivée.
Clignote rapidement : La fonction Wi-Fi est active.
Clignote lentement (1 fois par seconde) : L'appareil est en
train de recopier les paramètres Wi-Fi d'un routeur.
AV500
AV500
Bouton Wi-Fi Clone Bouton
Pair
Bouton
Reset
Ports
Ethernet
