TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
TL-WN350G/TL-WN350GD
54M Wireless PCI Adapter
Rev: 1.0.4
1910010469

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna or transmitter”.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National Restrictions
2400.0-2483.5 MHz
Country Restriction Reason/remark
Bulgaria General authorization required for outdoor use and
public service
France
Outdoor use limited to 10
mW e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation Only for indoor applications
Note: Please don’t use the product outdoors in France.

TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan,
Shenzhen, P. R. China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 54M Wireless PCI Adapter
Model No.: TL-WN350G/TL-WN350GD
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC
The above product is in conformity with the following standards or other normative documents:
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008
EN60950-1:2006
EN62311:2008
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
1
CONTENTS
Package Contents..................................................................................1
Chapter 1 Introduction .........................................................................2
1.1 Overview of the product .............................................................................................. 2
1.2 Features ...................................................................................................................... 2
1.3 LED Status .................................................................................................................. 2
Chapter 2 Installation Guide ................................................................3
2.1 Hardware Installation................................................................................................... 3
2.2 Software Installation .................................................................................................... 3
2.2.1 For Windows XP & 2000.......................................................................................... 3
2.2.2 For Windows Vista................................................................................................. 10
2.2.3 For Windows7....................................................................................................... 12
Chapter 3 Configuration.....................................................................16
3.1 For WindowsXP........................................................................................................ 16
3.1.1 Current Status........................................................................................................ 16
3.1.2 Profile Management............................................................................................... 18
3.1.3 Diagnostics ............................................................................................................ 26
3.2 For Windows Vista .................................................................................................... 27
3.3 For Windows7 .......................................................................................................... 30
Appendix A: Specifications.................................................................32
Appendix B: Glossary..........................................................................33

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
1
Package Contents
The following items should be found in your package:
¾One TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter
¾Quick Installation Guide
¾One Resource CD for TL-WN350G/TL-WN350GD, including:
•TP-LINK Wireless Client Utility (TWCU) and Drivers
•User Guide
•Other Helpful Information
)Note：
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions:
The ‘Adapter’ and ‘PCI Adapter’ mentioned in this User Guide both stand for
TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter without any explanations.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
2
Chapter 1 Introduction
Thank you for choosing the TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter！
1.1 Overview of the product
The TP-LINK TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter will provide you the flexibility
to install your PC in the most convenient location available, without the cost of running network
cables.
The Adapter's auto-sensing capability allows high packet transfer rate of up to 54Mbps for
maximum throughput, or dynamic range shifting to lower speeds due to distance or operating
limitations in an environment with a lot of electromagnetic interference. It can also interoperate
with all 11Mbps wireless (802.11b) products. Your wireless communications are protected by up
to 152-bit WEP and WPA encryption for high security.
1.2 Features
¾Complies with IEEE802.11g, IEEE802.11b standards
¾Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption,
64/128/152-bit WEP encryption
¾Supports 54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps wireless LAN data transfer rates
¾Provides 32-bit PCI interface
¾Supports Ad-Hoc and Infrastructure modes
¾Supports roaming between access points when configured in Infrastructure mode
¾Ease to configure and provides monitoring information
¾Supports Windows 2000, XP, Vista32, Vista64 and Windows 7
¾TL-WN350G adopts fixed antenna
¾TL-WN350GD adopts detachable antenna
1.3 LED Status
LED Status Indication
Status Green Intermittently
The adapter is in an electricity saving status or
the adapter is already connected but is not
transmitting or receiving data.
Status Green On The adapter is on wake up status.
Status Green Flashing The adapter is transmitting and receiving data.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
3
Chapter 2 Installation Guide
2.1 Hardware Installation
To install the Adapter, follow these steps listed below:
1. Turn off your desktop PC and disconnect the power.
2. Open your PC case and locate an available PCI slot on the motherboard. Remove the metal
slot cover on the back of the PC. Check with your computer manufacturer for instructions if
needed.
3. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot's
contacts. Once the adapter is firmly in place, secure its fastening tab to your PC's chassis
with a mounting screw. Then, close your PC case.
4. Reconnect your PC’s power and turn on your desktop PC.
2.2 Software Installation
The Adapter’s Setup Wizard will guide you through the Installation procedure for Windows 2000,
XP, Vista32, Vista64, and Windows 7. The Setup Wizard will install the TP-LINK Wireless Client
Utility (TWCU) and drivers.
When you install the hardware before installing the software, the system will prompt “Found New
Hardware Wizard”, click Cancel, and run the Setup Wizard program on the CD-ROM.
2.2.1 For Windows XP & 2000
The Setup steps for Windows 2000 and XP are very similar. The following setup steps are for
Windows XP.
1. Insert the Resource CD into your CD-ROM drive, and open the folder named
TL-WN350G/TL-WN350GD. Choose the proper folder according to your operating system
and double-click Setup.exe to load the following screen. And then click Next To continue the
installation.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
4
Figure 2-1

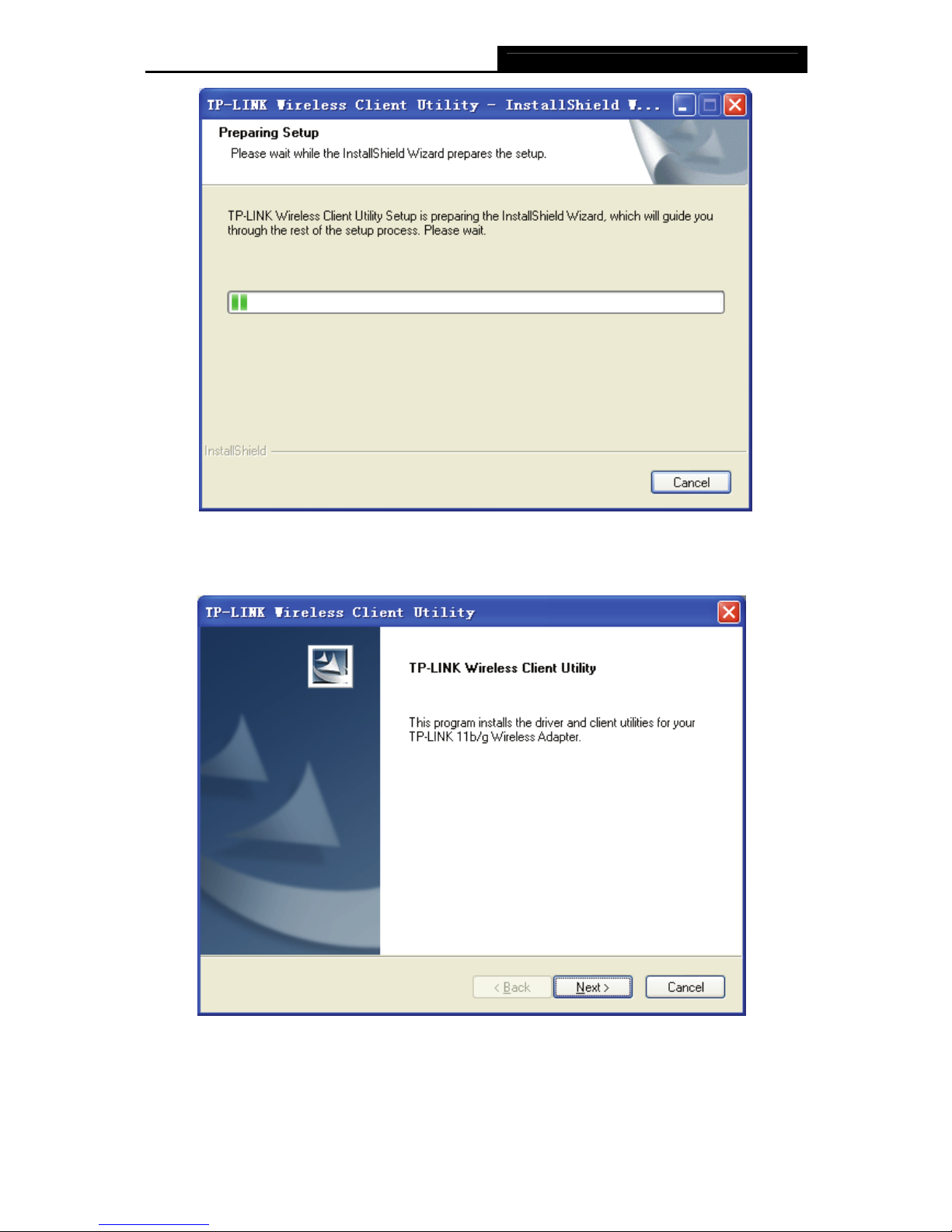

2. Figure 2-1 shows the seedtime of installation; you can also click Cancel to end the
installation. And then Figure 2-2 will display, click Next to continue.
Figure 2-2

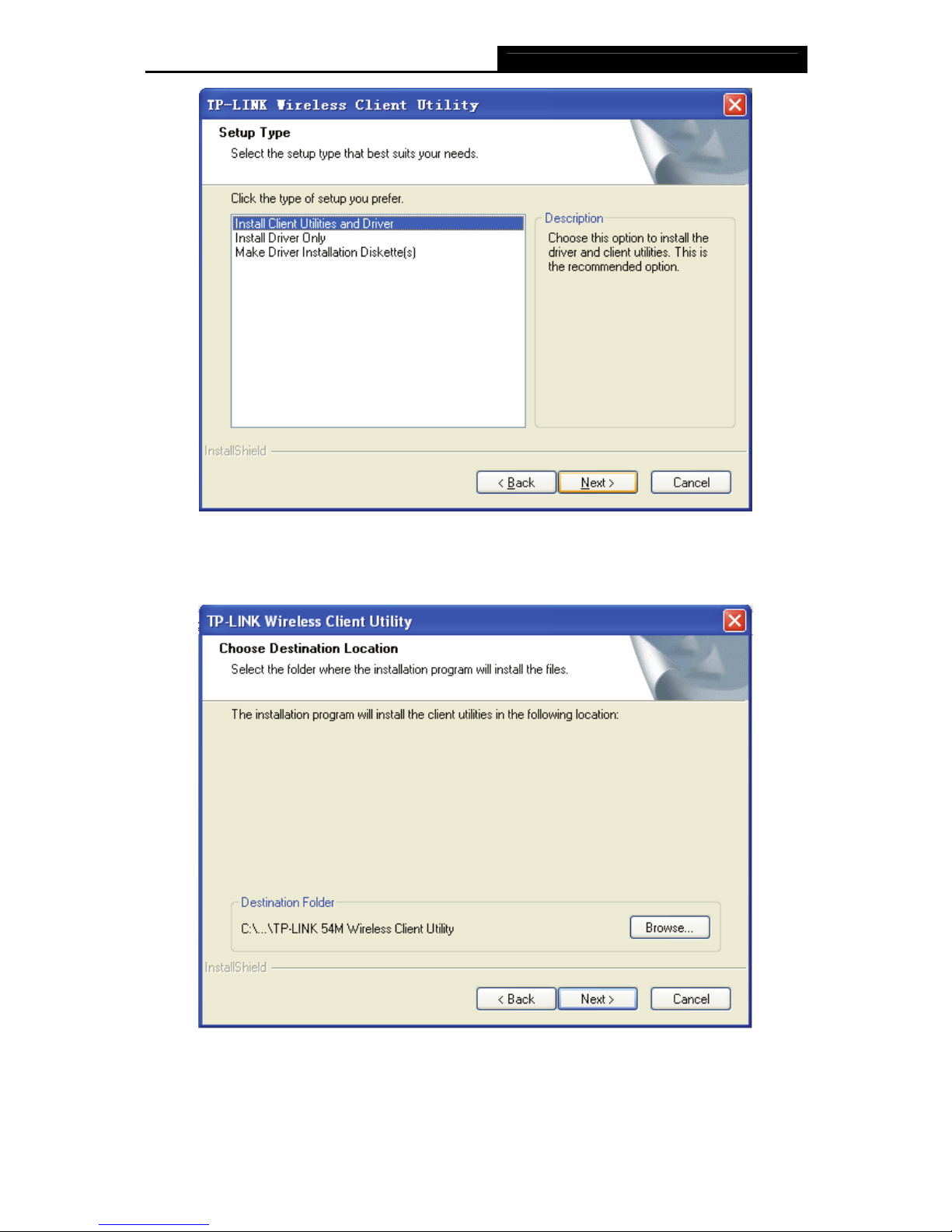

3. Choose a Setup type in Figure 2-3. It is recommended to select Install Client Utilities and
Driver. Click Next to continue.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
5
Figure 2-3
4. Click Browse to change the destination location for the software in Figure 2-4. After that,
click Next to continue.
Figure 2-4
5. Create a new folder name or select one from the Existing Folders list in Figure 2-5. It is
recommended to keep the default setting. Click Next to continue.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
6
Figure 2-5
6. Please read the information carefully in Figure 2-6, and click “Next” to continue
Figure 2-6

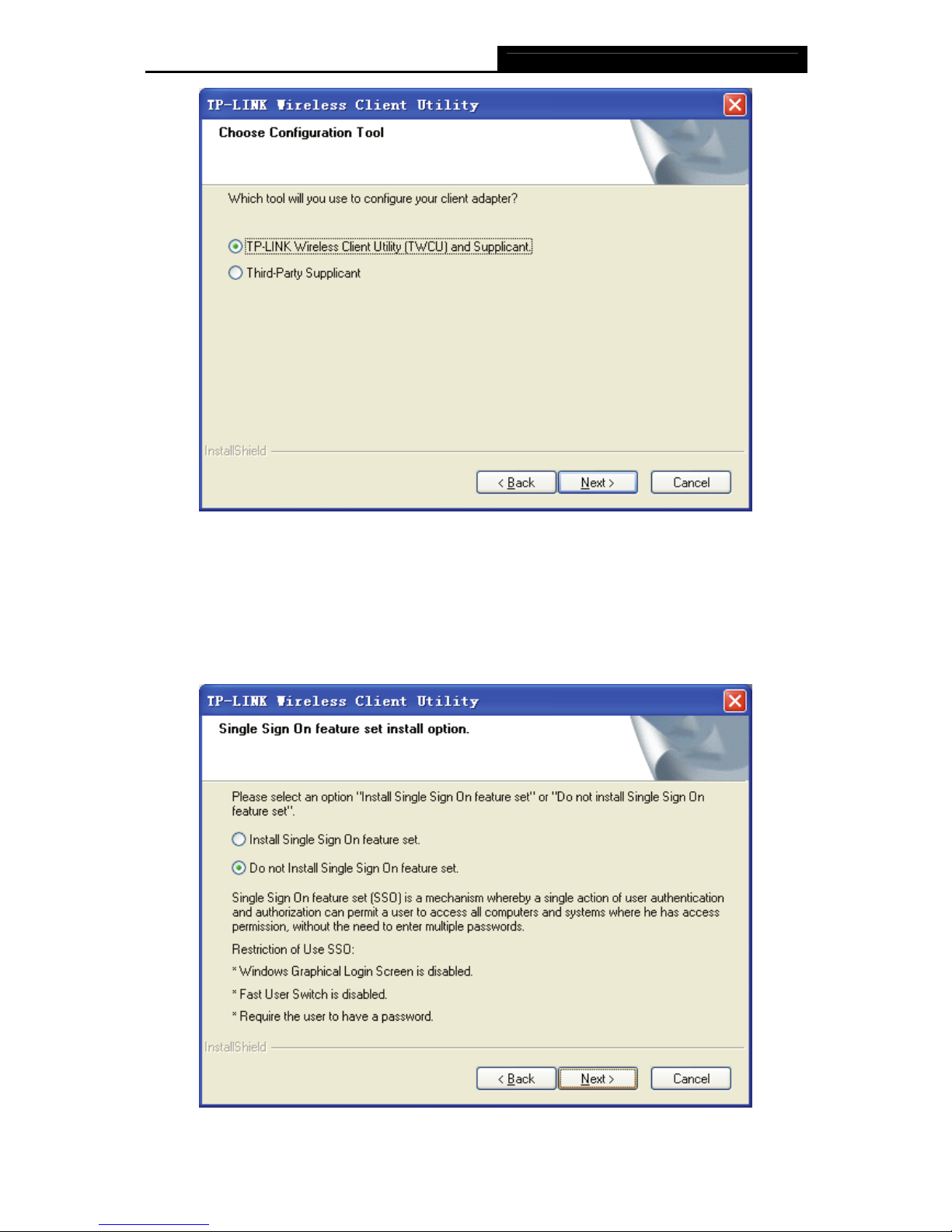

7. Choose TP-LINK Wireless Client Utility (TWCU) and Supplicant as a tool to configure the
client adapter on the screen as below, and click Next to continue.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
7
Figure 2-7
)Note：
In Windows 2000, Figure 2-6 and Figure 2-7 won’t display, and it will go to Figure 2-8 directly.
8. Choose “Do Not Install Single Sign On Feature Set” In Figure 2-8, and the system won’t
reboot after the installation. If you choose “Install Single Sign On feature set”, the system will
reboot later. Click Next to continue.
Figure 2-8

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
8

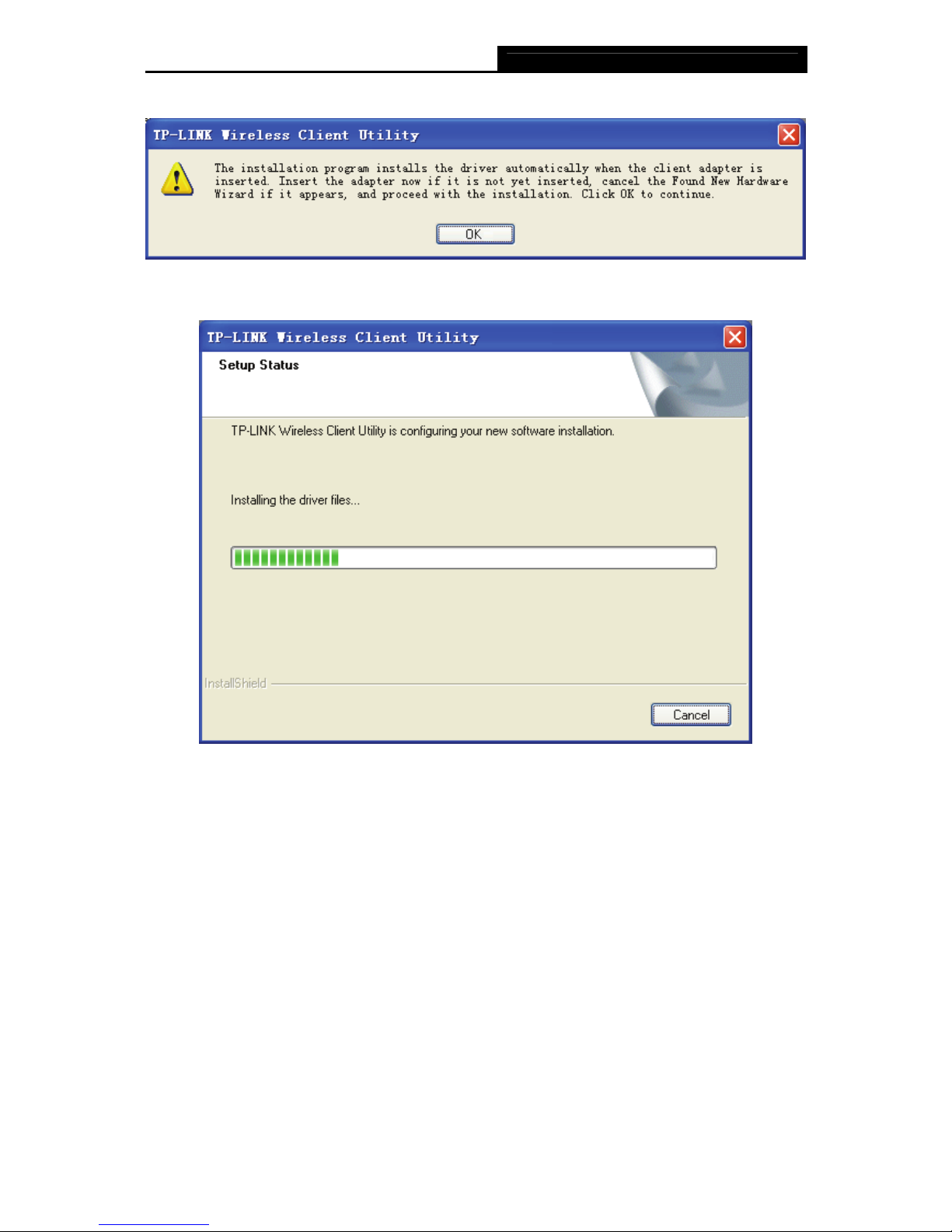

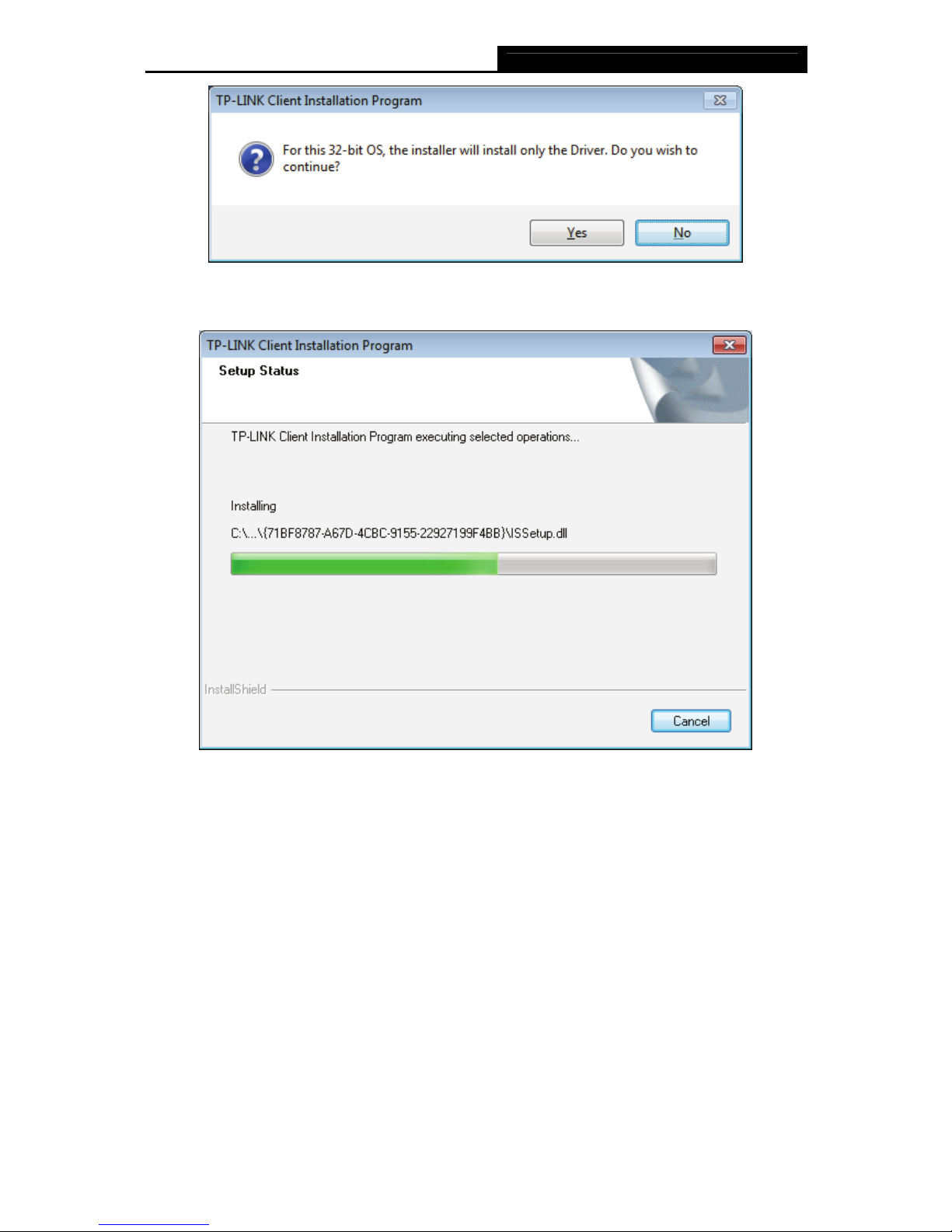

9. Click OK to continue the Installation in Figure 2-9.
Figure 2-9
10. Wait for the installation program to run automatically.
Figure 2-10

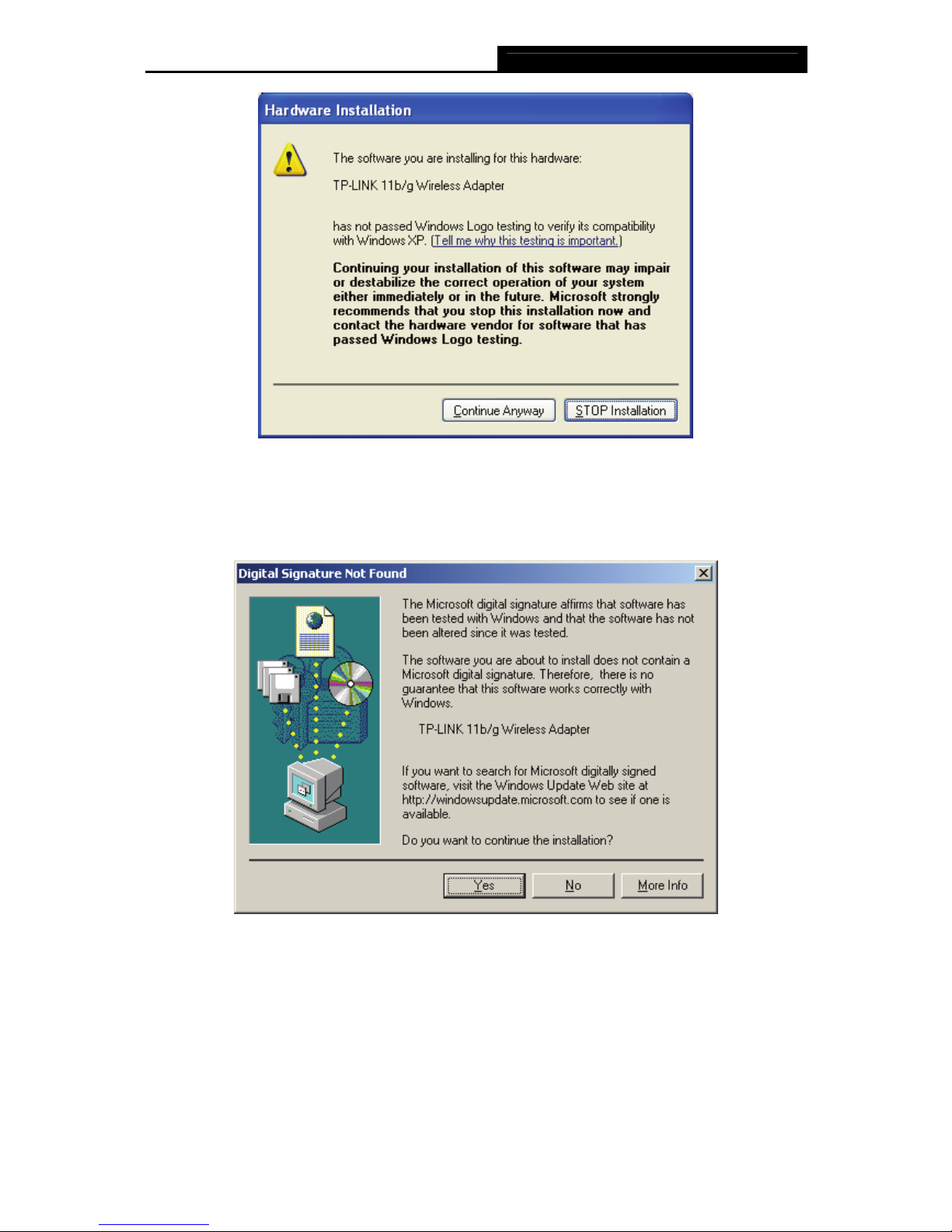

11. During the step, the Setup Wizard will notify you of how to proceed with the installation as
shown below. Our drivers have been tested thoroughly, and are able to work with the
operating system. Click Continue Anyway to continue the Installation.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
9
Figure 2-11
)Note：
In Windows 2000, the warning screen is shown below (Figure 2-12), and please select Yes to
continue installation.
Figure 2-12
12. After all the steps above, you will see the screen below, click Finish to complete the
installation.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
10
Figure 2-13
2.2.2 For Windows Vista
1. Insert the Resource CD into your CD-ROM drive, and open the folder with the same name as
your product. Then double-click Setup.exe in the proper folder according to your operating
system to start the installation. And then Figure 2-14 will appear; Figure 2-14 shows the
seedtime of installation; you can also click Cancel to end the installation.
Figure 2-14

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
11

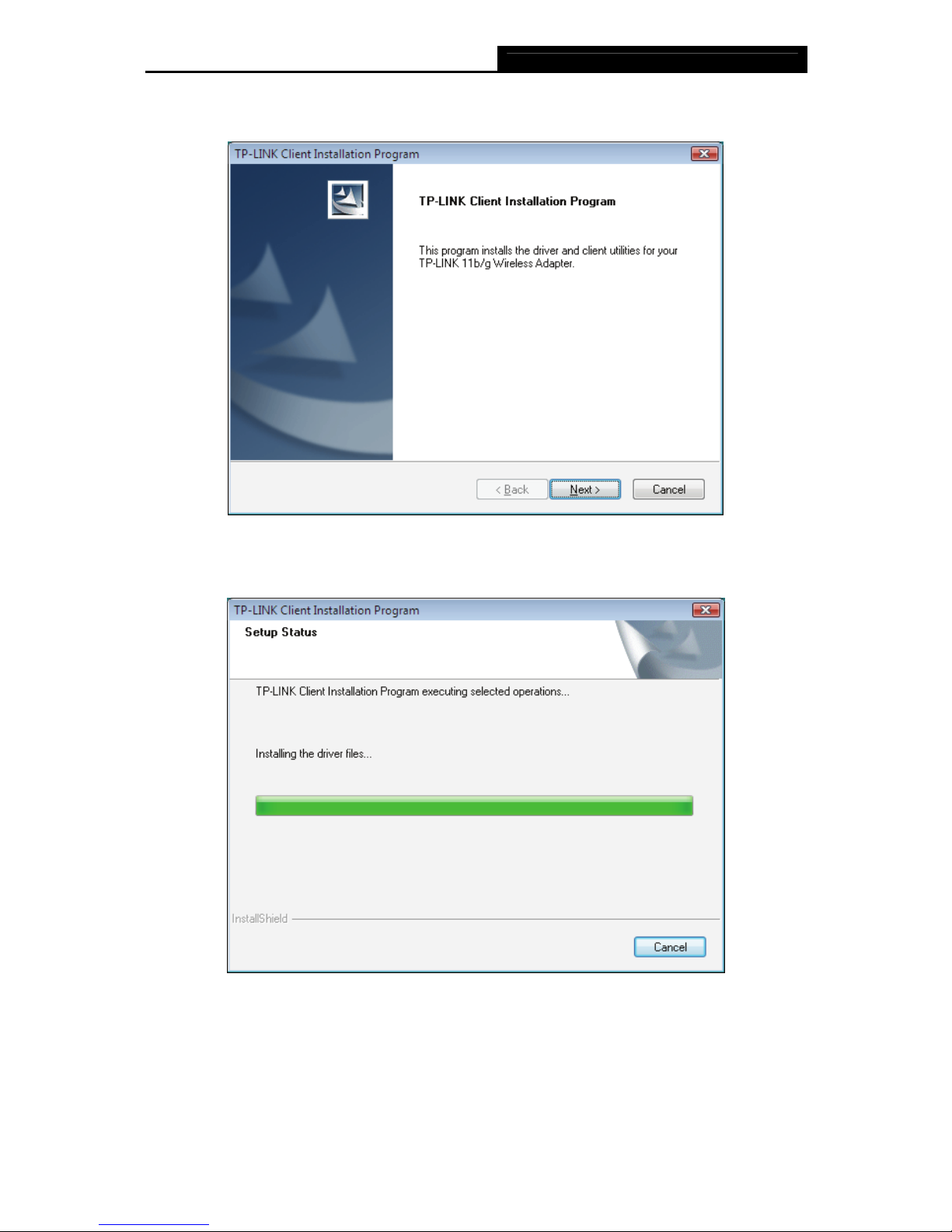

2. Click Next in the screen below (shown in Figure 2-15) to continue; you can click Cancel to
end the installation.
Figure 2-15
3. After that, the files will be copied as the next screen shows (shown in Figure 2-16).
Figure 2-16
)Note:
During the installation, the system will warn about Windows Security testing, please click “Install
this driver software anyway” to continue the installation.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
12

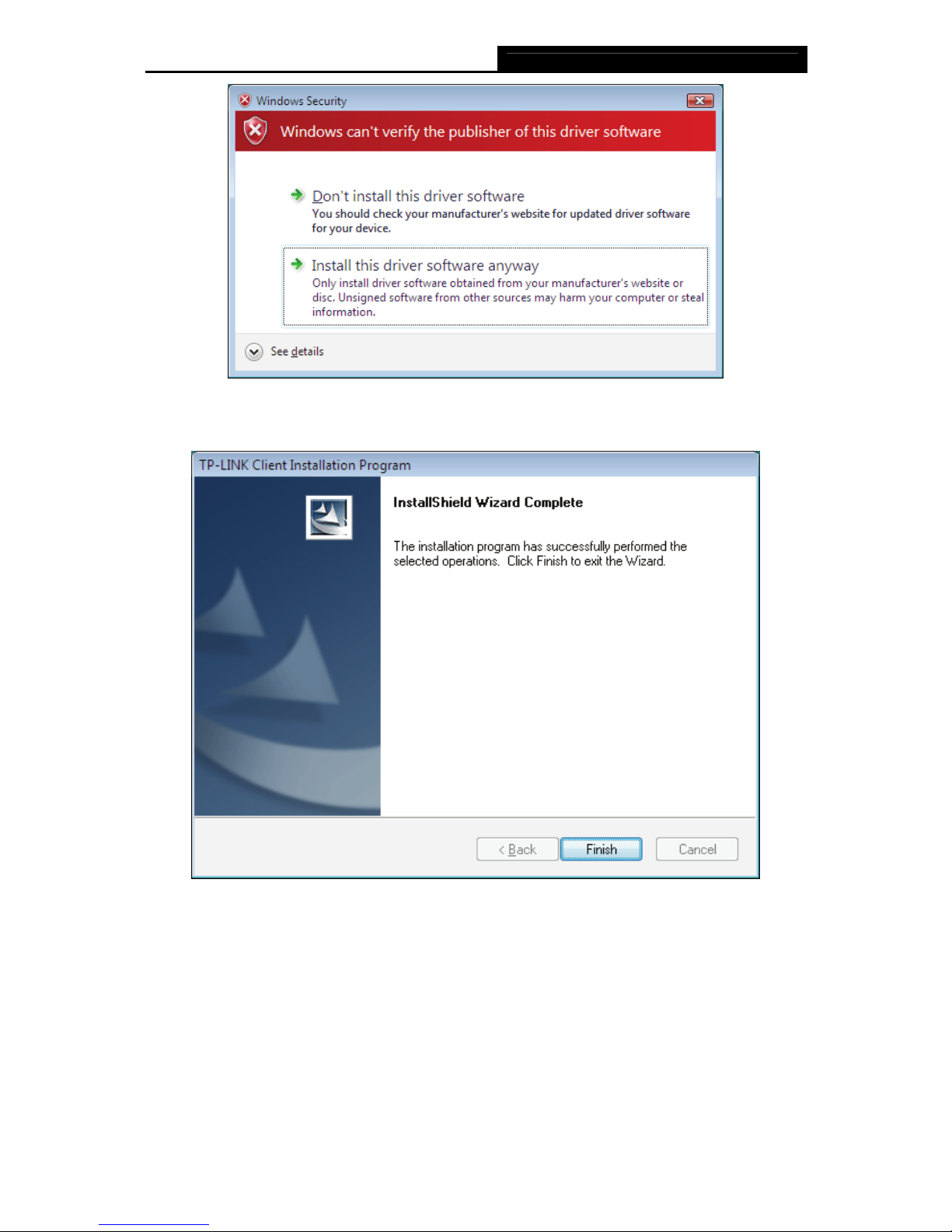

Figure 2-17
4. Click Finish to complete the installation.
Figure 2-18
2.2.3 For Windows 7
1. Insert the Resource CD into your CD-ROM drive, and open the folder with the same name as
your product. Then double-click Setup.exe in the proper folder according to your operating
system to start the installation. And then the following figure will appear.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
13
Figure 2-19
2. Click Next in the screen below (shown in Figure 2-20) to continue, you can click Cancel to
end the installation.
Figure 2-20
3. Click YES in the following figure to continue.

TL-WN350G/TL-WN350GD 54M Wireless PCI Adapter User Guide
14
Figure 2-21
4. After that, the files will be copied as the next screen shown.
Figure 2-22
)Note:
During the installation, the system will warn about Windows Security testing, please click “Install
this driver software anyway” to continue the installation.
