Package Contents
The following items should be found in your package:
¾One TL-WN951N Wireless N PCI Adapter
¾Quick Installation Guide
¾One resource CD for TL-WN951N, including:
•TP-LINK Wireless N Client Utility (11NWCU) and Drivers
•User Guide
•Other Helpful Information
)Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions:
The ‘Adapter’ mentioned in this user guide stands for TL-WN951N Wireless N PCI Adapter
without any explanations.
1

TL-WN951N Wireless N PCI Adapter
2
Chapter 1 Introduction
Thank you for choosing the TL-WN951N Wireless N PCI Adapter!
1.1 Overview of the Product
The adapter is a draft 802.11n client device; it is designed to provide a high-speed and
unrivaled wireless performance for your notebook. With a faster wireless connection, you can
get a better Internet experience, such as downloading, gaming, video streaming and so on.
With the 802.11n technology, higher throughput improvements using MIMO (multiple input,
multiple output antennas), the TL-WN951N’s auto-sensing capability allows high packet transfer
rate of up to 300Mbps for maximum throughput. It has good capability on anti-jamming, and it can
also interoperate with other wireless (802.11b) products. The adapter supports WEP, WPA and
WPA2 encryption to prevent outside intrusion and protect your personal information from being
exposed.
The adapter is easy to install and manage. The Quick Setup Wizard guides you step-by-step
through the installation process; the TP-LINK Wireless N Client Utility helps you create a wireless
connection immediately.
With unmatched wireless performance, reception, and security protection, the TL-WN951N is the
best choice for easily adding or upgrading wireless connectivity to your notebook computer.
1.2 Features
¾Complies with IEEE802.11n (draft), IEEE802.11g, IEEE802.11b standards
¾Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption,
64/128/152-bit WEP encryption
¾Supports high rate of up to 300Mbps for maximum throughput, supports automatically
adjust to lower speeds due to distance or other operating limitations
¾Provides 32-bit PCI interface
¾Supports Ad-Hoc and Infrastructure modes
¾Good capability on anti-jamming
¾Supports roaming between access points when configured in Infrastructure mode
¾Ease to configure and provides monitoring information
¾Supports Windows 2000, XP, Vista
¾Built-in three internal antennas which are listed in a format of 3x3 for three receivers and
three transmitters.

TL-WN951N Wireless N PCI Adapter
3
1.3 LED Status
LED Indications Status Working Status
Status Green
Activity Green Flashing Alternately The adapter is trying to scan a networking
connection.
Status Green
Activity Green Intermittently The adapter is already connected but is not
transmitting or receiving data.
Status Green
Activity Green Flashing The adapter is transmitting or receiving data.

TL-WN951N Wireless N PCI Adapter
4
Chapter 2 Installation Guide
2.1 Hardware Installation
To install the adapter, follow these steps listed below:
1. Turn off your desktop PC and disconnect the power.
2. Remove your PC case and locate an available PCI slot on the mianboard. Remove the metal
slot cover on the back of the PC. Check with your computer manufacturer for instructions if
needed.
3. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot's
contacts. Once the adapter is firmly in place, secure its fastening tab to your PC's chassis
with a mounting screw. Then, close your PC case.
4. Reconnect your PC’s power and turn on your desktop PC.
2.2 Software Installation
2.2.1 Overview
The Adapter’s Setup Wizard will guide you through the Installation procedure for Windows 2000,
XP and Vista. The Setup Wizard will install the TP-LINK Wireless N Client Utility (11NWCU) and
drivers.
When you install the hardware prior to before installing the software, the system will prompt
“Found New Hardware Wizard”, click Cancel, and run the Setup Wizard program on the
CD-ROM.
The Setup steps for Windows 2000, XP and Vista are very similar. The following setup steps
are for Windows XP.
2.2.2 Software Installation for Windows XP
1. Insert the Resource CD into your CD-ROM drive, and open the folder with the same name
as your product. Then double-click Setup.exe in the proper folder according to your
operating system to start the installation. After that, Figure 2-1 will appear. You can click
Cancel to end the installation in the screen above.

TL-WN951N Wireless N PCI Adapter
5
Figure 2-1
2. Soon, Figure 2-2 will display after a moment. Click Next to continue.
Figure 2-2

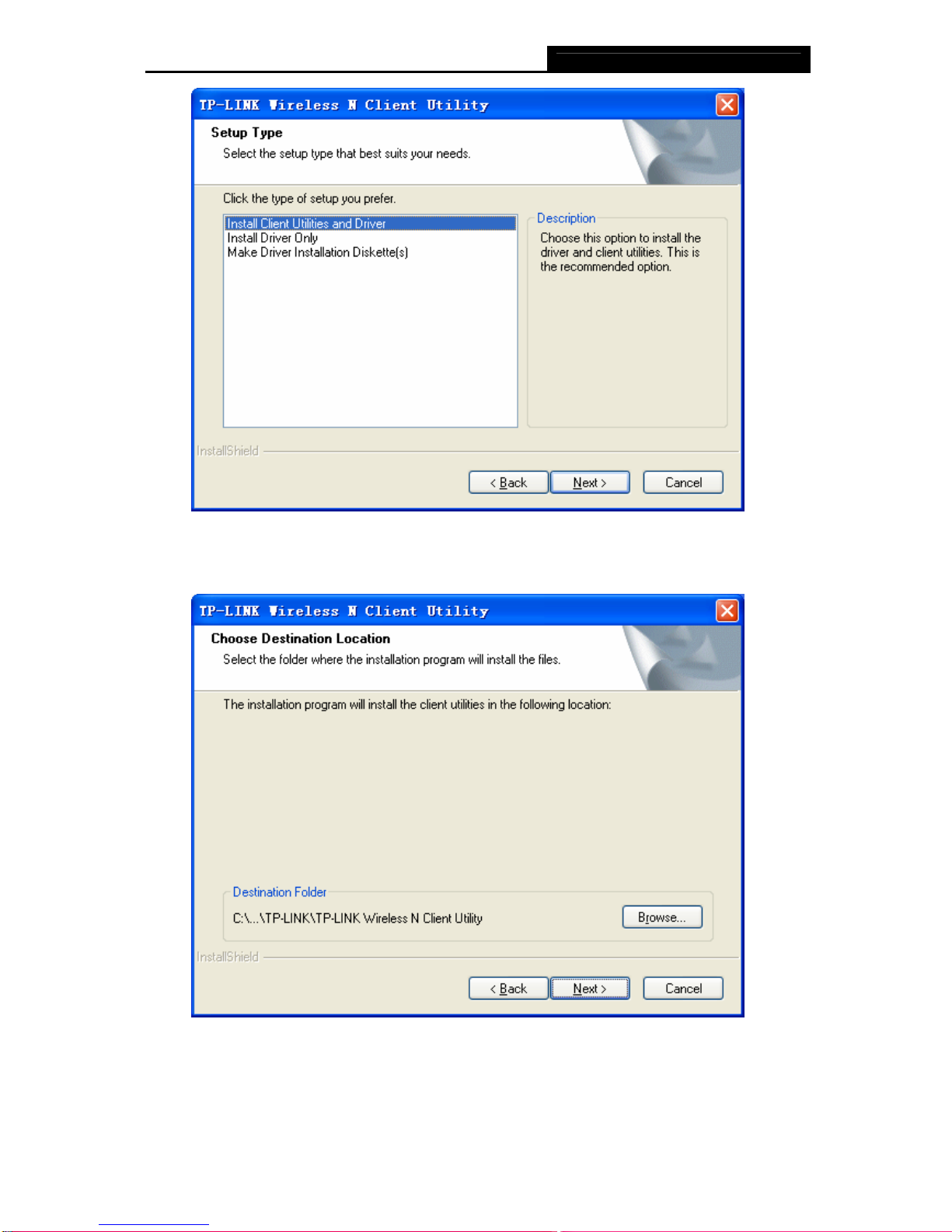

3. After that, you should choose a Setup type. It is recommended that you select Install
Client Utilities and Driver. Select Install Driver Only to install driver only, and select
Make Driver Installation Diskette(s) to make the diskette(s) as the installation driver
(shown in Figure 2-3). Click Next to continue.

TL-WN951N Wireless N PCI Adapter
6
Figure 2-3
4. Click Browse to change the destination location for the software, then click Next in the
screen below (shown in Figure 2-4).
Figure 2-4

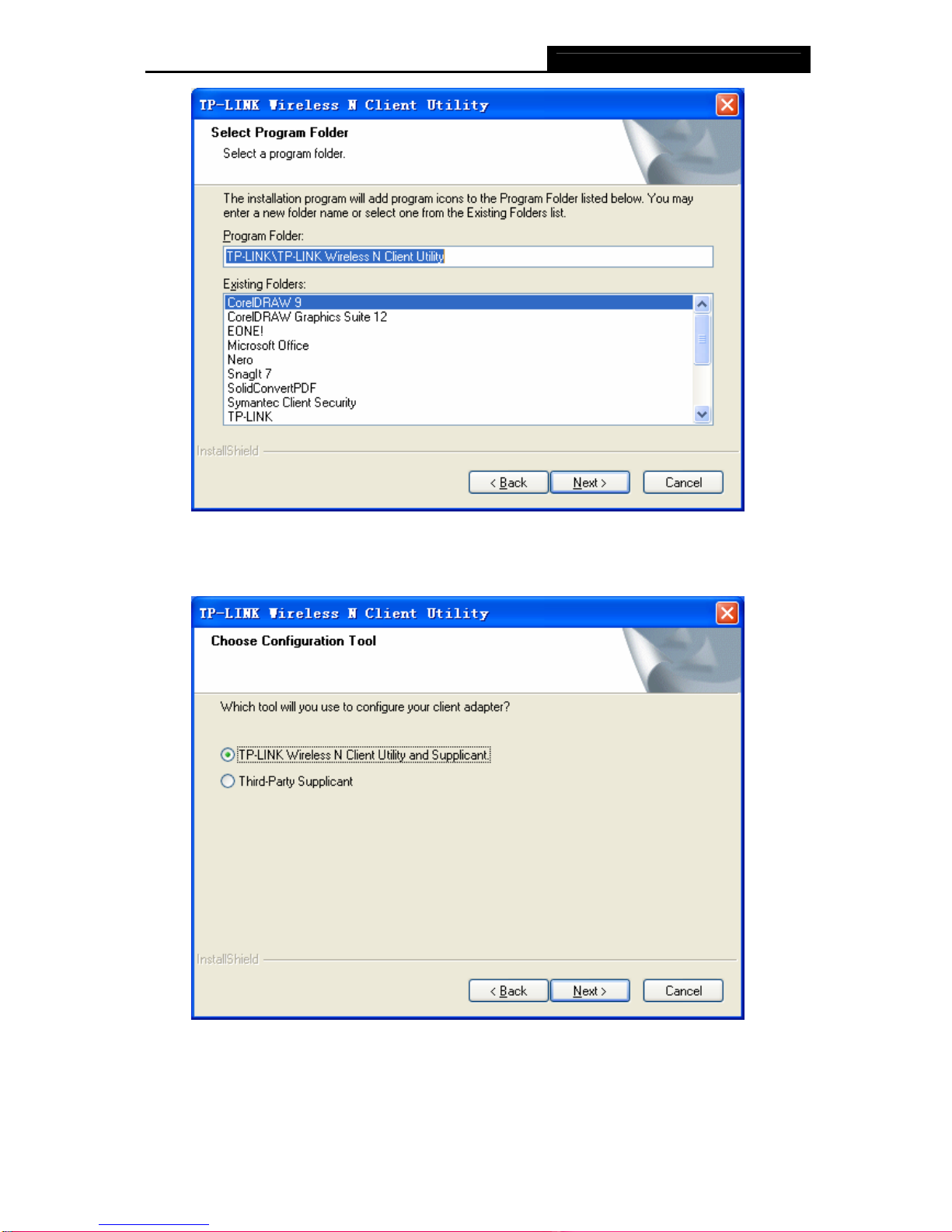

5. After that, select the program folder, you should create a new folder name or select one
from the Existing Folders list. It is recommended that you keep the default setting. Click
Next to continue the installation.

TL-WN951N Wireless N PCI Adapter
7
Figure 2-5
6. Choose configuration tool, if you are not sure, please leave it default. Then click Next to
continue.
Figure 2-6
7. Click OK to continue the Installation on the screen below.

TL-WN951N Wireless N PCI Adapter
8
Figure 2-7

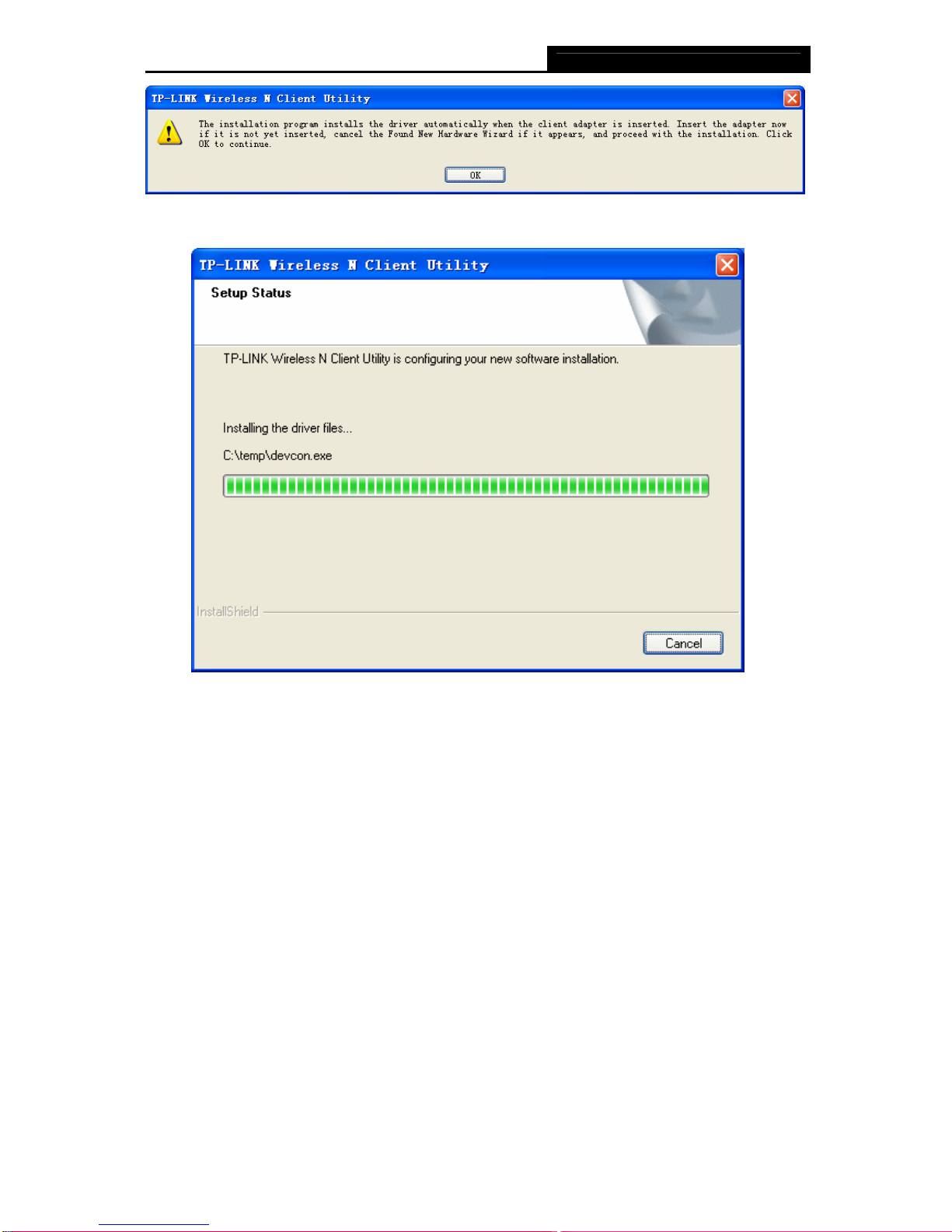

8. Wait a while for the setup as shown in Figure 2-8.
Figure 2-8
)Note:
1) For Windows XP, the Setup Wizard will notify you of how to proceed with the installation
during these steps (shown in Figure 2-9). Our drivers have been tested thoroughly, and
are able to work with the operating system. Click Continue Anyway to continue the
Installation.

TL-WN951N Wireless N PCI Adapter
9
Figure 2-9
2) In Windows 2000, the warning screen is shown below (Figure 2-10), and please select
Yes to continue installation.
Figure 2-10
9. After all the steps above, you will see the screen below, click Finish to complete the
installation.

TL-WN951N Wireless N PCI Adapter
10
Figure 2-11

TL-WN951N Wireless N PCI Adapter
11
Chapter 3 Configuration
TP-LINK TL-WN951N can be configured by TP-LINK Wireless N Client Utility (11NWCU). This
chapter describes how to configure your Adapter for wireless connectivity on your Wireless
Local Area Network (WLAN) and use the data security encryption features.

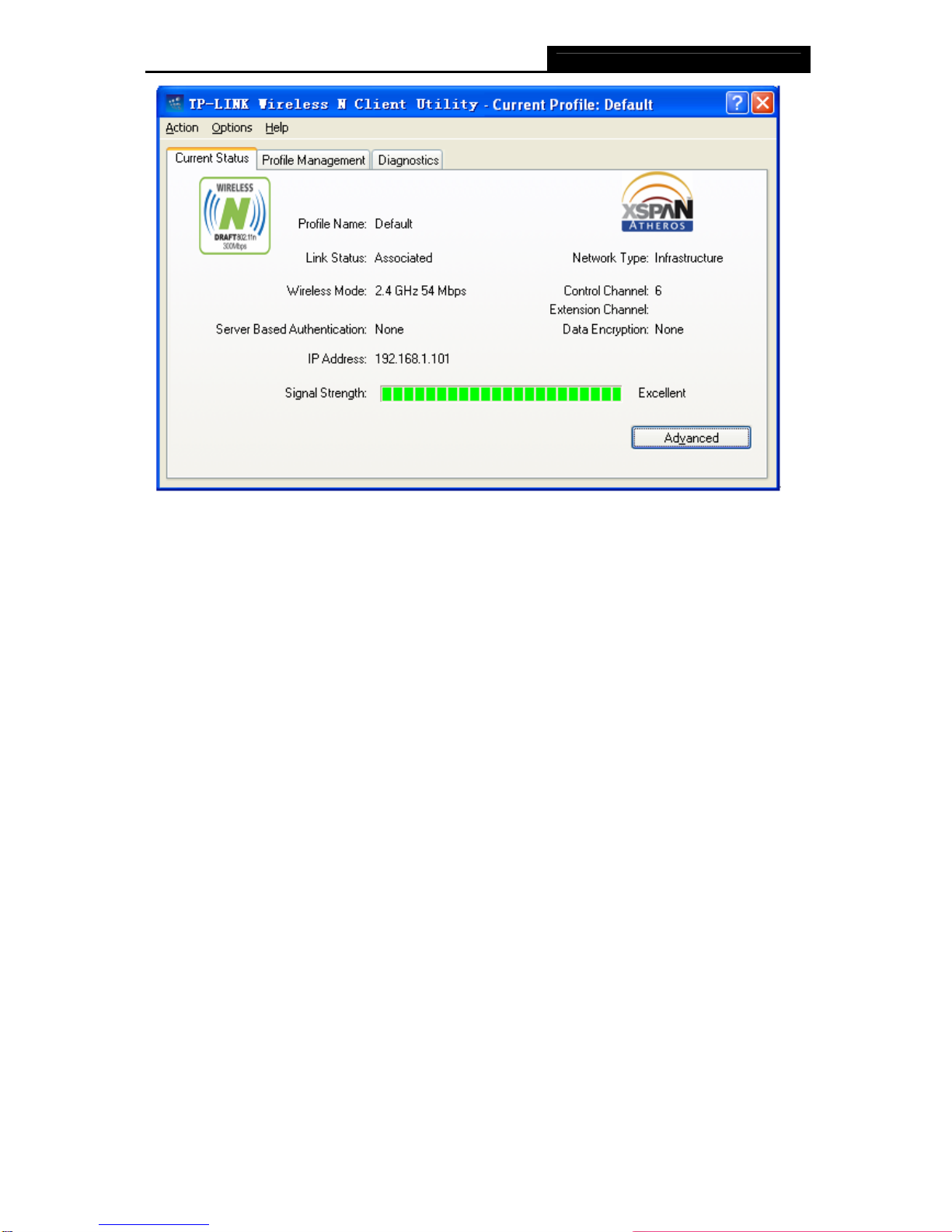

After Installing the Adapter, the Adapter’s tray icon will appear in your system tray. It
appears at the bottom of the screen, and shows the signal strength using color and the received
signal strength indication (RSSI).
If the icon is gray, there is no connection.
If the icon is red, there is poor signal strength and the RSSI is less than 5dB.
If the icon is yellow, there is poor signal strength and the RSSI is between 5dB and 10dB.
If the icon is green, there is good signal strength and the RSSI is between 10dB and 20dB.
If the icon is green, there is excellent signal strength and the RSSI is more than 20dB.
Double-click the icon and the 11NWCU will run. You can also run the utility by clicking the Start
→Program→TP-LINK→TP-LINK Wireless N Client Utility→TP-LINK Wireless N Client
Utility. The 11NWCU provides some integrated and easy tools to:
¾Display current status information
¾Edit and add configuration profiles
¾Display current diagnostics information
The section below introduces these above capabilities.
3.1 Current Status
The Current Status tab contains general information about the program and its operations. The
Current Status tab needn’t any configurations.

TL-WN951N Wireless N PCI Adapter
12
Figure 3-1
The following table describes the items found on the Current Status screen.
¾Profile Name - This shows the name of current selected configuration profile. The
configuration of Profile name will be described on the General tab of Profile Management.
¾Link Status - This shows whether the station is associated to the wireless network.
¾Wireless Mode - Here displays the wireless mode.
¾Network Type - The type of network and the station currently connected are shown here.
The options include:
•Infrastructure (access point)
•Ad Hoc
)Note:
You can configure the network type and wireless mode on the Advanced tab of Profile
Management.
¾IP Address - This displays the computer’s IP address.
¾Control Channel - This shows the currently connected channel.
¾Data Encryption - Here displays the encryption type the driver is using. You can configure
it on the Security tab of Profile Management.
¾Server Based Authentication - This shows whether the server based authentication is
used.
¾Signal Strength - This shows the strength of the signal.
Click Advanced on the screen above, you can see advanced information about the program
and its operations.

TL-WN951N Wireless N PCI Adapter
13
3.2 Profile Management
Click the Profile Management tab of the 11NWCU and the next screen will appear (shown in
Figure 3-2). The Profile Management screen provides tools to:
¾Add a new profile
¾Modify a profile
¾Remove a profile
¾Activate a Profile
¾Import a Profile
¾Export a Profile
¾Scan Available Networks
¾Order profiles
Figure 3-2
3.2.1 Add or Modify a Configuration Profile
To add a new configuration profile, click New on the Profile Management tab. To modify a
configuration profile, select the configuration profile from the Profile list and click Modify. Then
you will see the Management dialog box (shown in Figure 3-3).
1. Edit the General tab
¾Profile Name - Please enter the Profile name which identifies the configuration profile. This
name must be unique. Note that the profile names are not case-sensitive.
¾Client Name - Please enter the Profile name which identifies the client machine.
¾Network Names (SSIDs) - Please enter the IEEE 802.11 wireless network name. This
field has a maximum limit of 32 characters.

TL-WN951N Wireless N PCI Adapter
14

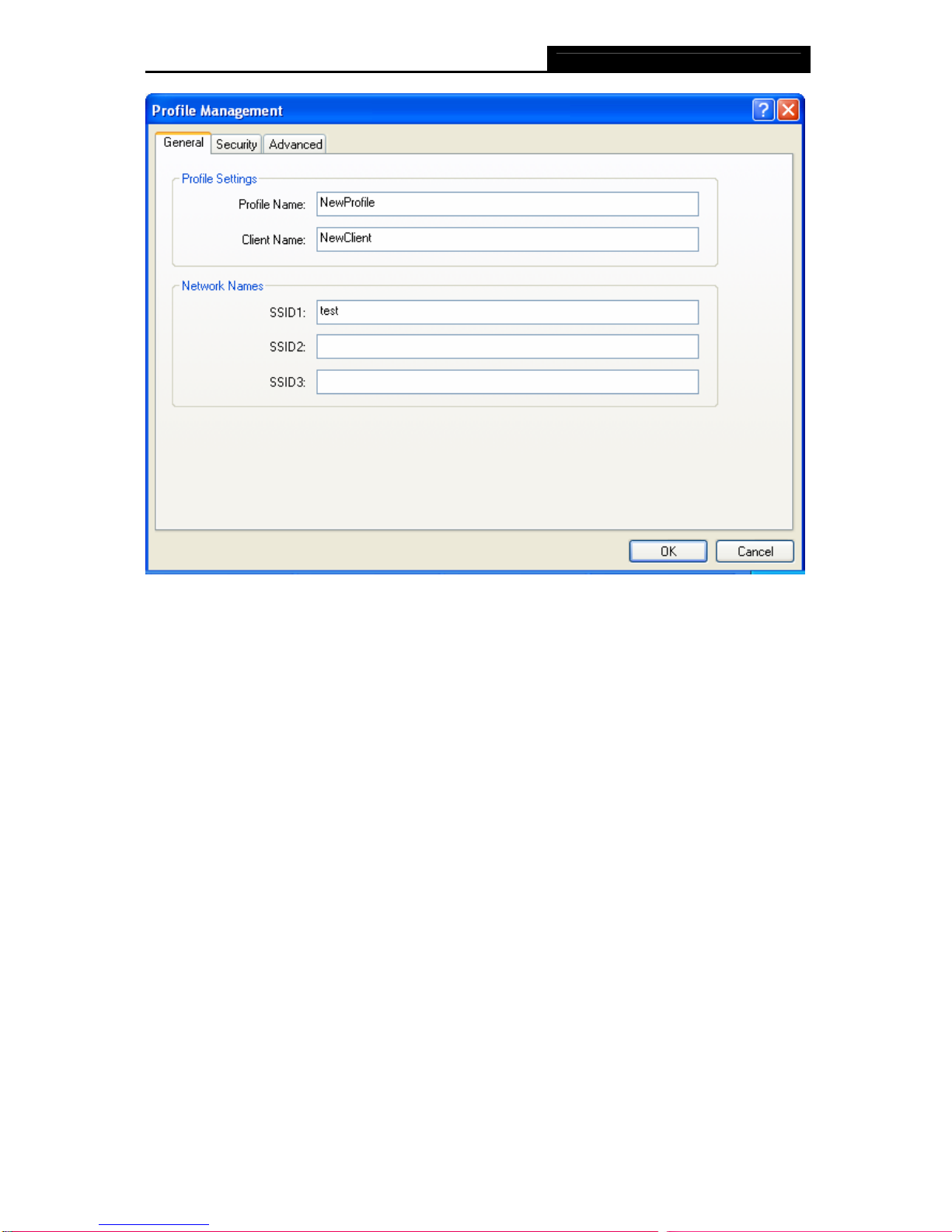

Figure 3-3
2. Edit the Security tab
Select the Security tab in the screen above, and then you can edit the fields to configure the
profile. To define the security mode, select the radio button of the desired security mode as
follows.

TL-WN951N Wireless N PCI Adapter
15
Figure 3-4
¾WPA/WPA2: Wi-Fi Protected Access
¾WPA/WPA2 Passphrase: Wi-Fi Protected Access Passphrase
¾802.1x: Enables 802.1x security.
¾Pre-Shared Key (Static WEP): Enables the use of shared keys that are defined on both
the access point and the station. To define shared encryption keys, choose the Shared Key
radio button and click Configure to fill in the Define Shared Keys window (shown in Figure
3-5).
)Note:
The WEP security mode is not available for 802.11n.
¾None: No security (not recommended).
)Note:
If the access point which the Adapter is associated has WEP set and the client has WEP enabled,
make sure that Allow Association to Mixed Cells is checked on the Security tab to allow
association. To complete WEP encryption configuration, you must select the 802.11
Authentication Mode as appropriate on the Advanced tab of this Profile Management dialog.
To configure the Encryption Keys under the Pre-Shared keys (Static WEP) Security mode:
