TP-Link TL-WPA4220 TKIT User manual

TL-WPA4220
AV600 Powerline Wi-Fi Extender
REV1.1.1
1910011631

COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered
trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com

CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
RF Exposure Information
This device meets the EU requirements (1999/5/EC Article 3.1a) on the limitation of exposure of the
general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
Safety Information
When product has power button, the power button is one of the way to shut off the product; when
there is no power button, the only way to completely shut off power is to disconnect the product or
the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
Explanation of the symbols on the product label
Symbol Explanation
Indoor use only
AC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic
equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize
its impact on the environment.
User has the choice to give his product to a competent recycling organization or to
the retailer when he buys a new electrical or electronic equipment.

DECLARATION OF CONFORMITY
For the following equipment:
Product Description: AV600 Powerline Wi-Fi Extender
Model No.: TL-WPA4220
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical regulations
applicable to the product within the scope of Council Directives:
Directives 2004/108/EC, Directives 2006/95/EC, Directives 2011/65/EU
Directives 1999/5/EC, Directives 1999/519/EC
The above product is in conformity with the following standards or other normative documents
EN 55022: 2010 + AC: 2011
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 +A2: 2013
EN 50412-2-1: 2005
EN 62311: 2008
EN 300 328 V1.8.1
EN 301 489-1 V1.9.2 & EN 301 489-17 V2.2.1
The product carries the CE Mark:
Person responsible for making this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2016-02-25
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd,
Nanshan, Shenzhen, China
TP-LINK TECHNOLOGIES CO., LTD

Important Safety Instructions
1. Do not open this product or attempt to service it; it may expose you to dangerous high voltage or
other risks.
2. Do not operate this product near water.
3. Do not place or operate this product near a radiator or a heat register.
4. Do not expose this product to dampness, dust or corrosive liquids.
5. Do not connect this product or disconnect it from a wall socket during a lightning or a thunderstorm.
6. Do not block the ventilation slots of this product, for insufficient airflow may harm it.
7. Do not put anything on this product.
8. Plug this product directly into a wall socket (100-240V~, 50/60Hz). Do not use an extension cord
between this product and the AC power source.
9. When plugging this product into a wall socket, make sure that the electrical socket is not damaged,
and that there is no gas leakage.
10. Place the connecting cables properly so that people won’t stumble or walk on it.
11. This product should be operated from the type of power indicated on the marking label. If you are not
sure of the type of power available, consult the qualified technician.
12. Unplug this product from the mains and refer the product to qualified service personnel for the
following conditions:
If liquid has been spilled on the product
If the product has been exposed to rain or water
13. Unplug this product from the wall socket before cleaning. Use a damp cloth for cleaning. Do not use
liquid cleaners or aerosol cleaners.
14. The specification of the fuse is T4AL250V. To avoid damage, please do not change the fuse.
15. The Operating temperature is 0℃~40℃(32℉~104℉). The Storage temperature is -40℃~70℃
(-40℉~158℉).

CONTENTS
Chapter 1 Introduction...................................................................................................... 1
1.1 System Requirement ................................................................................................ 1
1.2 Conventions..................................................................................................................... 1
1.3 Physical Interface ........................................................................................................ 2
1.4 LED Indicator .................................................................................................................. 2
Chapter 2 Hardware Connection............................................................................. 4
2.1 Before You Begin ......................................................................................................... 4
2.2 Plug and Play.................................................................................................................. 4
2.3 Wi-Fi Clone Button for Super Range Extension................................... 7
Chapter 3 Configure the Device............................................................................... 9
3.1 Login...................................................................................................................................... 9
3.1.1 For Wired Connection................................................................................................. 9
3.1.2 For Wireless Connection ....................................................................................... 10
3.2 Status .................................................................................................................................. 12
3.3 Network ............................................................................................................................. 13
3.4 Wireless ............................................................................................................................ 13
3.4.1 Wireless Settings........................................................................................................... 14
3.4.2 Wireless Security........................................................................................................... 15
3.4.3 Wireless MAC Filtering............................................................................................ 18
3.4.4 Wireless Advanced...................................................................................................... 20
3.4.5 Wireless Statistics......................................................................................................... 21
3.5 Powerline ......................................................................................................................... 22
3.5.1 Network Settings............................................................................................................ 22
3.5.2 Station Settings................................................................................................................ 22
3.6 System Tools................................................................................................................. 24
3.6.1 Firmware Upgrade ....................................................................................................... 24
3.6.2 Factory Defaults.............................................................................................................. 25
3.6.3 Backup & Restore......................................................................................................... 26
3.6.4 Reboot...................................................................................................................................... 26
3.6.5 Password...............................................................................................................................27
3.6.6 System Log.......................................................................................................................... 27

Chapter 4 Connecting to Wireless Network................................................ 29
4.1 In Windows 7................................................................................................................. 29
4.2 In Windows Vista........................................................................................................ 31
4.3 In Windows XP ............................................................................................................ 33
4.4 In Windows 8 or Windows 10........................................................................... 33
Chapter 5 Pair Button and Reset Button ....................................................... 36
5.1 Pair (Secure with 128 bits-AES)..................................................................... 36
5.2 Setting Up a Powerline Network with the Pair Button.................... 36
5.3 Reset................................................................................................................................... 37
Appendix A: Troubleshooting Guide................................................................. 38
Appendix B: Specifications........................................................................................ 39

TL-WPA4220 AV600 Powerline Wi-Fi Extender
1
Chapter 1 Introduction
Congratulations on your purchase of this outstanding AV600 Powerline Wi-Fi Extender. This device is
not only a 600Mbps powerline Ethernet adapter which transforms your house’s existing electrical wiring
into a ubiquitous networking infrastructure, but also a 300Mbps Wi-Fi Access Point which creates a
wireless network allowing for greater range and mobility.
As a powerline Ethernet adapter, it uses the existing power lines installed in a home as a path to
transmit digital data, voice, audio and video between devices. Simply plug this AV600 Powerline Wi-Fi
Extender into an ordinary AC power outlet, and then your Cable/xDSL broadband connection or existing
Ethernet (LAN) network can be easily extended to any other electrical outlet on the same electrical
circuit of a house. With powerline data rates of 600Mbps, full multimedia application can easily be
supported throughout the whole house.
As a Wi-Fi Access Point, it can transmit wireless data at the rate of up to 300Mbps. With multiple
protection measures including SSID broadcast control, wireless LAN WEP encryption, and Wi-Fi
Protected Access (WPA2- PSK, WPA-PSK), the device delivers complete data privacy.
It supports an easy, Web-based management utility. Even though you may not be familiar with the
device, you can easily configure it with the help of this Guide. The adapter adds three new functions
which are found to be useful.
1. Connection with a new unassociated device via the Pair button.
2. Reset to default settings via the Reset button.
3. Wi-Fi Clone via Wi-Fi Clone button.
1.1 System Requirement
a) At least two power outlets (100-240V~, 50/60Hz) with standard home power wiring
b) A computer with the following:
Operating System of Windows XP/Vista/7/8/10
Operating System with TCP/IP installed
Pentium III compatible processor and above
Ethernet LAN card installed with TCP/IP protocol
64 MB RAM or more
50 MB of free disk space (Minimum)
1.2 Conventions
The extender, or TL-WPA4220, or device mentioned in this User Guide stands for TL-WPA4220 AV600
Powerline Wi-Fi Extender without any explanations.
Parameters provided in the pictures are just references for setting up the product. They may differ from
the actual situation.
You can set the parameters according to your demand.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
2
1.3 Physical Interface
There are four physical items on this device.
Wi-Fi/Wi-Fi Clone Button
Ethernet Port
Reset Button
Pair Button
Item Description
Wi-Fi/Wi-Fi
Clone Button
Press the button for 2 seconds to start Wi-Fi Clone.
Press the button for 5 seconds to enable or disable the wireless function.
Ethernet Port Two 10/100Mbps Ethernet port connected to PC LAN card or broadband device.
Reset Button Press the button for about 5 seconds, the device will restore to its factory defaults.
Pair Button Press the button for 1 second to start the pairing process.
Press and hold the button for 10 seconds to leave the powerline network.
Note:
For detailed information about the Reset button and Pair button, please refer to Chapter 5 Pair Button
and Reset Button.
1.4 LED Indicator
The LED indicator displays information about the device’s status.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
3
LEDs Name Status Indication
On/ Off The device is on or off.
Once every second: Pairing is in process.
Power LED Blinking Once every 15 seconds: Power-Saving Mode is on.
(Powerline adapter only).
On The device is connected to the powerline network.
Powerline
LED Off The device is not connected to any powerline network or
is in Power-Saving Mode.
On The Ethernet port is connected.
Ethernet LED Off The Ethernet port isn’t connected.
Rapidly: The Wi-Fi is working properly.
Blinking Once every second: Wi-Fi cloning is in process.
Wi-Fi/Wi-Fi
Clone LED
Off The Wi-Fi is disabled.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
4
Chapter 2 Hardware Connection
2.1 Before You Begin
Please read this User Guide carefully before installing and using the equipment. The operating distance
or range of your wireless connection varies significantly based on the physical placement of the
powerline extender. Factors that can weaken signals by getting in the way of your network’s radio waves
are metal appliances or obstructions, and walls. Typical ranges vary based on the types of materials and
background RF (radio frequency) noise in your home or office.
This equipment can only be used in the below direction.
For best performance of your wireless network, you are suggested to place your powerline extender:
1). Near the center of the area in which your wireless stations will operate.
2). In an elevated location such as a high shelf.
3). Away from the potential sources of interference, such as PCs, microwaves, and cordless phones.
4). Away from large metal surfaces.
Failure to follow these guidelines can result in significant performance degradation or inability to
wirelessly connect to the powerline extender.
Note:
Take notes that this AV600 Powerline Wi-Fi Extender works in pairs or with another powerline adapter.
You need to plug the powerline extender into a power outlet; you will also need another powerline
extender or powerline Ethernet adapter connected to your Cable/xDSL broadband (Ethernet port) in
order to extend your broadband connection or Internet surfing. With clean powerline, the distance
between two powerline Ethernet adapters can reach 300 meters, but the actual distance may vary due
to the environment.
Section below describes the AV600 Powerline Wi-Fi Extender’s LED indicators, physical interface and
hardware connection mechanism.
2.2 Plug and Play
Please first make sure that your PC can successfully access the Internet via the router. Then connect
the powerline devices by following the instructions below.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
5
Step 1: Connecting to the Internet
This section describes how to connect the powerline extender into your existing network. Follow the
procedures described below:
1．Connect one end of an Ethernet (RJ45) cable to the Ethernet port of the powerline extender or a
compatible powerline adapter like TL-PA4010.
2．Connect the other end of the Ethernet (RJ45) cable to an available Ethernet port of your wireless
router.
3．Plug the powerline extender or powerline adapter into a wall socket.
4．Check and confirm the LEDs status. (The Power LED and Ethernet LED on the powerline device
should be ON.)
The hardware connection mechanism is shown below:
Note:
Do not connect the powerline extender or powerline adapter to an extension lead, power strip, extension
cord, or surge protector, as these may degrade the network performance.
Step 2: Connecting the Computer
Following are the steps to properly connect the powerline extender to your computer:

TL-WPA4220 AV600 Powerline Wi-Fi Extender
6
1．Connect one end of the provided Ethernet (RJ45) cable to the powerline extender’s Ethernet port.
2．Connect the other end of the Ethernet (RJ45) cable to your computer’s LAN port.
3．Plug the powerline extender into a wall socket.
4．Turn on your computer.
5．Check and confirm that the Power LED and Ethernet LED on the powerline extender are ON.
The hardware connection mechanism is shown below:
As soon as the powerline devices are connected following the steps above, wait until the powerline LED
turns on and a powerline network is available.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
7
2.3 Wi-Fi Clone Button for Super Range Extension
Wi-Fi Clone button is used for copying the wireless settings (including SSID and wireless password)
from the front wireless router.
Wi-Fi Clone Steps:
Before taking the steps below, please make sure the current wireless password of the front router isn’t
the default value.
1. Press the WPS button on the router for 2 seconds. (Here we take TP-LINK router as an example.)

TL-WPA4220 AV600 Powerline Wi-Fi Extender
8
2. Press the Wi-Fi Clone button on the extender for 2 seconds. The extender will reboot later.
* It’s recommended that you plug the extender near the router to use Wi-Fi Clone button.

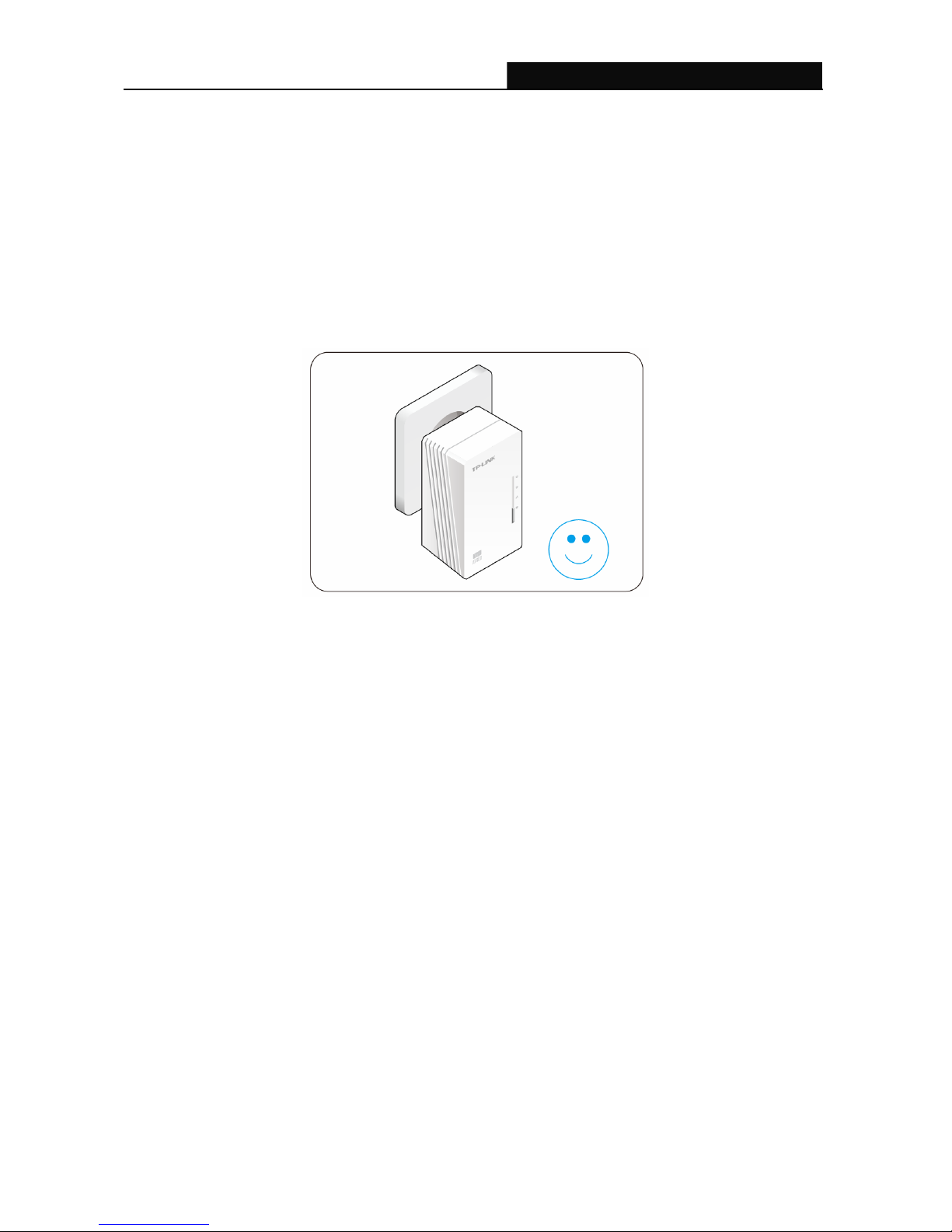

After Wi-Fi Clone:
A unified wireless network is established. The SSID and wireless password of the powerline extender
will be the same as the wireless router.
Note:
If you want to establish a secure and separate wireless network from the wireless router, please refer to
3.4.2 Wireless Security to set a different SSID and password for your powerline extender.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
9
Chapter 3 Configure the Device
This Chapter describes how to configure your powerline extender via the web-based management page.
The AV600 Powerline Wi-Fi Extender is easy to configure and manage with the Web-based
management page, which can be launched on any windows, Macintosh or UNIX OS with a web browser
(Internet Explorer, Netscape®Navigator, Firefox, Safari, Opera or Chrome).
3.1 Login
3.1.1 For Wired Connection
If your computer is connected to the extender via Ethernet cable, you can log in the extender by
following the steps below:
1. Obtain the Management Utility setup file from the product support page at http://www.tp-link.com.
2. Open the .exe file and click Connect to log in to the Web-based management utility.
Figure 3-1 Management Utility
Note:
If another TL-WPA4220 is displayed on the screen above and you cannot decide which model is the
one you are configuring, please refer to the MAC address under MAC Address column. The device’s
MAC address can be found on the label at the bottom of the device.
3. Enter admin for the User name and Password (both in lower case letters) in the screen below. Then
click OK or press Enter.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
10
Figure 3-2 Login Window
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to
Tools > Internet Options > Connections > LAN Settings, in the screen that appears, deselect the
Using Proxy checkbox, and click OK to finish it.
3.1.2 For Wireless Connection
If your device is connected to the extender via wireless, you can log in the extender by following the
steps below:
1. Launch a web-browser and type in the default domain name http://tplinkplclogin.net in the address
field.
Figure 3-3 Log into the Powerline Extender
2. Enter admin for the User name and Password (both in lower case letters) in the screen below. Then
click OK or press Enter.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
11
Figure 3-4 Login Windows
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to
Tools > Internet Options > Connections > LAN Settings, in the screen that appears, deselect the
Using Proxy checkbox, and click OK to finish it.
After a successful login, you can configure and manage the device. There are five main menus on the
leftmost column of the Web-based management page: Status, Network,Wireless,Powerline and
System Tools. Submenus will be available after clicking one of the main menus. On the right of the
Web-based management page lays the detailed explanations and instructions for the corresponding
page.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
12
3.2 Status
The Status page displays the powerline extender’s current status and configuration. All information is
read-only.
Figure 3-5 Status
Firmware Version - This field displays the current firmware version of the powerline extender.
Hardware Version - This field displays the current hardware version of the powerline extender.
Powerline - This field displays the current settings or information for powerline, including the MAC
address, Device Password and Network Name which can be configured on the Powerline →
Network Settings page.
MAC Address -The physical address of the powerline extender, as seen from powerline.
Device Password -The security ID that restricts access to critical device functions.
Network Name -The name that identifies a logical network.
Network - The following parameters apply to the Ethernet port of the powerline extender. You can
configure them on the Network page.
MAC Address -The physical address of the powerline extender's Ethernet port.
IP Address - The IP address of the powerline extender.
Subnet Mask - The subnet mask associated with IP address.

TL-WPA4220 AV600 Powerline Wi-Fi Extender
13
Wireless - This field displays the current settings or information for wireless. They can be
configured on the Wireless → Wireless Settings page.
Wireless Radio - Indicates whether the wireless radio feature of the powerline extender is
enabled or disabled.
Name (SSID) -The SSID of the powerline extender.
Channel - The wireless channel in use.
Mode - The current wireless mode the powerline extender works on.
Channel Width - The bandwidth of the wireless channel.
MAC Address - The physical address of the powerline extender, as seen from the WLAN.
System Up Time - This field displays the length of the time since the powerline extender was last
powered on or reset.
Click the Refresh button to get the latest status and settings of the powerline extender.
3.3 Network
You can configure the IP parameters of the powerline extender on this page.
Figure 3-6 Network
MAC Address -The physical address of the powerline extender's Ethernet port. The value can not
be changed.
IP Address - Enter the IP address of the powerline extender in dotted-decimal notation (factory
default setting is 192.168.1.1).
Subnet Mask - An address code that determines the size of the network. Usually it is
255.255.255.0.
Click the Save button to save your settings.
Note:
1. If you change the IP address, you must use the new IP address to log in to the powerline extender.
2. If the IP address of the powerline extender conflicts with other device in the intranet, a temporary IP
address will be generated at random.
3.4 Wireless
The Wireless option, improving functionality and performance for wireless network, can help you make
