User Guide
Kasa Smart Wi-Fi Light Switch, Single Pole
KS200
© 2023 TP-Link 1910013422 REV1.0.0

Contents
About This Guide ····················································································································································1
Introduction ·······························································································································································2
Appearance ·······························································································································································3
Wire Your Switch······················································································································································5
Set Up Your Switch ················································································································································8
Add Your Switch to Home··································································································································9
Third Party Services···········································································································································11
Authentication·······················································································································································15

1
About This Guide
This guide provides a brief introduction to Kasa Smart Wi-Fi Light Switch and regulatory information.
Features available in Kasa Smart may vary by model. All images, steps, and descriptions in this guide are only examples and may not reect your actual
Kasa Smart experience.
Conventions
In this guide, the following convention is used:
Convention Description
Teal Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline Hyperlinks are in teal and underlined. You can click to redirect to a website.
More Info
• Specications can be found on the product page at https://www.tp-link.com.
• Our Technical Support contact information can be found at the Help center of the Kasa Smart app and the Contact Technical Support page
at https://www.tp-link.com/support.

2
Introduction
TP-Link Smart Wi-Fi Light Switch is a standard, single-pole, wall light switch that can be controlled via your iOS or Android devices. Control your home
lighting or ceiling fans on your phone from anywhere, anytime with the Kasa Smart app. Turn xtures on and o, set schedules, even group them with
other Kasa Smart devices. The Kasa Smart app provides easy step-by-step installation instructions and convenient remote control from anywhere.
• Apple HomeKit Supported - Integrate your devices easily into your Apple ecosystem and control
them using the Apple Home app and Siri on your iPhone, iPad, Apple Watch, HomePod, or Mac.
• Control From Anywhere - Control anything connected to your smart light switch, like lights, ceiling
fans or other xtures, from anywhere using the Kasa Smart app.
• Voice Control - With any Alexa, Siri or Google Assistant you can control any xture connected to
your Kasa Smart light switch with simple voice commands.Scan for HomeKit setup
• Grouping - Use Grouping to combine your light switch with other Kasa Smart devices for seamless
control with one single tap on your smartphone.
• Away Mode - Set your smart light switch to turn connected xtures on and o at random intervals
to give the appearance you're home even while you're away.
• Easy Install - No need to understand complex wiring, just follow the step-by-step wiring process in
the Kasa Smart app for a guided installation of your smart light switch.
• No Hub Required - The Kasa Smart Wi-Fi Light Switch connects to your home's secure Wi-Fi
network. No need for a hub or extra equipment.

3
Appearance
The Smart Switch is compatible with incandescent, LED, Halogen, and compact uorescent light bulbs. The switch also includes a white backlight LED
indicator to easily locate the switch at night. See the explanation below:
On/O
Button
Restart
LED
Reset
Button Explanations
Restart
Reset
Press and hold for about 5s to reset
Wi-Fi while keeping other settings.
Press to restart your switch.
Press and hold for about 10s to restore
your switch to factory default settings.
LED Status
Starting up; disconnected
from cloud.
Solid amber
Blinking amber
Blinking green
White
Solid red
Stay green for 30s
Blinking amber & green
Connecting to Wi-Fi.
Ready for setup.
Device resetting.
Light fixture is off.
Disconnected from Wi-Fi.
Connected to Wi-Fi.
Blinking green slowly Firmware upgrading.

4
Note: Your can nd another Homekit setup code label in the package and stick it anywhere you like as needed for Homekit setup.
*Images may dier from your actual product.
Detach the Wallplate
Carefully insert a at-bladed screw driver the opening at the bottom of the wallplate and pull forward to remove the wallplate.
Homekit Numeric Code
• For Homekit setup.
MAC Label
Scan for
HomeKit setup

5
Wire Your Switch
Follow the steps below to wire your Smart Wi-Fi Light Switch. If you are not familiar with basic electronical wiring, please consult an electrician.
Before You Start
1. Prepare Baisc knowledge of Wiring
• Ground: Usually green or copper.
• Neutral: Usually white, not connected to the dumb switch.
• Line: Usually black and coming from the circuit breaker.
• Load: Usually black. One end is connected to the light.
Note: If you are unsure, consult a qualied electrician.
2. Prepare Your Tools
Prepare a philips and slotted screwdriver, pliers, wire strippers and a voltage detector.
3. Check Wi-Fi Strength
Make sure your switch is in a area with strong Wi-Fi signal.

6
Step 1. Turn O Power and Remove the Wallplate
Turn o the circuit breaker. Then remove the old wallplate of the wall
switch and label the wires.
Step 3. Label and Connect the Wires
Use the labels and wire nuts to Connect the wires to the smart switch as
shown below.
Note: No need to distinguish between Line and Load wires.
Wire Your Switch
Step 2. Expose Your Switch Wiring
Remove the screws securing your old switch to the wall box. Gently
pull the switch out and disconnect wires from the old switch.
MISE EN GARDE
Risque d'électrocution - Haute tension. Débrancher l'alimentation électrique avant d'utiliser.
CAUTION
Risk of Electric Shocks - High Voltage - Disconnect power supply before servicing.

7
Step 4. Install Your Smart Switch
Gently fold all of the wires back into the wall box. Line up the switch
with the mounting holes. Secure it with screws.
Step 5. Attach the Wallplate and Turn on Power
Attach the wallplate and turn on the circuit breaker. Then the wiring is
nished.

8

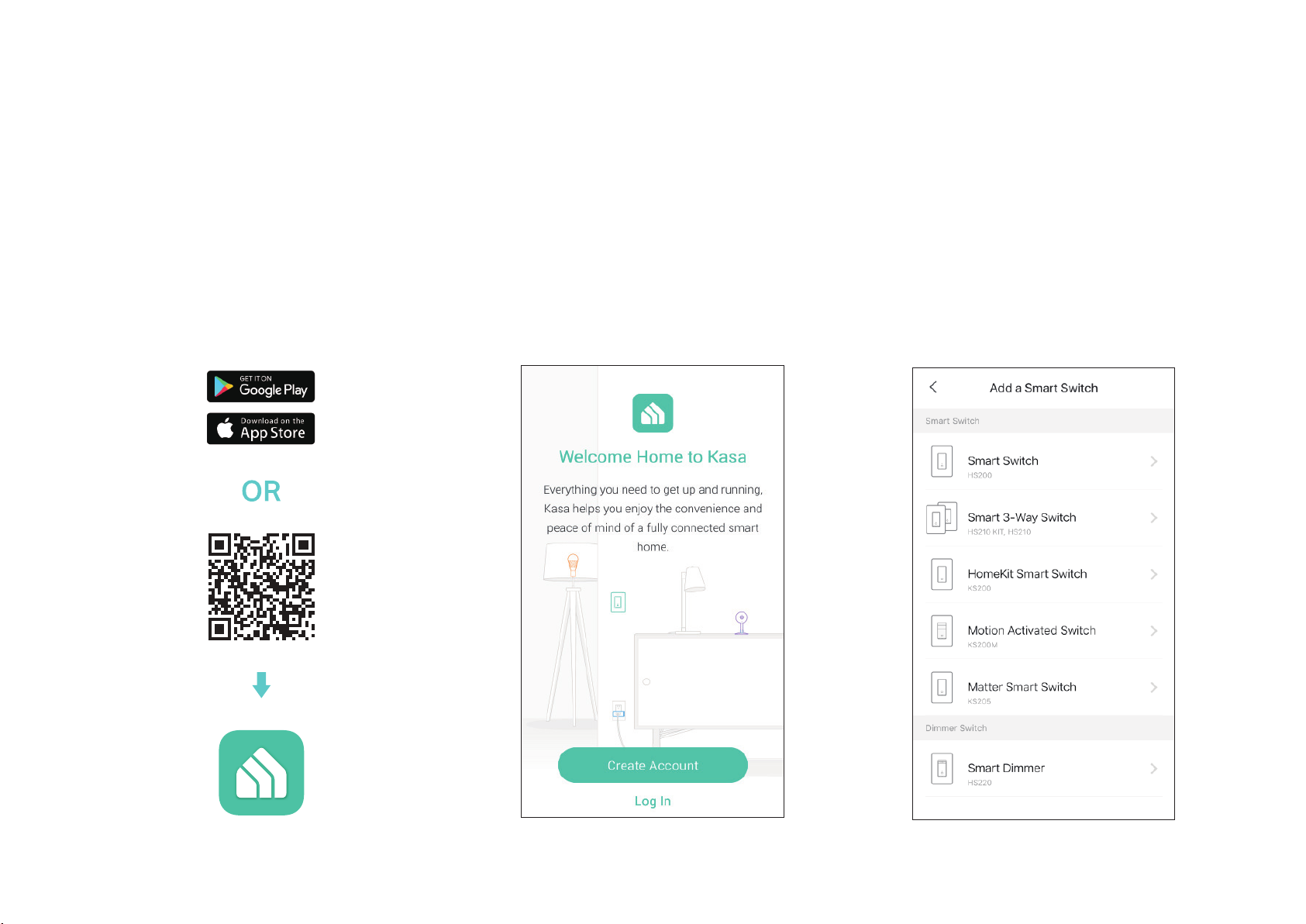

Set Up Your Switch
Follow the steps below to set up your Smart Light Switch via Kasa Smart app.
1. Download and install Kasa app
Go to Google Play or the App Store or
scan the QR code below to download the
Kasa Smart app on your Android or iOS
smartphone or tablet.
2. Log in or sign up with TP-Link ID
Open the app. Use your TP-Link ID to log in.
If you don’t have a TP-Link ID, tap Create
Account and the Kasa Smart app will guide
you through the rest.
3. Add Device
Tap the + button in the Kasa Smart app, select
Smart Switches > Homekit Smart Switch, and
then follow step-by-step app instructions to
complete the installation and setup.

9
Before you start:
1. Your iPhone or iPad should be connected to a stable 2.4 GHz Wi-Fi network.
2. To control this HomeKit-enabled accessory, the latest version of iOS or iPadOS is recommended.
3. HomeKit will be disabled after 10 minutes since the smart switch is powered on. You can power o your device and power it back on, then try again.
Add to Home

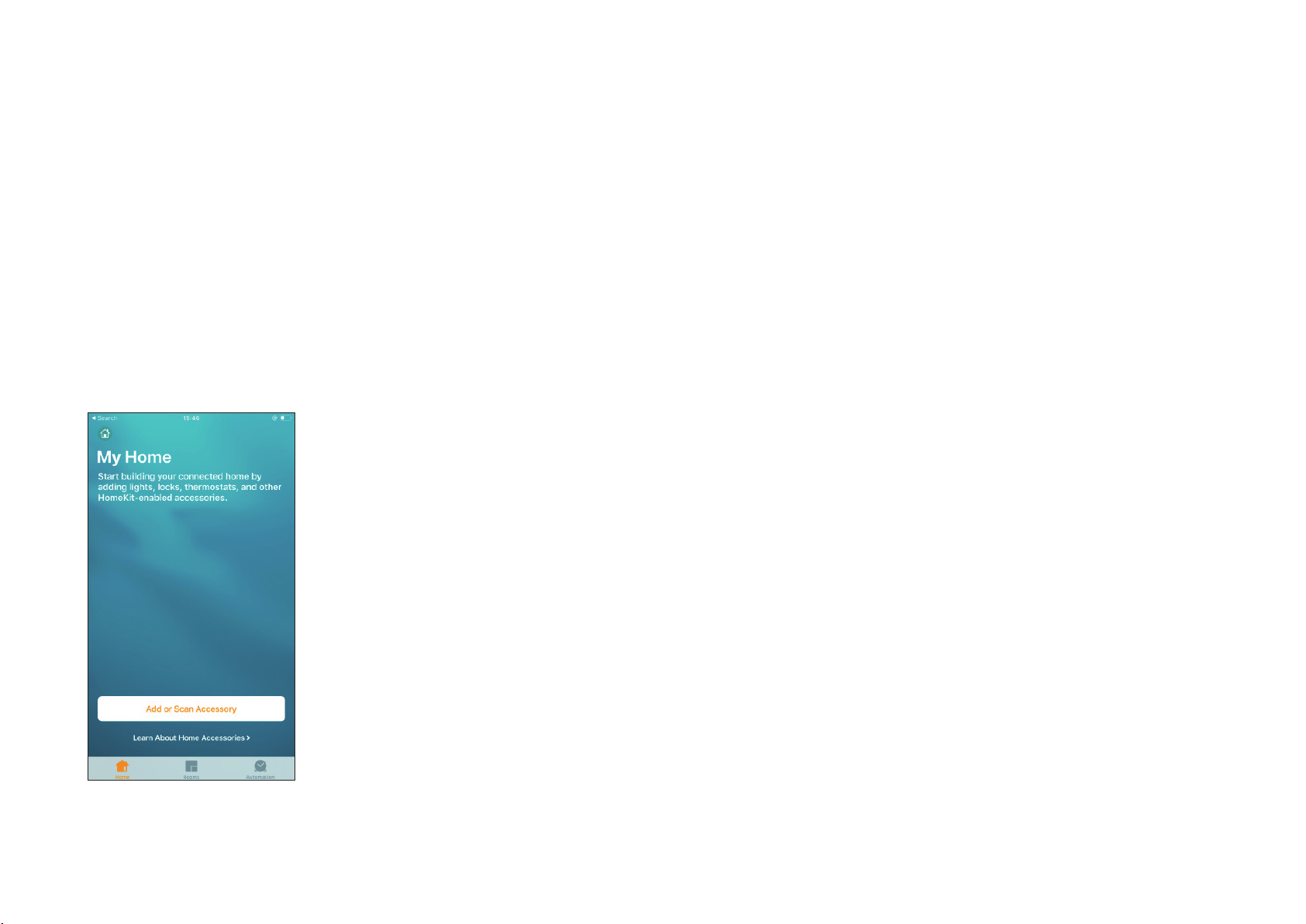

Add Your Switch to Home
This is a HomeKit-enabled device. You can also add it to the Home app for easy control from your iPhone or iPad. Follow the steps below to add your
smart switch via the Home app.
1. Open the Home app. Or if you have added the smart switch to Tapo, you can also tap Add to Home in the Device Settings page.
2. Scan the HomeKit QR code on the provided label. It will be added to Home automatically.

10
Failed to add to Home?
1. Press and hold the Power button for at least 10 seconds to factory reset the smart switch and restart your phone. Then try again.
2. Ensure both your iPhone/iPad and the smart switch closer to the router to get a stronger Wi-Fi signal.
3. Turn o the Wi-Fi on your iPhone/iPad for a few seconds, then turn it back on to clear the cache of the Home app.
4. Make sure your iPhone/iPad is connected to the 2.4 GHz Wi-Fi network. Set dierent names for 2.4 GHz and 5 GHz networks, or temporarily turn o
the router's 5 GHz Wi-Fi until your smart device is successfully added.
5. Change the router's 2.4 GHz Wi-Fi channel to a xed one, such as 1, 6, and 11. Then reboot your router.
6. If you still cannot add the smart switch to Home, tap set it up with Tapo manually. Then follow the app instructions to add your smart switch.
7. If the problem persists, refer to the FAQ for detailed instructions: https://www.tp-link.com/support/faq/3390/
Reset Button

11
Third Party Services
Use the Kasa Smart app to pair your Smart devices with Amazon Alexa or Google Home Assistant, and enjoy a full hands-free experience. Kasa helps
manage the rest of your smart home too, working with Samsung SmartThings to trigger changes when you arrive home or leave for the day.
Launch the Kasa Smart app. Go to the Me page and tap Third Party Services. You can choose Amazon Alexa / Google Assistant / IFTTT / Samsung
SmartThings for detailed instructions.

12
1. Tap Amazon Alexa. 2. Tap Connect.3. Sign in with your amazon account.
1. Set up Amazon Alexa

13

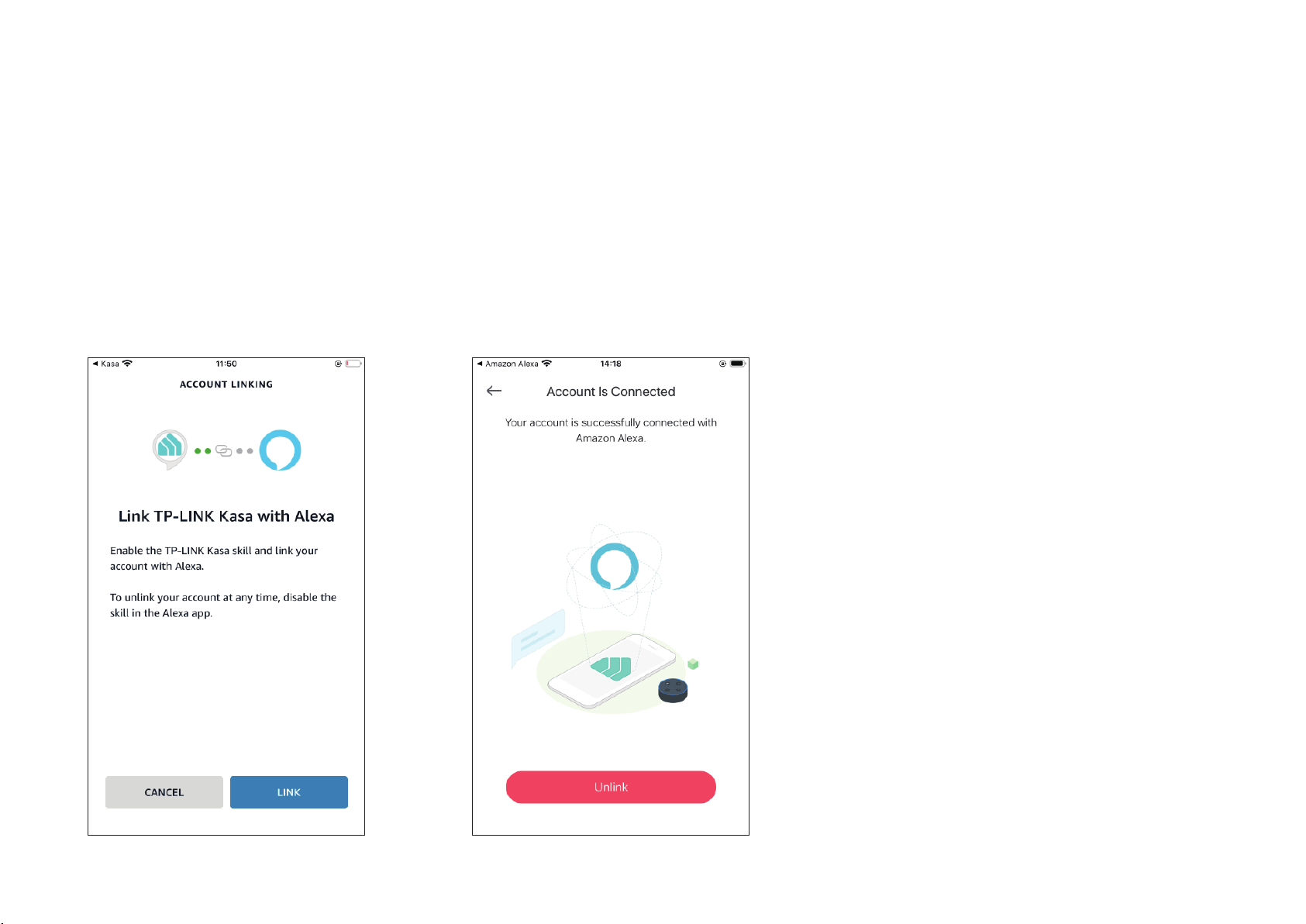

3. After sign-in, tap LINK. 4. Your TP-Link ID has been successfully linked with your amazon account. You can use Alexa voice
commands to control your Smart Wi-Fi Power Strip.

14

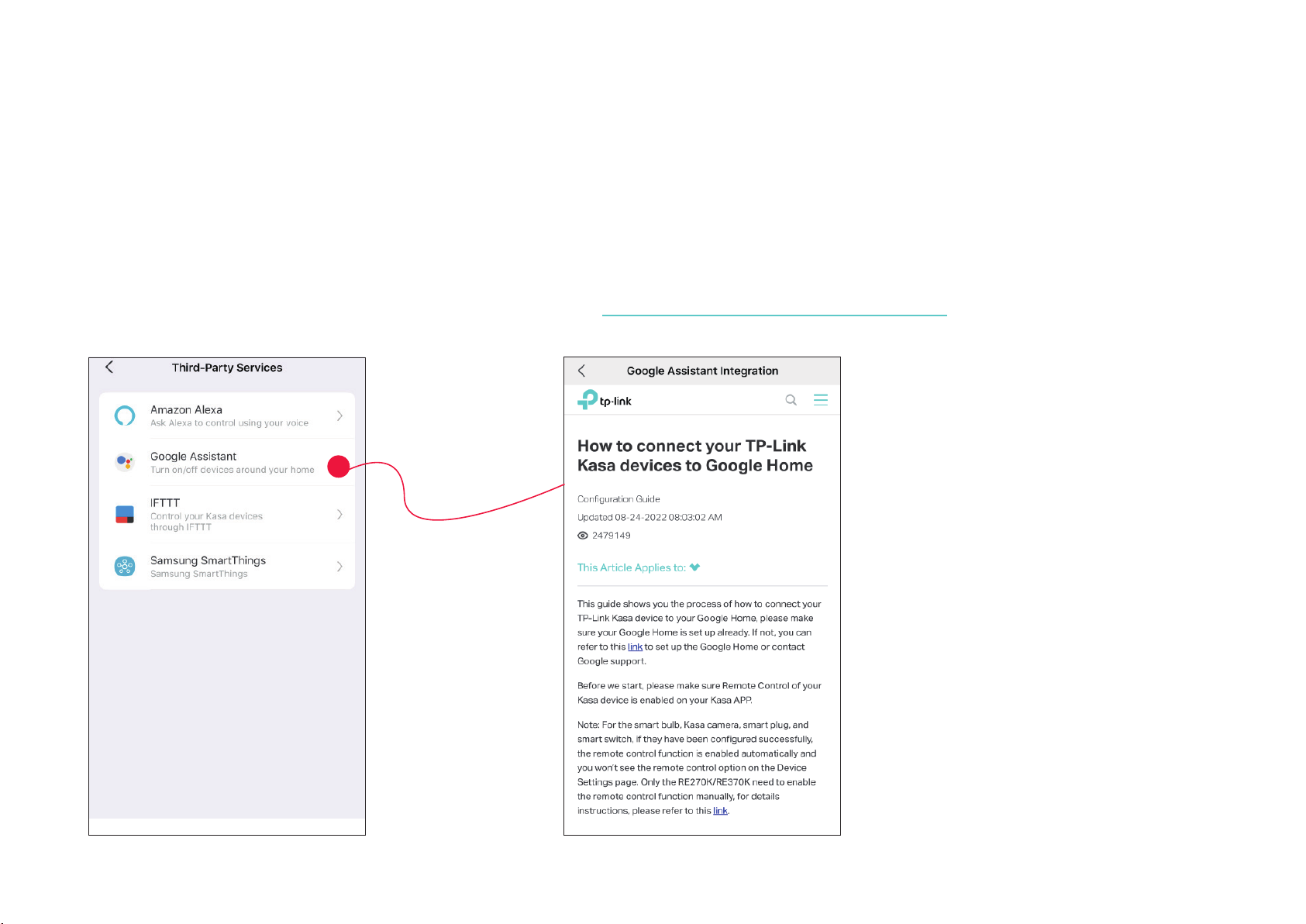

1. Tap Google Assistant.2. Follow instructions to connect your device to your Google Home.
Or nd the FAQ at https://www.tp-link.com/en/support/faq/1534/.
2. Set up Google Assistant

15
Authentication
FCC compliance information statement
Product Name: Kasa Smart Wi-Fi Light Switch,Single Pole
Model Number: KS200
Responsible party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: [phone]
Fax: [phone]
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

16
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment. Such modications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-
located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical
standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2021.03.25

17
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
NCC Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

18
BSMI Notice
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱：
Equipment name
Kasa Smart Wi-Fi Light Switch,Single Pole
型號（型式）：KS200
Type designation (Type)
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB○○○○○○
外殼○○○○○○
電源供應板 — ○ ○ ○ ○ ○
其他及其配件 − ○ ○ ○ ○ ○
