T+A MP 200 User manual

MP 200
User manual

2

We are delighted that you have decided to purchase a
T+A product. Your new Multi-Source-Player is a Hi-Fi
unit of the highest quality, designed and developed
with a single aim as top priority: to satisfy the require-
ments of the audiophile music lover.
This unit is the embodiment of innovative thinking
and solid quality, exploiting the nest materials and
components available, and all these factors contribute
to a machine which will satisfy you‘re most stringent
demands and your most searching requirements for a
period of many years.
Our production areas are supervised by highly qua-
lied expert staff, and all nal production units are
checked comprehensively by a fully automated,
computer-controlled system to ensure uniformly high
quality. We guarantee that our products meet our own
specications to the full.
At all stages of production we avoid the use of sub-
stances which are environmentally unsound or po-
tentially hazardous to health, such as chlorine-based
cleaning agents and CFCs.
We also aim to avoid the use of plastics in general,
and PVC in particular, in the design of our products.
Instead we rely upon metals and other non-hazardous
materials; metal components are ideal for recycling,
and also provide effective electrical screening.
Our robust all-metal cases exclude any possibility of
external sources of interference affecting the quality
of reproduction. From the opposite point of view our
products’ electro-magnetic radiation (electro-smog) is
reduced to an absolute minimum by the outstandingly
effective screening provided by the metal case.
We would like to take this opportunity to thank you for
the faith you have shown in our company by purcha-
sing this product, and wish you many hours of enjoy-
ment and sheer listening pleasure with your MP 200.
Welcome
3

Content
Safety notes 10
Getting started 12
General information 12
Scope of delivery 12
Set up 12
Connections 12
Wiring diagram 13
Switching on and off 14
Connecting to network 14
Selecting a source 15
Browsing through lists 15
Playback 16
Connections 18
Bluetooth antenna 18
Digital In- and Outputs (S/P-DIF) 18
LAN connection 18
USB input 18
System interfaces 19
Mains input 19
Installation and connection 20
Installation 20
Connection 20
WLAN antenna 20
LAN 20
BLUETOOTH antenna 21
Connection of digital source devices 21
Connected to a DAC 200 or HA 200 21
Operation with other devices 21
Connecting the power cord 21
Controls and functions 22
On / Off switch 22
Front USB socket 22
Function buttons 22
Source selection 23
System and source menu 23
Remote control receiver 23
Menu operation and playback control 23
Display 23
Disc drive 23
4

Remote control 24
On / Off Switch 24
Source selection 24
Settings 24
Playback and menu operation 24
Function buttons 25
Replacing the battery 26
Range 26
Important information 26
Settings 27
Menu operation 27
System settings 28
Network conguration 31
General information 31
Menu operation 31
Connection via LAN (cable connection) 31
Connecting to WLAN (radio connection) 32
Source operation 34
Selecting a source 34
Browsing through lists 35
Playback 35
Display 36
Favourites list 38
General information 38
Calling up the Favourites list 38
Adding a favourite 38
Erasing a favourite from the Favourites list 38
Play Favourites 39
Sort Favourites 39
Radio operation 40
General information 40
FM Radio 40
Display 40
Manual station search 41
Automatic station search 41
Mono / Stereo selection 41
Switching Radio Text on and off 41
DAB Radio 42
Display 42
Automatic station search 42
Internet Radio 43
Display 43
Search function 43
Favorites 43
5

UPnP, Music services and USB 44
General information 44
Source selection 44
Display 44
Playback of directories 44
CD player operation 45
Source selection 45
Insert and eject a disc 45
Playback mode 45
Playback Program 46
Bluetooth 47
General information 47
Source selection 47
Setting up audio transfer 47
Playback 47
Playback with Roon 48
General information 48
Playback 48
T+A Music Navigator App 48
Download 48
Troubleshooting 49
Notes on energy saving 51
General information 51
Automatic power down function 51
Legal Information 51
Allgemeine Informationen 51
Show licenses 51
Firmware update 53
General information 53
Update procedure 53
Connection and wiring 54
Technical Specications 56
6

7

Notes
User manual
Text passages marked with this symbol contain important information which must be
observed if the machine is to operate safely and without problems.
jThis symbol marks text passages which provide supplementary notes and background
information; they are intended to help the user understand how to get the best out of the
machine.
Symbols and notes on the back of the MP 200
This symbol marks alternating voltages (AC).
The AC voltage required for the device can be found on the printing at the mains input
socket. Do not connect the device to other power supplies.
This symbol marks the protective earth connector (ground connection).
The unit is designed for operation at a protective earth conductor socket.
The device is designed to operate in altitudes up to 2000 m above sea level.
The device is designed to operate in a temperate climate.
The range of permissible operating temperatures is +10 … +35°C.
The only permissible method of disposing of this product is to take it to your local col-
lection centre for electrical waste.
All the components we use meet the German and European safety norms and stan-
dards which are currently valid. This product complies with the EU directives. The
declaration of conformity can be downloaded from www.ta-hi.com/DoC.
This product contains a class 1 laser diode. To ensure continued safety, do not remove
any covers or attempt to gain access to the inside of the product.
Refer all servicing to qualied personnel.
8





License notice
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United
States and other countries, used with permission. aptX is a trademark of Qual-
comm Technologies International, Ltd., registered in the United States and other
countries, used with permission
The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by T+A elektroakustik
is under license. Other trademarks and trade names are those of their
respective owners.
HD Radio Technology manufactured under license from iBiquity Digital
Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio,
and “Arc” logos are proprietarytrademarks of iBiquity Digital Corp
This product contains software in form of object code that is partially based on
free software under different licenses, especially the GNU General Public Licen-
se.You can nd details on this in the License Information which you should have
received with this product.
If you have not received a copy of the GNU General Public License, please see
http://www.gnu.org/licenses/.
For a period of three years after last distribution of this product or its rmware,
T+A offer the right to any third party to obtain a complete machine-readable copy
of the corresponding source code on physical storage medium (DVD-ROM or USB
stick) for a charge of 20€. To obtain such copy of the source code, please write to
the following address including information about product model and rmware
version:T+A elektroakustik, Planckstr. 9-11, 32052 Herford, Germany.
The GPL license and further information about Licenses can be found on the inter-
net under this link:
http://www.ta-hi.com/license-information
It is also possible to retrieve the used licenses directly from the device with the
help of an Internet browser. For details, see the chapter entitled „Legal Informa-
tion“.
9

The operation instructions, the connection guidance
and the safety notes are for your own good - please
read them carefully and observe them at all times.
The operating instructions are an integral part of this
device. If you ever transfer the product to a new owner
please be sure to pass them on to the purchaser to
guard against incorrect operation and possible ha-
zards.
The device is intended to be connected to a mains out-
let with protective earth connector. Please connect it
only with the mains cable supplied to properly instal-
led mains outlets with protective earth connector.
The power supply required for this unit is printed on
the mains supply socket. The unit must never be con-
nected to a power supply which does not meet these
specications.
This device is connected to the power supply as long
as the power cord is connected.
Even if the device is switched off and the status indi-
cators are dark, the device still carries mains voltage
inside. To disconnect the device completely from
mains power supply, the mains plugs must be with-
drawn from the wall socket. Please make sure that the
mains plugs are easily accessible. Even when the unit
is in standby mode, it has a low power consumption. If
the unit is not to be used for a long period disconnect
it from the mains supply at the wall socket.
The device is designed to operate in a tem-
perate climate and altitudes up to 2000 m
above sea level. The range of permissible
operating temperatures is +10 … +35°C.
This device is designed exclusively for
reproducing sound and/or pictures in the
domestic environment. It is to be used in a
dry indoor room which meets all the recom-
mendations stated in these instructions.
Where the equipment is to be used for other purposes,
especially in the medical eld or any eld in which
safety is an issue, it is essential to establish the unit’s
suitability for this purpose with the manufacturer, and
to obtain prior written approval for this usage.
If the unit gets very cold (e. g. when being transported),
condensation may form inside it. Please do not switch
it on until it has had plenty of time to warm up to room
temperature, so that any condensation evaporates
completely.
Before placing the unit on sensitive lacquer or wood
surfaces please check the compatibility of the surface
and the unit‘s feet on a non-visible point and if ne-
cessary use an underlay. We recommend a surface of
stone, glass, metal or the like.
Please consider the weight of the device. Never place
the device on an unstable surface; the machine could
fall off, causing serious or even fatal injury. Many
injuries, especially to children, can be avoided if the
following simple safety precautions are observed:
•Use only such items of furniture which can safely
bear the weight of the device.
•Ensure that the device does not project beyond the
edges of the supporting furniture.
•Do not place the device on tall furniture (e.g. books-
helves) without securely anchoring both items, i.e.
furniture and device.
•Explain to children the hazards involved in climbing
on furniture to reach the device or its controls.
The unit should be set up in a well ventilated dry site,
out of direct sunlight and away from radiators. The unit
must not be located close to heat producing objects or
devices, or anything which is heat sensitive or highly
ammable.
The ventilation openings must not be covered or
closed. If the system components are to be stacked
then the device must be the top unit. Do not place any
object on the top cover.
When installing the unit on a shelf or in a cupboard
it is essential to provide an adequate ow of cooling
air, to ensure that the heat produced by the unit is
dissipated effectively. Any heat build up will shorten
the life of the unit and could be a source of danger. Be
sure to leave free space of 10 cm around the unit for
ventilation.
Liquid or particles must never be allowed to get inside
the unit through the ventilation slots. Mains voltage is
present inside the unit, and any electric shock could
cause serious injury or death. Never exert undue force
on mains connectors.
Protect the unit from drips and splashes of water; ne-
ver place ower vases or uid containers on the unit.
Do not place naked ame sources, such as candle
lights on the device.
Safety notes
For your own safety please consider it essential to read these operating instructions right through, and observe in
particular the notes regarding setting up, operation and safety.
10



Disconnect the mains plug at the wall socket before
cleaning the case.
The surfaces of the case should be wiped clean with a
soft, dry cloth only.
Never use solvent-based or abrasive cleaners!
Before switching the unit on again, check that there
are no short-circuits at the connections, and that all
cables are plugged in correctly.
If the device has been in storage, or has not been used
for a protracted period (> two years), it is essential to
have it checked by a specialist technician before re-
use.
The terminals (marked with the -symbol)
can carry high voltages.
Always avoid touching terminals and sockets and
the conductors of cables connected to them. Unless
ready-made cables are used, all cables connected to
these terminals and sockets must always be deployed
by a trained person.
In its original condition the unit meets
all currently valid European regulati-
ons. It is approved for use as stipulated
within the EC.
By attaching the CE symbol to the unit T+A declares
its conformity the EC directives and the national laws
based on those directives. The declaration of confor-
mity can be downloaded from www.ta-hi.com/DoC.
The original, unaltered factory serial number must be
present on the outside of the unit and must be clearly
legible! The serial number is a constituent part of our
conformity declaration and therefore of the approval
for operation of the device. The serial numbers on the
unit and in the original T+A documentation supplied
with it (in particular the inspection and guarantee cer-
ticates), must not be removed or modied, and must
correspond.
Infringing any of these conditions invalidates T+A
conformity and approval, and the unit may not be ope-
rated within the EC. Improper use of the equipment
makes the user liable to penalty under current EC and
national laws.
Any modications or repairs to the unit, or any other
intervention by a workshop or other third party not
authorised by T+A, invalidates the approval and ope-
rational permit for the equipment.
Only genuine T+A accessories may be connected to
the unit, or such auxiliary devices which are themsel-
ves approved and full all currently valid legal require-
ments.
The only permissible method of disposing of
this product is to take it to your local collec-
tion centre for electrical waste.
Registration according to the EU directive
“Waste Electrical and Electronic Equipment”
WEEE-Reg.-No.: DE 72473830W
The case should only be opened by a qualied spe-
cialist technician. Repairs and fuse replacements
should be entrusted to an authorised T+A specialist
workshop. With the exception of the connections and
measures described in these instructions, no work of
any kind may be carried out on the device by unquali-
ed persons.
If the unit is damaged, or if you suspect that it is not
functioning correctly, immediately disconnect the
mains plug at the wall socket, and ask an authorised
T+A specialist workshop to check it.
The unit may be damaged by excess voltage in the
power supply, the mains circuit or in aerial systems, as
may occur during thunderstorms (lightning strikes) or
due to static discharges.
Special power supply units and excess voltage pro-
tectors such as the T+A ‚Power Bar‘ mains distribution
panel offer some degree of protection from damage to
equipment due to the hazards described above.
However, if you require absolute security from damage
due to excess voltage, the only solution is to discon-
nect the unit from the mains power supply and any
aerial systems.
To avoid the risk of damage by overvoltages we recom-
mend to disconnect all cables from this device and
your HiFi system during thunderstorms.
All mains power supply and aerial systems to which
the unit is connected must meet all applicable safe-
ty regulations and must be installed by an approved
electrical installer.
The device is not designed for use by children. The
device must not be operated unsupervised. Make sure
that it is out of reach of children.
Batteries shout not be exposed to excessive heat like
sunshine, re or the like.
Very loud continuous listening to program material via
earphones, headphones and loudspeakers can lead to
permanent loss of hearing. Prevent health risks and
avoid permanent hearing at high volume.
If the device has to be stored, place it in its original
packaging and store it in a dry, frost-free location.
Storage temperature range 0...40 °C
11



Getting started
General information
For a quick start into the listening pleasure of your new multi-source player, this chapter describes the
most important steps for the rst start-up and basic operation.
A detailed explanation of the operation and all functions can be found in the following chapters.
Scope of delivery
Infrared remote control handset FM200
Power cord
2 antennas for WLAN and Bluetooth
2 antenna bases for the WLAN and Bluetooth antenna
Radio antenna with adapter
USB interface cable for USB-SYS connection (MP 200 to HA 200 or DAC 200)
System interface cable (RJ-45) for the SYS-OUT to SYS-IN connection (MP 200 to HA 200 or DAC 200)
Set up
Set up the device at a appropriate place. Please observe all notes regarding connection and installation in
the chapter Safety notes (pages 10 and 11).
Connections
Establish all connections shown in the connection diagram. If you are operating the MP 200 via the LAN
connection, you do not need to connect the WLAN antenna.
When using the WLAN connection, the two antennas should be positioned as far away from each other as
possible.
Plug all connectors rmly into the corresponding sockets and screw the antenna connectors hand-tight.
The supplied radio antenna (cable antenna incl. adapter) must be unfolded completely and spread out in a
T-shape for proper radio reception.
jThe connection diagram (on the right side) shows the connection of the MP 200 in conjunction with a
DAC 200. The HA 200 is connected in the same way.
Please refer to the wiring diagram in the chapter Connection and wiring for connecting the MP 200 to
other devices.
12

*
*
* Depending on which type of network connection you wish to use, connect
the WLAN antenna or a network cable to the router.
Wiring diagram
For the rst use, please establish the necessary connections as shown below.
• WLAN-antenna or network cable to your router
• VHF antenna
• Bluetooth antenna
• USB SYS conection (For operation in combination with a DAC 200 or HA 200)
• SYS OUT to SYS IN connection (For operation in combination with a DAC 200 or HA 200)
• Mains cord
Do not connect the MP 200 and the other components to the power supply until all the necessary
connections between the devices have been made.
VHF + DAB antenna
to Router
Fig. 1
to wall socket
13

Switching on and off
• In stand-alone operation and in conjunction with a DAC 200 or HA 200, the MP 200 can be switched on
and off by briey tapping the button on the MP 200.
• When operating in conjunction with a DAC 200 or HA 200, the devices can be switched off together using
the button on the DAC or HA.
• To switch on, either tap the button on the device or the button on the remote control.
• It is also possible to switch on the MP 200 directly with a source selection button on the device or the
source selection rocker on the remote control.
Example:
If you tap the source selection button DISC on the MP 200, it switches on with the source Disc. A possibly
connected DAC 200 or HA 200 is automatically switched on and set to the system input SYS IN for play-
back.
Connecting to network
Wired network connection
If the MP 200 will be operated via a LAN connection and not via WLAN, connect the LAN port to an opera-
tional network (router) with Internet access as shown in Fig. 1.
After switching on and booting the streaming module, the device will automatically connect to your net-
work.
jWe recommend a wired network connection via LAN cable for streaming high-resolution music material.
Depending on the reception quality and the trafc load from other users, a WLAN connection can reach its ca-
pacity limit more quickly, which may lead to playback dropouts.
Set up a WLAN connection automatically via WPS
• Make sure that the WLAN antenna is connected correctly. (Fig. 1)
• Start the WPS function of your router / access point (refer to the router‘s manual for information).
• Now open the system settings by a brieg press on the SYS button on the front panel of the MP 200.
• Select the Network menu item by turning the SELECT knob and conrm by pressing the SELECT knob.
• Then select the WPS Autoconnect menu item by turning the SELECT knob.
• Start the WPS function of the MP 200 by pressing the SELECT knob.
• Wait until the device has automatically connected to the WLAN and the name of the network has been
adopted in to the eld Status.
• Exit the menu by a briey pressing the SYS button again.
jIf you prefer manual setup or setup via access point and our T+A Music Navigator App, you will nd more infor-
mation regarding WLAN setup in the chapter Network conguration starting on page 31.

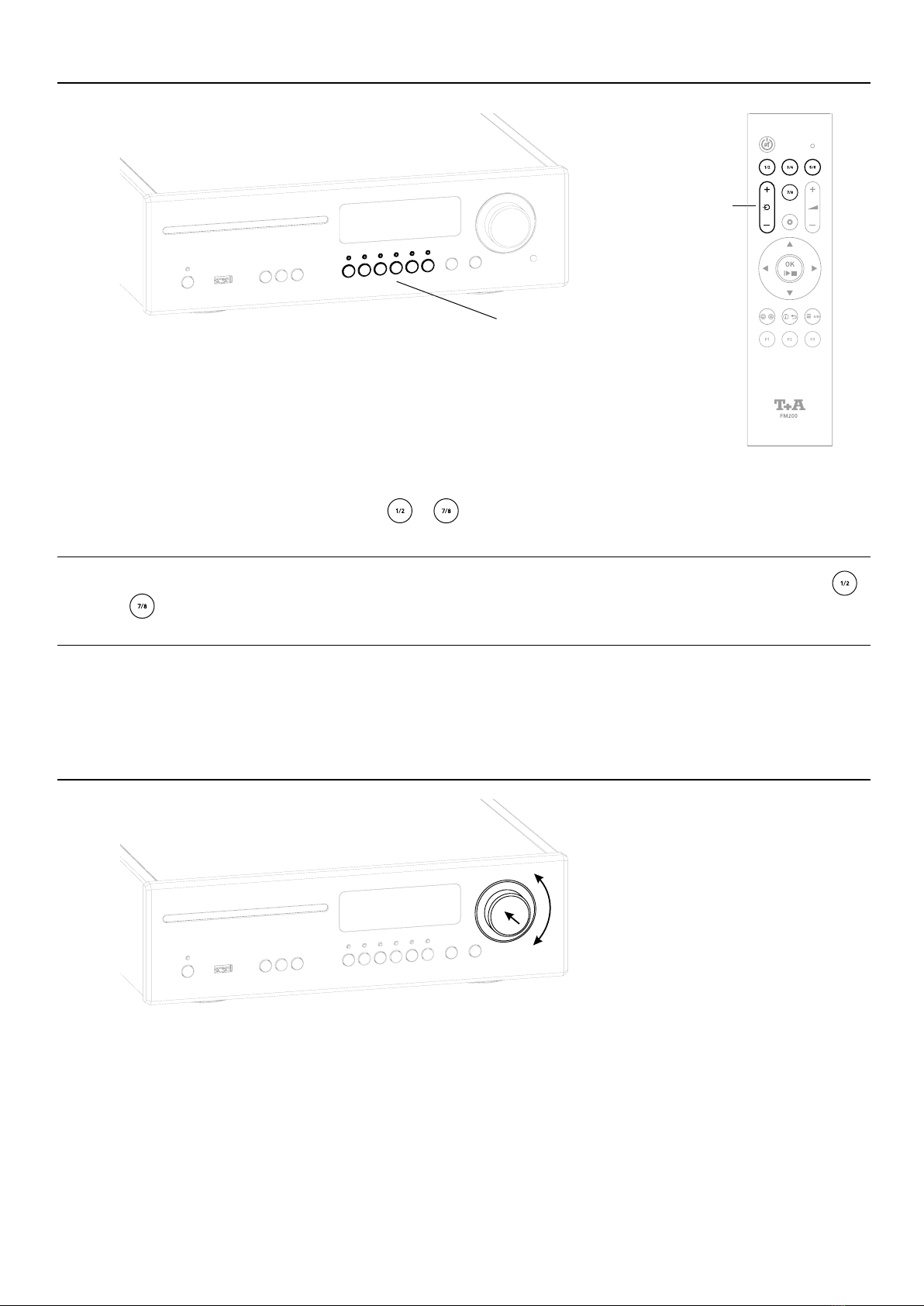

Source selection buttons
Source selection rocker
14

Source selection
rocker
Source selection
buttons
Selecting a source
• Select the desired source by pressing the corresponding source
selection button on the device repeatedly, if necessary, or press the
source selection button on the remote control repeatedly until the
source is shown in the display.
• When operating the MP 200 without a DAC 200 or HA 200, the source
can alternatively be selected via the ... buttons on the remote
control (press repeatedly if necessary).
jIf the MP 200 is operated in a system network with a DAC 200 or an HA 200, the source selection buttons
... of the remote control are used for the source selection of the DAC 200 or HA 200 sources. In this case,
source selection at the MP 200 via remote control is done exclusively via source selection rocker.
For a faster and more convenient source selection, not required sources can be deactivated in the system
settings. See chapter System settings.
Browsing through lists
• A folder/title/station/favorite can be selected by turning the SELECT knob on the front panel. The selec-
ted list entry is displayed in enlarged form.
• The selected list entry can be opened or played by pressing the SELECT knob depending on the type
(folder/title/station etc.).
• A long press on the SELECT knob jumps back to the previous level (if available).
15

• A brief press on the SELECT knob starts playback.
• A brief press on the SELECT knob during playback pauses it.
• Press briey again to resume.
• A long press on the SELECT knob stops playback.
Source FM, DAB and DISC:
• Turn the SELECT knob to select the next track/station.
All streaming sources:
• Turn the SELECT knob to return to the selection list during
playback.
• Select the next desired title / station / podcast / etc. for
playback and start playback by a brief press on the SELECT
knob.
• A brief press on the button starts playback.
• Briey pressing the button again during playback pauses it.
• To resume, press the button again briey.
• A long press on the button stops playback.
• Use the buttons to select the next title / station during playback.
Source FM, DISC, UPnP, USB, Tidal and Qobuz:
• Press and hold one of the buttons to start the search in upward or
downward direction.
Playback
jBy pressing the button on the remote control or the button on the MP 200, the display mode can
be switched between a large format display with the most important information and a detailed view with
smaller fonts and additional information such as bit rate etc.
• Selects the previous list
enty
• Conrmation button in lists
• Starts playback
• Selects the next list entry
• Back to the previous level
• Back to list navigation during
playback
• Enters the next level during folder
navigation
• Plays selected item
16

17

Connections
1Bluetooth antenna
BT ANT Socket for connecting the bluetooth antenna.
2Digital In- and Outputs (S/P-DIF)
DIG OUT The signals from the selected source are available at this socket. The data can be fed
to another device such as a surround decoder or a DAC.
DIG IN Inputs for digital source devices with optical and coaxial digital outputs.
jThe MP 200 accepts digital stereo signals at the inputs according to the S/P-DIF stan-
dard with sampling rates from 32 to 192 kHz.
3LAN connection
LAN Socket for connection to a wired LAN (Ethernet) home network.
jIf a LAN cable is connected this will have priority over wireless WLAN net-works. The
WLAN module of the MP 200 will automatically be disabled.
4USB input
HDD Socket for a USB memory stick or external hard discs
The storage medium can be formatted with the FAT16, FAT32, NTFS, ext2, ext3
or ext4 le system.
The USB storage medium can be powered directly via the USB port provided
that its current drain is in accordance with the USB norm. Normalised 2.5” USB
hard discs can be connected directly, i.e. without a separate mains PSU.
This and the following chap-
ter describe all things of
fundamental importance for
installation and setup that
are not relevant for the daily
use of the device, but which
should be read and obser-
ved before the rst use.
18

5Radio antenna
RADIO ANT This FM antenna input can be connected to a normal 75 Ohms FM home antenna or to
TV/FM cable networks.
jThe supplied antenna is suitable for receiving strong local stations. To receive weaker
stations, a proper outdoor or roof antenna is required. For rst-class reception quality a
high-performance aerial system, competently installed, is a basic requirement.
6System interfaces
USB SYS Audio connection to the DAC 200 or HA 200. Connect this socket to the USB SYS con-
nector on the DAC 200 or HA 200.
For details please refer to the wiring diagram
SYS OUT Control interface for operation with a DAC 200 or HA 200.
jIf the MP 200 is operated in combination with a DAC 200 or HA 200, these sockets must
be connected to the USB SYS and SYS IN socket of the DAC 200 or HA 200.
CTRL Interface for later functions expansions.
7Mains input
The mains lead is plugged into this socket.
8WLAN socket
WLAN Input socket for WLAN antenna
jIf no wired LAN connection is found, the MP 3100 HV will automatically activate its
WLAN module and it will try to get access to your WLAN network.
19

Installation and connection
Installation
Carefully unpack the device and store the original packaging carefully. The carton and packing material
are specially designed for this device and will be a safe container during any later transports. Set up the
device at a proper place. Please observe all notes on connection and set-up in the chapter Safety notes
(pages 10 and 11).
Connection
To use the MP 200 with all its functions and sources, rst you have to make some important connections
and/or connect antennas.
The necessary connections are described below:
Do not connect the MP 200 and the other components to the power supply until all the necessary con-
nections have been established.
WLAN antenna
To connect the MP 200 to your network (router) via WLAN, connect one of the two supplied antennas to the
WLAN socket.
jIn case of poor reception conditions, the antenna can be
mounted on the supplied antenna base and placed free-
standing.
jThis antenna is not required if the device is connected to the Internet via a wired network (LAN).
LAN
For the connection to your network (router), connect the network cable to the LAN port.
jWhen using the WLAN connection, this socket must remain free!
