1. SPC-3000 Introduction
1.1. Introduction
Figure 1-1: SmartPAC SPC-3000
1.1.1. Architecture
The architecture of SPC-3000
= Heat sink + TPM899’s MB + SPE SUMIT add-on card + SSD-OS + Chassis + Front panel

TPM SPC-3000 User Manual
9
Figure 1-2: Heat Sink, MB, SPE, Chassis, Front Panel
1.1.1. Mechanical Dimension
Figure 1-3: The dimensions of SmartPAC SPC-3000

TPM SPC-3000 User Manual
10

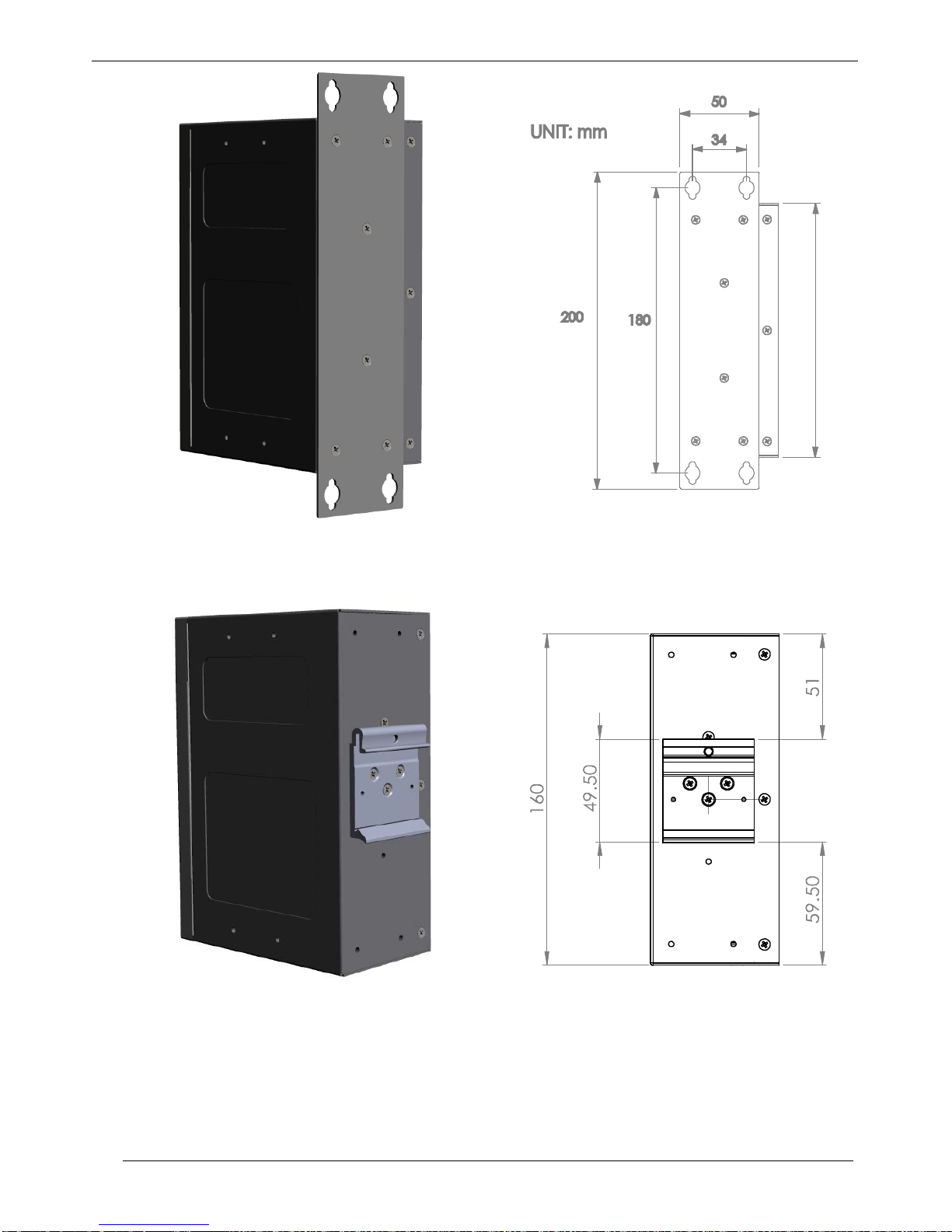

Figure 1-4: The wall mount drawing of SmartPAC SPC-3000
Figure 1-5: The DIN rail drawing of SmartPAC SPC-3000

TPM SPC-3000 User Manual
11
1.2. Features
1.2.1. Fan-less Design
SPC-3000 Series are all fan-less design. Hence, the size of SPC-3000 is form factor. The dimension is
smaller than any other embedded system. It is suitable for different environment.
With fan-less design, the design of Heat Sink is important. The CPU and Heat Sink can directly contact
together with thermal grease to increase the efficiency of thermal conductivity.

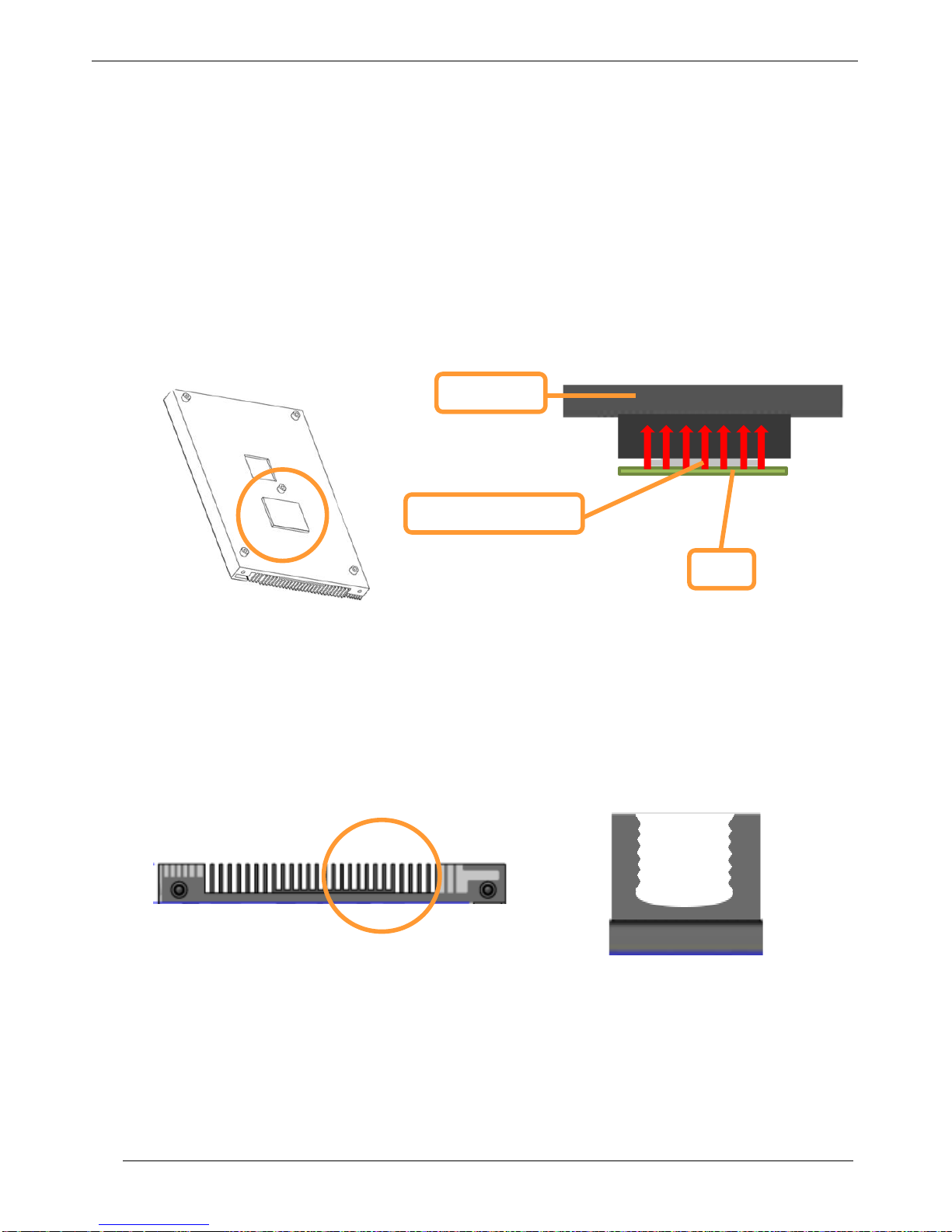

Figure 1-6: Thermal conductivity
The surface area with curved shape increased about 50% will lead to high efficiency of dissipating.
Figure 1-7: Heat dissipation
Thermal grease
CPU
Heat sink

TPM SPC-3000 User Manual
12

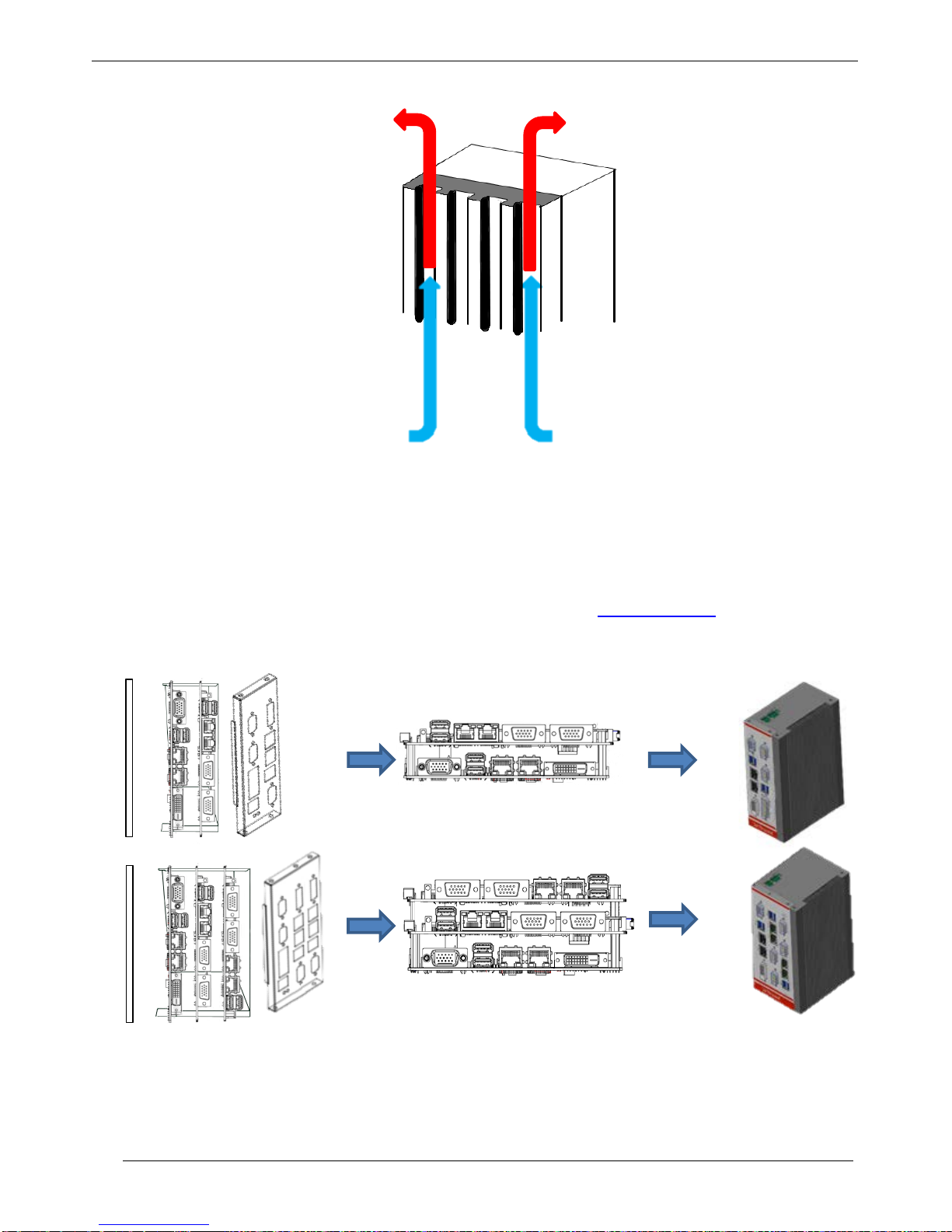

Vertical wall-mounted designed will result in better convection because heat can come out easily.
Figure 1-8: Convection
1.2.2. Flexible Extension
SPE add-on board is an extensible card. It can be customized for different function. SPE and MB can
connect together through the connector SUMIT-ITA. Please refer to “2.5 SUMIT-ITA” for detailed
information.
Figure 1-9: Flexible Extension

TPM SPC-3000 User Manual
13
1.2.3. High Security
SPC-3000 has EEPROM on the CPU board and Secure IC on SUMITAdd-on card. Users can choose to
execute AES encryption on EEPROM or Secure IC. SI Key is provided by users. Aregistration key,
which can be stored into storage device and EEPROM, can be generated through AES encryption system.
When users load the program into SPC-3000 series, AES can prevent other people and TPM from
duplicating the program.
Figure 1-10: AES Encryption System
SPC-3000 provides one inner USB socket for user to protect USB Dongle. Please refer to “Appendix D”
for the internal USB Dongle installation.
SI Key
AESSecure IC
Registration
Storage
Device
EEPROM
Users
TPM

TPM SPC-3000 User Manual
14
2. CPU Board
2.1. Block Diagram
Figure 2-1: Diagram of TPM899
System Hardware
CPU Intel ® Pentium ® Processor N3710
1.6 GHz / 2.56 GHz (Boost), 4 Cores / 4 Threads 2MB L2 Cache
Memory Dual channel supports 2 DDR3L SO-DIMM, up to 8GB
Storage
SATA III for HDD/SSD
Graphics Intel® HD Graphics 405
DVI-D : DVI-I + VGA
Audio
Internal stereo headphone, internal microphone
I/O Interface
Serial Ports 1 DB15 serial port:
1 RS-232, 1 RS-232/422/485 with automatic data flow control
LAN 2 Intel® GbE I211-AT
USB 3.0 Front : 2 USB3.0
SUMIT ITA : 2 USB3.0
Table 2-1: Specification of CPU Board

TPM SPC-3000 User Manual
15
2.2. Board Layout

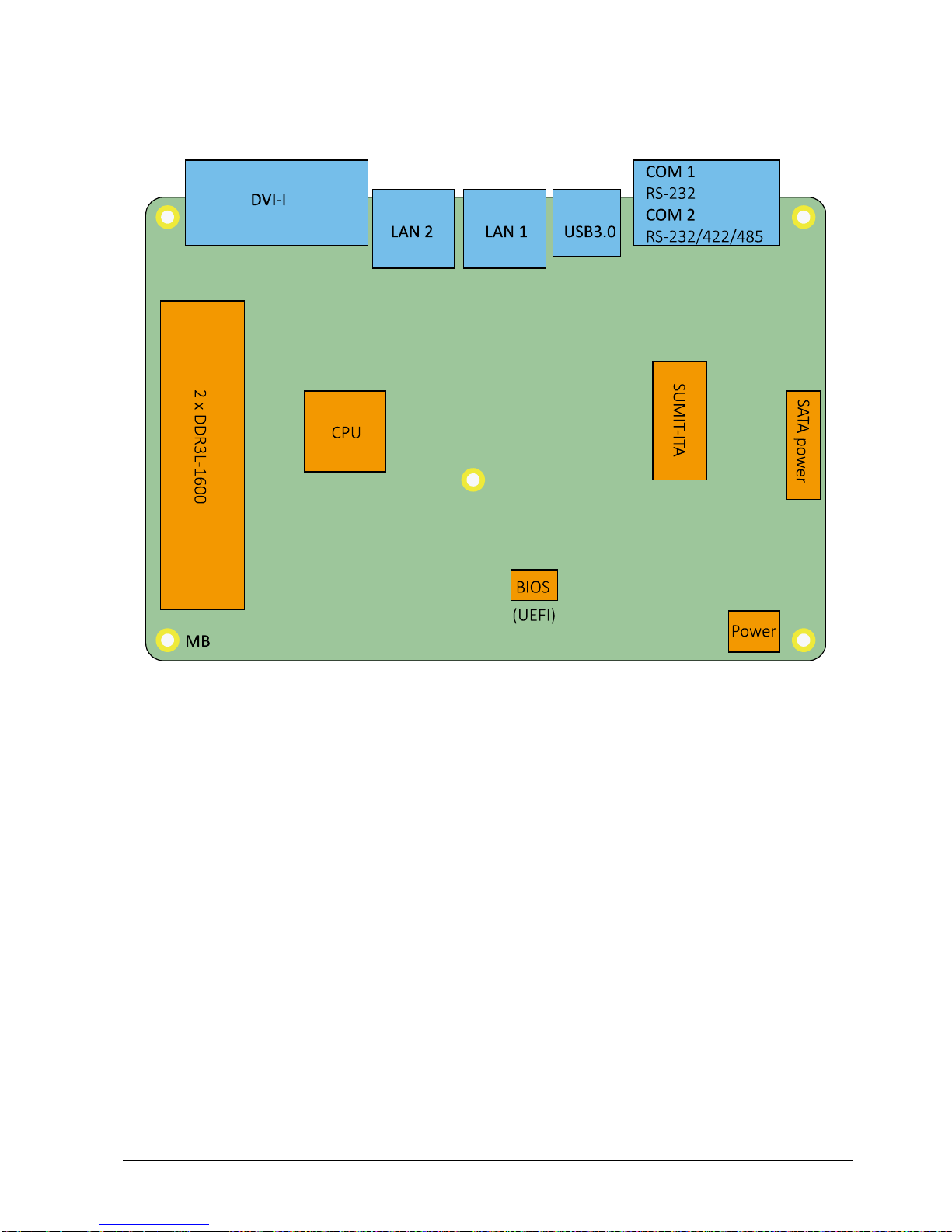

Figure 2-2: Layout of TPM899

TPM SPC-3000 User Manual
16
2.3. External I/O Connectors
Figure 2-3: Front I/O Interface of TPM899
Label Function Description
COM1/2
DB15 port supports 1 RS232 and 1 RS232/422/485 compatible serial devices.
USB Provides extensions for USB 2.0/1.1 devices.
LAN Used to connect the system to a local area network.
DVI-I Used to connect an analog VGA monitor and a digital DVI-D monitor.
Figure 2-4: Front side connector of TPM899
COM1/2 USB3.0 LAN 1 LAN 2 DVI-I

TPM SPC-3000 User Manual
17
2.4. COM 1/2 Serial Port
Figure 2-5: Serial Port
Serial ports 1 and 2 have combined in a male DB15 connector and port 2 can be configured for RS-232,
RS-422, or RS-485 with auto flow control communication. Serial port 2 default setting is RS-232. It could
be adjusted as RS-422 or RS-485 by changing the settings in the BIOS. Please refer to “AppendixA.2” for
BIOS setting. The pin assignments of COM 1/2 are shown in the following table:
COM Port Pin NO. RS-232 RS-422 (4-Wire) RS-485 (2-Wire)
1
1
DCD
---
---
2 RXD --- ---
3 TXD --- ---
4 DTR --- ---
5 GND --- ---
6 DSR --- ---
7
RTS
---
---
8 CTS --- ---
9 RI --- ---
10 --- --- ---
COM Port
Pin NO.
RS-232
RS-422 (4-Wire)
RS-485 (2-Wire)
2
11 RXD RXD+ ---
12
TXD
RXD-
---
13 RTS TXD+ DATA+
14 CTS TXD- DATA-
15 GND GND GND
Figure 2-6: Pin Definition of COM 1/2 Serial Port
Users can use the Y-type cable to convert the 15-pin D-Sub connector into two 9-pin D-Sub connectors to
connect both COM1 and COM2 at the same time. Please refer to “Appendix E.1” for the Y-type cable of
COM 1/2.
1 5
11 15

TPM SPC-3000 User Manual
18
2.5. USB3 Port
Figure 2-7: USB3 Port
The USB port is 3.0. It is compatible with USB 2.0. The pin assignments are shown in the following
table:
Pin NO. Label Description
1
VBUS
Power
2 D- USB 2.0 differential pair
3 D+
4 GND Ground
5 SSRX- SuperSpeed transmitter differential pair
6 SSRX+
7
GND
Ground
8 SSTX- SuperSpeed receiver differential pair
9 SSTX+
Figure 2-8: Pin Definition of USB 3 Port

TPM SPC-3000 User Manual
19
2.6. LAN Port
Figure 2-9: LAN Port
The LAN ports use standard RJ-45 jack connectors with LED indicatorson the front side toshow active/link
status and speed status. The LED indicators on the bottom corners show the cable is properly connected to
a 100 Mbps or 1000 Mbps Ethernet network. The pin assignments are shown in the following table:
Pin No. 10/100 Mbps 1000 Mbps
1
E_TX+
MDI0_P
2 E_TX- MDI0_N
3 E_RX+ MDI1_P
4 --- MDI2_P
5 --- MDI2_N
6 E_RX- MDI1_N
7
---
MDI3_P
8 --- MDI3_N
Figure 2-10: Pin Definition of LAN Port
81

TPM SPC-3000 User Manual
20
2.7. DVI-I Port
Figure 2-11: DVI-I Port
The DVI-I port can both send out a digital signal and an analog signal. Users are allowed to use two
monitors simultaneously. Dual display is supported. The pin assignments are shown in the Figure 2-12.
Figure 2-12: Dual Display
DVI-I
DVI-D
VGA
