ADLINK Technology cPCIS-3100 Series User manual

NuIPC
cPCIS-3100 Series 6U 8-Slot CompactPCI
Sub-System and Components
User’s Guide

This user’s manual includes the information for the following products range:
Sub-systems:
ŸcPCIS-3120/300: 6U 8-slot CTI & Rear I/O CompactPCI Platform
with 300W Redundant PSU
ŸcPCIS-3120/400:6U 8-slot CTI & Rear I/O CompactPCI Platform
with 400W Redundant PSU
ŸcPCIS-3120F/300:6U 8-slot CompactPCI Platform with 300W
Redundant PSU
ŸcPCIS-3140/300: 6U 8-slot CTI & Rear I/O 64-bit CompactPCI
Platform with 300W Redundant PSU
ŸcPCIS-3140/400:6U 8-slot CTI & Rear I/O 64-bit CompactPCI
Platform with 400W Redundant PSU
Components for 6U Sub-Systems
uBackplane options:
ŸcBP-6108 Series: 6U 32-bit CompactPCI backplanes
ŸcBP-6408 Series: 6U 64-bit CompactPCI backplanes
uPower supply options:
ŸAPS-R300F: 300W Dual Redundant Front Access Power Supply
ŸAPS-R400F: 400W Dual Redundant Front Access Power Supply

@Copyright 1996~2000 ADLINK Technology Inc.
All Rights Reserved.
Manual Rev. 1.00: October 11, 2000
The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use
the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Trademarks
NuIPC is a registered trademark of ADLINK Technology Inc.
Other product names mentioned herein are used for identification purposes
only and may be trademarks and/or registered trademarks of their respective
companies.

Getting service from ADLINK
Customer Satisfaction is always the most important thing for ADLINK
Tech Inc. If you need any help or service, please contact us and get it.
ADLINK Technology Inc.
Web Site http://www.adlink.com.tw
http://www.adlinktechnology.com
Sales & Service [email protected]
Technical NuDAQ [email protected]
Support NuDAM [email protected]
NuIPC [email protected]
NuPRO [email protected]
Software [e-mail]
TEL [phone] FAX [phone]
Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan, R.O.C.
Please inform or FAX us of your detailed information for a prompt,
satisfactory and constant service.
Detailed Company Information
Company/Organization
Contact Person
E-mail Address
Address
Country
TEL FAX
Web Site Questions
Product Model
Environment to Use £OS
£Computer Brand
£M/B: £CPU:
£Chipset: £Bios:
£Video Card:
£Network InterfaceCard:
£Other:
Challenge Description
Suggestions for ADLINK

Table of Contents•i
Table of Contents
How to Use This Manual...........................................3
Chapter 1 Introduction............................................1
1.1 System Features...................................................................1
1.2 Products Overview ...............................................................2
Chapter 2 6U CompactPCI Sub-systems.................4
2.1 Mechanical Drawing..............................................................4
2.2 General Features..................................................................5
2.3 General Chassis Specifications............................................7
2.4 Sub-systems Configurations................................................8
2.4.1 cPCIS-3120/300.................................................................................................8
2.4.2 cPCIS-3120/400.................................................................................................8
2.4.3 cPCIS-3120F/300...............................................................................................8
2.4.4 cPCIS-3140/300.................................................................................................8
2.4.5 cPCIS-3140/400.................................................................................................8
Chapter 3 Power Supply Unit..................................9
3.1 Features................................................................................9
3.2 Outlook ...............................................................................10
3.3 Specifications.....................................................................10
3.4 Pin Assignments of Connectors.........................................13
3.4.1 ATX Connector Pin Assignments.........................................................13
3.4.2 Peripheral Power Connectors................................................................13
3.4.3 Miscellaneous Connectors.....................................................................13
3.5 Installation..........................................................................15
3.5.1 AC Power Source Setting........................................................................15
3.5.2 Power Switch Installation........................................................................15
3.5.3 How to Replace the Power Module.......................................................15
Chapter 4 Backplane Options................................17
4.1 cBP-6108R..........................................................................17
4.1.1 PCB Drawing...............................................................................................17
4.1.2 Specifications.............................................................................................18
4.1.3 System Slot Pin assignments................................................................19
4.1.4 I/O Slot Pin assignments.........................................................................21
4.1.5 Utility I/O Slot (slot #9).............................................................................22
4.1.6 Special Power Connectors......................................................................22
4.1.7 Power Control & Status Signals ............................................................23
4.1.8 Signals for Power Indicator (J18)..........................................................23
4.1.9 ATX Power Input Connectors (J2, J3, J4)...........................................23

ii •Table of Contents
4.1.10 Mounting Holes..........................................................................................24
4.2 cBP-6108RE........................................................................24
4.3 cBP-6108F...........................................................................25
4.4 cBP-6408R..........................................................................26
4.4.1 PCB Drawing...............................................................................................26
4.4.2 Specifications.............................................................................................27
4.4.3 System Slot Pin assignments................................................................27
4.4.4 I/O Slot Pin assignments.........................................................................28
4.4.5 Special Power Connectors......................................................................29
4.4.6 Power Control Signals .............................................................................29
4.4.7 Power Indicator LED Signals J12..........................................................29
4.4.8 ATX Power Input Connectors (J2, J3, J4)...........................................29
4.4.9 Mounting Holes..........................................................................................30
Product Warranty/Service.......................................31

How to Use This Manual
This manual is designed to help you use the cPCIS-3100 Series 6U
CompactPCI Sub-system. It is divided into five chapters:
uChapter 1, "Introduction," gives an overview of the product features.
uChapter 2, "Sub-systems," describes the specifications, configuration
and installation of the sub-systems.
uChapter 3, "Power Supply," describes the using of power supply.
uChapter 4, "Backplane", describes the backplane specifications.

Introduction •1
1
Introduction
This guide gives you the following information about the cPCIS-3100 series
6U CompactPCI sub-systems, including:
uSystem Features
uProduct Overview
1.1 System Features
uSystem designed for 19-inch rack mounted or benchtop. Chassis is with
8U height.
uMounting style can be frontpanel mounted or middle mounted.
uDrive bays and removable power supply are secured by door.
uThree 5 1/4 inches and one 3 1/2 inches drive bays.
uForce cooling system
ŸThree fans are used for cooling system and I/O boards. One fan is
push (taking-air-in) from the bottom and the other two fans are pull
(taking-air-out). The location of the push fan on the bottom side is
shift from center for cooling the CPU board (or system slot) in a most
effective way.
ŸThree fans are uses for cooling the redundant power supply and drive
bay. The two fans on the redundant PSU are push (taking-air-in). One
fan at the rear panel is pull (taking-air-out).
uInstalled with front-accessed dual redundant AC power supply. The
maximum power can be 300W or 400W.

2•Introduction
uBoard Space:
ŸFront access or rear access are all possible.
ŸThe space for backplane is 6U height, 10-slot width
ŸThe 10 vertical slots width is suitable for installing a backplane with 7
I/O slots and one system slot. The system slot can install with a CPU
module up to 3 slots (12HP) wide
ŸWith versatile backplane options.
uCost effective version without rear I/O options are available upon
request.
1.2 Products Overview
The cPCIS-3100 series sub-systems are assembling by the cPCIS-3100
chassis and the following components:
Components:
uPower supply options:
ŸAPS-R300F: 300W dual redundant power supply
ŸAPS-R400F: 400W dual redundant power supply
uBackplane options:
ŸcBP-6108R: 6U 8-slot H.110 32-bit CompactPCI backplane with P3
ŸcBP-6108RE: 6U 8-slot H.110 32-bit CompactPCI backplane
ŸcBP-6108F: 6U 8-slot 32-bit front I/O backplane
ŸcBP-6408R: 6U 8-slot H.110 64-bit CompactPCI backplane
Sub-systems:
We provide a series of standard sub-systems based on the above
components options. Whenever the standard sub-systems cannot fully meet
your requirement, please contact with us for discussing the possibility for
more options. The following options are our standard sub-systems:
ŸcPCIS-3120/300: 6U 8-slot CTI & Rear I/O CompactPCI Platform with
300W Redundant PSU
ŸcPCIS-3120/400:6U 8-slot CTI & Rear I/O CompactPCI Platform with
400W Redundant PSU
ŸcPCIS-3120F/300:6U 8-slot CompactPCI Platform with 300W
Redundant PSU
ŸcPCIS-3140/300: 6U 8-slot CTI & Rear I/O 64-bit CompactPCI
Platform with 300W Redundant PSU

Introduction •3
ŸcPCIS-3140/400:6U 8-slot CTI & Rear I/O 64-bit CompactPCI
Platform with 400W Redundant PSU
Note: To form a complete starting kit which user can install and run
applications, users need to order another CPU modules, I/O modules
and storage devices, which are not specified here.

4•6U CompactPCI Sub-systems
2
6U CompactPCI Sub-systems
In this chapter, we will describe the configurations and specifications of the
cPCIS-3100 series sub-systems.

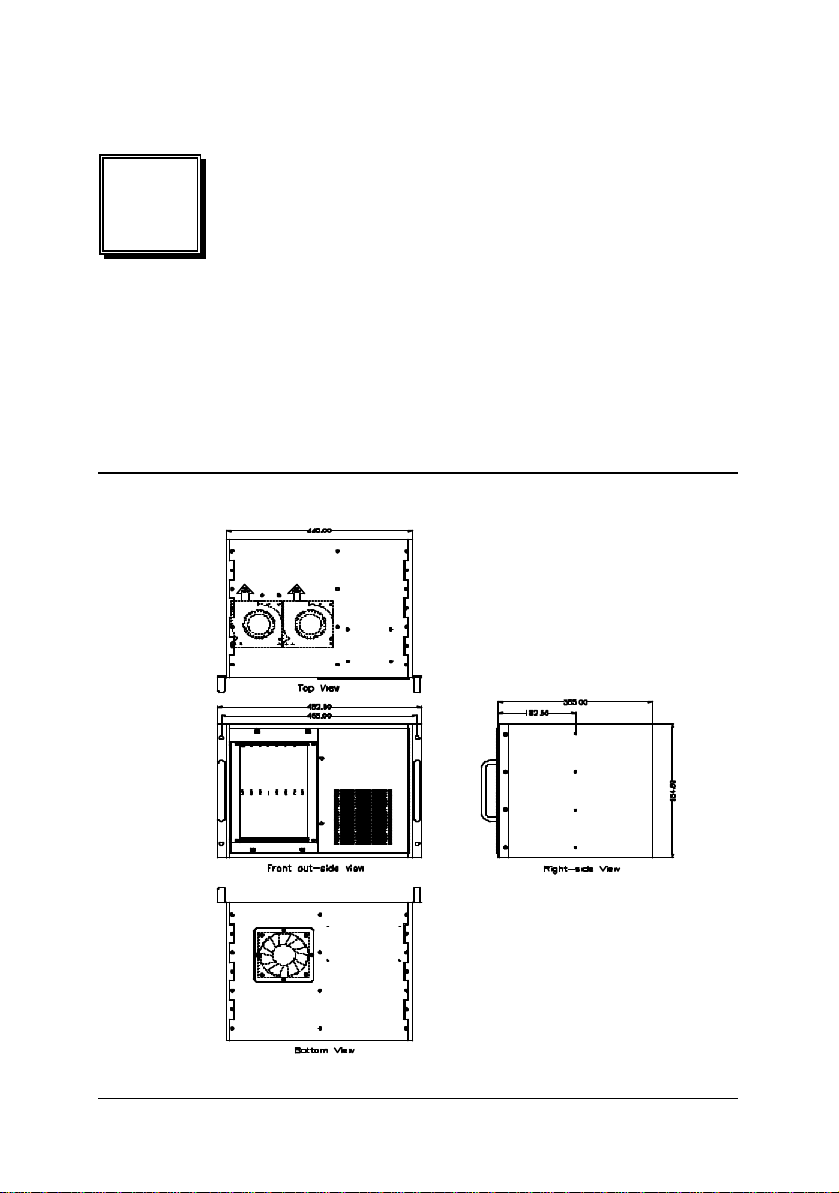

2.1 Mechanical Drawing

6U CompactPCI Sub-systems •5
2.2 General Features
Front Panel Features
uStand 8U height, 19 inches rack-mountable design
uSpace for seven I/O slots and one system module•
uRemovable fan-tray (two pulling fans) ‚
uSecurity door
uThree 5 1/4 inches and one 3 1/2 inches drive bays, the following figure
shows a typical drive bay configuration ƒ
uBay for dual redundant power supply„
uPower on/off switch…
uReset switch†
uPushing cooling fan on the bottom for best system slot cooling‡
uSide handlesˆ
•
‚
ƒ
‡
ˆ
„

6•6U CompactPCI Sub-systems
Rear Panel Features
uRemovable rear I/O card holders (top and bottom) •
uExhaust Vent for the card cage‚
uExhaust Vent with cooling FAN for the drive bays and PSUƒ
uPower core for PSU„
uSpared power core holder …
uThe cost effective version without rear I/O feature is available upon
request.
Other Features
uScrew holes for side middle mounted
uRemovable pushing fan on the bottom side
uAccessory kits for mounting the drives
uCard guides are installed, read card guides are used for system slot,
gray card guides are used for I/O slots.
uWell-designed for EMC
•
‚
ƒ
„

6U CompactPCI Sub-systems •7
2.3 General Chassis Specifications
uDimension: 482.6 mm x 354.8 mm x 365 mm (WxHxD)
(Note: 482.6 mm = 19 inches, 354.8 mm = 8U height)
uWeight: 26 Kg (include redundant power supply, backplane)
uFront-access removable take-out fans on the top:
ŸNumbers of FAN: Two
ŸFan type: DC brush-less motor
ŸRated voltage: 12V
ŸInput Power: 9.84W (rated); 14.7W (maximum)
ŸMaximum Air flow: 37 CFM (when zero static pressure)
ŸOperating Temperature: -10 ~ 70 degree C
uTake-out fan on the rear panel:
ŸFan type: DC brush-less motor
ŸRated voltage: 12V
ŸInput Power: 5.4W (rated); 8.0W (maximum)
ŸMaximum Air flow: 90 CFM (when zero static pressure)
ŸOperating Temperature: -10 ~ 70 degree C
uInternal pushing fan on the bottom:
ŸFan type: DC brush-less motor
ŸRated voltage: 12V
ŸInput Power: 5.4W (rated); 8.0W (maximum)
ŸMaximum Air flow: 90 CFM (when zero static pressure)
ŸOperating Temperature: -10 ~ 70 degree C
uDimension of the shipping box: 680 mm x 600 mm x 530 mm (WxHxD)

8•6U CompactPCI Sub-systems
2.4 Sub-systems Configurations
The following configurations are just brief descriptions. For more detail
descriptions of the backplane and power supply, please refer the next two
chapters.
2.4.1 cPCIS-3120/300
The cPCIS-3120/300 sub-system is with the following configuration:
ucPCIS-3100 chassis with rear I/O cardoptions
u300 Watts dual redundant power supply unit
ucBP-6108R: 6U 8-slot H.110 32-bit CompactPCI backplane
2.4.2 cPCIS-3120/400
The cPCIS-3120/400 sub-system is with the following configuration:
ucPCIS-3100 chassis with rear I/O card options
u400 Wattsdual redundant power supply unit
ucBP-6108R: 6U 8-slot H.110 32-bit CompactPCI backplane
2.4.3 cPCIS-3120F/300
The cPCIS-3120F/300 sub-system is the most cost effective option in the
cPCIS-3100 series sub-systems. It is with the following configuration:
ucPCIS-3100 chassisWITHOUT rear I/O card options
u300 Watts dual redundant power supply unit
ucBP-6108F: 6U 8-slot 32-bit CompactPCI front I/O backplane
2.4.4 cPCIS-3140/300
The cPCIS-3140/300 sub-system is with the following configuration:
ucPCIS-3100 chassis with rear I/O card options
u300 Watts dual redundant power supply unit
ucBP-6408R: 6U 8-slot H.110 64-bit CompactPCI backplane
2.4.5 cPCIS-3140/400
The cPCIS-3140/400 sub-system is with the following configuration:
ucPCIS-3100 chassis with rear I/O card options
u400 Watts dual redundant power supply unit
ucBP-6408R: 6U 8-slot H.110 64-bit CompactPCI backplane

Power Supply Unit •9
3
Power Supply Unit
The cPCIS-3100 series sub-systems are installed with 300W or 400W dual
redundant power supply by the front panel. In this chapter, the detail of the
power supply unit is described. The available models are list as following:
uAPS-R300F: 300W dual redundant front-access power supply unit
uAPS-R400F: 400W dual redundant front-access power supply unit
3.1 Features
uRedundant, hot-swappable dual power supply
uEasy to install and maintain
uStandard ATX interface with interface signal for power management
uReal-time disaster recovery with Zero-down-time
uRemote DC sense for compensating the cable drop
uLong-life ball bearing brush-less fans
uSecured key-lock to prevent unwanted removal of the PSU

10 •Power Supply Unit
3.2 Outlook
Note: This PSU modules are installed vertically inside the cPCIS-3100 sub-
systems.
3.3 Specifications
uAC Input Characteristics::
AC Input voltage is set manually by a 115/120 VAC switch.
Voltage Frequency Minimum Maximum Input Current
115 VAC 47 ~ 63Hz 90 VAC 132 VAC 6.0A (300W) 9.0A (400W)
230 VAC 47 ~ 63Hz 180 VAC 264 VAC 3.5A (300W) 5.0A (400W)
uDC Output Characteristics:
Voltage +5V +3.3V +12V -5V -12V 5VSB
Max. Load 30A 15A 12A 0.5A 0.5A 1A
Min. Load 3A(1) 1A (1) 1A 000
300W
Max.Power Combined 150W 144W 2.5W 6W 4W
Voltage +5V +3.3V +12V -5V -12V 5VSB
Max. Load 50A 30A 15A 1.5A 1.5A 1A
Min. Load 3A (1) 1A (1) 1A 000
400W
Max.Power Combined total 370W 7.5W 18W 5W
uEfficiency: 65% min at full load test
uHold-up time:
20 milli-seconds at 115/230V AC full load after a loss of AC input
voltage
uPower good signal:
The power-good signal shall have a TURN-ON delay greater than
100 ms but less than 500 ms.
Power #1 LED Power #2 LED
