Track Patch Alerta User manual

1. Open the box and remove the tray containing the
Alerta Patch and Wedge
2. Remove one Patch from the container, return
container to the tray
3. Remove the Wedge and place it near the Patch
4. Refer to the Get Started Card
Quick Start Guide
English (US)
For help visit www.trackpatch.com

What’s in the Box
Geng Started
To turn on the Patch...
• Alerta Wedge • Quick Start Guide
• Alerta Patches (4x) • Safety & Warranty
• Spare Baery (1x) Informaon
1. Open the box and remove the tray containing the
Alerta Patch and Wedge
2. Remove one Patch from the container, return
container to the tray
3. Remove the Wedge and place it near the Patch
4. Refer to the Get Started Card
1. Locate the Side Push Buon on the patch by
following the instrucons printed on the patch
2 Push the push-buon from the side as indicated.
You will feel and hear it “click.”
To turn on the Wedge...
1. Press the Wedge RESET buon from the top. The
Quick Start Guide
English (US)
For help visit www.trackpatch.com

To apply the Patch...
OUT OF RANGE indicator will flash.
2. The Wedge SIGNAL indicator will flash and the
OUT OF RANGE indicator will go out within 6
seconds of pressing the RESET buon, indicang
that the Wedge and Patch are paired.
3. If a signal is not received, the OUT OF RANGE light
will go out aer 25 seconds and a short beep will
sound, indicang that the Patch is not on and you
will need to repeat the steps again.
1. Remove the covering from the
adhesive lining on the perimeter of
the underside of the Patch.

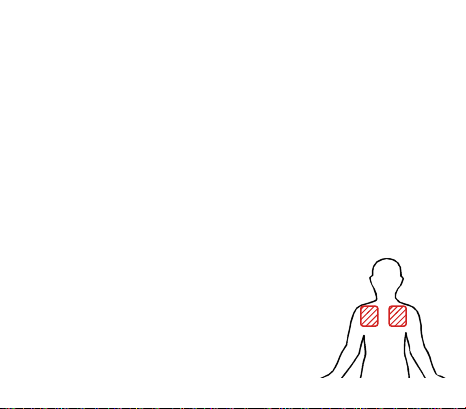

2. Place the Patch on the upper-back
in one of the shaded areas
indicated, alternang each week.

Wedge Indicators
For best results...
1. It is recommended that the patch be placed on the
individual in the morning, that way the me to change the
patch is always in the morning.
2. The Patch should be applied to the area depicted in the
drawing aer cleaning and removing all hair.
3. Place the Patch on a flat area near a shoulder blade. It
should not overlap the shoulder blade and the spine.
4. Push down at the center and smooth the edges to adhere
the patch uniformly.
Signal Strength
Change Patch
Reset
Buon
Baery Level
Out of Range
Speaker

Change Patch
When it is me to change the patch at the end of 7
days, two short alarms will sound and the Change
Patch indicator will flash aer the 2nd alarm the wedge
will return to a special mode waing for a new patch.
Then each push of the reset buon will result in a short
alarm sounding and a flash of the change patch and the
signal indicator. The Wedge will stay in this state unl a
new Patch is turned on by pushing the patch buon
from the side unl you feel and hear the push-buon
“click.”
Signal Strength
The Signal Strength indicator shows how well the
Wedge is receiving the Patch. This is an indicaon of
range, since the signal will be stronger when the
Wedge is closer to the Patch. The indicators will flash
every six (6) seconds, indicang that the Patch is
communicang with the Wedge.

Out of Range
An alarm will sound and the Out of Range light will flash
when the Wedge has lost contact with the Patch. This is
the indicaon that will most oen mean the person
wearing the Patch has wandered more than 75FT from
the caregiver. This is a Hard Alarm (HA). When triggered,
the alarm will sound unl the reset buon is pushed, or
unl it mes out aer 2.5 minutes. If the individual
wearing the Patch returns to the Safety Zone, the alarm
will stop and monitoring will resume. On occasion the
Wedge will alarm because of some transient interrup-
on. This is a False Posive Alarm (FPA). This alarm will
reset automacally.
Reset
The reset buon turns the Wedge on for pairing with
the Patch and resets an alarm when one occurs
Wedge Indicators Connued

1. Press the Wedge RESET buon from the top. The
Using the Alerta System
The system is designed to connuously monitor
a person wearing a Patch. The monitoring is
done by a hand held device called the Wedge. This is a
one on one relaonship between the Patch and the
Wedge over a fixed distance. The distance of the Safe
Zone is 75 to 90 feet, depending on the structure and
environment where it is used. As such, it will give the
person maximum flexibility while keeping them in line of
sight. The proximity can be modified by the caregiver by
placing the Wedge in a closer or further proximity to
the Patch. This is facilitated by the Signal Strength
indicator. The more signal, the closer the person is and
the caregiver can get ample warning before an alarm.
Since the system works well when the person is sing
or lying down, they can be monitored easily in normal
living.
An alarm will sound and the Out of Range light will flash
when the Wedge has lost contact with the Patch. This is
the indicaon that will most oen mean the person
wearing the Patch has wandered more than 75FT from
the caregiver. This is a Hard Alarm (HA). When triggered,
the alarm will sound unl the reset buon is pushed, or
unl it mes out aer 2.5 minutes. If the individual
wearing the Patch returns to the Safety Zone, the alarm
will stop and monitoring will resume. On occasion the
Wedge will alarm because of some transient interrup-
on. This is a False Posive Alarm (FPA). This alarm will
reset automacally.
Baery Level
The Baery Level indicator will light up when the baery
in the Wedge must be changed immediately.
See www.trackpatch.com for baery change instruc-
ons, using the spare baery shipped in the tray.

The system is designed to connuously monitor
a person wearing a Patch. The monitoring is
done by a hand held device called the Wedge. This is a
one on one relaonship between the Patch and the
Wedge over a fixed distance. The distance of the Safe
Zone is 75 to 90 feet, depending on the structure and
environment where it is used. As such, it will give the
person maximum flexibility while keeping them in line of
sight. The proximity can be modified by the caregiver by
Track Patch I corporaon uses recycled components
and assemblies in the manufacturing of the Alerta Patch
and Wedge. The company will also dispose of all
baeries returned in accordance with applicable laws
and regulaons.
Addional Product Informaon
placing the Wedge in a closer or further proximity to
the Patch. This is facilitated by the Signal Strength
indicator. The more signal, the closer the person is and
the caregiver can get ample warning before an alarm.
Since the system works well when the person is sing
or lying down, they can be monitored easily in normal
living.
Safety
Alerta uses 3M medical grade foam tape and
adhesives tested for long term use. However, the
patch may contribute to skin irritaon or allergies in

Recycling
Legal Info
some users. Be sure the patch placement area is free of
hair and clean.
The Patch baery cannot be replaced by the user. The
Patch must be returned to Track Patch for Recycle and
Baery replacement. If the Patch is not returned, it
must be disposed of in compliance with applicable laws
and regulaons.
Model Number: TPGSK001.
Electrical Rang: 3.0 V Baery Powered
Wedge: two Special AA Lithium Baeries
Patch: 1 long life Lithium coin cell
The designated operang temperature of the system is 0-35º C.
Regulatory Informaon
This device (FCC ID 2AUWF-TPPW0001) complies with part 15 of the
FCC Rules. Operaon is subject to the following two condions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operaon.
Changes or modificaons not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Frequency band 915 MHz Max RF

When it is me to change the patch at the end of 7
days, two short alarms will sound and the Change
Patch indicator will flash aer the 2nd alarm the wedge
will return to a special mode waing for a new patch.
Then each push of the reset buon will result in a short
alarm sounding and a flash of the change patch and the
signal indicator. The Wedge will stay in this state unl a
new Patch is turned on by pushing the patch buon
from the side unl you feel and hear the push-buon
“click.”
Model Number: TPGSK001.
Electrical Rang: 3.0 V Baery Powered
Wedge: two Special AA Lithium Baeries
Patch: 1 long life Lithium coin cell
The designated operang temperature of the system is 0-35º C.
Regulatory Informaon
This device (FCC ID 2AUWF-TPPW0001) complies with part 15 of the
FCC Rules. Operaon is subject to the following two condions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operaon.
Changes or modificaons not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Frequency band 915 MHz Max RF
Contact Us
If you have quesons or comments we’d love to hear
from you!
Phone: [phone]
Email: [e-mail]
134 N Balefield Boulevard
Chesapeake, VA 23320
