TradeQuip 1000T User manual

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au
OWNER’S MANUAL
PRODUCT CODE: 1000T
FOLDABLE LEGS
1000kg ENGINE CRANE
Max. Lift
Capacity
Max. Lift Height
Min Jib Ext
Max. Lift Height
Max. Jib Ext
Overall Width
Width between
Legs
1000kg
1920mm
2360mm
1100mm
945mm
Lifting Capacity
Position 1
Lifting Capacity
Position 2
Lifting Capacity
Position 3
Lifting Capacity
Position 4
1000kg
750kg
500kg
250kg

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 2
WARNING
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE
WARNING
The instructions and warnings contained in this manual should be read and understood before
using or operating this equipment. Do not allow anyone to use or operate this equipment
until they have read this manual and have developed a thorough understanding of how this
equipment works. Failure to observe any of the instructions contained in the manual could
result in severe personal injury to the user or bystanders, or cause damage to the equipment
and property. Keep this manual in a convenient and safe place for future reference.
Whilst every effort has been made to ensure accuracy of information contained in this manual,
the TQB Brands Pty Ltd policy of continuous improvement determines the right to make
modifications without prior warning.
CONTENT
WARNING ................................................................................................................. 2
CONTENT .................................................................................................................. 2
SAFETY INSTRUCTIONS .............................................................................................. 3
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE............................................. 4
PARTS DIAGRAM ..................................................................................................... 11
PARTS LIST .............................................................................................................. 12
TROUBLESHOOTING ................................................................................................ 13
WARRANTY ............................................................................................................. 14

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 3
SAFETY INSTRUCTIONS
SAFETY OPERATING INSTRUCTIONS
ü Before using the foldable engine crane ensure it is in sound condition, and good
working order.
ü Replace or repair damaged parts. Use recommended parts only. Non authorised
parts may be dangerous and will invalidate the warranty. The nuts and bolts
supplied with the crane are all high strength and should not be substituted for
inferior types.
ü Always inspect the chain and hook prior to use.
ü Always lock the legs and jib in position before lifting a load.
ü Keep the stand clean for best and safest performance.
ü Locate the stand in an adequate working area for its function, keep area clean and
tidy and free from unrelated materials, and ensure there is adequate lighting.
ü Use on a firm, level surface capable of sustaining the foldable engine crane lift and
the load.
ü Operators should maintain correct balance and footing. Ensure the floor is not
slippery and wear non slip shoes.
ü Ensure all non essential persons keep a safe distance whilst the crane is in use.
û DO NOT exceed the safe working capacity 1000kg.
û DO NOT operate the crane if damaged.
û DO NOT use crane in damp or wet locations. DO NOT expose to rain.
û DO NOT allow untrained persons to operate the crane.
û DO NOT use the crane to lift or support people.
û DO NOT stand beneath, in front of, or to the side of the load.
WARNING: This single pump long ram is designed for lifting purposes
only. Not for supporting loads. Do not load beyond its rated capacity.

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 4
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE
1. FEATURES
Tested to Australian Standard AS1418.8, this TradeQuip hydraulic engine crane has a 8
tonne long stroke lifting ram and single acting pump with a maximum safe working load
capacity of 1000kg. It is designed to quickly fold up to save space in the workshop. It is
very simple to use with a single acting hydraulic pump equipped and an automatic safety
valve to control the lowering speed.
The jib extends to required lifting capacities of 250kg, 500kg, 750kg or 1000kg secured by
a single locking pin. Mounted on 6 swivel castor wheels for excellent manoeuvrability
around the workshop, the lifting range is 0-2300mm so an engine can be lifted clear out
of the engine bay with little effort. With great stability of its wide legs, this crane can also
be used to lift machines or other heavy items, making for an excellent piece of equipment
for the workshop or warehouse.
2. ASSEMBLY
Ensure assembly is done on a flat, level surface to prevent misalignment.
Step 1:
• Fasten the two larger rear castor wheels (9) on the Base structure with Bolts
(21), washers (30) and nuts 31). Face bolts up when installing.
• Fasten the smaller two castor wheels (10) on the Base structure with bolts (22),
washers (24). Face bolts up when installing.

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 5

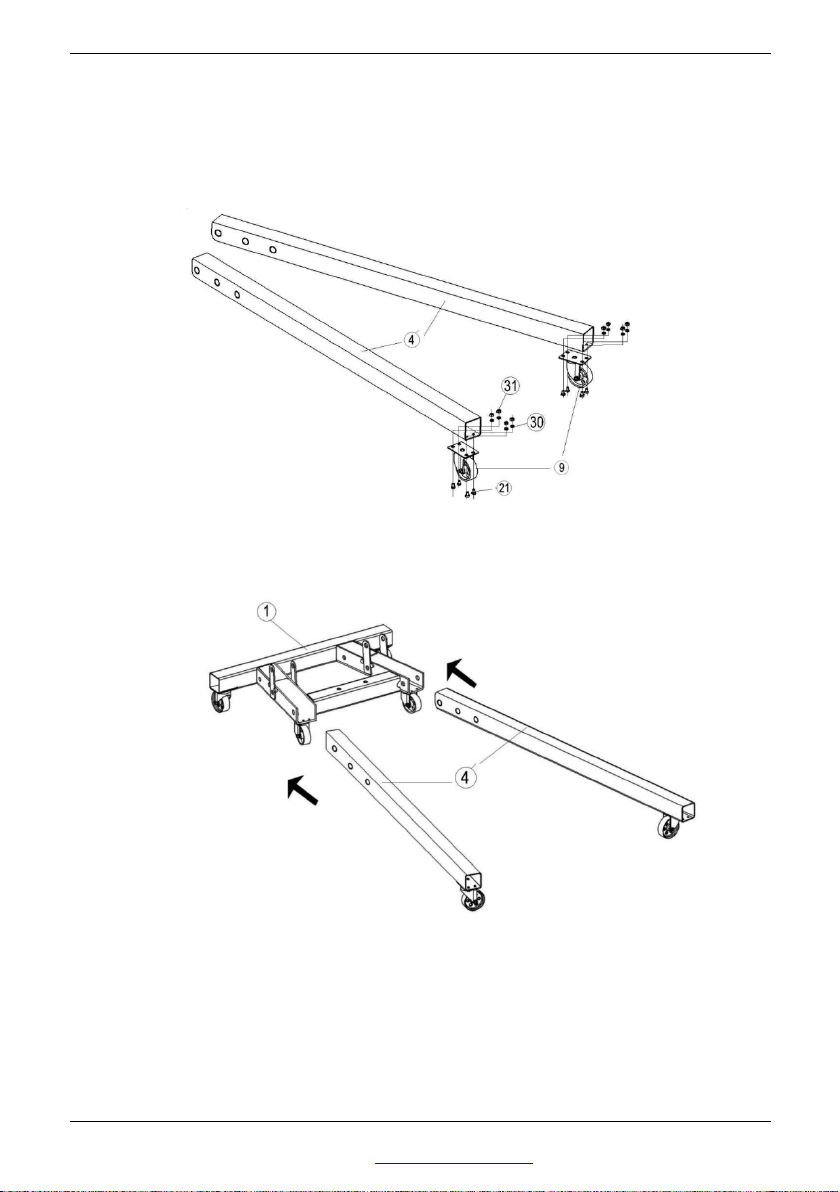

Step 2:
• Fasten the remaining larger two castor wheels (9) on the front legs (4) with
bolts (21), washers (30) and nuts (31).
Step 3:
• Slide the legs (4) into the front of the base (1).

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 6

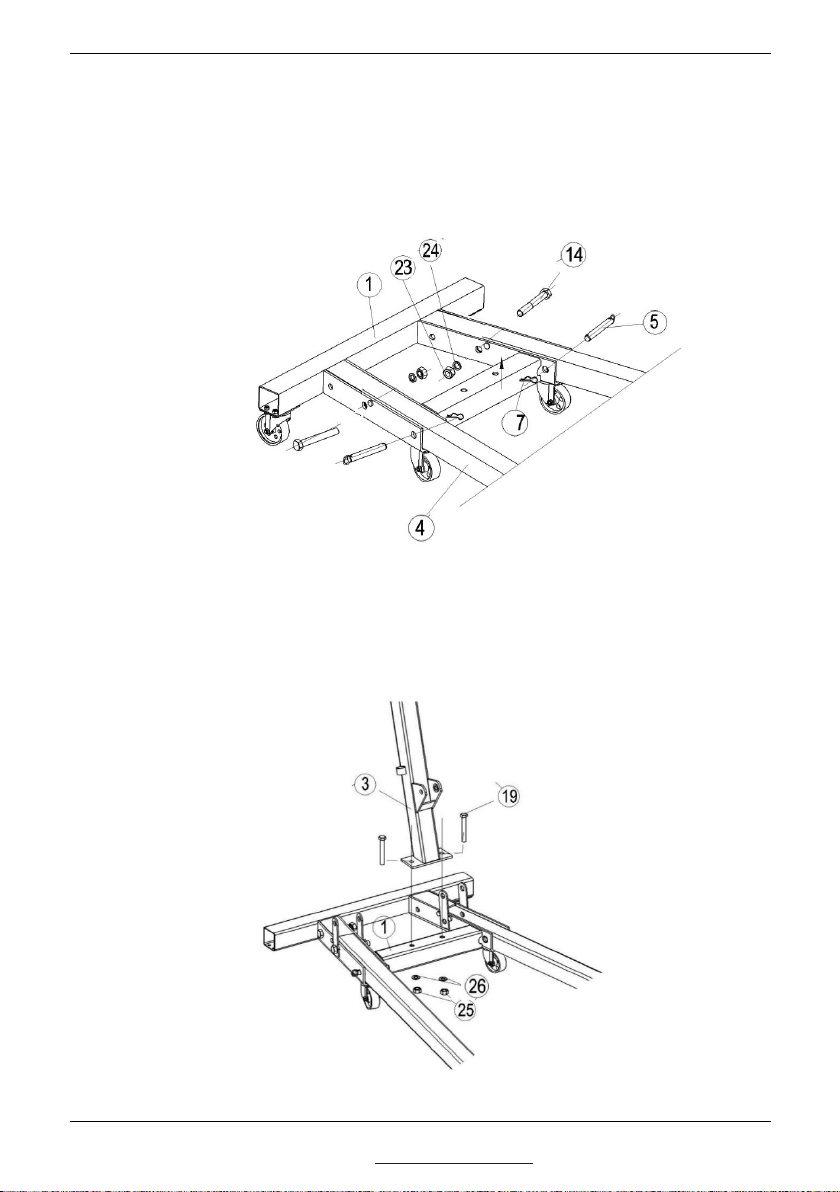

Step 4
• Fasten the guide plates (6) to the base frame (1) and front legs (4) with bolts
(14), washers (24), and nuts (23). Lift one side of the base to align the hole on
the frame to the hole on each front leg (4), then insert the ring pins (5) into the
hole, and insert the cotter pin (7) into the hole of the ring pin.
Step 5
• Use two bolts (19), washers (26) and nuts (25) to connect the bottom of the
post (3) to the base frame (1).

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 7

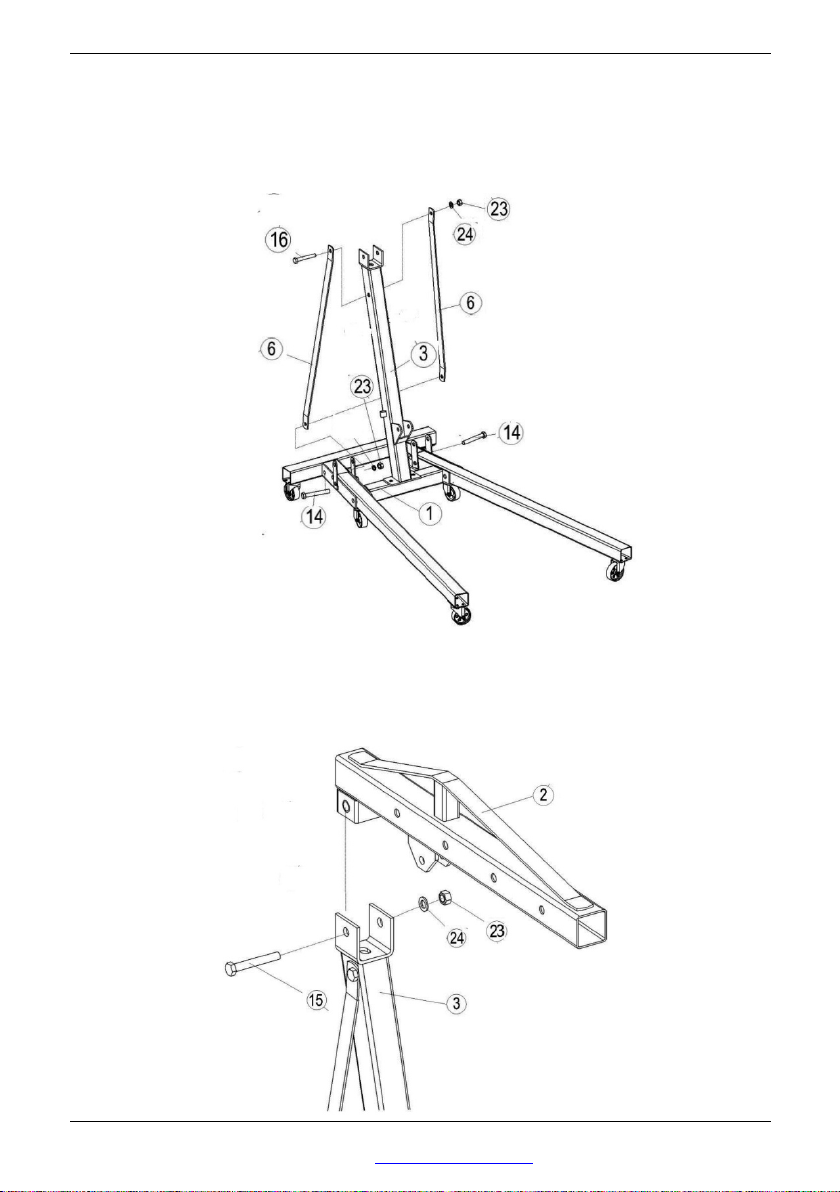

Step 6
• Use two bolts (14), washers (24) and nuts (23) to connect the lower ends of the
supports (6) to the inside of the base (1). Then use bolts (16), washers (24) and
nuts (23) to connect the top ends of the supports to the post (3). Check to
make sure the nuts are tightened. Tighten all nuts.
Step 7
• Use bolts (15), washers (24) and nut (23) to attach the boom (2) to the top of
the post (3). Tighten nut (3) so that the boom (2) can rotate freely, do not over-
tighten as boom needs to be able to rotate freely.

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 8
Step 8
• Use bolts (17), washers (24) and nut (23) to fasten the lower end of the long
ram (11) to the post (3). Then bolt (18), washer (24) and nut (23) to fasten the
top of the long ram to the boom (2).
Step 9
• Slide the boom extension (4) into boom (2) and use bolt (18), washer (24) and
nut (23) to secure at the desired load rating. Use bolt (20), washer (28) and nut
(27) to attach the hook and chain (8) to the end of the boom extension.
The boom has four different load ratings; select desired rating before use.

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 9
3. BEFORE USE
Prior to each use conduct a visual inspection by checking for abnormal conditions, such as
cracked joints and damaged, loose, or missing parts.
• During transport it is possible that air has become trapped in the hydraulic
system, causing poor lifting performance. Purge any air from the system by
fully opening the release valve (turn handle counter clock-wise as shown), then
while holding the boom down, operate pump handle rapidly several times.
• Ensure all nuts and bolts are correctly fitted and tight.
4. OPERATION
To Raise: Close the release valve by turning the handle clock-wise to a secure
position. Do not over tighten.
To Lower: Open the release valve by turning the handle counter clock-wise very
slowly. The speed of lowering the load is controlled by how much you turn
the handle.
To Add Oil: Only use high quality Hydraulic Oil. Do not use brake fluid, alcohol,
glycerine, detergent motor oil. When adding oil ensure dirt or foreign
matter does not enter the system.
NOTE: ONLY USE GOOD QUALITY HYDRAULIC JACK OIL.

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 10
5. STORAGE
This foldable engine crane should always be stored under cover in a dry location and on a
level surface with the jib in the fully lowered position.
Note: Before raising the legs to the storage position ensure Bolt (6), and Nut (7) is
inserted into the base support and tightened to ensure the unit is stable and won't fall
over.
6. MAINTENANCE
Replace or repair damaged parts. Use recommended TradeQuip genuine parts only. Non
authorised parts may be dangerous and will invalidate the warranty.
• Check ram and plunger every 3 months for any signs of corrosion.
• Clean as needed with a clean damp cloth.
7. SERVICE & REPAIR
Any Foldable engine crane found damaged in any way, or found to be worn or operates
abnormally should be removed from service until repaired by an authorised service agent.
Owners and / or operators should be aware that repair of this product may require
specialised equipment and knowledge. Only authorised parts, labels and decals shall be
used on this equipment. Annual inspection of the hydraulic lift is recommended and can
be made by an authorised repair facility to ensure that your equipment is in optimum
condition and that the equipment has the correct decals and safety labels specified by the
manufacturer.

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 11

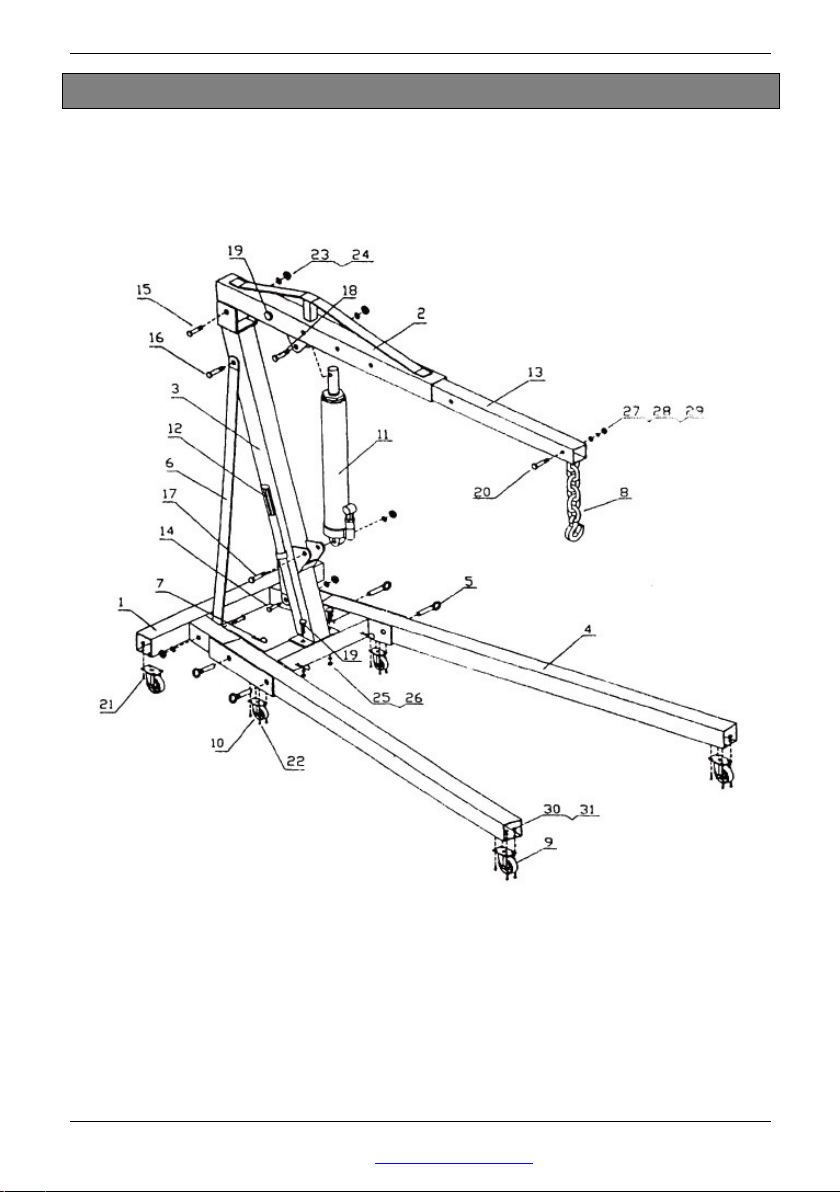

PARTS DIAGRAM

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 12
PARTS LIST
Part #
Description
QTY
Part #
Description
QTY
1
Base
1
17
Bolt M16x90
1
2
Boom
1
18
Bolt M16x80
1
3
Main Support Post
1
19
Bolt M14x100
3
4
Leg
2
20
Bolt M12x80
1
5
Lock Pin
4
21
Bolt M8x20
16
6
Support Strap
2
22
Bolt M8x12
8
7
Split "R" Pin
4
23
Nut M16
6
8
Chain & Hook Assembly
8
24
Flat Washer 016
6
9
3.5" Swivel Castor
4
25
Nut M14
3
10
3" Swivel Castor
2
26
Flat Washer 014
3
11
8 Ton Long Ram Jack
1
27
Nut M12
1
12
Handle
1
28
Flat Washer 012
1
13
Boom Extension
1
29
Lock Washer 012
1
14
Bolt M16x100
2
30
Nut M8
16
15
Bolt M16x120
1
31
Lock Washer08
24
16
Bolt M16x110
1

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 13
TROUBLESHOOTING
Trouble
Probable Cause
Remedy
Will not hold load.
Dirt on valve seals.
1. Lower lifting boom. Close the
release valve and remove the
oil filler plug.
2. Place one foot on the leg and
pull up the lifting boom to its
full height by hand.
3. Open the release valve to
lower the lifting boom.
4. Worn seals.
Will not lift load.
Will not lift load to its full
height.
Pump feels unsteady
under load.
Pump will not lower
completely.
Air block.
1. Purge air from the hydraulic
system by opening the release
valve and remove the oil filler
plug
2. Pump handle a couple of full
strokes and close the release
valve.
Pump will not lift to its
full height.
Pump feels unsteady
under load.
The reservoir could be
overfilled.
Low hydraulic oil level.
1. Check the oil level. Remove
the filler plug. Top up oil to
correct level.
Will not lower
completely.
The pump cup seal could be
worn out.
1. Replace cup seal.
Will not lower
completely.
Air block.
Unit requires lubrication.
1. Release air from hydraulic
pump by removing filler plug.
2. Oil external moving parts.

May-18 Product Code: 1000T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 14
WARRANTY
TradeQuip products have been carefully tested and inspected before shipment and are
guaranteed to be free from defective materials and workmanship for a period of 12 months
from the date of purchase except where tools are hired out when the guarantee period is
ninety days from the date of purchase.
Should the machine develop any fault, please return the complete tool to your nearest
authorised warranty repair agent or contact TQB Brands Pty Ltd Warranty team –
warranty@tqbbrands.com.au.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee does not apply to
normal wear and tear, nor does it cover any damage caused by misuse, careless or unsafe
handling, alterations, accident, or repairs attempted or made by any personnel other than the
authorised TQB Brands Pty Ltd repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your TQB Brands Pty Ltd guarantee is not effective unless you can produce upon request a
dated receipt or invoice to verify your proof of purchase within the 12 month period.
Consumer Guarantee
Our goods come with a guarantee that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
Table of contents
Other TradeQuip Construction Equipment manuals
Popular Construction Equipment manuals by other brands

Tigercat
Tigercat S860 Operator's manual

Equipment Technologies
Equipment Technologies APACHE AS740 Operator's manual

Atlas Copco
Atlas Copco CA300 instruction manual

Graco
Graco LineLazert 130HS Repair parts list

felton industries
felton industries DELUXE GRANDSTAND FEL6DG Assembly instruction

Werner
Werner MAX PATROL R410020LE User instructions
