Product Code: 3033T
MOBILE
BLASTING UNIT
Specifications
•Tank Capacity: 105 Litre
•Working Pressure: 15CFM @ 80psi
•Air Delivery: Minimum of 640L/min@115 PSI
•Ceramic Nozzle Tips size: 7mm
•Air hose: 17O(D) x 9I(D) x 2700mm
•Sand hose: 18O(D) x 12I(D) x 3100mm
•Vacuum hose: 48O(D) x 42I(D) x 2600mm
•Wheel Diameter: Castor 4" / Fixed wheel: 6"
•Weight: 30kg

Product Code: 3033T
Made in China to TQB Brands Pty Ltd Specifications Page 2
Visit us at www.tqbbrands.com.au
WARNING INFORMATION
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE
WARNING
The instructions and warnings contained in this manual should be read and understood before using or operating this equipment.
Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough
understanding of how this equipment works. Failure to observe any of the instructions contained in the manual could result in
severe personal injury to the user or bystanders, or cause damage to the equipment and property. Keep this manual in a
convenient and safe place for future reference.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the TradeQuip policy of
continuous improvement determines the right to make modifications without prior warning.
CONTENT
WARNING INFORMATION .........................................................................................................................................................................................2
CONTENT ...................................................................................................................................................................................................................2
STANDARD OPERATING PROCEDURE ........................................................................................................................................................................3
ASSEMBLY, OPERATION & PREVENTATIVE MAINTENANCE.......................................................................................................................................4
TROUBLESHOOTING ..................................................................................................................................................................................................6
PARTS DIAGRAM........................................................................................................................................................................................................7
WARRANTY................................................................................................................................................................................................................8

Product Code: 3033T
Made in China to TQB Brands Pty Ltd Specifications Page 3
Visit us at www.tqbbrands.com.au
PRE-OPERATIONAL SAFETY CHECKS
•Mobile Blasting Equipment produces a powerful flow of abrasive particles. To avoid personal injury and property damage,
study this manual thoroughly before assembling, operating, or servicing this mobile blasting unit.
•Know your machine. Read this manual carefully. Learn the machine’s applications and limitations, as well as specific potential
hazards peculiar to it.
•Ground all machines. If the machine is equipped with three-pin plug, it should be plugged into a three-pin electrical socket.
Never remove the ground pin.
•Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of
electric shock if your body is grounded.
•Do not expose tool to moisture. Don't use this machinery in damp or wet locations. Keep out of rain.
•Do not abuse cord. Never use the cord to carry tools or pull the plug from an outlet. Keep cord away from heat, sharp edges
or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
•Remove adjusting keys or wrenches before turning the tool on. A wrench or key that is left attached to a moving part of the
tool may result in personal injury.
•Keep work area clean and well lit. Cluttered or dark work areas invite accidents.
•Keep children away. All children should be kept away from the work area. Never let a child handle a tool without strict adult
supervision.
•Do not operate this tool if under the influence of alcohol or drugs. Read warning labels on descriptions to determine if your
judgment or reflexes are impaired while taking drugs. If there is any doubt, do not attempt to operate.
•Do not overreach. Always keep proper footing and balance when operating this product.
•Always disconnect the machine before making any adjustments, storing, servicing, or changing accessories. Such
preventative safety measures reduce the risk of starting the tool accidentally.
•Use clamps or other practical means to secure and support the work piece to a stable platform. Holding the work by hand
or against your body may lead to a loss of control.
•Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for
which it was designed.
•Do not use the tool if the switch does not turn it on and off. Any tool that cannot be controlled with the switch is dangerous
and must be repaired.
•Check for damage. Check your tool regularly. If part of the tool is damaged it should be carefully inspected to make sure that
it can perform its intended function correctly. If in doubt, the part should be repaired. Refer all servicing to a qualified
technician. Consult your dealer for advice.
•Keep away from flammables. Do not attempt to operate this tool near flammable materials or combustibles. Failure to
comply may cause serious injury or death.
•Store idle tools out of the reach of children and untrained persons. Tools may be dangerous in the hands of untrained users.
•During operation, do not expose the hands or skin directly in the line of the blast nozzle.
•Always wear personal protective gear (hood, respirator, earmuffs and gloves).
•Fire or Explosion Hazard! DO NOT USE an abrasive media blaster around combustible or flammable liquids, dusts, gases, oily
rags, or other materials that can explode or burn quickly. Some abrasives create sparks when they hit a metallic surface
and/or generate static electricity sparks which may cause fires or explosions in an unsafe environment.
INTENDED USE
Blasting work using recommended abrasive media and/or glass beads to clean and abrade a surface, typically metal, of any rust,
paint or other unwanted surface materials.
STANDARD OPERATING PROCEDURE
DO NOT use this machine unless you have been trained and assessed to a competent level in its sate use and operation, and
have been given permission to use this
Safety glasses must be worn when operating this
equipment
Long loose hair must be contained when operating
this equipment
Safety footwear must be worn when operating
this equipment
Close fitting/protective clothing must be worn
when operating this equipment
Rings and jewellery must not be worn when
operating this equipment
Wear a filter or mask over your mouth when
operating this unit

Product Code: 3033T
Made in China to TQB Brands Pty Ltd Specifications Page 4
Visit us at www.tqbbrands.com.au
ASSEMBLY, OPERATION & PREVENTATIVE MAINTENANCE
1. FEATURES
The TradeQuip "Made for the Trade" Mobile Abrasive Blasting Kit with Vacuum is perfect for a wide variety of surface preparation jobs
such as removing paint, scale, rust and oxidation. Ideal for surface preparation on cars, trucks, machinery, steel, glass etching and much
more. Features a 2.4m heavy-duty blast hose designed for long life and manoeuvrability. The Vacuum feature reduces dust and debris
around your workshop. Durable wheels and built-in handle allow for easy transport. Simply add abrasive and hook up to an air and power
supply and you're ready to blast. Some assembly required. Note: TradeQuip Walnut Shells cannot be used in this mobile blasting unit.”
2. ASSEMBLY
Unpacking: after removing the packing material, make sure the product is in perfect condition and that there are no visible
damaged parts.
The packaging materials (Polyethylene bags, polystyrene etc.), must be disposed of responsibly in an appropriate refuse
collection container. These materials must not be left within the reach of children as they are potential sources of danger.
Contents:
Instruction Manual, Brush Head Assemblies, Wheels, Castors, Hardwar Bag, Wheel Axle, Handle.
1. Lay carton on its side to take the unit out.
2. Remove all packing materials from abrasive blaster. Release the two snap locks on the vacuum assembly and remove
the vacuum head to take the Vacuum Hose and Abrasive Hose out.
3. Install the castors and the wheels on the frame base. Install the handle on the tank.
4. Fill 9 –16kgs. of abrasive into the bottom container.
5. Reattach the vacuum head to the tank, making certain both snap locks are securely locked down.
6. Insert the end of Vacuum Hose with Coupler into the tank and screw the other end without coupler in the coupler on
the brush head assembly. Install one end of the Abrasive Hose with a hose clamp on the end of the male air connector.
Install the other end of Abrasive Hose with a hose clamp on the abrasive outlet manifold.
Note: Ideal operating air pressure is 115 psi. DO NOT exceed 140 psi.
You are now ready to begin work with your Abrasive Blast/Vacuum.
3. BEFORE USE
Conduct a thorough visual inspection checking for leaks and any abnormal conditions, such as cracked welds, leaks, and
damaged, loose, or missing parts.

Product Code: 3033T
Made in China to TQB Brands Pty Ltd Specifications Page 5
Visit us at www.tqbbrands.com.au
4. OPERATION
1. If protective head gear and respiration is not already in place, put it on now.
2. Set air compressor to 115 psi. (More or less, depending on the surface to be cleaned.)
3. Connect air hose coupling to air coupling connector located on gun handle.
4. Connect power cord to power source.
5. With gun pointed at surface to be cleaned, turn the power switch on the vacuum head to the ON position.
6. Have one hand holding the gun while the other hand holds the brush handle. Note: Do not apply pressure with the
brush against the surface being cleaned! The brush function is only intended to prevent abrasive waste and to develop
and maintain a closed vacuum cycle for the abrasive to be recycled. The brush is NOT intended to assist in the abrasion
process.
7. Move both hands in the direction where rust removal or pre-finish work is required.
8. By lengthening or shortening the nozzle with the set nut, you will vary the size of the blast stream.
9. The bristle brush is for flat surfaces and for angles and corners. Before starting, spread out the bristles in such a way
that it does not cover the jet spray inside the brush. (The abrasives will eventually wear out the bristles). On car door
edges, we recommend that you wrap the bristles around the edge, which will generate better vacuum, better coverage,
safety, and results.
10. After each job, lift off vacuum head and knock dust from the filter.
11. After 1 hour of continuous blasting, lift out the vacuum head and blow off dust with direct air or vacuum.
12. When blasting a 90-degree corner, align the gun at a 45-degree angle to reach the deepest area. Move the gun in a
slow, circular motion for best results.
Health Considerations:
1. Protect yourself and those around you from 'overspray'. Remember that your mobile blaster is shooting powerful
spray of abrasive material
2. Do not point it at yourself or anyone around you
3. Always wear personal protective equipment
4. Wear a filter or mask over your mouth when operating this unit. You will create a cloud of abrasive material and
debris which is dangerous to inhale
5. Remove, cover, and/or protect anything around you that might be damaged from direct or indirect contact with
the abrasive spray or particles.
5. STORAGE
This mobile blasting unit should always be stored in a dry indoor location on a level surface.
6. MAINTENANCE
Check for worn abrasive hose and fittings. The abrasive control valve, manifold and all parts after the abrasive is ejected
from the tank are subject to rapid wear due to the flow of abrasive media. Check for leaks, blistering, bulging or thinness of
the hose. Replace all parts which appear worn immediately.
7. SERVICE & REPAIR
Any mobile blasting unit found damaged in any way, or found to be worn or operates abnormally should be removed from
service until repaired by an authorised service agent. Owners and / or operators should be aware that repair of this product
may require specialised equipment and knowledge. Only authorised parts, labels, decals shall be used on this equipment.
Annual inspection of the mobile blasting unit is recommended and can be made by an authorised repair facility to ensure
that your equipment is in optimum condition and that the equipment has the correct decals and safety labels specified by
the manufacturer.

Product Code: 3033T
Made in China to TQB Brands Pty Ltd Specifications Page 6
Visit us at www.tqbbrands.com.au
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
ACTION
Decrease in blast performance
•Possi8ble low air pressure
•Moisture in the abrasive
•Dirty filter
•Abrasives are “worn” or too fine
•Gun blockage
•Check air compressor and hose for
leaks
•Verify CFM input is compatible with
blaster/vacuum
•Air must be clean and dry. Suggest
cleaning filter thoroughly
•Change abrasive
•Disconnect air and power, unscrew
nozzle and remove blockage with a
paper clip or thin wire
Decrease in vacuum performance
•Dirty filter
•Blocked or leaking vacuum line
•Insufficient air flow
•Clean filter thoroughly
•Inspect all vacuum lines for blockage
or damage, clean or replace as
necessary
•Check CFM input at airline connector
point
Abrasive is coming out between the
bristles of the brush
•Too much air pressure
•Blockage in the vacuum system
•Check air pressure and adjust
accordingly
•Inspect all vacuum lines for blockage
or damage, clean or replace as
necessary.

Product Code: 3033T
Made in China to TQB Brands Pty Ltd Specifications Page 7
Visit us at www.tqbbrands.com.au

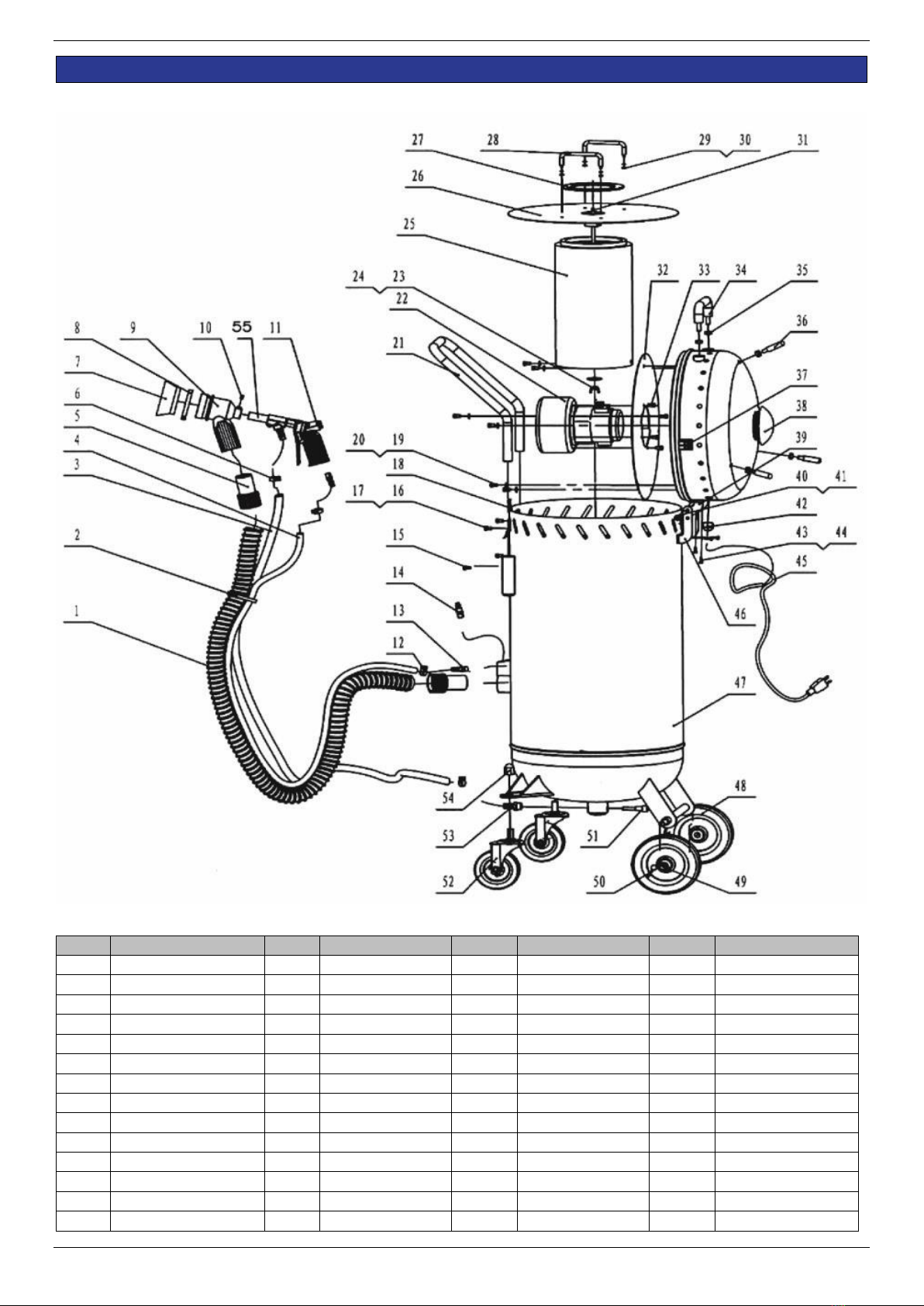

PARTS DIAGRAM
Part
Description
Part
Description
Part
Description
Part
Description
1
Vacuum hose
15
M10 bolt (15pc)
29
M4 nut
43
Screw
2
Wireclip
16
Bolt
30
Spring pad
44
M5 bolt
3
Abrasive hose
17
M4 bolt
31
Long bolt
45
Power cable
4
Air hose
18
Latch
32
Motor lift
46
Hinge
5
Coupler
19
M6 bolt (12pc)
33
Screw
47
Abrasive tank
6
Clamp
20
Spring ring
34
Handle
48
6” wheel
7
Brush head
21
Handle
35
M8 nut
49
Washer
8
Hoop
22
Vacuum motor
36
Cable Mount
50
Split pin
9
Blast head
23
Ring
37
Switch
51
Air adapter
10
M bolt
24
M6 nut
38
Cover
52
4” castor
11
Blast gun body
25
Filter
39
Rotational axle
53
Air connector
12
Clamp
26
Cover
40
Pin bolt
54
M12 nut
13
G ¼” air inlet fitting
27
Rubber cad
41
M6 nut
55
Nozzles
14
Quick connector
28
Handle
42
Cable nut

Product Code: 3033T
Made in China to TQB Brands Pty Ltd Specifications Page 8
Visit us at www.tqbbrands.com.au
WARRANTY
TradeQuip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective
materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the
guarantee period is ninety days from the date of purchase.
Should the machine develop any fault, please return the complete tool to your nearest authorised warranty repair agent or
contact TQB Brands Pty Ltd Warranty team –[e-mail].
If upon inspection it is found that the fault occurring is due to defective materials or workmanship, repairs will be carried out
free of charge. This guarantee does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless
or unsafe handling, alterations, accident, or repairs attempted or made by any personnel other than the authorised TQB Brands
Pty Ltd repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised.
Your TQB Brands Pty Ltd guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your
proof of purchase within the 12-month period.
Consumer Guarantee
Our goods come with a guarantee that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
All images and illustrations shown are for reference purposes only. All information, specifications and illustrations in this manual are based on
the latest information available at the time of publication and are subject to change without notice. The information in this manual is periodically
revised to ensure the latest information is included. Download the latest version of this manual and other related technical documentation from
www.tqbbrands.com.au.
