TradeQuip 6046 User manual
Product Code: 6046
Made in China to TQB Brands Pty Ltd specifications Page 1
Visit us at www.tqbbrands.com.au
OWNER’S MANUAL
PRODUCT CODE: 6046
32 BIN POLYETHYLENE WORKSHOP TROLLEY
Overall Size
Shelf Size
Large Bin
Small Bin
1000x435x850mm
790x435x110mm
8 Bins
241x50x152x127mm
24 Bins
165x101x76mm
Wheels
Capacity
125mm Non Marking, Rubber - 2 Fixed, 2 Swivel
226kg
Please note:
Handle may vary
depending on model
Product Code: 6046
Made in China to TQB Brands Pty Ltd specifications Page 2
Visit us at www.tqbbrands.com.au
WARNING
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE
WARNING
The instructions and warnings contained in this manual should be read and understood before
using or operating this equipment. Do not allow anyone to use or operate this equipment until
they have read this manual and have developed a thorough understanding of how this
equipment works. Failure to observe any of the instructions contained in the manual could
result in severe personal injury to the user or bystanders, or cause damage to the equipment
and property. Keep this manual in a convenient and safe place for future reference.
Whilst every effort has been made to ensure accuracy of information contained in this manual,
the TQB Brands Pty Ltd policy of continuous improvement determines the right to make
modifications without prior warning.
CONTENT
WARNING .....................................................................................................................................2
CONTENT ......................................................................................................................................2
SAFETY INSTRUCTIONS .................................................................................................................3
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE..............................................................3
PARTS LIST ....................................................................................................................................6
WARRANTY...................................................................................................................................7
Product Code: 6046
Made in China to TQB Brands Pty Ltd specifications Page 3
Visit us at www.tqbbrands.com.au
SAFETY INSTRUCTIONS
SAFETY OPERATNG INSTRUCTIONS
Do not exceed the products rated maximum load capacity.
Always distribute objects evenly on the Workshop Trolley. Uneven weight distribution
could cause tipping.
Do not lean or climb onto the Workshop Trolley.
Only use this device for the purpose for which it has been designed.
Do not modify any component of this equipment.
When servicing, use only Tradequip identical replacement parts. Use of any other parts
will void the warranty.
Only use on a flat surface capable of supporting the Workshop Trolley and its rated
maximum capacity load. It is easy to lose control of the Workshop Trolley if attempting to
pull a load on a sloping or uneven surface.
Use the right product for the job. There are certain applications for which the Workshop
Trolley was designed. Do not modify the Workshop Trolley and do not use the Workshop
Trolley for a purpose for which it was not intended.
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE
1. FEATURES
The Tradequip 32 Bin Polyethylene Workshop Trolley is widely used for collecting and
storing parts and/or tools when servicing vehicles and machinery etc.
2. ASSEMBLY
Unpacking: after removing the packing material, make sure the product is in perfect
condition and that there are no visible damaged parts. The packaging materials
(Polyethylene bags, polystyrene etc.), must be disposed of in an appropriate refuse
collection container. These materials must not be left within the reach of children as they
are potential sources of danger.

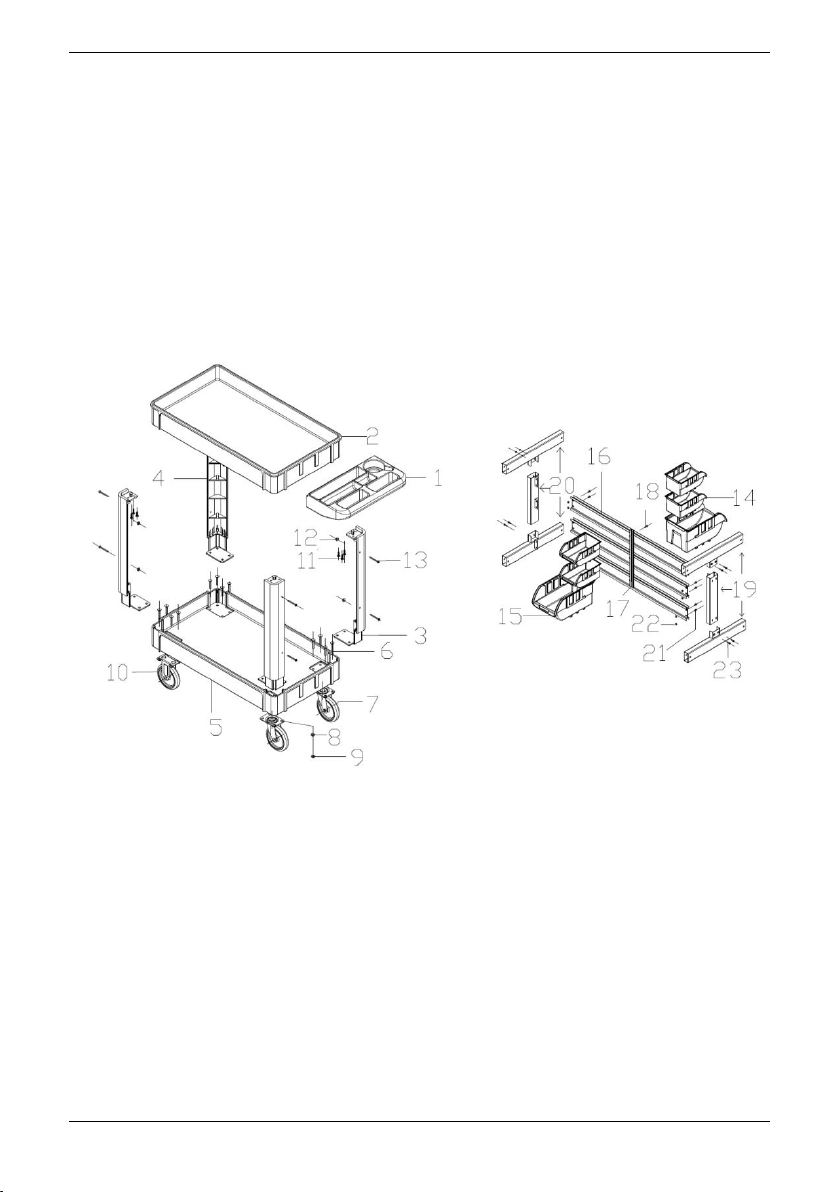

Assembly:
Assemble the Cart:
1. Place the bases of the four Legs (3,4) into the corners of the Lower Tray (5). The
flange on each Post will only fit into certain corners.
2. Insert Carriage Bolts (6) down through the holes in the bases of the Posts (3,4).
3. Attach Castors (7,10) to Carriage Bolts (6) using Split Washers (8) and Nuts (9). For
best operation, the two Straight Castors (10) go on the same end of the cart, and the
two Swivel Castors (7) go on the other end.
4. Place the Upper Tray (2) upside down on the work surface. Turn the Handle (1)
upside down with the cup holder toward the Tray and the hand holes on the outside.
5. Place the Tray with the Handle firmly on top of the Legs (3,4). Position the Handle
above either the swivel or fixed castors, depending on operating preference.
Product Code: 6046
Made in China to TQB Brands Pty Ltd specifications Page 4
Visit us at www.tqbbrands.com.au
6. Use three Screws (11) through each Leg (3,4) from underneath to secure them.
Assembly:
Add Bins and Rack:
7. Use 4 screws (23) to assemble Steel Racks L and R (19,20).
8. Mount Steel Racks L and R (19,20) on to the Workshop Trolley’s Post (3,4) with Screw
(13) accordingly.
9. Assemble the Peg Wall (16) and Vertical Support Bracket (17) with Screw (18).
10. Insert the Peg Wall (16) in the groove on both L & R side of the Steel Rack (19,20)
then lock with Screws (21).
11. Hang on the Polyethylene Storage Bins (14,15).
Your Workshop Trolley is ready for use. Warning - Do not exceed the product's rated
maximum load capacity.
3. BEFORE USE
Prior to each use conduct a visual inspection by checking for abnormal conditions, such as
cracked joints and damaged, loose, or missing parts.
4. STORAGE
This 32 Bin Polyethylene Workshop Trolley should always be stored in a dry location on a
level surface.
Please note:
Handle may vary
depending on model
Product Code: 6046
Made in China to TQB Brands Pty Ltd specifications Page 5
Visit us at www.tqbbrands.com.au
5. MAINTENANCE
Inspect the general condition of the Workshop Trolley checking:
for loose hardware
misalignment of binding or parts, cracked, bent, or broken parts, and
any other condition that may affect the Workshop Trolleys safe operation.
Clean the Workshop Trolley after each use. Ensure dirt, oil, grease and debris are
not on the Workshop Trolley.
6. SERVICE & REPAIR
Any 32 Bin Polyethylene Workshop Trolley found damaged in any way, or found to be
worn or operates abnormally should be removed from service until repaired by an
authorised service agent. Owners and / or operators should be aware that repair of this
product may require specialised equipment and knowledge. Only authorised parts,
labels, decals shall be used on this equipment. Annual inspection of the 32 Bin
Polyethylene Workshop Trolley is recommended and can be made by an authorised repair
facility to ensure that your equipment is in optimum condition and that the equipment
has the correct decals and safety labels specified by the manufacturer.
Product Code: 6046
Made in China to TQB Brands Pty Ltd specifications Page 6
Visit us at www.tqbbrands.com.au
PARTS LIST
Part #
Description
QTY
1
Handle
1
2
Tray
1
3
Left Hand Post
2
4
Right Hand Post
2
5
Tray
1
6
Carriage Bolt
16
7
Castor
2
8
Washer
16
9
Nut
16
10
Fixed Wheel
2
11
Screw
12
12
Nut
4
13
Screw
4
14
Small Storage Bin
24
15
Large Storage Bin
8
16
Pegwall
3
17
Vertical Support Bracket
1
18
Screw
3
19
Steel Rack - Left
3
20
Steel Rack - Right
3
21
Screw
12
22
Nut
12
23
Screw
8
Product Code: 6046
Made in China to TQB Brands Pty Ltd specifications Page 7
Visit us at www.tqbbrands.com.au
WARRANTY
Tradequip products have been carefully tested and inspected before shipment and are
guaranteed to be free from defective materials and workmanship for a period of 12 months
from the date of purchase except where tools are hired out when the guarantee period is
ninety days from the date of purchase.
Should this equipment develop any fault, please return the complete tool to your nearest
authorised warranty repair agent or contact TQB Brands Pty Ltd Warranty team –
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee does not apply to
normal wear and tear, nor does it cover any damage caused by misuse, careless or unsafe
handling, alterations, accident, or repairs attempted or made by any personnel other than the
authorised TQB Brands Pty Ltd repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your TQB Brands Pty Ltd guarantee is not effective unless you can produce upon request a
dated receipt or invoice to verify your proof of purchase within the 12 month period.
Consumer Guarantee
Our goods come with a guarantee that cannot be excluded under the Australian Consumer aw.
You are entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
