Trane MWW509IB User manual

Installation Manual
Mini Split Systems, Hi Wall Type
9000-30000 Btu/h, 50Hz, R22
September 2005 MCW - SVN13A - E4
Indoor Unit
MWW509IB
MWW512IB
MWW518IB
MWW524IB
MWW526IB
MWW530IB
Outdoor Unit
TWK509JB
TWK512JB
TWK518JB
TWK524JB
TWK526JB
TWK530JB
System Combinations
50Hz
Heat Pumps

General Information
MCW - SVN13A - E4
Foreword
These Installation instructions are
given as a guide to good practice in
the installation, start-up and operation
by the installers of MCW/MWW and
TTK/TWK mini-split systems.
They do not contain the full service
procedures necessary for the
continued successful operation of this
equipment. The services of a qualified
service technician should be
employed, through the medium of a
maintenance contract with a
reputable service company.
Read them completely before doing
anything with your air conditioning
system.
Warranty
Warranty is based on the general
terms and conditions of the con-
structor. The warranty is void if the
equipment is modified or repaired
without the written approval of the
constructor, if the operating limits are
exceeded, or if the control system or
the electrical wiring is modified.
Damage due to misuse, lack of main-
tenance, or failure to comply with the
manufacturer’s instructions, is not
covered by the warranty obligation.
If the user does not conform to the
rules described in the manual, it may
entail cancellation of warranty and
liabilities by the Trane company.
Reception
On arrival, inspect the unit before
signing the delivery note. Specify any
damage on the delivery note, and
send a registered letter of protest to
the last carrier of the goods within 72
hours of delivery. Notify the local sales
office at the same time. The unit
should be totally inspected within 7
days of delivery. If any concealed
damage is discovered, send a
registered letter of protest to the
carrier within 7 days of delivery and
notify the local sales office. Units are
shipped with the refrigerant operating
or holding charge and should be
examined with an eletronic leak
detector to determine the hermetic
integrity of the unit. The refrigerant
charge is not included in the standard
Warranty Cover.
About this manual
Cautions appear at appropriate places
in this instruction manual Your
personal safety and the proper
operation of this machine require that
you follow them carefully. The con-
structor assumes no liability for
installations or servicing performed by
unqualified personnel.
All phases of the installation of these
air conditioning systems must
conformto all provinced/state and
local codes.
Please keep this installation manual
carefully for consultation.
About the unit
These MCW/MWW and TTK/TWK
units are assembled, pressure
tested, dehydrated, charged and run
tested before shipment. The
infomation contained in this manual
applies to units designated MCW/
MWW and TTK/TWK. MCW and TTK
units are designed to operate in
cooling mode only, whereas MWW
and TWK can operate in cooling or
heating modes.
Refrigerant
The refrigerant provided by the con-
structor meets all the requirements
of our units. When using recycled or
reprocessed refrigerant, it is
advisable to ensure its quality is
equivalent to that of a new refrigerant.
For this, it is necessary to have a
precise analysis made by a
specialized laboratory. If this
condition is not respected, the
constructor warranty could be
cancelled.
Important
These instructions do not cover all
variations in system, nor do they
provide for every possible contin-
gency to be met.
Should further information be desired
or should particular problems arise
which are not covered sufficiently for
the purchaser’s purposes, the matter
should be referred to the Trane sales
office in your region.
cAmerican Standard Inc. 2004

Contents
MCW - SVN13A - E4 3
General Information
Product Specifications
Installation Items
Installation Diagram
Installation Location
Installation for
MWW509IB/TWK509JB
MWW512IB/TWK512JB
Installation for
MWW518IB/TWK518JB
MWW524IB/TWK524JB
Installation for
MWW526IB/TWK526JB
Installation for
MWW530IB/TWK530JB
Pipe Installation
Test Operation and
Check after Installation
Wiring Diagram
Troubleshooting
2
4
5
6
7
8
11
14
20
25
26
29

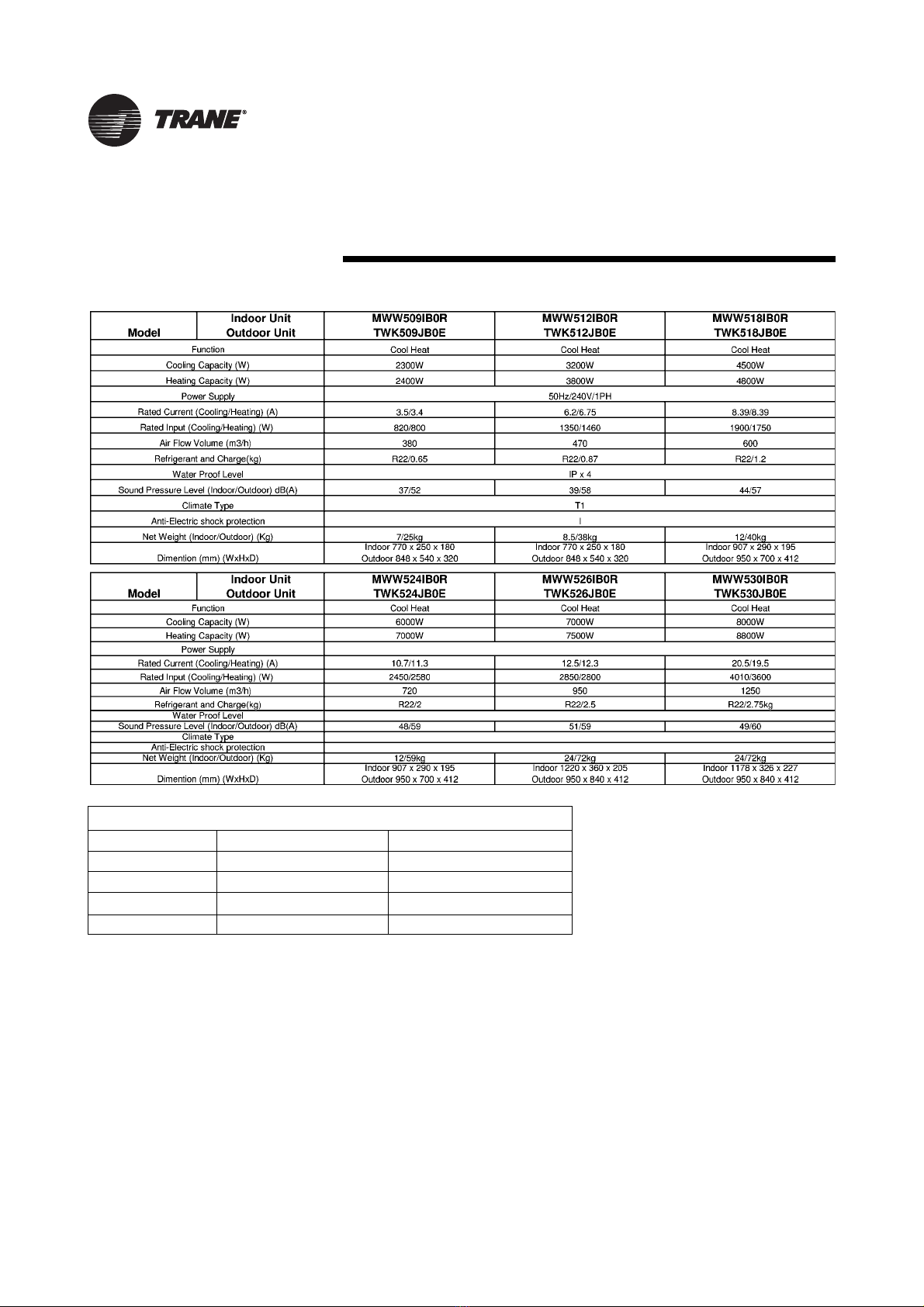

Product Specifications
MCW - SVN13A - E4
4
(1) Rating Conditions & Working temperature range
Indoor Side DB/WB (oC) Outdoor Side DB/WB (oC)
Maximum Cooling 32/23 43/26(T1)
Minimum Cooling 21/15 21/-
Maximum Heating 27/- 24/18
Minimum Heating 20/- -5/-6
(2) Sound Pressure level 1m from the unit. It is sound data at high speed.
(3) All above should be changed without notice, please refer to nameplate for actual data.

Installation items (check that all
installation items are present
before installation)
Be sure to use the exclusive accessories list above in the installation, otherwise it will lead to water leakage, electric
shock, fire, etc.
Installation Items
MCW - SVN13A - E4 5

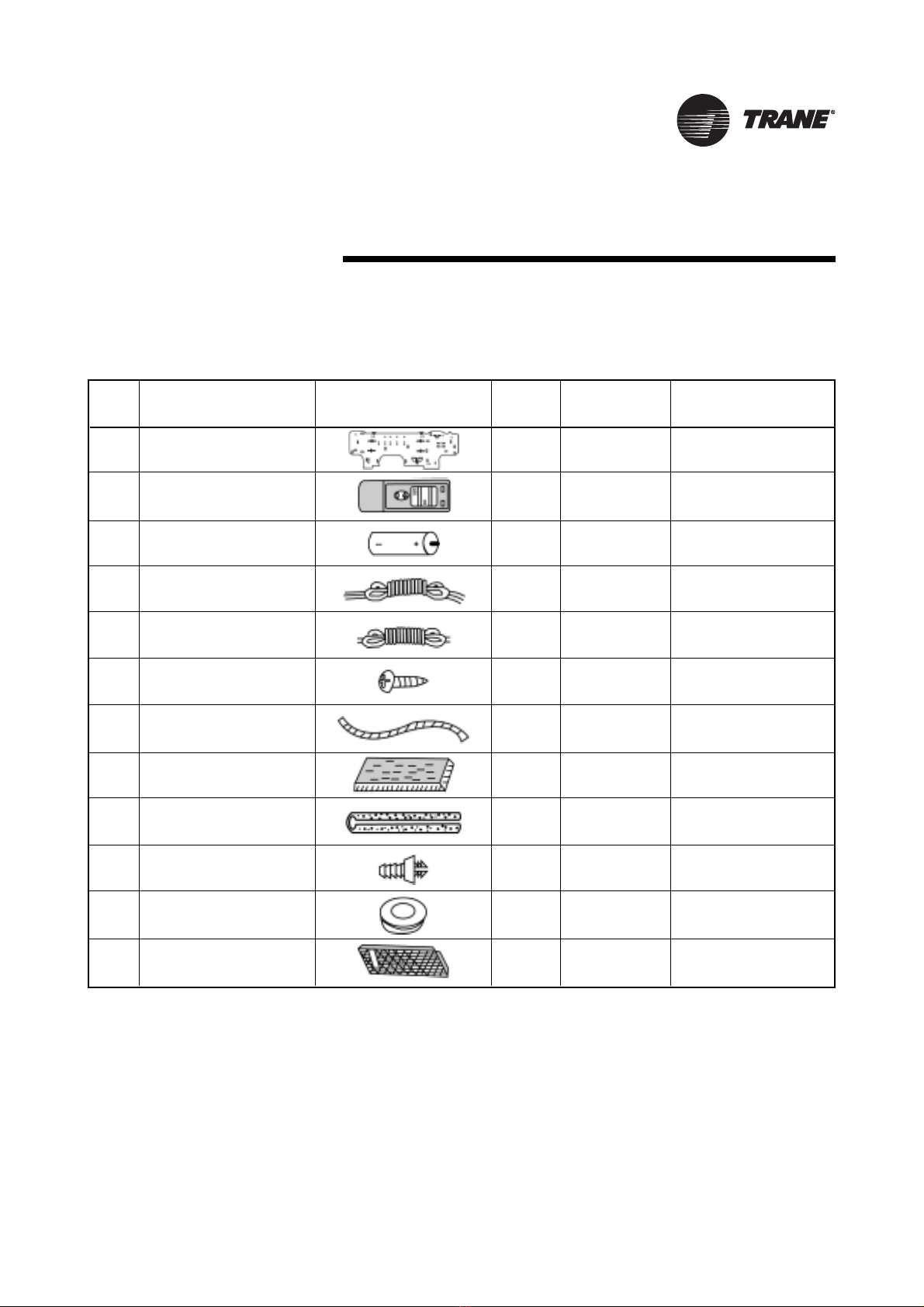

Part name
Mounting plate
Wireless remote
controller
Battery
Power connection cord
Control cord
Tapping screw
Plastics drain hose
Gum type sealer
Thermal insulation hose
Outdoor drain elbow
Outdoor drain stem
Air cleaner
Memo
Heat pump model only
Fix the mounting plate
Heat pump
type only
Heat pump
type only
Packaged with
indoor unit
DiagramNO.
1
2
3
4
5
6
7
8
9
10
11
12
Qty
1
1
2
1
1
10
1
1
1
1
2
2
Specification
AAA,1.5V
4 X 0.75
ST4.2 X 25
L = 2m
120 X 65 X 25
I35 X 500

Installation dimension
diagram
CAUTION!
The installation must be
done by trained and quali-
fied service personnel
with reliability according
to this manual.
Grounding wire should
be connected with the
special device. If not,
please install it by profes-
sional personnel.
When lifting up and mov-
ing the units, you must be
guided by trained and
qualified personnel.
Installation Diagram
MCW - SVN13A - E4
6

Installation Location
MCW - SVN13A - E4 7

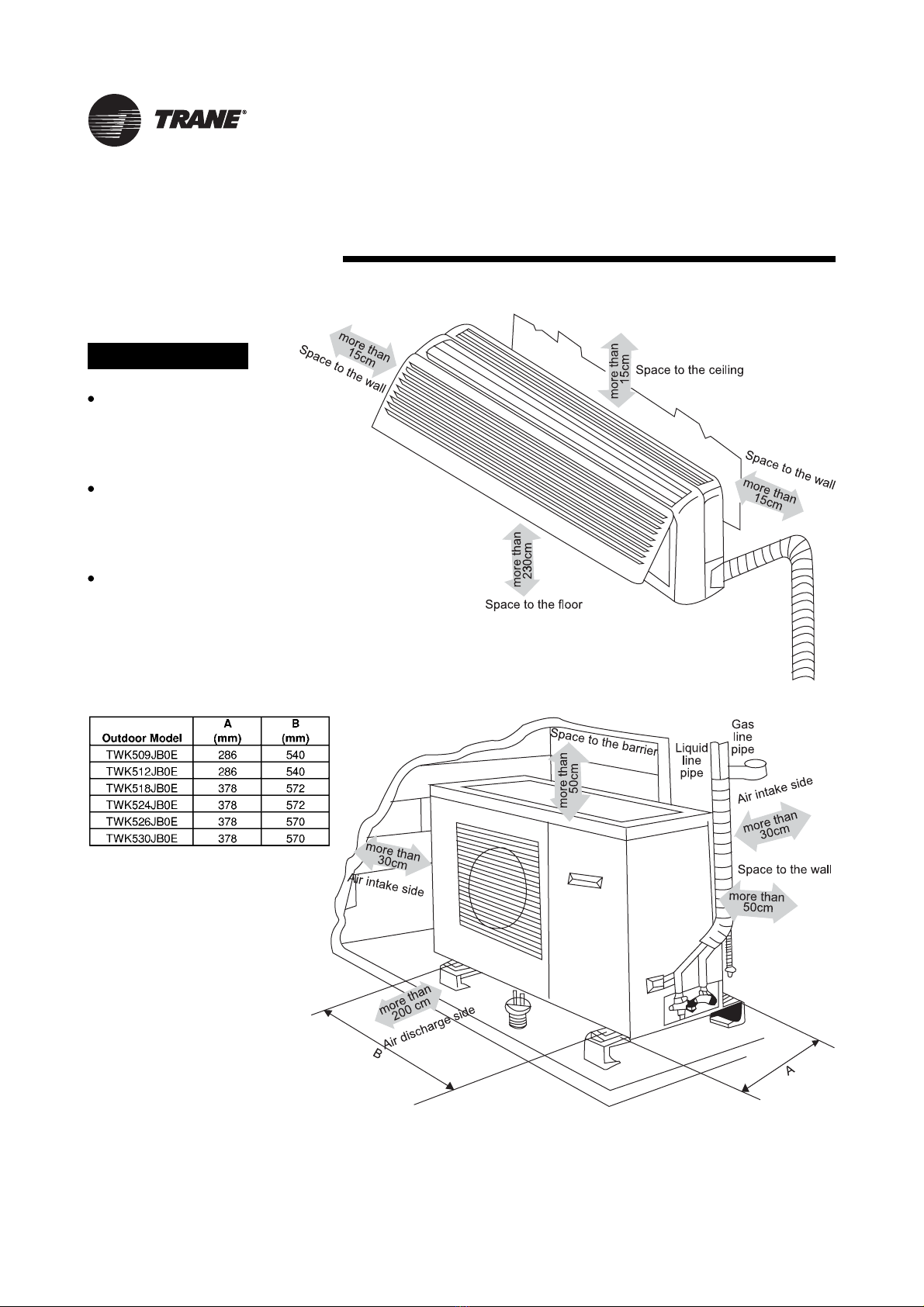

Indoor unit
1. The air inlet and outlet should be far
away from the barrier to make sure that
the air can reach to all parts of the room;
2. Select the location where it is easy to
drain the condensing water and connect
to the outdoor unit;
3. Keep the indoor unit far away from the
heat source, vapor and inflammable gas;
4. Install in a location where is strong
enough to withstand the full weight and
vibration of the unit;
5. Be sure that the installation of the indoor
unit conforms to the installation dimension
diagram;
6. Be sure to leave enough space to allow
access of routine maintenance, clearance
between the indoor unit and the floor
should be more than 200cm;
7. Install in a location where is more than 1
meter away from other electric appliances
such as television, audio device etc.;
8. Select location where is easy to remove
and clean the air filters.
1. Select a location from which noise and
air discharge by unit will not annoy
neighbors.
2. Select location where there should be
sufficient ventilation.
3. There should not be barriers preventing
air inlet and outlet near the outdoor unit.
4. Select the location which can bear the
weight and vibration of the outdoor unit,
where installation work can be carried
out safely.
5. There should be no danger of flammable
or corrosive gas leaks.
6. Be sure that the installation of the outdoor
unit conforms to the installation dimension
diagram.
Outdoor unit CAUTION!
Install in the following place may cause mal-
function. If it is unavoidable, contact with
service agency for consultant.
Place where oil (machine oil) is used.
The place where a lot of salinities such
as coast exists.
Place where a sulfured gas such as the
hot spring zones is generated.
Place where high-frequency waves are
generated by radio equipment, welders
and medical equipment.
Other place with special circumstance.

Installation for MWW509IB/TWK509JB
MWW512IB/TWK512JB
MCW - SVN13A - E4
8

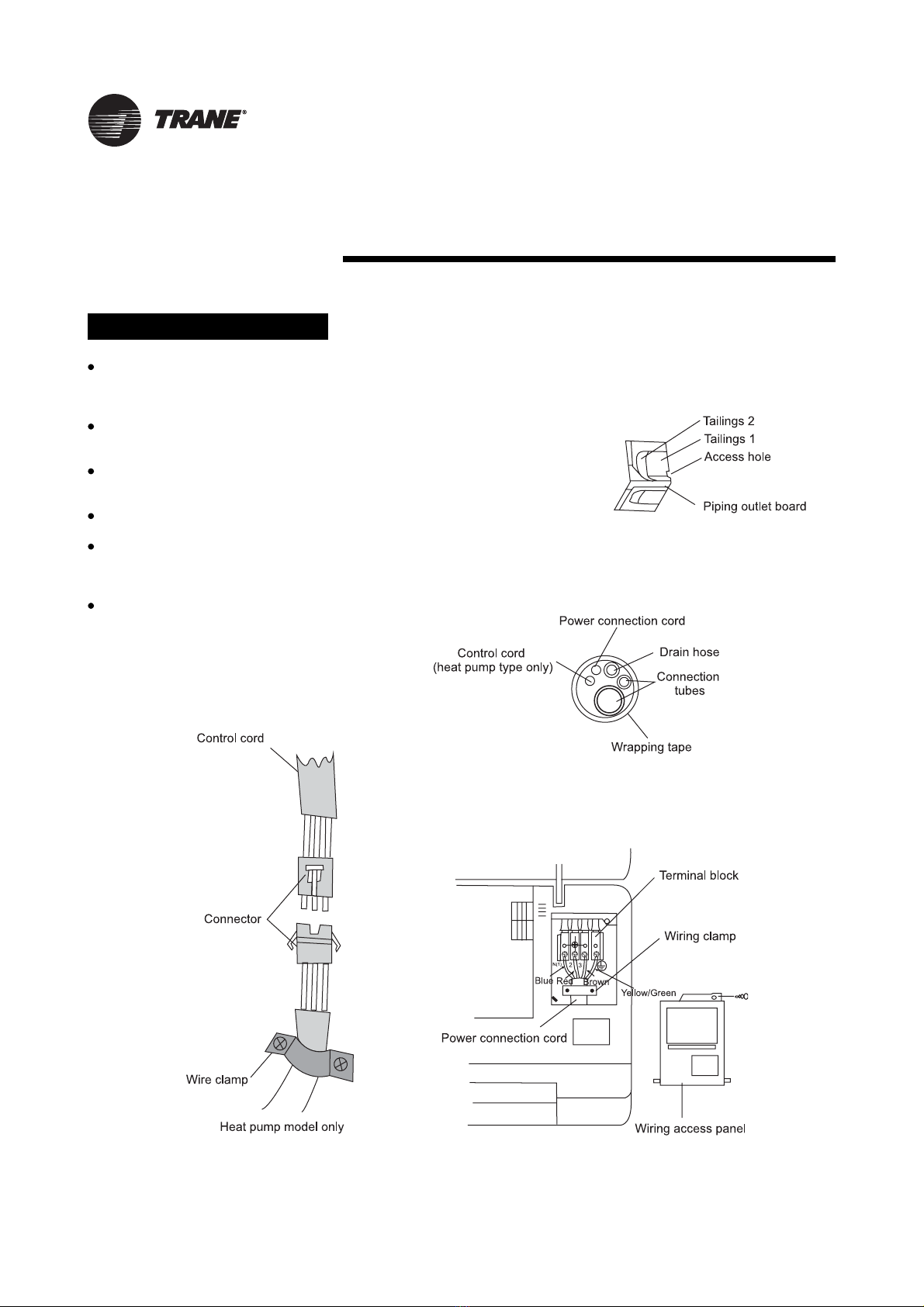

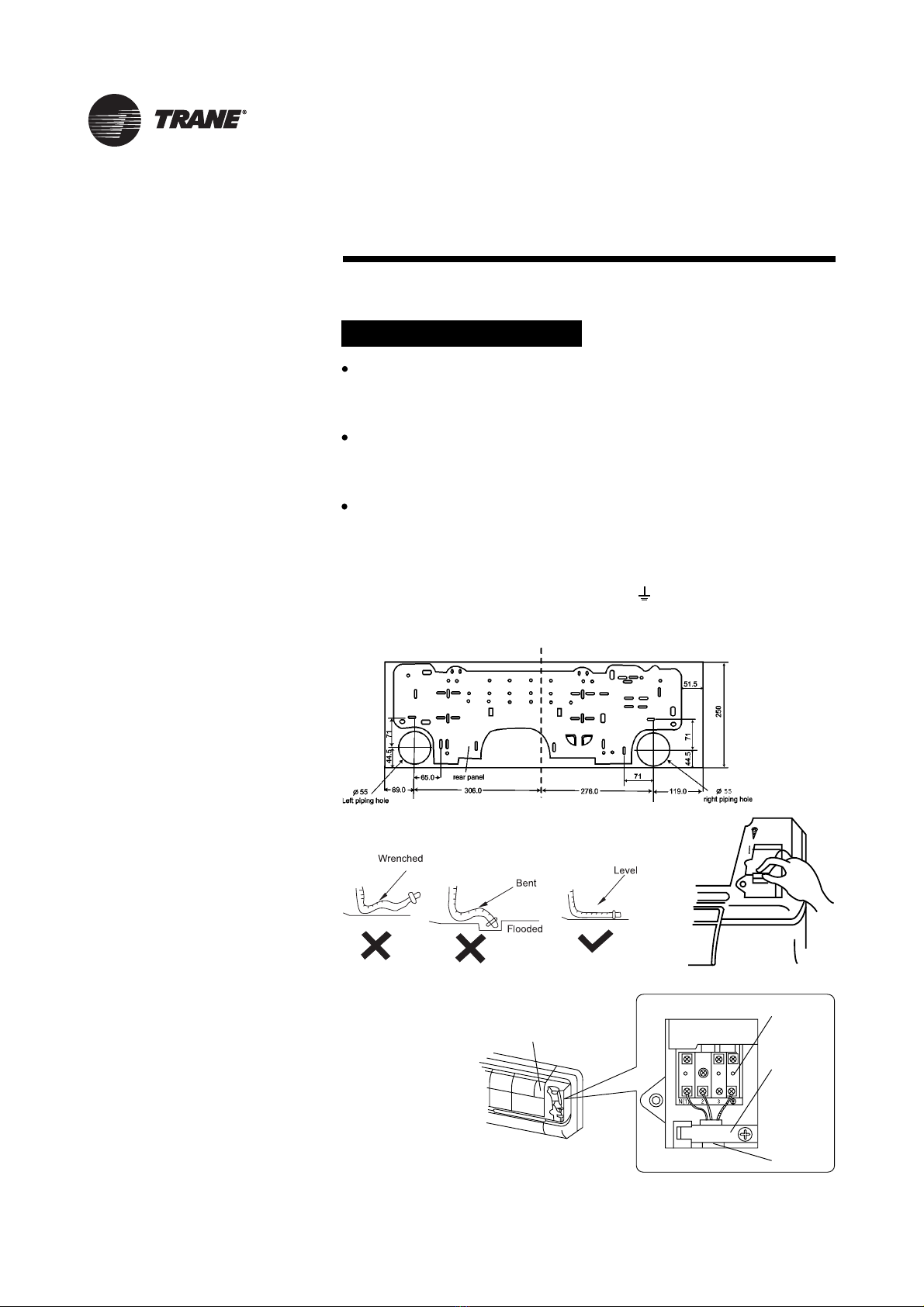

Electrical wiring
1. Open the front panel.
2. Remove the srews on the left of
wring access panel and open the
panel upward.(Figure 3)
3. Route the power connection cords
from the back of the indoor unit
and pull it toward the front through
the wiring hole for connection.
4. Connect the blue wire of the power
connection cord to the terminal
“N(1)”, the brown one to “2”, and
the yellow-green one (earth wire)
to “ ”terminal as shown Figure 4,
tighten the power supply cords by
a clamp installed in front of the
terminal block.(Figure 4)
Install the indoor unit
Install the mounting plate
1. Always mount the mounting plate
horizontally.
2. Fix the mounting plate on the
selected location with screws
supplied with the unit.
3. Be sure that the mounting plate
has been fixed firmly enough to
withstand the weight of an adult
of 60kg, furthermore, the weight
should be evenly shared by each
screw.

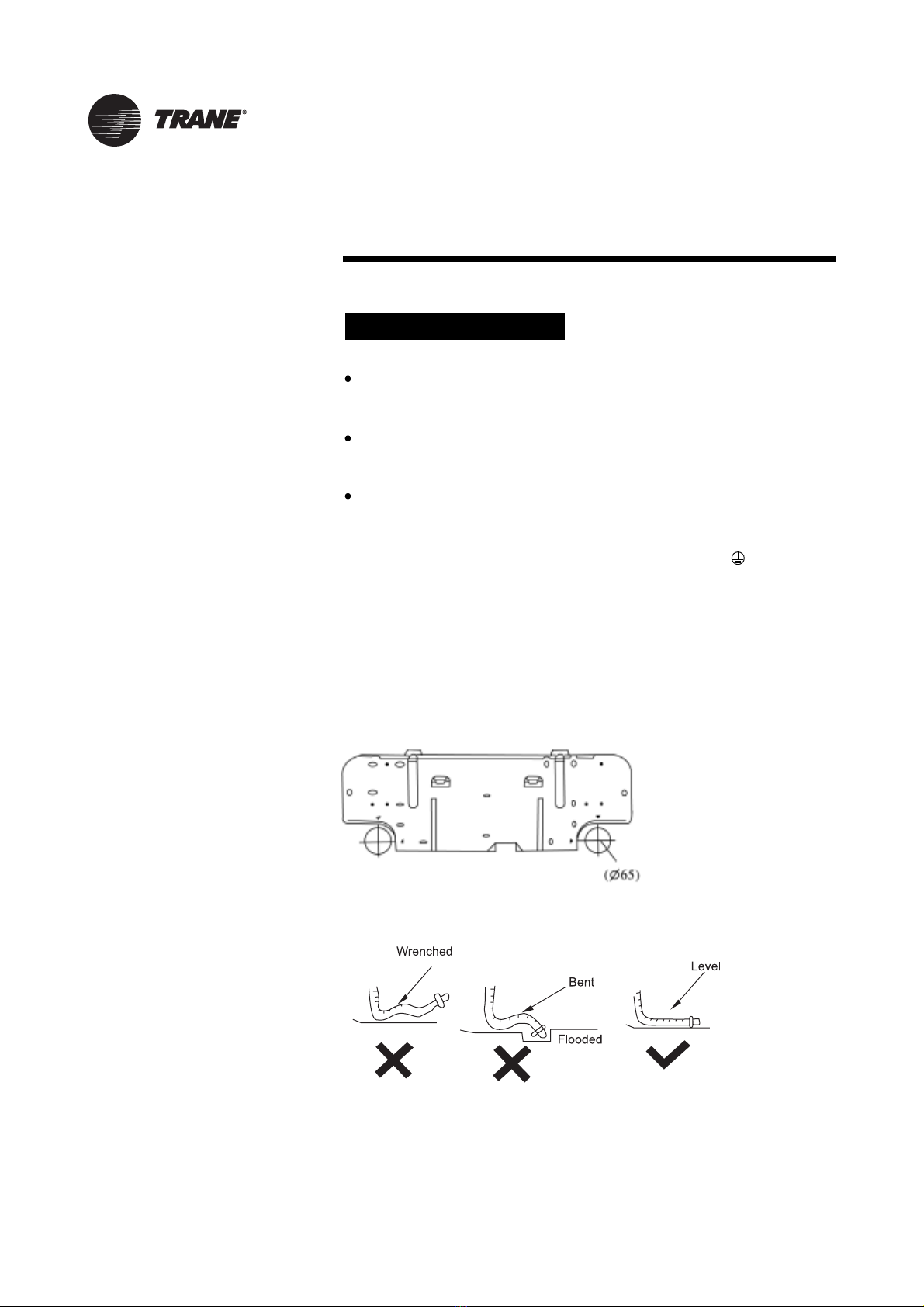

Install the drain hose
1. For well draining, the drain hose
should be placed at a downward
slant.
2. Do not wrench or bend the drain
hose or flood its end by water.
(Figure 2)
Cut the piping hole
1. Make the piping hole (I55) in the
wall at a slight downward slant to
the outdoor side. The center of the
hole should be determined refer
to Figure 1.
2. Insert the piping - hole sleeve into
the hole to prevent the connection
piping and wiring from being
damaged when passing through
the hole.
Install the connection pipes
Connect the connection pipes with
the relevant union pipes of the indoor
unit (Shown in “Install the connection
pipes” section)
Connect the connection pipes
with the indoor unit firstly and the
outdoor unit secondly.
Be careful in bending the con-
nection pipes, or you will damage
the pipes.
If the tightening torque is too big
in tightening the flare nuts,leakage
will happen.
CAUTION!
Figure 2
Figure 1
Wiring access panel
Terminal
clamp
power supply
Figure 4
Figure 3

Installation for MWW509IB/TWK509JB
MWW512IB/TWK512JB
MCW - SVN13A - E4 9
All the electrical work must be
done by qualified personnel ac-
cording to the local rules and this
manual.
The rated voltage and the exclusive
circuit must be used.
Leakage circuit - breaker must be
installed.
Please use specified fuse.
The diameter of power cord should
be large enough. Use the exclusive
wire to replace the damaged wire.
Wiring work should conform to
national standard.
CAUTION!
5. For heat pump unit, connect the
control cable to the indoor unit
through the intertaces (see figure
5).
6. Reassemble the wiring access
panel.
7. Recover the front panel.
Install the indoor unit
1. The piping routing of the indoor
unitsee Figure 6 (a) (b), when
routing the piping and wiring
from the left or right side of the
indoor unit, cut off the tailings
from the chassis in necessary
(shown in Figure 7)
1Cut off the tailings 1 when
routing the wiring only.
2Cut off the tailings 1 and
tailings 2 when routing both the
wiring and piping.
2. Wrap the piping and wiring,
and pull them through the cut-
off tailings hole.
(shown in Figure 8)
Figure 6
Figure 8
Wrapping
tape
Connection
tubes
Power suppply
cables
Drain hose Control
cables
Tailings 3
Tailings 2
Tailings 1
Figure 7
Control cord
(4 X 0.75)
Wiring
interface
Wire clamp
Figure 5
Left back
connection tube
Left connection
tube
3
( b )
Right back
connection tube
Right connection
tube
1
2
( a )

Installation for MWW509IB/TWK509JB
MWW512IB/TWK512JB
MCW - SVN13A - E4
10
Install the connection pipe
1. Align the center of the piping flare
with the relevant valve.
2. Screw in the flare nut by hand and
then tighten the nut with spanner
and torque wrench.
( Refer to Figure 9 )
Electric wiring connection
(See Figure 10)
1. Disassemble the handle (4 screws)
on the right side of the outdoor unit.
2. Remove the wire clamp and
connect the end of the power
connection cord with screws to
the wiring terminal board. Be sure
that the wiring connection is in
accordance with the indoor unit’s
3. Fix the wiring with wire clamp.
joint the relevant interfaces
accordingly
4. Make sure that the wiring has
been connected securely.
5. Reassemble the handle.
Install the outdoor unit
Figure 10
Tightening torque table3. Hang the 2 mounting slots of the
indoor unit on the upper tabs of
the mounting plate and check if it
is firm enough.( figure 9. 10 )
4. The height of the installation
location should be 2.3m or more
from the floor.
Hex nut
diameter(mm)
6
9.5
12
15-20
31-35
50-55
Tightening
torque(N.m)
Spanner
Figure 9
Torque wrench
Union
Flare nut
handle

Installation for MWW518IB/TWK518JB
MWW524IB/TWK524JB
MCW - SVN13A - E4 11
Indoor unit installation
Install the mounting plate
1. Adjust the horizontal level of the mouning
plate. With the outlet of the drain hose at
the left side, lower the left side slightly
while adjusting the mounting plate.
2. Fixing the mounting plate on the wall with
screws.
3. Pull the mounting plate manually to check
its reliability after installation.Be sure that
the mounting plate has been fixed firmly
enough to withstand the weight of an
adult of 60kg, furthermore, the weight
should be evenly shared by each
screw.
Cut the piping hole
1 Connection tube can go out from six
directions, select one for needed as
shown in figure 1.
2 Make the piping hole (I65) in the wall at
a slight downward slant to the outdoor
side. The center of the hole should be
determined refer to Figure 2.
3 Insert the piping-hole sleeve into the hole
to prevent the connection piping and wiring
from being damaged when passing
through the wall.
Install the drain hose
1. For well draining, the drain hose should
be placed at a downward slant.
2. Do not wrench or bend the drain hose
or flood its end by water. (Figure 3)
3. Lengthened drain hose should be
wrapped with insulation when going
through the room.
Install the connection tube
Connect the connection tubes, and fasten
the coupling nuts of the connection tubes.
(See “Install the connection tube ” section).
Connect the connection tube with the
indoor unit firstly, and then the outdoor
unit.
Be careful in bending the connection
tube, or you will damage the tube.
If the tightening torque is too big in
tightening the flare nuts, leakage will
happen.
Figure 1
Electrical Wiring
1. Open the front coverl upwards.
2. Remove the wiring cover as shown in
figure 4.
3. Put the power connecting cables
through the chassis and control box bot-
tom from down to up.
4. Connect the blue power supply cable
with the terminal “N(1)”on the terminal
block,the brown one with terminal “2”,
the red one with terminal “3”, and the
yellow-green one (earth wire) with the
terminal “ ”. (Figure 4)
5. For heat pump model, one control cord
should be connected through connec-
tor (Figure 4) and should be clamped
with a clamp on the chasis.
6. Install the wiring cover to the original
place and fasten the screws.
7. Put back the front cover.
CAUTION!
Figure 2

Installation for MWW518IB/TWK518JB
MWW524IB/TWK524JB
MCW - SVN13A - E4
12
Install the indoor unit
1. When routing the piping or wiring from
the left or right side of the indoor unit,
cut off the tailings from the chassis in
necessary (Shown in figure 5)
(1) Cut access hole 1 when only routing
the power wire.
(2) Cut tailings 1 when routing both the
wiring and piping.
2. After wrapping the connetion tubes and
wire, put them through the wall piping
hole. (Figure 6)
3. Hang the grip at the back of the indoor
unit to the hook on the mounting plate,
check if it is firm enough.
CAUTION!
4. The height of the installation location
should be more than 2.3m from the floor.
All the electrical work must be done by
qualified personnel according to the local
rules and this manual.
The rated voltage and the exclusive circuit
must be used.
Leakage circuit - breaker must be
installed.
Please use specified fuse.
The diameter of power cord should be
large enough. Use the exclusive wire to
replace the damaged wire.
Wiring work should conform to national
standard.
Figure 4
Figure 6
Figure 5

Wrong wiring connection will cause
electrical mal-function.
After fixing the cables, make sure that
the cable between the connection location
and fixing location can move to some
extent.
Installation for MWW518IB/TWK518JB
MWW524IB/TWK524JB
MCW - SVN13A - E4 13
Outdoor Unit Installation
Install the connection tube
1. Align the center of the piping flare with
the relevant valve.
2. Screw in the flare nut by hand and then
tighten the nut with spanner and torque
wrench. (refer to figure 7) Note: Too
large torque will damage the nut.
Tightening torque table.
Electric wire Connection
1. Remove the front right side panel of
the outdoor unit and knock through the
outdoor wiring hole. Put on the wire rub-
ber ring.
2. Remove the wire clamp and connect the
end of the power connection cord with
screws to the wiring terminal board as
shown in figure 8.
3. Fix the power connection cord and control
cord by using the wire clamp.
4. Make sure that the wiring has been con-
nected securely.
5. Install the front side panel.

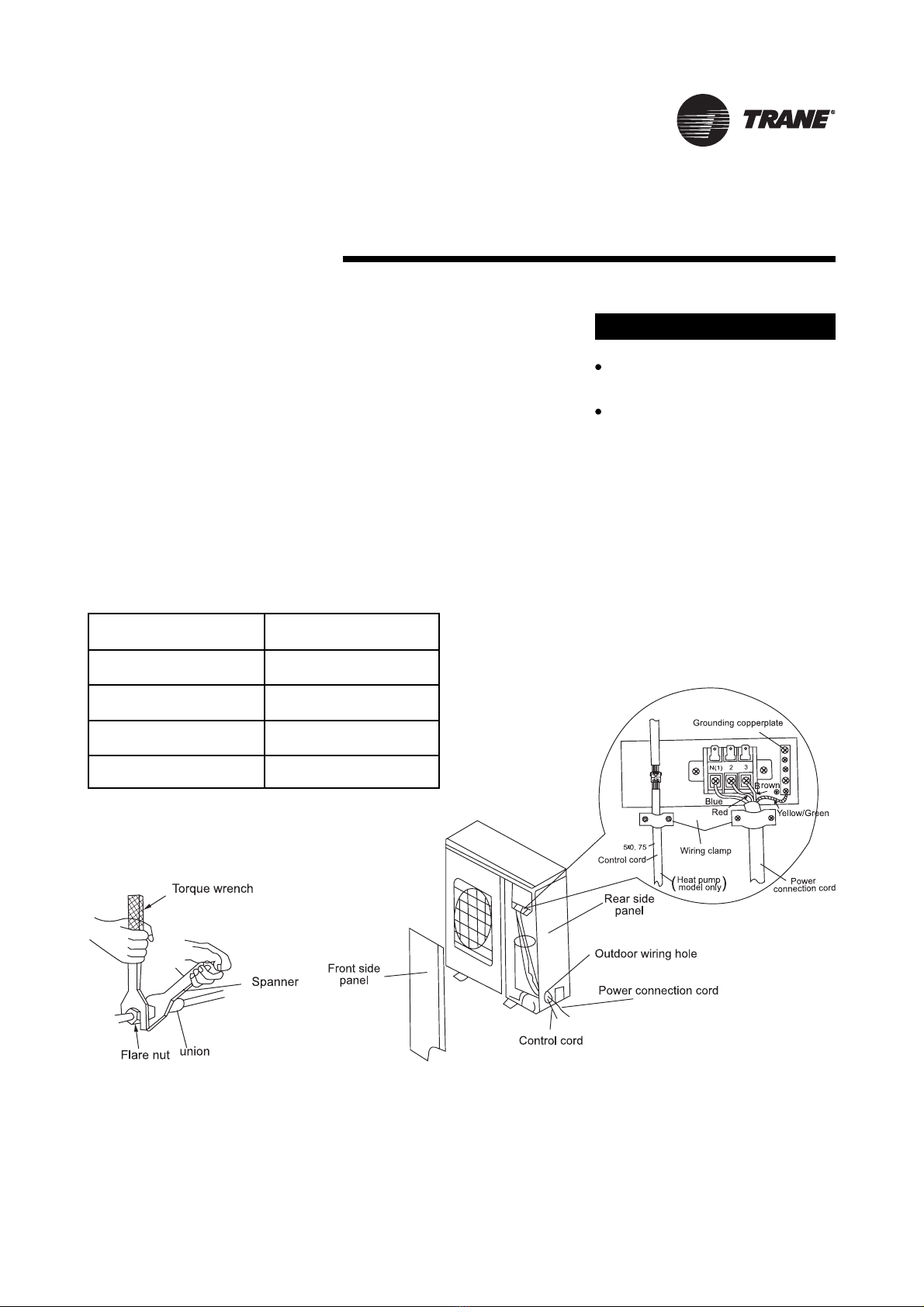

Figure 7 Figure 8
CAUTION!
Hex nut diameter(mm) Tightening torque(N m)
I6
I9.5
I12
I16
15 ~ 20
31 ~ 35
50 ~ 55
60 ~ 65

Installation for MWW526IB/TWK526JB
MCW - SVN13A - E4
14
Connect the connection tube with
the indoor unit firstly, and that the
outdoor unit.
Be careful in bending the
connection tube, or you will damage
the tube.
If the tightening torque is too big in
tightening the flare nuts, leakage will
happen.
Electrical Wiring

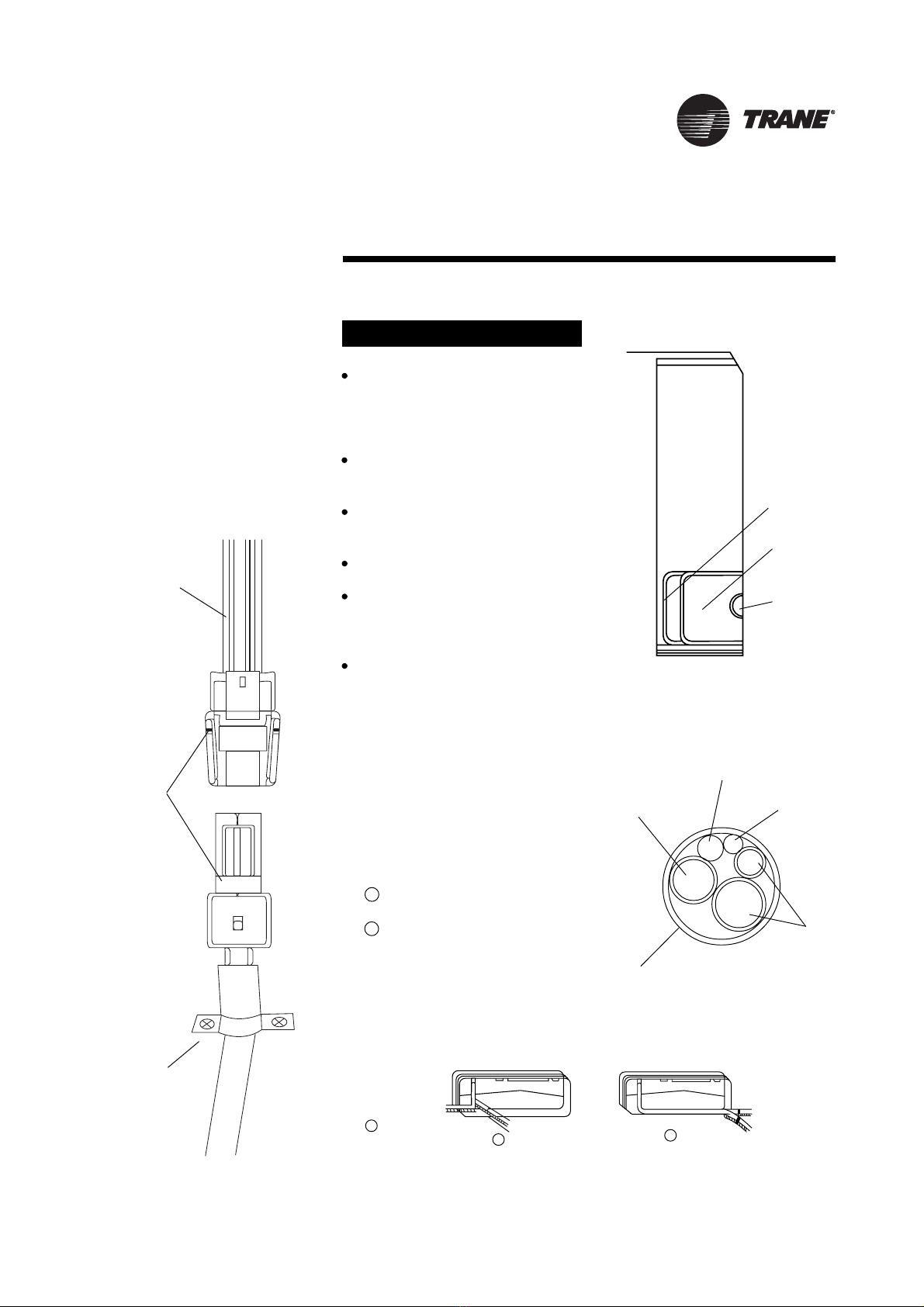

1. Open the front cover upwards.
2. Remove the wiring cover as shown
in figure 3.
3. Put the power connecting cables
through the chassis and control box
bottom from down to up.
4. Connect the blue power supply cable
with the terminal “N(1)”on the termi-
nal block, the brown one with termi-
nal “2”, the red one with terminal “3”,
and the yellow-green one (earth wire)
with the terminal “”,(Figure 3)
5. For heat pump model, one control cord
should be connected through connec-
tor and should be clamped with a
clamp.
6. Install the wiring access cover to the
original place and fasten the screws.
7. Put back the front cover.
CAUTION!
Figure 2
Figure 1
Cut the piping hole
1. Make the piping hole (I65) in the
wall at a slight downward slant to
the outdoor side. The center of the
hole should be determined refer to
Figure 1.
2. Insert the piping-hole sleeve into the
hole to prevent the connection pip-
ing and wiring from being damaged
when passing through the wall.
Install the drain hose
1. For well draining, the drain hose
should be placed at a downward
slant.
2. Do not wrench or bend the drain
hose or flood its end by water (Fig-
ure 2).
3. Lengthened drain hose should be
wrapped with insulation when
going through the room.
Install the connection tube
Connect the the connection tubes, and
fasten the coupling nuts of the connec-
tion tubes. (See “Install the connection
tube”section).
1.
2.
3.
Adjust the horizontal level of the
mounting plate.
Fixing the mounting plate on the wall
with screws.
Pull the mounting plate manually to
check its reliability after installation.
Be sure that the mounting plate has
been fixed firmly enough to with
stand the weight of an adult of
60kg, furthermore, the weight
should be evenly shared by each
screw.
Indoor Unit Installation
Install the mounting plate

Installation for MWW526IB/TWK526JB
MCW - SVN13A - E4 15
Install the indoor unit
1. When routing the piping or wiring from
the left or right side of the indoor unit,
cut off the tailings from the chassis in
necessary (Shown in figure 4)
(1) Cut tailing 1 when routing the power
wire only.
(2) Cut tailings 1 and 2 when routing
both the wiring and pipng.
2. After wrapping the connection tubes and
wire, put them through the wall piping
hole (Figure 5).
3. Hang the grip at the back of the indoor
unit to the hook on the mounting plate,
check if it is firm enough.
4. The height of the installation location
should be more than 2.3m from the floor.
Figure 4
Figure 5
All the electrical work must be done
by qualified personnel according to the
local rules and manual.
The rated voltage and the exclusive
circuit must be used.
Leakage circuit-breaker must be
installed.
Please use specified fuse.
The diameter of power cord should be
large enough. Use the exclusive wire to
replace the damaged wire.
Wire work should conform to national
standard.
CAUTION!
Figure 3

Installation for MWW526IB/TWK526JB
MCW - SVN13A - E4
16
Outdoor Unit Installation
Install the connection tube

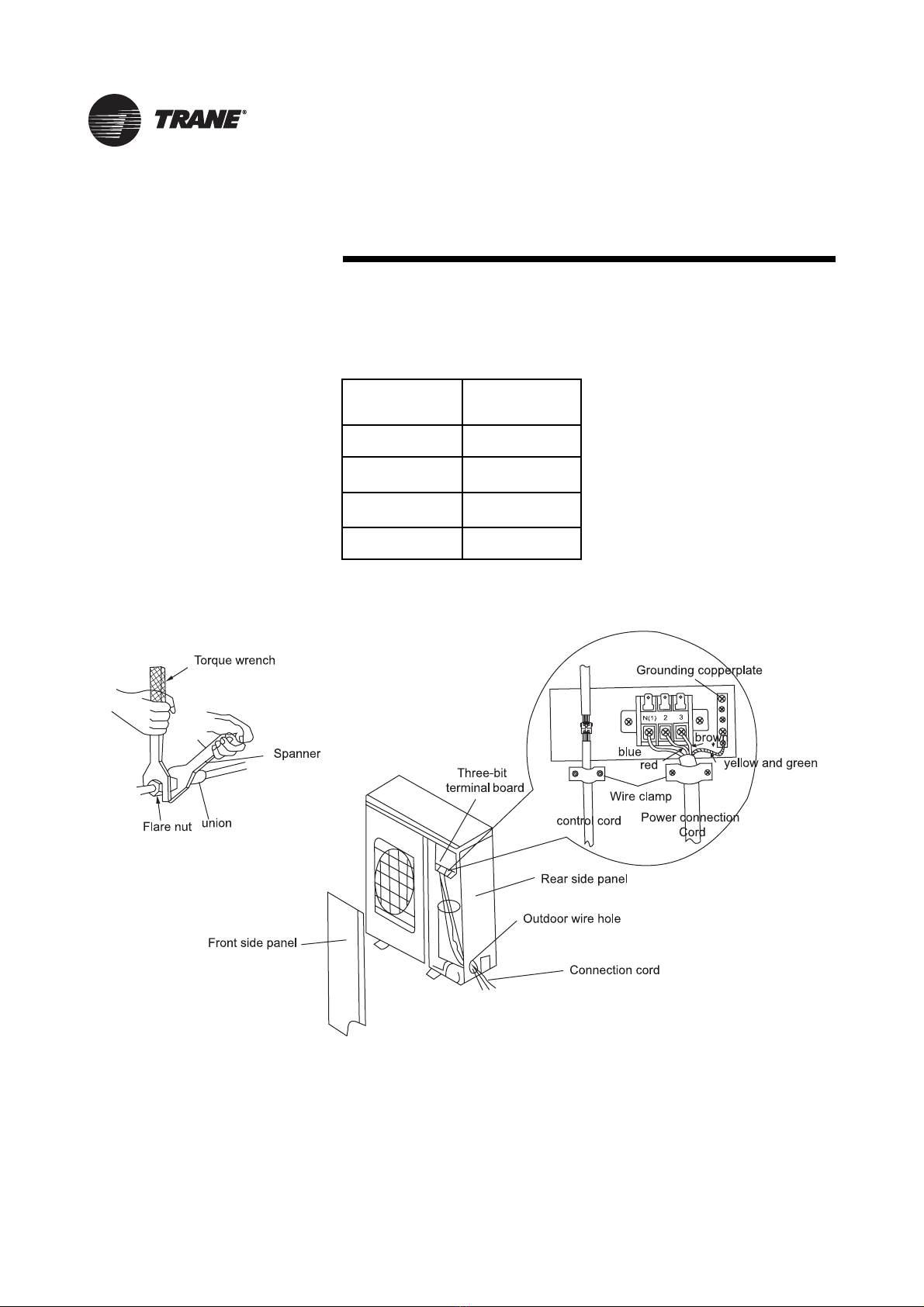

1. Align the center of the piping flare with
the relevant valve valve.
2. Screw in the flare nut by hand and then
tighten the nut with spanner and torque
wrench (figure 6). Tightening torque is
listed in the following table.
Electric wire Connection
1. Remove the front right side panel of
the outdoor unit and knock through the
outdoor wire hole. Put on the wiring
rubber ring.
2. Remove the wire clamp and connect the
end of the power connection cord with
screws to the wiring terminal board as
shown in figure 7.
3. Fix the power connecting wire and control
cord by using the wire clamp.
4. Make sure that the wiring has been con-
nected securely.
5. Install the front side panel.
Figure 6
Figure 7
Hex nut diameter
(mm)
Tightening torque
(N m)
I6
I9.5
I12
I16
15 ~ 20
31 ~ 35
50 ~ 55
60 ~ 65

Installation for MWW530IB/TWK530JB
Connect the connection tube with
the indoor unit firstly, and that the
outdoor unit.
Be careful in bending the
connection tube, or you will damage
the tube.
If the tightening torque is too big in
tightening the flare nuts, leakage will
happen.
Electrical Wiring
1. Open the front cover upwards.
2. Remove the wiring cover as shown
in figure 3.
3. Put the power connecting cables
through the chassis and control box
bottom from down to up.
4. Connect the blue power supply cable
with the terminal “N(1)”on the termi-
nal block, the brown one with termi-
nal “2”, the red one with terminal “3”,
and the yellow-green one (earth wire)
with the terminal “”,(Figure 3)
5. For heat pump model, one control cord
should be connected through connec-
tor and should be clamped with a
clamp.
6. Install the wiring access cover to the
original place and fasten the screws.
7. Put back the front cover.
CAUTION!
Figure 2
Figure 1
Cut the piping hole
1. Make the piping hole (I65) in the
wall at a slight downward slant to
the outdoor side. The center of the
hole should be determined refer to
Figure 1.
2. Insert the piping-hole sleeve into the
hole to prevent the connection pip-
ing and wiring from being damaged
when passing through the wall.
Install the drain hose
1. For well draining, the drain hose
should be placed at a downward
slant.
2. Do not wrench or bend the drain
hose or flood its end by water (Fig-
ure 2).
3. Lengthened drain hose should be
wrapped with insulation when
going through the room.
Install the connection tube
Connect the the connection tubes, and
fasten the coupling nuts of the connec-
tion tubes. (See “Install the connection
tube”section).
1.
2.
3.
Adjust the horizontal level of the
mounting plate.
Fixing the mounting plate on the wall
with screws.
Pull the mounting plate manually to
check its reliability after installation.
Be sure that the mounting plate has
been fixed firmly enough to with
stand the weight of an adult of
60kg, furthermore, the weight
should be evenly shared by each
screw.
Indoor Unit Installation
Install the mounting plate
MCW - SVN13A - E4 17

Installation for MWW530IB/TWK530JB
Install the indoor unit
1. When routing the piping or wiring from
the left or right side of the indoor unit,
cut off the tailings from the chassis in
necessary (Shown in figure 4)
(1) Cut tailing 1 when routing the power
wire only.
(2) Cut tailings 1 and 2 when routing
both the wiring and pipng.
2. After wrapping the connection tubes and
wire, put them through the wall piping
hole (Figure 5).
3. Hang the grip at the back of the indoor
unit to the hook on the mounting plate,
check if it is firm enough.
4. The height of the installation location
should be more than 2.3m from the floor.
Figure 4
Figure 5
All the electrical work must be done
by qualified personnel according to the
local rules and manual.
The rated voltage and the exclusive
circuit must be used.
Leakage circuit-breaker must be
installed.
Please use specified fuse.
The diameter of power cord should be
large enough. Use the exclusive wire to
replace the damaged wire.
Wire work should conform to national
standard.
CAUTION!
Figure 3
MCW - SVN13A - E4
18

Installation for MWW530IB/TWK530JB
Outdoor Unit Installation
Install the connection tube
1. Align the center of the piping flare with
the relevant valve valve.
2. Screw in the flare nut by hand and then
tighten the nut with spanner and torque
wrench (figure 6). Tightening torque is
listed in the following table.
Electric wire Connection
1. Remove the front right side panel of
the outdoor unit and knock through the
outdoor wire hole. Put on the wiring
rubber ring.
2. Remove the wire clamp and connect the
end of the power connection cord with
screws to the wiring terminal board as
shown in figure 7.
3. Fix the power connecting wire and control
cord by using the wire clamp.
4. Make sure that the wiring has been con-
nected securely.
5. Install the front side panel.
Figure 6
Figure 7
Hex nut diameter
(mm)
Tightening torque
(N m)
I6
I9.5
I12
I16
15 ~ 20
31 ~ 35
50 ~ 55
60 ~ 65
MCW - SVN13A - E4 19

Firmly hold copper pipe in a die in
the dimension shown in the table
above.
Check
Compare the flared work with fig-
ure in the right.
If flare is noted to be defective,cut
off the flared section and perform
flaring work again.
5.
Main cause of gas leakage is defectin
flaring work.
Perform flaring work correctly in the
following procedure.
Flaring work
Pipe Installation
Pipe cutting
Cut the copper pipe correctly with
pipe cutter.
Burrs removal
Completely remove all burrs from
the cut cross section of the pipe.
Put the end of the copper pipe
downward to prevent burrs from
dropping in the pipe.
Putting nut on
Remove flare nuts attached to
indoor and outdoor units,then put
them on pipe having completed
burr removal.
(not possible to put them on after
flaring work)
Flaring work
Perform flaring work using flaring
tool as shown in the right.
1.
2.
3.
4.
MCW - SVN13A - E4
20
