Trane Voyager III User manual

July 2009 PART-SVN121A-EN
Installation
Variable Frequency Drive
Conversion TR1 to TR200
IntelliPak™ I and II and Voyager™ III only
Models: Only Clarksville built units with factory installed VFDs. This includes the following Voyager III
commercial units with the VAV option and IntelliPak I and II units with the VAV and/or Statitrac™
option built prior to Trane TR200 drive unit installation.
S*HF 20 to 75 ton (IntelliPak I) TC, YC and TE 27½ to 50 ton (VIII)
S*HG 90 to 130 ton (IntelliPak I)
S*HJ 90 to 150 ton (IntelliPak II)

© 2009 Trane All rights reserved PART-SVN121A-EN
Warnings, Cautions and Notices
Warnings, Cautions and Notices. Note that warnings, cautions and notices appear at
appropriate intervals throughout this manual. Warnings are provided to alert installing contractors
to potential hazards that could result in personal injury or death. Cautions are designed to alert
personnel to hazardous situations that could result in personal injury, while notices indicate a
situation that could result in equipment or property-damage-only accidents.
Your personal safety and the proper operation of this machine depend upon the strict observance
of these precautions.
Note: This document is customer property and must be retained by the unit's owner for use by
maintenance personnel.
WARNING
Personal Protective Equipment (PPE) Required!
Installing/servicing this unit could result in exposure to electrical, mechanical and chemical
hazards.
• Before installing/servicing this unit, technicians MUST put on all Personal Protective
Equipment (PPE) recommended for the work being undertaken. ALWAYS refer to appropriate
MSDS sheets and OSHA guidelines for proper PPE.
• When working with or around hazardous chemicals, ALWAYS refer to the appropriate MSDS
sheets and OSHA guidelines for information on allowable personal exposure levels, proper
respiratory protection and handling recommendations.
• If there is a risk of arc or flash, technicians MUST put on all necessary Personal Protective
Equipment (PPE) in accordance with NFPA70E for arc/flash protection PRIOR to servicing the
unit.
Failure to follow recommendations could result in death or serious injury.Introduction
This manual describes the installation procedures required to retrofit TR1 Variable Frequency
Drives (VFD).
Trademarks
Trane, the Trane logo, IntelliPak, Statitrac, and Voyager are trademarks of Trane in the United States
and other countries. All trademarks referenced in this document are the trademarks of their
respective owners.
ATTENTION: Warnings, Cautions and Notices appear at appropriate sections throughout this
literature. Read these carefully.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury. It could also be used to alert against unsafe practices.
NOTICE:Indicates a situation that could result in equipment or property-damage only accidents.

Table of Contents
PART-SVN121A-EN 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Removing the Existing VFD and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
VFD Removal from Back Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power Supply Wiring Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control Wiring Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TR1 Keypad Assembly Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation of TR200 VFD and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
VFD and Back Panel Assembly for TR200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TR200 Drive Installation instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power Supply Wiring to TR200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Control Wiring to TR200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Keypad and Cable Adapter Assembly Installation for TR200 . . . . . . . . . 16
Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TR200 VFD Programming Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
VFD Programming Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Wiring Diagram Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4PART-SVN121A-EN
General Information
About This Manual
The step-by-step instructions outlined in this manual describe the procedures required to
successfully retrofit a TR1 on 20 ton to 150 ton IntelliPak™ I and II rooftop air conditioning and 27½
to 50 ton Voyager™ III rooftop air conditioning units to a Trane TR200 VFD drive. For help selecting
the proper parts for this work, refer to general service bulletin PART-SVB24A-EN or the most current
version of that same literature.
The installation instructions in this manual are divided into three general topic areas:
• Removal of existing TR1 VFD and components.
• Installation of replacement TR200 VFD and components.
• TR200 programming of parameters.
Follow start-up and trouble shooting procedures outlined in the service manuals of the unit and/
or the literature that is included with this TR200 control.
Tools Required
Very few tools are required to perform this installation. A service technician with a well-stocked tool
chest should have the right tools to perform the job; However, a large-frame VFD will require a
crimping tool for ring lugs and a drill with a #21 (4mm) drill bit sized to allow a #10-32 screw to
thread into sheet metal.

PART-SVN121A-EN 5
Removing the Existing VFD and Components
The section that follows will give the procedure to remove a TR1 VFD from its panel assembly and
remove the remote keypad in the IntelliPak I, IntelliPak II, and Voyager III main control panels.
Programming parameters are supplied with the VFD and a minimum of five must be set based on
unit specifications, see Table 4, p. 17.
VFD Removal from Back Panel Assembly
Locate the existing TR1 VFD unit enclosure near the return and exhaust section as shown in
Figure 1 and Figure 2, p. 5 for IntelliPak I units, adjacent to the supply/exhaust sections of IntelliPak
II Figure 3, p. 6 and opposite supply fans on the Voyager III units as shown in Figure 4, p. 6.
Identify the correct VFD for replacement. The IntelliPak I and II rooftops can have both supply and
exhaust/return VFDs. The IntelliPak I supply VFD is located on the back panel of the unit enclosure
and the exhaust/return VFD is located on the inner door of the unit enclosure which must be turned
to the open position for the VFD to be removed. The IntelliPak II supply VFD is adjacent to the supply
fan section, and the exhaust/return VFD is adjacent to the exhaust/return fan section. Voyager III
units only have supply VFDs and are located by the supply fan on the opposite side of the unit from
the control panel.
Figure 1. Typical IntelliPak I 20 to 75 ton configuration
SUPPLY FAN VFDSUPPLY FAN VFD
VARIABLE FREQUENCY DRIVEVARIABLE FREQUENCY DRIVE
ENCLOSUREENCLOSURE
EXHAUSTEXHAUST
FANFAN
VFDVFD
RETURN & EXHAUST SECTIONRETURN & EXHAUST SECTION
FILTER
SECTION
EVAP COIL
SUPPLY FAN SECTIONSUPPLY FAN SECTION
CONDENSER FANSCONDENSER FANS
COMPRESSOR SECTIONCOMPRESSOR SECTION
HEAT SECTIONHEAT SECTION
Figure 2. Typical IntelliPak I 90 to 130 ton configuration
HTG ACCESS
PANEL
HEAT SECTION
ELEC CONTROL
ELEC CONTROL
PANELPANEL
SUPPLY FAN SECTION
EVAP COIL
EVAP COIL
FILTER
SECTION
O/A DAMPERSR/A DAMPERS
RETURN & EXHAUST
EXHAUSTEXHAUST
FAN
FAN
VFDVFD
VARIABLE FREQUENCY DRIVEVARIABLE FREQUENCY DRIVE
ENCLOSUREENCLOSURE
SUPPLY FAN VFDSUPPLY FAN VFD
CONDENSER FANS
COMPRESSOR SECTION

6PART-SVN121A-EN
Removing the Existing VFD and Components
Figure 3. Typical IntelliPak II 90 to 150 ton configuration
Return/
Exhaust
Fan
Fresh Air
Dampers
Supply Fan
Condenser
Fans
Compressor
Section
Heating
Section
Exhaust Damper
Hood
Evap Coil
Evap Coil
Controls
Variable
Frequency
Drive (VFD)
Filter Section
Reheat Coil Option
Fresh Air
Dampers
Return Air Dampers
Variable
Frquency
Drive (VFD)
Variable
Frequency
Drive
Baysens set
2-Pc connection
tubings
Variable
Frequency
Drive
Figure 4. Typical Voyager III 27.5 to 50 ton configuration
VFD ACCESS

PART-SVN121A-EN 7
Removing the Existing VFD and Components
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote disconnects and discharge all motor start/run
capacitors before servicing. Follow proper lockout/tagout procedures to ensure the power
cannot be inadvertently energized. For variable frequency drives or other energy storing
components provided by Trane or others, refer to the appropriate manufacturer’s literature for
allowable waiting periods for discharge of capacitors. Verify with an appropriate voltmeter that
all capacitors have discharged. Failure to disconnect power and discharge capacitors before
servicing could result in death or serious injury.
Note: For additional information regarding the safe discharge of capacitors, see
PROD-SVB06A-EN or PROD-SVB06A-FR
Disconnect the following power supply and control wires from each VFD.
Power Supply Wiring Removal
The following instructions relate to either the IntelliPak I, II or Voyager III.
VFD with bypass
– Disconnect power supply wires 1A, 2A, 3A from VFD connection points 91, 92, 93 (L1, L2, L3
respectively) and wires 10A, 11A, 12A, 13A from VFD connection points 96, 97, 98, 95 (T1, T2,
T3, GND respectively).
VFD without bypass
– Disconnect power supply wire 1A, 2A, 3A from VFD connection points 91, 92, 93 (L1, L2, L3
respectively) and wires T1, T2, T3, 13A from VFD connection points 96, 97, 98, 95 (T1, T2, T3,
GND respectively).

8PART-SVN121A-EN
Removing the Existing VFD and Components
Control Wiring Removal
Disconnect all control wires from the TR1 VFD itself and note the connection point numbers. The
TR1 and TR200 have the same connection point numbers. See Tab l e 1 , p . 8 for common control
wires and their connection point numbers. See Ta bl e 2 , p . 8 for VFD keypad cables listed according
to product line and function.
Notes
1. * See Table 2, p. 8 for cable names.
2. ** IntelliPak I 90-130 ton units only.
3. ***VFD with bypass only.
Note: * IntelliPak I 90-130 ton units only.
Table 1. Listed are typical control wires to remove from the TR1 and reinstall on the TR200. This
applies to IntelliPak I, IntelliPak II, and Voyager III drives except as noted. Extra spaces
are included in the table so that any other control wires may be recorded
Control Wire
VFD Connection
Point
18B 12
28A 27
30A 53
31A 55
32A 18
34A*** 05
Jumper wire*** 39 and 04
VFD keypad cable* Sub D Connector (front
of VFD)
45A** 02*
46A** 01*
Table 2. Listed are VFD keypad cables according to product line and VFD function
Product/Function Keypad Cable
IntelliPak I/ Supply Fan CBL3U72-6
IntelliPak I/ Exh/Rtn Fan CBL3U74-6
IntelliPak I/ Supply Fan #1* CBL3U72-6
IntelliPakI/ Supply Fan #2* CBL3U73-6
IntelliPak II/ Supply Fan CBL5U16-6
IntelliPak II/ Exh/Rtn Fan CBL8U17-6
Voyager III/ Supply Fan CBLVFD-6

PART-SVN121A-EN 9
Removing the Existing VFD and Components
WARNING
Heavy Objects!
Do not use cables (chains or slings) except as noted. Each of the cables (chains or slings) used to
lift the unit must be capable of supporting the entire weight of the unit. Lifting cables (chains or
slings) may not be of the same length. Adjust as necessary for even unit lift. Other lifting
arrangements may cause equipment or property-only damage. Failure to properly lift unit could
result in death or serious injury. See details below.
After all cables and power supply wiring have been disconnected, locate and remove the 4
fasteners securing the TR1 drive to its back panel (retain fasteners). The weight of these drives can
vary from approximately 20 to 230 lbs (see Tab l e 3 for estimates). Verify actual weights before
lifting. Follow safe procedures for lifting and removing the supply fan VFD drive and back panel
assembly from the compartment and/or inner enclosure door if exhaust fan VFD is being removed.
TR1 Keypad Assembly Removal

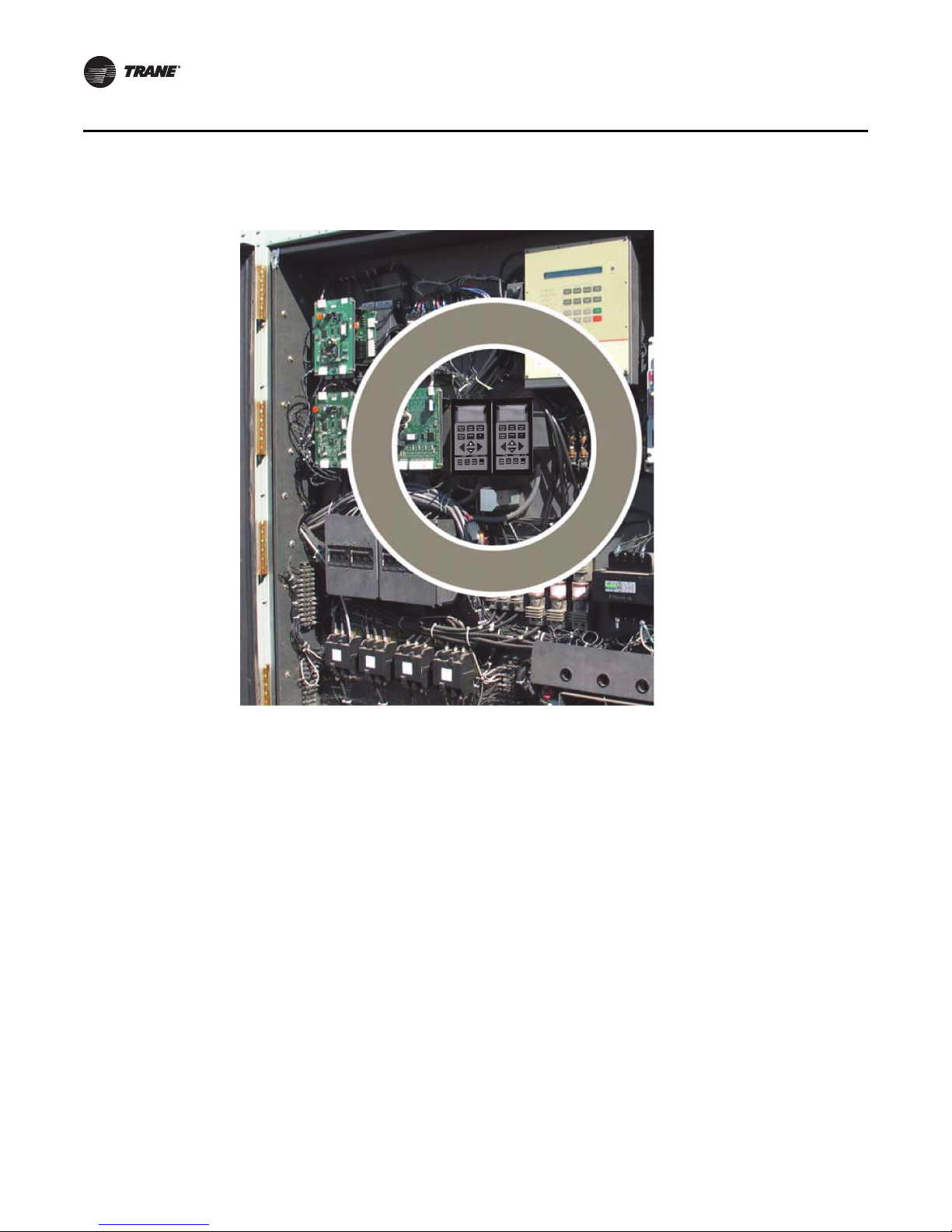

Locate the existing VFD keypad display in the main control box as shown in Figure 5, p. 10.
Using the keypad cable number to verify which keypad is associated with the TR1 drive being
replaced, remove the keypad and keypad cradle (retain cradle screws) from the control box. Leave
the keypad cable as it will be used with the TR200 keypad.
Table 3. Estimated drive weights
Motor
Voltage
Motor
Horsepower
Estimated
Weight
Motor
Voltage
Motor
Horsepower
Estimated
Weight
VAC Hp lb kg VAC Hp lb kg
200 or 230 1.5 20 9 460 or 575 1.5 24 10
200 or 230 3.0 20 9 460 or 575 3.0 24 10
200 or 230 5.0 50 23 460 or 575 5.0 24 10
200 or 230 7.5 50 23 460 or 575 7.5 24 10
200 or 230 10 50 23 460 or 575 10 24 10
200 or 230 15 50 23 460 or 575 15 50 23
200 or 230 20 70 32 460 or 575 20 50 23
200 or 230 25 70 32 460 or 575 25 50 23
200 or 230 30 110 50 460 or 575 30 66 30
200 or 230 40 230 105 460 or 575 40 66 30
460 or 575 50 106 48
460 or 575 60 106 48
460 or 575 75 106 48
460 100 120 55

10 PART-SVN121A-EN
Removing the Existing VFD and Components
Figure 5. Typical existing remote keypad

PART-SVN121A-EN 11
Installation of TR200 VFD and Components
VFD and Back Panel Assembly for TR200
WARNING
Heavy Objects!
Do not use cables (chains or slings) except as rated. Each of the cables (chains or slings) used to
lift the unit must be capable of supporting the entire weight of the unit. Lifting cables (chains or
slings) may not be of the same length. Adjust as necessary for even unit lift. Other lifting
arrangements may cause equipment or property-only damage. Failure to properly lift the unit
could result in death or serious injury. See details below.
Remove VFD TR200 from the box and find the adapter plate from the kit to follow the instructions
below.
TR200 Drive Installation instruction

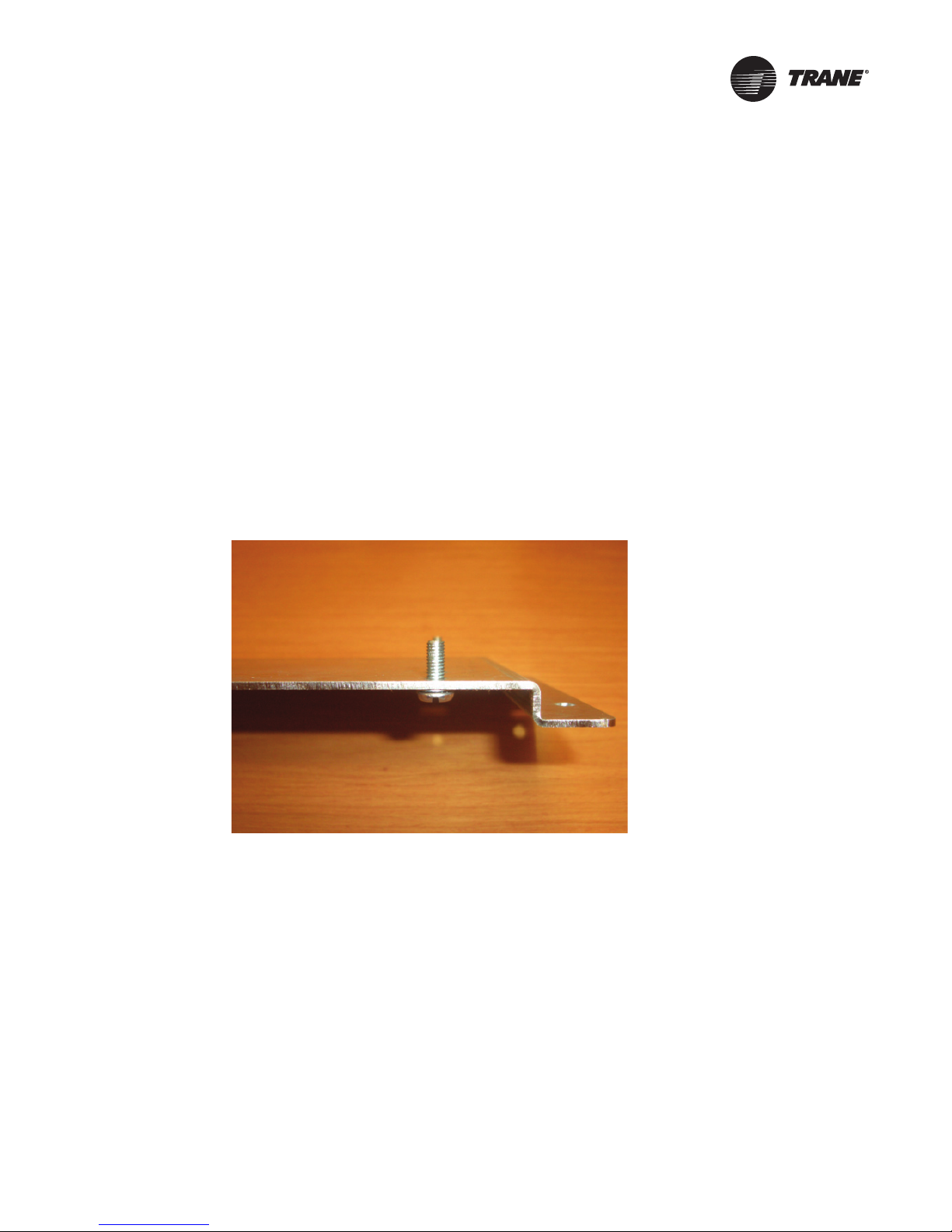

1. Identify the hole-pattern on the TR200 adapter plate that matches the TR200 replacement drive.
2. Install kit-supplied screws (SCRW MACH HEX .25-20x .625) and internal tooth lock-washers
(WASH LOCK SPL .25x.484x.072 ST) in the TR200 drive adapter plate from the back.
3. Line up the TR200 on the adapter plate screws with the top of the drive nearest the edge.
Excepting large-frame VFDs, there should be room on the adapter plate for fuses to mount
below the VFD (Step 6). Fasten the TR200 drive with kit-supplied nuts (NUT KEPS HEX .25-20
ST).

12 PART-SVN121A-EN
Installation of TR200 VFD and Components
4. Install the TR200 drive with adapter plate utilizing the TR1 mounting hardware.
NOTICE: The supplementary fuses contained in these kits are required
to adequately protect the TR200.
5. Remove the fuses, fuse block, and fuse guard from the kit.
6. For smaller VFD: using the adapter plate mounting holes and 4 kit-provided fasteners (SCRW
TROL HXW #8-32x .5), mount the fuse block on the adapter plate below the TR200 and install
the 3 provided fuses into the fuse block. This figure shows typical fuse installation.
7. For large VFD: remove the fuse mounting bracket with 4 screws (TROL HXW #10-32x .5) and
remove 6 fuse mounting studs (.31-18x1.75) with 6 screws (MACH FLT) from the kit . Install the

PART-SVN121A-EN 13
Installation of TR200 VFD and Components
6 fuse studs to the fuse bracket so that each fuse will fit on two studs. Using the 4 screws, mount
this fuse bracket assembly directly to the existing TR1 panel similar to the figure below. Drilling
is required to mount the fuse bracket; use the fuse bracket as a drill template to mark the existing
panel (ensure a minimum of .5 inches through-air clearance between the bracket and all live
connections on the existing panel). Remove all metal shavings.
Note: The large VFD fuses are not actually installed onto the studs until after Power Supply Wiring
is connected. This is because the wire lug is the first item that stacks onto each fuse stud.
8. Ensure fuse guard mounting holes are accessible for installing the guard (after re-connecting
power wires).
Power Supply Wiring to TR200
The existing unit VFD schematic, along with the fuse modification drawing “TR200 Schematic,”
p. 14, may be used as a reference or specific wiring schematics can be found in “Wiring Diagram
Matrix,” p. 19.

14 PART-SVN121A-EN
Installation of TR200 VFD and Components
VFD with bypass, with and without line reactors.
– Connect 1A, 2A, 3A (originally from VFD connection points 91, 92, 93) to the new
supplementary fuses F40, F41, F42*. Let the top/left most fuse be F40 by connecting wire
1A to it. Let the middle fuse be F41 by connecting wire 2A to it. Let the last fuse be F42 by
connecting wire 3A to it. Using the kit-supplied wire*, connect F40, F41, F42 to VFD
connection points 91, 92, 93 (L1, L2, L3 respectively). Reconnect wires 10A, 11A, 12A, 13A
to VFD connection points 96, 97, 98, 95 (T1, T2, T3, GND respectively)**.
VFD without bypass, with and without line reactors.
– Connect 1A, 2A, 3A (originally from VFD connection points 91, 92, 93) to the new
supplementary fuses F40, F41, F42*. Let the top/left most fuse be F40 by connecting wire
1A to it. Let the middle fuse be F41 by connecting wire 2A to it. Let the last fuse be F42 by
connecting wire 3A to it. Using the kit-supplied wire*, connect F40, F41, F42 to VFD
connection points 91, 92, 93 (L1, L2, L3 respectively). Reconnect wires T1, T2, T3 to VFD
connection points 96, 97, 98, 95 (T1, T2, T3, GND respectively)**.
Verify wire routing does not block access to fuse guard mounting holes. Having connected the
Power Supply wiring, the fuse guard can be installed over fuses F40, F41, F42 using 4 kit screws
(SCRW TROL HXW #8-32x .5). Apply the supplied fuse replacement label to the fuse guard. Ensure
ground wires are properly secured per the existing VFD schematic or appropriate wiring
schematics referenced in “Wiring Diagram Matrix,” p. 19.
Note: * Large VFD only: connect wires to the fuse studs on which F40, F41, F42 will mount using
the supplied crimp-on terminals.
Note: ** Large VFD only: after Power Supply wires are on the fuse studs, add the following kit
components in order on each stud:
1. Fuse standoff (HEX .63 FF .31-18 .50 AL)
2. Fuse
3. Flat washer (.31x.688x.070 ST)
4. Lock washer (SPL .31x.580x.082 ST)

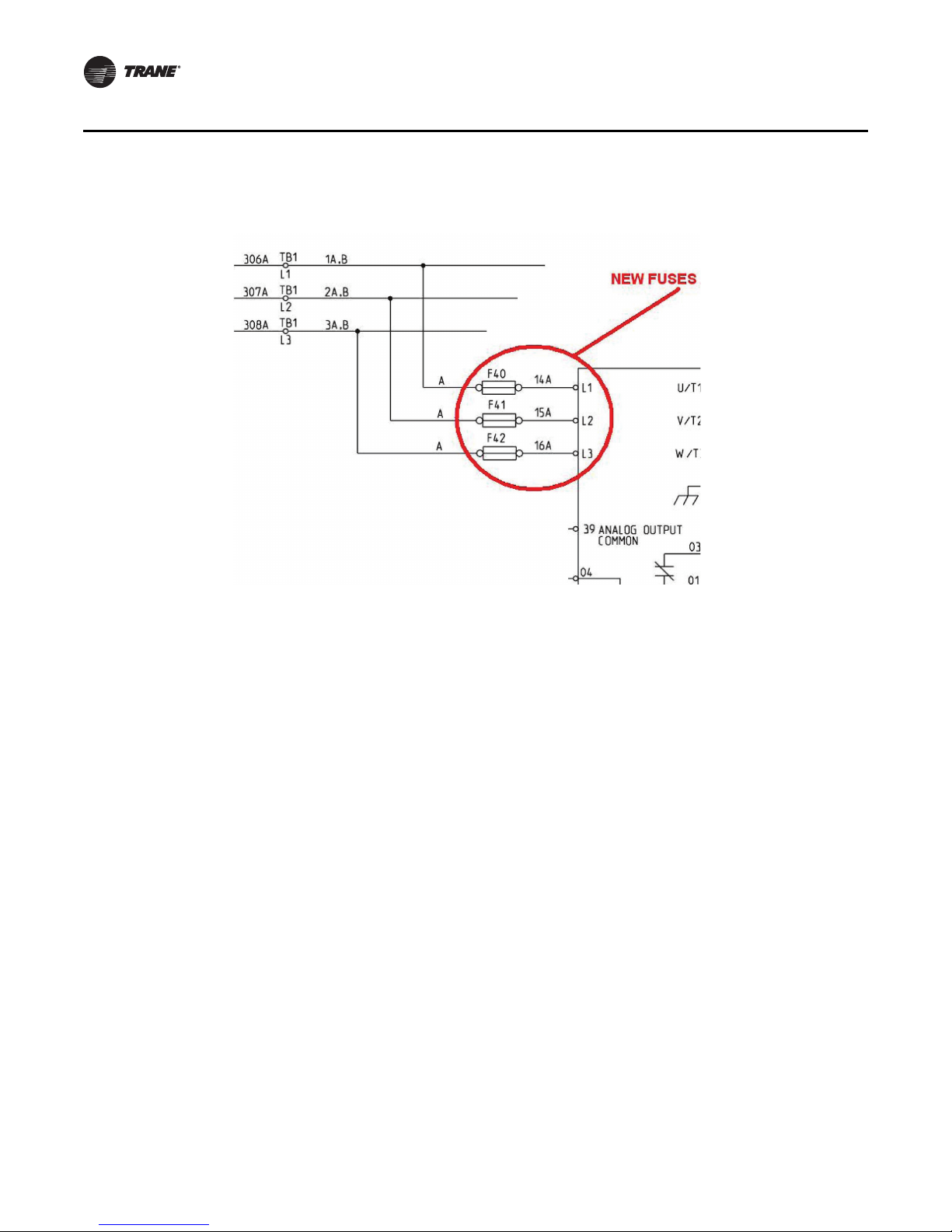

Figure 6. TR200 Schematic

PART-SVN121A-EN 15
Installation of TR200 VFD and Components
5. Hex nut ( .31-18 ST)
Control Wiring to TR200
Reconnect all control wires to the TR200 VFD according to the connection point numbers noted
during TR1 removal. The TR1 and TR200 have the same connection point numbers. See Ta b l e 1 ,
p. 8 for common control wires and their connection point numbers. See Tabl e 2 , p . 8 for VFD
keypad cables listed according to product line and function.
The existing unit VFD schematic may be used as a reference or specific wiring schematics can be
found in “Wiring Diagram Matrix,” p. 19.
Figure 7. Typical VFD installation
VFD Keypad
VFD Enclosure
Back Panel
VFD Enclosure
Side Panel
Backpanel and TR200
Drive Assembly

16 PART-SVN121A-EN
Installation of TR200 VFD and Components
Keypad and Cable Adapter Assembly Installation for TR200
Remove the keypad mounting brackets, TR200 keypad cradle, and ribbon cable adapter from
supplied parts kit.
1. Remove the Local Control Panel keypad (LCP) from the TR200 drive to remote-mount in the unit
control box.
2. Install the TR200 LCP cradle: using the mounting screws retained from removal of the TR1
cradle, install both LCP adapter brackets with the "hourglass" shaped side facing out and
hanging down. The "hourglass" indentations allow the screw driver to fasten the screws. Use
4 screws (TROL HXW #8-32x .5) supplied in the kit to mount the TR200 LCP cradle to the adapter
brackets.
3. Connect the existing LCP cable to the TR200 LCP: plug the ribbon cable adapter into the existing
LCP cable*, feed the ribbon cable adapter through the existing LCP cable sheet metal hole/
passageway, and then feed it through the TR200 LCP cradle cable hole. Apply edge protection
to sheet metal and strain relief for the ribbon cable adapter.
4. Install the TR200 LCP into the cradle bottom edge first-then rock the top edge into the cradle
ensuring the ribbon cable adapter is plugged in until the LCP is firmly in place.
Note: * To secure the existing cable plug to the ribbon cable adapter, add the supplied jack posts
to the cable adapter and replace the existing cable jack screws with kit jack screws.
Miscellaneous
Find the appropriate wiring schematic and connection drawing referenced in “Wiring Diagram
Matrix,” p. 19, and print a copy from e-Library (if accessible) or contact the local Trane
representative to obtain a copy. Tape or glue the the printout over the wiring schematic and
connection drawing found on the VFD unit enclosure door.
Figure 8. Typical TR200 VFD remote keypad installation

PART-SVN121A-EN 17
Installation of TR200 VFD and Components
TR200 VFD Programming Information
Please refer to BAS-SVX19A-EN (Operating Instructions: TR200), or the most recent version, for complete
programming information.
VFD Programming Parameters
Please follow these instructions for setting the TR200 programming parameters listed in Ta b l e 4 ,
p. 17.
Note: Check to make sure that parameter 1-23 is set to 60 Hz. To check parameter 1-23 press the
[Main Menu] button (press [Back] button if the main menu does not display), use the [▼]
button to scroll down to Load & Motor, press OK, use the [▼] button to select 1-2, press OK,
and finally use the [▼] button until parameter 1-23 is displayed. Parameter 1-23 can then
be modified by pressing OK button and using [▲] and [▼] buttons. When the desired
selection has been made, press the OK button.
To verify and/or program a VFD, use the following steps:
1. At the unit, turn the 115 volt control circuit switch to the "Off" position.
2. Turn the 24 volt control circuit switch to the "Off' position.
WARNING
Personal Protective Equipment (PPE) Required!
Installing/servicing this unit could result in exposure to electrical, mechanical and chemical
hazards.
• Before installing/servicing this unit, technicians MUST put on all Personal Protective
Equipment (PPE) recommended for the work being undertaken. ALWAYS refer to appropriate
MSDS sheets and OSHA guidelines for proper PPE.
• When working with or around hazardous chemicals, ALWAYS refer to the appropriate MSDS
sheets and OSHA guidelines for information on allowable personal exposure levels, proper
respiratory protection and handling recommendations.
Table 4. Supply and Exhaust VFD Programming Parameters—Air-Cooled
Condensers
Menu Parameter Description Setting Description
Load & Motor 1-21 Motor Power Set Based on
Motor Nameplate
Set only for
application using
3hp hi- Efficiency
motors. Set to
2.2 kW/3 hp
1-22 Motor Voltage Set Based on
Motor Nameplate
Set only for 380/
415 50 Hz
applications
1-24 Motor Current Set Based on
Motor Nameplate
Sets the motor
FLA
1-25 Motor Speed Set Based on
Motor Nameplate
Sets the motor
RPM
Limits & Warnings 4-18 Current Limit Rated Current
100%
Limits the
maximum current
to motor
Notes:
1. These parameters are motor specific and the actual motor nameplate rating must be used. Do
not use the unit nameplate.

18 PART-SVN121A-EN
Installation of TR200 VFD and Components
• If there is a risk of arc or flash, technicians MUST put on all necessary Personal Protective
Equipment (PPE) in accordance with NFPA70E for arc/flash protection PRIOR to servicing the
unit.
Failure to follow recommendations could result in death or serious injury.Introduction
3. To modify parameters:
a. Press Main Menu button (press [Back] button if the main menu does not display)
b. Use the [▲] and [▼]buttons to find the parameter menu group (first part of parameter
number)
c. Press [OK]
d. Use the [▲] and [▼]buttons to select the correct parameter sub-group (first digit of second
part of parameter number)
e. Press [OK]
f. Use the [▲] and [▼]buttons to select the specific parameter
g. Press [OK]
h. To move to a different digit within a parameter setting, use the [..] buttons (Highlighted area
indicates digit selected for change)
i. Use the [▲] and [▼]buttons to adjust the digit
j. Press [Cancel] button to disregard change, or press [OK] to accept change and enter the new
setting
4. Repeat step (3) for each menu selection setting in Table 4 , p. 1 7 .
5. To reset all programming parameters back to the factory defaults:
a. Go to parameter 14-22 Operation Mode
b. Press [OK]
c. Select "Initialization?h
d. Press [OK]
e. Cut off the mains supply and wait until the display turns off.
f. Reconnect the mains supply - the frequency converter is now reset.
g. Ensure parameter 14-22 Operation Mode has reverted back to "Normal Operation".
Note: Item 5 resets the drive to the default factory settings. The program parameters listed in
Table 4, p. 17 will need to be verified or changed as described in Item 3 and 4.
Note: Some of the parameters listed in the Table are motor specific. Due to various motors and
efficiencies available, use only the values stamped on the specific motor nameplate. Do not
use the Unit nameplate values.
Note: A backup copy of the current setup may be saved to the LCP before changing parameters
or resetting the drive. See LCP Copy in the VFD Operating Instructions for details.
6. Follow the startup procedures for supply fan in the "Variable Air Volume System" section or the
"Exhaust Airflow Measurement" startup procedures for the exhaust fan.
7. After verifying that the VFD(s) are operating properly, press the STOP key at the Human
Interface Module to stop the unit operation.
8. Follow the applicable steps in the "Final Unit Checkout" section in the unit Installation,
Operation, Maintenance Manual (IOM) to return the unit to its normal operating mode.
Note: If a problem with a VFD occurs, ensure that the programmed parameters listed for supply
and exhaust VFD Ta b l e 4 , p . 17 have been set before replacing the drive.

PART-SVN121A-EN 19
Wiring Diagram Matrix
Table 5. TR200 VFD IntelliPak™ wiring schematics and connection diagrams
Wiring Diagram
Number Description
2309-3576 020 through 075 ton, Supply fan VFD with bypass control, rooftop single motor application
2309-3577 090 through 130 ton, Supply fan VFD 1 with bypass control, dual motor application
2309-3578 020 through 130 ton, Exhaust/return fan VFD with bypass control, rooftop
2309-3579 090 through 130 ton, Exhaust/return fan VFD 2 with bypass control, dual motor application
2309-3580 020 through 075 ton, Supply fan VFD without bypass control, single motor application
2309-3581 090 through 130 ton, Supply fan VFD 1 without bypass control, dual motor application
2309-3582 020 through 130 ton, Exhaust/return fan VFD without bypass control
2309-3583 090 through 130 ton, Supply fan VFD 2 without bypass control, dual motor application
2309-3587 020 through 130 ton, Constant volume external field mounted devices, area 5
2309-3588 020 through 130 ton, Variable air volume external field mounted devices, area 5
Note: Wiring diagrams are available via e-Library (if accessible) or contact the local Trane representative to obtain a copy.
Table 6. TR200 VFD IntelliPak™ wiring schematics and connection diagrams
Wiring Diagram
Number Description
2309-3606 SCHEMATIC-POWER-2-PC-W/SUP VFD 90-150 TON
2309-3607 SCHEMATIC-POWER-2-PC-W/EXH/RTN VFD 90-150 TON
2309-3608 PRINT SCHEMATIC-POWER-2-PC-W/SUP & EXH/RTN VFD 90-150 TON
2309-3610 SCHEMATIC-POWER-W/SUPPLY VFD-W/LOW AMBIENT 90-105 TON
2309-3611 SCHEMATIC-POWER-W/ EXH/RTN VFD-W/LOW AMBIENT 90-105 TON
2309-3612 LABEL SCHEMATIC-POWER-W/SUPPLY & EXH/RTN VFD-W/LOW AMBIENT 90-105 TON
2309-3614 SCHEMATIC-POWER-2-PC-W/SUPPLY VFD-W/LOW AMBIENT 90-105 TON
2309-3615 SCHEMATIC-POWER-2-PC-W/ EXH/RTN VFD-W/LOW AMBIENT 90-105 TON
2309-3616 SCHEMATIC-POWER-2-PC-W/SUPPLY & EXH/RTN VFD-W/LOW AMBIENT 90-105 TON
2309-3618 SCHEMATIC-POWER-W/SUPPLY VFD-W/LOW AMBIENT 120-150 TON
2309-3619 SCHEMATIC-POWER-W/ EXH/RTN VFD-W/LOW AMBIENT 120-150 TON
2309-3620 SCHEMATIC-POWER-W/SUPPLY & EXH/RTN VFD-W/LOW AMBIENT 120-150 TON
2309-3621 SCHEMATIC-POWER-2-PC-STD-W/LOW AMBIENT 120-150 TON
2309-3622 SCHEMATIC-POWER-2-PC-W/SUPPLY VFD-W/LOW AMBIENT 120-150 TON
2309-3623 SCHEMATIC-POWER-2-PC-W/ EXH/RTN VFD-W/LOW AMBIENT 120-150 TON
2309-3624 SCHEMATIC-POWER-2-PC-W/SUPPLY & EXH/RTN VFD-W/LOW AMBIENT 120-150 TON
2309-3631 SCHEMATIC-CONTROLS-RTM-2-PC-W/EXH/RTN VFD 90-150 TON
2309-3632 SCHEMATIC-CONTROLS-RTM-2-PC-W/SUP & EXH/RTN VFD 90-150 TON
2309-3645 SCHEMATIC-LHI-ECEM-VCM-MPM-W/O EXH OR RTN VFD
2309-3646 SCHEMATIC-LHI-ECEM-VCM-MPM-W/ RTN VFD
2309-3647 SCHEMATIC-LHI-ECEM-VCM-MPM-W/ EXH VFD
2309-3648 SCHEMATIC-LHI-ECEM-VCM-MPM-2PC-W/O EXH OR RTN VFD
2309-3649 SCHEMATIC-LHI-ECEM-VCM-MPM-2/3 PC-W/ RTN VFD
2309-3650 SCHEMATIC-LHI-ECEM-VCM-MPM-2/3 PC-W/ EXH VFD
Note: Wiring diagrams are available via e-Library (if accessible) or contact the local Trane representative to obtain a copy.

20 PART-SVN121A-EN
Wiring Diagram Matrix
Table 7. TR200 VFD Voyager™ III wiring schematics and connection diagram
Wiring Diagram
Number Description
2309-3584 Voyager III fan VFD with bypass control
2309-3585 Voyager III fan VFD without bypass control
Note: Wiring diagrams are available via e-Library (if accessible) or contact the local Trane representative to obtain a copy.
