Trane BAYWACC11SC1AA Assembly instructions

Top Mount Hydronic
Coil Accessory
Fits HyperionTM and ForeFrontTM
Air Handler models
INSTALLER'S
GUIDE
IMPORTANT —This Document is customer property and is to remain with this unit. Please return to service information
pack upon completion of work.
ALL phases of this installation must comply with
NATIONAL, STATE AND LOCAL CODES
18-GJ37D1-6A-EN
Model:
BAYWACC11SC1AA
Table of Contents
Section 1. Safety Considerations.........................2
Section 2. General Information ............................3
Section 3. Hydronic Coil Assembly .....................4
Section 4. Install Hydronic Coil............................5
Section 5. Piping....................................................6
Section 6. Tables ...................................................7
Section 7. Ducting .................................................7
Section 8. Field Wiring Diagrams.........................8
HotWater
Out
HotWater
In
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL 1995
CAN/CSA-C22.2 No. 236
E212365

Page 2
INSTALLER'S GUIDE
Section 1. Safety Considerations
SAFETY HAZARD!
All joints must be leak free. Seal per local and national codes.
CAUTION
SAFETY HAZARD! Sharp Edge Hazard. Be careful of
sharp edges on equipment or any cuts made on sheet metal while
installing or servicing. Personal injury may result.
CAUTION
1.1 WARNINGS
IMPORTANT: Read this manual carefully before attempting to install,
operate, or perform maintenance on this hydronic coil. Installation,
service, and maintenance should be performed by qualied technicians
only.
NOTE: “Warnings” and “Cautions” appear at appropriate places in this
manual. Read these carefully. Your personal safety and the proper
operation of this heating product require that you follow them carefully.
The manufacturer assumes no liability for installations or services
performed by independent dealers.
Safety signal words are used to designate a degree or level of serious-
ness associated with a particular hazard. The signal words for safety
markings are WARNING and CAUTION.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in property damage, death or serious personal
injury.
CAUTION
!
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It is also used to alert
against unsafe practices and hazards involving only property damage.
s
s
WARNING
THE INFORMATION IN THIS GUIDE IS FOR USE BY INDIVIDUALS
HAVING ADEQUATE ELECTRICAL AND MECHANICAL BACK-
GROUND. ANY ATTEMPTS, BY UNQUALIFIED PERSONS, AT
PLUMBING, INSTALLING OR REPAIRING A HYDRONIC SYSTEM
OR CENTRAL AIR CONDITIONING PRODUCT COULD RESULT IN
PROPERTY DAMAGE, SEVERE PERSONAL INJURY OR DEATH.
THE MANUFACTURER OR SELLER CANNOT BE RESPONSIBLE
FOR THE INTERPRETATION OF THIS INFORMATION, NOR CAN IT
ASSUME ANY LIABILITY IN CONNECTION WITH ITS USE.
s
s
WARNING
ELECTRICAL HAZARD!
DISCONNECT ALL ELECTRICAL POWER, INCLUDING REMOTE
DISCONNECTS BEFORE INSTALLING OR SERVICING. FOLLOW
PROPER LOCKOUT/TAGOUT PROCEDURES TO ENSURE THE
POWER CAN NOT BE INADVERTENTLY ENERGIZED. FAILURE TO
FOLLOW THIS WARNING COULD RESULT IN SERIOUS PERSONAL
INJURY, DEATH, OR PROPERTY DAMAGE.
s
s
WARNING
HIGH PRESSURE HAZARD!
MAXIMUM ENTERING WATER TEMPERATURE IS 180°F. WATER
TEMPERATURES EXCEEDING 180°F COULD CAUSE A HIGH
PRESSURE BURST. FAILURE TO FOLLOW THIS WARNING COULD
RESULT IN SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY
DAMAGE.
s
s
WARNING
SCALD HAZARD!
THIS SYSTEM CONTAINS HOT WATER AND OPERATES UNDER
PRESSURE. WATER TEMPERATURES ABOVE 125°F CAN INSTANT-
LY CAUSE SEVERE BURNS OR DEATH.
USE CAUTION WHEN SERVICING THIS EQUIPMENT. ALLOW SUF-
FICIENT TIME FOR THE WATER TO COOL BEFORE OPENING THE
SYSTEM DRAIN. FAILURE TO FOLLOW THIS WARNING COULD
RESULT IN SERIOUS PERSONAL INJURY, PROPERTY DAMAGE, OR
DEATH.
s
s
WARNING
LEAK HAZARD!
IF THE HYDRONIC COIL HAS A LEAK, USE CAUTION WHEN
SERVICING THIS EQUIPMENT. THOROUGHLY WIPE OFF EXCESS
WATER FROM ALL COMPONENTS AND ALLOW ADEQUATE TIME
FOR THE COMPONENTS TO DRY COMPLETELY BEFORE SERVIC-
ING SYSTEM.
FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS
PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH.
1.2 CAUTIONS
s
s
WARNING
SAFETY HAZARD!
REMOVE ANY ELECTRICAL STRIP HEATERS WHEN INSTALLING
THE HYDRONIC HEATER COIL. ELECTRICAL AND HYDRONIC
HEAT MUST NOT BE USED TOGETHER. FAILURE TO FOLLOW
THIS WARNING COULD RESULT IN SERIOUS PERSONAL INJURY,
DEATH, OR PROPERTY DAMAGE.
FREEZE HAZARD! Installations subject to freezing
ambient temperatures must have provisions for freeze protection to
avoid damage to this appliance.
CAUTION
SAFETY HAZARD! The selected location and orientation
of the air handler and hydronic coil must allow the hydronic heating
unit's circulator pump to be positioned with the motor shaft horizon-
tal. Do Not install the hydronic coil with its service panel and the
circulator pump facing vertical, up, or down.
CAUTION
ssWARNING

Page 3
INSTALLER'S GUIDE
HotWater
In
HotWater
Out
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL1995
CAN/CSA-C22.2No. 236
E212365
IMPORTANT - Follow all National and local codes when
installing this hydronic coil.
This accessory hydronic coil is designed to deliver primary or
secondary heating capacity and can be used in either a po-
table or non-potable water system. Maximum entering water
temperature is 180 °F.
1. Check the hydronic coil nameplate to conrm that the se-
lected hydronic coil is approved for use with the air handler.
2. Check the components received for damage. Report any
defects or shortages to the transportation company im-
mediately.
NOTE - Since the hydronic coil mounts over the discharge
end of the air handler, it is necessary that the equipment
power enter from one of the side conduit entry points.
Section 2. General Information
Water Coil Model Number Nomenclature
Digit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Coil number B A Y W A C C 1 1 S C 1 A A A
Brand B = Both Brands B
Product Type AY = Accessory A Y
Heat Type W = Hot Water Coil W
Product Tier A = Air Handler Tier (5, 9) A
V = Air Handler Tier (7, 8) ①
Size (Footprint) A-C = Minimum Cabinet Width C
A-C = Maximum Cabinet Width C
Hydronic Heat Input Hydronic Heat - 10,000 BTUH
(05,07,08,10,11)
1 1
Connection SC = Sweat / Solder S C
Power Supply 1 = 208-230/1/60 1
Major Design Modication Letter Sequence A
Minor Design Modication Letter Sequence A
Unit Parts Identier Letter Sequence A
①Tier 7 and 8 air handlers require the use of control board kit BAYWVBRD485
Additional support strap
on hydronic coil
NOTE - The hydronic coil can be installed in upflow, down-
flow, or horizontal positions. When the air handler is installed
in the horizontal orientation, an additional strap must be used
on the coil section.

Page 4
INSTALLER'S GUIDE
Hot Water
Out
Hot Water
In
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL 1995
CAN/CSA-C22.2 No. 236
E212365
Section 3. Hydronic Coil Assembly
Field Pipe Connections:
7/8" OD, 3/4" ID, copper tubing
Hydronic Coil
12 Field Provided
Screws, 1/2" long
Coil Attachment
Flange
Gasket material
3/4"
18" 21-5/8"
7-1/4"
23-1/2" 21-13/16"

Page 5
INSTALLER'S GUIDE
HotWater
Out
HotWater
In
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL1995
CAN/CSA-C22.2No. 236
E212365

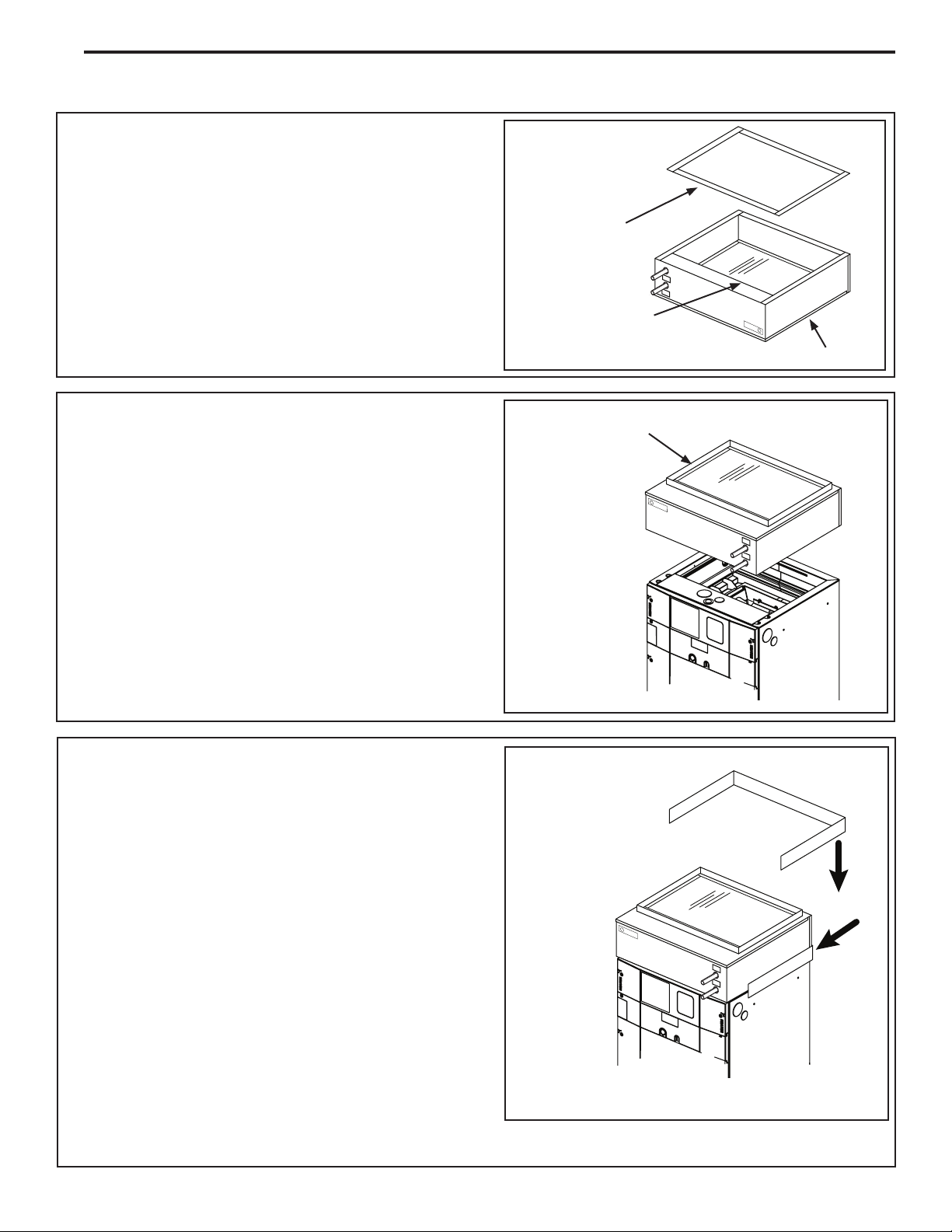

STEP 2 - Place hydronic coil on top of the air handler
cabinet.
1. Flip coil over so the gasket is on the bottom and the
supply side anges are facing up.
2. Set the coil on top of the air handler.
3. Align the coil with the air handler case.
Section 4. Install Hydronic Coil
STEP 1 - Place the hydronic coil with the supply side
facing down. Apply gasket material onto the coil
flanges. On the front flange, the gasket material must
be at the inner edge to create an airtight seal.
Gasket
Place gasket material
on the inner edge of
front side flange
HotWater
Out
HotWater
In
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL1995
CAN/CSA-C22.2No. 236
E212365
HotWater
Out
HotWater
In
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL1995
CAN/CSA-C22.2No. 236
E212365
STEP 3 - Wrap the coil attachment flange around the
air handler and coil. It should have equal amounts of
material covering the coil and air handler cabinet.
1. Take the attachment ange and wrap it around the air
handler and coil.
2. Equal amounts of material should cover the coil and air
handler.
Supply Side
Supply Side

Page 6
INSTALLER'S GUIDE
Hot Water
In
Hot Water
Out
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL 1995
CAN/CSA-C22.2 No. 236
E212365
STEP 4 - Attach flange to air handler and coil.
1. Using eld supplied screws, attach the coil attachment
ange to the air handler and the coil.
2. Use four screws minimum per side.
3. Recommended screw length is 1/2" long.
HotWater
Out
HotWater
In
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL1995
CAN/CSA-C22.2No. 236
E212365
Four screws Minimum per side
Recommended
piping directions
Section 5. Piping
NOTE - The hydronic coil can be installed in upflow,
downflow, or horizontal positions. When the air han-
dler is installed in the horizontal orientation, an addi-
tional strap must be used on the coil section.
STEP 1 - Attach piping to the hydronic coil.
1. Piping must consist of two vertical pipes or two
horizontal pipes.
2. Use a low temperature braze solder to attach pipes.
NOTE - The recommended piping directions are
upward, and to either the right or left side when in the
upflow orientation.
In all orientations, the water lines should not cross
over the air handler unit.
HOT WATER
OUT
HOT WATER
IN
IMPORTANT - Follow all National and local codes
when piping the hydronic system.

Page 7
INSTALLER'S GUIDE
Section 6. Performance Tables
Section 7. Ducting
Outlet dimension - 21-5/8" W x 18" D x 3/4" H
NOTE - Attach ducting per the air handler installation
guide, as well as National and local codes.
HotWater
Out
HotWater
In
CUS
ELECTRICALSAFETY
NRTLLISTED
MET
UL1995
CAN/CSA-C22.2No. 236
E212365
GPM PD,Headwater(ft)
3 0.6
6 2.5
9 5.6
BAYWACC11SC1AAA
TotalCapacity,BTUH LeavingAirTemp,°F TotalCapacity,BTUH LeavingAirTemp,°F TotalCapacity,BTUH LeavingAirTemp,°F
3
22584 93 37898 103 52052 120
6 26957 96 44659 110 60251 127
9 28861 97 47528 113 66048 130
3 24485 91 41011 101 56072 116
6 29226 94 48327 108 64905 123
9 31291 95 51432 111 71149 126
3 26736 89 44387 98 60848 112
6 31913 92 52305 105 70434 119
9 34167 94 55666 108 77210 122
3 28609 88 47501 96 64994 109
6 34149 91 55974 102 75233 116
9 36561 92 59571 105 82471 119
3 30308 86 50331 94 68934 106
6 36176 89 59309 100 79793 113
9 38732 91 63120 103 87470 116
3 31878 85 52624 92 72182 103
6 38050 88 62011 98 83552 110
9 40738 90 65995 101 91591 113
1600 0.24
1800 0.29
2000 0.35
180°FEnteringWaterTemp
1050
0.12
1200 0.15
1400 0.19
SCFM GPM AirsidePressure
Drop,"W.C.
BAYWACC11SC1AAA
EnteringAirTemperature70°Fdb,60°Fwb
120°FEnteringWaterTemp 150°FEnteringWaterTemp

NOTE: Air flow can be adjusted by discreetly control-
ling the W1, W2, & W3 inputs to the AFC with multi-
stage thermostats. See additional notes on wiring
diagram.
Example: TAM9A0C36 with BAYWACC08
hydronic heating coil
W1 input = 396 cfm
W1 + W2 input = 792 cfm
W1 + W2 + W3 input = 1200 cfm
Placing a jumper across all W inputs will re-
sult in the maximum airflow for the combina-
tion of heating coil and air handler.
Section 8a. 24 Volt Operation
AIRFLOW DEMAND IN 24 VOLT CONFIGURATION
COIL MODEL / AHU MODEL W1 W1 + W2 W1 + W2 + W3 PWM CONTROLLED
BAYWAAA05SC1A w/TAM9A0A24 264 528 800 Ramped HP Airow
BAYWABB07SC1A w/TAM9A0B30 330 660 1000 Ramped HP Airow
BAYWACC08SC1A w/TAM9A0C36 396 792 1200 Ramped HP Airow
BAYWACC08SC1A w/TAM9A0C42 462 924 1400 Ramped HP Airow
BAYWACC08SC1A w/TAM9A0C48 528 1056 1600 Ramped HP Airow
BAYWACC08SC1A w/TAM9A0C60 594 1188 1800 Ramped HP Airow
BAYWACC11SC1A w/TAM9A0C60 660 1320 2000 Ramped HP Airow
Airow is based upon the heating demand from the comfort control based on the heat-pump airow
Example: 4T outdoor unit x 400 HP Heating cfm/ton = 1600
Section 8b. Communicating Operation
AIRFLOW DEMAND IN COMMUNICATING MODE
COIL MODEL / AHU MODEL MAXIMUM CFM SERIAL COMMUNICATING
BAYWAAA05SC1A w/ TAM9A0A24 800 Ramped HP Airow
BAYWABB07SC1A w/ TAM9A0B30 1000 Ramped HP Airow
BAYWACC08SC1A w/ TAM9A0C36 1200 Ramped HP Airow
BAYWACC08SC1A w/ TAM9A0C42 1400 Ramped HP Airow
BAYWACC08SC1A w/ TAM9A0C48 1600 Ramped HP Airow
BAYWACC08SC1A w/ TAM9A0C60 1800 Ramped HP Airow
BAYWACC11SC1A w/ TAM9A0C60 2000 Ramped HP Airow
Airow is based upon the heating demand from the comfort control based on the heat-pump airow
Example: 4T outdoor unit x 400 HP Heating cfm/ton = 1600
About Trane and American Standard Heating and Air Conditioning
Trane and American Standard create comfortable, energy efficient indoor environments for residential applications.
For more information, please visit www.trane.com or www.americanstandardair.com
The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice.We are
committed to using environmentally conscious print practices.
© 2020
18-GJ37D1-6A-EN 04 Aug 2020
Supersedes 18-GJ37D1-6 (May 2017)
MET
CUS
®
N
R
T
L
L
I
S
T
E
D
