Transcend StoreJet 25 mobile User manual

StoreJet™ 25 mobile
User’s Manual
(Version 1.0)

Table of Contents
Introduction︱......................................................................................1
Package Contents︱............................................................................1
Features︱............................................................................................2
System Requirements︱.....................................................................2
Safety Precautions︱...........................................................................3
General Use................................................................................................................... 3
Backing Up Data ........................................................................................................... 3
Transporting.................................................................................................................. 3
Power............................................................................................................................. 3
Reminders ..................................................................................................................... 4
Product Overview︱............................................................................5
Driver Installation︱.............................................................................6
Driver Installation for Windows®2000, XP and Windows Vista™.............................. 6
Driver Installation for Mac™OS 9.0, or Later .............................................................. 6
Driver Installation for Linux™Kernel 2.4, or Later ..................................................... 6
Connecting to a Computer︱..............................................................7
Disconnecting from a Computer︱....................................................9
Removing the StoreJet 25 in Windows®2000, XP and Windows Vista™ ................ 9
Removing the StoreJet 25 in Mac™OS 9.0, or Later.................................................. 9
Remove the StoreJet 25 in Linux™Kernel 2.4, or Later .................................................... 9
Formatting the Hard Drive︱.............................................................10
To format the StoreJet 25 with FAT32 file system in Windows® 2000/XP .............. 10
To format the StoreJet 25 with FAT32 file system in Windows Vista™ ................. 11
Troubleshooting︱.............................................................................16
StoreJet™ 25 mobile....................................................................................................... 18
Specifications︱.................................................................................18
Ordering Information︱.....................................................................18
Transcend Limited Warranty︱........................................................19

1
Introduction︱
Congratulations on purchasing Transcend’s StoreJet™25 mobile.This tiny, ultra-portable,
high-speed USB storage device is the perfect data management system for uploading,
downloading, storing and transferring your vital data and information. With its huge storage
capacity and fast 480Mbps USB 2.0 data transfer rates, the compact StoreJet 25 is ideal for
carrying your files, folders, documents, photos, music and videos to and from desktop or notebook
computers. In addition, the StoreJet 25 comes with very useful software* that can increase your
mobile productivity. This User’s Manual is designed to help you get the most from your new device,
please read both in detail before using the StoreJet 25.
*Note: The StoreJet elite software only works in Windows - please see the Software User's Manual for details
Package Contents︱
The StoreJet 25 package includes the following items:
StoreJet 25 mobile
Software CD
1 Mini USB to 2 Standard-A USB cable (USB Y cable)
Quick Start Guide

2
Features︱
Hi-Speed USB 2.0 compliant and backwards compatible with USB 1.1
Easy Plug and Play installation
High capacity Hard Disk Drive
Durable anti-shock rubber outer case
Ultra-portability
OneTouch Auto-Backup button
Powered via the USB port. No external power or battery needed
High-Speed data transfer rates up to 480Mbits per second
Includes StoreJet™elite software pack: (helps you manage your data)
LED indicates power on, data transfer activity
System Requirements︱
Desktop or notebook computer with a working USB port.
One of following Operating Systems (OS):
•Windows®2000
•Windows®XP
•Windows Vista™
•Mac™OS 9.0, or later
•Linux™Kernel 2.4, or later

3
Safety Precautions︱
These usage and safety guidelines are IMPORTANT! Please follow them carefully.
Please ensure that you connect the USB cable to the StoreJet 25 and your
computer correctly (small end ÆStoreJet 25, large end ÆPC)
General Use
•Carefully unpack the contents of the StoreJet 25 package.
•During operation, avoid exposing your StoreJet 25 to extreme temperatures above 55℃,
or below 5℃.
•Do not drop your StoreJet 25.
•Do not allow your StoreJet 25 to come in contact with water or any other liquids.
•Do not use a damp/wet cloth to wipe or clean the exterior case.
•Do not store your StoreJet 25 in any of the following environments:
oDirect sunlight
oNext to an air conditioner, electric heater or other heat sources
oIn a closed car that is in direct sunlight
oIn an area with strong magnetic fields or excessive vibration
Backing Up Data
•Transcend does NOT take any responsibility for data loss, or damage during
operation. If you decide to store data on your StoreJet 25 we strongly advise that you
regularly backup the data to a computer, or other storage medium.
•To ensure High-Speed USB 2.0 data transfer rates when using your StoreJet 25 with a
computer, please check that the computer has the relevant USB drivers. If you are
unsure about how to check this, please consult the computer or motherboard User’s
Manual for USB driver information.
Transporting
•Do not pack your StoreJet 25 into luggage without the proper padded support. Other
items in the luggage may damage your StoreJet 25 if it does not have the proper
protection.
•Avoid squeezing your StoreJet 25 (to prevent damage to the internal HDD).
•Avoid placing objects onto your StoreJet 25 (to prevent compression damage).
Power
•The StoreJet 25 is powered directly via a computer USB port. However, the power
supplied by the USB port on some older computers is below the 5V DC required to
power the StoreJet 25. In this instance, please connect the spare large connector of the
provided USB Y cable to a second USB port on the computer, this will provide the
additional power necessary to run the drive.

4
•Please use the Mini USB to USB A-Type cable that came with the StoreJet 25 to
connect it to a computer, and always ensure that the cable you are using is in good
condition. NEVER use a cable that is frayed or damaged.
•Ensure nothing is resting on the USB cable and that the cable is not located where it can
be tripped over or stepped on.
Reminders
Always follow the procedures in the “Disconnecting from a Computer” section to remove the
StoreJet from your computer.
The extra USB connector provides additional power for the
StoreJet 25

5
Product Overview︱
Figure 1: StoreJet 25 mobile
OneTouch Auto-Backup Button
Mini USB Port

6
Driver Installation︱
Driver Installation for Windows®2000, XP and Windows Vista™
No drivers are required. These Windows® Operating Systems have built-in drivers to support the
StoreJet 25. Plug your StoreJet into an available USB port and Windows will install the necessary
files. A new Local Disk drive with a newly assigned drive letter representing the StoreJet 25 will
appear in the My Computer window.
Driver Installation for Mac™OS 9.0, or Later
No drivers are required. Plug your StoreJet 25 into an available USB port and your computer will
automatically detect it.
Figure 2: Mac Driver Installation
Driver Installation for Linux™Kernel 2.4, or Later
No drivers are required. Plug your StoreJet 25 into a USB port and mount it.
1. First create a directory for the StoreJet 25.
Example: mkdir /mnt/Storejet
2. Then, mount the StoreJet 25.
Example: mount –a –t msdos /dev/sda1 /mnt/Storejet

7
Connecting to a Computer︱
If you want to use the StoreJet 25 as an external hard drive to upload/download data to and from
your computer, you will need to connect it to a USB port on the computer using the provided USB
Y-cable.
Figure 3: Mini USB to Standard-A USB cable (USB Y-cable)
1. Plug the small end of the USB Y-cable into the Mini USB port on the StoreJet 25.
2. Plug the large end of the cable into an available USB port on your desktop, or notebook
computer.
*On some older computers, the power supplied by the USB port is below the required 5V DC
power. In this instance, please connect the spare large connector on the provided USB Y-cable
to a second USB port on the computer. This will provide the additional power necessary to run
the drive.
Figure 4: Connecting to a Computer

8
3. When the StoreJet 25 is successfully connected to a computer, the StoreJet’s Power LED will
light up, a new Local Disk drive with a newly-assigned drive letter will appear in the My
Computer window, and a Removable Hardware icon will appear on the Windows System
Tray. The StoreJet 25’s internal hard drive comes pre-formatted for NTFS.

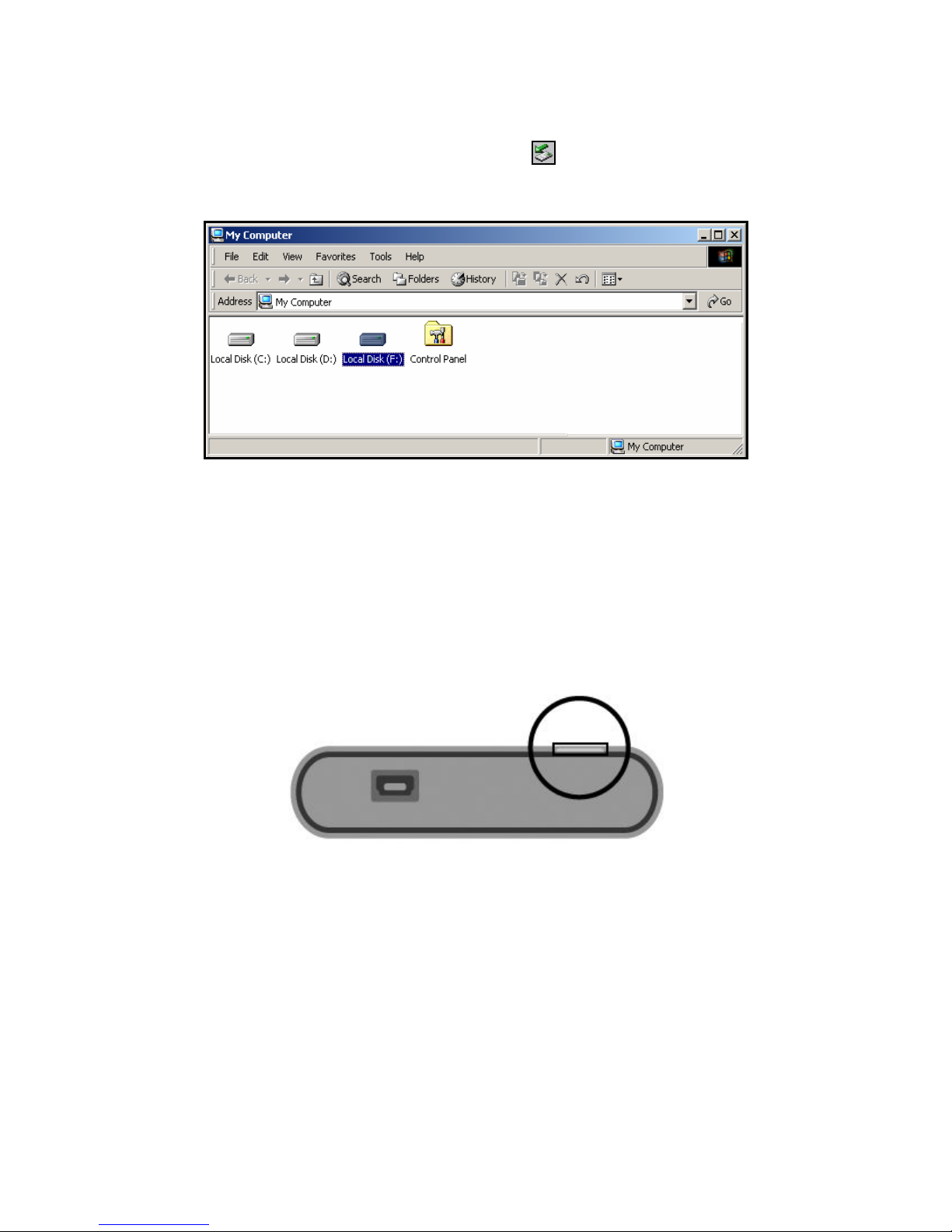

Figure 5: *F: is an example drive letter, the letter in your "My Computer" window may differ
4. Once connected, you can use the StoreJet 25 as an external hard drive to transfer data to and
from your computer. Simply drag and drop files or folders onto the Local Disk drive letter that
represents the StoreJet 25.
5. If you have installed the bundled StoreJet elite software, you can press the StoreJet 25’s
OneTouch “Backup Button” to instantly backup your data (see the StoreJet elite Software
User’s Manual for details).
Figure 6: OneTouch Auto-Backup Button

9
Disconnecting from a Computer︱
NEVER disconnect the StoreJet from a Computer when its LED is flashing.
Removing the StoreJet 25 in Windows®2000, XP and Windows Vista™
1. Select the Hardware icon on the system tray.
2. The Safely Remove Hardware pop-up window will appear. Select it to continue.
Figure 7: Safely Remove Hardware
3. A window will appear stating, “The ‘USB Mass Storage Device’ device can now be safely
removed from the system.”
Figure 8: Safe to Remove Hardware
WARNING! To prevent data loss, always use this procedure to remove the StoreJet
from Windows®2000, XP and Vista.
Removing the StoreJet 25 in Mac™OS 9.0, or Later
Drag and drop the Disk icon that represents your StoreJet 25 into the trashcan. Then unplug your
StoreJet 25 from the USB port.
Remove the StoreJet 25 in Linux™Kernel 2.4, or Later
Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 25 from the
USB port.

10
Formatting the Hard Drive︱
The StoreJet 25’s internal hard drive comes pre-formatted for Windows 2000, XP or Vista (NTFS).
If you are planning to use the StoreJet on a Mac or Linux operating system, you will need to
re-format the StoreJet drive.
WARNING! Formatting the disk will erase all of the data on your StoreJet 25.
To format the StoreJet 25 with FAT32 file system in Windows® 2000/XP
1. Plug the StoreJet 25 into an available USB port on a Windows® 2000/XP computer.
2. Unplug all other USB storage devices from your computer. This is to prevent accidental
format of a different USB drive.
3. Insert the included Software CD into your computer’s CD-ROM drive.
4. Open “StoreJetFormatter.exe”in the “Software” folder of the Software CD.
5. The program will automatically detect the StoreJet 25 drive.
6. Under File System, select “FAT 32” from the drop down list.

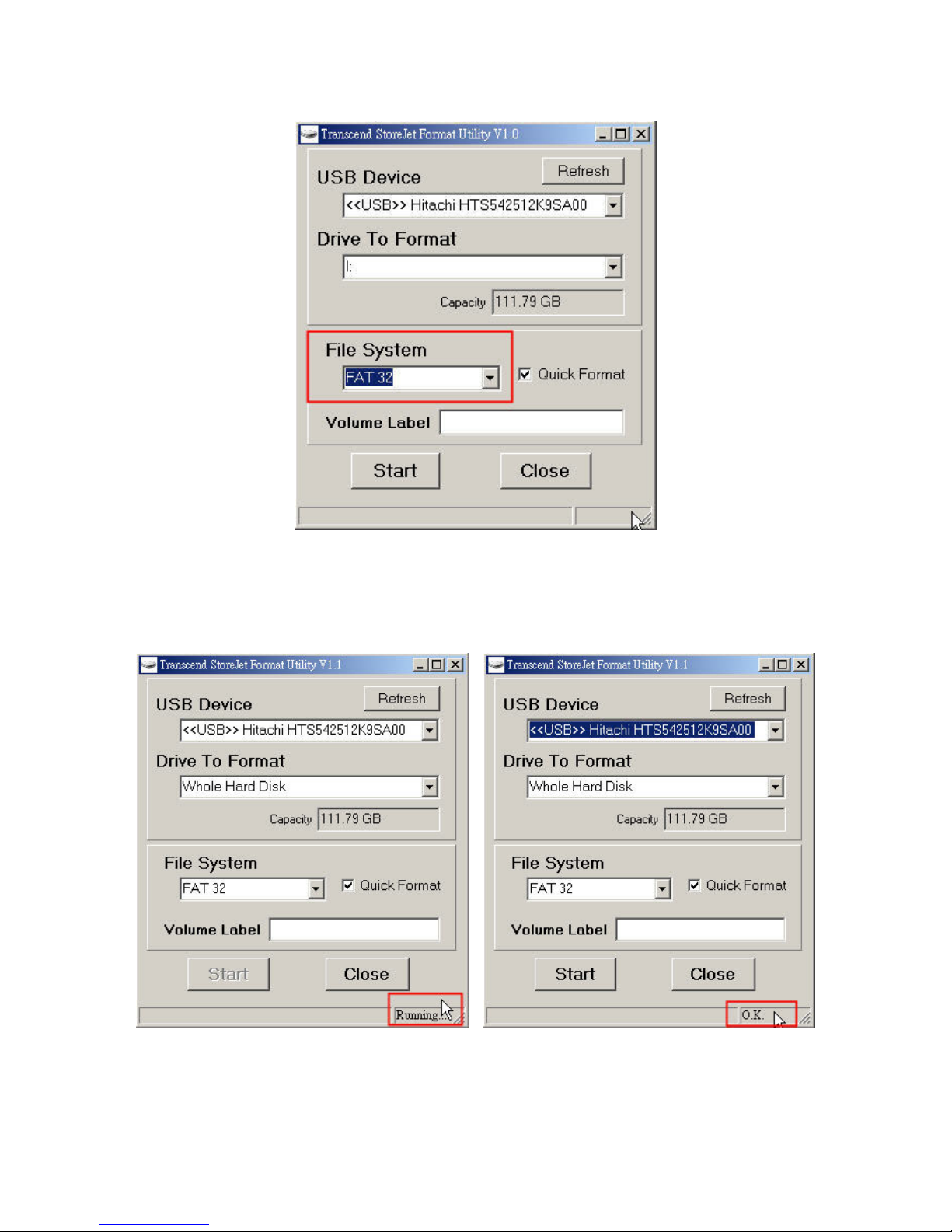

Figure 9: Select File System
7. Press “Start”.

11
Figure 10: Press “Start”
8. The format process may take a few minutes. When complete, an “O.K.” message will appear
in the bottom right hand corner of the window.
Figure 11: Format Complete
9. Click the “Close” button to finish and exit.
To format the StoreJet 25 with FAT32 file system in Windows Vista™
1. Plug the StoreJet 25 into an available USB port on your Windows Vista™computer.
2. Unplug all other USB storage devices from your computer. This is to prevent accidental

12
format of a different USB drive.
3. Insert the included Software CD into your computer’s CD-ROM drive.
4. Open the “Software” folder of the Software CD.
5. Right-click “StoreJetFormatter.exe”and select “Run as Administrator.”
Figure 12: Run as administrator
6. The User Account Control window will appear. Select “Allow” to continue.
Figure 13: Allow Transcend’s StoreJet Format Utility to run in Vista
7. The program will automatically detect the StoreJet 25 drive.

13
8. Under File System, select “FAT 32” from the drop down list.
Figure 14: Select File System
9. Press “Start”.
Figure 15: Press “Start”
10. The format process may take a few minutes. When complete, an “O.K.” message will appear
in the bottom right-hand corner of the window.

14
11. Click the “Close” button to finish and exit.

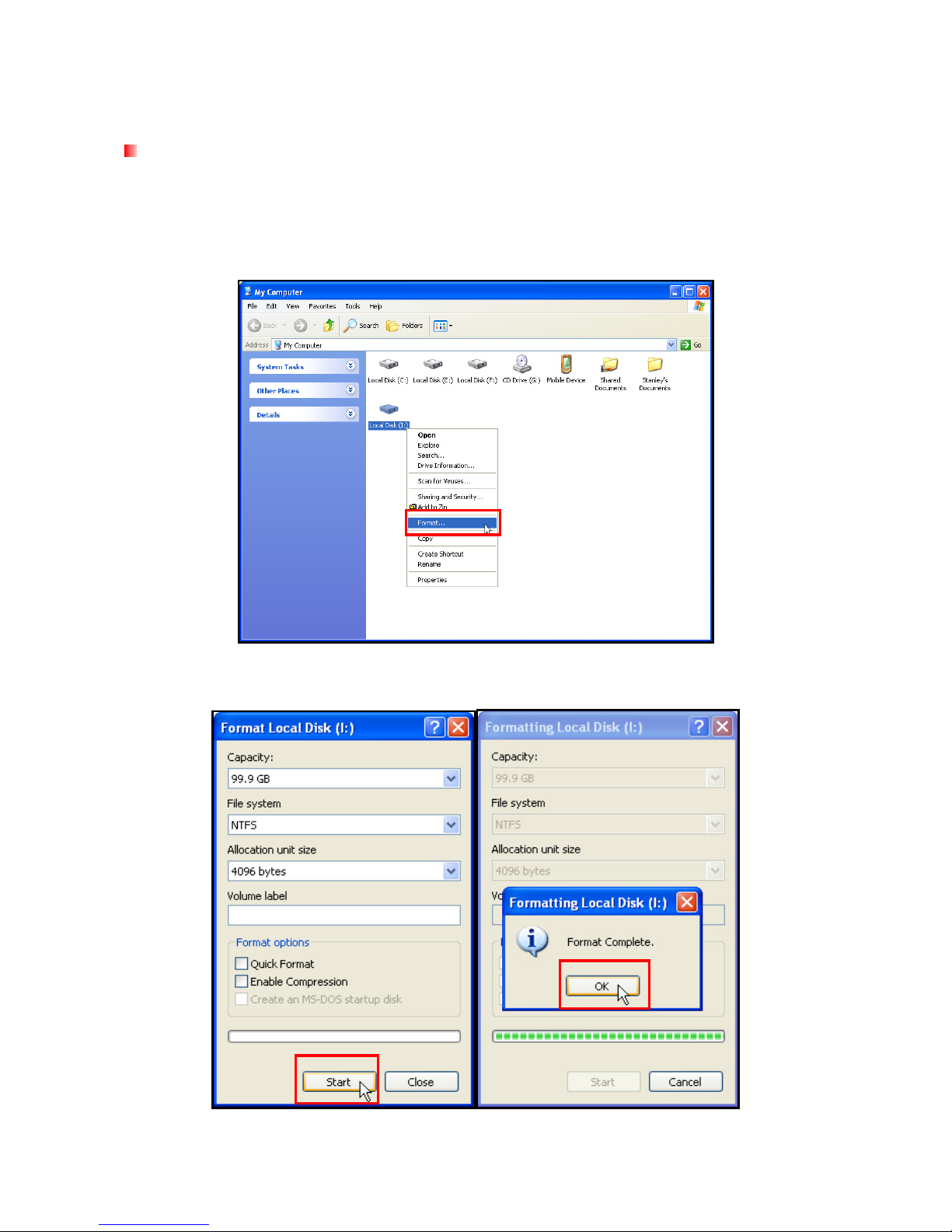

To format the StoreJet 25 with NTFS file system in Windows® 2000/XP:
1. Plug the StoreJet 25 into an available USB port.
2. In the Windows® OS open My Computer, and right-click on the new Local Disk that
represents the StoreJet 25.
3. Select “Format” in the drop down menu to format the StoreJet 25.
Figure 16: Formatting the drive
Figure 17: Format options

15
4. Click on the “OK” button to complete and exit formatting the drive.

16
Troubleshooting︱
If a problem occurs with your StoreJet 25, please first check the information listed below before
taking your StoreJet 25 in for repair. If you are unable to solve a problem from the following hints,
please consult your dealer, service center, or local Transcend branch office. We also have FAQ
and Support services on our website.
Software CD cannot auto-run in Windows®
Go to the Device Manager in the Control Panel and enable the Auto-Insert function of the
CD-ROM drive. Alternatively, you can manually run the “StoreJet.EXE” file on the Software CD.
Operating system cannot detect the StoreJet 25
Check the following:
1. Is your StoreJet 25 properly connected to the USB port? If not, unplug it and plug it in again. If
it is properly connected, try using another available USB port.
2. Are you using the USB cable that came in the StoreJet 25 package? If not, try using the
Transcend USB Y-cable to connect the StoreJet to your computer.
3. The StoreJet 25 is powered directly via a computer USB port; however, the power supplied by
the USB port on some older computers is below the 5V DC required to power the StoreJet 25.
In this instance, please connect the spare large end of the USB Y cable to a second USB port
on your computer. This will provide the additional power necessary to run the drive.
4. Is your StoreJet 25 connected to the Mac™ keyboard? If yes, unplug it and plug it into an
available USB port on your Mac™Desktop.
5. Is the USB port enabled? If not, refer to the user’s manual of your computer (or motherboard)
to enable it.
My computer does not recognize the StoreJet 25
1. A single USB port may not provide enough power for the StoreJet 25 to function. Make sure
you plug both large ends of the USB cable directly into your computer’s USB ports.
2. Avoid connecting the StoreJet 25 through a USB HUB.
Spare USB connector is used to provide additional power.

17
Figure 17: Plug in both USB connectors directly to your computer
The StoreJet 25 does not Power-ON
Check the following:
1. Ensure that the StoreJet 25 is properly connected to the USB port(s) on your computer.
2. Ensure that the USB port is working properly. If not, try using an alternate USB port.
I cannot back up files on my Mac™
The StoreJet 25’s internal hard drive comes formatted for NTFS. If you want to backup files from a
Mac computer you will need to format the StoreJet 25 with HFS+ using the Mac Disk Utility.
Linux cannot detect the StoreJet 25
The StoreJet 25’s internal hard drive comes formatted for NTFS. Linux DOES NOT support the
NTFS file system. Please reformat the StoreJet 25 to the FAT32 file system to use it on a Linux
computer.

18
StoreJet™ 25 mobile
Specifications︱
Size (L x W x H) 134 mm × 80.8 mm × 18.8 mm
Weight 206g
Storage Media 2.5-inch SATA Hard Disk Drive
Power Supply 5V DC supplied from the USB port(s)
Max. Transfer Speed 480Mbits per second
Operating Temperature 5℃(41℉) to 55℃ (131℉)
Storage Temperature -40℃(-40℉) to 70℃ (158℉)
Operating Humidity 8% to 90% RH
Certificates CE, FCC, BSMI
Warranty 2-years
Ordering Information︱
Device Description Capacity Transcend P/N
StoreJet 25 mobile 160GB TS160GSJ25M
StoreJet 25 mobile 250GB TS250GSJ25M
