Transduction TR-LCD1500-ITX-7 User manual

TRANSDUCTION
USER’S MANUAL
Version 1.0
06/26/15
TR-LCD1500-ITX-7 INDUSTRIAL PANEL/RACK
MOUNT PC WITH INTEL DUAL ATOM PROCESSOR
AND 15” LCD TOUCH SCREEN DISPLAY
5155 Spectrum Way, Mississauga, ON, Canada L4W 5A1
TEL: 1-800-268-0427, 905-625-1907
FAX: 905-625-0531
Email: [email protected]

Table of Contents
Important Information............................................................................. 4
Product Description & Warranty ............................................................. 5
Chapter 1 - Introduction........................................................................... 6
TR-LCD1500-ITX-7Specifications...........................................................7
LCD Display Operation .......................................................................... 9
TR-LCD1500-ITX-7SBC Features.......................................................... 10
TR-LCD1500-ITX-7SBC Specifications..................................................11
Chapter 2 – TR-LCD1500-ITX-7SBC Jumpers & Connectors .................. 14
Section 1 – Jumpers on the TR-LCD1500-ITX-7SBC ............................15
Jumper Locations on the TR-LCD1500-ITX-7SBC............................ 16
JP1, JP2: COM Power Selection....................................................... 17
JP3: Clear CMOS RAM Data............................................................. 17
JP4: CF Card Mode Selection ..........................................................18
JP5: COM1 Power Pin (Pin9) ...........................................................18
AT MODE: AT Mode Selection ........................................................18
LCDPWR: LCD PANEL Power Selection............................................19
COM2MODE: RS232/RS422/RS485.................................................19
Section 2 – Connectors on the TR-LCD1500-ITX-7.............................. 20
Connector Locations on the TR-LCD1500-ITX-7.............................. 21
Front Panel Connector.................................................................... 22
BACKLIGHT Connector ....................................................................23
IRDA Connector............................................................................... 23
IDE Connectors................................................................................24
COM1 Serial Port............................................................................. 25
TR-LCD1500-ITX-7User Manual
1

Table of Contents
Section 2 – Connectors on the TR-LCD1500-ITX-7(Cont’d)
COM2 Serial Port............................................................................. 25
COM3, COM4, COM5, COM6 Serial Ports....................................... 26
PWROUT1 Connector...................................................................... 26
PWROUT2 Connector......................................................................26
LPT Port...........................................................................................27
PS/2 Keyboard & Mouse Connector ............................................... 28
PS2KBMS Connector .......................................................................28
VGA Connector ............................................................................... 29
VGA1 Connector .............................................................................29
VGA2 Connector .............................................................................30
DCIN Connector .............................................................................. 30
DCIN2 Power Connector .................................................................31
CPU Fan Power Connector.............................................................. 31
FAN1 Power Connector................................................................... 31
FAN2 Power Connector................................................................... 31
USB12 USB34 Connectors...............................................................32
LANGbE+USBx2 Connectors............................................................32
LAN-GBE Connectors....................................................................... 33
LAN RJ45 LED1, 2.............................................................................33
Audio Connectors............................................................................34
Audio 1 Pin Headers........................................................................ 34
Audio 2 Pin Headers........................................................................ 34
SATA1, SATA2, SATA3 Connectors .................................................. 35
TR-LCD1500-ITX-7User Manual
2

Table of Contents
Section 2 – Connectors on the TR-LCD1500-ITX-7(Cont’d)
DIO Pin Header................................................................................35
LVDS Connector .............................................................................. 36
CF-II Connector ...............................................................................37
Chapter 3 – BIOS Setup ..........................................................................37
Main Menu..........................................................................................43
Standard CMOS Features.................................................................... 46
Advanced BIOS Features .....................................................................51
Advanced Chipset Features.................................................................56
Integrated Peripherals ........................................................................59
Power Management Setup .................................................................71
PnP/PCI Configuration.........................................................................73
PC Health Status..................................................................................77
Load Fail-Safe Defaults........................................................................79
Load Optimized Defaults.....................................................................79
Set Supervisor/User Password............................................................80
Save & Exit Setup ................................................................................82
Exit Without Saving .............................................................................82
Chapter 4 – Appendix.............................................................................83
AC Power Adapter........................................................................... 84
I/O Port Address Map .....................................................................85
Interrupt Request Lines (IRQ) .........................................................86
POST Beep....................................................................................... 87
Resistive Touch Screen Option .......................................................88
TR-LCD1500-ITX-7Mechanical Drawings ........................................95
TR-LCD1500-ITX-7User Manual
3

Important Information
The information in this document is subject to change without notice.
All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify Transduction.
Regardless of the foregoing statement, Transduction assumes no responsibility for any errors that may
appear in this document nor for results obtained by the user as a result of using this product.
Copyright © 2015 Transduction. All rights reserved.
This document is protected by copyright. No part of this document may be reproduced, copied or
translated in any form or means without prior written permission from Transduction.
All other trademarks, brand and product names are the property of their respective owners.
Return policy
Warranty is 3 years for the whole system from the date of purchase. Products returned for repair must be
accompanied by a Return Material Authorization (RMA) number, obtained from Transduction prior to return.
Freight on all returned items must be prepaid by the customer. The customer is responsible for any loss or
damage caused by the carrier in transit.
To obtain an RMA number, call us at 905-625-1907. We will need the following information:
· Return company address and contract
· Model name, model number and serial number
· Description of the failure
Mark the RMA number clearly on the outside of each box, include a failure report and return the product
to:
Transduction
5155 – 23 Spectrum Way
Mississauga ON Canada L4W 5A1
Attn: RMA Department
TR-LCD1500-ITX-7User Manual
4

Product Description
TR-LCD1500-ITX-7 is a NEMA 4 Panel/Rack
Mount Industrial Computer.
TR-LCD1500-ITX-7 industrial computer with or without touch screen has
been designed to provide many years of reliable operation in industrial
environments. The warranty is 3 years but MTBF based on serivice
records is in excess of 100,000 hours.
Based on the Intel Dual ATOM 1.8GHz processor, TR-LCD1500-ITX-7 provides
a low cost alternative to comparable products offered by our competitors costing
3 times more.
Designed by Transduction this computer is manufactured in Canada with
the same high quality standards that we use for military and nuclear clients.
Warranty
Warranty is unconditional for 3 years from the date of Transduction invoice,
FOB our plant in Mississauga. Transduction Return Material Authorization
(RMA) number must be obtained prior to return of any goods for service and
clearly shown on the shipping label. For RMA number call 905-625-1907
ext. 12, 9AM to 5PM Eastern Time Zone.
TR-LCD1500-ITX-7User Manual
5

1
Introduction
This manual is designed to give you information on the
TR-LCD1500-ITX-7industrial PC.The topics covered in this
chapter are as follows:
TR-LCD1500-ITX-7Specifications .............................. 7-8
LCD Display Operation ................................................ 9
TR-LCD1500-ITX-7SBC Features ................................10
TR-LCD1500-ITX-7SBC Specifications ..................... 11-13
TR-LCD1500-ITX-7User Manual
6

TR-LCD1500-ITX-7 Specifications
Model TR-LCD1500-ITX-7Industrial
Panel/Rack Computer
Processor 1.8GHz Intel Atom D525 with four
threads
Cooling 3 x cooling fans with speed control
One CPU cooler and two for system fans
Chipset Intel ICH8M 64-Bit
BIOS Award PnP Ver. 6.0
8Mbit FlashROM with BootBlock for fail-
safe
Display 15” TFT LCD, resolution 1024 x 768
(XGA)
Backlight MTBF > 150,000 hours
Brightness - 250cd/m², Contrast ratio -
350:1 (brightness and contrast software
adjustable)
USB resistive touch screen
Memory Up to 4GB SO-DIMM DDR3 800MHz
Display Intel D525 integrated GMA3150 Graphic
Engine Interface
DB15 SVGA connector
Dual VGA display supported - display
devices can be selected by BIOS or
graphics drivers
Ethernet 2 x Realtek RT8111E Gigabit LAN
External RJ45 connectors
PXE Boot ROM and WOL supported
Green Function Power saving mode includes doze,
standby and suspend modes
External I/O 1 x SVGA DB15 - mirror of LCD
2 x serial ports
1 x parallel port
4 x USB 2.0 ports
2 x audio jacks
Disk I/O Optional SLIM CD-R/W-DVD
One or two 2.5” SATA hard drives 500
or 1000GB
Optional high speed ash 64GB ~ 256GB
with S.M.A.R.T. and SUPERCAP features
Optional RAID1
Green Function Power saving mode includes doze,
standby and suspend modes
Audio Realtek ALC888 high denition
7.1 channel surrounding audio support
Watchdog Timer System reset programmable watchdog
timer with 1 ~ 255sec time-out value
Operating Temperature 0 ~ 50ºC (32º ~ 122ºF) with hard drive
0 ~ 60ºC (32º ~ 140ºF) for 2 hours with
SSD
Storage Temperature -20 ~ 85ºC (-4º ~ 185ºF)
Humidity Relative humidity 10 ~ 90%,
non-condensing
Storage: Relative humidity 45% max.
non-condensing
TR-LCD1500-ITX-7User Manual 7

TR-LCD1500-ITX-7 Specifications
Shock and Vibration Shock - 25G, Vibration - 5G
Power Requirement DC 12V input with 4-pins Mini-DIN
connector
Includes universal AC 12VDC 100W
power adapter
Optional DC input 12, 24, 48, 125 and
250V
Compliance: Electrical Safety
Approval, CE and FCC Class B
Compatible with Windows 7 32/64-
bit, Windows Vista, Windows XP,
Windows 2000, QNX, LINUX and
DOS 6.22
Warranty 3 years
Dimensions Panel mount version - 3.943” (4.625”
with CD/DVD) (H) x 12.250” (D) x
16.000” (W)
Rack mount version - 3.943” (4.625”
with CD/DVD) (H) x 12.230” (D) x
18.960” (W)
Weight 7kg (15.43lbs)
TR-LCD1500-ITX-7User Manual 8

1. LCD Monitor screen is always connected via internal LVDS
interface. It can be disabled in the BIOS set-up.
2. External analog SVGA port is the "mirror" of the LCD screen
for connection of the external monitor.
3. LCD display settings can be changed in SET-UP section of the
video driver.
4. For touch screen installation and calibration is "Resistive Touch
Screen Option" section in the appendix of the manual.
LCD Display Operation
9
TR-LCD1500-ITX-7 User Manual

Features
Intel Dual Core Atom Processor D525 on board.
Dual GbE LAN, Dual DDR3 socket for up to 4GB.
Compact size design with rich I/O functions.
Multiple I/O functions: 8 x USB2.0, 6 x COM, 3 x
SATA, 1 x IRDA, 1x PIDE, 1x CF, 1x LPT, 1x DIO.
Multiple display devices: VGA1, VGA2, HDM, Single
Channel 24-bits LVDS LCDI.
Single DC +12V input power for normal operation.
Dual Mini Card Socket and one PCI 32-bits slot for
flexible I/O expansion.
7.1 channels surrounding audio support.
10
TR-LCD1500-ITX-7 User Manual

Specifications
Processor
Intel Dual Core Atom D525 processor on board.
1.8GHz Core Speed with dual Core and four Threads.
BIOS
Award Standard PnP Flash BIOS 6.0.
8Mbit FlashROM with BootBlock for fail-safe.
System Memory
Two DDR3 SO-DIMM Sockets.
Supports DDR3-800 non-ECC memory up to 4.0 GB.
Chipset
Intel ICH8M chipset.
Video
Intel D525 Integrated GMA3150 graphic engine.
One D-Sub female connector for CRT displays.
One 40-pins connector for single 24-bits LVDS LCD.
One HDMI for HD 1080p displays.
Dual VGA display supported.
Support dual Independent display, display devices can
be selectable by BIOS or graphic drivers.
10/100M/1000M Ethernet
Two Realtek RT8111E on board for Dual Gigabit LAN
support.
PXE Boot ROM and WOL supported.
On Board I/O
Six serial ports as COM1~COM6. COM2 is
RS232/422/485 selectable by jumper.
COM1 and COM2 are D-Sub on rear panel. Pin9 is
powered with either +5V or +12V by jumper.
11
TR-LCD1500-ITX-7 User Manual

COM3~COM6 are pin-header for internal connections.
One parallel port supports SPP/ECP/EPP mode.
1 x IrDA port. 1x DIO (8-bits).
Dual Mini PCI-Express sockets.
One PCI 32-bits slot, supports up to 3 master devices.
Eight USB 2.0 ports. Four on real panel and four for
internal connections.
PIDE and SATA
PIDE controller built in ICH8M support up to UltraDMA
mode 5 or ATA100 speed.
One standard 44-pins box header to supports 2.5” HDD
or DOM Flash Disk.
Three SATA ports from ICH8M support up to SATA-II
devices.
One 50-pins CF-II socket for Compact Flash Card.
Watchdog Timer
Programmable watchdog timer for 1~255 seconds.
CMOS
On-board RTC with 242 bytes of Battery-back CMOS
RAM.
Audio
RealTek ALC888 High-Definition Audio chip on-board.
Two Audio-Jacks on rear for Audio Line-out and MIC.
7.1 channel surrounding audio supported.
Power
Single DC 12V input with 4-pins Mini-DIN connector.
Supplies +5V and +12V output power for peripheral
devices and LCD panel.
12
TR-LCD1500-ITX-7 User Manual

Software Compatibility
Microsoft windows: Win7 32/64bits, Win XP 32/64bits,
XP embedded standard, WinCE 6.0.
Linux 32/64bits and DOS 6.22.
Cooling
Three cooling FAN connectors.
One for CPU cooler and two for System FAN.
Dimensions
190mm (W) x 135mm (L).
4 screw holes on four corners.
Operating Temperature
0 to 60 C operating Range.
Relative Humility: 5~95%, non-condensing.
13
TR-LCD1500-ITX-7 User Manual

2
Jumper Settings & Connectors
This chapter provides information on the TR-LCD1500-ITX-7
jumper settings and internal and external connectors. The
topics covered are as follows:
Section 1 - Jumpers on the TR-LCD1500-ITX-7 ............ 16-19
Section 2 - Connectors on the TR-LCD1500-ITX-7 ........ 20-37
14
TR-LCD1500-ITX-7 User Manual

2 Section 1
Jumpers on the TR-LCD1500-ITX-7 SBC
The jumpers on the TR-LCD1500-ITX-7 SBC allow you to configure
your board according to the needs of your applications. The
following table lists the jumpers on TR-LCD1500-ITX-7 SBC and
their respective functions.
Jumper Locations on the TR-LCD1500-ITX-7 SBC ........... 16
JP1, JP2: COM Power Selection ..................................... 17
JP3: Clear CMOS RAM Data .......................................... 17
JP4: CF Card Mode Selection ........................................ 18
JP5: COM1 Power Pin (Pin9) ......................................... 18
AT MODE: AT Mode Selection ....................................... 18
LCDPWR: LCD PANEL Power Selection ........................... 19
COM2MODE: RS232/RS422/RS485 ............................... 19
15
TR-LCD1500-ITX-7 User Manual

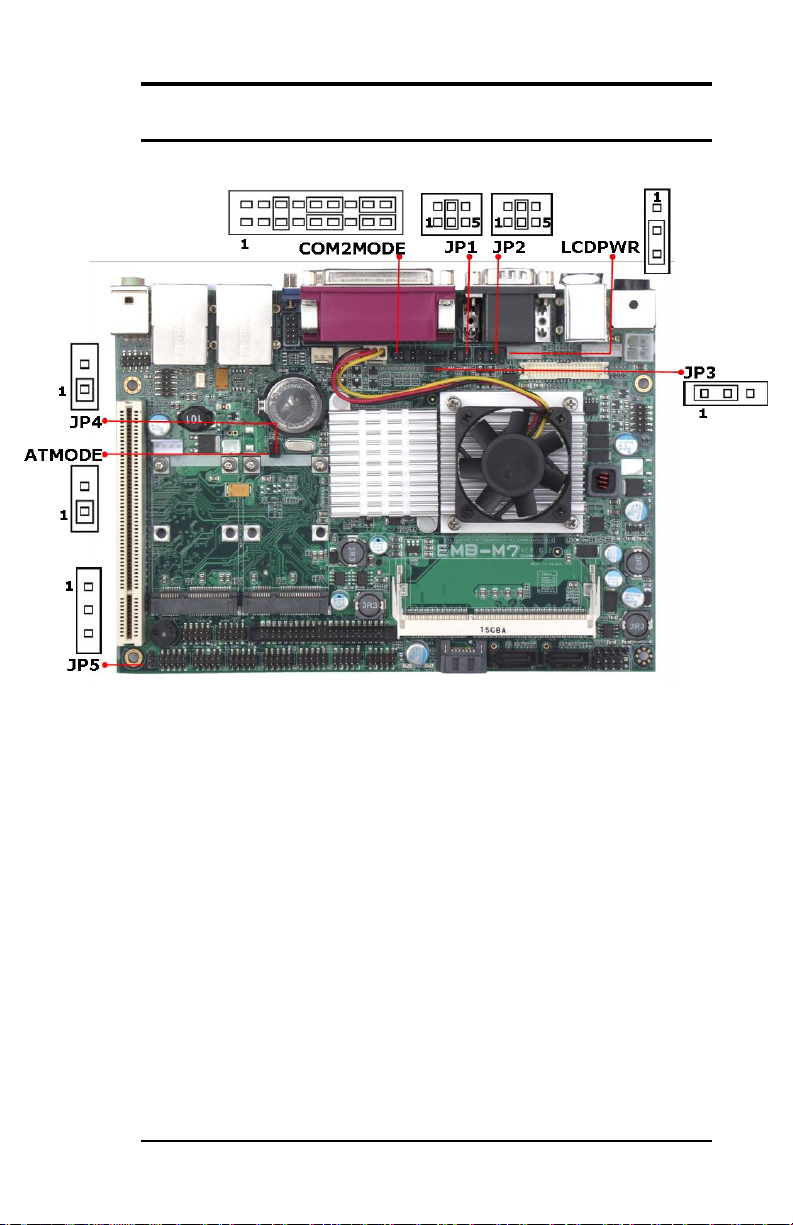

Jumper Locations on the TR-LCD1500-ITX-7
16
TR-LCD1500-ITX-7 User Manual

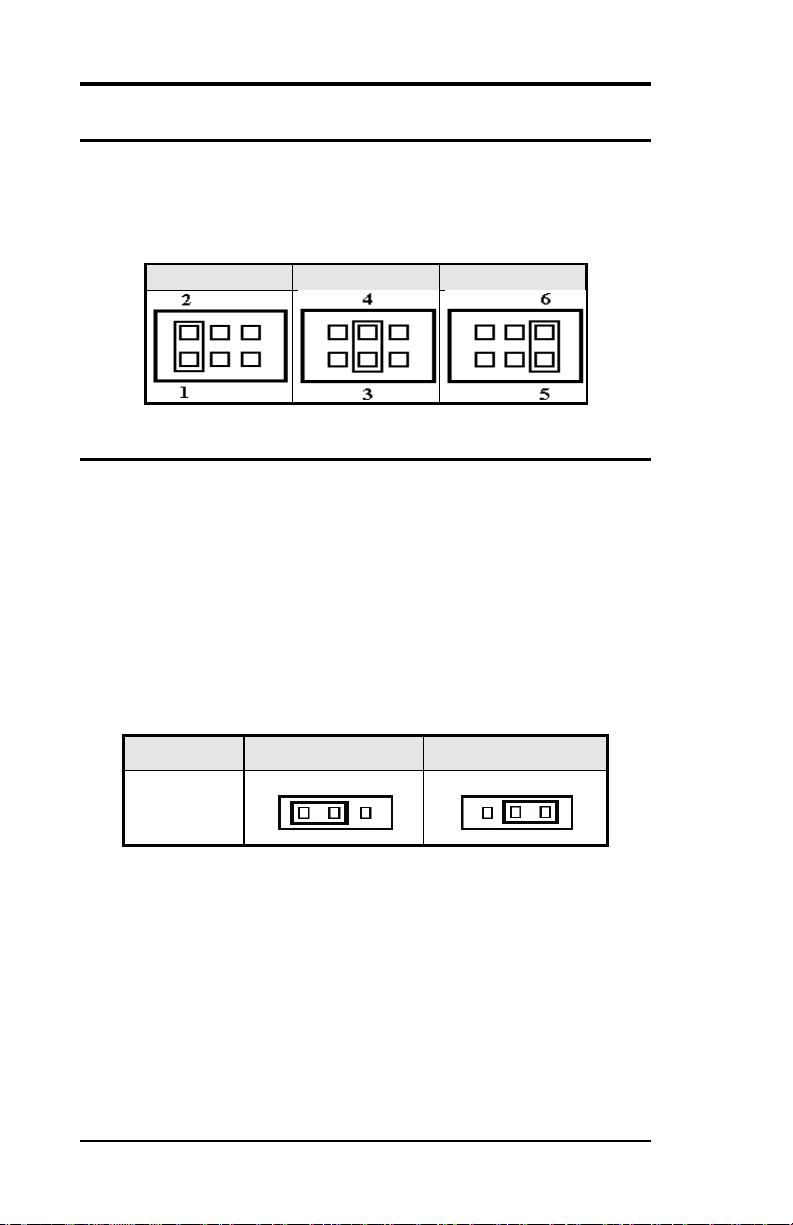

JP1, JP2: COM Power Selection
JP1, JP2 can be used to select the COM supple power:
+5V, Ring-IN or +12V.
JP1: COM2Pin9 power or Ring-IN
JP2: COM1 pin9 power or Ring-IN
+5V
RI
+12V
JP3: Clear CMOS RAM Data
This 3-pin Jumper allows the user to disconnect the
built-in 3V battery power to clear the information stored
in the CMOS RAM. To clear the CMOS data:
1. Turn off the system power.
2. Remove Jumper cap from pin1&2.
3. Short the pin2 and pin3 for three seconds.
4. Put Jumper cap back to pin1 & 2.
5. Turn on your computer.
6. Hold Down <Delete> during boot up and enter BIOS
setup to enter your preferences.
COMS
NORM
CLR
JP3
1-2
2-3
17
TR-LCD1500-ITX-7 User Manual

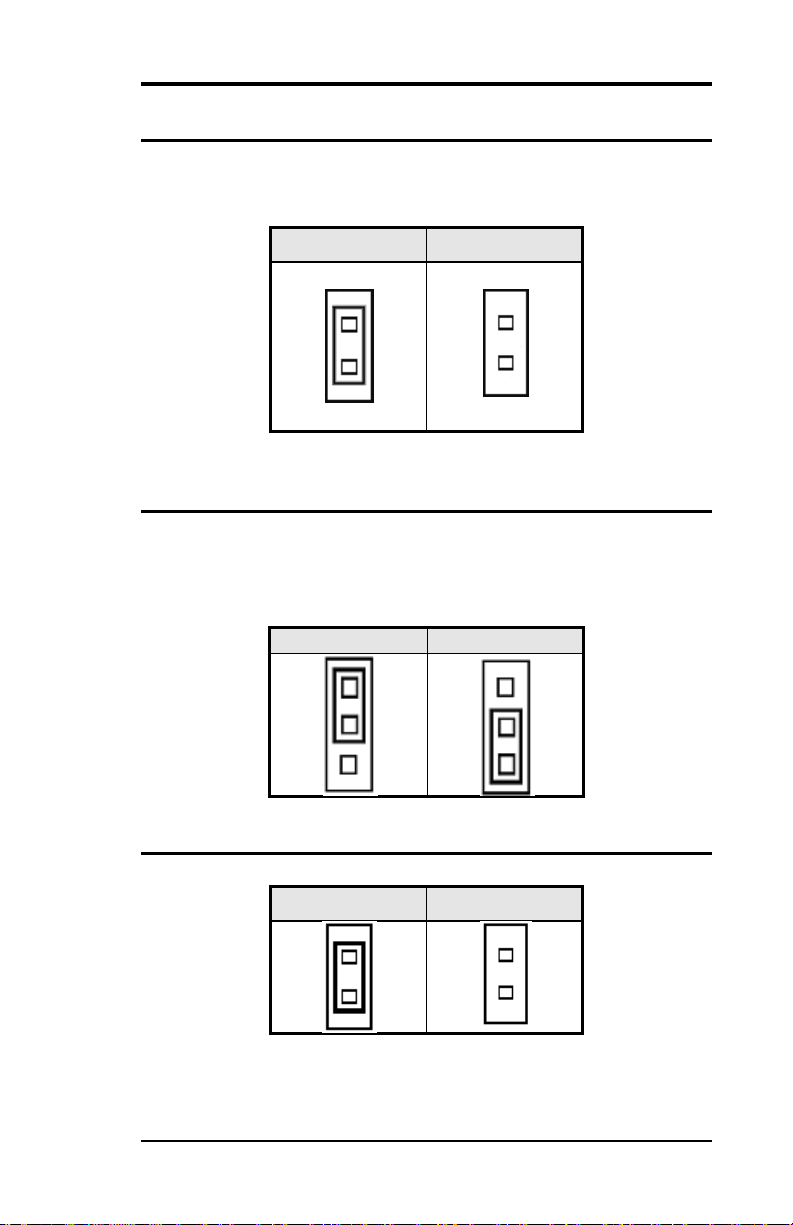

JP4: CF Card Mode Selection
This Jumper is to select the CF works as Secondary
Channel Master Device or Slave Device.
Master
Slave
JP4
JP4
JP5: COM1 Power Pin (Pin9)
JP5 can be used to select the COM supple power: +5V or
+12V.
JP5: COM6 Pin9 power
+5V
+12V
AT MODE: AT Mode Selection
AT Mode
ATX Mode
1
1
1
1
18
TR-LCD1500-ITX-7 User Manual

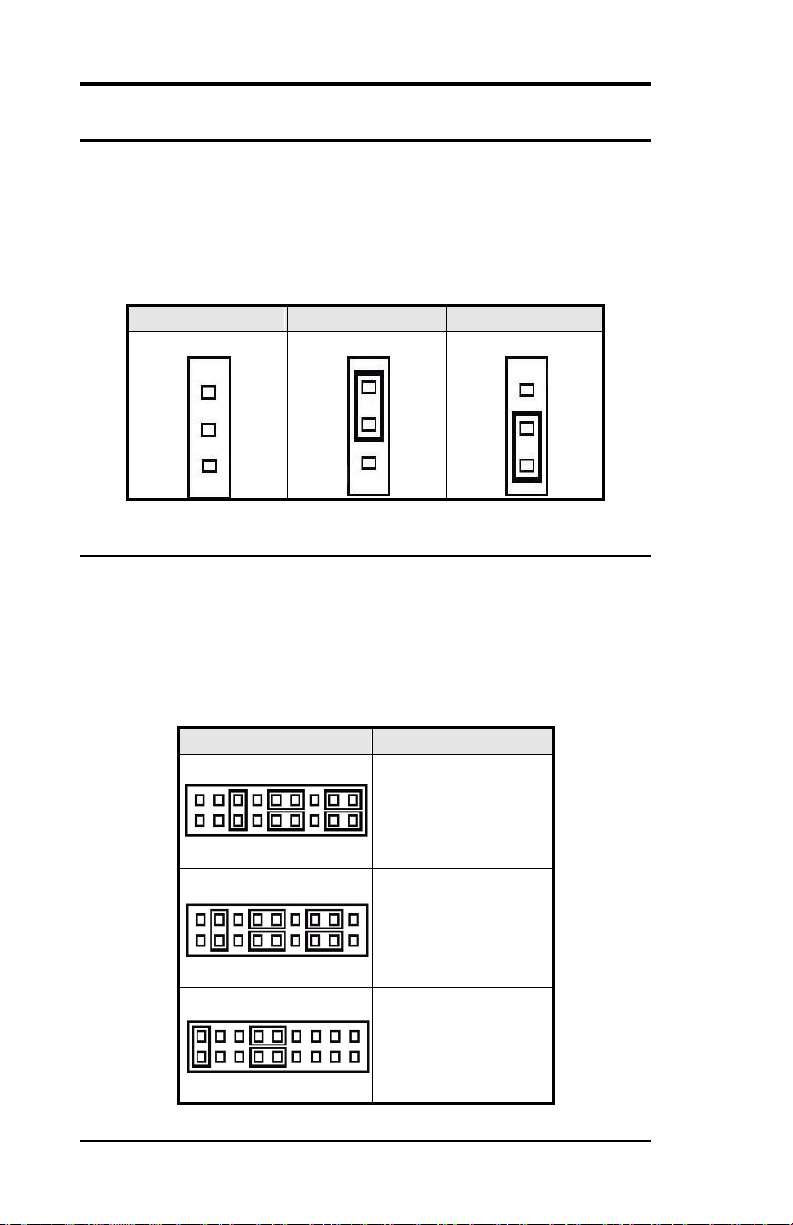

LCDPWR: LCD PANEL Power Selection
LCDPWR can be used to select the Panel LCD supple
power: +3.3V or +5V.The default setting is on
+3.3V.User need to check the LCD panel spec and adjust
this jumper to make Panel work in specified power rail.
This Jumper serves LVDS LCD connector.
LCDPWR
+5V
+3.3V
1
1
1
COM2MODE: RS232/RS422/RS485
COM2 support multi-protocols include RS232, RS422
and RS485, while COM3, COM4. COM5 and COM6
support diffused RS232 protocol.
The Protocols of COM2 can be set up through jumpers.
COM2MODE: COM2 Protocols selection.
The pin-out for each mode is illustrated on next chapter.
COM2MODE1
I/F TYPE
2 18
1 17
RS-232
218
1 17
RS-422
218
1 17
RS-485
19
TR-LCD1500-ITX-7 User Manual
Table of contents
Other Transduction Industrial PC manuals
