IBASE Technology ASB200-908 User manual

www.ibase.com.tw
IBASE Technology Inc.
ASB200-908
User Manual
2014 Nov Ver. A1

1
ASB200-908 User Manual
Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of IBASE
Technology INC. (“IBASE”).
Products and corporate names mentioned in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used for
identification purposes only. All trademarks are the property of their respective
owners.
Every effort has been made to ensure that the contents of this manual are correct and
up to date. However, the manufacturer makes no guarantee regarding the accuracy of
its contents, and reserves the right to make changes without prior notice.

2
ASB200-908 User Manual
Table of Contents
Setting up your system............................................................................................ 3
Care during use....................................................................................................... 4
Acknowledgments .................................................................................................. 4
CHAPTER 1 INTRODUCTION ................................................................................... 6
1.1 General Description........................................................................................... 6
1.2 System Specifications 1.2.1 Hardware Specifications .......................................... 6
1.2.2 Dimensions .................................................................................................... 9
1.2.3 I/O View ...................................................................................................... 10
1.3 Exploded View of the ASB200-908 Assembly.................................................... 11
1.3.1 Parts Description .......................................................................................... 11
1.4 Packing List ..................................................................................................... 12
1.4.1 Optional Items ............................................................................................. 12
CHAPTER 2 MOTHERBOARD INTRODUCTION ........................................................13
2.1 Introduction.................................................................................................... 13
2.2 Board Dimensions ........................................................................................... 15
2.3 Setting the Jumpers......................................................................................... 16
2.4 Jumper Locations on IB908 .............................................................................. 16
CHAPTER 3 BIOS SETUP ........................................................................................31
CHAPTER 4 DRIVERS INSTALLATION ......................................................................59
4.1 Intel Chipset Software Installation Utility ......................................................... 59
4.2 VGA Drivers Installation................................................................................... 62
4.3 Realtek HD Audio Driver Installation ................................................................ 65
4.4 LAN Driver Installation .................................................................................... 67
Appendix .............................................................................................................77
Wall Mounting Requirements................................................................................ 78
Selecting the Location ........................................................................................... 79

3
ASB200-908 User Manual
Safety Information
Your ASB200-908 is designed and tested to meet the latest standards of safety for
information technology equipment. However, to ensure your safety, it is important that
you read the following safety instructions
Setting up your system
Read and follow all instructions in the documentation before you operate your
system.
Do not use this product near water.
Set up the system on a stable surface. Do not secure the system on any unstable
plane.
Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
Slots and openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the system for ventilation.
Never insert objects of any kind into the ventilation openings.
This system should be operated from the type of power indicated on the marking
label. If you are not sure of the type of power available, consult your dealer or
local power company.
Use this product in environments with ambient temperatures between 0˚C and
40˚C.
If you use an extension cord, make sure that the total ampere rating of the
devices plugged into the extension cord does not exceed its ampere rating.
DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE
THESTORAGE TEMPERATURE MAY GO BELOW -20°C (-4°F) OR ABOVE
80°C (176°F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.

4
ASB200-908 User Manual
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still flows.
Always unplug all power, and network cables from the power outlets before
cleaning the system.
If you encounter the following technical problems with the product, unplug the
power cord and contact a qualified service technician or your retailer.
The power cord or plug is damaged.
Liquid has been spilled into the system.
The system does not function properly even if you follow the operating
instructions.
The system was dropped or the cabinet is damaged.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
NO DISASSEMBLY
The warranty does not apply to the products that have been disassembled by users
WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
5
IBASE Technology Inc.
Acknowledgments
AMI is a registered trademark of AMI Software International, Inc.
AMD and ATI are registered trademarks of AMD Corporation.
Microsoft Windows is a registered trademark of Microsoft Corporation.
FINTEK is a registered trademark of FINTEK Electronics Corporation.
REALTEK is a registered trademark of REALTEK Electronics Corporation.
All other product names or trademarks are properties of their respective owners.

6
ASB200-908 User Manual
CHAPTER 1 INTRODUCTION
1.1 General Description
ASB200-908 Embedded Box PC comes with 4th Gen. Intel®CoreTM i7/i5/i3
Celeron Quad Core/Dual Core processors and Intel HD Integrated Graphics Engine
with high performance and low power. It supports DVI-I display output, 2 x USB 3.0,
2 x USB 2.0, 1x CFAST expansion slot, and 2 x Gigabit LAN giving a great selection
for data communication in display applications. The compact design 180 x 150 x 66
mm chassis enables the unit to easily fit into the tightest spaces behind displays. This
embedded box computer is ideal for digital signage player, Kiosk, entry-level gaming,
video surveillance, and other automation & embedded application.
1.2 System Specifications

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
7
IBASE Technology Inc.
1.2.1 Hardware Specifications
Engineer Specifications
Product Name
ASB200-908
ASB200-908-4650
ASB200-908-4COM
Motherboard
IB908
CPU type
Intel®4th generation CoreTM i5-4300U Processor (1.9
GHz, 3MB cache)
TDP=15W
Chipset
Integrated in SoC
Memory
2 x DDR3L-1333 SO-DIMM 2GB, Max. 16GB
(Non-ECC)
*memory module with heatsink*
Storage
1 x 2.5”SATA HDD
2.5” 320GB 5400RPM Toshiba MQ01ABF032 HDD
Front Panel I/O
1 x power button
2 x USB2.0
1 x CFAST socket
1 x HDD LED
Rear Panel I/O
2 x Antenna reserved on real panel
1 x COM Ports
2 x DB9 for COM Port
1 x 12V~24V DC-in (Terminal block 3 pins) 1 x DC Jack with lock
(share Terminal 3 pins space)
*DC-in connector must be near power pin header*
IB908 edge I/O as below :
- 1 x DB9 for COM#1(RS232/422/485, select from
BIOS)
- 1 x USB 3.0 Stacking Connector (2-ports)
- 2 x RJ-45 GbE Connector
- 1 x DVI-I
Power Adaptor [optional]
DPS-60PBA-A00 60W Adapter
Input Voltage: 90~264V
Input Frequency: 47~63Hz
Output Voltage: 12V/5A
Mounting
Desktop or wall mount

8
ASB200-908 User Manual
VESA Mounting
VESA mount kit for optional
Chassis Material
SPCC for EMI enhancement
Chassis Color
Black
External dimensions
180 (W) x ~150 (D) x 60 (H) mm
Operating Temperature
0°C~45°C (14°F~113°F)
Storage Temperature
-20°C~80°C (-4°F~176°F)
Relative Humidity
5%~90%@45°C (non-condensing)
Vibration
Operating : 0.25Grms / 5~500Hz
Non-operating : 1Grms / 5~500Hz
Shock
Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification
CE / LVD / FCC / CCC / UL-CB
Regulation
RoHS
Eup/Erp function
N/A
‧ This specification is subject to change without prior notice.

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
9
IBASE Technology Inc.

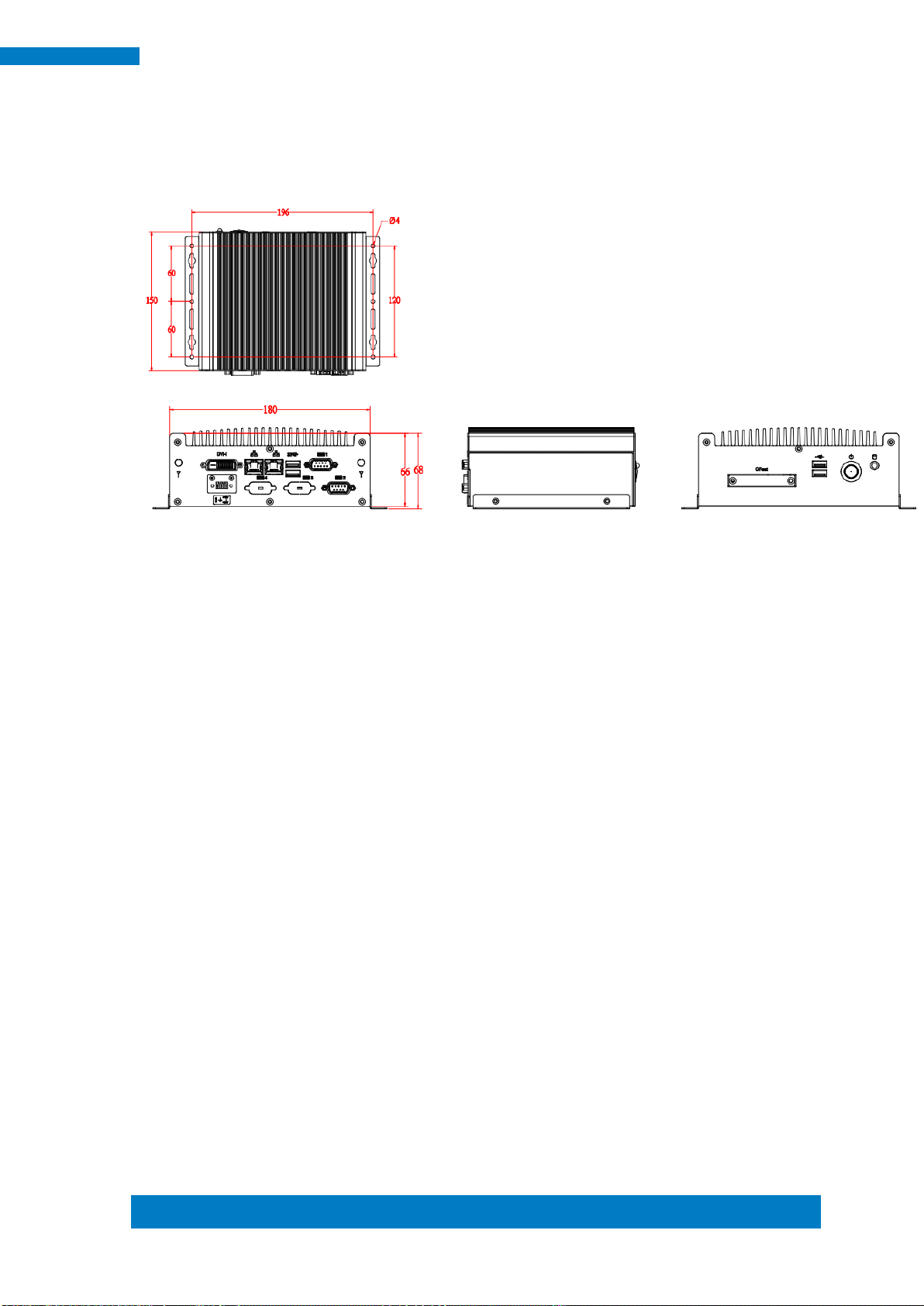

1.2.2 Dimensions

10
ASB200-908 User Manual
1.2.3 I/O View
Item
Connector
Item
Connector
1
DVI-I
5
1x RS232
2
12V~24V DC in
6
2x Gigabit LAN
3
2x RS232 for optional
7
2x USB3.0
4
1x RS232/422/485

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
11
IBASE Technology Inc.
1.3 Exploded View of the ASB200-908 Assembly
1.3.1 Parts Description
Part No.
Description
Part No.
Description
1
ASB200-908 Heatsink
2
DIP PCBA, IB908
3
DIP PCBA, ID112
4
DIP PCBA, IBCFAST
5
BASE
6
ASB200-908_Front
7
2.5” HDD
8
COM Port
9
Power input connector
10
Power button
11
Sticker_12V~24V
12
CFAST Cover
13
ASB200-908_Bracket

12
ASB200-908 User Manual
1.4 Packing List
Item No.
Description
Qty
1
Driver CD
1
2
User manual
1
3
Wall mount kit
2

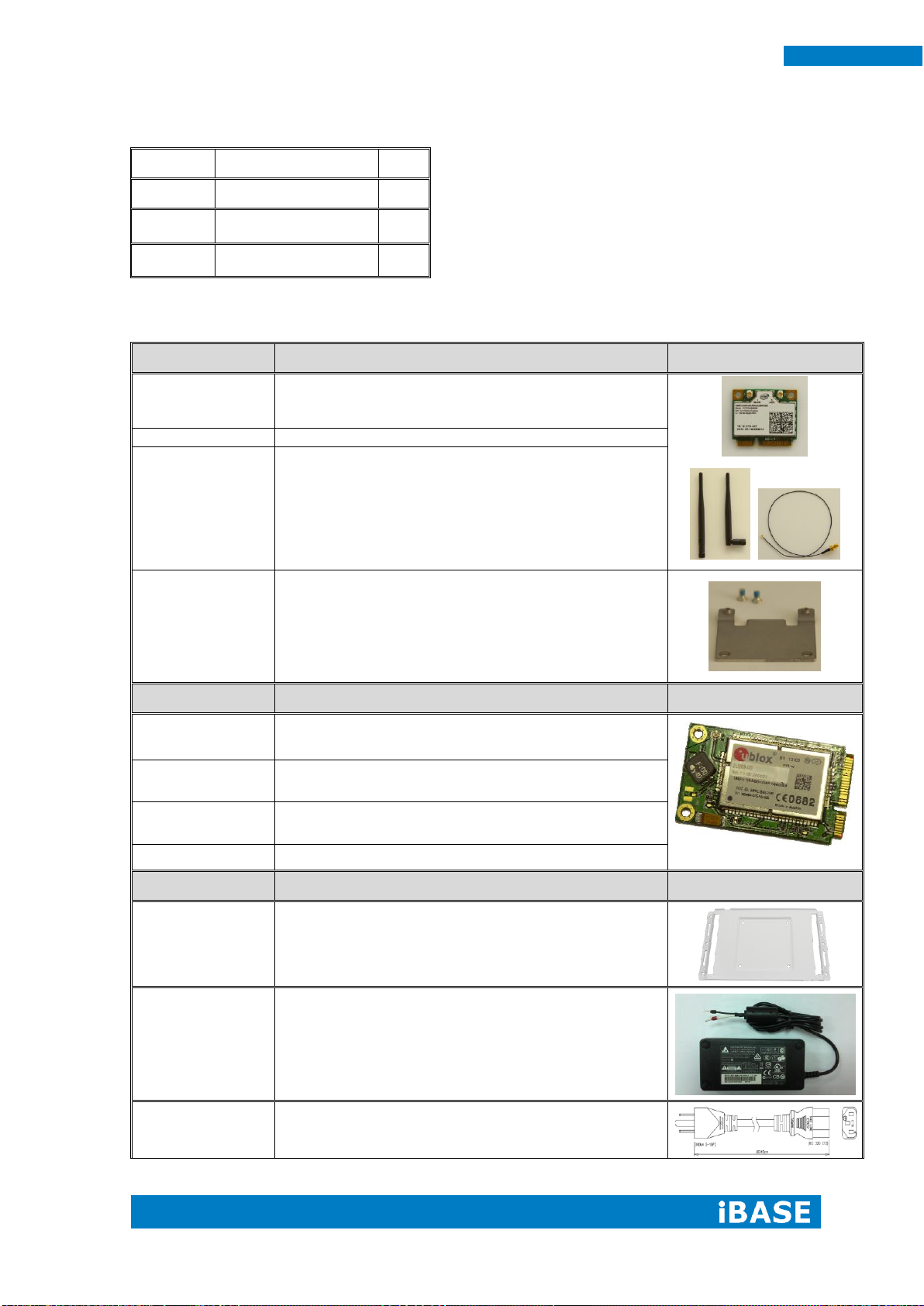

1.4.1 Optional Items
WiFi Solution
Description
WiFi module
WIRELESS;PCI-E MINI CARD 802.11B/G/N
[AW-NE238H] (A008WLAWNE238H000P)
External Antenna
WiFi Antenna (A055RFA02C2M20800P)
Internal cable-1/2
From Wifi module to Rear/Front panel
(A055RFA0000021000P/A055RFA0000032000P)
Bracket
MPCIE-EXT V-B1 Bracket, RoHS; Extend Half to Full
size. (SC2MPCIEEXT0B1100P)
3G Solution
Description
ZU 202
Wireless; 3.75G UMTS/HSPA [ZU202] RoHS
(A008WIRELESS00520P)
ZU 200
Wireless; 3.75G UMTS/HSPA & GPS Module
[ZU200] RoHS (A008WIRELESS00510P)
Cable
Cable; Antenna-2 30CM P 2pcs
(C501ANT0200300000P)
Antenna
Antenna; 3G, P, 2pcs (A055ANT0921Q2P000P)
VESA/Power kit
Description
VESA BRACKET
Bracket; VESAmount bracket RoHS
(H06Z01VESI66SG00BP)
Power Adaptor
P/S; ADAPTER 60W 12V 2 PIN bare wire type,
DPS-60PBA-A00] RoHS (A005PS060W0702000P)
Power Cord
PW CORD; Chinese/American/Japan 3PIN 10A
(A030PCAM040100000P)

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
13
IBASE Technology Inc.
CHAPTER 2 MOTHERBOARD INTRODUCTION
2.1 Introduction
The IB908F is a 3.5-inch single board computer based on the Intel®Haswell-ULT
MCP processors.
The IB908F platform is well-suited for low-power and high-performance designs in a
broad range of markets including Industrial Control &Automation, Digital Signage,
Thin Client, Electronic Gaming Machines, and SMB storage appliances.
IB908F Features:
Supports Intel®4th generation mobile CoreTM i MCP processors
Two DDR3L SO-DIMM, 1333/1600 MHz, Max. 16GB memory
Integrated graphics for DVI-I, LVDS displays
2 x SATA III connector
2x COM port connector
2 x Mini-PCIe(x1) slot (w/ USB/MSATA support)
2x GbE (RJ-45) connector
1x 12V to 24V DC-IN power connector
Product Name
IB908F
Form Factor
3.5”
CPU Type
- Intel®4th generation mobile CoreTM i MCP processors
(22nm monolithic)
- TDP = 15W (DC) , FCBGA1168 @ solder side ,
CPU Speed
Intel®CoreTM i7-4650U processor (1.7GHz)
Intel®CoreTM i5-4300U processor (1.9GHz)
Intel®CoreTM i3-4010U processor (1.7GHz)
Intel®Celeron®2980U processor (1.6GHz)
Cache
Up to 4MB
Chipset
Integratd in Intel®4th Generation CoreTM i U-series processor
BIOS
AMI BIOS
Memory
Intel®4th Gen. CoreTM i U-series processor integrated
memory controller
- DDR3L (1.35V) @1600 MHz , SO-DIMM [204-pin vertical
type] x 2
- Max. 16GB , Non-ECC
Display
Intel®4th Gen. CoreTM i U-series processor integrated Gfx,

14
ASB200-908 User Manual
supports 3 independent displays, Direct X 11.1, OpenGL 3.2,
Open CL 1.2
- DVI-I x 1 (Thru DDI#1 w/ Level shifter [ASM1442K] for DVI
+ DP to VGA [NXP PTN3392] )
LVDS
- LVDS(Thru eDP, via NXP PTN3460 bridge IC)
24-bit dual channels LVDS interface w/DF20 socket x2
LAN
1. Intel® I218LM GbE PHY (IB908AF-4650 & IB908AF-4300)
or I218V GbE PHY
2. Intel®I211AT as 2nd GbE
USB (Universal Serial Bus)
- Intel®4th Gen. CoreTM i U-series processor integrated USB
2.0 host controller, supports 6x USB 2.0 : 2-ports onboard
pin header + 2 port thru MiniPCIe
- Intel®4th Gen. CoreTM i U-series processor integrated USB
3.0 host controller, support 2x USB 3.0 in the rear panel
Serial ATA Ports
Intel®4th Gen. CoreTM i U-series processor built-in SATA
controller
2 x SATA 3.0 (6Gbps) and 2 x mSATA via MiniPCIe slots
(w/NXP CBTL02043A switching IC)
Audio
Intel®4th Gen. CoreTM i U-series processor built-in High
Definition Audio controller + Realtek ALC269Q-VC2-GR
Codec [ 6mm x 6mm @ MQFN48]
w/class-D speaker amplifier(2W per channel @ 5V power
supply)
LPC I/O
Nuvoton NCT6102D [128-pin LQFP, 14 mm x 14mm x
1.4mm)
COM1 (RS232/422/485) [EXAR SP339EER1 232/422/485
transceiver for jumper-less] ;COM2(RS232 only) [SIPEX
SP3243EBER, QFN32]
[Hardware Monitor]
2 x Thermal inputs
2 x Voltage monitoring
1 x CPU Fan (PWM Fan type, 4-pin connector)
Digital IO
4 in & 4 out
iAMT(9.5)
IB908AF-4650 & IB908AF-4300
Expansion Slots
1 x mSATA/mPCIe(x1) w/ USB signal [Half-sized]
1 x mSATA/mPCIe(x1) w/ USB signal [Full-sized]
Edge Connector
DVI-I x 1
RJ45 x2 for LAN#1 & #2

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
15
IBASE Technology Inc.
USB 3.0 stack connector x 1 for USB1 / 2 [Blue color]
DB9 x 1 for COM #1
On Board Header/Connector
DF20-20 socket connector x 2 for 24-bit dual channel LVDS
2 ports x SATAIII [Blue color]
2x4 pins header x 2 for 4 USB 2.0 ports[DF11]
2x6 pins box header x1 for Audio [DF11]
1 x 4 pins box header x 1 for Speaker out
2x5 pins box header x 1 for COM2
2x5 pins headers x 1 for LPC (Debug purpose only)
5 pins box header x 1 for smart battery
4 pins box header x 1 for backlight/brightness control
4 pins power connector x 1for SATA HDD
2 pins power connector x 1 for DC-in [180 degree vertical
type]
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Power Input
+12V ~ +24V DC-in
RoHS
Yes
Board Size
102mm x 147mm
OS supporting
- Windows 8 / Embedded ; Windows 7 / Embedded
- Linux
2.2 Board Dimensions

16
ASB200-908 User Manual
2.3 Setting the Jumpers
Jumpers are used on IB908F to select various settings and features according
to your needs and applications. Contact your supplier if you have doubts about the
best configuration for your needs. The following lists the connectors on IB908F and
their respective functions.
2.4 Jumper Locations on IB908

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
17
IBASE Technology Inc.

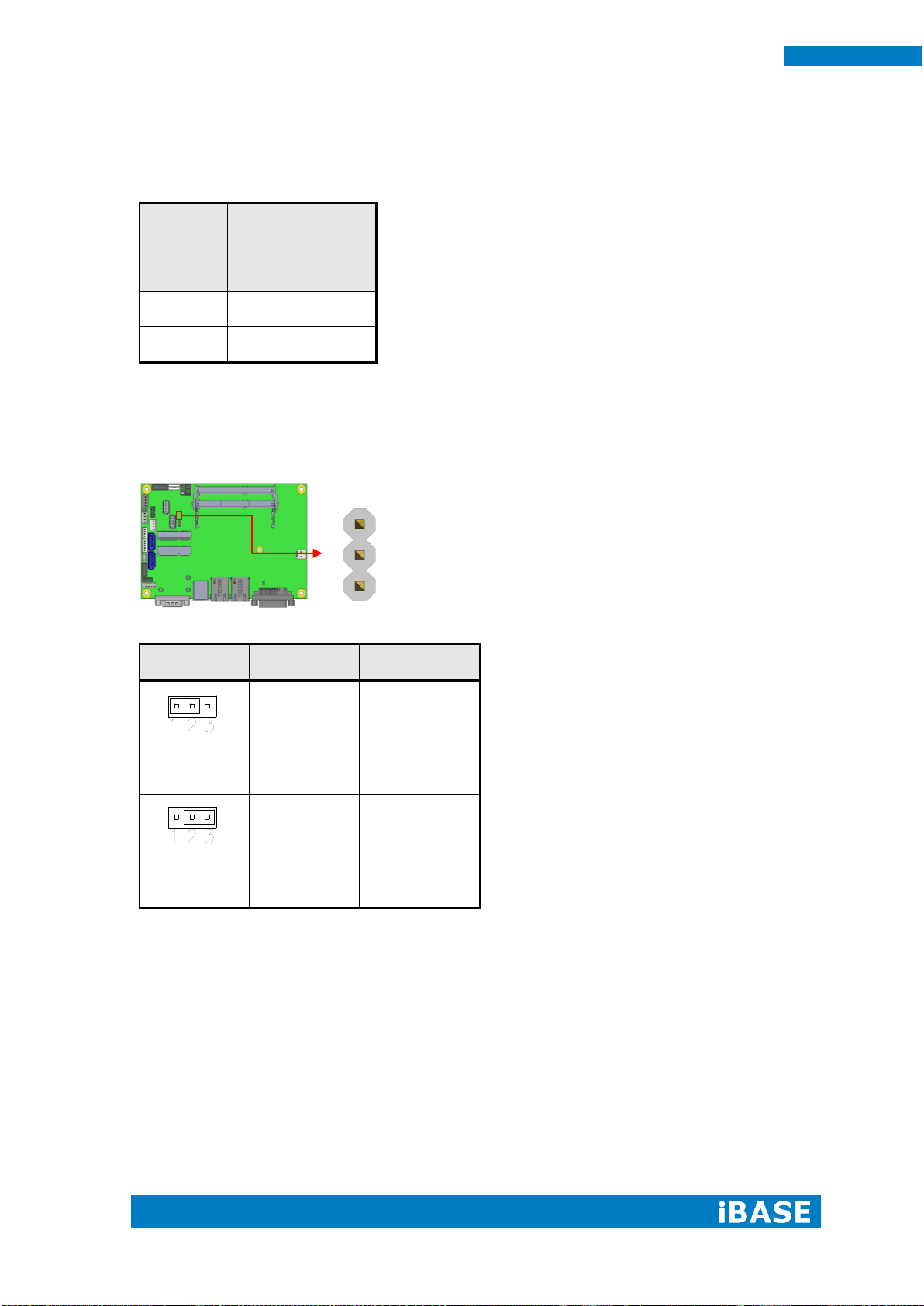

J3: Clear CMOS Contents
J3
Setting
Function
Pin 1-2
Short/Close
d
Normal
Pin 2-3
Short/Close
d
Clear
CMOS
J4: Clear ME Contents
J4
Setting
Function
Pin 1-2
Short/Close
d
Normal
Pin 2-3
Short/Close
d
Clear ME
RTC
REGISTER
3
1
3
1

18
ASB200-908 User Manual
J7: Flash Descriptor Security Override (Factory use only)
J7
Flash Descriptor
Security
Override
Open
Disabled (Default)
Close
Enabled
J9: LVDS Panel Power Selection
J9
Setting
Panel Voltage
Pin 1-2
Short/Close
d
3.3V (default)
Pin 2-3
Short/Close
d
5V
1
3
