Transition Networks CFETF1011-205 User manual

Installation . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . .10
Technical Specifications . . . . . . .12
Troubleshooting . . . . . . . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network
installation.
Trademark Notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright Restrictions
© 2002 - 2005 Transition Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any
means - graphic, electronic, or mechanical - without written permission from Transition
Networks.
Printed in the U.S.A. 33234.J
Part Number Port One - Copper
100Base-TX
Port Two - Duplex Fiber-Optic
100Base-FX
CFETF1011-205 RJ-45
100 m (328 ft)*
ST, 1300 nm multimode
2 km (1.2 miles)*
CFETF1013-205 RJ-45
100 m (328 ft)*
SC, 1300 nm multimode
2 km (1.2 miles)*
CFETF1014-205 RJ-45
100 m (328 ft)*
SC, 1310 nm single mode
20 km (12.4 miles)*
CFETF1015-205 RJ-45
100 m (328 ft)*
SC, 1310 nm single mode
40 km (24.9 miles)*
CFETF1016-205 RJ-45
100 m (328 ft)*
SC, 1310 nm single mode
60 km (32.3 miles)*
CFETF1017-205 RJ-45
100 m (328 ft)*
SC, 1550 nm single mode
80 km (49.7 miles)*
CFETF1018-205 RJ-45
100 m (328 ft)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
CFETF1019-205 RJ-45
100 m (328 ft)*
LC, 1310 nm single mode
20 km (12.4 miles)*
CFETF1039-205 RJ-45
100 m (328 ft)*
LC, 1300 nm multimode, 2 km (1.2
miles)*

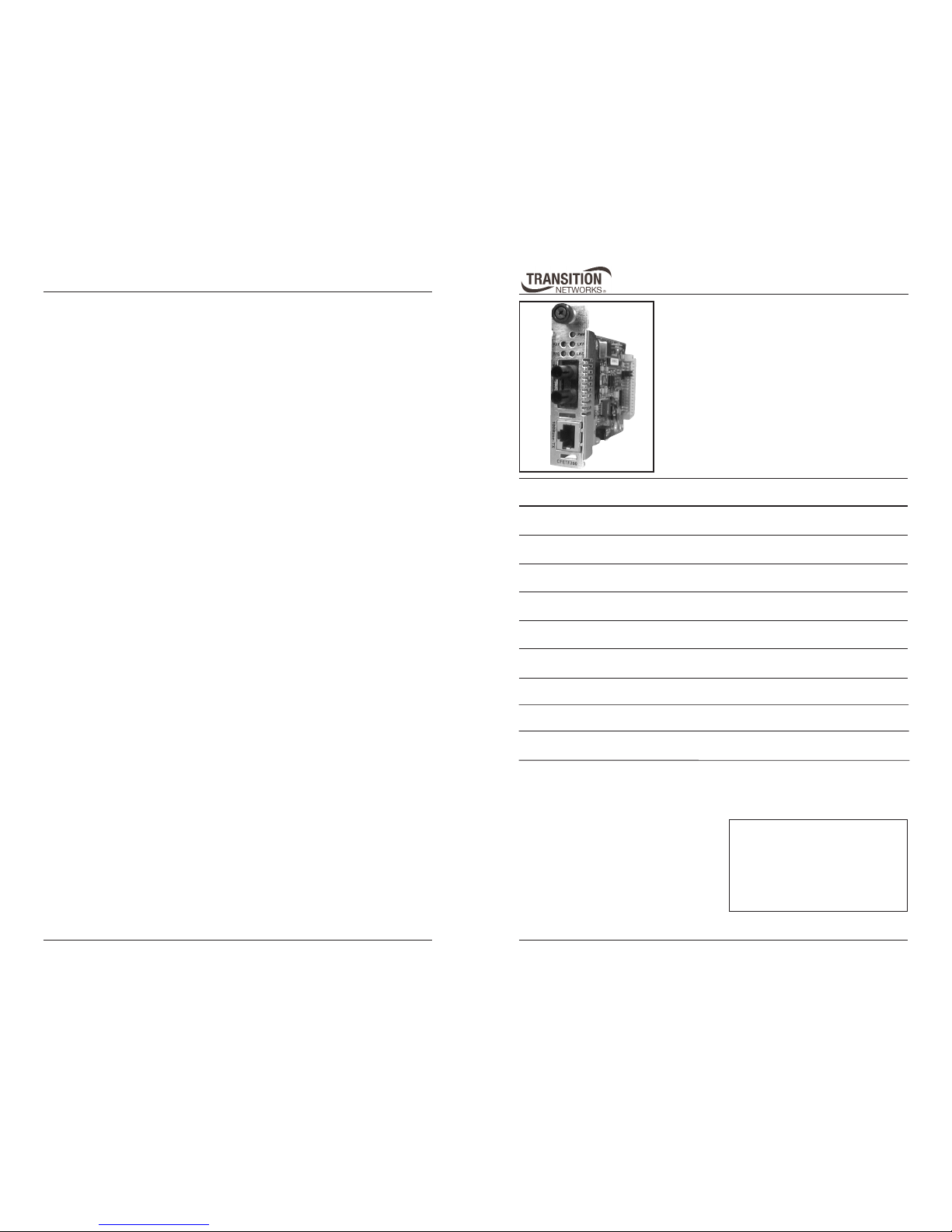

User’s Guide
CFETF10xx-205
Slide-in-Module Media Converter
• Fast Ethernet
• Copper to Fiber
• 100Base-TX to 100Base-FX
Transition Networks CFETF10xx-205 series Fast
Ethernet 100Base-TX to 100Base-FX media
converters connect 100Base-TX twisted-pair copper
cable to multimode or single mode 100Base-FX
fiber-optic cable. The CFETF10xx-205 is also
designed to be installed in a PointSystem™ chassis.
The CFETF1029-2xx model is the single mode, single fiber version of the media
converter. For more information, see the CFETF1029-2xx user’s guide #33244 at:
www.transition.com.

CFETF10xx-205
224-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 [email protected] -- Click the “Transition Now” link for a live Web chat. 15
Compliance Information
CISPR22/EN55022 Class A & B + EN55024
CE Mark
FCC Regulations
This equipment has been tested and found to comply with the limits for a Class A & B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A & B limits for radio noise for digital
apparatus set out on the radio interference regulations of the Canadian Department of
Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la Class A & B prescrites dans le Règlement sur le
brouillage radioélectrique édicté par le ministère des Communications du Canada.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-
Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der
Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über
Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer
Konformität.
In accordance with European Union Directive 2002/96/EC of the European
Parliament and of the Council of 27 January 2003, Transition Networks will accept
post usage returns of this product for proper disposal. The contact information for
this activity can be found in the 'Contact Us' portion of this document.
* Typical maximum cable distance. Actual distance is dependent on the physical
characteristics of the network. (TX) = transmit (RX) = receive
CFETF1017-353 RJ-45
100 m (328 ft)*
SC, 1530 nm single mode, CWDM
80km (49.7.miles)*
CFETF1017-351 RJ-45
100 m (328 ft)*
SC, 1510 nm single mode, CWDM
80km (49.7.miles)*
CFETF1017-355 RJ-45
100 m (328 ft)*
SC, 1550 nm single mode, CWDM
80km (49.7.miles)*
CFETF1017-357 RJ-45
100 m (328 ft)*
SC, 1570 nm single mode, CWDM
80km (49.7.miles)*
Part Number Port One - Copper
100Base-TX
Port Two - Duplex Fiber-Optic
100Base-FX

CFETF10xx-205
14 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 [email protected] -- Click the “Transition Now” link for a live Web chat. 3
Installation
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the 4-position switch and the jumpers. Failure to
observe this caution could result in damage to, and subsequent failure of, the
media converter.
Set the 4-Position Switch
• The 4-position switch is
located on the circuit board.
• Use a small flat-blade
screwdriver to set the
recessed switches.
1. Auto-Negotiation
up = Advertises 100 Mb/s Full-Duplex and Half-Duplex (only during
Auto-Negotiation).
down = Disables Auto-Negotiation. Operates at 100 Mb/s in the mode
(either full- or half-duplex) of the attached device.
2. Pause
(Applies ONLY if switch “1” is up AND the media converter is connected
to auto negotiating device(s) capable of Pause Control Frame.)
up = Allows negotiation of Pause Control Frame.
down = Does not allow negotiation of Pause Control Frame.
3. Link Pass-Through
up = Enables Link Pass-Through.
down = Disables Link Pass-Through.
4. Far-End Fault
up = Enables Far-End Fault.
down = Disables Far-End Fault.
Set the hardware/software Jumper
• The header for the jumper is located on the circuit board labeled “H”
hardware mode and “S” software mode.
• Use small needle-nose pliers to remove and position the jumper.
Hardware The four DIP switches control the function
of the board in hardware mode. You can
only view status via the Web or Focal
Point interface.
Software Software controls the function of the
board. The DIP switches do not function
in software mode.
Hardware Mode
Software Mode
H
HS
S
Link Pass Through (up = enabled)
Pause (up = enabled)
Auto-Negotiation (up = enabled)
Far End Fault
(up = enabled)
1234
Contact Us
Technical Support
Technical support is available 24 hours a day.
US and Canada: 1-800-260-1312
International: 00-1-952-941-7600
Transition Now
Chat live via the Web with Transition Networks Technical Support.
Log onto www.transition.com and click the Transition Now link.
Web-Based Seminars
Transition Networks provides seminars via live web-based training.
Log onto www.transition.com and click the Learning Center link.
E-Mail
Ask a question anytime by sending an e-mail to our technical support staff.
[email protected]
Address
Transition Networks
10900 Red Circle Drive Minnetonka, MN 55343, U.S.A.
telephone: [phone]
toll free: 800-526-9267
fax: [phone]
Declaration of Conformity
Name of Mfg: Transition Networks
10900 Red Circle Drive, Minnetonka MN 55343 U.S.A.
Model: CFETF10xx-205 Series Media Converters
Part Number(s): CFETF1011-205, CFETF1013-205, CFETF1014-205, CFETF1015-205,
CFETF1016-205, CFETF1017-205, CFETF1018-205, CFETF1019-205,
CFETF1039-205
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the
CFETF10xx-205 to which this declaration refers is in
conformity with the following standards.
CISPR 22: 1997+A1:2000; EN 55022:1998 A1:2000 Class A & B; EN 55024:1998; FCC
Part 15 Subpart B; EN 61000-2-3:1995 A14:2000, EN 61000-3-3:1995; 21 CFR subpart J
I, the undersigned, hereby declare that the equipment specified above conforms to the above
Directive(s) and Standard(s).
May, 2008___
Stephen Anderson, Vice-President of Engineering Date

CFETF10xx-205
424-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 [email protected] -- Click the “Transition Now” link for a live Web chat. 13
Installation -- Continued
Set the AutoCross™ Jumper
When the AutoCross feature is activated, it allows either straight-through or
crossover cables to be used when connecting to 100Base-TX devices.
AutoCross determines the characteristics of the connection and automatically
configures the unit to link up, regardless of the cable configuration.
• The jumper is located on the circuit board labeled “D” and “E”.
• Use small needle-nose pliers to remove and position the jumper.
Disable Either straight-through or crossover
twisted-pair copper cable must be
installed, according to the site
requirements.
Enable The media converter connects
automatically to either straight-through or
crossover twisted-pair copper cable.
NOTE: AutoCross is enabled by default.” Transition networks recommends
leaving the jumper in the “enable” position.
Install the media converter
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the CFETF10xx-205 media converter. Failure to
observe this caution could result in damage to or failure of, the media converter.
1. Carefully slide the media converter into the slot, aligning it with the slot
guides.
2. Ensure that the converter is firmly seated into the slot.
3. Push in and rotate the attached panel fastener screw clockwise to secure
the converter to the chassis.
Media Converter
PointSystem Chassis
Panel Fastener
Slot
D
Enable AutoCross
Disable AutoCross
E
DE
Troubleshooting
If the media converter fails, isolate and correct the failure by determining the
answers to the following questions and then taking the indicated action:
1. Is the PWR LED on the media converter illuminated?
NO
• Is the media converter installed properly in the chassis?
• Is the power cord properly installed in the chassis and at the external
power source?
• Does the external power source provide power?
• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).
YES
• Proceed to step 2.
2. Is the LKC LED on the media converter illuminated?
NO
• Check the twisted-pair cables for proper connection.
• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).
YES
• Proceed to step 3.
3. Is the LKF LED on the media converter illuminated?
NO
• Check the fiber cables for proper connection.
• Verify that the TX and RX cables on the media converter are
connected to the RX and TX ports, respectively, on the other device.
• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).
YES
• Proceed to step 4.
4. Is the RXC LED on the media converter flashing?
NO
• If there is no activity on the 100Base-TX port, proceed to step 5.
• If there is activity on the 100Base-TX port, disconnect and reconnect
the 100Base-TX cable to restart the initialization process.
• Restart the workstation to restart the initialization process.
• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).
YES
• Proceed to step 5.
5. Is the RXF LED on the media converter flashing?
NO
• If there is activity on the 100Base-FX port, disconnect and reconnect
the 100Base-FX cable to restart the initialization process.
• Verify that the TX and RX cables on the media converter are
connected to the RX and TX ports, respectively, on the other device.
• Restart the workstation to restart the initialization process.
• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).
YES
• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).

CFETF10xx-205
12 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 [email protected] -- Click the “Transition Now” link for a live Web chat. 5
Installation -- Continued
Connect the Fiber Cable
1. Locate a 100Base-FX compliant fiber cable with male, two-stranded TX to
RX connectors installed at both ends.
2. Connect the fiber cables to the CFETF10xx-205 media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Connect the Twisted-Pair Copper Cable
1. Locate or build 100Base-TX compliant cables, with male RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the CFETF10xx-205 media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (switch, workstation, etc.).
Connectfibercable
to media converter
asshown.
Connectfibercable
to otherdevice
(media converter,
hub, etc.) asshown
RX
TX
RX
TX
RJ-45 Port
Media ConverterRJ-45 Port
On otherdevice
(workstation, switch, etc.)
PointSystem Chassis
Technical Specifications
For use with Transition Networks Model CFETF10xx-205 or equivalent.
Standards IEEE 802.3™
Data Rate 100 Mb/s
Dimensions 3.4" x 5.0" x 0.87" (86 x 185 x 22 mm)
Weight 3 oz (91 g) (approximate)
Power Consumption 3.5 watts, 200 mA @ 13.9 VDC
MTBF 382,956 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
1,456,260 hours (Bellcore7 V5.0)
Environment Tmra*: 0 to 60°C (32 to 140°F )
Storage Temp: -20 to 85°C (-4 to 185°F )
Humidity 5 to 95%, non condensing
Altitude 0 to 10,000 feet
Warranty Lifetime
*Manufacturer’s rated ambient temperature: Tmra range for the CFETF10xx-205
media converter depends on the physical characteristics and the installation
configuration of the PointSystem™ chassis, in which the module will be
installed.
The information in this user’s guide is subject to change. For the most up-to-date
information on the CFETF10xx-205 media converter, view the user’s guide on-
line at: www.transition.com
This product is certified by the manufacturer to comply with DHHS Rule 21/CFR,
Subchapter J applicable at the date of manufacture.
CAUTION: Visible and invisible laser radiation when open. Do not stare into
the beam or view directly with optical instruments.
CAUTION: Use of controls, adjustments or the performance of procedures other
than those specified herein may result in hazardous radiation exposure.

CFETF10xx-205
624-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 [email protected] -- Click the “Transition Now” link for a live Web chat. 11
Operation
Status LEDs
The CFETF10xx-205 media converter is designed to operate
without user intervention. Use the status LEDs to monitor the
media converter operation in the network.
PWR On Connection to external power.
LKF On The fiber link has been established.
LKC On The copper link has been established.
RXF Flashing The fiber link is receiving data.
RXC Flashing The copper link is receiving data.
Product Features
Auto-Negotiation
The Auto-Negotiation feature allows the CFETF10xx-205 media converter to
automatically configure itself to achieve the best possible mode of operation
over a link. The media converter broadcasts its speed (100 Mb/s) and duplex
capabilities (full or half) to the other devices and negotiates the best mode of
operation. Auto-Negotiation allows quick and easy installation because the
optimal link is established automatically. No user intervention is required.
A scenario where the media converter is linked to a non-negotiating device,
disable Auto-Negotiation. In this instance, the mode of operation will drop to
the least common denominator between the two devices (e.g., 100 Mb/s,
half-duplex). Disabling this feature enables forcing the connection to the best
mode of operation.
Half-Duplex Network (512-Bit Rule)
In a half-duplex network, the maximum cable lengths are determined by the
round trip delay limitations of each Fast Ethernet collision domain. (A collision
domain is the longest path between any two terminal devices, e.g., a
terminal, switch, or router.)
The 512-Bit Rule determines the maximum length of cable permitted by
calculating the round-trip delay in bit-times (BTU) of a particular collision
domain. If the result is less than or equal to 512 BTU, the path is good.
For more information on the 512-Bit Rule, see the white paper titled “Collision
Domains” on the Transition Networks website at: www.transition.com

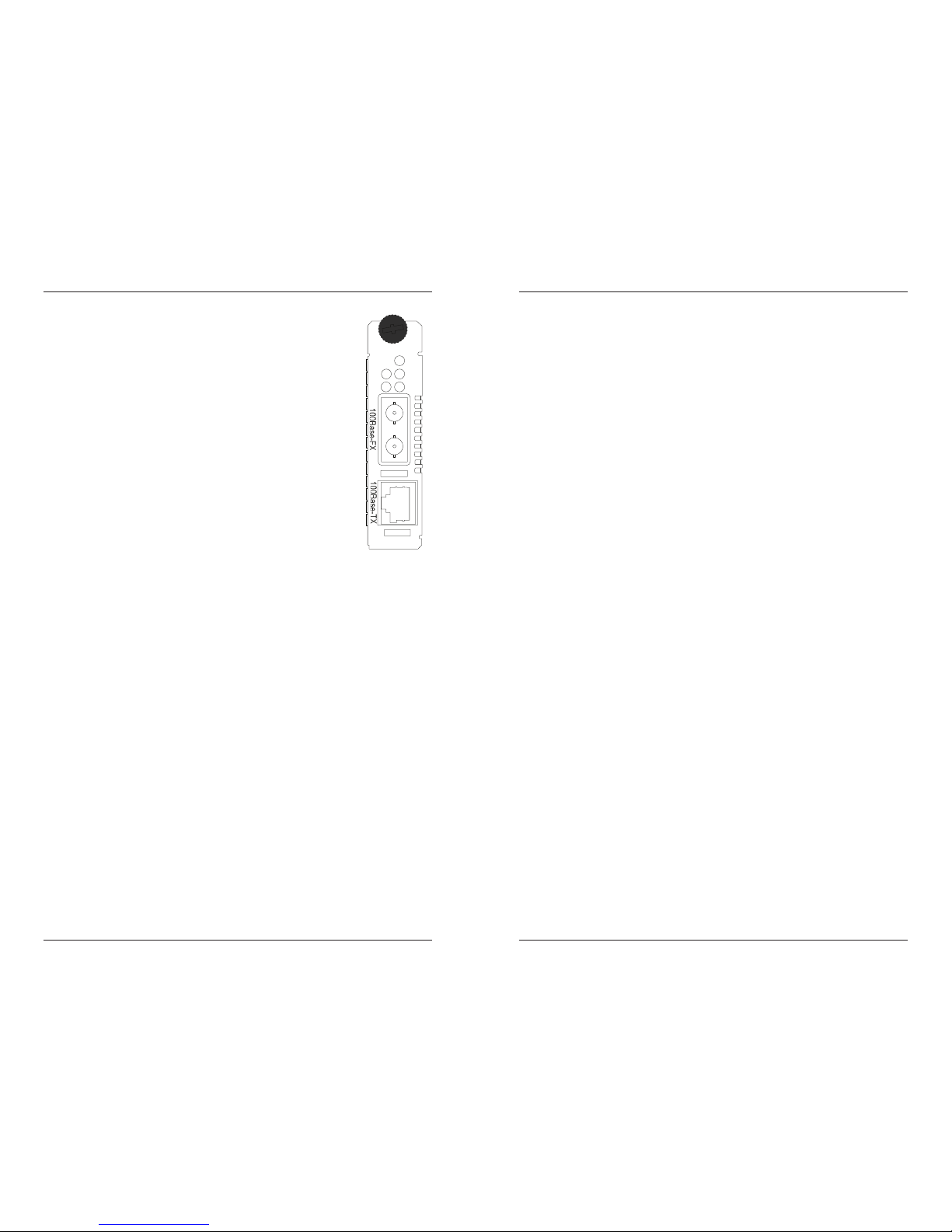

CFETF205
RFX
RXC
PWR
LKF
LKC
TX
RX
Cable Specifications -- Continued
CFETF1029-2xx 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm
Link Budget: 11 dB
CFETF1017-351 1510 nm multimode
Fiber Optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -3.0 dBm
Link Budget: 29 dB
CFETF1017-353 1530 nm multimode
Fiber Optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -3.0 dBm
Link Budget: 29 dB
CFETF1017-355 1550 nm multimode
Fiber Optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -3.0 dBm
Link Budget: 29 dB
CFETF1017-357 1570 nm multimode
Fiber Optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -3.0 dBm
Link Budget: 29 dB
The fiber optic transmitters on this device meet Class I Laser safety
requirements per IEC-825/CDRH standards and comply with 21
CFR1040.10 and 21CFR1040.11.

CFETF10xx-205
10 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 [email protected] -- Click the “Transition Now” link for a live Web chat. 7
Operation -- Continued
Full-Duplex Network
In a full-duplex network, maximum cable lengths are determined by the type
of cables used. See page 1 (front cover) for available CFETF10xx-205 models.
The 512-Bit Rule does not apply in a full-duplex network.
Pause Control Frame
The pause control feature can improve network performance by allowing one
end of the link to signal the other to discontinue frame transmission for a set
period of time to relieve buffer congestion.
NOTE: If the pause control feature is present on ALL network devices attached
to the media converter(s), enable the pause control feature on the media
converter(s). Otherwise, disable this feature.
Link Pass-Through
When the Link Pass-Through feature is activated, it allows the media
converter to monitor both the fiber and copper RX (receive) ports for loss of
signal. In the event of a loss of an RX signal (1), the media converter will
automatically disable the TX (transmit) signal (2), thus, “passing through” the
link loss (3). The far-end device is notified automatically of the link loss (4),
which prevents the loss of valuable data transmitted unknowingly over an
invalid.
Far-End Fault
When a fault occurs on an incoming fiber link (1), the media converter
transmits a Far-End Fault signal on the outgoing fiber link (2). In addition, the
Far-End Fault signal also activates the Link Pass-Through, which in turn
disables the link on the copper portion of the network (3) and (4).
Far-End Fault
signal is sent
Media
Converter A
Media
Converter B
Near-End
Device
Far-End
Device
original fault
on the fiber link
media converter B
disables the copper link
media converter A
disables the copper link
3
42
1
4
1
Media
Converter A
Media
Converter B
Near-End
Device
Far-End
Device
original fault
on the co
pp
er link media converter B
disables the co
pp
er lin
k
media converter A
disables the fiber TX link
3
2
media converter B
loses the fiber RX link
Cable Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications.
Fiber Cable
Bit Error Rate: <10-9
Single mode fiber (recommended): 9 µm
Multimode fiber (recommended): 62.5/125 µm
Multimode fiber (optional): 100/140, 85/140, 50/125 µm
CFETF1011-205 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm
Link Budget: 11.0 dB
CFETF1013-205 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm
Link Budget: 11.0 dB
CFETF1014-205 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm
Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm
Link Budget: 16.0 dB
CFETF1015-205 1310 nm single mode
Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm
Link Budget: 26.0 dB
CFETF1016-205 1310 nm single mode
Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm
Link Budget: 29.0 dB
CFETF1017-205 1550 nm single mode
Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm
Link Budget: 29.0 dB
CFETF1018-205 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -33.5 dBm max: -14.0 dBm
Link Budget: 14.5 dB
CFETF1019-205 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.2 dBm max: -8.0 dBm
Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -3.0 dBm
Link Budget: 17.3 dB

CFETF10xx-205
824-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 [email protected] -- Click the “Transition Now” link for a live Web chat. 9
Cable Specifications
Copper Cable
Category 5: (minimum requirement)
Gauge 24 to 22 AWG
Attenuation 22.0 dB /100m @ 100 MHz
Maximum Cable Distance 100 meters
• Straight-through or crossover twisted-pair cable may be used.
• Shielded twisted-pair or unshielded twisted-pair may be used.
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.
Straight-Through Cable CrossoverCable
TwistedPair#1
TwistedPair#2
TwistedPair#2
TwistedPair#1
Operation -- Continued
SUMP
See the on-line documentation that comes with Transition Networks
FocalPoint™ software for applicable commands and usage.
Use SUMP at an attached terminal or at a remote location to monitor the
following media converter activities:
• Media-converter power
• Copper link and fiber link status
• Twisted-pair cable length
• Hardware switch settings
• Fault condition
Also, use SUMP to enter network commands that:
• Enable/disable full-/half-duplex
• Enable/disable Link Pass-Through (LPT)
• Enable/disable Far-End Fault (FEF)
• Enable/disable Pause
• Enable/disable AutoCross
• Power down the media converter
