Transition Networks SGPAT10xx-100 User manual

SGPAT10xx-100
10/100/1000Base-T to 1000Base-SX/LX PoE
PSE+ GbE Media Converter
User Guide
33515 Rev. A

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/ Page 2 of 23
Trademarks
All trademarks and registered trademarks are the property of their respective owners.
Copyright Notice/Restrictions
Copyright © 2011, 2012 Transition Networks
All rights reserved.
No part of this work may be reproduced or used in any form or by any means (graphic,
electronic or mechanical) without written permission from Transition Networks.
Printed in the U.S.A.
SGPAT10xx-100 10/100/1000Base-T to 1000Base-SX/LX PoE PSE+ GbE Media Converter
User Guide, 33515 Rev. A
Contact Information
Transition Networks
10900 Red Circle Drive
Minnetonka, MN 55343 USA
Tel: [phone] or 1-800-526-9267
Fax: [phone]
Revision History
Rev Date Description
A 07/12/12 Initial release.

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
Cautions and Warnings
Definitions
Cautions indicate that there is the possibility of poor equipment performance or potential damage to
the equipment. Warnings indicate that there is the possibility of injury to a person.
Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure
to read and understand the information identified by this symbol could result in poor equipment
performance, damage to the equipment, or injury to persons.
Cautions
Do not ship or store devices near strong electrostatic, electromagnetic, magnetic, or
radioactive fields.
Caution: When handling media converters, observe electrostatic discharge precautions. This requires
proper grounding (i.e., wear a wrist strap).
Caution: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485,
DS1, DS3, Video Coax, etc., are intended to be connected to intra-building (inside plant) link
segments that are not subject to lightening transients or power faults. They are not to be connected to
inter-building (outside plant) link segments that are subject to lightening.
Caution: Do not install the media converters in areas where strong electromagnetic fields (EMF) exist.
Failure to observe this caution could result in poor media converter performance.
Caution: Read the installation instructions before connecting the chassis to a power source. Failure to
observe this caution could result in poor performance or damage to the equipment.
Caution: Only trained and qualified personnel should install or perform maintenance on these devices.
Failure to observe this caution could result in poor performance or damage to the equipment.
Page 3 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
Caution: Do not let optical fibers come into physical contact with any bare part of the body since they
are fragile, and difficult to detect and remove from the body.
Caution: Do not bend any part of an optical fiber/cable to a diameter that is smaller than the minimum
permitted according to the manufacturer’s specification (usually about 65 mm or 2.5 in)!
Warnings
Warning: Use of controls, adjustments or the performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Warning: Visible and invisible laser radiation when open. Do not look into the beam or view the
beam directly with optical instruments. Failure to observe this warning could result in an eye injury or
blindness.
Warning: Do not work on the device, or connect or disconnect cables during a storm with lightning. Failure
to observe this warning could result in an electrical shock or death.
Page 4 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/ Page 5 of 23
Table of Contents
Caution ..................................................................................................................................6
Electronic Emission Notices ..................................................................................................6
1. Introduction..........................................................................................................................7
Overview................................................................................................................................7
Checklist ................................................................................................................................7
Features ................................................................................................................................8
Hardware Description............................................................................................................8
Models ...................................................................................................................................9
LED Indicators.....................................................................................................................10
Network Interfaces ..............................................................................................................10
User Interfaces on the Right Panel .....................................................................................11
User Interfaces on the Right Panel .....................................................................................11
LPT and RFD function.........................................................................................................12
PoE Technology ..................................................................................................................12
2. Installation..........................................................................................................................14
Hardware and Cable Installation .........................................................................................14
Wall Mount Installation (Optional) ...................................................................................14
Desktop Installation (Optional)........................................................................................14
Cabling Requirements ....................................................................................................15
3. Applications.......................................................................................................................16
1. SGPAT10xx-100 connected to IP CAM (PD)..................................................................16
2. SGPAT10xx-100 connect to PoE Splitter........................................................................16
LPT (Link Pass Through) Applications ....................................................................................17
1. Converter to Converter in pairs .......................................................................................17
2. Converter Connects to Fiber Switch ...............................................................................18
Appendix A - General Specifications...................................................................................19
Fiber Optic Specifications....................................................................................................19
Service.................................................................................................................................20
Warranty ..............................................................................................................................20

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
Caution
Circuit devices are sensitive to static electricity, which can damage their delicate electronics.
Dry weather conditions or walking across a carpeted floor may cause you to acquire a static
electrical charge.
To protect your device, always touch the metal chassis of your computer to ground the static
electrical charge before you pick up the circuit device.
Electronic Emission Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class A computing
device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference when operated in a commercial environment.
European Community (CE) Electromagnetic Compatibility Directive
This equipment has been tested and found to comply with the protection requirements of
European Emission Standard EN55022/EN60555-2 and the Generic European Immunity
Standard EN50082-1.
EMC: EN55022(1988)/CISPR-22(1985) class A
EN60555-2(1995) class A
EN60555-3
IEC1000-4-2(1995) 4K V CD, 8KV, AD
IEC1000-4-3(1995) 3V/m
IEC1000-4-4(1995) 1KV – (power line), 0.5KV – (signal line)
Page 6 of 23

SGPAT10xx-100 User Guide
335xx Rev. A http://www.transition.com/
1. Introduction
Overview
The TN SGPAT10xx-100 is a 10/100/1000Base-T to 1000Based-SX/LX (SC/LC)
IEEE802.3z/ab GbE media converter, which allows two types of network segments
to be connected easily and inexpensively. It complies with IEEE802.3at (max. PoE
output power consumption up to 30W) Power over Ethernet standard.
This AC powered PoE media converter is a Power Sourcing Equipment (PSE),
providing power to both IEEE802.3af and IEEE802.3at powered device (PD) over
the existing Cat. 5e UTP cable. The converter includes PD signal sensing and
power monitoring features. We are using “PSE+” to represent the high power PoE
output max. 30W.
Checklist
Before you start installing the converter, verify that the shipping package contains:

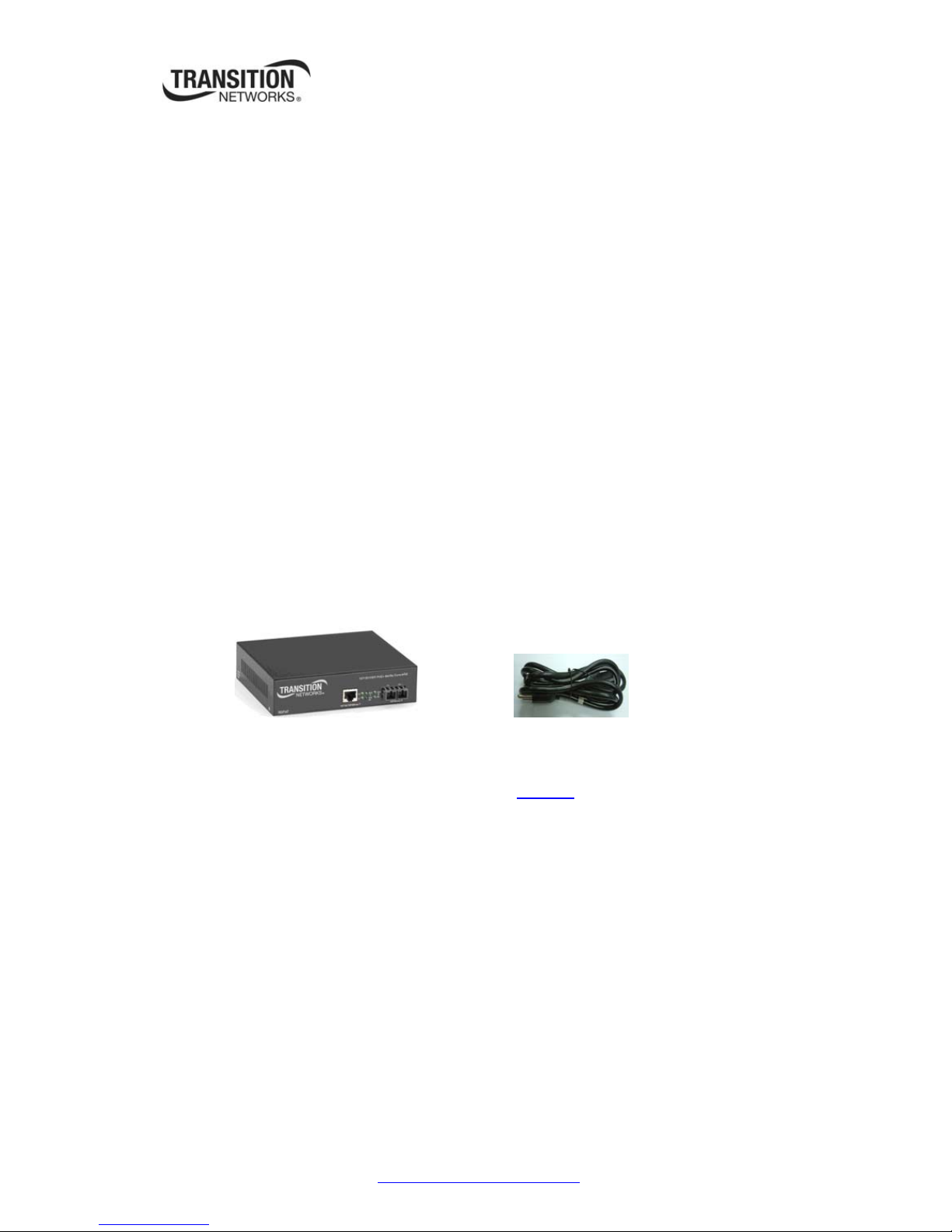

The SGPAT10xx-100 GbE Media Converter
AC Power Cord
Product Documentation Card, PN 33504
Four adhesive-backed rubber feet
SGPAT10xx-100 AC Power Cord
This User Guide manual is available on the TN website. Please notify your sales
representative immediately if any of the items are missing or damaged.
Page 7 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
Features
Key Features
IEEE802.3at PoE (Power over Ethernet) PSE+ compatible
---Internal AC power supply
---Over-current protection
---Under-current detection
---Minimum load sensing
---Fault protection input
---PSE MDI power enable/disable
Supports LPT (Link Pass-through) and RFD (Remote Fault Detect)
Supports 802.3x flow control for full-duplex port and backpressure for
half-duplex port
DIP switch to set configurations
DIP 1:Cut-Through Mode/Normal Mode
DIP 2:LPT/LPT DIS
DIP 3:PoE/PoE DIS
Supports jumbo frame (Normal Mode:2KB, Cut-Through Mode:9KB)
PSE RJ-45 Pin-out Alternatives A/B Auto detection
RoHS Compliance
Hardware Description

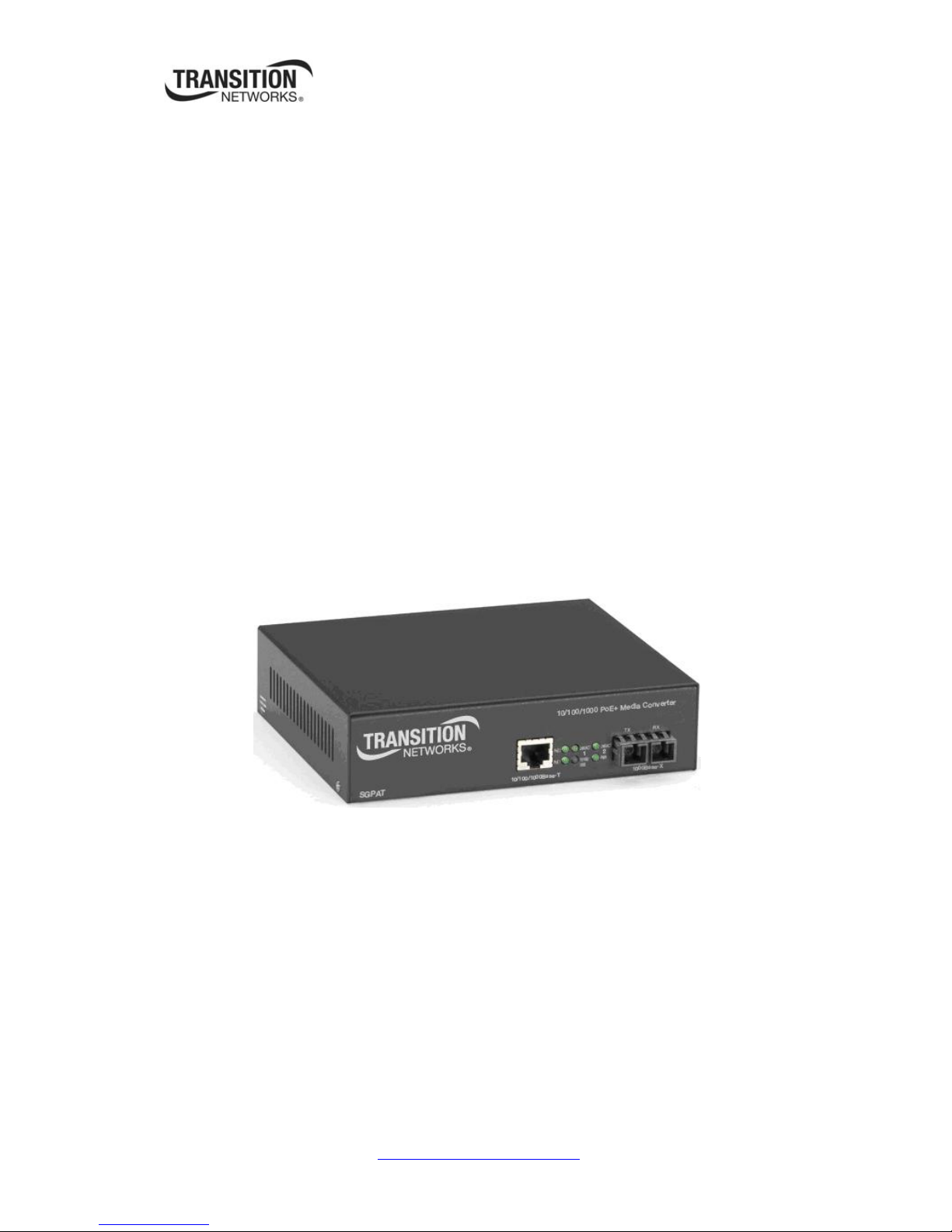

Fig. 1-1: Full View of SGPAT10xx-100
Page 8 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
Models
Model Description
SGPAT1013-100 10/100/1000Base-T to 1000Base-SX PoE PSE+ GbE
converter, SC Multi-Mode
SGPAT1014-100 10/100/1000Base-T to 1000Base-LX PoE PSE+ GbE
converter, SC Single-Mode 10km
SGPAT1039-100 10/100/1000Base-T to 1000Base-SX PoE PSE+ GbE
LC converter, Multi-Mode
SGPAT1019-100 10/100/1000Base-T to 1000Base-LX PoE PSE+ GbE
converter, LC Single-Mode 10km
Fig. 1-2: Front View of SGPAT1013-100
Page 9 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
LED Indicators
There are 6 diagnostic LEDs located on the Front panel of SGPAT10xx-100 GbE
Media Converter. These LED indicators provide administrators with real-time
system status. The table below describes the LED indicator functions.
LED Color Function
PWR Green Lit when power is coming up
LNK/ACT 2 Green Lit when fiber connection is good
Blinks when fiber data is present
LNK/ACT 1 Green Lit when TP connection is good
Blinks when TP data is present
10/100/1000
Mbps
Green/
Amber
Lit Green when TP link on 1000Mbps
Lit Amber when TP link on 100Mbps
Off when TP link on 10Mbps
PoE1 Green Lit when RJ-45 (1,2),(3,6) pairs detect PD
PoE2 Green Lit when RJ-45 (4,5),(7,8) pairs detect PD

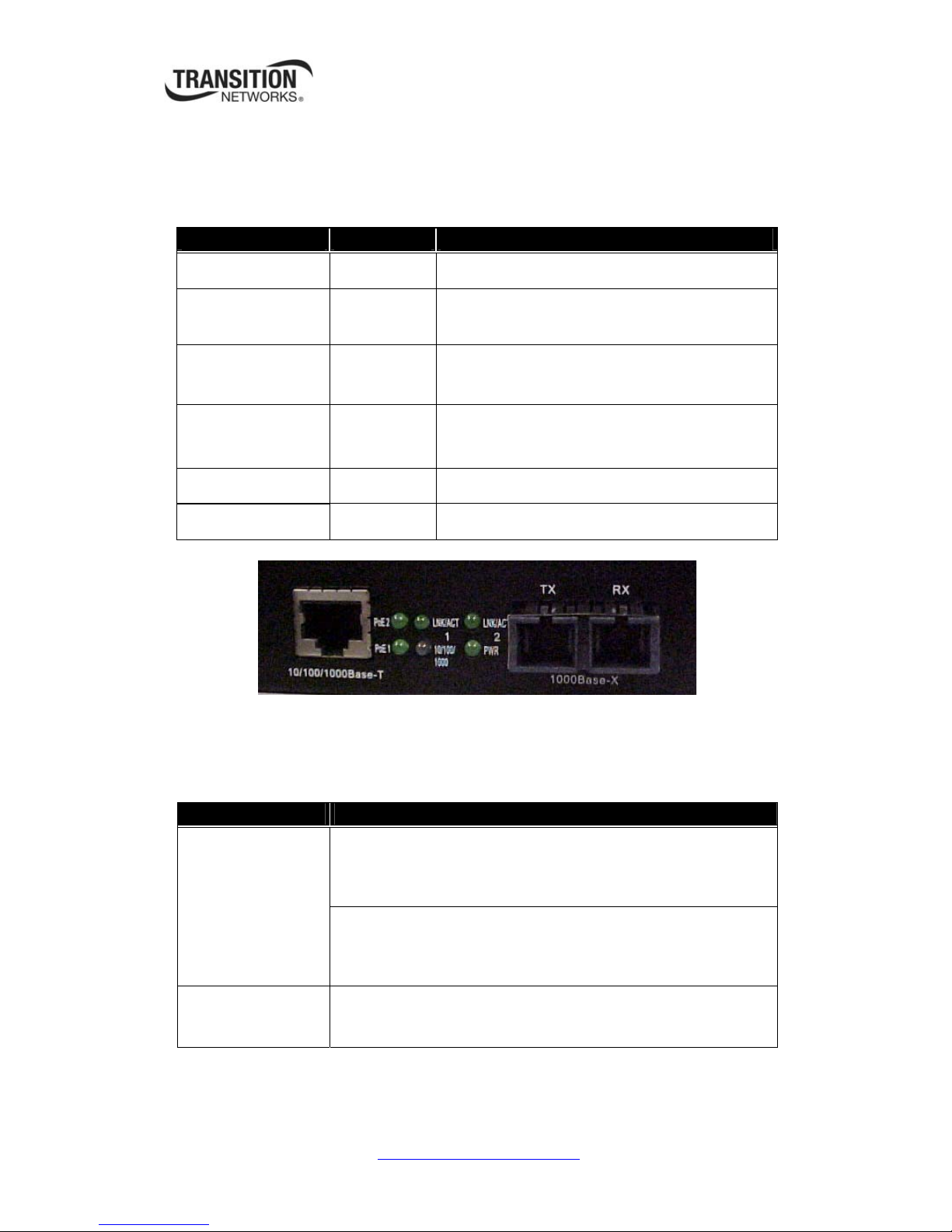

Close-up of LEDs and Network Connectors
Network Interfaces
Port Function
10/100Base-TX
Auto-Negotiation
Auto-MDIX
Flow control for Full-Duplex, backpressure for Half-Duplex
TP Port 1000Base-TX
Auto-Negotiation
Auto-MDIX only for Auto-Negotiation
Flow control for Full-Duplex only
Fiber Port
1000Base-SX/LX (SC/LC)
with NWay flow control
Link partner must be 1000FDX with NWay flow control
Page 10 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
User Interfaces on the Right Panel
The right panel provides access to a configuration DIP switch and a RESET switch.

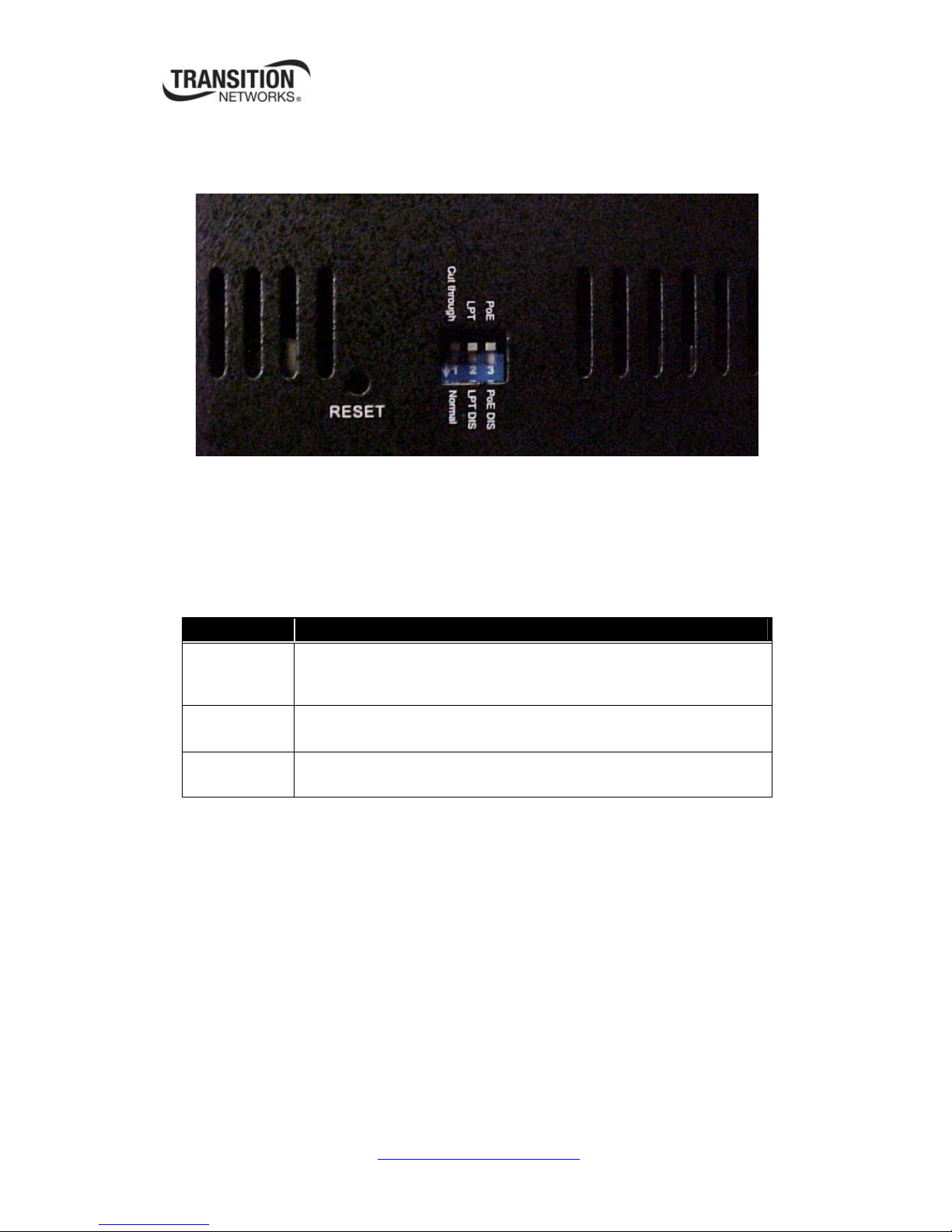

Fig. 1-3: Right View of SGPAT1013-100
DIP Switch and Reset button
Before you make any changes to DIP switch settings, make sure that the power has
been turned off. Or press the RESET button after you change DIP switch 1 or 2
setting.
Switch Function
DIP 1
Cut-Through Mode (default) or Normal Mode.
“Cut-Through” mode supports jumbo frame up to 9216 Bytes.
“Normal” mode supports frame up to 2048 Bytes.
DIP 2 LPT Enable (default) or Disable.
DIP 3 PoE Enable (default) or Disable.
Page 11 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/

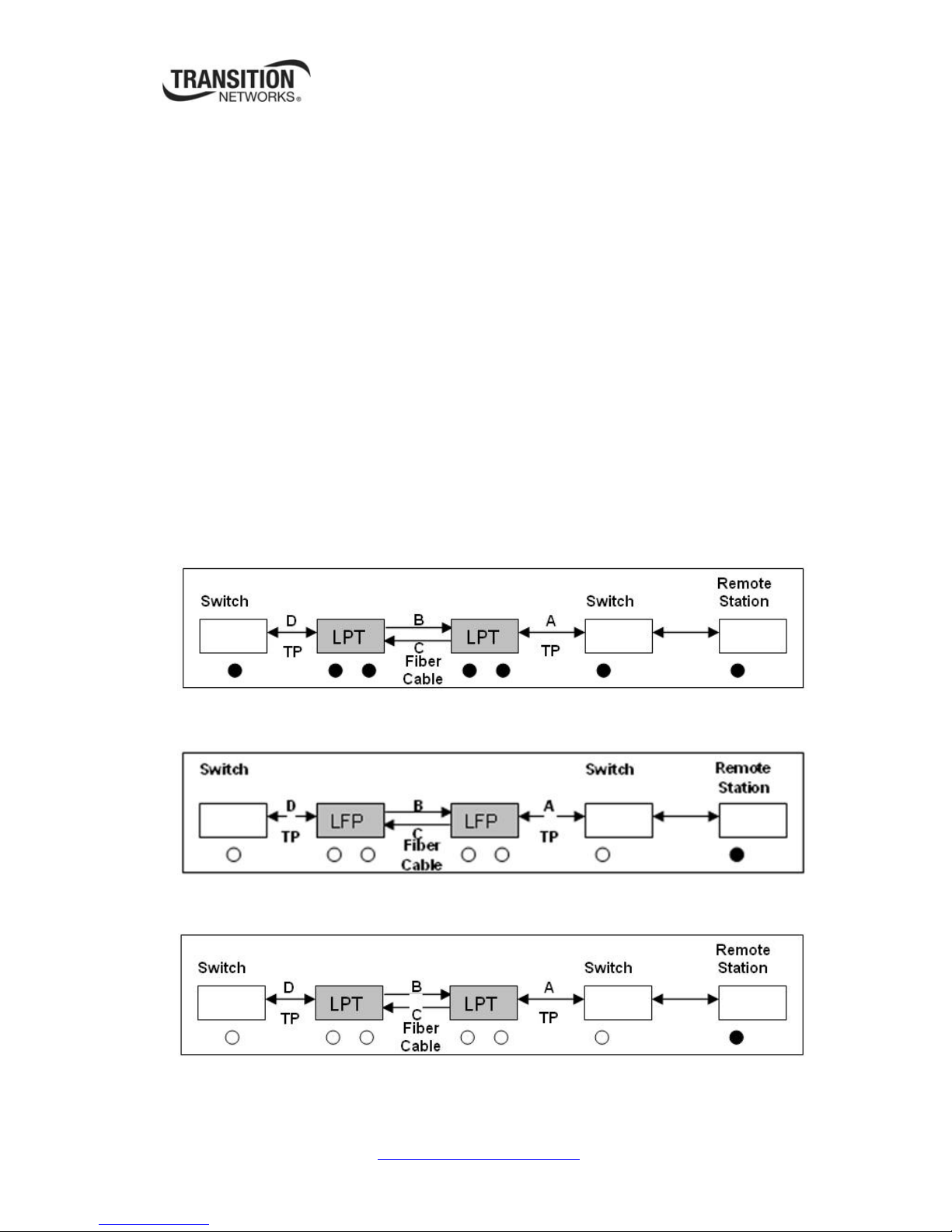

LPT and RFD function
The LPT (Link Pass-through) allows the media converter to monitor both the fiber
and copper RX ports for loss of signal. In case of a loss of RX signal on one media
port, the converter will automatically disable the TX signal to the other media port,
thus passing through the link fault. RFD (Remote Fault Detect) lets the converter
stop sending link pulse to the link partner once a loss of the fiber RX signal is
encountered. Then the link partner will synchronously stop sending data. FEF
prevents loss of valuable data transmitted over invalid link. Combining LPT and FEF
troubleshooting features of SGPAT10xx-100, both end devices can be notified of a
loss of fiber link.
When link fault pass through function is enabled, link status on TX port will inform
the FX port of the same device and vice versa. From the link fault pass through
procedure illustrates in the figure below, if link fail happens on TX port (1), the local
FX port sends non-idle pattern to notice the remote FX port (2). The remote FX port
then forces its TX port to link failed after receiving the non-idle pattern (4). In other
words, this mechanism will alert the link fault status of local TX port to the remote
converter’s TX port, and the link status of the remote TX port will become off. Link
status LED will also be off for both SGPAT10xx-100 and its link partner.
PoE Technology
Power over Ethernet or PoE technology describes a system to transfer electrical
power, along with data, to remote devices over standard twisted-pair cable in an
Ethernet network. This technology is useful for powering IP telephones, wireless
LAN access points, network cameras, remote network switches, embedded
computers, and other appliances where it would be inconvenient, expensive (mains
wiring must often be done by qualified and/or licensed electricians for legal or
insurance reasons) or infeasible to supply power separately. It doesn't require
modification of existing Ethernet cabling infrastructure.
IEEE 802.3af (Power over Ethernet), the specification allows the powering device to
use a voltage between 44–57 VDC, though the nominal voltage is 48V, over two of
the four available pairs on a Cat.3/Cat.5e cable with a selectable current of 10–350
mA subject to a maximum load power of 15.40W. Only about 12.95W are available
after counting cable losses, and most switched power supplies will lose another 10–
25% of the available power.
Page 12 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
IEEE 802.3at (Max. PoE output power consumption up to 30W) is an updated
standard in progress referred to as PoE plus or 802.3at introduces increases
available power. Numerous non-standard schemes had been used prior to PoE
standardization to provide Power over Ethernet cabling. Some are still in active use.
The standard describes two types of devices:
1. Power Sourcing Equipment(PSE) and Powered Devices(PD), and
2. PSE provides power to the PD.
The PoE PSE+ converter may auto-detect PD and provide power via one of two
valid four-wire connections. In each four-wire connection, the two conductors
associated with a pair each carry the same nominal current in both magnitude and

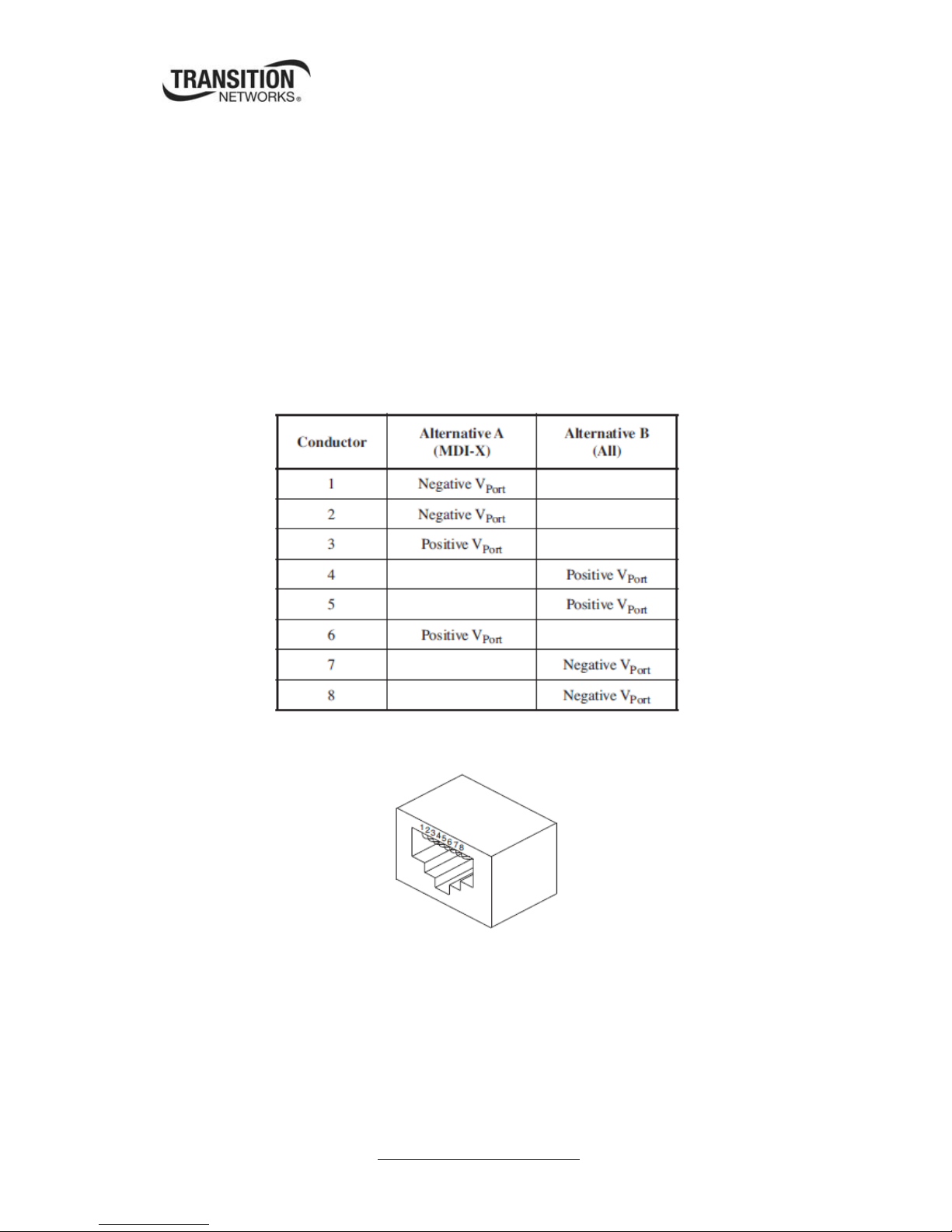

polarity. Refer to following figure in conjunction with PSE pinout alternative table,
illustrates the valid alternatives.
PSE Pinout Alternative Table
PD and PSE Eight-Pin Modular Jack (RJ-45)
Page 13 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
2. Installation
Hardware and Cable Installation
Caution: Wear a grounding device to avoid damage from electrostatic discharge.
Power Installation
Power requirement: 100~240 VAC, 50~60Hz. Connect to an AC power source with
AC power cord.
Wall Mount Installation (Optional)
For some applications, you will find it convenient to mount SGPAT10xx-100 on the
wall using the wall mount holes on the side of the unit (shown below).
Desktop Installation (Optional)
For other applications, you will find it convenient to mount SGPAT10xx-100 using
the four provided adhesive-backed rubber feet (location shown above).
Page 14 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/ Page 15 of 23
Cabling Requirements
To help ensure a successful installation and keep the network performance good,
please take care on the cabling requirement. Cables with worse specification will
render the LAN to work poorly.
Cabling Requirements for TP
The grade of the cable must be Cat. 5e with a maximum length of 100 meters.
Cabling Requirements for FX
1000Base-SX/LX network only support full-duplex mode. The Switch-based Media
Converter breaks up TP and Fiber segments’ collision domain to extend the cabling
distance.
Mode Multi-Mode Fiber
62.5/125μm
Multi-Mode Fiber
50/125μm
Bandwidth
MHz-Km Distance Bandwidth MHz-Km Distance
160 220m 400 500m
1000SX (SC/LC)
850nm 200 275m 500 550m
1000LX (SC/LC)
1310nm
Single-Mode Fiber 9/125μm
Single-Mode transceiver 1310nm: 10Km

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
3. Applications
1. SGPAT10xx-100 connected to IP CAM (PD)
The following is a simple example to illustrate how to use SGPAT10xx-100 PoE
PSE Media Converter to set up your system, and to test if your SGPAT10xx-100
functions normally.

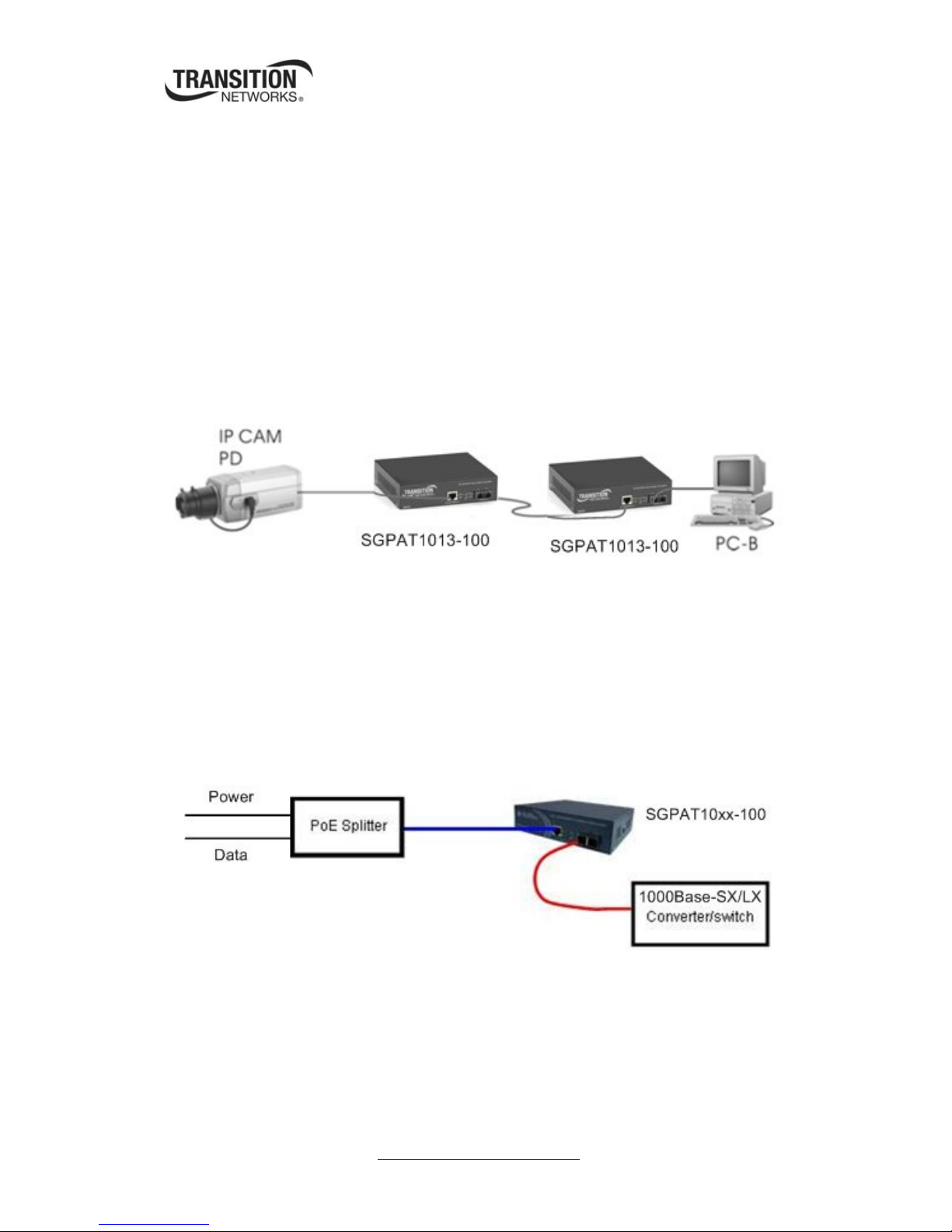

Use a suitable fiber cable to connect these two SGPAT10xx-100s, use Ethernet
cables to connect the PC to the SGPAT10xx-100, and connect the IP CAM as
shown in Fig. 3-1 You can view the image from PC through IP CAM after connection
is successful.
Fig. 3-1: IP CAM (PD) Connection
2. SGPAT10xx-100 connect to PoE Splitter
In this example, the SGPAT10xx-100 TP connects to a PoE splitter, and FX
connects to a GbE converter or switch that depends on the user.
Fig. 3-2: IP CAM (PD) Connection (PoE Splitter or Converter/Switch Connection)
Page 16 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
LPT (Link Pass Through) Applications
The Converter model of LPT (link pass through) in TX/FX converter application is
controlled by the software and instantly take effect. Link status on one port is
propagated to the other port to notice the remote nodes. If the TP port is unplugged,
this converter stops transmission on fiber port. This causes the remote fiber node
link to fail. LED shows the link failure on both TP and fiber ports. If the fiber link
fails, this converter restarts auto-negotiation on TP port but always stays in the link
failure state. This causes the remote TP node link to fail. The LED also shows the
link failure on both the TP and fiber ports. See Fig. 4-1 and 4-4 below for the
normal status when the link succeeds. See Fig. 4-2 thru Fig.4-6 for the error status
when TP Cable A, Fiber Cable B, or Fiber Cable C fails to connect.
Note: The Link through (LPT) function only takes effect with the LPT DIP switch in
the ‘Enable’ position.
The SGPAT10xx-100 can support the following two LPT typical applications:
1. Converter to Converter in pairs
Fig. 4-1: Normal status via LPT converter
Fig. 4-2: The status as TP Cable A or D is broken
Fig. 4-3: The status as Fiber Cable B or C is broken
Page 17 of 23

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/
2. Converter Connects to Fiber Switch
Fig. 4-4: Normal status via LPT converter
Fig. 4-5: The status as TP Cable A is broken
Fig.4-6: The status as Fiber Cable B or C is broken
Page 18 of 23
Note : ●Indicates LNK/ACT LED Lit
○Indicates LNK/ACT LED Off
Note: The LPT (Link Pass Through) function can work with different link
partners (e.g., Fiber port on Switch).
LPT does not need both converters with the same model in pairs.

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/ Page 19 of 23
Appendix A - General Specifications
Feature Description
Power Requirement 100~240VAC, 50~60Hz
Power Consumption 35 W
Operating Temperature 0to 40C
Storage Temperature -20to 70C
Humidity 5% to 90%
Dimensions 158(W) x 40(H) x 133(D) mm
Weight 0.44kg
Installation Wall mount, Desktop
MAC Address table 1k
Complies with FCC Part 15 Class A and CE Mark
Fiber Optic Specifications
Model # Media Speed Connector Up to
Distance
SGPAT1013-100 MM Fiber 1000 Mbps MM SC 550 m
SGPAT1039-100 MM Fiber 1000 Mbps MM LC 550 m
SGPAT1014-100 SM Fiber 1000 Mbps SM SC 10 km
SGPAT1019-100 SM Fiber 1000 Mbps SM LC 10 km
Model # Wave-
length
(nm)
Min TX
Output
(dBm)
Max TX
Output
(dBm)
Sensitivity
(dBm)
Power
Budget
(dB)
SGPAT1013-100 850 -9.5 -4 -17 7.5
SGPAT1039-100 850 -9.5 -4 -17 7.5
SGPAT1014-100 1310 -9.5 -3 -20 10.5
SGPAT1019-100 1310 -9.5 -3 -20 10.5
Remarks:
MM = Multi-Mode | SM = Single-Mode | SC = Duplex SC Connector | LC = Duplex LC
Connector

SGPAT10xx-100 User Guide
33515 Rev. A http://www.transition.com/ Page 20 of 23
Service
Direct Contact Numbers:
Domestic: + 1 800-260-1312
International: + 1 952-358-3601
Fax [phone]
Email: [email protected]
Service Hours:
USA: 7 AM until 8 PM CST Monday to Friday.
China: 8 AM until 4 PM China Central Standard Time Monday to Friday.
Out of Hours the calls will be answered by an on-call engineer.
Live Help Online Support: Chat live with a Transition Networks representative; go to
http://www.transition.com/TransitionNetworks/TechSupport/ContactUs.aspx.
Warranty
This warranty is your only remedy. No other warranties, such as fitness for a particular
purpose, are expressed or implied. Transition Networks is not liable for any special, indirect,
incidental or consequential damages or losses, including loss of data, arising from any cause
or theory. Authorized resellers are not authorized to extend any different warranty on
transition networks’ behalf.
Limited Lifetime Warranty Effective for products shipped May 1, 1999 and after.
Every Transition Networks’ labeled product purchased after May 1, 1999 will be free from
defects in material and workmanship for its lifetime. This warranty covers the original user
only and is not transferable.
What the Warranty Does Not Cover This warranty does not cover damage from
accident, acts of God, neglect, contamination, misuse or abnormal conditions of operation or
handling, including over-voltage failures caused by use outside the product’s specified rating,
or normal wear and tear of mechanical components. If the user is unsure of the proper means
of installing or using the equipment, contact Transition Networks’free technical support
services.
Establishing Original Ownership To establish original ownership and provide date of
purchase, please complete and return the registration card accompanying the product or
register the product on-line on our product registration page.
Transition Networks will at its option:
Repair the defective product to functional specifications at no charge
Replace the product with an equivalent functional product
Refund the purchase price of a defective product
Who to Contact for Returns
To return a defective product for warranty coverage, contact Transition Networks’ technical
support department for a return authorization number. Transition's technical support
department can be reached through any of the following means:
Service Hours
Mon thru Fri 7AM - 6 PM CST:
Contact Tech Support via telephone at 800-260-1312 or 952-941-7600
Fax [phone]
