Transition Networks Milan Raven Series User manual

Raven Series Modular
Media Converter System
MIL-RCM16A-V2 16 Slot Raven Conversion Modules
Managed Chassis with AC Power Supply
USER GUIDE

Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE
- EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du
Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community
Compliance with these directives imply conformity to the following European Norms:
- EN55022 (CISPR 22) - Radio Frequency Interference
- EN61000-X - Electromagnetic Immunity
- EN60950 (IEC950) - Product Safety
One-Year Limited Warranty
Transition Networks warrants to the original consumer or purchaser that each of it's products,
and all components thereof, will be free from defects in material and/or workmanship for a
period of one year from the original factory shipment date. Any warranty hereunder is
extended to the original consumer or purchaser and is not assignable.
Transition Networks makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall Transition Networks be liable for
incidental or consequential damages, costs, or expenses arising out of or
in connection with the performance of the product delivered hereunder
Transition Networks will in no case cover damages arising out of the
product being used in a negligent fashion or manner.
Trademarks
The MiLAN logo and Transition Networks trademarks are registered trademarks of Transition Networks in the
United States and/or other countries.
To Contact Transition Networks
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach Transition Networks technical support at:
E-mail: [email protected]
Transition Networks
10900 Red Circle Drive
Minnetonka, MN 55344
United States of America
Telephone: [phone]
Fax: : [phone]
http://www.milan.com
info@ Transition.com
© Copyright 2006 Transition Networks

FCC Warning
This Equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a class A product. In a domestic environment this product may cause radio interference in
which case
the user may be required to take adequate measures.

Content
Content ..................................................................................4
Introduction...........................................................................1
Features....................................................................................................1
Software Feature......................................................................................2
Management Methods..............................................................................4
Console and Telnet Management......................................................4
Web-based Management ..................................................................4
SNMP Network Management ............................................................4
Package Contents ....................................................................................5
Hardware Description...........................................................6
Physical Description .................................................................................6
Front & Rear Panel...................................................................................6
LED Indicators..........................................................................................7
System Cabinet.................................................................................7
Connecting to the Network.................................................10
Pre-Installation Requirements.................................................................10
Mounting the Device...............................................................................10
Desktop Installation .........................................................................11
Attaching Rubber Pads.............................................................11
Rack Mounting..........................................................................11
Power On................................................................................................12
Diagnostic Test.......................................................................................13
Connecting the Device via Local console or Telnet................................13
Console Management.........................................................16
Device Setting.........................................................................................16
Modules Settings....................................................................................18
Redundant Power Status........................................................................20
Events Log..............................................................................................21

SNMP Trap.............................................................................................21
Secure IP for Telnet, HTTP and SNMP ..................................................22
Port Counters..........................................................................................23
Fan Status ..............................................................................................23
Save Current Settings.............................................................................24
Factory Default Settings & Reboot System.............................................24
Reboot System.......................................................................................25
TFTP Configuration ................................................................................25
Web-Based Management....................................................26
About Web-based Management.............................................................26
System Login..........................................................................................27
Modules settings.....................................................................................29
Port Counter ...........................................................................................34
IP Config.................................................................................................35
SNMP .....................................................................................................36
Event Log................................................................................................37
Miscellaneous Settings...........................................................................38
Save and Reboot....................................................................................40
Upgrade..................................................................................................41
Help ........................................................................................................42
SNMP Management.............................................................43
SNMP Management ...............................................................................43
Specification........................................................................45

1
Introduction
The 16 Slots intelligent converter chassis is a combination of 16-slot host
cabinet and several of optional media converter bracket modules. A maximum
16-bracket module can be installed in the cabinet with two redundant power
supplies. The Power supply supports AC input type with load sharing
redundant feature. The converter supports TS-1000 standard that provides
loop back test to ensure the converter failure and remote configuration that
allows remote set-up for the module of the converter or the converter.
With build-in Web-based Management, managing and configuring the 16 Slots
intelligent converter chassis becomes easier. Users can visually configure and
manage their network via the Web browser. Besides, the 16 Slots intelligent
converter chassis can also be managed via Telnet, Console, or third-party
SNMP Management.
Features
16 slots converter chassis with 2 power slots
AC power with Redundant
Maximum 16 slots for media converter
HTTP, Telnet security
IP address security for management station
Web and TFTP firmware upgrade
Built-in Link Lost Forwarding (LLF)/Link Fault Pass-Through (LFP)
Back-door password supported
Module identification
Fiber Module hot-swappable
CPU module hot-swappable
SNMP, Web, Telnet, console management
Optional different converter modules: 10/100TX to 100FX module,

2
100/1000TX to Gigabit fiber module, 100/1000TX to Mini-GBIC module,
and 100FX WDM module
100FX and Gigabit modules support single mode or multi mode fiber
Supports TS-1000 on 10/100TX to 100FX module and 100FX WDM
module
Event log and SNMP Trap supported
SNMP MIB II and private MIB supported
Supports Simple Network Time Protocol (SNTP)
Power and Fan Detect
Loop Back Test
EIA RS-310C 19 “ standard
Software Feature
Management
Telnet
Web
Console (RS-232)
Web/Telnet Web and Telnet function Can be enabled or
disabled
MIBS RFC 1213 MIB II
Private MIB
SNMP Trap
Link down
Link up
Power module status change
Authorization Fail
Module plug in and plug out
Chassis configuration change
Module configuration change

3
Software Upgra
de
Firmware upgrade by Web interface and TFTP
Link Loose
Forward
Each module supports LLF feature. It can be set by
Web or CLI menu
LLF Mode TX →
→
→
→Fiber: TX
port link down, the fiber
port will be forced down
LLF Mode Fiber →
→→
→TX : Fiber port link down, the
TX port will be forced down
Packet counter
TX port: IN-good / In-bad packet counter
out-good /out-bad packet counter
collision counter
Fiber port: IN-good / In-bad packet counter
out-good /out-bad packet counter
SNMP Trap Node Up to 4 Trap nodes
IP security
IP security for telnet
HTTP and SNMP access
Up to 4 IP nodes when security is enabled
TS-1000 Loop back test, remote configuration
SNTP RFC2030 Simple Network Time Protocol
Events log Up to 4095 event records. It can be reviewed
by CLI
and Web browser mode

4
Management Methods
The 16 Slots intelligent converter chassis supports following management
methods:
Console and Telnet Management
Web-based Management
SNMP Network Management
Console and Telnet Management
Console Management is done through the RS-232 Console Port that requires a
direct connection between PC and the Device. Once the Device is on the
network, you can use Telnet program to Log in and modify the configuration.
The default IP address is 192.168.1.77 with a subnet mask of 255.255.255.0.
This default address can be used to login and change the configuration using
Telnet.
Web-based Management
The 16 Slots intelligent converter chassis provides an embedded HTML web
program in flash memory. It offers advanced management features and allows
users to manage the 16 Slots intelligent converter chassis from anywhere on
the network through any HTTP browser such as Microsoft Internet Explorer.
For more information, please see the section of Web-Based Management.
SNMP Network Management
SNMP (Simple Network Management Protocol) provides a way to monitor and
control network device, such as configurations, statistic collection, performance,
and security.
Data is collected by SNMP agents, which are hardware & software processes
reporting activity in each network device. The agent reports information
contained in a MIB format (Management Information Base), which is a data
structure that defines what is obtainable from the device and what can be
controlled.

5
Package Contents
Unpack the carton of the 16 Slots intelligent converter chassis and verify them
against the checklist below:
16 Slots intelligent converter chassis
Power Cord
Four Rubber Pads
RS-232 cable
User Manual
16 Slots intelligent converter chassis Rubber Pads Rack-mounted Kit
RS-232 cable User Manual Power Cord
Package Contents
Compare the contents of your 16 Slots intelligent converter chassis package
with the standard checklist above. If any item is missing or damaged, please
contact the local dealer for service.

6
Hardware Description
The 16 Slots intelligent converter chassis is a modular unit that contains 16
slots and 2 power slots. All optional models come with the built-in CPU, and the
RS-232 port is used for Out-of-Band Management and one Ethernet RJ-45
connector is for In-band management that both in front panel.
This section mainly describes the hardware of the 16 Slots intelligent converter
chassis and gives a physical and functional overview on certain module
converter.
Physical Description
The physical dimensions of the 16 Slots intelligent converter chassis is 448mm
x 279mm x 89mm (Lx W x H)
Front & Rear Panel

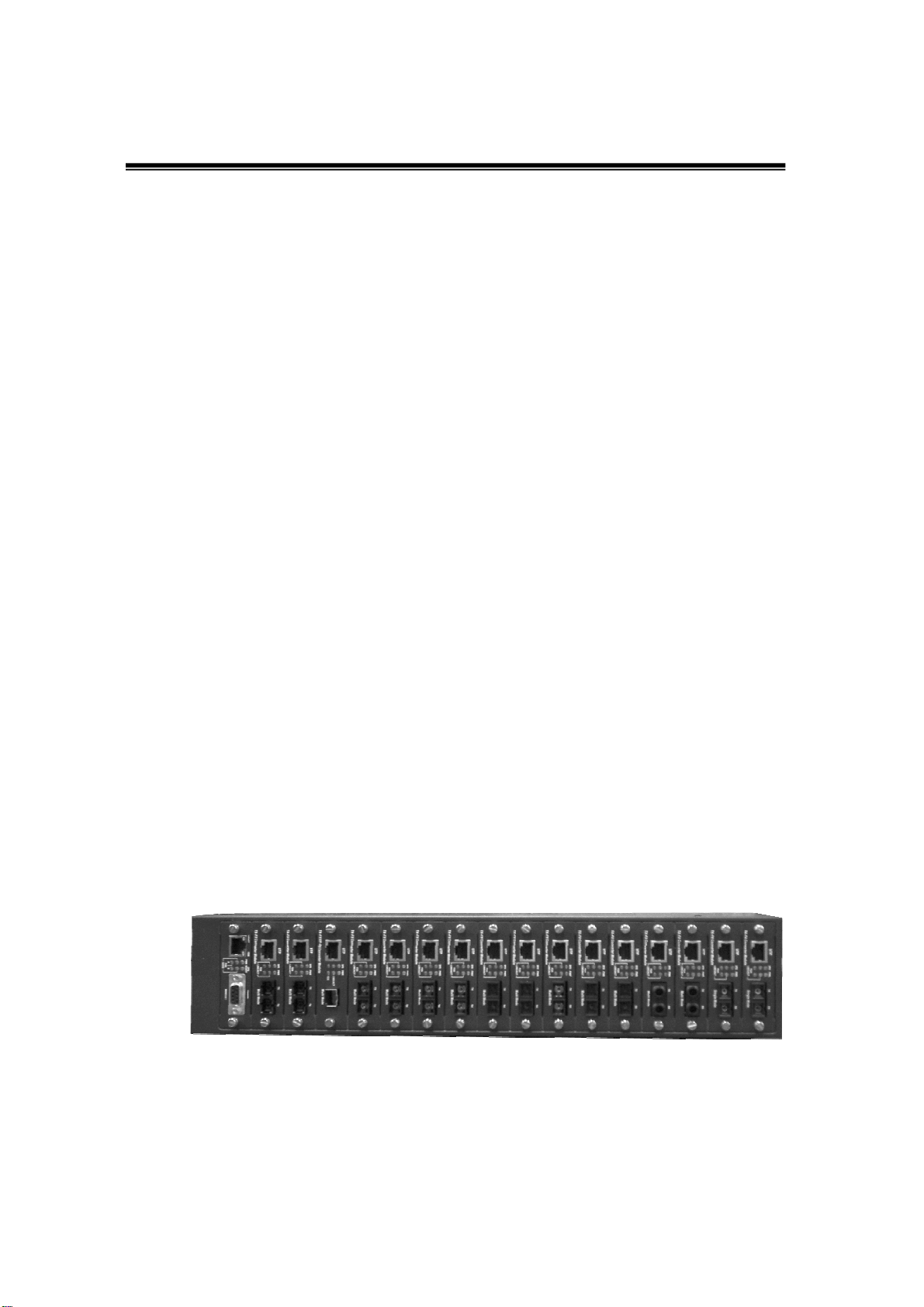

The front panel of 16 Slots intelligent converter chassis with the cabinet and
modules is shown as figure below:
Front Panel (within all modules)
The 3-pronged power plug is located at the Rear Panel of the 16 Slots
intelligent converter chassis as shown in Figure 2-2. The AC power is in the
range between 100 and 240VAC, 50-60Hz (AC type power supply). System can

7
install two units with the same power type. The Factory Default is one power
module unit and one Fan Unit.
Rear Panel of the 16 Slots intelligent converter chassis
LED Indicators
All LED status indicators are located on the front panel of the modules. They
display real-time indication of system and operational status.
System Cabinet
CPU Panel
Power Slot A with AC Power Module
Power Slot B is installed a FAN unit

8
LED Status Meaning
CPU
Ready Blink
(Green) System kernel is working correctly
PWR Green Power on
Green Power Module A Ready
Good A
Off Power Module A Not Ready
Green Power Module B Ready
Good B
Off Power Module B Not Ready
Orange Power Module A Fail
Fail A
Off Power Module A Ready
Orange Power Module B Fail
Fail B
Off Power Module B Ready

9
Green Ethernet port is connected with the
device.
LK/ACT
Blink The port is receiving or transmitting data
Yellow Ethernet is linked with Full Duplex mode
FDX
Blink Collision of Packets occurs in the port.
Descriptions of the System and CPU LED

10
Connecting to the Network
This chapter provides the installation procedure.
Pre-Installation Requirements
Before to start hardware installation, make sure the installation environment
has following items:
PCs with 10/100Base-TX Ethernet cards: The PC must have a standard
Ethernet interface to connect with the Device.
UTP/STP cable with RJ-45 connector: Check the cable and connectors
work properly.
Fiber cable with SC/ST/MT-RJ/VF-45 connector: Check the cable and
connector types are correct.
A power outlet: 100 to 240V AC at 50 to 60 Hz. Make sure that the
Device power is accessible and cables can be connected easily.
Dedicated power supply: Use dedicated power circuits or power
conditioners to supply reliable electrical power to the network devices.
A dry cool place: Keep the device away from moisture. Avoid direct
sunlight, heat source, and high amount of electromagnetic interference
around.
Mounting tools: If user intends to mount the device on a rack, make sure
have all the tools, such as mounting brackets and screws.
Mounting the Device
The 16 Slots intelligent converter chassis is suitable for an office environment
where it can be rack-mounted in standard EIA 19-inch racks or standalone.

11
Desktop Installation
Set the device on a sufficiently large flat space with a power outlet nearby. And,
the surface where user put the device should be clean, smooth, level, and
sturdy. Please make sure there is enough spacing around the device to allow
attaching of cables, power cord and air circulation.
Attaching Rubber Pads
1. Make sure mounting surface on the bottom of the device is grease and dust
free
2. Remove adhesive backing from Rubber Pads
3. Apply the Rubber Pads to each corner on the bottom of the device. (These
footpads can prevent the device from shock/vibration.)
Attaching Rubber Pads to each corner of the Device’s bottom
Rack Mounting
The 16 Slots intelligent converter chassis come with a rack-mounted kit and
can be mounted in an EIA standard size/19-inch Rack. Perform the following
steps for rack mounting the device:
1. Position one bracket to align with the holes on the side of the device and
secure it with the bracket screws. Then attach the remaining bracket to the
other side of the Device.

12
Attach mounting brackets with screws
2. After attached both mounting brackets, position the device in the rack by
lining up the holes in the brackets with the appropriate holes on the rack.
Securing the device to the rack with a screwdriver and the rack-mounting
screws.
Mount the converter chassis in an EIA standard 19-inch Rack
[NOTE] For proper ventilation, allow at least 4 inches (10 cm) of clearance on
the front and 3.4 inches (8 cm) on the back of the Device. This is especially
important for enclosed rack installations.
Power On
After all network cables are connected, plug the power cord into the power
socket on the back panel and the other end into a power outlet, and then turn

13
the power switch on.
Check the front panel Power indicator to see if power is properly supplied. The
device with the universal power supply, so there is no more adjustment
needed.
Diagnostic Test
After the installation is completed and AC power is applied to the device
properly, the system will automatically perform a diagnostic testing. When the
Power LED is on within 4 seconds, the CPU Ready LED will become “Blink”
and then the system is ready. On the other hand, if the CPU LED always light
on, it means system crash.
Connecting the Device via Local console or Telnet
The serial console port is a male DB-9 connector that enables the connection
from PC or terminal for monitoring and configuring the Device.
Use the supplied RS-232 cable with a female DB-9 connector to link the
terminal or PC to the console port.(The terminal or PC must support the
terminal emulation program)
For the telnet management, user has to set the device IP address that the
same network class with PC’s. (For example; it factory default IP address is
192.168.1.77, then the PC IP address should be 192.168.1.156)
Default login user name: root
Default login password: root

14
Connecting the Device to a terminal via RS-232 cable
After connected to the Console port, turn the PC or terminal on and configure
its communications parameters to match the following default characteristics
of the console port:
Baud Rate: 9600 bps
Data Bits: 8
Stop Bit: 1
Parity: none
Flow control: None
The setting of communication parameters
Run Hyper Terminal or a terminal emulation program using the above settings
for Console Management. After user has finished parameter settings, press
Enter and key the login username and password. The default login username
and password both is “root”. After authentication, enter “m” to enter main
menu.

15
The Main Menu
