Transition Networks E-MCC-1600 User manual

Manageable
Media Conversion
Center 33035.G
E-MCC-1600
For assistance in installing, using, or
maintaining the TRANSITION Networks
Media Conversion Center, contact
TRANSITION Networks Technical
Support at:
[phone]
or contact your local distributor.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC
TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public
telephone network.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct the
interference at the user’s own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the
radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
Copyright Restrictions
© 1998 - 2000 Transition Networks
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from Transition Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten verstösst
gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung
der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich der
gegenseitigen Anerkennung ihrer Konformität.

Table of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1
1.1 The Media Conversion Center . . . . . . . . . . . . . . . . . . 1.2
1.2 Connectors, Indicators, and Switches . . . . . . . . . . . . . . 1.4
1.3 The Media Conversion Center in the Network . . . . . . . 1.5
1.4 Optional Network Management . . . . . . . . . . . . . . . . . 1.5
1.4.1 SNMP Management Agent . . . . . . . . . . . .1.5
1.4.2 Command Line Interface (CLI) . . . . . . . . .1.5
1.4 Optional Network Management (continued) . . . . . . . . 1.6
2 SITE PLANNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1
3 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
3.1 Unpacking E-MCC-1600 Equipment . . . . . . . . . . . . . . 3.2
3.2 Installing Optional AC Power Supply Module in Media
Conversion Center Chassis . . . . . . . . . . . . . . . . . . . . . . 3.3
3.3 Installing Optional 48 VDC Power Supply Module in
Media Conversion Center Chassis . . . . . . . . . . . . . . . . 3.6
3.4 Installing Optional Management Module in Media
Conversion Center Chassis . . . . . . . . . . . . . . . . . . . . . . 3.9
3.5 Installing Media Converter Slide-in-Module(s) in Media
Conversion Center Chassis . . . . . . . . . . . . . . . . . . . . . 3.10
3.6 Installing Media Conversion Center at Site . . . . . . . . . 3.11
3.6.1 Standard 19-Inch Rack Installation . . . . .3.11
3.6.2 Table-Top Installation . . . . . . . . . . . . . .3.11
16-SLOT MEDIA CONVERSION CENTER i

3.7 Connecting Media Converter Slide-In-Modules to Network .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12
3.8 Optionally Connecting Management Module to Terminal or
Terminal Emulator . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12
3.9 Powering the Media Conversion Center . . . . . . . . . . 3.13
3.10 Optionally Using Attached Terminal Interface to Set IP
Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.14
3.11 Optionally Configuring Telnet and Telnet Security . . . 3.15
3.11 Optionally Configuring Telnet and Telnet Security
(continued) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.16
3.12 Optionally Configuring SNMP Traps . . . . . . . . . . . . . 3.16
4. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
4.1 Using Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
4.1.1 Media Conversion Center LED Indicators .4.2
4.1.2 Media Converter Slide-In-Module LED
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
4.2 Using Management Module Command-line Interface (CLI) .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3
4.2.1 At an Attached Terminal . . . . . . . . . . . . .4.3
4.2.2 At a Telnet Connection . . . . . . . . . . . . . .4.4
4.2.3 Command-line Interface Commands . . . .4.5
4.2.4 Command-line Interface Messages . . . .4.10
4.2.5 Command-line Interface Trace Masks . .4.34
4.2.6Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.35
4.3 Using Remote SNMP . . . . . . . . . . . . . . . . . . . . . . . . 4.36
5 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.1
5.1 Fault Isolation and Recovery . . . . . . . . . . . . . . . . . . . . 5.2
5.1.1 At the Remote Network Managment Station 5.2
5.1.2 At the Chassis Front or Back . . . . . . . . . .5.4
E-MCC-1600
ii

5.2 Hardware Replacement Procedures . . . . . . . . . . . . . . . 5.6
5.2.1 Replacing Media Converter Slide-In-
Module5.6
5.2.2 Replacing Fuse on Standard Power Supply
Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.7
5.2.3 Replacing Standard Power Supply Module 5.8
5.2.4 Replacing 48V Power Supply Module . .5.10
5.2.5 Replacing Management Module . . . . . .5.12
5.3 Firmware Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . 5.13
Appendix A. E-MCC-1600 Technical Specifications . . . . . . . A.1
Certificate of Compliance . . . . . . . . . . . . . . . . . .A1
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.1
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . .A.1
Appendix B. Null Modem Cable Specifications . . . . . . . . . . . B.1
Appendix C. Introduction to SNMP in the E-MCC-1600 . . . . C.1
Appendix D. Displaying the E-MCC-1600 MIB Tree . . . . . . . D.1
Displaying MIB Variables . . . . . . . . . . . . . . . . .D.1
Displaying the Entire MIB Tree . . . . . . . . . . . . .D.1
Appendix E. SNMP GLOSSARY . . . . . . . . . . . . . . . . . . . . . . E.1
16-SLOT MEDIA CONVERSION CENTER iii

Preface
This user’s guide is intended for the network administrator responsible for
installing, configuring, using, and maintaining a Transition Networks
16-Slot Media Conversion Center. A working knowledge of local area
network (LAN) operations, including familiarity with communications
protocols used on interconnected LANs, is assumed.
16-SLOT MEDIA CONVERSION CENTER v

1. INTRODUCTION
The modular Transition Networks E-MCC-1600 16-Slot Media Conversion
Center allows the network administrator to select from among Transition
Networks Media Converter Slide-in-Modules, to install the Media
Converter Slide-in-Modules in the Media Conversion Center chassis, and
then to connect various network media, at a central wiring location,
through the Media Converter Slide-in-Modules.
If a Management Module is installed in the Media Conversion Center, the
network administrator also can use a remote Network Management
Station to monitor the status of the Media Conversion Center and of any
installed Media Converter Slide-in-Modules.
As network conditions change, the network administrator can add or swap
Media Converter Slide-in-Modules, install a redundant Power Supply
Module (if not originally configured and installed) and/or install the SNMP
Management Module (if not originally configured and installed).
This introduction to the 16-Slot Media Conversion Center provides:
1.1 The Media Conversion Center ..............................................1.2
Media Converter Slide-in-Modules ..............................1.3
Power Supply Module(s) .............................................1.3
Optional Management Module ....................................1.3
1.2 Connectors, Indicators, and Switches ....................................1.4
1.3 The Media Conversion Center in the Network ......................1.5
1.4 Optional Network Management ............................................1.6
SNMP Management Agent ...........................................1.6
Command Line Interface (CLI) ......................................1.6
CLI Access via Serial Port .............................................1.7
CLI Access via Telnet ...................................................1.7
1.1
16-SLOT MEDIA CONVERSION CENTER

1.1 The Media Conversion Center
The Transition Networks 16-Slot Media Conversion Center chassis
provides installation space for up to sixteen Media Converter Slide-in-
Modules, up to two Power Supply Modules, and one SNMP Management

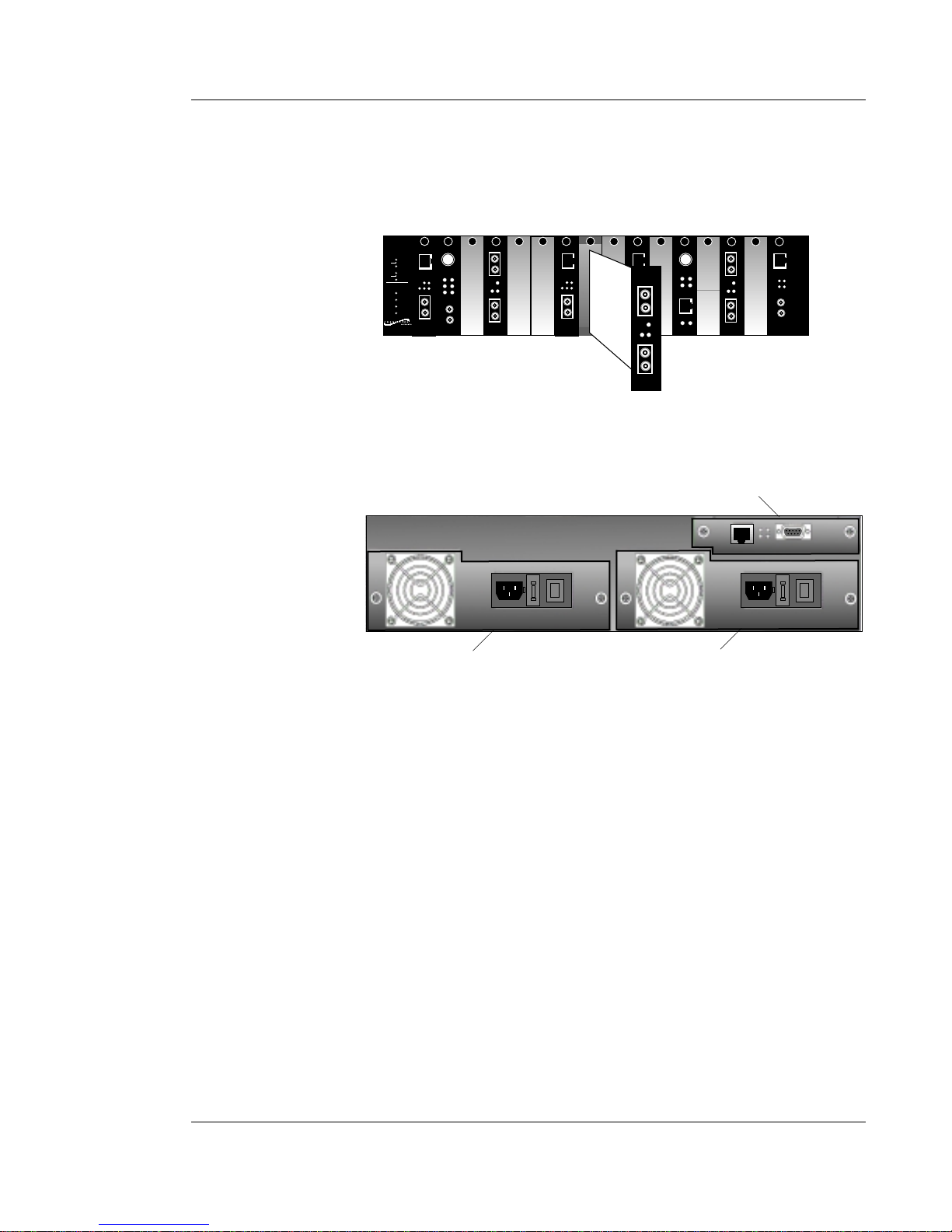

Module, as shown in the cut-out top view below:
NOTE: Media Converter Slide-in-Modules, Power Supply Modules, and
Management Modules are all hot-swapable.
1.2 E-MCC-1600
Power
Supply
Module
#1
Fan
AC Power
POWER SUPPLY MODULE
#2
MANAGEMENT
MODULE
MEDIA CONVERTER SLIDE-IN-MODULES

Media Converter Slide-in-Modules
Transition Networks Media Converter Slide-in-Modules installed in slots at
the front of the Media Conversion Center allow the network administrator
to connect various network media.
NOTE: Refer to the documentation that comes with each Media Converter
Slide-in-Module for connector and LED indicator information specific to
that Media Converter Slide-in-Module.
Power Supply Module
An AC Power Supply Module, installed at the back of the Media
Conversion Center before shipment, supplies power to installed Media
Converter Slide-in-Modules and to the optional SNMP Management
Module.
Optional Power Supply Module(s)
Space is available at the back of the Media Conversion Center for
installing an optional redundant AC Power Supply Module.
Alternatively, an optional 48-VDC Power Supply Module can be installed
in either space.
Optional Management Module
An optional Management Module that can be installed at the back of the
Media Conversion Center allows the network administrator to use SNMP
network management.to monitor the Media Conversion Center and
installed Slide-In-Modules status
1 INTRODUCTION
1.3
16-SLOT MEDIA CONVERSION CENTER
Power Modules
Media
Conversion
Center
E-MCC-1600
Power
In Use
Power
In Use
1
2
Management
Module
Power
Link
TX
X
I
O
I
O
Optional Management Module
Optional Redundant Power Supply ModulePower Supply Module

1.2 Connectors, Indicators, and Switches
Power and Network Connectors
POWER connectors are located on the Power Supply Module(s) at the
back of the Media Conversion Center.
ASERIAL PORT for accessing the command-line interface and an
ETHERNET PORT, through which the Management Module communicates
with a remote Network Management Station (NMS), are available at the
Management Module installed at the back of the Media Conversion Center.
NOTE: Connectors to network media are located on each Media
Converter Slide-In-Module installed at Media Conversion Center front.
Power and Reset Switches
POWER ON/OFF switches are located on each Power Supply Module
installed at the Media Conversion Center back.
A RESET switch is located on the Management Module installed at the
back of the Media Conversion Center.
NOTE: The reset switch resets ONLY the Management Module.
Power and Management Module Indicators
POWER and IN USE Power Supply Module LED
indicators are located at the front of the Media
Conversion Center. NOTE: A Power LED indicator also
is located on each Power Supply Module installed at the
back of the Media Conversion Center.
POWER, LINK, RX (receive) and TX (transmit)
Management Module LED indicators are located at the
front of the Media Conversion Center. NOTE: LEDs
located on the Management Module installed at the
back of the Media Conversion Center loosely mirror the
LEDs located on the front of the Media Conversion
Center.
1.4 E-MCC-1600
I
O
I
O
S
er
i
a
l
port
Ethernet port Reset Switch
Power LED
AC Power Connector
ON/OFF Switch
Fuse AC Power Connector
ON/OFF Switch
Fuse
Power Modules
Media
Conversion
Center
E-MCC-1600
Power
In Use
Power
In Use
1
2
Management
Module
Power
Link
TX
X

1.3 The Media Conversion Center in the Network
Using Media Converter Slide-in-Modules installed in the 16-Slot Media
Conversion Center, the network administrator can connect various
network media at a central wiring location
As new media are added to the network, the network administrator can
install new Media Converter Slide-in-Modules to support the changed
network requirements.
1.4 Optional Network Management
The optional E-MCC-MM Management Module, which can be installed in
the back of the Media Conversion Center, has the following key features:
• SNMP Management Agent
• Command Line Interface
1.4.1 SNMP Management Agent
The SNMP Management Agent feature permits the network administrator
to monitor the state of the LEDs on the front of the Conversion Center (and
thus the condition of the network resources supported by the cards
installed in the the Conversion Center) from a remote location.
SNMP Management requires the use of any SNMP-compliant NMS
(Network Management System) software product, such as Hewlett-
Packard’s OpenView™, installed on a computer at a remote location. The
Management Module must be attached to a network that is accessible (via
IP) from the the NMS computer.
1.4.2 Command Line Interface (CLI)
The CLI is analogous to a Unix shell prompt. It has the following features:
• Allows the network configuration of the Management Module (such as
its IP address) to be configured and saved.
• Can be used as an alternative to an SNMP NMS: The CLI Allows all
management data that is available via SNMP to be viewed and (where
applicable) altered. A quick summary of the Conversion Center’s
status is available, or any individual SNMP MIB variable supported by
the Management Module can be viewed or changed on command.
• Diagnostic commands are available from the CLI. These commands
facilitate troubleshooting of the Management Module and even of
other stations on the network.
• Allows maintenance of the Management Module. (e.g. firmware
upgrade)
The CLI is accessible through two different physical interfaces: The
Management Module’s Serial Port, and its embedded Telnet Server. The
same interface is presented by these two methods, aside from a few
restrictions placed on Telnet access. The benefits and shortcomings of
each are discussed in the following sections.
1 INTRODUCTION
1.5
16-SLOT MEDIA CONVERSION CENTER

1.4 Optional Network Management (continued)
CLI Access via Serial Port
The Management Module’s CLI can be reached through Telnet or through
the module’s serial port.
The choice of the serial port path recommended or required in the
following circumstances:
• When the IP configuration of the Management Module needs to be
set up or changed. Initial IP configuration is most commonly
performed through the CLI via the serial port. Subsequent IP
configuration changes via Telnet are supported, but strongly
discouraged (for reasons discussed elsewhere).
• When a firmware upgrade needs to be performed – Firmware
upgrade via the network is not supported.
• When best possible performance is desired, as during a troubleshoot-
ing session.
To access the CLI via serial port, a serial terminal (or a computer with a
terminal emulator) must be attached to the the Management Module’s
serial port via a null modem cable. (See Section 4. OPERATION.)
CLI Access via Telnet
CLI Access via Telnet is useful when CLI access is desired from a physical
location other than the wiring closet where the E-MCC-1600 is installed.
Any standard Telnet client (such as the one that is included with Windows
95) can be used from any location on the network.
The following notes apply to CLI access via Telnet:
CAUTION: IP configuration changes take effect immediately when
commands are received. Therefore, these changes should not be
made via Telnet unless the user is confident that the implications of
this are fully understood and have been compensated for. (NOTE:
The same warning applies to any attempt to make IP configuration
changes via SNMP.)
CLI messages specifically related to Telnet or its underlying protocols
are filtered out by the Telnet server to prevent storms of messages.
Therefore, Telnet troubleshooting should always include inspection of
the CLI at the serial port interface.
Firmware upgrades cannot be performed via Telnet; serial port CLI
access is required.
1.6 E-MCC-1600

Telnet Security:
The Telnet password is the same as the private community name. This is
so because the authority granted to the Telnet CLI is not significantly more
than that provided by the “private” (i.e. most priveleged) MIB view. Note
that network traffic carried by the devices installed at the front of the
Conversion Center can not be disturbed even through the most priveleged
access to the Management Module. The worst-case scenario is that remote
access to the Management Module itself can be interrupted.
By default, the Telnet server will accept a connection from any client that
provides the correct password. However, through the use of the CLI
commands “TNTRIP” and “TNTRIPMASK,” the server can be configured
to restrict access to clients on a particular subnet or a single specific
station, or it can be disabled altogether.
The Telnet server only supports a single connection at any given time.
Additional concurrent connections attempts are rejected.
A character mode Telnet client is preferred, but not required.
1 INTRODUCTION
1.7
16-SLOT MEDIA CONVERSION CENTER

2 SITE PLANNING
The site for the 16-Slot Media Conversion Center must provide the
following:
• Power outlet for each Power Supply Module in the 16-Slot Media
Conversion Center
• Adequate ventilation
• Standard environmental conditions
• Isolation from electrical noise, including radio transmitters and
broadband amplifiers, motors, high power electrical lines, or
fluorescent light fixtures.
Additionally:
• Twisted pair cables should not run in the same conduit with power
line cables
• Phone lines should be separated from data cables
• Flat or “silver satin” wires should not be used.
2.1
16-SLOT MEDIA CONVERSION CENTER

3 INSTALLATION
Direction for installing the 16-Slot Media Conversion Center is provided in
the pages that follow:
3.1 Unpacking E-MCC-1600 Equipment ......................................3.2
3.2 Installing Optional AC Power Supply Module in Media
Conversion Center Chassis ....................................................3.3
3.3 Installing Optional 48 VDC Power Supply Module in Media
Conversion Center Chassis ....................................................3.6
3.4 Installing Optional Management Module in Media Conversion
Center Chassis .......................................................................3.9
3.5 Installing Media Converter Slide-in-Module(s) in Media
Conversion Center Chassis ..................................................3.10
3.6 Installing Media Conversion Center at Site ..........................3.11
3.7 Connecting Media Converter Slide-In-Modules to Network 3.12
3.8 Optionally Connecting Management Module to Terminal or
Terminal Emulator ...............................................................3.12
3.9 Powering the Media Conversion Center .............................3.13
3.10 Optionally Using Attached Terminal Interface to Set IP
Parameters ..........................................................................3.14
3.11 Optionally Configuring Telnet and Telnet Security ..............3.15
3.12 Optionally Configuring SNMP Traps ...................................3.16
3.1
16-SLOT MEDIA CONVERSION CENTER

3.1 Unpacking E-MCC-1600 Equipment
Use the following list to verify the shipment:
Item Part Number
16-Slot Media Conversion Center: E-MCC-1600
Power Cord 3344 (OR 3347, 3348, or 3349,
depending upon country where
installed)
User’s Guide 33035
48 VDC Power Supply Module E-MCC-PS48 (optional)
Redundant AC Power Supply Module E-MCC-PS (optional)
Management Module E-MCC-MM (optional)
Transition Networks TN-View
SNMP software MCC16-GUI
One or more selectable
Media Converter Slide-in-Modules C/x-xxx-xxx
3.2 E-MCC-1600
