Transonic TC1558LCD Instruction manual

TC1558LCD
15.6

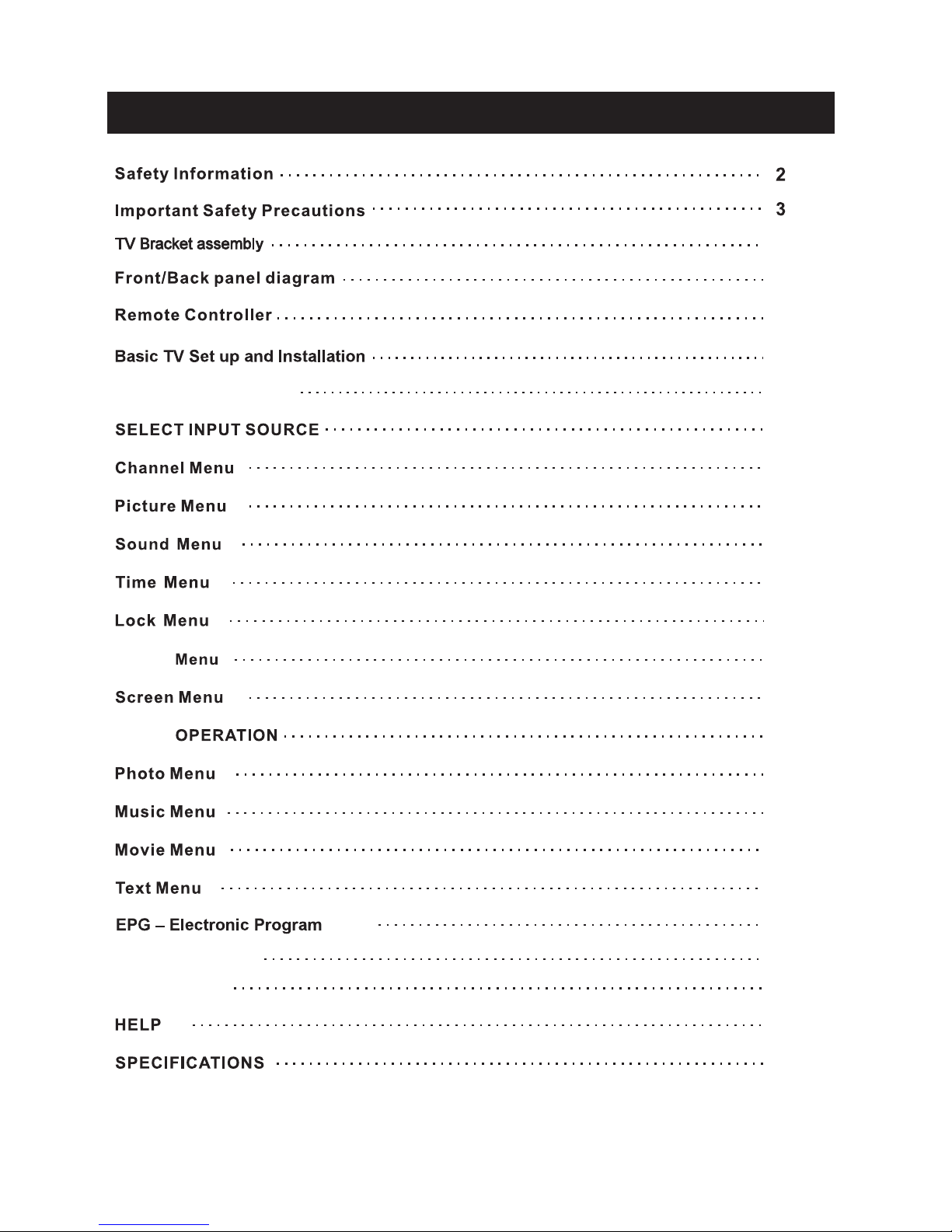

Table of Contents
1
6-7
8
12
12-14
15
16
17
18
5
34
35
19-20
21
22
22-23
23-24
25
26
SETUP
MEDIA
RESOLUTION 33
4
Systems Connection 9-11
USB FUNCTIONS 32
26-31
guide

Important Safety Instructions
When using any electrical apparatus always observe safety
regulations and use basic safety precautions to reduce the
risk of fire, electric shock and personal injury, including the
following.
1. Read, Keep and Follow these instructions, heeding all Warnings.
2. Keep out of reach of young children. This apparatus is not suitable for use by
young children or infirm persons without supervision. Young children must be
supervised to ensure that they do not play with the apparatus.
3. WARNING. Do not insert any objects into any openings of an electrical
apparatus.
4. WARNING. Do not touch any moving parts of any electrical apparatus.
5. WARNING! Where the mains plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily operable
6. WARNING. Do not use this apparatus near water. To avoid the risk of fire or
electric shock, do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashes.
7. WARNING. No objects filled with liquid, such as vases, shall be placed on any
electrical apparatus.

8. Do not immerse in any liquid whilst in use or in cleaning. Clean only with a damp
cloth, dry with a dry towel. Do not use harsh abrasives as these may damage
plastic parts.
9. DO NOT block any ventilation openings. Keep away from curtains, newspapers and
restricted areas. Install in accordance with any specific manufacturer's instructions.
Always allow a sufficient gap around the apparatus to avoid overheating.
10.DO NOT install near any heat sources such as radiators, gas heaters, stoves or
other apparatus (including amplifiers) that produce heat. Do not leave in direct
sunlight.
11.WARNING. Do not place any naked flame source, such as lighted candles on any
electrical apparatus.
12.WARNING! Connect to a suitable 230-240V~ 50Hz power supply only. If a class 1
product it must be connected to a suitably earthed mains socket.
13.Always unplug from the power source when any electrical apparatus is not in use.
14.Do not abuse or damage a power cord. If any power cord is damaged, it must be
replaced by the manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard. A replaceable cord must be replaced with an authorised
replacement from an authorised service agent only.
15.Only use attachments/accessories specified by the manufacturer.
16.Unplug this apparatus during lightening storms or when unused for long periods
of time.
17.Attention is drawn to the environmental aspects of disposing of any battery.
18.Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
19.Do not attempt to service any double insulated apparatus. Double insulated
apparatus requires specialist servicing and knowledge to retain the safety of
the apparatus.
20.WARNING. Do not use any electrical apparatus outdoors. If any electrical
apparatus is to be used outdoors, use a suitable Isolating transformer or Electrical
Safety Switch (RCD).
21.For household use only, this apparatus is not intended for commercial use.
22.If this apparatus is to be used by a third party, please supply these instructions
with it.
23.No liability will be accepted for any personal injury or damage caused by failure
to follow these instructions.
IMPORTANT INFORMATION – TELEVISION DISPLAY EQUIPMENT
If a television is not positioned in a sufficiently stable location, it can be
potentially hazardous due to falling. Many injuries, particularly to children,
can be avoided by taking simple precautions such as:
Using cabinets or stands recommended by the manufacturer of the television.
Only using furniture that can safely support the television.
Ensuring the television is not overhanging the edge of the supporting furniture.
Not placing the television on tall furniture (for example, cupboards or book cases)
without anchoring both the furniture and the television to a suitable support.
Not standing the television on a cloth or other materials placed between the
television and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the
television or its controls.

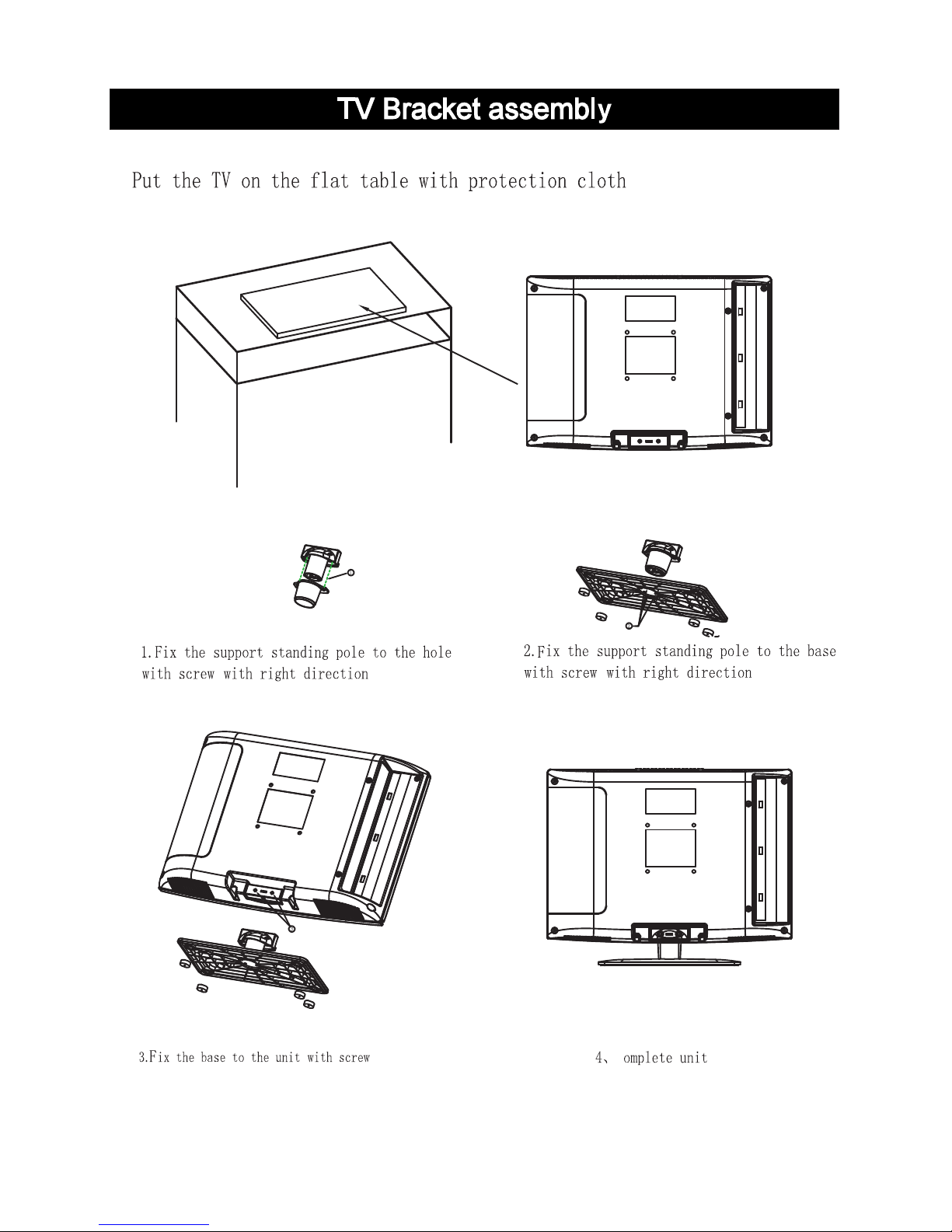

4
C

4321 5
R L
VIDEO
Pr Pb
Y
DC I N 12V
COAXIAL
14
612 11 13 971510 8
5
1.SOURCE Source select
2.MENU Into or exit from menu
Use CH+/- button select item,
VOL+/- button adjust item
3.CH+/- Select channel
4.VOL+/- Adjust Volume
5. Turn on/off TV .
6. .
7.HDMI 1 Input:Digital signal input
from HDMI video connector.
9 .VGA Input.
10.
11.Y Pb/Cb Pr/Cr:Color difference
components input and relevant video input .
12.AV Input:External AV signal input and
relevant right/left sound channel inputs.
13.VGA Audio Input.
15.USB Input.
14.COAXIAL Output.
DC 12V Connect to mains adapter socket
Earphone output
(When earphones are plugged in, speakers are disabled)
8.

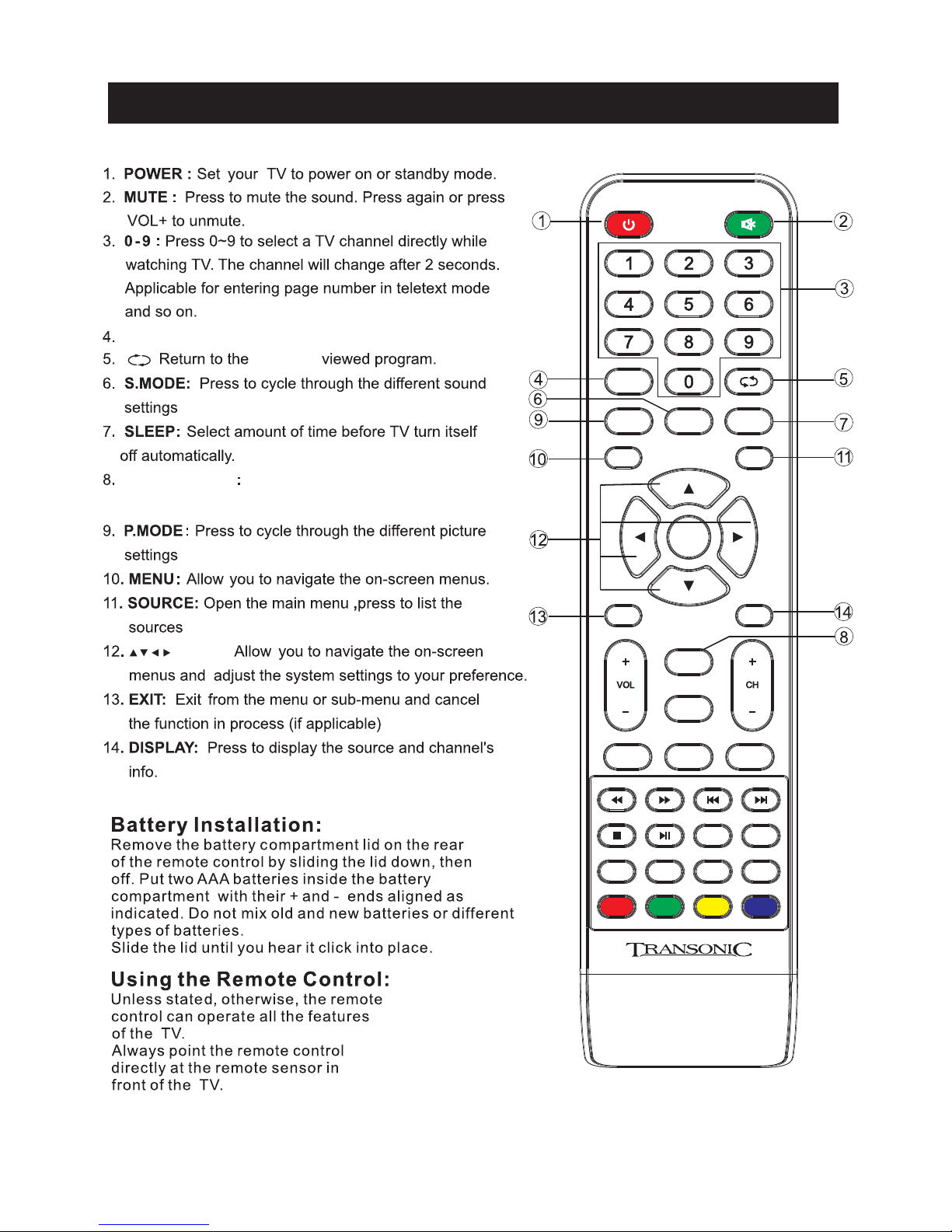

Remote Controller
6
previous
ENTER:
DTV/ATV: Switch between Analog and Digital TV
MENU SOURCE
ENTER
EXIT
SLEEP
P.MODE S.MODE
DISPLAY
INDEX
REVEAL SIZE
TIMESHIFT
RECLIST
TEXT
EPG ASPECT CANCEL
FREEZE
HOLD
TV/RADIO SUBTITLE
FAV/LIST REC
RED GREEN YELLOW CYAN
SUB.PG
DTV/ATV
LANG/AUDIO Press to search NICAM mode or
language option.
LANG/AUDIO
TC1558LCD

TV/RADIO When watching channel,allows you
to switch between TV and Radio modes
TIME SHIFT: 1.DTV channel time shift Function.
2.play on PVR or Media Player mode.
1.
2. Previous chapter in PVR or Media Player mode
1.
2.Exit the playing function in PVR or Media Player
mode.
1.
2.fast forward in PVR or Media Player mode.
1.
2.Next chapter in PVR or Media Player mode.
SUB.PG
SUBTITLE:To show and set the language of
current DTV.
Switch the teletext on and off.
TEXT:
REC LIST: Show the recorded list.
32.
REC: Record begin in PVR mode.
33.
Remote Controller
7
33 32
MENU SOURCE
ENTER
EXIT
SLEEP
P.MODE S.MODE
DISPLAY
INDEX
REVEAL SIZE
TIMESHIFT
RECLIST
TEXT
EPG ASPECT CANCEL
FREEZE
HOLD
TV/RADIO SUBTITLE
FAV/LIST REC
RED GREEN YELLOW CYAN
SUB.PG
DTV/ATV
EPG:1. Launches the EPG (Electronic Program Guide)
2. Fast reverse in PVR or Media Player mode.
LANG/AUDIO
TC1558LCD

DC 12V
8

R L
VIDEO
Pr Pb
Y
DC I N 12V
COAXIAL

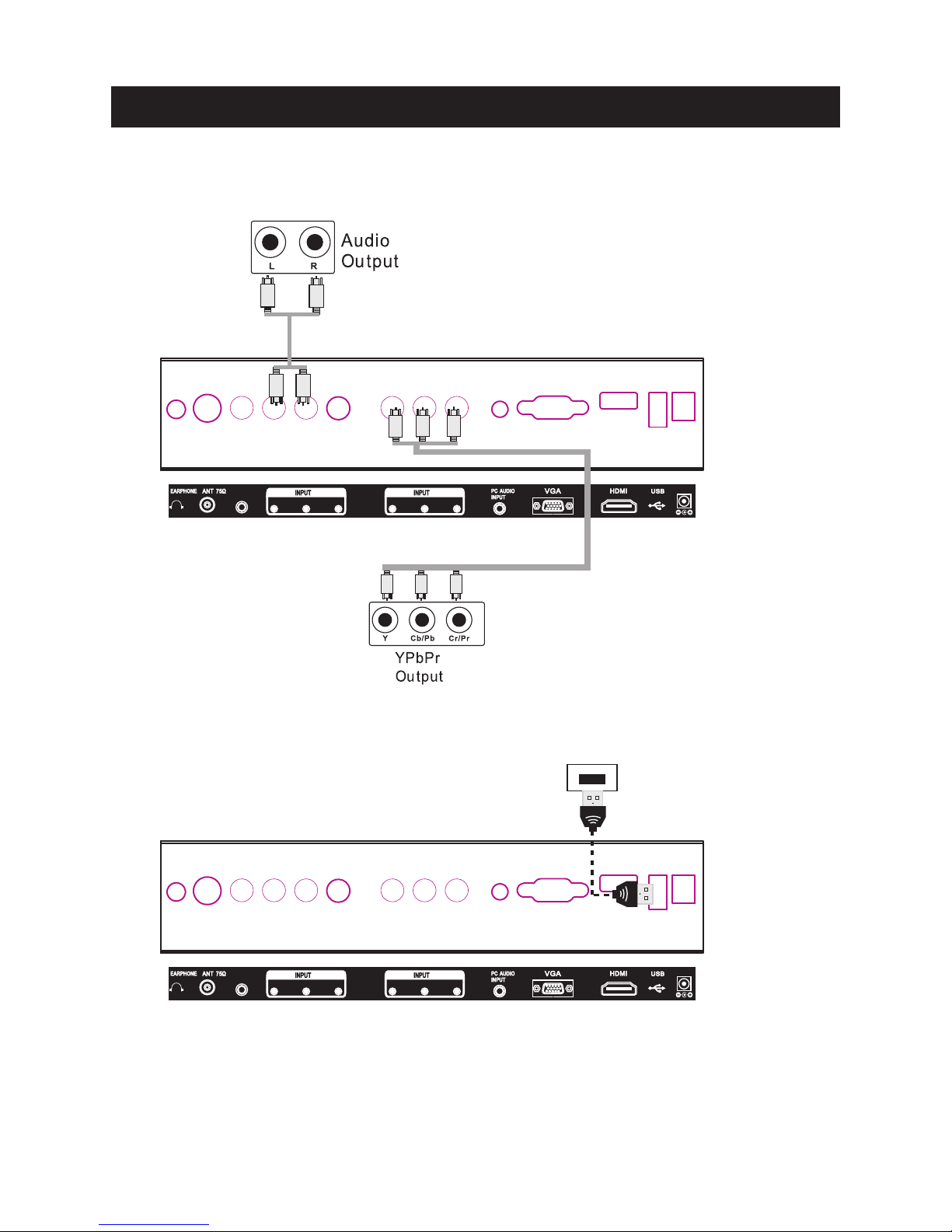

Systems Connection

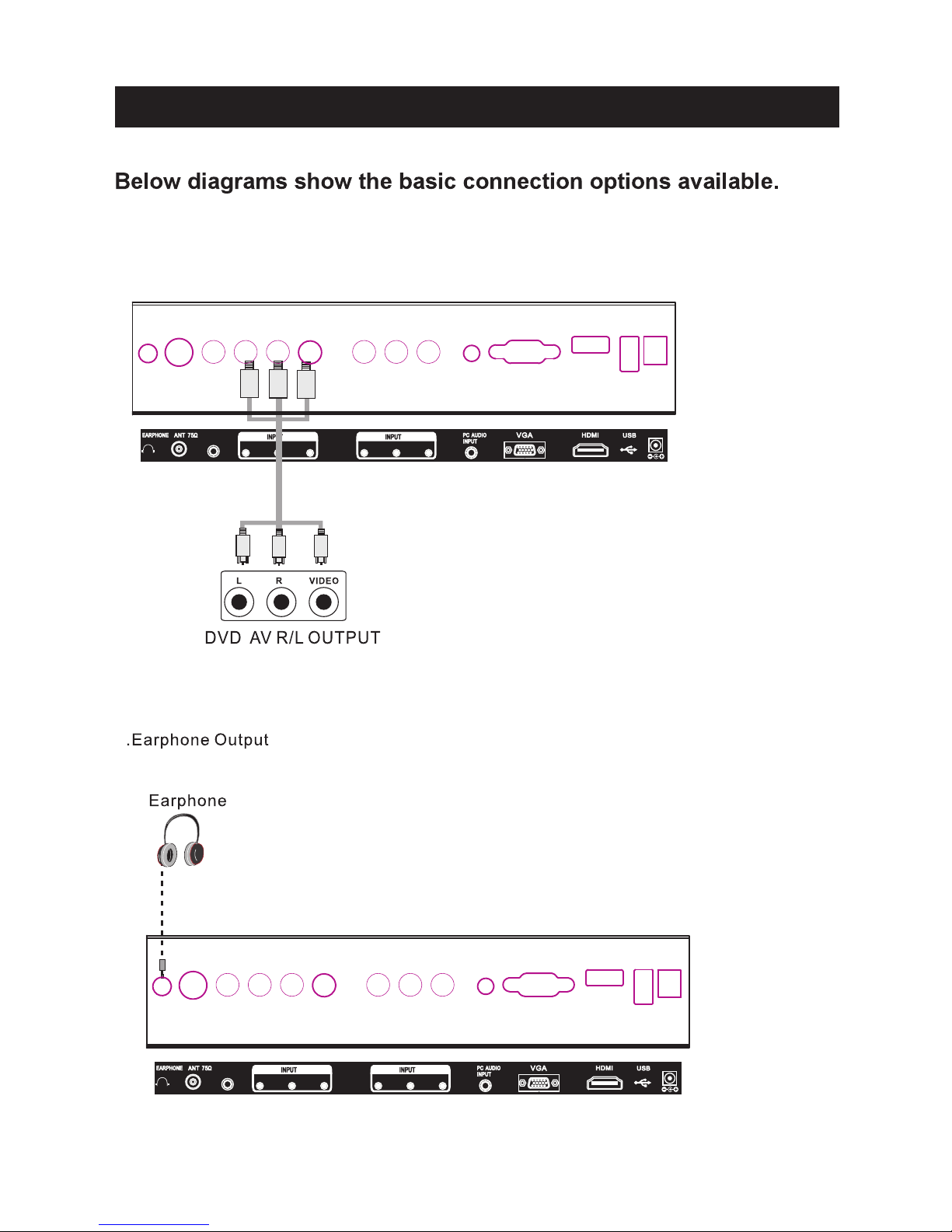

1.AV INPUT
Video / Audio input, use the SOURCE button select AV on the remote control ,
9
2
R L
VIDEO
Pr Pb
Y
DC I N 12V
COAXIAL

R L
VIDEO
Pr Pb
Y
DC I N 12V
COAXIAL
Systems Connection
3.PC INPUT
PC (VGA) input, use the SOURCE button select PC on the remote control .
4.HDMI INPUT
HDMI input, use the SOURCE button select HDMI on the remote control .
10
R L
VIDEO
Pr Pb
Y
DC I N 12V
COAXIAL
HDMI OUTPUT

Systems Connection
5.Y Pb Pr Input
Y Pb Pr input, use the SOURCE button select Y Pb Pr on the remote control.
11
6.USB Input
USB
R L
VIDEO
Pr Pb
Y
DC I N 12V
COAXIAL
R L
VIDEO
Pr Pb
Y
DC I N 12V
COAXIAL

12
SOURCE
SOURCE
ENTER
Input source
ATV
DTV
Media
AV
PC
HDMI
Enter
Component

13

14
Software update(OAD )
z

Personal
u
Cold Normal
15
ENTER

Personal
AD Switch
AD Switch
16
ENTER

120 min ,180min,240min
345
5 10 15 20 25 30
30 60 90
17
ENTER
TIME

On or Off.
18
