Thank you for purchasing a TTi SpotPro™ Motorised Spot Sprayer
(SpotPro), which will provide many years of reliable service when
operated and maintained in accordance with this manual.
TTi manufacture a range of SpotPro units, from 200 through to 400 litre tanks, supplied with a petrol
operated pump and hose reel, with optional spray boom arrangements available. This manual describes
the operation, driving stability and maintenance procedures applicable to all units, noting additional
requirements to options where necessary.
All TTi SpotPro tanks are rotationally moulded from quality polyethylene, purpose designed and
manufactured to high standards. The SpotPro is a compact portable unit for the back of a utility or trailer,
while the SpotPro Deluxe is purpose designed for Utility Terrain Vehicle (UTV) tub-mounting. SpotPro units
are designed for herbicide or pesticide spraying.
The SpotPro units are supplied complete, tested and ready to mount to your vehicle. TTi warrants that the
SpotPro has been designed and built for its intended purpose as a water or pesticide/herbicide spry unit.
The owner is responsible to ensure that the equipment is operated in accordance with this manual, with
Australian WorkSafe requirements, applicable road rules and local council regulations. TTi is not liable for
any loss, injury or death resulting from the failure to observe all safe working regulations as required by law.
Included with your SpotPro unit is the following documents:
• Operator’s Handbook (this manual, which includes the Warranty Registration Card)
• Integral Spray Marshall and Honda petrol pump manufacturer’s handbook
• Tank Quality Check Form. This is your verification that the unit has been quality checked, and verifies
the serial number affixed to the unit.

1800 816 277www.tti.com.au
4
Product HandBook
SpotPro™
Safety
This manual is intended for use by personnel experienced in the use of this and similar equipment. Read
and understand this manual before attempting to operate or perform routine maintenance on this equipment.
Your safety is of prime priority.
A WARNING highlights an essential operating or maintenance procedure,
practice, condition or statement, which, if not strictly observed, could
result in injury or death of personnel, or long-term health hazards.
A CAUTION highlights an essential operating or maintenance procedure,
practice, condition or statement, which, if not observed, could result in
damage or destruction of equipment.
A NOTE highlights or clarifies an essential systems description, operating or
maintenance procedure, condition or statement.

1800 816 277www.tti.com.au
5
Product HandBook
SpotPro™
General Safety Instructions
1. This unit is designed and manufactured solely for the purpose of carrying and spraying herbicides and
pesticides. Under no circumstances should it be used for any other purpose. It must never be used for
transporting fuel.
2. Only authorised and trained personnel are to operate this equipment. Operators must have read and fully
understood this manual before operating the SpotPro unit.
3. Do not operate the SpotPro unit anywhere near bystanders, livestock, watercourses or any non-targeted
vegetation that may be in danger from spray drift contamination.
4. Wind direction and speed must be taken into account, as windy conditions may endanger the operator or
damage to adjacent non-target vegetation. Avoid spraying on hot and sunny days or when wind speed
exceeds 6.5km/h.
5. Do not operate this equipment while under the influence of alcohol or any drugs that could impair your
capabilities in any way.
6. Personal Protection Equipment (PPE) must be worn when operating the petrol pump on the SpotPro unit.
Exposure to excessive noise over an extended period can cause impairment or loss of hearing.
7. PPE appropriate to the chemicals being used must be worn at all times when operating the SpotPro.
As a minimum, the PPE should include coveralls, gloves and boots. A face shield and PVC apron are
recommended depending on the task. It is recommended that the following documents should be read
and understood by the operator:
• Australian Standard for Chemical protective clothing AS3765
• Australian Standard for Respiratory protection devices AS1715
8. Ensure the capacity of the vehicle is suitable for the loaded mass of the SpotPro. Refer to the vehicle’s
operator manual for safe working loads, correct securing points and relevant safety instructions. Do not
exceed the carrying and braking capacity as specified by the vehicle manufacturer. As a guide, one litre of
water weights one kilogram (kg), therefore a full 400 litre SpotPro will weigh in excess of 490kg.
9. The unit must be securely restrained on the vehicle. Ensure all fasteners are tightened and secure before
operation.
10. Care should be taken at all times, particularly when operating on rough or steep terrain. Drivers should be
aware of fluid surge affecting the vehicle’s centre of gravity.
11. The SpotPro must never be left unattended while being filled with fluids.
12. Do not operate the pump when there is no fluid in the tank.
13. Do not disconnect any hoses, nozzles or filters while the equipment is operating. Disconnecting any
components while under pressure may result in uncontrolled fluid discharge which may be hazardous.
14. At completion of the operation, switch the pump off and relieve any residual pressure by squeezing the
spray gun trigger or opening an optionally fitted spray boom valve.
15. At completion of the operation, decontaminate the SpotPro tank and spray lines. Drain any residue
chemicals and store in a sealed container. Dispose of any unwanted chemicals and tank rinse residue in
accordance with current environmental and workplace health and safety regulations.
16. The SpotPro has safety labels affixed to various locations on the unit. These labels should be kept clean
and legible, and replaced if damaged.
17. Any unauthorised modifications to this equipment may affect its function and create a serious safety risk.
Any unauthorised modifications will void any warranty on the unit.

1800 816 277www.tti.com.au
6
Product HandBook
SpotPro™
General Information
Specifications
Tank UV stabilised, impact resistant polyethylene tank available in 220 and 400
litres (SpotPro) or 200 and 400 litres SpotPro Deluxe)
Standard
Equipment
Honda petrol engine GX35 with Spray Marshal 12L/min pump
Pressure regulator
30m hose with hose reel with spray gun
Hot dipped galvanised steel frame (SpotPro Deluxe)
Options Versatile Spray Boom (with Hayman Reece HitchIt)
#2 Boomless Nozzle (with Hayman Reece HitchIt)
BoomTech Nozzle Kit (with tailgate bracket)
Description
The TTi SpotPro Sprayer Unit is designed to carry and distribute herbicides and pesticides using a self-
contained pump and various fluid dispensing systems. The SpotPro is configured in two different styles:
• SpotPro – 220 or 400 litre tank, designed for utility or trailer trays
• SpotPro Deluxe – 200 or 400 litre tank, designed for UTV trays.
The SpotPro units have the following features, refer to Figure 1 and Figure 2.

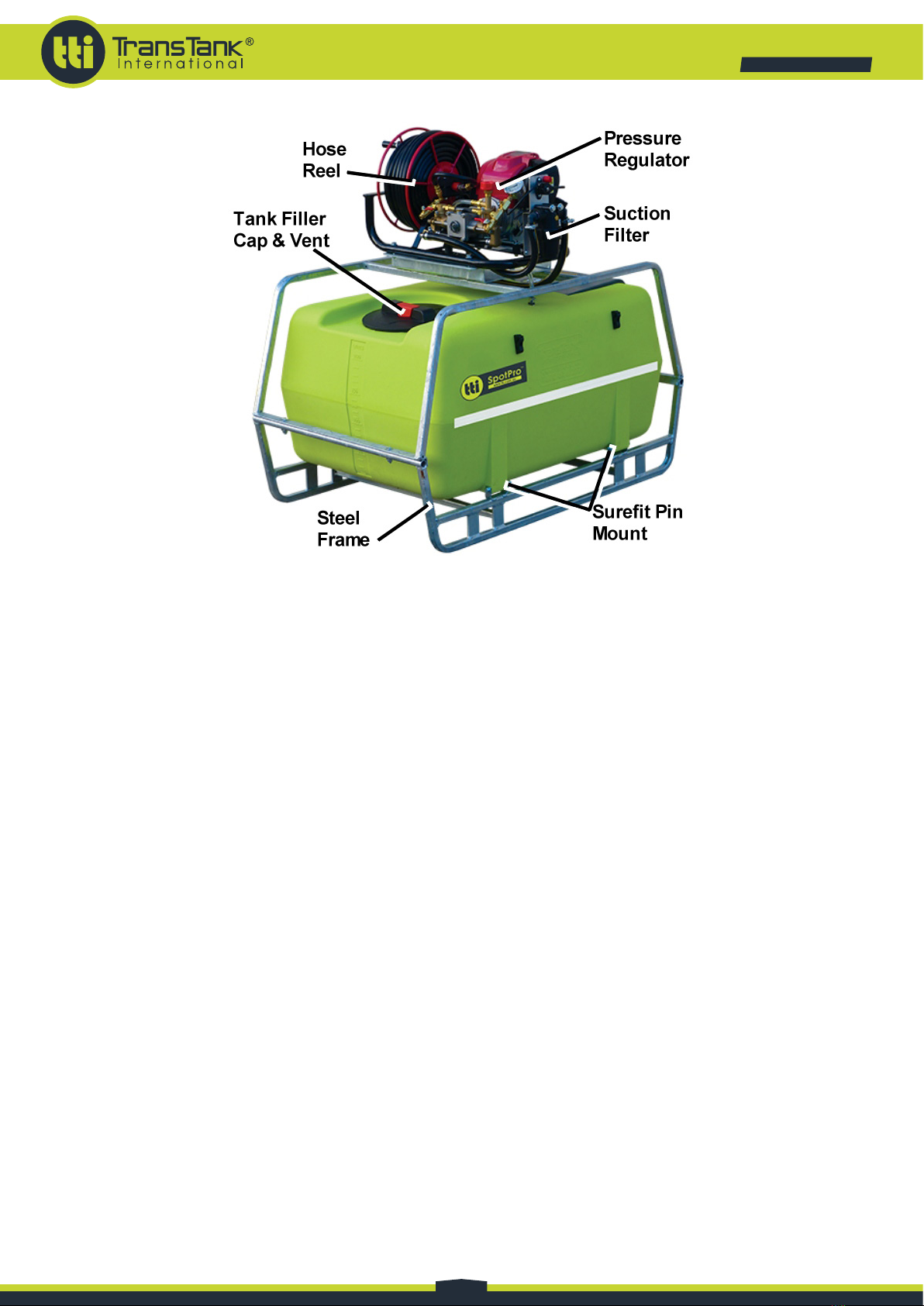

Figure 1 – Component Identification – SpotPro 400L

1800 816 277www.tti.com.au
7
Product HandBook
SpotPro™
Figure 2 – Component Identification – SpotPro Deluxe 200LTank
All TTi tanks are constructed from UV stabilised, impact resistant, virgin material polyethylene. The tank is
fully drainable and is fitted with an internal basket strainer under the filling cap.
The SpotPro Deluxe tanks are mounted in an integral steel frame using the Surefit pin mount on the base of the
tanks. The standard SpotPro units have the Surefit pin mount on the base of the tanks, and either one (220L)
or two (400L) tie-down recesses in the tank, for securing to the vehicle.
Pump Unit
All SpotPro units are fitted with a 12L/min Spray Marshal pump with a Honda GX35 recoil (pull) start petrol
engine.
If the spray gun or spray boom is not in operation when the pump is running, the fluid bypasses back into the
tank via the hose operation lever adjacent to the pressure regulator.
30m Hose Reel and Spray Gun
An optional manually operated hose reel containing 30m of 10mm diameter hose is connected to a trigger
actuated spray gun with adjustable nozzle. The hose is pulled out manually from the reel and retracted using
the handle on the side.
The nozzle adjusts from jet through to mist sprays by rotating the nozzle head. When the trigger is squeezed,
the fluid is discharged; when the trigger is released, the fluid bypasses back into the tank.
Pressure Regulator
A pressure regulator and pressure gauge are fitted to the pump discharge flange to control line pressure and
prevent pump cavitation. The regulator is adjustable depending on the operation requirements – for boom
spraying, the regulator is to be set to approximately 3 bar; with spot spraying via the hose reel the regulator is
set to approximately 5 bar.

1800 816 277www.tti.com.au
8
Product HandBook
SpotPro™
Suction Filter
Adjacent to the pump a filter is installed on the suction line. The filter has a removeable filter element for easy
cleaning.

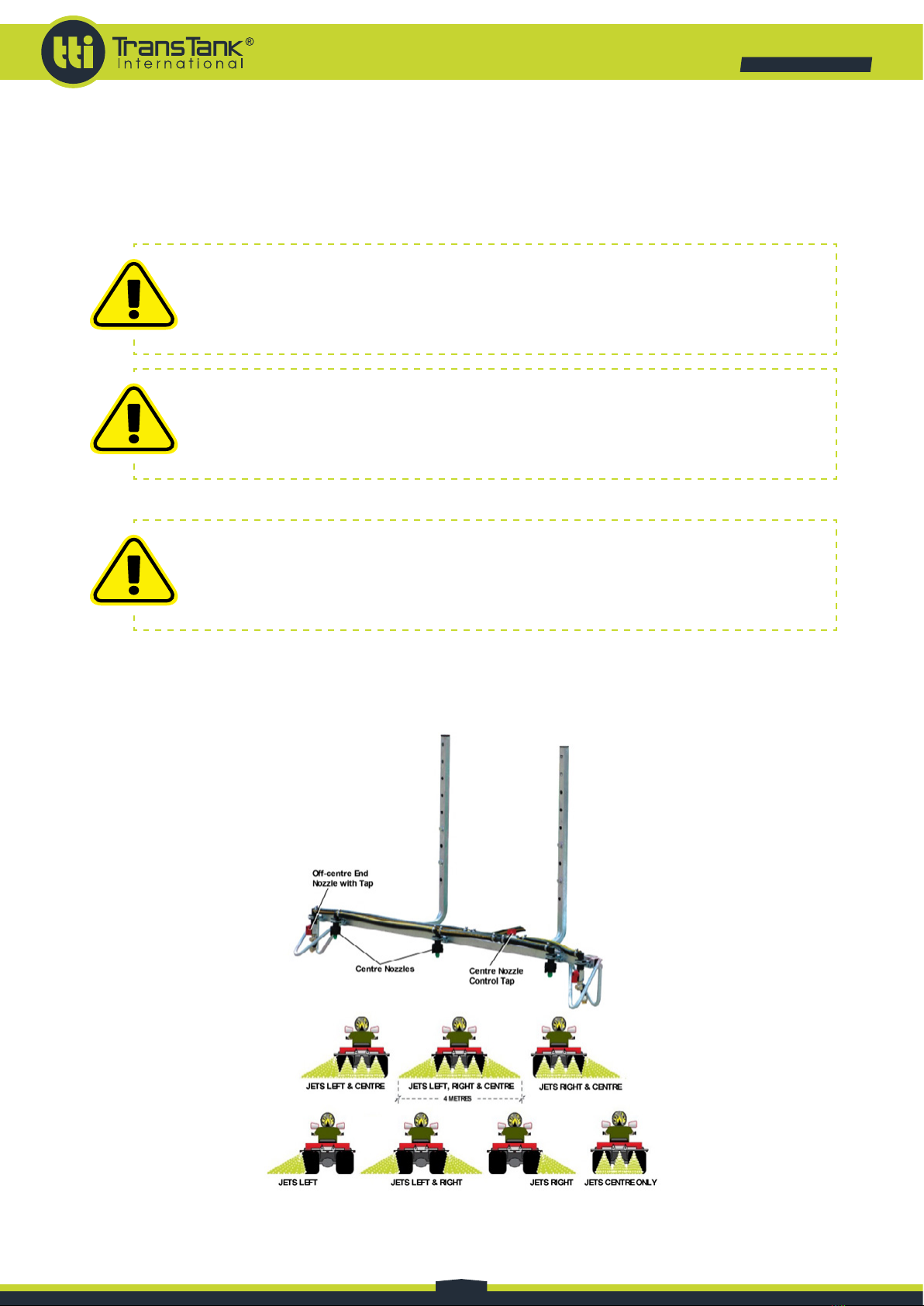

Versatile Spray Boom
An optional 1.2m Versatile spray boom can be mounted to the back of the vehicle using the optional Hayman
Reece HitchIt attachment. The spray boom has three adjustable centre nozzles and two off-centre end jets
to provide a range of spray volumes and patterns, which can achieve a 4m width swath.
The spray boom is operated by a manual valve to start up or stop spray operations. When the valve is closed,
the fluid bypasses back into the tank.

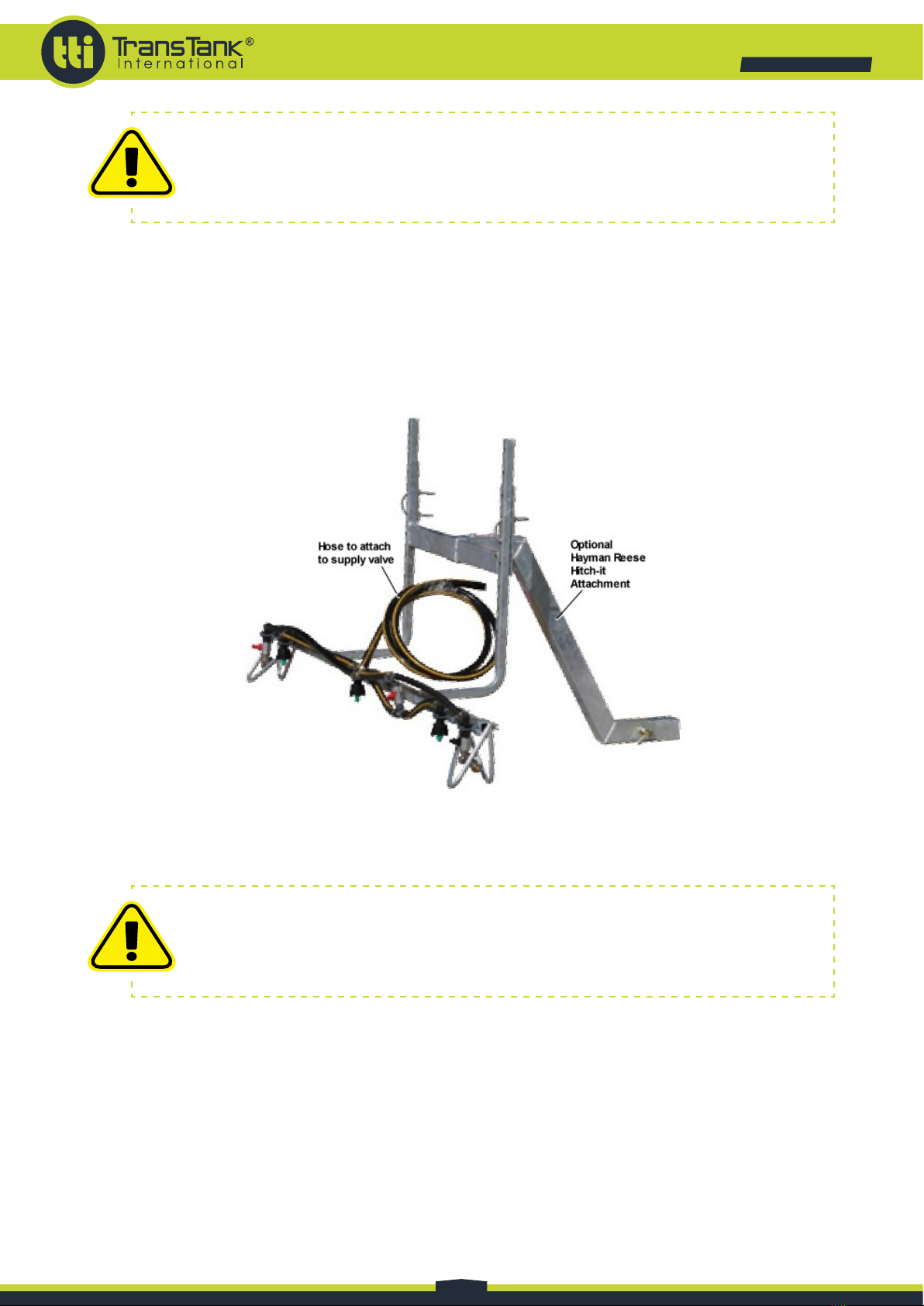

Boomless Nozzle Kit
An optional brass boomless nozzle kit can be mounted to the optional HitchIt attachment, which fits any 50mm
Hayman Reece tow hitch. The nozzle is available in four sizes and is ideal for blanket spraying, especially in
rough country spraying and for locust control. By swapping nozzle plates, the nozzle can be used for either a
90 or 180-degree spray swath.
BoomTech Nozzle Kit
An optional BoomTech nozzle kit can be mounted to the vehicle or trailer with a tailgate bracket. The BoomTech
has two volume adjustable nozzles, ideal for fence lines, orchard, blanket and end row spraying.
Manually Operated Valve
A manually operated valve is fitted to feed to the spray boom. The valve switches from the hose reel feed to
the spray boom feed.
Frame
The chassis frame of the SpotPro Deluxe units is an all steel, fully welded construction and hot dip galvanised
for corrosion resistance.
Machine Limitations
The SpotPro is subject to operating limitations. It is the operator’s responsibility to ensure that this equipment
is being operated safely and within these limitations.
Driving Stability
The SpotPro unit is heavy when filled with fluid. To maintain stability while operating this unit:
• Ensure the vehicle tyres are inflated to their correct pressure at all times. Underinflated tyres can
cause excessive lateral motion of the tyre, which may cause a rollover.
• Allow extra room for braking and turning when the tank is full.
• Ensure any side gradient (slope) is accounted for, especially when the SpotPro tank is full, as the
vehicle may have a higher centre of gravity.

1800 816 277www.tti.com.au
9
Product HandBook
SpotPro™
Spray Boom Calibration
Accurate calibration is an essential element of any spraying function as it ensures that the chemical is applied
at the rate specified on the product label. Application in excess of the recommended rate may be dangerous,
can damage crops and is uneconomical.
Calibration must be carried out:
• When spraying for the first time with new spray equipment
• At the beginning of each season
• After changes of nozzle tips, spraying pressure or vehicle speed
• After every 100 hectares of spraying
PPE appropriate to the chemicals being used must be worn at all times when calibrating the SpotPro. As a
minimum, the PPE should include coveralls, gloves and boots. A face shield and PVC apron are recommended.
Calibration Procedure
Check the label on the chemical container for the application rate and recommended spray nozzle type, refer
to Figure 3, which shows the TeeJet AIXR nozzle application chart. To apply a specific rate of chemical to the
target surface, work out the:
• total sprayer output,
• travel speed, and
• the swath width.
Using these parameters, the application rate is calculate as follows.
Measure Total sprayer output [L/min]
Set the pressure at the correct level for spraying determined by the type of nozzles. All nozzles used for
spraying should be left on. For initial trials, set the pressure regulator at approximately 2 bar and adjust as
needed.
• Fill the spray tank with clean water, refer to Filling the SpotPro Tank procedure below. Run the sprayer at
the correct pressure with all nozzles operating.
• Place a measuring jug under first nozzle for one minute, then measure how much water is in the jug.
• Repeat for all nozzles. Nozzle output should not vary by more than 10%. If it does, the nozzle could be
worn or damaged and should be replaced.
• Add all the jug measurements to find the total sprayer output in litres per minute.

1800 816 277www.tti.com.au
10
Product HandBook
SpotPro™
Measure the travel speed [km/h]
The normal speed for spraying with small boom sprayers is 4–10 km/h. The slower the travel, the higher the
application rate. Adjust travel speed to suit ground conditions.
Measure how many seconds it takes to travel 100 metres with the sprayer attached and half full.
Calculate your travel speed by inserting the time in seconds into the following formula: Travel speed (km/h) =
distance travelled in metres (say 100m) x3.6 / Time taken (in seconds)
Calculate spray application rate [L/Ha]
First, measure the swath width in metres. For general broadcast spraying, the swath width is equal to the
number of nozzles multiplied by the nozzle spacing. For band spraying the swath width is equal to the total of
all the band widths. Calculate the application rate using the following formula:
Application rate (L/ha) = (600 x total sprayer output (L/min)) / (swath width (m) x travel speed (km/h))
Example: If total sprayer output is 5 L/min, speed is 8 km/h, and swath width is 6m, Application rate = (600 x
5 = 62.5 L/ha)/(6 x 8 )
If the application rate is less than specified, increase the pressure and repeat calibration to achieve the correct
rate. Once the required rate is achieved, note the following parameters for future reference when using this
chemical:
• Nozzle Fitted
• Type (Drop Size)
• Application Rate
• Spray Pressure
• Forward Speed.

1800 816 277www.tti.com.au
11
Product HandBook
SpotPro™
Figure 3 – AIXR Application Chart

1800 816 277www.tti.com.au
12
Product HandBook
SpotPro™
SpotPro Operating Instructions
Before first use
Your SpotPro Spray Unit is delivered fully assembled and ready to be fitted onto the vehicle. Before use, it
needs to be set up using the following instructions:
• Complete the warranty registration online at www.tti.com.au/warranty-registration, or use the Warranty
Registration Card at the back of this handbook.
• Store this handbook, along with the Tank Quality Check Form and pump unit’s manual in a safe and easily
accessible place for future reference.
WARNING! The operator must fully understand all aspects of this handbook.
Do not operate the SpotPro if you are unfamiliar with its operation until you
have read this handbook.
• Read and thoroughly understand this handbook, paying particular attention to all safety requirements,
before using the SpotPro for the first time.
• Check that all fittings, valves and hoses are secure following transit, and are not damaged in any way.
• Inspect the tank for any damage or abrasions that may occur during transit.
CAUTION! The unit must be securely mounted to the vehicle. Failure to do
so may result in the unit moving or falling off the moving vehicle. Warranty
is conditional on the unit being correctly mounted.
• Position your SpotPro unit onto the vehicle and mount securely. Tie-down straps can be located into the
tie-down recesses on the SpotPro tank – the 220L tank has one recess, the 400L tank has two. The tie-
down straps must be rated to at least the total mass of the unit when filled with fluid. Alternatively, the
tanks incorporates the Surefit pin mount holes on its base, to enable a bolt and bracket system to secure
the unit to the vehicle. The 400L unit has four Surefit mount points, the 22L unit has two, refer to Figure 4.
Figure 4 – Component Identification – SpotPro Deluxe 200L
• For the SpotPro Deluxe, the integrated tank frame may be either bolted to the vehicle or secured by tie-
down straps.

1800 816 277www.tti.com.au
13
Product HandBook
SpotPro™
CAUTION! The engine must be inspected and prepared in accordance with
the manufacturer. Failure to fulfil this requirement may void the engine’s
warranty.
• Prepare the pump engine in accordance with the Honda manual supplied with your SpotPro unit. Fill the
fuel tank with fresh unleaded petrol.
• Where the optional spray boom is ordered (refer to Figure 5), install it to the vehicle and connect the hose
to the manually operated valve at the pump manifold.
• It is recommended that at first use, the SpotPro is filled with water for spray boom calibration purposes
and for the operator to become familiar with the characteristics of the unit.
Figure 5 – Spray Boom Arrangement
Filling the SpotPro Tank
WARNING! Ensure the filling area is in an open, well ventilated space if
filling with chemicals. Follow the instructions provided with the chemicals
or the applicable Safety Data Sheet.
Mixing and filling the SpotPro should be undertaken at a carefully chosen site, away from any risk of spillages
draining into water courses or into environmentally sensitive areas. Children and animals must always be kept
away from mixing and filling operations.
The unit’s tank is filled as follows:
• Open the tank filler by twisting and lifting the cap.
• Withdraw the internal basket strainer and inspect it for any debris. Clean it if required and reinstall it into
the top of the tank.

1800 816 277www.tti.com.au
14
Product HandBook
SpotPro™
• Follow the chemical manufacturer’s instructions and safety precautions carefully, taking note of the order
in which the products are added to the tank.
• Measure the correct quantities of chemicals using clean measuring containers specifically for this purpose
only, then add the chemicals to the tank.
• Rinse out the measuring containers and any empty containers and pour the all rinsing’s into the SpotPro
tank.
CAUTION! Do not overfill the tank. This may result in chemical spillage.
CAUTION! The SpotPro must never be left unattended while being filled
with fluid.
• Top up the tank with water to the required level, ensuring it is not overfilled.
• Thoroughly mix the contents by stirring with a suitable paddle or starting the pump with the pressure
regulator knob turned anti-clockwise to the BYPASS (“0” pressure) position.
• Upon completion of filling the SpotPro tank, replace the filler cap and twist to tighten.
• Wash off any spillage from outside the tank.
• Close the chemical supply containers and store appropriately. Any empty containers must be thoroughly
rinsed and set aside for collection and disposal in compliance with environmental and work safety
requirements.
Operating Instructions
The SpotPro is started and operated as follows, refer to Figure 6:
• Position the vehicle at a suitable point of the operations area.
• Confirm the tank contains the required chemical or water quantity.
NOTE! Ensure the pressure regulator is set to the minimum position.
• At the pump, check that the pressure regulator is set to the minimum position by turning the knob fully
anti-clockwise.

1800 816 277www.tti.com.au
15
Product HandBook
SpotPro™
Figure 6 – Pressure Regulator
• Check that the optional spray boom valve is in the CLOSED position.
• Start the pump, refer to Petrol Pump Operation procedure below.
• Turn the pressure regulator knob clockwise to the required pressure – approximately 3 bar for spray boom
operation, and 5 bar for hose operation. Refer to the calibration procedure described above for the actual
required pressure setting for spray boom operation.
• For spraying operations, refer to:
• Spray Boom Operation
• Hose Spray Operation
Petrol Pump Operation
The SpotPro’s Honda GX35 petrol pump engine is started as follows, refer to Figure 7:
• Turn the fuel tap to ON.
• Set the choke lever to the closed position.
CAUTION! Ensure the engine’s throttle is set to idle if the engine is cold. Do
not adjust the throttle to maximum speed until the engine has warmed up.
• Check that the remote-mounted throttle (located above the suction filter) is set to the idle position. If
restarting a warm engine, the throttle can be left at normal engine operating speed.
• Grasping the pull-start handle, firmly pull to start the engine. This may need to be repeated 2-3 times. If
the engine fails to start, refer to the supplied pump manual.

1800 816 277www.tti.com.au
16
Product HandBook
SpotPro™
Figure 7 – Petrol Pump Details
• Once the engine starts, slowly move the choke lever to the open position.
• When the engine has warmed up, slowly increase the engine speed to a medium setting, which should
result in the required performance while minimising the fuel consumption and excessive engine noise.
• When the engine needs to be stopped, press the red STOP button adjacent to the engine throttle lever.
CAUTION! Ensure the engine’s grease cups are turned in every two hours of
engine operation.
• Check the two grease cups located at the back of the pump, refer to Figure 8. Rotate the grease cups 2-3
turns clockwise every two (2) hours of operation. Once the grease caps are fully wound in, undo and refill
with general purpose grease.
Figure 8 – Petrol Pump’s Grease Cups

1800 816 277www.tti.com.au
17
Product HandBook
SpotPro™
If the SpotPro is not going to be used within the next few hours, shut the system down as follows:
• Set the engine throttle lever to the idle position.
• Turn the fuel tap to OFF.
Spray Boom Operation
WARNING! Before commencing spraying, plan the work effectively to
minimise potential contamination of adjacent areas.
NOTE! The optional spray boom, boomless spray nozzle or BoomTech
nozzle are all operated in the same way.
Set up and operation of the optional spray boom arrangements is conducted as follows:
CAUTION! Do not spray in windy conditions, where spray drift
contamination may occur. Spray drift can be reduced by lower nozzle
height, lower pressures or by fitting larger nozzles.
• Set the required spray selection by opening or closing the individual control valves on the spray nozzle
lines, refer to Figure 9 for the VersatileBoom option.
• Position the vehicle at the starting point of the operations area.
Figure 9 – Spray Boom Details

1800 816 277www.tti.com.au
18
Product HandBook
SpotPro™
• Start the pump’s engine, refer to the Petrol Pump Operation section.
• Adjust the thottle to the required speed and turn the pressure regulator knob to the required setting, as
determined during calibration.
• Open the manual valve feeding the spary boom (or other optional spray devices).
• Immediately commence driving the vehicle at the speed determined during calibration to achieve the
required spray outcome.
• At the end of each swath or before turning around, shut off the spray boom by closing the manual valve.
When commencing the next swath, open the valve again.
Hose Spray Operation
Set up and operation of the hose spray system is conducted as follows:
CAUTION! Suitable PPE must be worn by the operator when conducting
manual hose spraying operations.
CAUTION! Do not spray in windy conditions, where spray drift contamination
may occur.
• Position the vehicle at a suitable point of the operations area.
• Check that the pressure regulator is set to minimum by turning anti-clockwise. Start up the pump (refer to
Petrol Pump Operation for the start up procedure,). The fluid will now be circulating through the system
and returning to the tank via the bypass circuit.
CAUTION! Ensure not to over-run the hose when pulling it out from the reel,
as this may damage the hose or the fittings.
• Pull the hose to unwind it from the SpotPro’s reel.
• Set the pressure regulator to approximately 5 bar – this can be fine-tuned as required.. This will now
pressurise the hose.
• Aim the hose’s spray gun in the required direction and squeeze the trigger. Adjust the spray pattern by
operating the lever on the spray gun handle, refer to Figure 10.
• Use a constant speed when spraying and release the trigger at the end of each swath or change of
direction, to prevent overdosing. Work in parallel lines when spraying large areas, rather than swinging
from side to side.
• At the end of the task, release the spray gun trigger and press the pump’s OFF button.
• Aiming the spray gun in the required direction, squeeze the trigger to release the residual pressure in the
hose, which will result in a small amount of fluid discharging.

1800 816 277www.tti.com.au
19
Product HandBook
SpotPro™
Figure 10 – Spray Gun (typical)
• With the hose pressure released, the hose is ready to stow back on the SpotPro. Turn the handle at the
side of the hose reel to wind it onto the spool, guiding the hose as necessary to ensure even distribution
across the width of the reel.
Clean-up and Decontamination
After use, the SpotPro unit must be thoroughly decontaminated inside and outside – including the pump,
hoses, boom and spray gun – to avoid damage to crops from any harmful spray residues. Decontamination
also prevents sprayer corrosion and abrasion.
Cleaning the SpotPro should be undertaken at a carefully chosen site, away from any risk of spillages draining
into watercourses or into environmentally sensitive areas.
The recommended decontamination procedure is as follows:
WARNING! Suitable PPE must be worn by the operator when cleaning and
decontaminating the SpotPro unit. Follow the instructions provided with
the chemicals or the applicable Safety Data Sheet.
WARNING! Ensure the cleaning area is in an open, well ventilated space, and
any flushing water is captured to prevent runoff into watercourses or into
environmentally sensitive areas.
• After spraying operations are complete, drain any residual fluid via the bung located at the bottom
of the tank. Capture and dispose or store any fluid in accordance with environmental and work safety
requirements.
• Rinse out the tank with several changes of water, plus a recommended cleaning fluid. Where it can be
reached internally, use a brush to scrub the inside of the tank.
• Operate the SpotPro unit with clean water, using both the spray boom and hose (as applicable), to ensure
no chemical residue remains.
• Unscrew the suction filter cover and remove the filter screen and gasket. Soak the filter screen in clean
water, brushing carefully with a nozzle brush. When re-assembling, ensure the gasket is in position.

1800 816 277www.tti.com.au
20
Product HandBook
SpotPro™
• Ensure that the tank’s basket strainer is free from chemical residue or debris.
• Nozzles, nozzle filters, nozzle caps and gaskets should be cleaned by soaking in water, brushing with a
nozzle brush and allowed to dry. Do not blow through the nozzles or use wire or pins to clear any blockages.
If the SpotPro is to be stored for an extended period, thoroughly clean and decontaminate the unit as
described above. Ensure it is allowed to dry, the tank and all lines empty and not pressurised then store it in a
well ventilated area.
Maintenance
Your SpotPro Spray Unit requires minimal maintenance but regular cleaning and checks will ensure safe and
reliable service over its lifetime. Periodic checks and inspections will identify any potential issues, enabling
timely rectification and minimising downtime.
Periodic Checks
The following checks and cleaning operations should be undertaken on a regular basis (at least annually).
The frequency of these activities will depend on the nature of the operating environment and the operational
hours of the Storm unit.
• Clean the unit and inspect it for any signs of damage or wear. Replace any safety labels if they are damaged
or illegible.
• Check all fittings are firmly secured, tighten if necessary.
• Unwind the hose from the reel fully to check that hose is in good order. Pressurise the line and check
operation of spray gun nozzle. Rewind the hose onto the reel, ensuring it retracts all the way.
• Check the engine’s oil level weekly. Top up if required.
• Check for any signs of fuel or oil leaks around the engine. If detected, investigate and rectify.
• Check the engine fuel line filter, clean or replace as necessary.
• Clean the engine’s air filter regularly, especially if working in a dusty environment.
• If the SpotPro is to be stored for an extended period, thoroughly clean and decontaminate the unit as
described above. Ensure it is allowed to dry, the tank and all lines empty and not pressurised then store it
in a well ventilated area.
Maintenance Schedule
The following tasks are be conducted in accordance with each of the schedules. All scheduled tasks are to
be undertaken concurrently. For example, at the three month maintenance interval, all task listed are to be
undertaken, in addition to the daily, weekly and monthly tasks.
NOTE! Maintenance is important. Keep a record of all maintenance tasks
conducted on the SpotPro unit.
TTi recommends photocopying these schedules in order to keep a detailed log of all maintenance tasks. A
copy of these schedules will be required to support any warranty claim.
