Transvideo CineMonitorHD 3DView Evolution User manual

Rev 3.5
April 2014 751TS0028
CineMonitorHD 3DView Evolution
Operator Manual

Page 2 CineMonitorHD 3DView Evolution
ABOUT
This Operator Manual describes the use of the Transvideo CineMonitorHD 3DView Evolution family.
The first CineMonitor has been introduced to the Film Industry during year 1995.
The CineMonitorHD 3DView Evolution is our contribution to the 3D Stereoscopic world, including
advanced decision tools for the S3D world.
The CineMonitorHD 3DView Evolution family includes the following products:
CineMonitorHD83DView Evolution 8” 3DView Monitor
CineMonitorHD10 3DView Evolution 10” 3DView Monitor
CineMonitorHD12 3DView Evolution 12” 3DView Monitor
CineMonitorHD15 3DView Evolution 15” 3DView Monitor
If the physical, electrical and optical characteristics of the products are different, the user interface is
the same.
Several configurations are optionally available for this family of products.
There is the choice at the order between several input boards, which gives different functionalities
described in this document. Some options can be not implemented in your monitor.
This manual describes CineMonitorHD 3DView Evolution with Software 7.23e (and up).
Depending of the hardware, it is possible to upgrade the CineMonitorHD 3DView Evolution. For that,
contact us or your local Transvideo representative.
The products described in this manual are professional equipment. Utilization of these products
implies knowledge of basics in video signal management, S3D and film making concept.

Operator Manual Rev 3.5 Page 3
WARNING &CAUTION
WARNING:
There is very high voltage inside of the component. Risk of injury or death.
WARNING:
This product must be used in a correct grounded electrical environment; ground defects can create
severe problems to the equipment, the picture quality and even cause danger for the user.
WARNING:
Copyright law and international treaties protect this product, its design and its software. One
or several international patents apply to the CineMonitorHD 3DView Evolution.
Unauthorized reproduction or distribution of this product or its design or its software or any
portion of them, may result in severe civil and criminal penalties, and will be prosecuted to the
maximum extent possible under the law.
CAUTION:
Warranty is void is the product is opened. The unit contains electrostatic sensitive devices, which can
be damaged or destroyed if you touch them. Very high voltage is present in the product and there is
some risk of electric shock if opened by a non-accredited technician. Standard ESD procedures must
be strictly followed during disassembly/re-assembly of the unit.
The user and/or technician assume full responsibility or any risk of bodily injury, death or property
damage arising out of the use or disassembly or repair of this equipment. In no event shall Transvideo
S.A. or its local representatives be liable to a user, technician or third party for any loss of income or
any damage of any kind resulting from the use of or work on the said equipment.

Page 4 CineMonitorHD 3DView Evolution
TABLE OF CONTENT
ABOUT ..................................................................................................................................................... 2!
WARNING &CAUTION ............................................................................................................................... 3!
TABLE OF CONTENT .................................................................................................................................. 4!
INTRODUCTION ......................................................................................................................................... 7!
Unpacking ......................................................................................................................................... 7!
General safety instructions ............................................................................................................. 7!
Power requirements......................................................................................................................... 8!
Start-up ............................................................................................................................................. 9!
PRODUCT OVERVIEW .............................................................................................................................. 10!

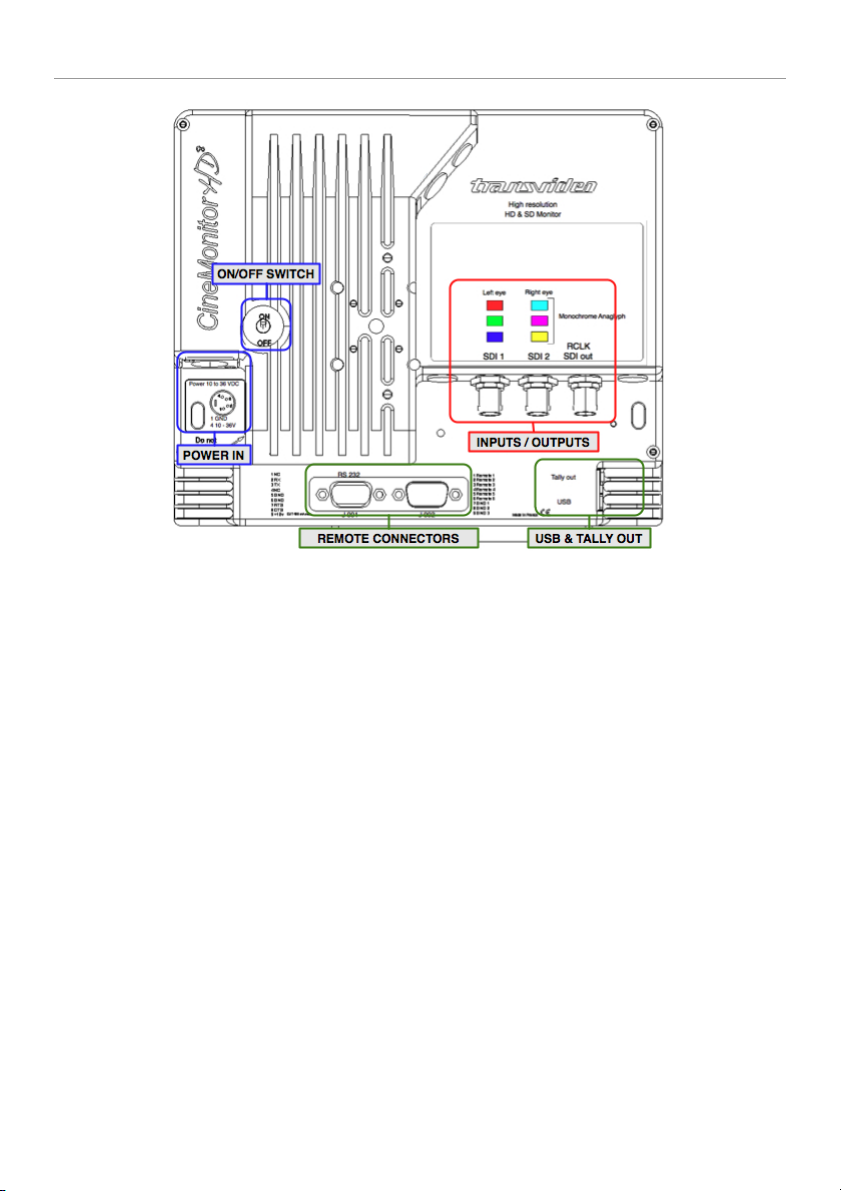

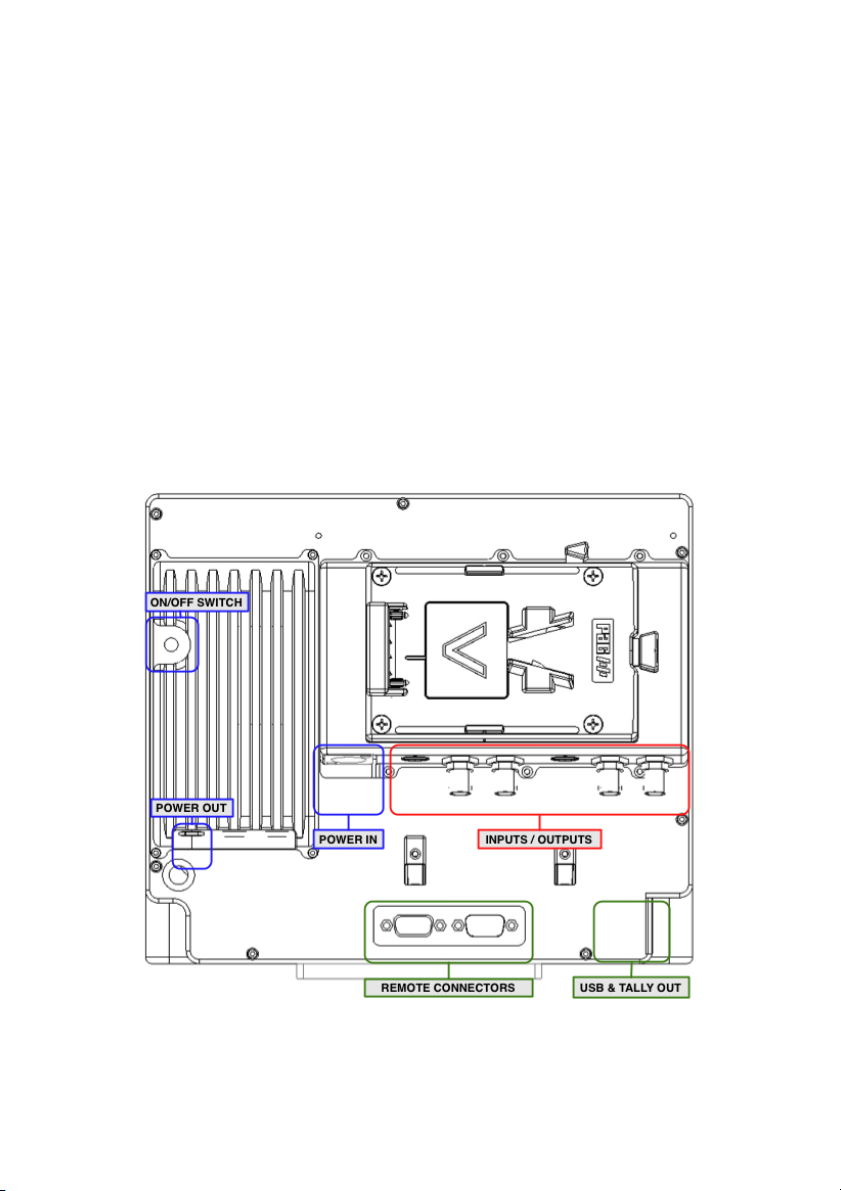

Parts identification ......................................................................................................................... 10!

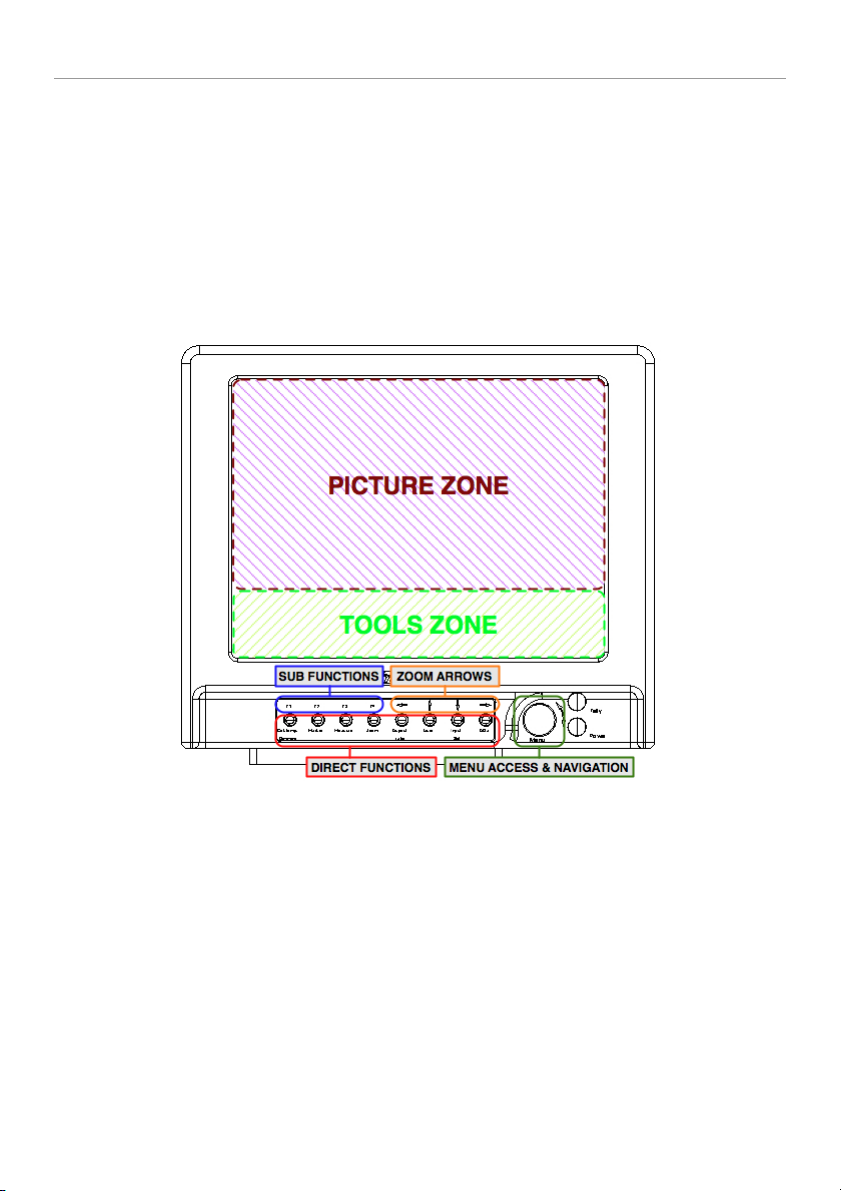

User interface ................................................................................................................................. 12!
Direct functions............................................................................................................................ 12!
Rotating knob............................................................................................................................... 13!
3DView specificity .......................................................................................................................... 13!
USING THE DIRECT FUNCTIONS ............................................................................................................... 14!
Color Temperature & Dimming ..................................................................................................... 14!
Markers............................................................................................................................................ 15!
Measurements ................................................................................................................................ 16!

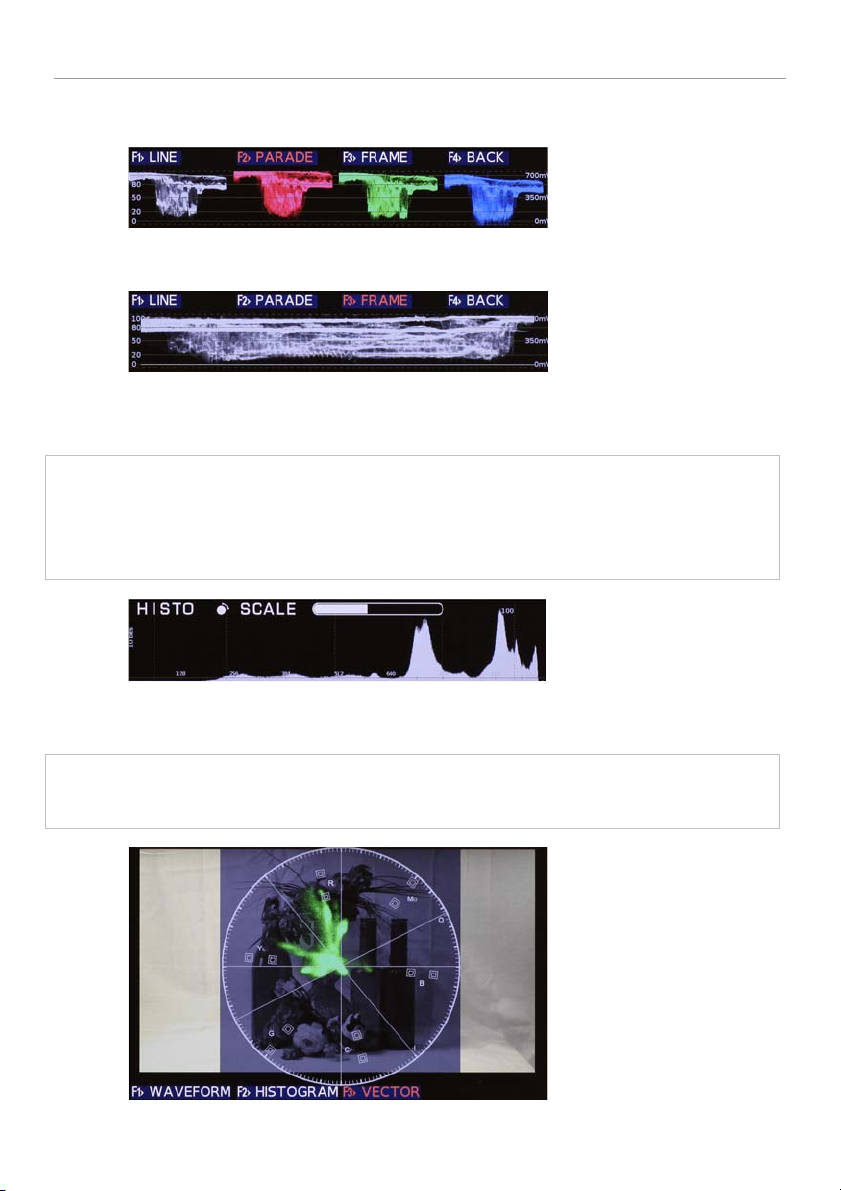

Waveform..................................................................................................................................... 16!
Histogram..................................................................................................................................... 17!
Vectorscope................................................................................................................................. 17!
Zoom................................................................................................................................................ 18!
Zoom pixel to pixel....................................................................................................................... 18!
1.33x zoom .................................................................................................................................. 18!
Zoom in SD .................................................................................................................................. 18!
Aspect Ratio.................................................................................................................................... 18!
Assign user key............................................................................................................................... 19!
Input Selection................................................................................................................................ 20!
Display adjustments....................................................................................................................... 20!

TABLE OF CONTENT
Operator Manual Rev 3.5 Page 5
MENU FUNCTIONS .................................................................................................................................. 21!
HELP ................................................................................................................................................ 21!
DISPLAY MODE .............................................................................................................................. 21!
BLUE CHECK .................................................................................................................................. 22!
COLORIMETRY............................................................................................................................... 22!
INPUT PROFILE .............................................................................................................................. 22!
LINEAR......................................................................................................................................... 22!
REC709........................................................................................................................................ 22!
S-LOG .......................................................................................................................................... 22!
S-LOG2 ........................................................................................................................................ 22!
CANON-LOG ............................................................................................................................... 22!
LOG-C.......................................................................................................................................... 22!
BLACK LEVEL ................................................................................................................................. 23!
LOCK................................................................................................................................................ 23!
TOOLS ............................................................................................................................................. 23!
BLUETOOTH................................................................................................................................ 23!
AUDIO .......................................................................................................................................... 24!
TIMECODE................................................................................................................................... 24!
LENS READER............................................................................................................................. 24!
FOCUS HELPER .......................................................................................................................... 26!
FRAMELINE ................................................................................................................................. 26!
HORIZON..................................................................................................................................... 27!
LIMITS.......................................................................................................................................... 28!
MEASUREMENTS........................................................................................................................ 29!
TALLY .......................................................................................................................................... 30!
PICTURE FX .................................................................................................................................... 31!
3D ..................................................................................................................................................... 32!
PHASEMETER ............................................................................................................................. 32!
DEROBE’S GRID.......................................................................................................................... 33!
MODE........................................................................................................................................... 34!
COLOR......................................................................................................................................... 34!
FLOP ............................................................................................................................................ 35!
FLIP.............................................................................................................................................. 35!
HORIZONTAL SHIFT.................................................................................................................... 35!
ROTARY KNOB FUNCTION ........................................................................................................ 35!
TECHNICAL..................................................................................................................................... 36!
HDMI MODE: CANON/NORMAL ................................................................................................. 36!
GPI ............................................................................................................................................... 36!
VOLTAGE ALARM........................................................................................................................ 36!
REVERSE SCROLLING................................................................................................................ 37!
EXIT TEMPO ................................................................................................................................ 37!
LIGHTS......................................................................................................................................... 37!
MEMORY ......................................................................................................................................... 38!
MEM 1 … MEM 4......................................................................................................................... 38!
PRESET........................................................................................................................................ 38!

TABLE OF CONTENT
Page 6 CineMonitorHD 3DView Evolution
SERVICE &MAINTENANCE....................................................................................................................... 39!
General ............................................................................................................................................ 39!
Useful tips ....................................................................................................................................... 39!
Cleaning ....................................................................................................................................... 39!
Full reset....................................................................................................................................... 39!
Hardware, Software and Firmware............................................................................................... 40!
Updating your CineMonitorHD 3DView Evolution....................................................................... 40!
Calibration....................................................................................................................................... 41!
Product Return ............................................................................................................................... 41!
SPECIFICATIONS ..................................................................................................................................... 42!
Common Characteristics............................................................................................................... 42!
List of Standards per Input............................................................................................................ 43!
Specific Characteristics................................................................................................................. 44!
TRANSVIDEO EQUIPMENT LIMITED WARRANTY ........................................................................................ 45!

Operator Manual Rev 3.5 Page 7
INTRODUCTION
Unpacking
Packing list
Control the content of the package accordingly to the packing list.
Transportation
The CineMonitorHD is delivered in a rugged waterproof case. Use this case for storage and
transportation.
2 years warranty
All CineMonitorHD are covered by a 2 years limited warranty unless otherwise noted.
Get a 3rd year for free by registering your product online within the first month of the purchase.
http://www.hd4dp.com/register-my-product
General safety instructions
IMPORTANT:
Do not use damaged cables with this equipment.
Damaged connectors may seriously damage this equipment.
Never seal the monitor in a plastic bag.
Never use the monitor in full sun with a Raincover.
Before using the monitor make sure that the product is not damaged, that the protective glass is not
broken and that the connector do not have missing pins, foreign objects inside the housing.
The CineMonitorHD needs to be in a ventilated area for a proper cooling. Prolonged use in confined
environment without ventilation can damage the monitor.
Cables
The cables must be in good condition and adapted to the environment where you are working. A bad
quality or wrong-wired cable may damage this equipment or other equipment attached to it and/or
create interferences.
The video cable must be adapted for carrying HD SDI signals. Proper 75 Ωconnectors must be used.
Always check the connector before plugging a cable to your monitor.
Transvideo offers high quality cables for cameras, power supplies and other equipment. Contact
Transvideo S.A. or its local representative in case of need.
Installation
The CineMonitorHD must be securely mounted on the camera or on its location of use. Several
mounting points with ¼-20” nut are present on this equipment for a secured professional use.

INTRODUCTION
Page 8 CineMonitorHD 3DView Evolution
Do not use the monitor with loose fixation or damaged brackets for your own safety and that of
others working with you.
Transvideo manufactures high quality brackets and accessories for the comfort of use and security
for the equipment and user. Please contact Transvideo S.A. or its local representative in case of need
or visit http://www.hd4dp.com.
Power requirements
Only DC Voltage powers this product.
AC voltage can be used with an appropriate AC/DC converter
Recommended AC power adaptors:
CineMonitorHD83DView Evolution Transvideo AL30
CineMonitorHD10 3DView Evolution Transvideo AL63
CineMonitorHD12 3DView Evolution Transvideo AL63
CineMonitorHD15 3DView Evolution Transvideo AL63
The input power voltage range is extremely wide from 10 to 36 V DC (except specified differently).
Power instructions
The power consumption slightly varies with the input voltage, the operating temperature and the
equipment configuration. The internal power supply is protected against reverse polarity. Over
voltage may cause severe damages to the equipment and/or to other equipment connected to it.
This product must be used in a properly grounded electrical environment. Ground defects can create
severe problems to the equipment and/or picture quality and may even cause danger for the user.
Turning power On/Off
The ON/OFF Switch is on the back side of the monitor.
The product needs a certain time to reach its nominal brightness.
This time can vary with the temperature.
In OFF position, the power consumption is null.
Galvanic insulation
For safety of use the CineMonitorHD family feature a galvanic insulation of the DC input. Do not
connect the power ground to the chassis of the monitor or to the metallic body of the power
connector in order to keep the galvanic insulation. The galvanic insulation is rated at 1000VDC. The
chassis of the monitor is connected to the video ground.
Anton-Bauer batteries / FuelReader™
Transvideo Labs engineer’s integrated communication between the fuel computer of Logic Series
Digital batteries from Anton-Bauer and CineMonitorHD 3DView Evolution. The FuelReader™ gives to
the user a view of the remaining available percentage of the battery and the time to run.

INTRODUCTION
Operator Manual Rev 3.5 Page 9
On 8” CineMonitorHD, you need to use the battery socket from Transvideo (P/N 918TS0202-AB) to
enjoy the benefits of the FuelReader™. On 10”, 12”, and 15” CineMonitorHD 3DView Evolution you
need to order the monitor with the Anton-Bauer Gold Mount socket.
WARNING RISK OF FIRE:
It is always recommended to remove the power source from the monitor when you do not use it
and/or when you travel. Especially if you place the monitor in a closed environment (bag, box, …).
Start-up
①Connect an appropriate power supply to the XLR4 connector or a battery if any socket is
available.
②Connect a video source (SDI, HDMI) to the corresponding input
③Set the power switch to ON
④Select the correct input with "Inputs" key

Page 10 CineMonitorHD 3DView Evolution
PRODUCT OVERVIEW
Parts identification
All connectors are on the back of the monitor. Depending on the size of the monitor, the connectors
and their location may differ.
10" to 15" HD 3DView monitors provide the same connector panel, including 2 x HD/SD SDI and 2 x
mini HDMI inputs. They also provide a power out connector and a battery plate. The 8" HD 3DView
monitor provides a different connector panel, including 2 X HD-SD SDI inputs. Refer to chapter
"SPECIFICATIONS" for complete description.
Figure 1 to 2 show the backs of a 10" and a 8” CineMonitorHD 3DView Evolution.
Figure 1: CineMonitorHD10 3DView Evolution back

PRODUCT OVERVIEW
Operator Manual Rev 3.5 Page 11
Figure 2: CineMonitorHD8 3DView Evolution back

PRODUCT OVERVIEW
Page 12 CineMonitorHD 3DView Evolution
User interface
The CineMonitorHD 3DView Evolution family offers a user interface common to all sizes. Some
functions are directly accessible from the "direct functions" keypad, others from the menu with use of
the rotating knob.
The CineMonitorHD screen is partitioned in two areas:
①The picture zone displays the picture from the camera in 16/9 format
②The tools zone displays tools and measurements in the remaining area of the screen.
Figure 3 show the front of a 8” CineMonitorHD 3DView Evolution.
Figure 3: CineMonitorHD8 3DView Evolution front
Direct functions
Several direct functions are available from the keypad.
One short press on a key gives access to the function.
One long press (more than 2 seconds) on a key gives access to the sub functions of the related
function (if any). Pressing F1…F4 enables to adjust those sub functions.
Depending of the function, options and environment, the content of F1…F4 may differ. Pressing a key
will activate or deactivate the sub function. An activated sub function is highlighted by an orange text
while an inactivated function prompts in white.
In some specific case, F4 may extend the selection to a second page of sub menu.

PRODUCT OVERVIEW
Operator Manual Rev 3.5 Page 13
Rotating knob
The menu knob is a rotating encoder with a push function. It is used to access and navigate in the
menus, adjust some parameter values, validate and exit functions by turning or pushing it.
One sort press on the knob gives access to the menu. Rotating the knob enables to navigate
between the menu items. Pushing the knob gives access to the sub menu of the highlighted menu
item.
Selecting EXIT exits from the current menu level to the previous (if any). A long push on the knob exits
from the menu. Exiting the menu is also possible by automatic temporization, adjustable in MENU /
TECHNICAL.
3DView specificity
To use the 3D mode the 2 signals must be synchronized. A phase analyzer (Phasemeter) gives to the
user the pixel and line phases between the 2 signals (not available on 8" HD 3DView monitor).
The 3D menu is available only when a 3D input (SDI 3D or HDMI 3D) is selected.
The measurement tools display the 2 signals analysis simultaneously. Each spot uses a specific color
(adjustable in MENU / 3D / COLOR).
Supported standards may differ with monitor configuration and selected input. E.g. on 8" HD 3DView
monitors the 3D functions are not available with 1080p even if it is possible to visualize independently
the 2 video signals. More details in chapter "SPECIFICATIONS" section "List of Standard per Input".

Page 14 CineMonitorHD 3DView Evolution
USING THE DIRECT FUNCTIONS
Color Temperature & Dimming
Short push on Col. Temp. Dimming – toggles calibration modes:
FULL BRIGHT: maximum brightness and power consumption, the color calibration is deactivated
STANDARD CALIBRATED: standard mode, the brightness (200Nits) and white point are calibrated
according to the settings of MENU / COLORIMETRY
USER SET: turning the rotating knob adjusts the brightness from 10 to 100% while color calibration
is preserved. Allows having a reduced power mode between two takes.
Long push on Col. Temp. Dimming – accesses the settings of the Standard Calibrated mode
Press F1 to choose D56 calibration
Press F2 to choose D65 calibration
Press F3 to choose manual calibration (Adjustable in MENU / COLORIMETRY)
It is necessary to wait a few seconds after pressing the key before loading of the correct lookup table.

USING THE DIRECT FUNCTIONS
Operator Manual Rev 3.5 Page 15
Markers
Short push on Marker – activates or deactivates the selected marker(s).
Long push on Marker to select the markers to display.
Not active when ZOOM or FORMAT 2.40:1 are selected.
Long push on Marker – marker(s) selection
First page
Press F1 to activate / deactivate 4:3 marker
Press F2 to activate / deactivate 14/9 marker
Press F3 to activate / deactivate 16/9 marker
Press F4 to access next page
Second page
Press F1 to activate / deactivate safe area
Press F2 to activate / deactivate Derobe’s grid
Press F4 to access previous page
This menu is contextual; some functions can be unavailable depending of the video standard.
When SAFE AREA is selected in the sub menu, one short press on the Marker key displays "TURN
TO ADJUST SAFE AREA". Rotating the knob makes it possible to adjust the safe area on the picture
from 10 to 99%. SAFE AREA is selected by default at start-up or after a reset and with a value of
90%.
When DEROBE’S GRID is selected in the sub menu,
①one short press on the Marker key displays "TURN TO ADJUST GRID OFFSET". Rotating the
knob makes it possible to adjust the grid offset of plus or minus half of the step of the grid.
②one long press (more than 3 seconds) on the Marker key displays "TURN TO ADJUST GRID".
Rotating the knob makes it possible to modify the step of the grid from 6 to 122 pixels.
∗ Derobe’s Grid is available in 3D mode and is a specific tool for stereographic work. Refer to Chapter
"MENU FUNCTIONS" section "3D / DEROBE’S GRID".

USING THE DIRECT FUNCTIONS
Page 16 CineMonitorHD 3DView Evolution
Measurements
Short push on Measure – toggles the different views of the selected measurement
Long push on Measure to select the measurement to display.
Long push on Measure – measuremet selection
Press F1 to select Waveform
Press F2 to select Luminance histogram
Press F3 to select Vectorscope
The brightness of the reticule and of the spot as well as the background transparency in overlay
mode (for waveform and vectoscope) can be adjusted in MENU / TOOLS / MEASUREMENT.
White and black clipping alert can be configured in MENU / TOOLS / LIMITS. The same limits are
used for the waveform and the histogram. Setting these limits is useful to have a visual alert on the
measurement tools if there is a risk of overexposure or of loss of black details.
When using the 3D mode the measurement tools display the two inputs simultaneously. It is valid for
the Waveform, Histogram and Vectorscope. To identify clearly the source each spot uses a specific
color. The colors used are the same as those used for the 3D representation. Selection is done in
MENU / 3D / COLOR, i.e.:
①using the histogram with RED/CYAN colors will display input 1 in RED and input 2 in CYAN. The
common values of the histogram will be displayed in white, the differences in RED or CYAN.
②using the histogram with RED/BLUE colors will display input 1 in RED and input 2 in BLUE. The
common values of the histogram will be displayed in MAGENTA, the differences in RED or BLUE.
Waveform
Selecting "F1: WAVE" gives access to the selection of the waveform modes.
Press F1 to display the waveform in line mode
Press F2 to display the waveform in parade mode
Press F3 to display the waveform in frame mode
Press rotating knob to exit from menu.
Then a short push on Measure toggles the different views of the selected waveform mode (if any).
It also gives the possibility to adjust the size of the waveform by using the rotating knob (3 sizes
available)
LINE Displays one single spot (Y, Red, Green or Blue)

USING THE DIRECT FUNCTIONS
Operator Manual Rev 3.5 Page 17
PARADE Displays Y, R, G, B, Cr & Cb in parade mode.
Available modes: YRGB / YGBR / RGB / GBR / YCrCb
FRAME Displays Y, R, G, B in frame mode (or sweep mode).
The content of one frame/picture is displayed.
Histogram
Selecting "F2: HISTO" displays the histogram.
Press rotating knob to exit from menu.
Then a short push on Measure gives the possibility to adjust the scale of the histogram by using the
rotating knob
Vectorscope
Selecting "F3: VECTOR" displays the vectorscope.
Press rotating knob to exit from menu.

USING THE DIRECT FUNCTIONS
Page 18 CineMonitorHD 3DView Evolution
Zoom
Short push on Zoom – toggles between different zoom modes.
OFF / 1.33x zoom / Pix to pix zoom
When activating the zoom, a pictogram showing the relative position of the magnified zone is
displayed.
Arrows move the picture on Top/Bottom, Left/Right positions. Moving increments are proportional
to 1/8 of the video standard. Fine adjustment can be made by rotating the rotating knob.
A long push on the Zoom key centers the picture, the next push sends back to the full picture
display.
Zoom pixel to pixel
Displays the picture in full resolution mode (pixel to pixel or 1:1).
Beyond the native resolution of the picture, magnify implies to create pixels that doesn’t exist. This is
why the pixel to pixel mode (1:1 zoom) is the higher magnification ratio in a Transvideo monitor.
1.33x zoom
The 1.33x zoom mode magnifies the active 16/9 area of the picture output by the Arri Alexa in 4:3
mode.
Zoom in SD
In SD, the picture is displayed in full screen. In this case there is an important magnification ratio
applied to the original picture. The resultant picture includes created pixels and lines and cannot be
considered as a proof. In this mode the waveform will be superimposed to the picture.
Aspect Ratio
Short push on Aspect ratio – toggles aspect ratio:
1.33:1 4/3 SD only
1.78:1 16/9 HD & SD
2.40:1 HD & SD
3.20:1 HD & SD (2.40 anamorphic lens on a 1.78 sensor)
No sub functions in Aspect Ratio

USING THE DIRECT FUNCTIONS
Operator Manual Rev 3.5 Page 19
Assign user key
Short push on User – activates or deactivates selected user function.
Long push on User to select the user function.
Long push on User – user function selection
First page
Press F1 to select STATUS as the user function
Displays the status of the monitor and the input voltage from the power supply or the battery.
Press F2 to select FOCUS helper as the user function
Activates the Focus Helper function as programmed in MENU / TOOLS / FOCUS HELPER.
Press F3 to select EXPOsure control as the user function
Gives access to the Exposure Control as configured in MENU / TOOLS / LIMITS.
FOCUS and EXPO may be selected simultaneously. If both are activated, pressing User key set up:
a. FOCUS + EXPO / b. FOCUS / c. EXPO / d. nothing
Press F4 to access next page
Second page
Press F1 to select High/Low (high- or low- light details) as the user function
In high mode, the 50%-100% grey scale is shifted to 0-50% to enhance the high-light details.
In low mode, the 0-50% grey scale is shifted to 50%-100% to enhance the low-light details.
Press F2 to select 3D or HORIZON as the user function
When a 3D input is active, gives access to the 3D menu.
Else, activates or deactivates the horizon as programmed in MENU / TOOLS / HORIZON.
Press F3 to select ZONE as the user function
Adjusts the acquisition zone for the waveform and vectorscope.
Active when "1 LINE" or "12 LINE" are selected in MENU / TOOLS / MEASUREMENT.
Press F4 to access previous page

USING THE DIRECT FUNCTIONS
Page 20 CineMonitorHD 3DView Evolution
Input Selection
Short push on Input Sel – toggles video inputs.
Long push on Input Sel to select the active video inputs.
Long push on Input Sel – selection of the active video inputs
First page
Press F1 to activate or deactivate SDI 1
Press F2 to activate or deactivate SDI 2
Press F3 to activate or deactivate SDI 3D
Press F4 to access next page
Second page *
Press F1 to activate or deactivate HDMI 1
Press F2 to activate or deactivate HDMI 2
Press F3 to activate or deactivate HDMI 3D
Press F4 to access previous page
∗ not available on the 8” 3DView monitor.
Display adjustments
Short push on ADJ – toggles parameters to adjust:
Brightness, Contrast, Saturation, Hue (NTCS only)
Adjust the value by rotating the knob.
Validate by pushing the knob.
IMPORTANT:
The settings are different for each input. All settings are stored in setup memories. There is one
memory per input. That means you can setup the SDI 1 and SDI 2 inputs differently of the SDI 3D
input.
