Transvideo Starlite RF User manual

Starlite RF
Quick Start Guide
www.transvideo.eu
www.starliterf.com
Several patents pending
144TD0005 - Rev 0.5 Sept 2016
TRANSVIDEO S.A.
Zone Industrielle
F-27135 Verneuil sur Avre
FRANCE
Tel [phone]
Fax [phone]
[email protected]
www.transvideo.eu
uHome view - Smart Corners Starlite RF
Displays Smart Corners
Rec zone
Rec - Play & Snap buttons
1:1 Zoom zone (pixel to pixel)
Tap to zoom in or zoom out
Slide to move the zoomed picture
Smart Corners
User assigned tools
Menu / Smart Corners
Smart Corners
User assigned tools
Menu / Smart Corners
3
uMain menu
Smart Corners
System Adjust
Press down the ON/OFF switch
to display the main menu
Tools
Home view
4
Home view Back to
main menu
Calendar & clock
Update TX pairing
uSystem menu
5
uTx pairing (Registration)
SDI Out
Horizontal Flip
Home view
Vertical Flip
Select input
Anamorphic Desqueeze 1.3x
Anamorphic Desqueeze 2x
Back to
main menu
6
uTx pairing (Registration)
Snapshot
Back to
main menu
No tools
To assign a tool to a smart corner: select a tool, then choose the corner
to which you want to assign it. Waveform
Home view
7
uTools menu
8
Smart corners menu
9
uAdjust menu
10
Recording / Playing
12
uWarning & Caution
Slide to adjust Luminosity, Brightness or Contrast then validate by pushing
Push Reset to restore default values.
Histogram
Vectorscope
Record status
Record*
Tap to record
Tap again to stop
Records gallery
Snapshots gallery
* All supported standards
WARNING:
This product must be used in a correct grounded electrical environment; ground defects can create severe
problems to the equipment, the picture quality and even cause danger for the user.
Copyright law and international treaties protect this product, its design and its software. One or several
international patents apply to the StarliteRF. Unauthorized reproduction or distribution of this product
or its design or its software or any portion of them, may result in severe civil and criminal penalties, and
will be prosecuted to the maximum extent possible under the law.
CAUTION:
Warranty is void as the product is opened. The unit contains electrostatic sensitive devices, which can be
damaged or destroyed if you touch them. Very high voltage is present in the product and there is some risk of
electric shock if opened by a non-accredited technician. Standard ESD procedures must be strictly followed
during disassembly/re-assembly of the unit.
The user and/or technician assume full responsibility or any risk of bodily injury, death or property damage
arising out of the use or disassembly or repair of this equipment. In no event shall Transvideo S.A. or its local
representatives be liable to a user, technician or third party for any loss of income or any damage of any kind
resulting from the use of or work on the said equipment.
Starlite RF
SD Card format
Select input
Wireless or BNC
Select TX
Home view Back to
main menu
Peaking
Toggle TX A/B
Select TX A or B
Reset Pairing TX
Up to 2 Tx can be paired (or registered) with a StarliteRF, in order to be swapped by use of smart
corner A/B (smart corners menu) or tool A/B (tools menu). Nevertheless, if you use only 1 Tx at a
time, you just have to pair it and it will be automatically displayed.
Starlite RFStarlite RF
Starlite RFStarlite RF
Starlite RFStarlite RF
Starlite RF
Starlite RF
Procedure to set up properly Tx in order to use swap Tx function (if you use a single Tx, just pair it
regardless if Tx A or Tx B is selected) in "Menu parameters / TX pair":
- Switch on your 2 Tx, we recommend a distance of 10 ft (3m) between StarliteRF and Tx.
Press icon “Reset Tx”
Press icon “Tx A”, press “REG” button on Tx unit A until blue led blinks fast (2s) and wait for
message “Press OK” appears on the monitor, and then press icon “OK”
The rst Tx has been registered. Icon “Tx A” is now marked “Tx B”
Press icon “Tx B”, press “REG” button on Tx unit B until blue led blinks fast (2s) and wait for
message “Press OK” appears on the monitor, and then press icon “OK”
The secondth Tx has been registered, and you can swap them with A/B icons.
-
-
-

13
Mini 3D Swing Arm
The clamp for slide on the top allows to mount the monitor
from the bottom slide, its back or any extra slide.
Includes a special 3/8”-16 male thred on the bottom.
P/N 918TS0261
How to update
Sun Hood
Material sun hood.
Protects the screen from direct sun.
P/N 918TS0265
Transportation cover plate
Protects the StarliteHD against dust
and shocks during transportation.
P/N 918TS0268
uRecording / Playing / Converting
You can generate a le which gives :
- Possibility to convert the output container from h.264 to mp4 (default) or mkv.
- Possibility to adjust the compression level and to choose intra mode for coding.
- Possibility to choose a default name for the clips.
- And so on.
Options are set online on our web site, a le is generated and placed manually
onto the SD card.
For more information, visit http://www.transvideo.eu/support-StarliteRF
Step 1
Plug the SD card into your computer.
Download and uncompress the latest software release (the downloaded le is in zip
format) using your archive utility application.
Open the uncompressed folder then copy the le maj.tar.gz and paste it at the root
of the SD card.
Do not rename the le on the SD card.
Step 2
Plug the SD card into the monitor.
Turn ON the monitor then push down the menu button.
Select the Settings icon then choose Update.
Validate your choice and wait...
14
17
Conguration File
Step 3
During the update , you can read the following information on the screen.
- Do not disconnect your monitor from the power supply.
- Full system update : may require more than 30 minutes.
- Applicative update in progress.
After a successful update, the monitor displays “Your monitor is up to date”.
If an error occurs, a report is generated.
You can read the online version at http://www.transvideo.eu/support-StarliteRF
15 16
uHow to update
uTRANSVIDEO EQUIPEMENT LIMITED WARRANTY
Transvideo S.A gives the warranty set forward below.
The limited warranty is only effective upon presentation of your Bill of Sale or other proof of purchase.
Transvideo equipment is warranted under normal use, against defective materials or workmanship as follows:
Parts: Defective parts will be exchanged for new parts or comparable rebuilt parts for a period of TWO YEARS from the date of
original purchase.
Labor: For a period of TWO YEARS from the date of original purchase, labor will be provided free of charge by our factory service
centers or designated service facilities located in country where the product have been purchased, or by the factory.
When returning equipment under this warranty, you must pre-pay the shipping charges, and you must enclose the Bill of Sale or
other proof of purchase with a complete explanation of the problem.
During your TWO-YEAR warranty period, repairs will be made and the equipment return-shipped to you free of charge.
After your warranty period is over, you will be given an estimate of the cost of repair and an opportunity to approve or disapprove
of the repair expense before it is incurred. If you approve, repairs will be made and the equipment return shipped to you. (shipping
charges apply). If you disapprove, we will return-ship the equipment at no charge to you. (shipping charges apply).
Non-Transvideo brand peripheral equipment and software which may be distributed with Transvideo products are sold “AS IS”
without warranty of any kind by Transvideo, including any implied warranty regarding merchantability or tness for a particular
purpose. The manufacturer or producer gives the sole warranty with respect to such non-transvideo brand items Thereof :
Transvideo shall have no responsibility under this limited warranty for use of Transvideo product in conjunction with incompatible
equipment or peripheral equipment.
In order to obtain warranty service, contact the authorized Transvideo retail dealer from whom you purchased the product or
contact the factory :
By phone [phone] By fax [phone] By email [email protected]
You will be directed to the nearest service facility for your product.
If there is no service facility in your region, you will receive a RAN (Return Authorization Number) and instruction to return your
product to the factory.
This Limited Warranty covers all defects encountered in normal use of the equipment and does not apply in the following cases:
Loss or damage to the equipment due to abuse, mishandling, accident, improper maintenance, or failure to follow operating
instructions.
NO IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE APPLIES TO THIS
EQUIPMENT AFTER THE APPLICABLE PERIOD OF EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE,
GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS EQUIPMENT SHALL BIND THE UNDERSIGNED..
TRANSVIDEO SHALL NOT BE LIABLE FOR LOSS OF REVENUES OR PROFITS, EXPENSE FOR SUBSTITUTE EQUIPMENT OR
SERVICE, STORAGE CHARGES, LOSS OF DATA, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH
THE CLAIM IS BASED, AND EVEN IF TRANSVIDEO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR
SHALL RECOVERY OF ANY KIND AGAINST TRANSVIDEO BE GREATER THAN THE PURCHASE PRICE OF THE P>RODUCT
SOLD BY TRANSVIDEO AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL
RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROP-
ERTY ARISING OUT OF USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT CAUSED DIRECTLY BY THE NEGLIGENCE
OF TRANSVIDEO. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS
EQUIPMENT.
If the equipment is defective as a result of leaking batteries, sand, dirt or water damage; If defects or damages are caused
by the use of unauthorized parts or by service other than our authorized agent.
If the equipment is defective as a result of leaking batteries, sand, dirt or water damage; If defects or damages are caused
by the use of unauthorized parts or by service other than our authorized agent.
This Limited Warranty does not cover cabinet (exterior nish).
This warranty does not cover units sold to military operations or avionics. These uses are covered only by such specic warranty
as Transvideo may issue with such sales.
This Limited Warranty does not apply to accessories or consumables for the product, which are sold “AS IS”, without warranty of
any kind by Transvideo.
Please retain this warranty card and your Bill of Sale as a permanent record of your purchase. This card is most important in order
to be sure you are contacted right away should there be a safety inspection, modication or product recall under applicable laws
or regulations.
19 20
21
23
uAccessories
Video output 1 x 3G / HD / SDI
Supported
Standards
3G: 1080 / 50p, 60p
HD: 1080 / 50i, 60i
1080 / 24p, 25p, 30p
1080 / 25psf, 30psf
720 / 50p, 60p
Display type
& size AMOLED - 5 inches
Pixels Picture zone 1280 x 720
Contrast ratio 3400:1
Viewing angle ±170° H & V
Brightness max 380 Nits
uTechnical specications
Color temperature
D56
Power
5 to 30V DC (-1, +2)
Lemo 2 Mini (EGG.0B.302 CLL)
Battery Socket Sony type L
Power Cons. 12W
SD card slot yes
Built-in receiver
frequency 5.8 Ghz ISM Band
Dimensions
(w x h x d) 144 x 128 x 40 mm 5,66 x 5,03 x 1,57 inches
Weight < 200g / 0.5 lbs
uMechanics & connectors
Audio out
Video in or out
HD-3G SDI
Din 1.0/2,3
Part Number
Serial Number
SD card Slot
Power 5 to 30v DC
Lemo2 “mini”
(EGG.0B.302.CLL)
(-1, +2)
ON/OFF switch
Main menu
(down)

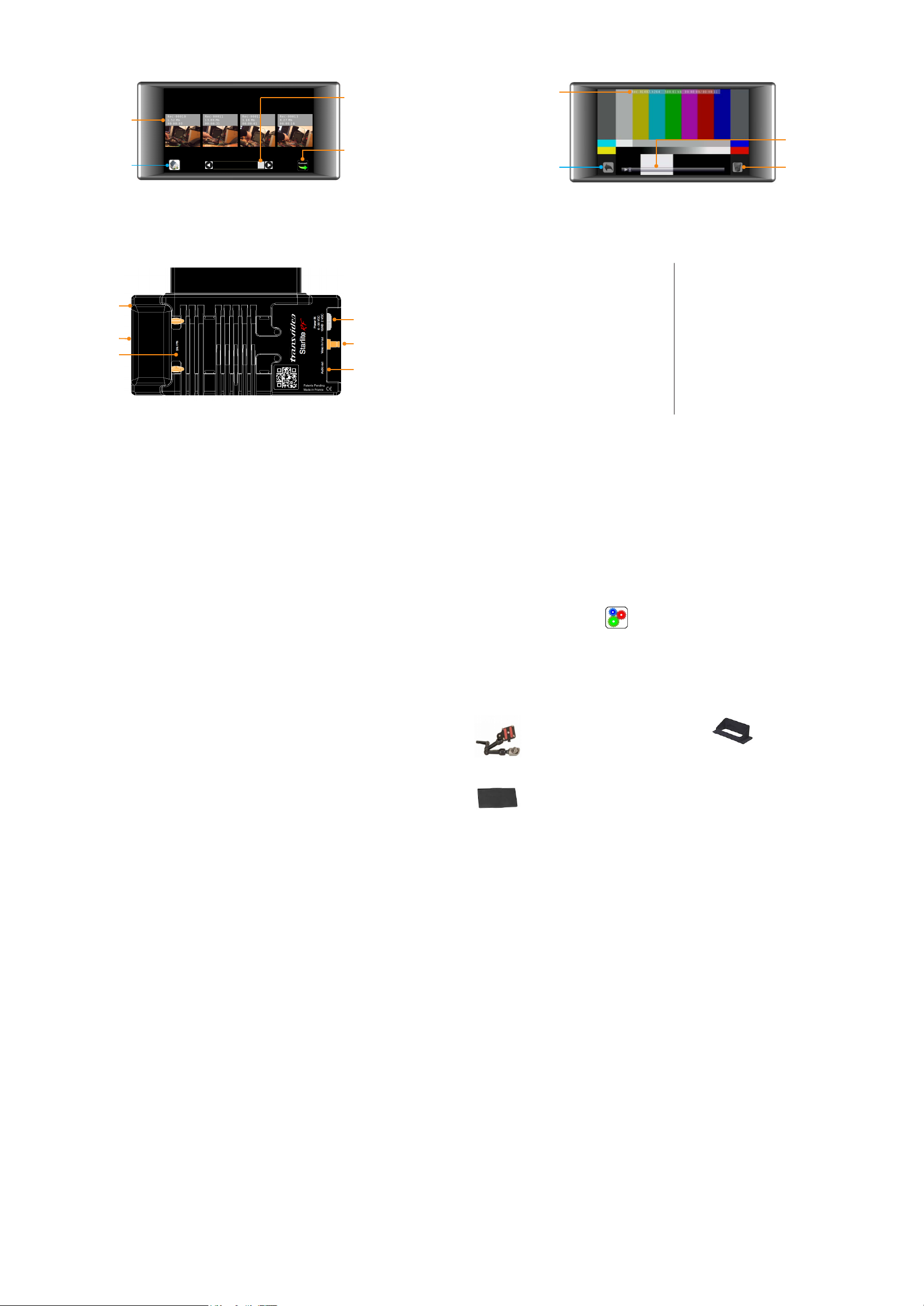

uRecording / Playing
Play Status
Go back to the
records gallery Delete record
Play
Slide to rewind
& forward
Records gallery
Choose the one you
want to play
Home view
Navigation
Slide on thumbnails
to navigate
Convert output container
h.264 to mp4 (default)
* First push the “Convert“
icon then select the video
in the list
* Please note that old converted les with the same name will be overridden
