TRASSIR TR-D5123IR3 User manual

2MP IR PTZ IP camera
TR-D5123IR3
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
Specification
TR-D5123IR3
1/2.8" STARVIS CMOS 2Мп
FullHD(1920x1080)
FullHD@25fps
1/1 ~ 1/30 000 sec
Mechanical ICR
0.005Lux (F1.6) / 0Lux (IR on)
up to 30 meters
2.7-11, F1.6
102˚ - 36˚ / 54˚ - 20˚
x4
x16
Pan: 0° ~ 360° (infinite)
Tilt: -15° ~ 90° (autoflip to 180°)
Pan: 0.1°/s ~ 200°/s
Tilt: 0.1°/s ~ 60°/s
Pan: 100°/s
Tilt: 60°/s
Yes
Real WDR (120dB)
Ultra DNR (2D/3D)
Н.265 / H.264
up to 8Mbps
MicroSD up to 128GB
Built-in microphon
Yes (up to 8 zones)
Yes
PoE (802.3at) / 12V DC (3A)
4
13W
Ø133 x 116.5
950
IP66
-30°C … +60°C
Model
Image sensor
Resolution
Frame rate
Electronic shutter speed
"Day/Night" mode
Sensitivity
IR range
Lens (мм)
Field of view (horiz./vert.)
Optical zoom
Digital zoom
Pan/Tilt Range
Manual Control Speed
Preset Speed
Auto focus
WDR
Digital noise reduction
Video compression
Bitrate
Local storage
Audio
ROI
IVS
Power supply
PoE Class
Power consumption
Dimensions (mm)
Weight Net/Gross (g)
Ingress protection
Working temperature
Technical support
www: helpdesk.trassir.com
mail: helpd[email protected]
Note: read user manual before using
Website: www.trassir.com
For any inquiry: inf[email protected]
SMART

Introduction
Congratulations on purchasing TR-D5123IR3 IP camera .
Please read User Manual before using the camera.
Key features
• Supports H.265 codec
• Wide dynamic range (Real WDR 120dB)
• IR range up to 30 meters
• Built-in video archive (Edge Storage) – local recording
on MicroSD card* up to 128GB
• IVS: Face detection; Line crossing / Intrusion detection ; Abandoned
objects detection
• Built-in microphon
• 12V DC or PoE power supply
___________________________
* MicroSD card is not included into camera package
Camera package
1. IP camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
2. User manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
3. Mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
706-4.2.21
Manual setting of network parameters
In order to connect to the IP camera, the PC should be in the same local
network as the camera. The IP address of the camera, the PC and any
other device on the network should not match.
IP camera has the following default settings:
- IP address: 192.168.1.188
- Subnet mask: 255.255.0.0
- Gateway: 192.168.1.1
- HTTP-port: 80
- username: admin
- password: admin
PC network settings example:
- IP address: 192.168.1.10;
- Subnet mask: 255.255.0.0.
There are 3 options to set up your camera:
1. Change IP address of a camera manually.
Start your browser, connect to IP camera and enter your
username and password. Choose appropriate menu item and change
network settings of IP camera.
2. Set up camera IP address using fast configuration utility that can be
downloaded from www.trassir.com.
3. Change IP camera settings using TRASSIR professional software.
You can find detailed camera settings instructions in User Manual that
can be downloaded from trassir.com.
Connecting
To get started with IP camera you are required to have a PC connected to
the local network with Windows installed and Internet Explorer version 8
or higher.
1. Connect IP camera to the network.
2. When the camera is connected through a switch which doesn't support
PoE, connect adapter to power jack.

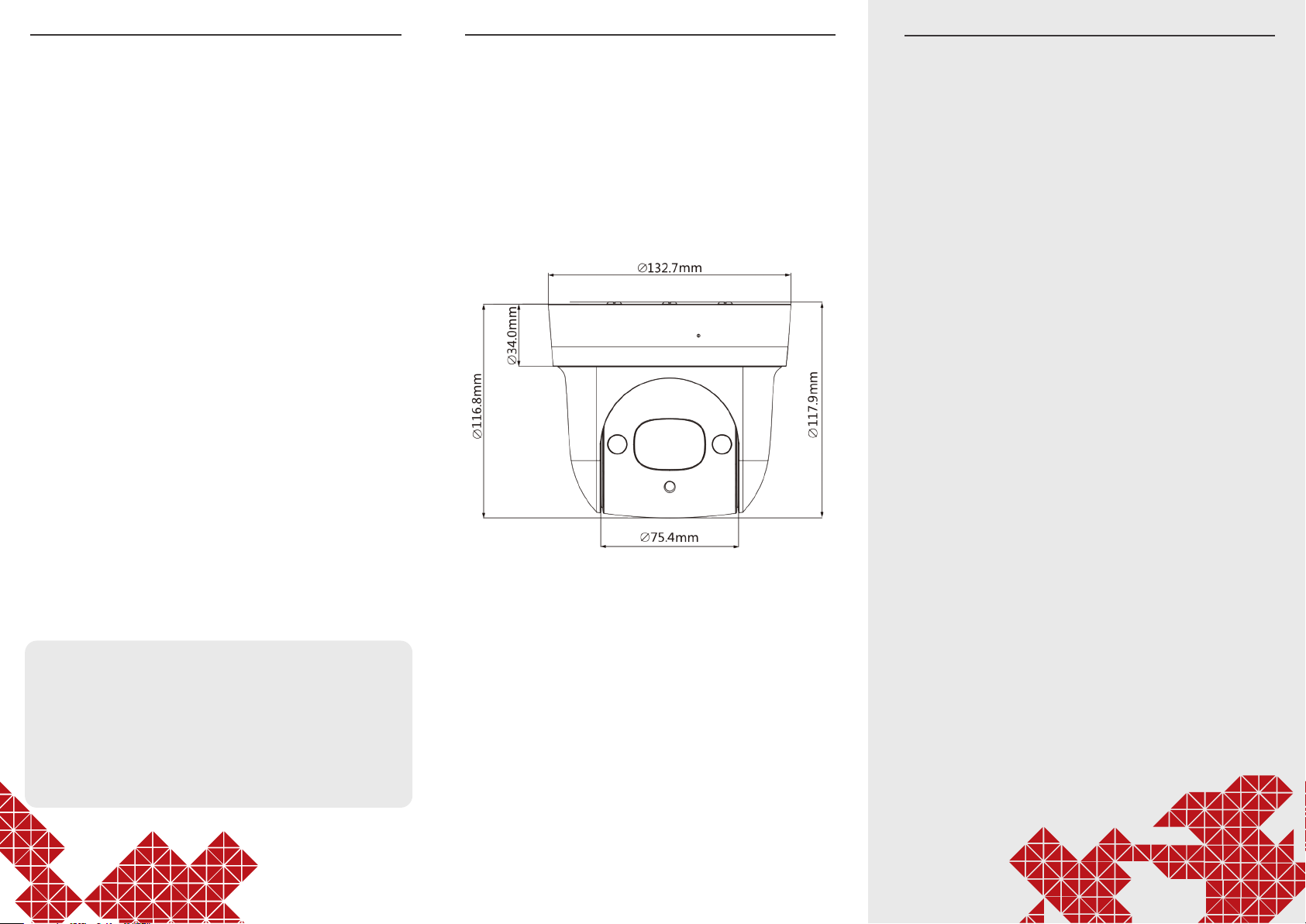

Dimensions
Attention!
The power supply should meet the following requirements: output
voltage, current, polarity, and working temperature. When using the
camera in thunderstorm conditions, make sure there is a lightning rod or
unplug the power connector.
Pay attention to the temperature requirements for IP camera operation.
Avoid using the device in excessively high or low temperatures.
Do not install the camera near heaters. Do not point the camera lens at
the sun or at bright objects as this can damage the image sensor.
