Travis Industries 33 DVI User manual

33 DVI
Gas Insert
Owner's
Manual
Tested and Listed by
OMNI-Test Laboratories, Inc.
Portland, Oregon
Report # 028-F-72d-5
ANSI Z21.88
•
Direct Vent Fireplace Insert
•
Masonry or Factory Built
(Metal) Wood-Burning
Fireplace
•
Residential or Mobile Home
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket permanently
located, manufactured home (USA only) or mobile home, where
not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on
the rating plate. A conversion kit is supplied with the appliance.
Installer: After installation give this manual to the home-owner and
explain operation of this heater.
©Copyright 2010, T.I. $10.00 100-01237_000 4100322
Travis Industries, Inc.
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2Introduction
© Travis Industries 4100322 100-01237_000
Introduction
We welcome you as a new owner of a 33 DVI Insert. In purchasing this fireplace insert you have joined
the growing ranks of concerned individuals whose selection of an energy system reflects both a concern
for the environment and aesthetics. It is one of the finest home heaters the world over. This manual will
explain the installation, operation, and maintenance of this heater. Please familiarize yourself with the
Owner's Manual before operating your heater and save the manual for future reference. Included are
helpful hints and suggestions that will make the operation and maintenance of your new heater an easier
and more enjoyable experience. We offer our continual support and guidance to help you achieve the
maximum benefit and enjoyment from your heater.
Important Information
No other 33 DVI Insert has the same serial number as
yours. The serial number is below and to the left of the
gas control valve.
This serial number will be needed in case you require
service of any type.
Model: 33 DVI
Serial Number:
Purchase Date:
Purchased From:
Register your warranty online at:
traviswarranty.com
Or, mail your warranty card to:
Travis Industries House of Fire
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater. Do not mail your Bill
of Sale to us.
We suggest that you attach your Bill of Sale
to this page so that you will have all the
information you need in one place should the
need for service or information occur.
Listing Details
This appliance was listed by OMNI Test Labs to ANSI Z21.88 - report # 028-F-72d-5. The listing label is
attached to the appliance near the gas control valve. A copy is shown on page 33.
IAS (ICBO) Approval
This appliance was listed by OMNI Test Labs - IAS # TL130.
Massachusetts Approval
This manual has been submitted to the Massachusetts Board of State Examiners of Plumbers and Gas
Fitters
National Fireplace Institute

Table of Contents 3
© Travis Industries 4100322 100-01237_000
Introduction and Important Information
Introduction................................................................ 2
Safety Precautions
Safety Precautions..................................................... 4
Features & Specifications
Features..................................................................... 6
Installation Options .................................................... 6
Heating Specifications................................................ 6
Dimensions................................................................ 6
Installation
Installation Warnings.................................................. 7
Packing List................................................................ 7
Additional Items Required.......................................... 7
Items Packed with the Face....................................... 7
Order of Installation.................................................... 7
Top Convection Deflector........................................... 8

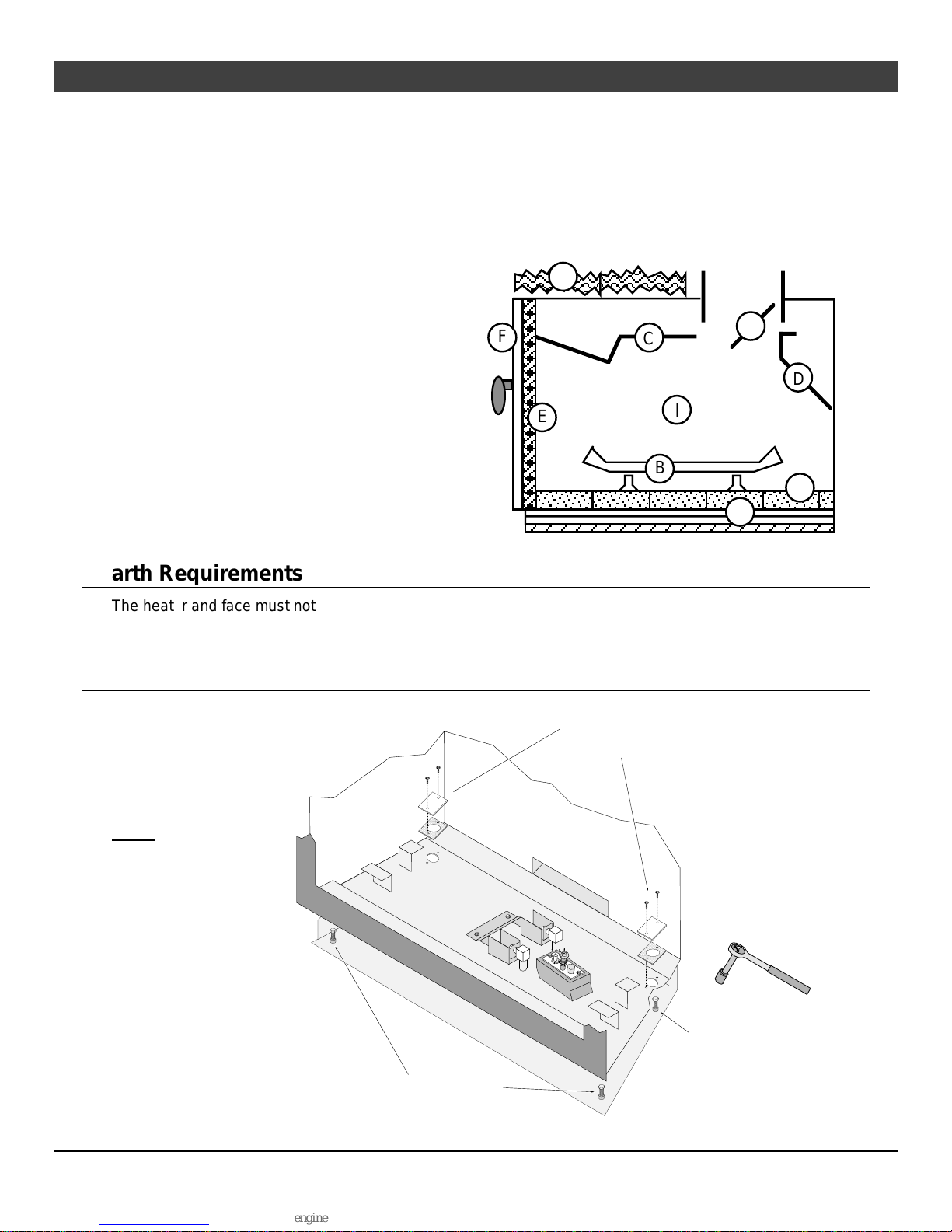

Fireplace Requirements............................................. 8
Factory-Built (Metal) Wood-Burning Fireplace
Requirements....................................................... 9
Clearances................................................................. 10
Mantel Clearances ............................................... 10
................................................................................... 10

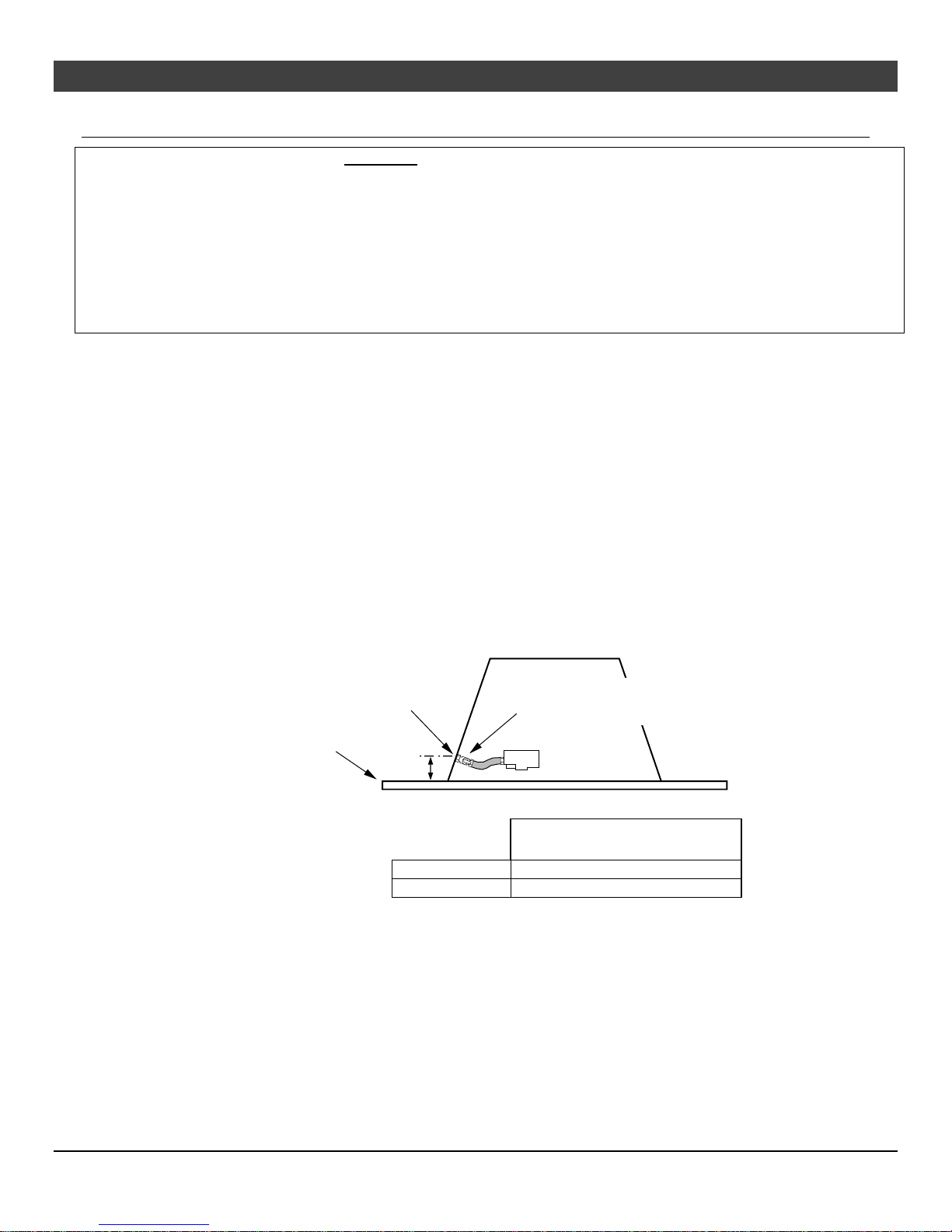

Gas Line Requirements ............................................. 12
Gas Line Location ................................................ 12
Gas Inlet Pressure................................................ 12
Vent Requirements .................................................... 13
Altitude Considerations ........................................ 13
Vent Restrictor ..................................................... 14

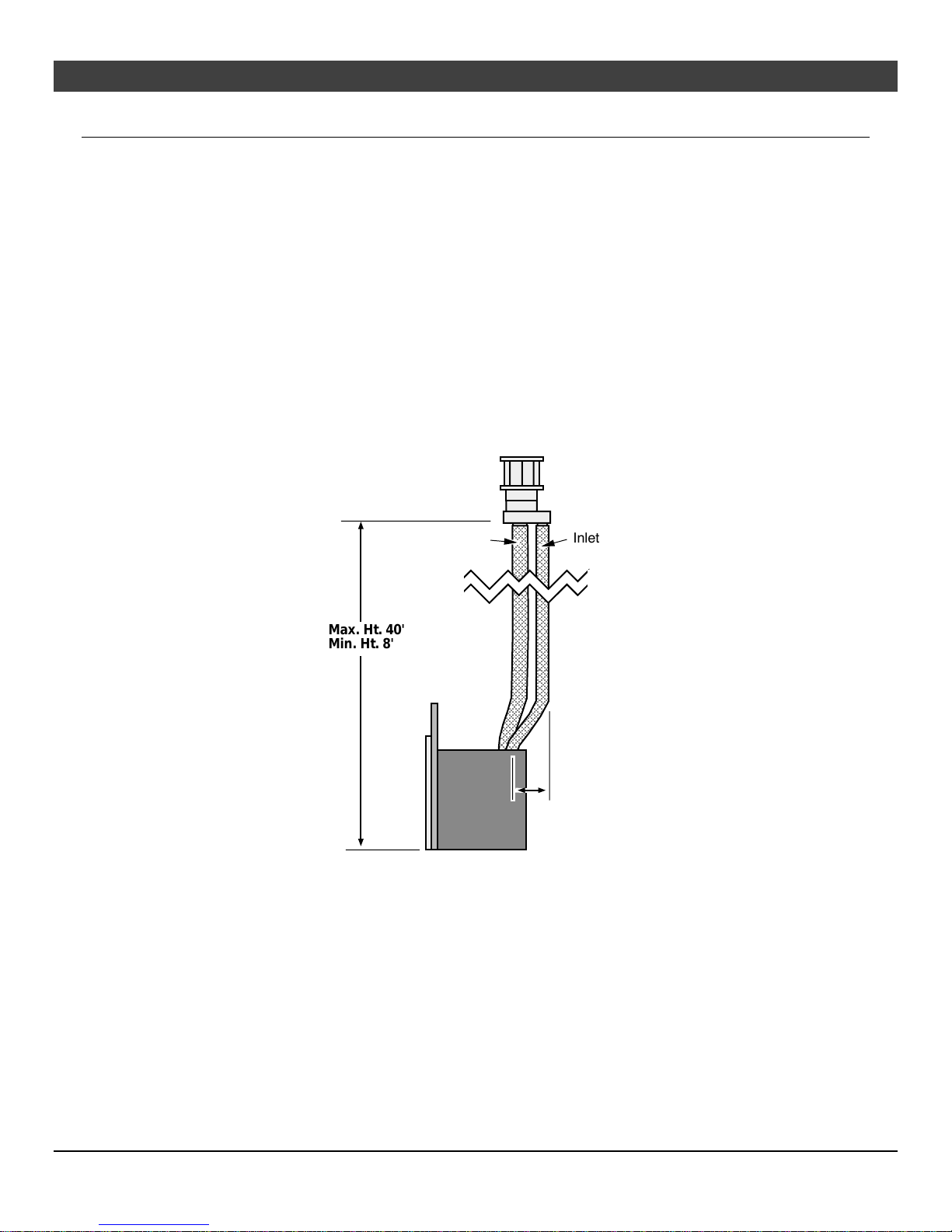

Vent Installation.................................................... 14
Vent Location ....................................................... 15
Vent Configurations.............................................. 15
Vent Connector Removal and Installation ............ 16

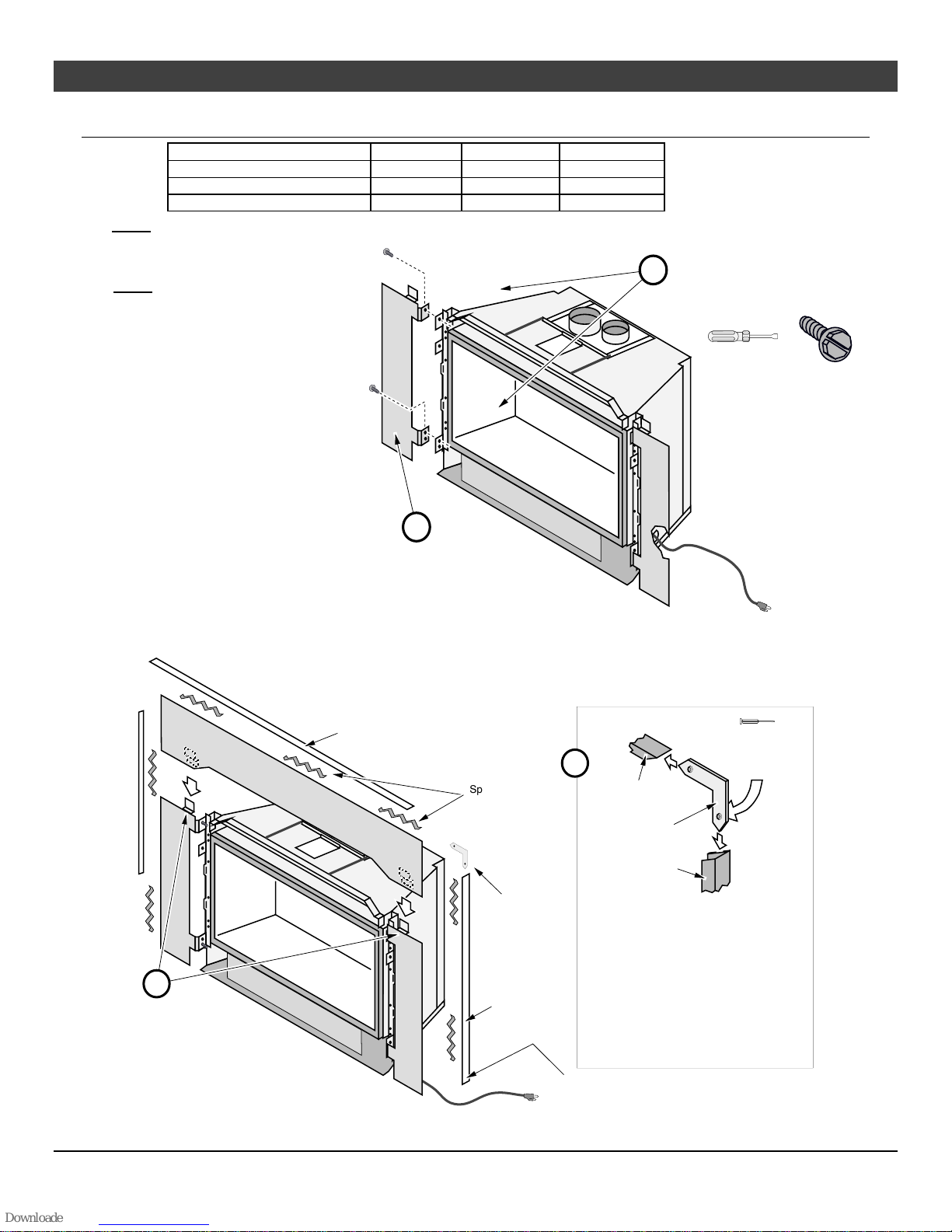

Surround Panel Installation........................................ 18
Finalizing the Installation

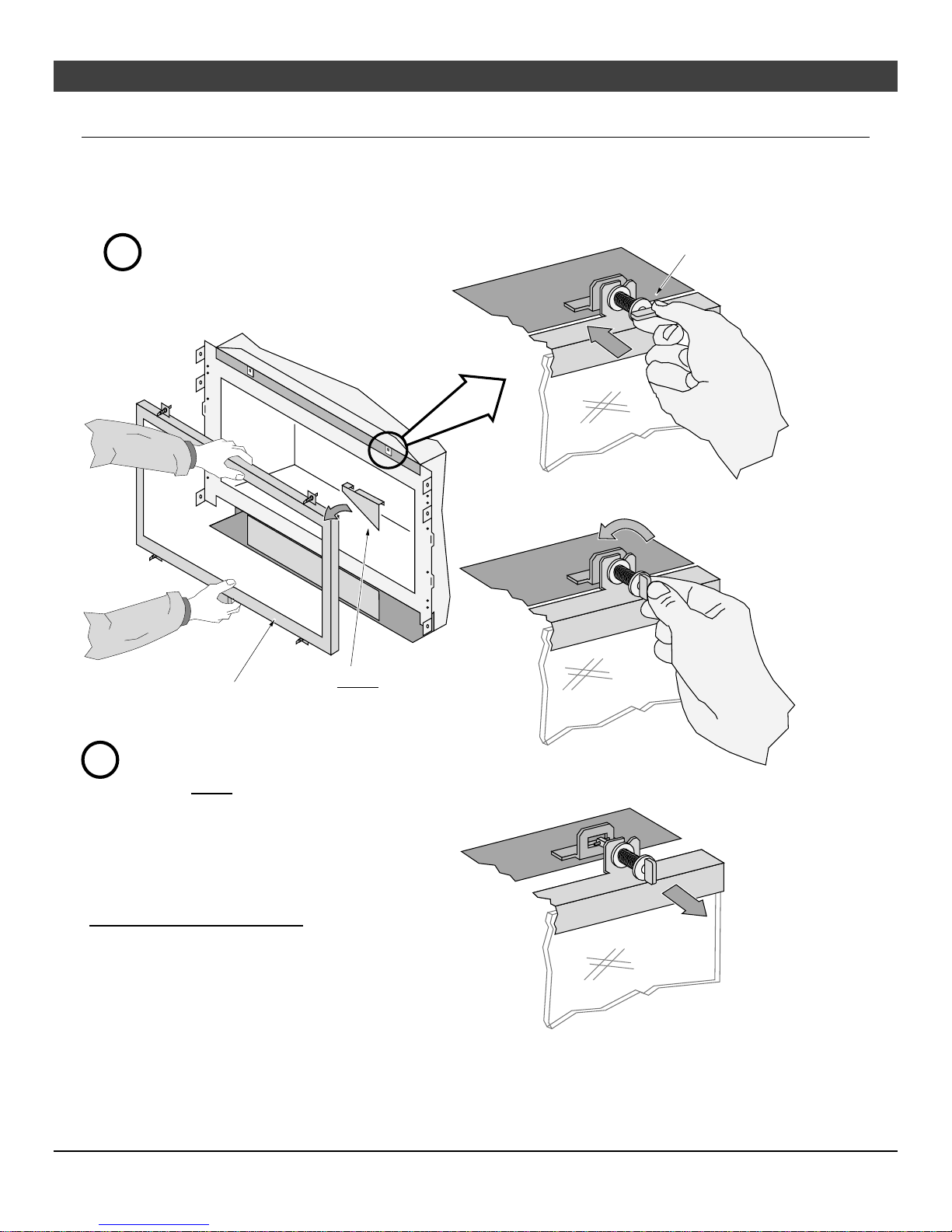

Glass Frame Removal and Installation ...................... 20
Media Installation....................................................... 22
Steps for Finalizing the Installation............................. 23
Air Shutter Adjustment............................................... 24
Operation
Before You Begin....................................................... 25
Starting the Heater for the First Time......................... 26
Normal Operating Sounds.......................................... 28
Normal Operating Odors............................................ 28
Maintenance
Maintaining Your Heater's Appearance...................... 29
Troubleshooting Table ............................................... 31
Replacement Parts List.............................................. 31
Wiring Diagram .......................................................... 32
Safety Label
Safety Label............................................................... 33
Warranty
Warranty ................................................................... 34
Optional Equipment
LP Conversion Instructions........................................ 35
Firebacks ................................................................... 39
Lower Surround Panel ............................................... 40
Index
Index.......................................................................... 42

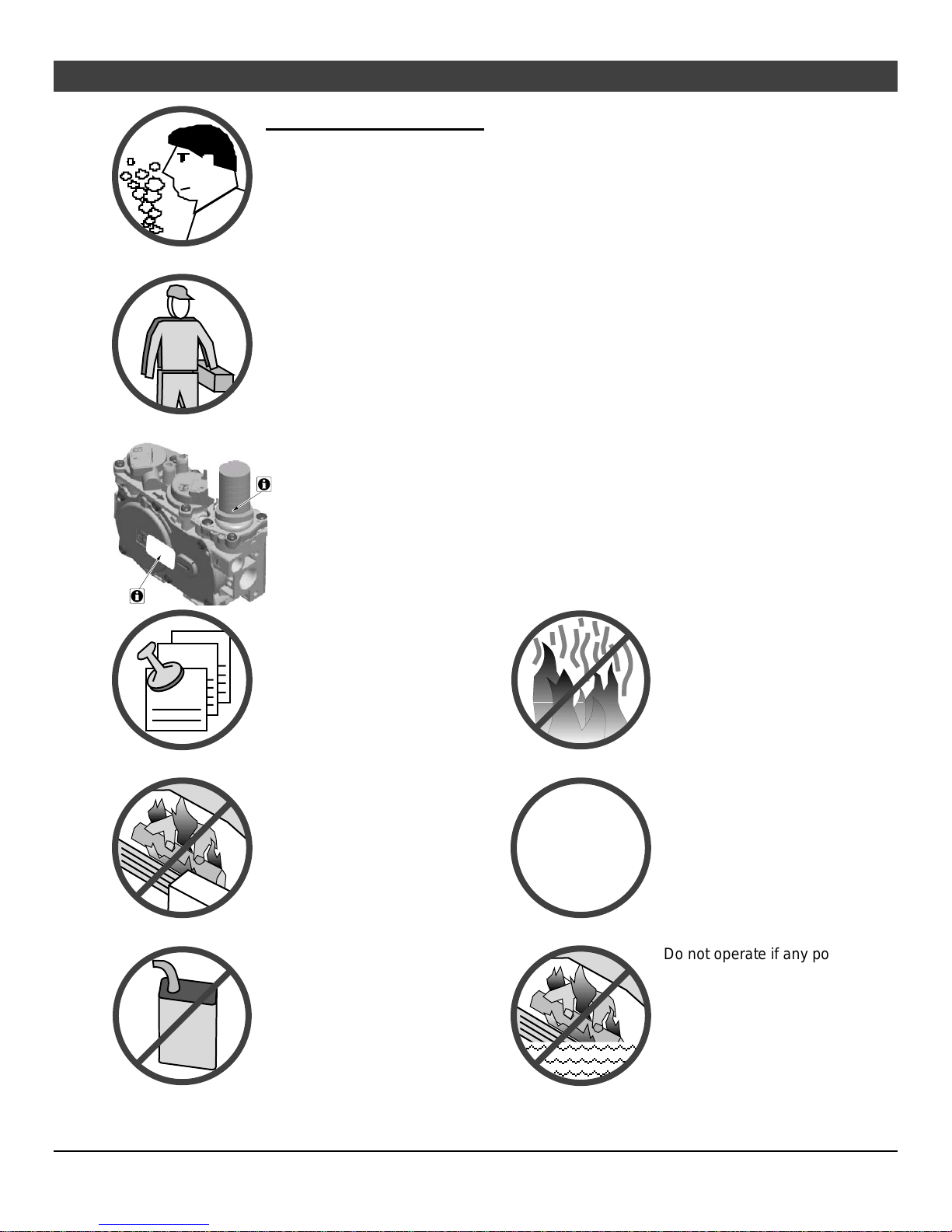

4Safety Precautions
© Travis Industries 4100322 100-01237_000
IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire department
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
Your dealer will know the requirements in your area and can inform you of those people
considered qualified. The room heater should be inspected and cleaned before use and
at least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods
or compromise in the installation. Improper installation will void the warranty and safety
listing.
This heater is either approved for natural gas (NG) or for propane (LP). Burning
the incorrect fuel will void the warranty and safety listing and may cause an
extreme safety hazard. Direct questions about the type of fuel used to your dealer.
Check for a label on the flame adjust knob on the gas control valve (this is the best
place to check). You may also check for a label on the gas control valve body.
Ok
Contact your local building
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance company
of this heater as well.
If the flame becomes sooty, dark
orange in color, or extremely tall,
do not operate the heater. Call
your dealer and arrange for
proper servicing.
It is imperative that control
compartments, screens, or
circulating air passageways of
the heater be kept clean and
free of obstructions. These
areas provide the air necessary
for safe operation. ?Do not operate the heater if it is
not operating properly in any
fashion or if you are uncertain.
Call your dealer for a full
explanation of your heater and
what to expect.
Gas
Do not store or use gasoline or
other flammable liquids in the
vicinity of this heater.






Do not operate if any portion of
the heater was submerged in
water or if any corrosion occurs.
Immediately call a qualified
service technician to inspect the
appliance and to replace any part
of the control system that has
been under water.

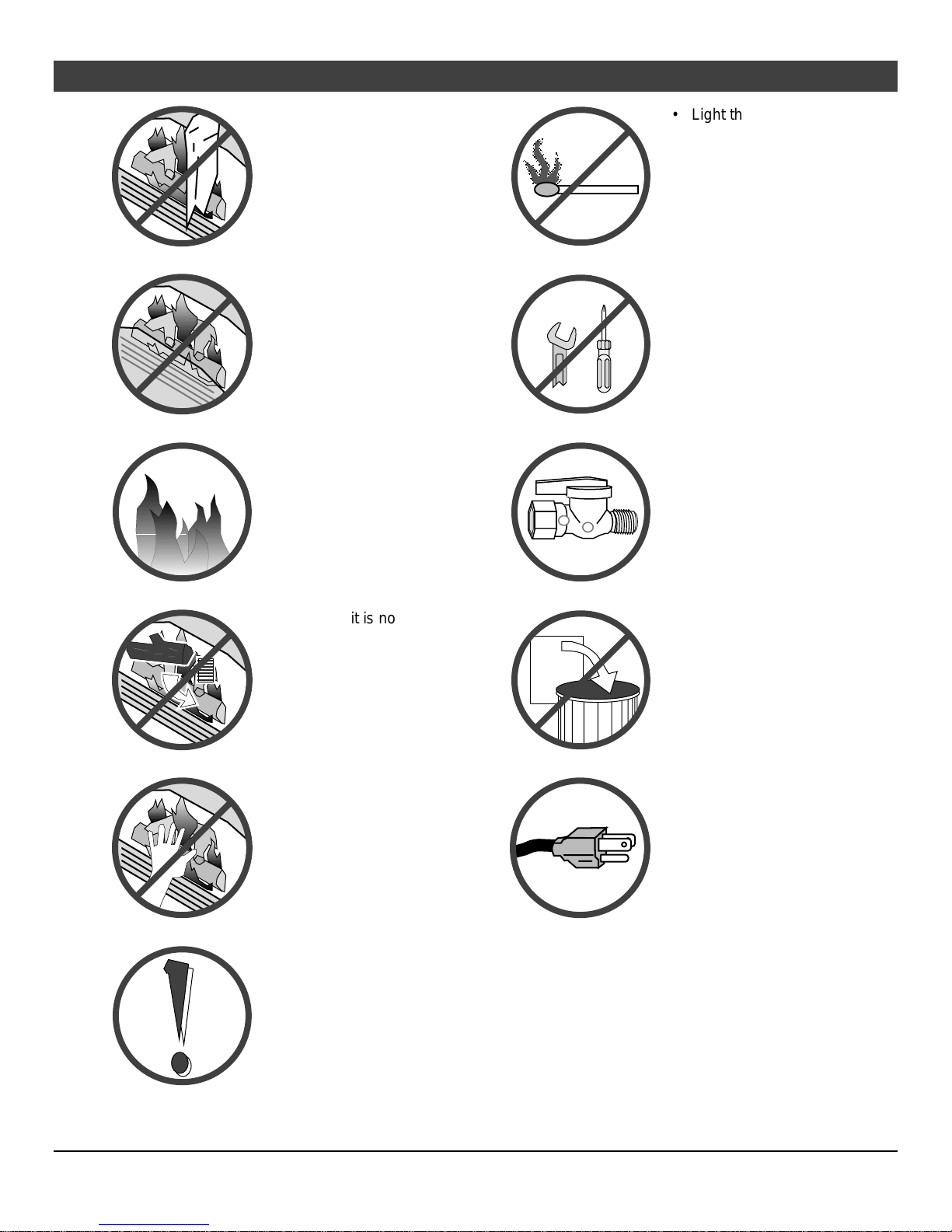

Safety Precautions 5
© Travis Industries 4100322 100-01237_000
• Do not place clothing or
other flammable items on or
near the heater. Because
this heater can be controlled
by a thermostat there is a
possibility of the heater
turning on and igniting any
items placed on or near it.





• Light the heater using the
built-in igniter. Do not use
matches or any other
external device to light your
heater.
• Allow the heater to cool
before carrying out any
maintenance or cleaning.
• The viewing glass should be
opened only for lighting the
pilot or conducting service.
• Any safety screen or guard
removed for servicing must
be replaced prior to
operating the heater.
• Do not operate with the
glass removed or damaged.
• Never remove, replace,
modify or substitute any part
of the heater unless
instructions are given in this
manual. All other work must
be done by a trained
technician. Don't modify or
replace orifices.
• Operate the heater
according to the instructions
included in this manual.
• If the main burners do not
start correctly turn the gas
off at the gas control valve
and call your dealer for
service.
• Instruct everyone in the
house how to shut gas off to
the appliance and at the gas
main shutoff valve. The gas
main shutoff valve is usually
next to the gas meter or
propane tank and requires a
wrench to shut off.




• This unit is not for use with
solid fuel
• Do not place anything inside
the firebox (except the
included fiber logs).
• If the fiber logs become
damaged, replace with
Travis Industries log set.
This
Manual
• Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
• Children and adults should
be alerted to the hazards of
high surface temperature
and should stay away to
avoid burns or clothing
ignition. Young children
should be supervised when
they are in the same room
as the heater.
• Plug the heater into a 120V
grounded electrical outlet.
Do not remove the
grounding plug.
• Don’t route the electrical
cord in front of, over, or
under the heater
• Travis Industries, Inc.
grants no warranty,
implied or stated, for the
installation or
maintenance of your
heater, and assumes no
responsibility of any
consequential damage(s).

6Features and Specifications
© Travis Industries 4100322 100-01237_000
Features
- High Tech Burner for "Wood Fire" Look
- Works During Power Outages (battery backup system)
- Standing or Intermittent Pilot
- Convenient Operating Controls
- Variable-Rate Heat Output
Installation Options
•Residential or Mobile Home
•Fireplace Insert
•Masonry or Factory Built (Metal) Wood-
Burning Fireplace
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* 600 to 2,000 600 to 2,000
Maximum BTU Input Per Hour 40,000 40,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
Dimensions
40" 4x6 Panels
44-3/16"* 8x10 Panels
48-3/16"* 10x13 Panels
* Includes trim
NOTE: on older style panels the 3/8" standoffs
are no longer required and may be bent back.
20"
See the section "Vent Requirements"
for vent location.
14-1/2"*
1-1/4"*
29" 4x6 Panels
33-3/8"* 8x10 Panels
36-3/8"* 10x13 Panels
31-1/2"
23-3/4"
Electrical Specifications
Electrical Rating.............................................................115 Volts, 1.5 Amps, 60 Hz (180 watt)
Fuel:
This heater is shipped in natural gas (NG) configuration but may be converted to propane (LP) using
the included LP conversion kit. The sticker on top of the gas control valve will verify the correct fuel.

Installation (for qualified installers only) 7
© Travis Industries 4100322 100-01237_000
Installation Warnings
•Failure to follow all of the requirements may result in property damage, bodily
injury, or even death.
•This heater must be installed by a qualified installer who has gone through a
training program for the installation of direct vent gas appliances.
•This appliance must be installed in accordance with all local codes, if any; if
not, follow ANSI Z223.1 and NFPA 54(88).
•In Manufactured or Mobile Homes must conform with Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations,
ANSI/NCSBCS A225.1. This appliance may be installed in Manufactured
Housing only after the home is site located.
•The heater is designed to operate on natural gas, or propane (LP).
•All exhaust gases must be vented outside the structure of the living-area.
Combustion air is drawn from outside the living-area structure.
•Notify your insurance company before hooking up this heater.
•The requirements listed below are divided into sections. All requirements
must be met simultaneously. The order of installation is not rigid – the
qualified installer should follow the procedure best suited for the installation.
Packing List
•Propane Conversion Kit
•LP Manifold Cover (see page 35) •"Fireplace Altered" tag (attach to the fireplace) •Panel Trim Cover-Up Labels (see page 18)
Additional Items Required
•Log Set (order of the following
-- Standard Log Set (94400997) - See installation instructions in this manual.
-- Ceramic Stones (94700733) - See instructions included with the stones.
•Faceplate
•Simpson Duravent 6-5/8" to 3" & 4" Co-Linear Adapter with flashing (Travis part # 98900124)
•3" and 4” Diameter Gas Liner
•Direct Vent Cap (Use Simpson Duravent High Wind Cap)
•Gas Line Equipment (shutoff valve, pipe, etc.)
Items Packed with the Face
•Face with attachment hardware
•Face Installation Instructions
Order of Installation
1 If the heater is to use propane, install the propane conversion kit (see page 35).
2 Install gas line into the fireplace (do not connect to unit).
3 Position the heater.
4 Connect the gas line and gas vent to the appliance.
5 Install the optional surround panels and trim. Attach the on/off switch.
6 Follow the instructions under "Finalizing the Installation" on page 23.

8Installation (for qualified installers only)
© Travis Industries 4100322 100-01237_000
Top Convection Deflector
Install the top convection deflector as
shown to the right.
The deflector is shipped on top of the
insert. The screws are shipped inside
the owner's pack.
Fireplace Requirements
•Insert must be placed within a code-conforming masonry fireplace or tested and listed factory-built
(metal) wood-burning fireplace. Repair any fireplace damage prior to installation.
•Because the insert uses a circulation blower, clean the fireplace, smoke shelf, and chimney prior to
installation.
•This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
The DVL inserts 14-1/2" into the
fireplace.
Min. 31-1/2" - additional space may be required for gas line installation.
For tight fits (under 28"), see the section "Removing the Vent Connector"
See "Leveling Bolts" for details
on leveling the heater.
Min. 23-3/4"
The gas line and shutoff
valve should be installed
prior to insert placement.
Attach the "This fireplace has been altered..." plate
to the fireplace (use two screws or other suitable
method). You may wish to place it in a location
where it will be covered by the surround panels.

Installation (for qualified installers only) 9
© Travis Industries 4100322 100-01237_000
Factory-Built (Metal) Wood-Burning Fireplace Requirements
NOTE: Any parts that are removed must be removed in a way that would allow them to be re-installed if
the insert is ever removed (removal of rivets or screws is acceptable).
The damper ("A") and grate (with log set) ("B") must be removed (see the illustration below)
The smoke shelf ("C"), internal baffles ("D"), screen ("E"), masonry lining or refractory ("G" & "I"), and
metal or glass doors ("F") may be removed (if applicable)
The fireplace must be permanently marked to
indicate that it has been altered and is no longer
suitable for burning solid fuel (wood), unless the
removed parts are re-installed. Cutting of any
sheet metal parts is prohibited, except the metal
floor (“J”) as noted below.
The insulation ("H"), and any structured rigid frame
members must not be removed or altered (side and
top of door frame, side and top of the face of the
fireplace, metal sides, etc.).
The metal floor ("J") may be removed to allow
additional room for installation of the insert. If the
floor is removed the insert must be placed directly
on the metal base of the metal fireplace.






C
B
F
I
D
E
A












G




H

J
Hearth Requirements
The heater and face must not contact combustible surfaces. A non-combustible hearth extension is not
required. However, if the heater is installed next to the floor, we recommend a hearth to protect the
flooring surface from discoloration or other negative impact from the heater.
Leveling Bolts
This heater includes
front and rear leveling
bolts to accommodate
fireplaces with a step-
down firebox.
NOTE: To access the
rear leveling bolts,
remove the burner (see
page 39).
To access the rear leveling bolts remove these
access plates (replace access plate and
gasket after adjustment).
Use a 1/2” socket wrench
(with extension) to adjust
the leveling bolts.
Front Leveling Bolts
Rear Leveling Bolt
















10 Installation (for qualified installers only)
© Travis Industries 4100322 100-01237_000
Clearances
Due to the high temperature of the heater, it should be located out of traffic and away from furniture and
draperies.



























Side
Wall
Combustible or Non-Combustible Mantel
Combustible Top Facing



Non-Combustible
Facing
Minimum Clearances
k
l
m
n
x
Sidewall to Insert
Side Facing
Top Facing*
Mantel*
Extension onto Hearth
4"
4"
35-1/2"**
35-1/2"**
1-1/4"
l
k
x
n
m* The non-combustible top facing must extend
35-1/2” above the base of the insert or to the
bottom of the mantel (whichever is less).
** Measured from the base of the insert.
Mantel Clearances
T The maximum mantel depth is 12”.
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it
does, it is considered a mantel and must meet the mantel requirements listed in this manual.
Maximum Mantel Depth
Mantel Height
Above Base of Insert (n)
37+”
34”
33”
32”
31”
0” 1” 2” 3” 4” 5” 6” 7” 8” 9” 10”11” 12”
35”
36”

Installation (for qualified installers only) 11
© Travis Industries 4100322 100-01237_000
Face Mounting Brackets – Arched, Artisan, Metropolitan, Victorian Lace
Some Arched, Artisan, Metropolitan and Victorian Lace Faces include old brackets that will not mount to
the heater (see illustration below). For these faces, make sure to use the new mounting brackets (either
included with the heater or available through your dealer - SKU 225-20054).
WARNING: When attaching the Victorian Lace Face, do not over-tighten the screws. Over-tightening
the screws may damage the face – simply tighten the screws until they contact the face.
New Brackets Old Brackets
Install the face mounting
brackets with the included nuts.
NOTE: The brackets install into the
lower pair of holes on the insert.
NOTE: The brackets
install with this pair of
closely spaced flanges at
the top.

12 Installation (for qualified installers only)
© Travis Industries 4100322 100-01237_000
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
•Flexible connector must not be longer than 36 inches.
•Shutoff valve must be a “T” handle gas cock.
•Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
•Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
•A carbon monoxide (CO) detector is required in the same room as the appliance.
•The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
the requirements listed below.
•A manual shutoff valve is required within 3’ of the heater. It should be placed upstream of the flex
line (if used) and may be installed behind the access door inside the heater. ).
•The heater and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2 psig,
isolate the gas supply piping by closing the manual shutoff valve.
•Leak test all gas line joints and the gas control valve prior to and after starting the heater.
•This heater is designed either for natural gas or for propane (but not for both). Check the sticker on
the top of the gas control valve to make sure the correct fuel is used (see illustration on page 4).
•Installation must be performed by a qualified installer, service agency or the gas supplier (In
Massachusetts a licensed plumber/gasfitter).
Gas Line Location
The gas inlet
accepts a 1/2" MPT.
2-3/4"
Shutoff Valve (secured to
the fireplace insert)
Fireplace Opening
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
•If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is
adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.
•The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank)
should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the
regulator is at an improper pressure.
Electrical Connection
•Route the power cord out of the access hole on the right side of the appliance.
•Plug the power cord into a grounded 120 Volt outlet (do not remove the grounding pin).
•The electrical connection may also be made using the optional Wiring Kit (SKU 97200315).

Installation (for qualified installers only) 13
© Travis Industries 4100322 100-01237_000
Vent Requirements
•The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent
gas appliance must use it's own separate vent system.
•Make sure the exhaust pipe on the heater connects to the exhaust portion of the cap. The
illustrations below show how the flex liners should be attached.
•The exhaust vent must reline the entire length of the chimney and terminate above the chimney top
•Be careful not to crimp or rupture the liner when bending it into chimney offsets
•When installed, the vent must meet all of the vent manufacturer's requirements
•Make sure to use the following:
4” UL 441 or 1777 Gas Liner for Exhaust, 3” UL 441 or 1777 Gas Liner for Air Inlet
Simpson Duravent 6-5/8” to 3” & 4” Co-Linear Adapter and Flashing (Travis Part # 98900124).
Simpson Duravent High-Wind Vertical Termination Cap














Max. Ht. 40'
Min. Ht. 8'
Inlet
(3" dia.)
Exhaust
(4" dia.)
Max. 2'
offset
Altitude Considerations
•This heater has been tested at altitudes ranging from sea level to 6,000 feet (1,800 M). In this testing
we have found that the heater, with its standard orifice, burns correctly with just an air shutter
adjustment.
•Failure to adjust the air shutter properly may lead to improper combustion which can create a safety
hazard. Consult your dealer or installer if you suspect an improperly adjusted air shutter.

14 Installation (for qualified installers only)
© Travis Industries 4100322 100-01237_000
Vent Restrictor
WARNING: Restrictor adjustment should only be done by a qualified installer.
Only those installations determined to be over-drafting require this adjustment. The best indication of
over-drafting is a hyper-active flame pattern (flames that move too quickly). If the air shutter is
constricted, the flames become short and yellow, yet still very active. Over-drafting may affect the pilot,
but this is not the best way to determine over-drafting. Over-drafting is most likely in tall venting
configurations (especially if using an “Exhaust Only Re-Line”). Do not over-restrict the vent (this leads to
ghosting or lifting flames - reduce restrictor setting).
Remove the face.
To Adjust the Restrictor:
To Access the Restrictor:
This restrictor is in position 1
(factory setting).
This restrictor is in
position 2.
Adjustment
Bracket
To adjust, lift up on the
adjustment plate and push it back
(use pliers if necessary).
WARNING: Use a glove to protect
your hand from burns.
Adjustment
Plate
#1
#2
1
2
Determine a restrictor position. Start low (move
the restrictor a maximum two positions at a time)
and thoroughly test the heater before adjusting further.
Lift up the adjustment plate and move it so the correct notch falls
into the slot on the adjustment bracket.
#3 #4 #5
Vent Installation
Inlet 76mm (3”)
Exhaust 102mm (4”)
Inlet
Exhaust
Termination Cap
(Simpson Part # 991)
168mm (6-5/8”) to
76mm (3”) & 102mm
(4”) Co-Linear Adapter
(Travis Part #
98900124)
76mm (3”) dia. Gas Liner
102mm (4”) dia. Gas Liner










Use hose-clamps
to secure the vent.
Alternative Method: use high-temperature
silicone and secure with screws.















Use hose-clamps to
secure the vent.
Alternative Method: use
high-temperature
silicone and secure with
screws.

Installation (for qualified installers only) 15
© Travis Industries 4100322 100-01237_000
Vent Location
•A vent restrictor is built into the appliance to adjust the flow rate of exhaust gases. This ensures
proper combustion for all vent configurations. Depending upon the vent configuration, you may be
required to adjust the restrictor position.
2”
Center Line
Inlet (3” Dia.)
Exhaust (4” Dia.)
Fireplace
Opening
1-1/2”
4-1/2”
14-3/4”
5-1/8”
NOTE: Vent location changes based
upon restrictor position. Position # 1 is
shown to the right. Each restrictor
position moves the vent location forward
(toward the fireplace opening)
approximately 1/4”.
Vent Configurations













Z.C. (Metal) Wood-Burning Fireplace
Inlet & Exhaust Re-Line
























































































Exhaust Only Re-Line
Direct Vent Cap
(part # 991)
Recommended Block-Off
Plate (non-combustible
metal and/or insulation).
Prevents odors from
chimney entering room.
6-5/8" to 3" & 4" Colinear
Adapter & Flashing
 (Travis Part # 98900124)


















A block-off plate must
seal the intake to the
chimney space. This
way air is drawn down
the chimney for
combustion air.
Block-Off Plate
(non-combustible
materials)
NOTE: You may use either re-line configuration with a masonry or zero-clearance fireplace.
Inlet
Masonry Fireplace
Any cracks or
damage inside the
chimney must be
repaired.
Exhaust
4" dia.
Gas Liner
Inlet
3" dia. Gas Liner
Exhaust
4" dia. Gas Liner

16 Installation (for qualified installers only)
© Travis Industries 4100322 100-01237_000
Vent Connector Removal and Installation
•The vent connector is shipped attached to the insert, but may be removed to facilitate tight
installations. See the directions below for installation.
1. Route the flex vent through the chimney from above (leave an extra 3' at the top). Make sure the flex
is thoroughly stretched.
2. Remove the vent connector and attach it to the flex vent (see the instructions on the following page).
NOTE: be careful of the anti-seize on the connector – it will stain clothing, etc.
3. Pull on the flex vent until the vent connector is at the same height as the insert. Temporarily attach
the flex vent to the top of the chimney (leave extra slack).
4. Slide the insert into place, guiding the vent connector into the guides on top of the insert.
5. Attach the vent connector to the appliance (see the following page for details).
6. Remove any excess slack in the flex line and attach the vent termination.
4






















































































































3




































































































































































































2
1







5









































































































6




2

Installation (for qualified installers only) 17
© Travis Industries 4100322 100-01237_000
Vent Connector Removal and Installation (continued)
Vent Connector Removal
Slide the
connector to the
rear. It will
"snap" out.
Pull the vent connector
rod forward.
Vent Connector Installation
Attach the flex vent to
the vent connector.
Slide the insert
into place, lining
up these guides
with the edges of
the vent
connector.
Push the vent
connector rod in, lift
slightly, and line it up
so the tabs on the end
of the rod engage the
hooks on the vent
connector
Pull on the vent connector rod until the
vent connector snaps into place. Slide
the vent connector rod in to conceal it.













































WARNING: The anti-seize on
the vent connector can stain
clothing, carpets, or other
items.

18 Installation (for qualified installers only)
© Travis Industries 4100322 100-01237_000
Surround Panel Installation
PANEL SIZE WIDTH HEIGHT PART #
4” x 6” 40” 29” 96100320
8" x 10" 44-3/16" 33-3/8" 96100321
10” x 13” 48-3/16" 36-3/8" 96100322
NOTE: The insert may be installed without surround panels.
NOTE: The insert may be installed
without surround panels.
1 Follow the directions to the
right to install the side panels.
2 Follow the directions below to
install the top panel.
Line up each side surround
panel and insert two screws from
the inside to secure in place.
5/16" Nutdriver
Pre-thread the holes on the surround
panels with the screws included in the
surround panel kit.
b
a
Run the power cord to
the right of the insert.
Top
Panel
Top Trim
"L" Bracket
Right Side Trim
"L" Bracket
Right Side
Trim
Top Trim
Trim Installation:
Insert one leg of each "L" bracket into the top
and side trim piece. Align the trim to form a
precise corner, then tighten the two set
screws with a small standard screwdriver.
Slide the trim over the panels. Place the
spring clips behind the panels at the locations
shown. This keeps the trim tight against the
panel.
Micro (1/16”)
Standard
Screwdriver

Spring
Clips
Optional Knock-Out
An optional knock-out is provided if the power cord is
routed behind the surround panel.
Install the top panel so
the tabs insert into the
joggle clips on the top
panel







b
a

Installation (for qualified installers only) 19
© Travis Industries 4100322 100-01237_000
3 The rheostat may be installed in either the control panel or on the surround panel (see illustration below). If
installing in the surround panel, use the included extension wires (extension wires not required if mounted in
control panel). Attach the rheostat wires to the wiring harness and secure to either the control panel or surround
panel. Make sure the wires do not contact any hot or moving parts.
NOTE: If you are installing the rheostat into the control panel, install the button plug
into the surround panel trim to conceal the circular hole (see the illustration
to the right).
On/Off Switch Installation
•The on/off switch is bundled with the power cord on the outside of the insert. It is installed into the surround
panel trim for most installations. If you are using inside-fit panels or other configuration that does not use the
panel trim, install the on/off switch into the control panel. See below for installation details.
Control Panel
(next to gas control valve)









Upper Right of Trim
(preferred)







1 Disconnect the red and brown wires leading to the on/off switch.
2 Insert the wires through the rectangular mounting hole on the surround panel or control panel.
3 Attach the wires to the top and bottom posts on one side of the switch. It does not matter which wire is on top.
4 Press the switch into the rectangular hole until it locks into place.

20 Finalizing the Installation
© Travis Industries 4100322 100-01237_000
Glass Frame Removal and Installation
Warning: The appliance must be completely cool before removing the glass.
Warning: Do not strike or slam the glass.
Open the four latches holding the glass
frame in place (start with the two below
the glass) - follow the directions shown
to the right.
a
Glass Frame
Lift the glass frame up
and pull it forward to
remove. NOTE:
You may need to lift the
glass frame while re-
attaching.
b
Re-Attaching the Glass Frame:
a) Hang the glass frame on the firebox.
b) While holding in place, attach the upper latches
(follow the instructions to the right in reverse).
c) Lift the glass frame slightly and attach the lower latches.
NOTE:
Replace the cove
covers for those faces
using them.
Twist 1/4 turn.
The latch will then
disengage from the
latch bracket.
Push in on
the latch.
Top of
Firebox
Glass
Latch
