Travis Industries 864 Clean Face User manual

864 Clean Face
(with screen)
Installation Manual
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Tested and Listed by
Report # B0516PRT-001
ANSI Z21.88-2014
CSA 2.33-2014
Built-In Direct Vent
Fireplace
Natural Gas or Propane
Residential or Mobile
Home
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
Copyright 2014, T.I. $10.00 4140613 100-01376

2 Introduction
© Travis Industries 4140613 100-01376
Overview
This manual details the installation requirements for
the 864 Cleanface GSR2 fireplace. For operating
and maintenance instructions, refer to the 864
Cleanface GSR2 Owner's Manual (part # 100-
01377).
Listing Details
This appliance was listed by Intertek Test Labs to
ANSI Z21.88. The listing label is attached to the
appliance near the gas control valve. A copy is
shown to the right.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters
National Fireplace Institute
Report No. B0516PRT-001
Control No. 4000515 Vented Gas Fireplace Heater
864 TRV GS2 864 TRV GSR2
Tested to: ANSI Z21.88-2014/CSA2.33-2014 “Vented Gas Fireplace Heater”, CGA 2.17-M91 (R2009) “Gas Burning Heating Appliances for Manufactured Homes”, and CSAP.4.1-09 Testing method for measuring annual fireplace efficiency. This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSAB149.1. This appliance must be installed in accordance with the current Standard CAN/CSA Z240 MH, Mobile Housing, in Canada or with the Manufactured Home Constructions and Safety Standard, Title 24 CFR, Part 3280, in the UnitedStates, orwhen sucha standardis notapplicable,ANSI/NCSBCS A225.1/NFPA501A, ManufacturedHome Installation Standard. Thisvented gas fireplaceheater isequipped at thefactory foruse with naturalgas. Ifconversion to propane(LP) isdesired,the optional factoryconversion kit mustbe used. 864TRV GS2: PartNo. 250-01720 (SIT)or 225-20224 (PSE) register kit may be used. 864 TRV GSR2: Part No. 225-20173 (PSE) register kit may be used. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket,permanently located, manufacturedhome (USAonly)or mobile home,where notprohibited bylocal codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. This vented gas fireplace heater is not for use with air filters. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. Use only approved coaxial direct vent system to vent this appliance to the exterior. See owner’s manual for approved brands of venting. If the vent-air intake system is disconnected for servicing or any other reason, it must be resealed and / or reinstalled. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL
Minimum Clearances to Combustibles
Fireplace to Adjacent Wall Wood Floor Beneath Fireplace Back to Enclosure
1” (26mm)
0” (0mm)
0.5” (13mm)
Top to Enclosure (from Stand-Offs) Sides to Enclosure Base of Fireplace to a Mantel
0” (0mm)
0.5” (13mm)
See Owner’s Manual
FAN TYPE VENTED CIRCULATOR
Blower Electrical Rating: 115V., 1.5 Amps, 60 Hz, 150 Watts
Part No. 228-10077 / 228-10078 fan or blower assembly may be used.
DANGER! Risk of Electric Shock. Disconnect power before servicing unit.
Minimum Inlet Pressure (inches W.C.) Maximum Inlet Pressure (inches W.C.) Manifold Pressure on “HI” (inches W.C.)
L.P.
11”
13” 10”
N.G.
5.5”
7”
3.5”
Input Rate on “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr) Orifice Size - Front (DMS) Orifice Size - Rear (DMS)
L.P.
31,000
8,000
#56 #57
N.G.
31,000 10,000
#49 #49
This appliance is equipped for use only at altitudes 0-2,000 feet (0-610m) in the USA. In Canada, 0-4,500 feet (0-1370m). For altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed. See owner’s manual for information on making these changes.
2015 2016 2014
Feb. Mar. Jan.
May Jun. Apr.
Aug. Sep. Jul.
Nov. Dec. Oct.
MANUFACTURE DATE:
WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
12521 Harbour Reach Drive
Mukilteo, WA 98275
Manufactured by:
www.travisproducts.com
CAUTION:
Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.
0933

Table of Contents 3
Travis Industries 4140613 100-01376
TableofContents
Overview................................................................2
Listing Details .......................................................2
Installation Options ..............................................6
Heating Specifications .........................................6
Dimensions............................................................6
Packing List...........................................................7
Additional Items Required....................................7
Recommended Installation Procedure................7
Massachusetts Requirements .............................8
Requirements for the Commonwealth of Massachusetts8
MANUFACTURER REQUIREMENTS.......................... 8
Top Vent or Rear Vent Configuration..................9
Converting the Fireplace to Top Vent Configuration..... 9
Converting the Fireplace to Top Vent (continued) ......10
Standoff and Drywall Support Preparation.......11
Fireplace Placement Requirements ..................12
Clearances..................................................................12
Raised Fireplaces ....................................................... 12
Minimum Framing Dimensions....................................13
Nailing Brackets.......................................................... 14
Corner Installations - Rear Vent Configuration ...........15
Corner Installations - Top Vent Configuration.............16
Gas Line Requirements......................................17
Fuel ............................................................................. 17
Gas Line Connection................................................... 17
Gas Inlet Pressure ......................................................17
Gas Line Location....................................................... 18
Converting Gas Line to the Left Side .......................... 18
Electrical Connection (required)........................19
Accessing the Area Under the Burner ..............20
Vent Requirements .............................................21
Vent Clearances.......................................................... 21
Altitude Considerations............................................... 21
Approved Vent ............................................................22
Vent Installation...........................................................22
Approved Vent Configurations..........................23
Restrictor Position.......................................................23
Exhaust Restrictor Adjustment.................................... 23
Intake Restrictor Adjustment.......................................24
Diffuser Plate Adjustment............................................25
Rear Vent Configuration with Horizontal
Termination (no vertical rise).............................26
Rear Vent Configuration with Horizontal
Termination (with vertical rise)..........................27
Rear Vent Configuration with Vertical
Termination .........................................................28
Top Vent Configuration with Horizontal
Termination .........................................................29
Top Vent Configuration with Vertical
Termination .........................................................30
Termination Requirements.................................31
Hearth Requirements..........................................32
Optional Tile Stop Removal ...............................33
Facing Requirements .........................................34
Mantel Requirements..........................................35
Steps for Finalizing the Installation...................36
Air Shutter Adjustment.................................................37
Screen Removal..................................................38
Glass Frame Removal ........................................39
Log Set Installation.............................................40
Log Set Overview ........................................................40
Back Log......................................................................41
Right Log .....................................................................41
Front Left Log ..............................................................42
Left Log........................................................................42
Center Twig .................................................................43
Front Ember Chunk .....................................................43
Left Twig......................................................................44
Center Left Twig ..........................................................44
Center Log...................................................................45
Right Twig....................................................................45
Ember Installation........................................................46
Rock Wool Placement .................................................46
LP Conversion Instructions...............................47
Fireback Installation ...........................................50
Wiring Diagram............................................................51
Index ....................................................................52

4 Safety Precautions
Travis Industries 4140613 100-01376
Safety Warnings
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
Young children should be carefully supervised when they are in the same room
as the appliance. Toddlers, young children and others may be susceptible to
accidental contact burns. A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature
and should stay away to avoid burns or clothing ignition. Do not touch the hot
surfaces of the heater. Educate all children of the danger of a high-temperature
heater.
Due to the high temperature, the heater should be located out of traffic and away
from furniture and draperies.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.

Safety Precautions 5
Travis Industries 4140613 100-01376
Safety Warnings (continued)
Because this heater can be controlled by a thermostat there is a possibility of the heater turning on
and igniting any items placed on or near the appliance.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except the optional artwork).
Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance and shall be installed for the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this
appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative
that control compartments, burners, and circulating air passageways of the appliance be kept clean.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6 Features and Specifications
Travis Industries 4140613 100-01376
Installation Options
Residential or Mobile Home
Straight or Corner Placement
Raised or Floor Placement
Internal or External Chase
Horizontal or Vertical Vent
Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* 450 to 1,400 450 to 1,400
Maximum BTU Input Per Hour 31,000 31,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous operation
independent of installed system.

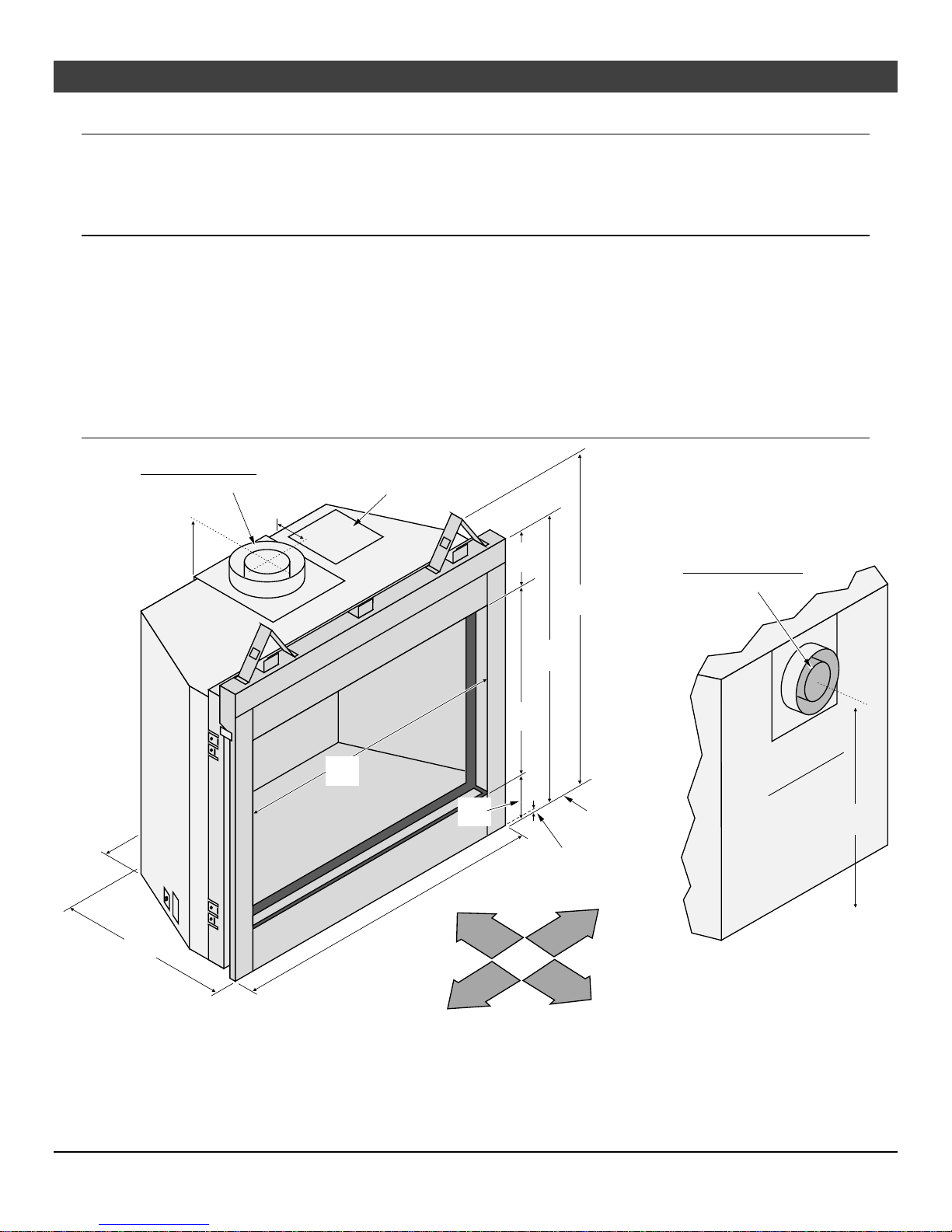

Dimensions
38.25
972mm
42.75"
1086mm
28.75"
731mm
7.25"
184mm
Optional "Extra Room Power
Heat Duct" Connection
Top Vent Configuration
8" (203mm) Ø Vent
22" *
559mm
Left
a' gauche
Front
avant
Right
droit
Rear
arrie're
Baseplate
The bottom of the face is
0.125" (4mm) above the
baseplate.
30.75"
781mm
Back of Fireplace
Weight: 205 Lbs. (93 Kg)
Rear Vent Configuration
8" (203mm) Ø Vent
5.625"
143mm
25.875"
658mm
44.75"
1137mm
7.75"
197mm
39.25"
997mm
37"
940mm
* See "Clearances" and "Framing Dimensions" for details.

Installation (for qualified installers only) 7
Travis Industries 4140613 100-01376
Packing List
Propane Conversion Kit
Log Set

Firestop (sku 93006094)
Remote Control
Additional Items Required
Direct Vent
Gas Line Equipment (shutoff valve, pipe, etc.)
Electrical Equipment (min. 14 gauge, grounded line)
Recommended Installation Procedure
Frame the opening for the fireplace. Make sure to allow for vent installation.
This fireplace is designed to accommodate 1/2" (13mm) or 5/8" (16mm) drywall (see "Nailing
Brackets" on page 14 for details). Secure the fireplace to the framing.
Install the vent, gas line and electrical hook-up.
Install the drywall.
Install the hearth (if applicable).
Install the facing (if applicable).
Install the mantel (if applicable).
Finalize the installation (see page 36) and install the grill or face.

8 Installation (for qualified installers only)
Travis Industries 4140613 100-01376
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 9
Travis Industries 4140613 100-01376
Top Vent or Rear Vent Configuration
This appliance is shipped in the rear vent configuration. To change to the top vent configuration, follow
the directions below.
NOTE: the vent configuration affects several aspects of installation (framing, maximum vent rise,
maximum vent run). Make sure the vent configuration is correct prior to installation. You may wish to
configure the diffuser when changing the vent configuration.
Converting
the Fireplace
to Top Vent
Configuration
Remove and discard all of
the insulation found near
the flue assembly (make
sure to remove every
piece).







Remove the 4 screws
securing the intake
cover plate. Remove
it and place it aside.






Remove the 4 screws securing
the cover plate. Remove it and
place it aside.






Remove the 4 screws
securing the cover
plate (with hole).
This part may be
discarded.
Top of Fireplace
Back of Fireplace





10 Installation (for qualified installers only)
Travis Industries 4140613 100-01376
Converting the
Fireplace to Top
Vent (continued)
Remove the 12 screws
securing the flue assembly.
Attach the intake cover
plate with the screws
removed earlier.
Attach the cover plate with
the screws removed earlier.
NOTE: flatten the four legs
before insaling the cover
plate.
Rotate the flue
assembly so the
flue points
upwards. Secure
using the twelve
screws removed
earlier.
NOTE: Use a magnetic-
tipped nutdriver on these
screws - take care to prevent
the screws from falling into
the fireplace.
DO NOT OVER-
TIGHTEN THE
SCREWS.

Installation (for qualified installers only) 11
Travis Industries 4140613 100-01376
Standoff and Drywall Support Preparation
The two standoffs and three drywall supports are shipped in the flat position. Make sure to bend (and
secure) the standoffs and drywall supports as shown below.
The two standoffs are shipped flat.
Bend both standoffs as shown below.
Remove the screw from the top of the
fireplace and secure the standoff as shown.
When in place, the
standoffs and drywall
supports should look
as shown to the
right.
Bend the three drywall supports up 90 degress (the
outer two are concealed when the standoffs are flat).

12 Installation (for qualified installers only)
Travis Industries 4140613 100-01376
Fireplace Placement Requirements
Fireplace must be installed on a level surface capable of supporting the fireplace and vent
Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
Clearances
The fireplace requires a 1/2" (13mm) clearance from the angled sides and back of the fireplace to the
framing members. No material (insulation, framing, etc.) may be placed into this area.
When installed, walls in front of the fireplace must be a minimum 1" (25mm) to the side of the
fireplace.
Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
Fireplace must be placed so the vents below and above the glass do not become blocked.

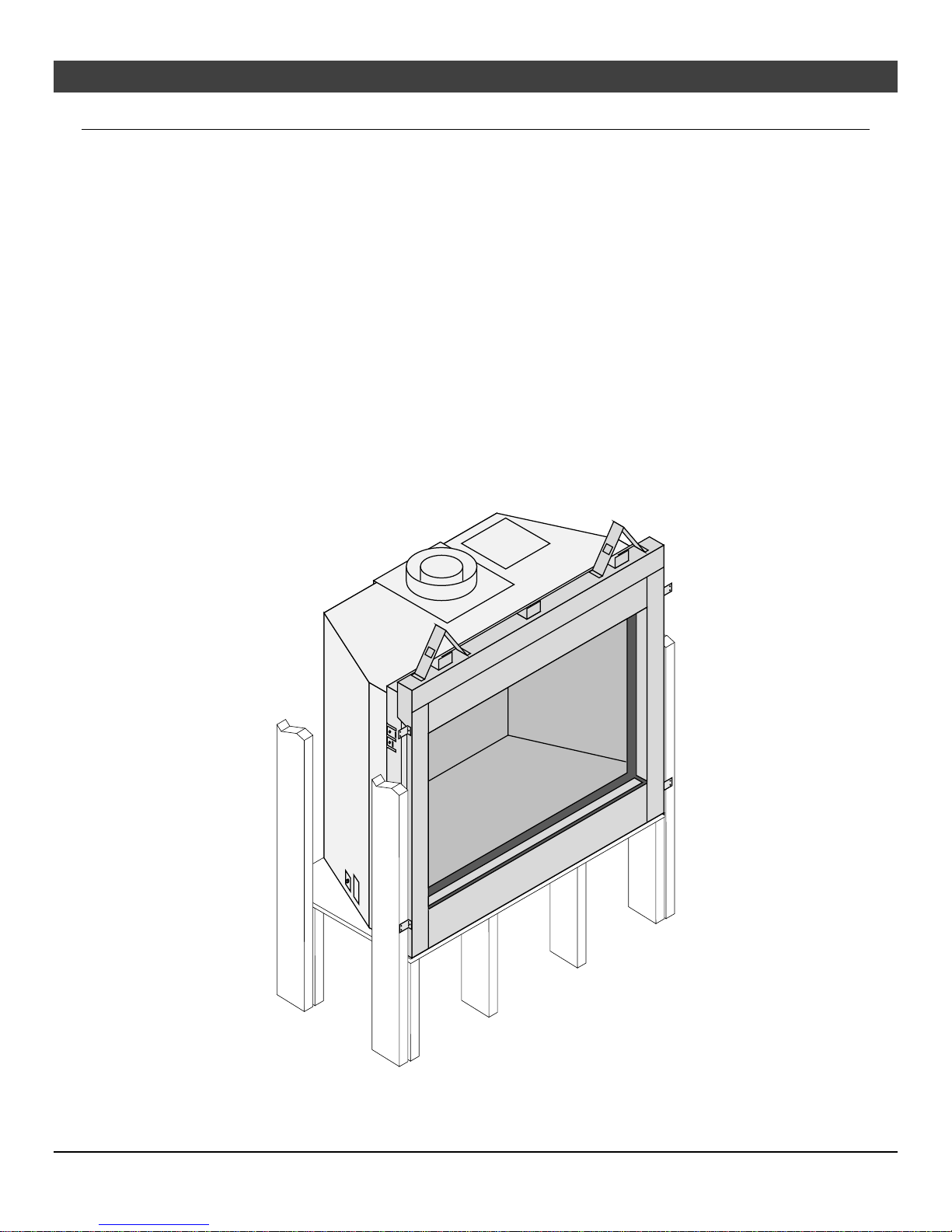

Raised Fireplaces
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(205 Lbs. 93 Kg) and vent.
The base of the fireplace must be a minimum 70” (1778mm) below the room ceiling.

Installation (for qualified installers only) 13
Travis Industries 4140613 100-01376
Minimum Framing Dimensions
42.75"
1086mm
44.75"
1137mm
MIn. Enclosure
48" 1220mm
22.5" 559mm Flush Install
22" 572mm Extended (Tile Over) Install

14 Installation (for qualified installers only)
Travis Industries 4140613 100-01376

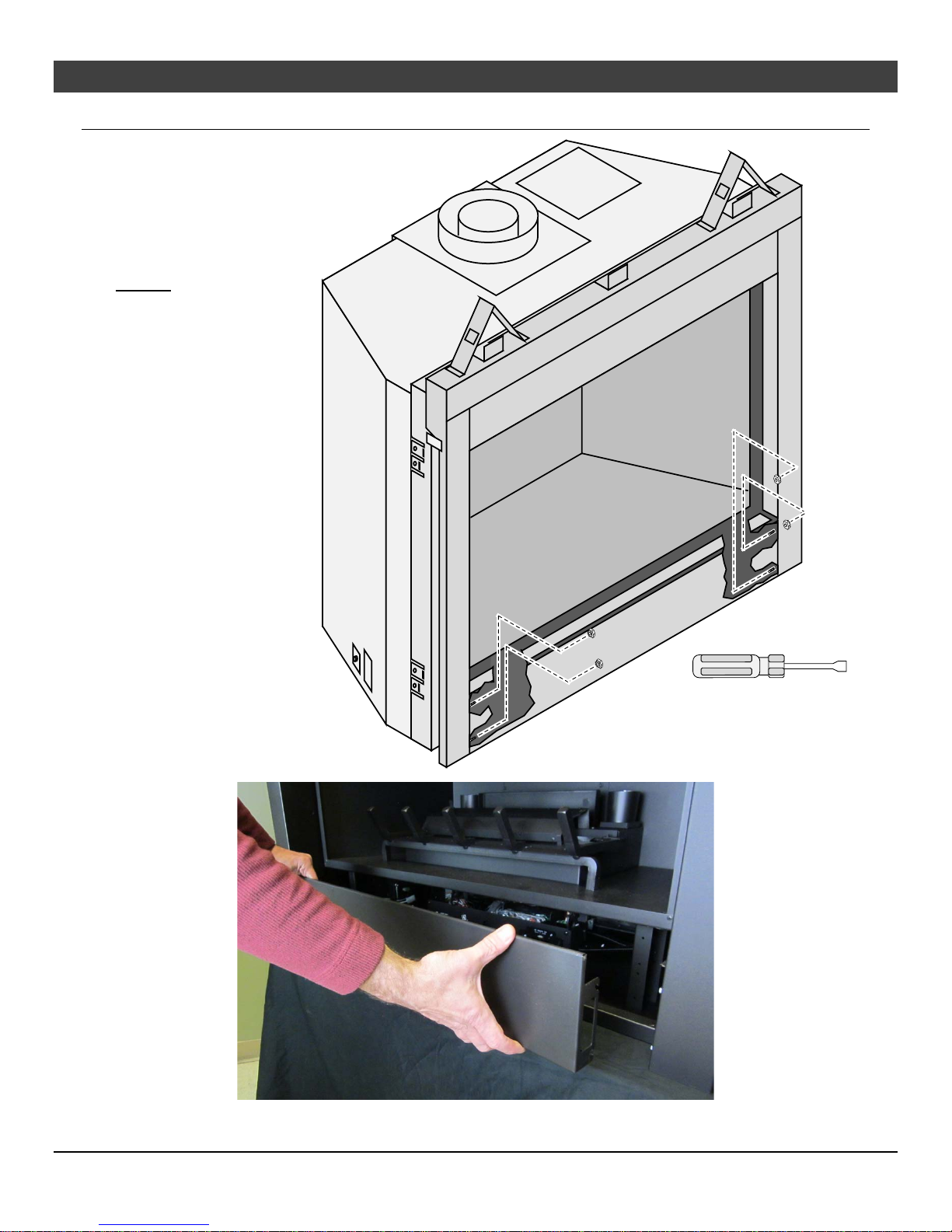

Nailing Brackets
The fireplace has nailing brackets on both sides. Once in place, secure the fireplace to the framing.
NOTE: Make sure the fireplace is square and plumb when securing the fireplace.
SPECIAL NOTE WHEN USING “SUBMERGED FACING” OPTION
Most installations use the “Standard Facing” position for the nailing brackets. When using the
“Submerged Facing” option, the fireplace is positioned ½” to the rear. Make sure to accommodate
this dimension when configuring framing and determining the vent position, gas line position, etc.


Standard Facing
(drywall contacts side of fireplace)
Submerged Facing
(Drywall butts against non-
combustible facing)
Additional nailing brackets are provided
along the base of the fireplace. Use these
brackets if not using the front brackets.
1/2" (13mm) Drywall
Bend the nailing brackets out
and secure to the side framing.

Non-Combustible Facing
1/2" (13mm) Drywall
ab
ca b
Rotate the bracket on the
rivet 180 degrees.
WARNING:
Do not install combustible
material (drywall) in front of
the fireplace.
Fireplace
Fireplace

Installation (for qualified installers only) 15
Travis Industries 4140613 100-01376
Corner Installations - Rear Vent Configuration

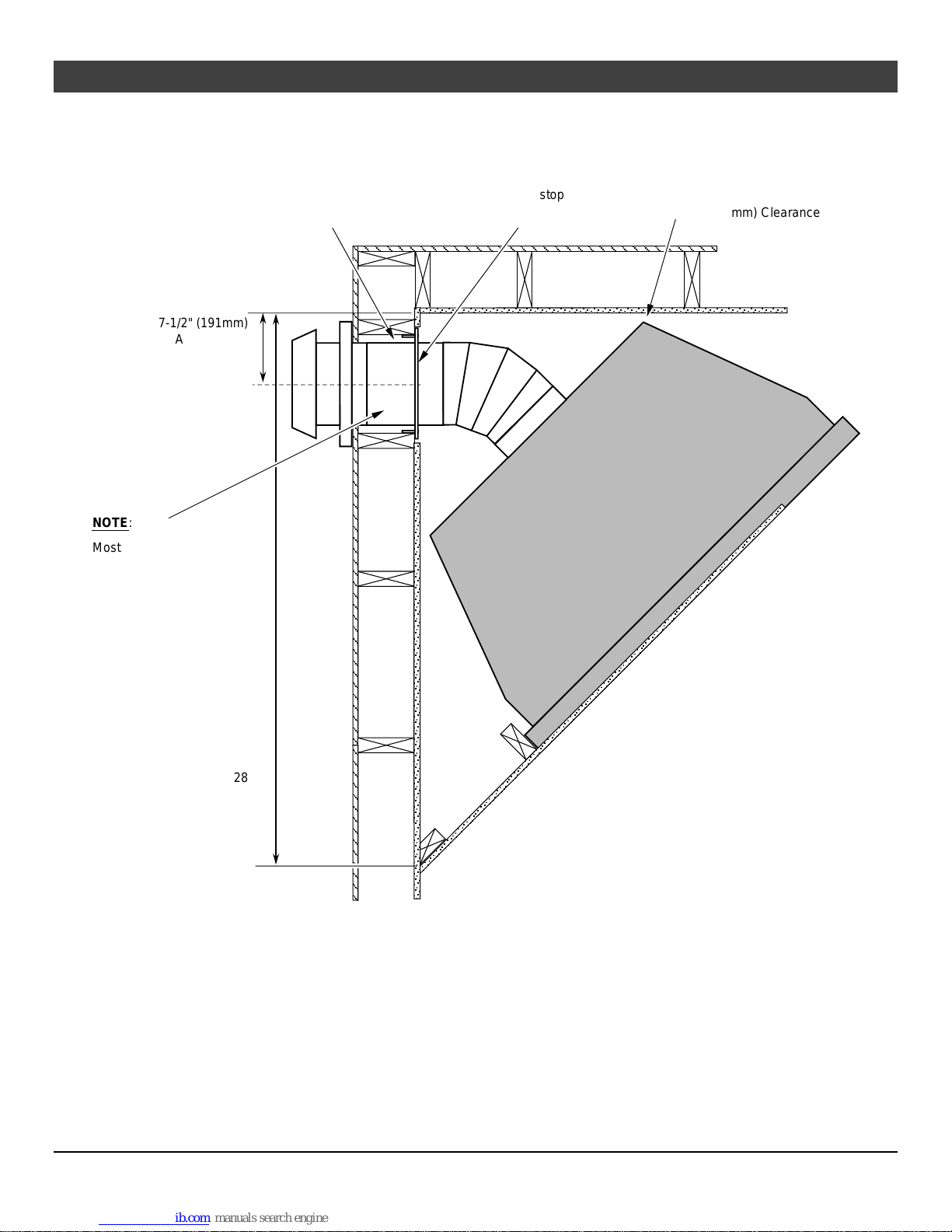

A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
clearances still apply).
















7-1/2" (191mm)
Approximate
(varies due to vent
installation)


Minimum 1/2" (13mm) Clearance
N
OTE:
M
ost installations use:
6
" (152mm) Section for
2
X 6 Walls (51mm X 152mm)
4
" (102mm) Section for
2
x4 Walls (51mm X 102mm)
(
Travis # 98900166)





Minimum 1" (25mm) Clearance

Travis Firestop
(sku 93006094)


























52-1/4" Min.
1328mm

16 Installation (for qualified installers only)
Travis Industries 4140613 100-01376
Corner Installations - Top Vent Configuration
A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
clearances still apply).















15-1/2"
394mm



52-1/4" Min.
1328mm
Minimum 1/2" (13mm) Clearance




































Installation (for qualified installers only) 17
Travis Industries 4140613 100-01376
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
NFPA 54(88), in Canada follow CSA B149.1 and the requirements listed below.
The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures under
1/2 psig (kPA), isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
Fuel
This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used.
Gas Line Connection
Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an
improper pressure.

18 Installation (for qualified installers only)
Travis Industries 4140613 100-01376
Gas Line Location
NOTE: The shutoff valve is attached to the side of the fireplace. If using rigid pipe, the shutoff valve may
be removed from the cover plate and attached to the shutoff valve inside the fireplace.

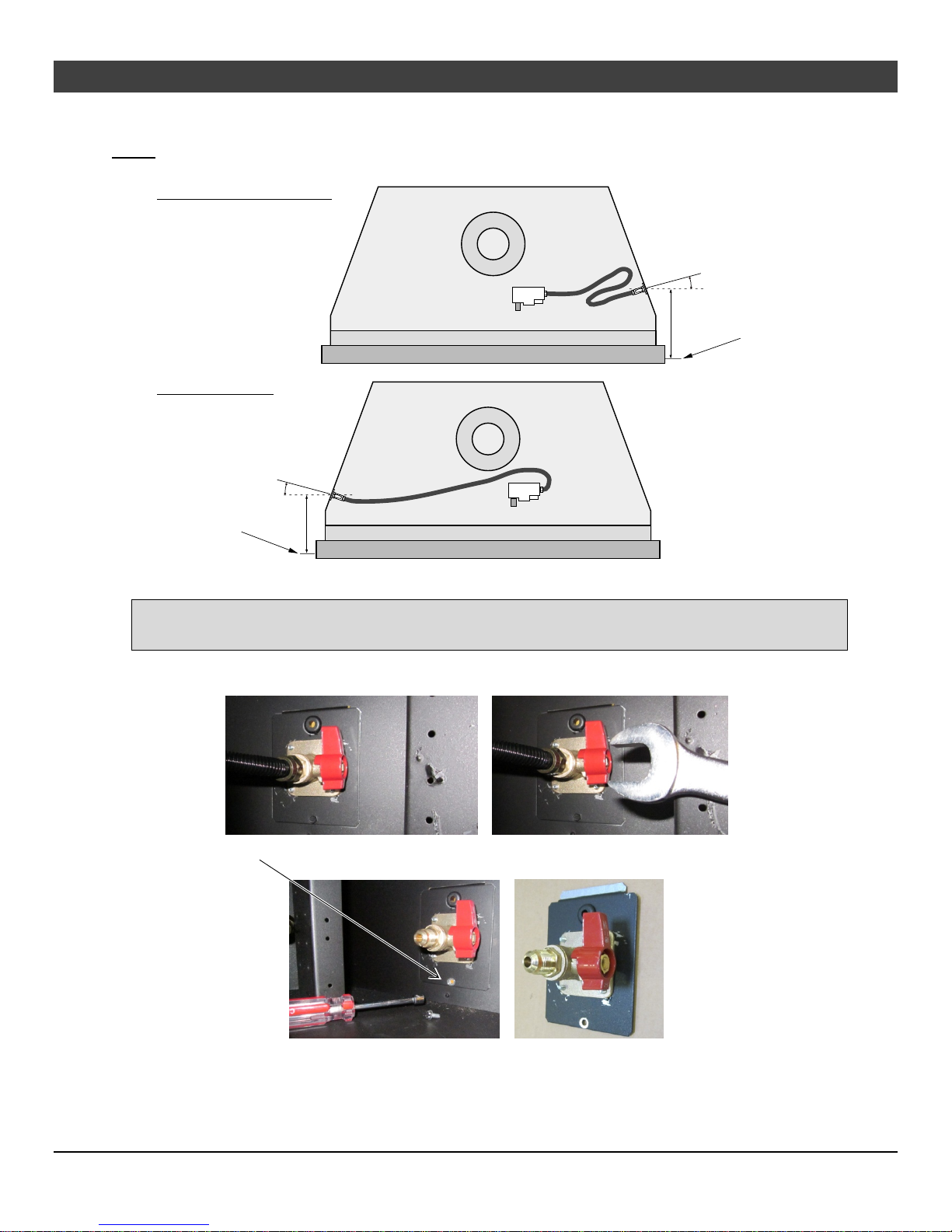

Converting Gas Line to the Left Side
ACCESSING THE AREA UNDER THE BURNER
If switching the gas line to the left side, see page 20 for accessing the area under the burner.
1. Disconnect the gas line from the shutoff valve (3/4” wrench). Gas line is located inside the fireplace
on the right side.
2. Remove the screw that holds the shutoff valve plate in place (1/4” nutdriver). Remove the shutoff
valve plate.
3. Remove the cover plate from the left side of the fireplace (it is held in place in the same fashion as
the shutoff valve plate). Attach it to the right side of the fireplace.
4. Attach the shutoff valve plate to the left side of the fireplace. Route the gas line to the left side and
re-attach the gas line to the shutoff valve. Make sure to leak test the entire gas line.
15 degrees
8.5"
216mm
3" (77mm) Above Base
Right Side Gas Line (Stock)
Left Side Gas Line
Framing
Opening
15 degrees
11"
280mm
3" (77mm) Above Base
Framing
Opening

Installation (for qualified installers only) 19
Travis Industries 4140613 100-01376
Electrical Connection (required)
The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified
installer and must meet all local codes.
Make sure the household breaker is shut off prior to working on any electrical lines.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
The electrical line must be a min. 14 gauge, and supply 120 Volts at 60 Hz (2 Amps).
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
abcd

20 Installation (for qualified installers only)
Travis Industries 4140613 100-01376
Accessing the Area Under the Burner
The lower panel may be
removed to access
components. This is
required when relocating the
electrical or gas inlet location
or installing the LP regulator.
(a) Loosen the four nuts.
(b) Lift the panel up, rotate it
forward and remove.
11/32" Nutdriver
