Travis Industries 864 ST GS User manual

864 ST
Fireplace
Installation
Manual
Tested and Listed by
OMNI-Test
Laboratories, Inc.
Beaverton, Oregon
• Built-In Direct Vent Fire lace
• Natural Gas or Pro ane
• Residential or Mobile Home
Re ort # 028-F-84-5
ANSI Z21.88b-2003
ARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
HAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
INSTALLER:Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
 Co yright 2007, T.I. $10.00 100-01195_000 4071126
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4071126 100-01195_000
Overview
This manual details the installation
requirements for the 864 ST (See Through)
fire lace. For o erating and maintenance
instructions, refer to the 864 ST Owner's Manual
( art # 100-01196).
Listing Details
This a liance was listed by OMNI-Test
Laboratories, Inc. to ANSI Z21.88 - re ort # 028-
F-84-5. The listing label is attached to the
a liance near the gas control valve. A co y is
shown to the right.
IAS (ICBO) Approval
This a liance was listed by OMNI-Test
Laboratories, Inc. - IAS # TL130 ( reviously
ICBO).
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters
National Fireplace Institute

Table of Contents 3
© Travis Industries 4071126 100-01195_000
Introduction
Overview.................................................................2
Listing Details..........................................................2
Safety Precautions
Safety Precautions...................................................4
Features and Specifications
Features.................................................................6
Installation O tions...................................................6
Heating S ecifications .............................................. 6
Dimensions.............................................................6
Installation
Packing List.............................................................7
Additional Items Required..........................................7
Recommended Installation Procedure .........................7
Massachusetts Requirements..................................... 8
To Vent or Side Vent Configuration............................9
Converting the Fire lace to Side Vent Configuration...9
Fire lace Placement Requirements.............................11
Clearances...........................................................11
Raised Fire laces .................................................11
Min. Framing Dims................................................12
Nailing Brackets....................................................13
Gas Line Requirements............................................. 14
Fuel ....................................................................14
Gas Line Connection .............................................14
Gas Inlet Pressure ................................................14
Gas Line Location .................................................15
Electrical Connection (required).................................. 16
Wall Switch or Thermostat Installation .........................17
Wiring Diagram (Millivolt System) ............................17
Wall Switch Installation...........................................17
Vent Requirements...................................................18
Vent Clearances ...................................................18
Altitude Considerations ..........................................18
A roved Vent......................................................19
Vent Installation....................................................19
A roved Vent Configurations ....................................20
Restrictor Position.................................................20
Exhaust Restrictor Adjustment................................20
Intake Restrictor Adjustment...................................21
Diffuser Plate Adjustment.......................................22
Side Vent Config. W Horizontal Term. (no vertical rise).. 23
Side Vent Config. W Horizontal Term. (w vertical rise)....24
Side Vent Configuration with Vertical Termination ..........25
To Vent Configuration with Horizontal Termination........26
To Vent Configuration with Vertical Termination ........... 27
Termination Requirements.........................................28
Installation (continued)
Hearth Requirements ............................................... 29
Facing Requirements ............................................... 30
Drywall Installation ................................................ 30
Facing Overview ...................................................31
O tional Face lates – Sizing Chart ..........................31
Thin Facing Installation..........................................32
Thick Facing Installation.........................................34
Thick Facing Installation with FPX Arched Faces........35
Mantel Requirements................................................ 37
Install Exam le - Build-Out (Dog-House) w Hor. Term.... 37
Finalizing the Installation
Ste s for Finalizing the Installation ............................. 38
Starting the Pilot Flame ......................................... 38
Pilot Flame Ins ection...........................................38
Air Shutter Adjustment...........................................39
Glass Frame Removal and Installation........................ 40
Log Set Installation .................................................. 42
Optional Equipment
LP Conversion Instructions ....................................... 52
Fireback Installation ................................................. 56
Grill Installation........................................................ 58
Remote Control Receiver Installation (2 O tions) ......... 59
Extra Room Power Heat Duct (sku 98500769)............ 60
Andiron Installation................................................... 61
Index
Index...................................................................... 62

4 Safety Precautions
Travis Industries 4071126 100-01195_000
Safety Warnings:
• Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
• This unit must be installed by a qualified installer to prevent the possibility of an explosion.
• This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88).
• In Manufactured or Mobile Homes must confirm with: In USA, Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280, or, when such a standard is not applicable, the Standard for
Manufactured Home Installations, ANSI/NCSBCS A225.1. This appliance may be installed in
Manufactured Housing only after the home is site located.
• All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure.
• Notify your insurance company before hooking up this fireplace.
• The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
• This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.
• Contact your local building officials to obtain a permit and information on any installation restrictions or
inspection requirements in your area.
• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your
dealer and arrange for proper servicing.
• It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your
dealer for a full explanation of your heater and what to expect.
• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
• Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
• Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
• Light the heater using the built-in piezo igniter. Do not use matches or any other external device to
light your heater.
• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
• The viewing glass should be opened only for lighting the pilot or conducting service.
• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4071126 100-01195_000
Safety Warnings (continued):
• Allow the heater to cool before carrying out any maintenance or cleaning.
• Operate the heater according to the instructions included in this manual.
• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for
service.
• The pilot flame must contact the thermopile and thermocouple. If it does not, turn the gas control
valve to "OFF" and call your dealer.
• This unit is not for use with solid fuel.
• Do not place anything inside the firebox (except the included logs).
• If the fiber logs become damaged, replace with Travis Industries log set.
• Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
• Do not touch the hot surfaces of the heater. Educate all children of the danger of a high-temperature
heater. Young children should be supervised when they are in the same room as the heater.
• Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential
damage(s).

6 Features and Specifications
Travis Industries 4071126 100-01195_000
Installation Options
• Residential or Mobile Home
• Flush or Recessed Face
• Raised or Floor Placement
• Internal or External Chase
• Horizontal or Vertical Vent
• Bedroom A roved
Heating Specifications
Natural Gas Propane
A roximate Heating Ca acity (in square feet)* U to 1,500 U to 1,500
Maximum BTU In ut Per Hour 37,500 37,500
* Heating ca acity will vary with floor lan, insulation, and outside tem erature.

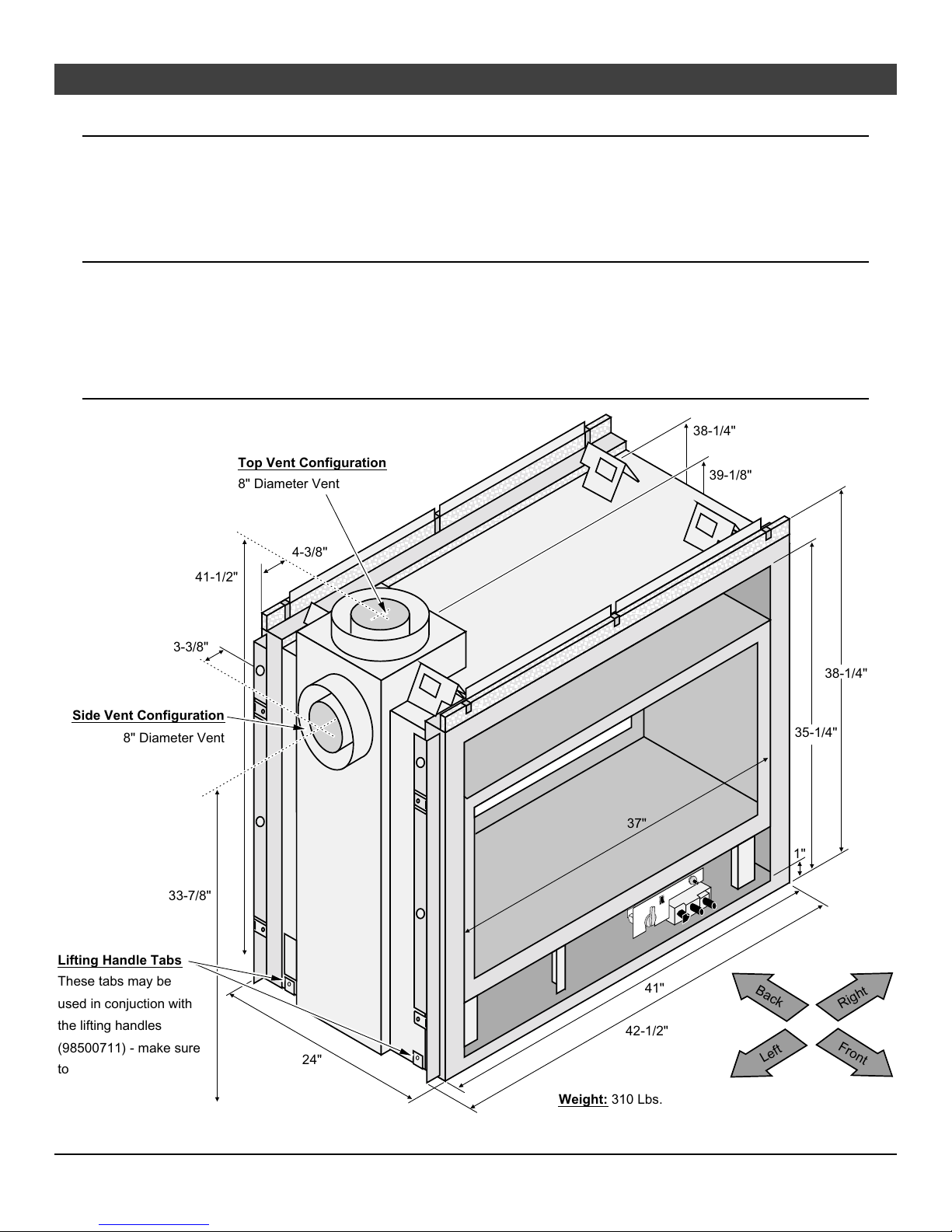

Dimensions
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
A
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
Side Vent Configuration
8" Diameter Vent
38-1/4"
41"
24"
Top Vent Configuration
8" Diameter Vent
eight: 310 Lbs.
1"
35-1/4"
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AA
AA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
37"
38-1/4"
39-1/8"
33-7/8"
41-1/2"
4-3/8"
3-3/8"
Right
Left
Front
Back
42-1/2"
Lifting Handle Tabs
These tabs may be
used in conjuction with
the lifting handles
(98500711) - make sure
to use the required
ada ters (250-01038)

Finalizing the Installation (for qualified installers only) 7
© Travis Industries 4071126 100-01195_000
Packing List
• Propane Conversion Kit
• Log Set
• Wall Swit h with Wire (see page 17 for details)
• Firestop (sku 93006094)
Additional Items Required
• Dire t Vent
• Gas Line Equipment (shutoff valve, pipe, et .)
• Ele tri al Equipment (min. 14 gauge, grounded line)
• Two Grill Kits and/or Fa es
Recommended Installation Procedure
• Prepare the framing, making sure to leave the area around the firepla e open (see page
12). Make sure to allow for vent installation and fa ing depth.
• Pla e the firepla e into position.
• Install the vent, gas line and ele tri al hook-up.
• Finalize the framing around the firepla e.
• Se ure the firepla e to the framing.
• Install the wall swit h (see page 17) or thermostat (if appli able).
• Install the drywall.
• Install the hearth (if appli able).
• Install the fa ing (if appli able).
• Install the mantel (if appli able).
• Finalize the installation (see page 38) and install the grill or fa e.

8 Finalizing the Installation (for qualified installers only)
Travis Industries 4071126 100-01195_000
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon onoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon onoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as
adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the
equipment and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Finalizing the Installation (for qualified installers only) 9
© Travis Industries 4071126 100-01195_000
Top Vent or Side Vent Configuration
This applian e is shipped in the top vent onfiguration. To hange to the side vent onfiguration,
follow the dire tions below.
NOTE: the vent onfiguration affe ts several aspe ts of installation (framing, maximum vent rise,
maximum vent run). When reviewing the installation requirements make sure to pay attention to the
type of onfiguration being used.
Converting the
Fireplace to
Side Vent
Configuration
Remove the back plate on
the fireplace.
NOTE: Use a magnetic-tipped
nutdriver on these screws -
take care to prevent the
screws from falling into the
fireplace.
AAAAAAAA
AAAAAAAA
AAAAAAAA
AA
AA
Remove the flue assembly.
Tuck the two 24" pieces of insulation
into the area between the exhaust
manifold and fireplace can.
WARNING: Failure to properly
place the insulation will void the
warranty and create a safety
hazard.

10 Finalizing the Installation (for qualified installers only)
Travis Industries 4071126 100-01195_000
Converting
the Fireplace
to Side Vent
(continued)
A
A
A
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
A
A
A
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
A
A
A
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
Re-attach the flue assembly
in the side position.

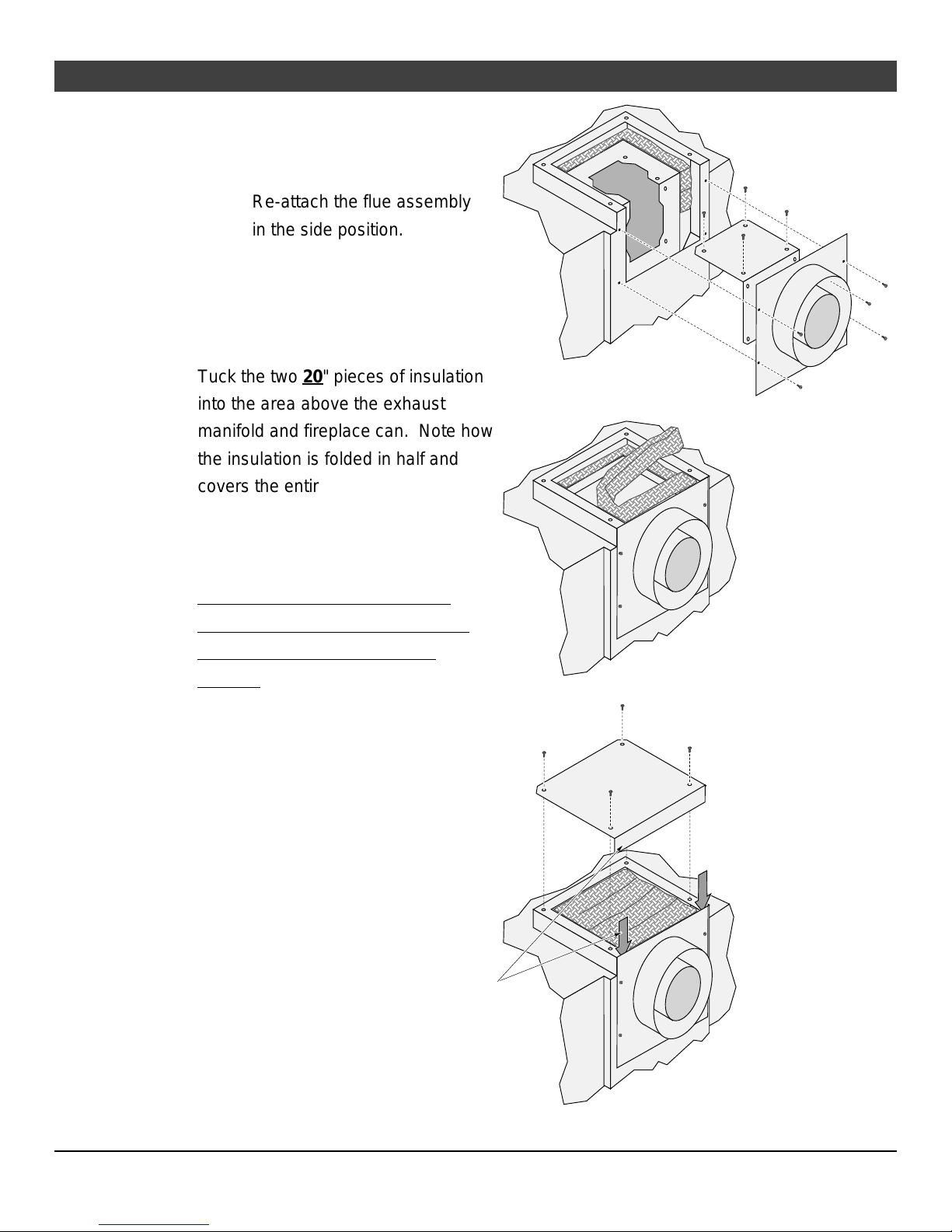

Tuck the two 20" pieces of insulation
into the area above the exhaust
manifold and fireplace can. Note how
the insulation is folded in half and
covers the entire area above the
exhaust manifold (see illustration
below).
WARNING: Failure to properly
place the insulation will void the
warranty and create a safety
hazard.
Re-attach the back plate to the
top of the fireplace.
NOTE: Make sure the flange on
the back plate tucks between the
fireplace and the flue assembly.

Finalizing the Installation (for qualified installers only) 11
© Travis Industries 4071126 100-01195_000
Fireplace Placement Requirements
• Firepla e must be installed on a level surfa e apable of supporting the firepla e and vent
• Firepla e must be pla ed dire tly on wood or non- ombustible surfa e (not on linoleum or arpet)
• This heater may be pla ed in a bedroom. Please be aware of the large amount of heat this
applian e produ es when determining a lo ation.
• Firepla e must be installed in a room with a minimum eiling height of 84”.
Clearances
• The firepla e requires a 1/2" learan e from the left side of the firepla e to the framing
members. No material (insulation, framing, et .) may be pla ed into this area.
0" clearance on
right side of
fireplace.
1/2" Clearnce
on left side of
fireplace.
• When installed, walls either in front or behind the firepla e must be a minimum 1" to the side of
the firepla e. Only 1 side wall is allowed within 12” of the side of the firepla e.
• Due to the high temperature, the heater should be lo ated out of traffi and away from furniture
and draperies.
• Firepla e must be pla ed so the vents below and above the glass do not be ome blo ked.
Raised Fireplaces
• The firepla e (and hearth, if desired) may be pla ed on a platform designed to support the
firepla e (310 Lbs.) and vent.
Platform
Optional Raised Hearth
(see “Hearth Requirements”for details)
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
A
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
A
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAA
AAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAA
AAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAA
AAA
AAAAA
AAAAA
AAAAA
Min. 42”
Fireplace
Enclosure
Height

12 Finalizing the Installation (for qualified installers only)
Travis Industries 4071126 100-01195_000
inimum Framing Dimensions – Top or Side Vent Configuration
* The 23" dimension is based upon 1/2" drywall around the
perimeter of the fireplace on both sides. If using thicker drywall
(or other facing), you will need to adjust this dimension.
42-1/2"
Minimum 42” Fireplace
Enclosure Height
NOTE:
Due to the flue assembly on the
fireplace, we recommend you install
the framing after placing the
fireplace in position.
As an alternative, you may omit the
framing above the front of the fireplace
until the fireplace is in position (shown
in dark gray). In addition, if using the
side vent configuration, do not install
the framing to the left side (shown in
light gray). 38-1/2"
23" *
Ba k
Front
Right
Left

Finalizing the Installation (for qualified installers only) 13
© Travis Industries 4071126 100-01195_000
Nailing Brackets
There are eight nailing brackets on the front and
back of the fireplace. Follow the directions below
to prepare the
nailing brackets. Once in
place, nail or screw the
nailing brackets to the
framing.
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
A
A
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
A
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
NOTE: Additional nailing brackets are
provided along the base of the
fireplace. Use these brackets if not
using the front brackets.
NOTE: You may need to bend the
tabs out on one side then slide the
fireplace out to bend the tabs out on
the opposite side
For installations using 5/8”drywall fold the shorter tab
out 90°on the right side. (use a screwdriver if
necessary). On the left side, remove the side standoff
(screws hold it in place) and re-attach it in the
alternative holes provided.
For installations using 1/2”facing
fold the larger tabs out 90°on
the right side (use a screwdriver
if necessary). Bend the tabs out
on the left side
AAAAAAA
AAAAAAA
Fireplace
Drywall
Framing
Nailing Bracket
TOP VIEW
1/2”Drywall
5/8”Drywall
AAAAAA
AAAAAA
Fireplace
Drywall
Framing
Nailing Bracket
TOP VIEW
WARNING: Make sure the
fireplace is square and plumb
when placed in the framing.
Measured corner-to-corner, the
fireplace should be square
(approx. 54-7/8”for each
dimension). Use shims to
insure the fireplace is square.

14 Finalizing the Installation (for qualified installers only)
Travis Industries 4071126 100-01195_000
Gas Line Requirements
ASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN
THE COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
• Flexible onne tor must not be longer than 36 in hes.
• Shutoff valve must be a “T” handle gas o k.
• Only dire t vent sealed ombustion produ ts are approved for bedrooms or bathrooms.
• Firepla e dampers must be removed or welded in the open position prior to the installation of a firepla e insert or gas
log.
• A arbon monoxide (CO) dete tor is required in the same room as the applian e.
• The gas line must be installed in a ordan e with all lo al odes, if any; if not, follow ANSI
223.1 and the requirements listed below.
• The firepla e and gas ontrol valve must be dis onne ted from the gas supply piping during
any pressure testing of that system at test pressures in ex ess of 1/2 psig. For pressures under 1/2
psig, isolate the gas supply piping by losing the manual shutoff valve.
• Leak test all gas line joints and the gas ontrol valve prior to and after starting the firepla e.
Fuel
• This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used.
Gas Line Connection
• Installation must be performed by a qualified installer, servi e agen y or the gas supplier (In Massa husetts
a li ensed plumber/gasfitter).
Gas Inlet Pressure Standard Input Pressure Minimum Input Pressure Maximum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 3.5" W.C. (0.87 kPA) 13.85" W.C. (3.45 kPA)
Propane 13" W.C. (2.73 kPA) 8" W.C. (1.99 kPA) 14" W.C. (3.48 kPA)
• If the pressure is not suffi ient, make sure the piping used is large enough, the supply regulator is
adequately adjusted, and the total gas load for the residen e does not ex eed the amount supplied.
• The supply regulator (the regulator that atta hes dire tly to the residen e inlet or to the propane tank) should
supply gas at the suggested input pressure listed above. Conta t the lo al gas supplier if the regulator is at
an improper pressure.

Finalizing the Installation (for qualified installers only) 15
© Travis Industries 4071126 100-01195_000
Gas Line Location
The gas inlet is located 3" above
the base of the fireplace.
6-1/4"
10-1/2"
Right Side Gas Inlet (preferred)
Left Side Gas Inlet
A 2" by 3" opening is located behind the gas
inlet cover plate (it is centered 3" above the
base of the fireplace).
You may remove this cover plate to install the gas line. The
cover plate has a 7/8" diameter hole (covered with a push
plug) in line with the gas inlet on the gas control valve. By
rotating the plate 180°the hole may be re-located. You may
also secure the plate in a customized location using the self-
drilling screws.
A 8" flex tube and shutoff valve is
included with the fireplace. The
shutoff valve accepts a 1/2"MPT.
A 8" flex tube and shutoff valve is
included with the fireplace (you may
wish to use a 24" or 36" flex tube).
The shutoff valve accepts a 1/2" MPT.
5-3/8"
An additional 2" by 3" opening is located the
left side (it is centered 3" above the base of
the fireplace).
You may remove this cover plate to install the
gas line. The cover plate has a 7/8" diameter
hole (covered with a push plug) in line with the
gas inlet on the gas control valve. By rotating the
plate 180°the hole may be re-located. You may
also secure the plate in a customized location
using the self-drilling screws.

16 Finalizing the Installation (for qualified installers only)
Travis Industries 4071126 100-01195_000
Electrical Connection required)
• The ele tri al line to the grounded re epta le inside the firepla e must be installed by a
qualified installer and must meet all lo al odes.
• Make sure the household breaker is shut off prior to working on any ele tri al lines.
• The firepla e must be properly grounded in a ordan e with lo al odes (or ANSI/NFPA 70-1987)
• The ele tri al line must be a min. 14 gauge, and supply 120 Volts at 60 Hz (2 Amps)
Caution: Label all wires prior to dis onne tion when servi ing ontrols. Wiring errors an ause
improper and dangerous operation.
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
A
A
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AA
AA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA

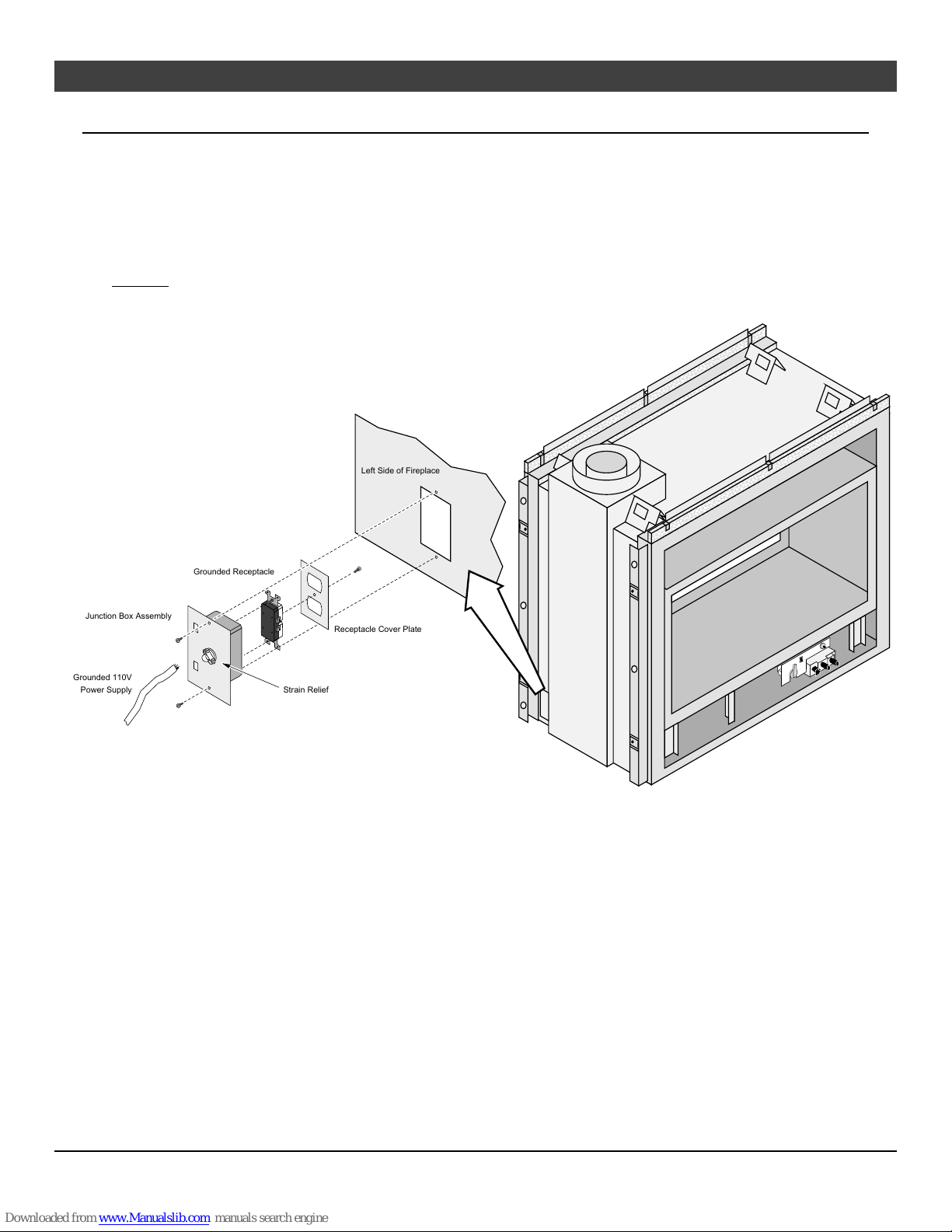

Left Side of Firepla e
Jun tion Box Assembly
Grounded 110V
Power Supply
Grounded Re epta le
Re epta le Cover Plate
Strain Relief

Finalizing the Installation (for qualified installers only) 17
© Travis Industries 4071126 100-01195_000
Wall Switch or Thermostat Installation

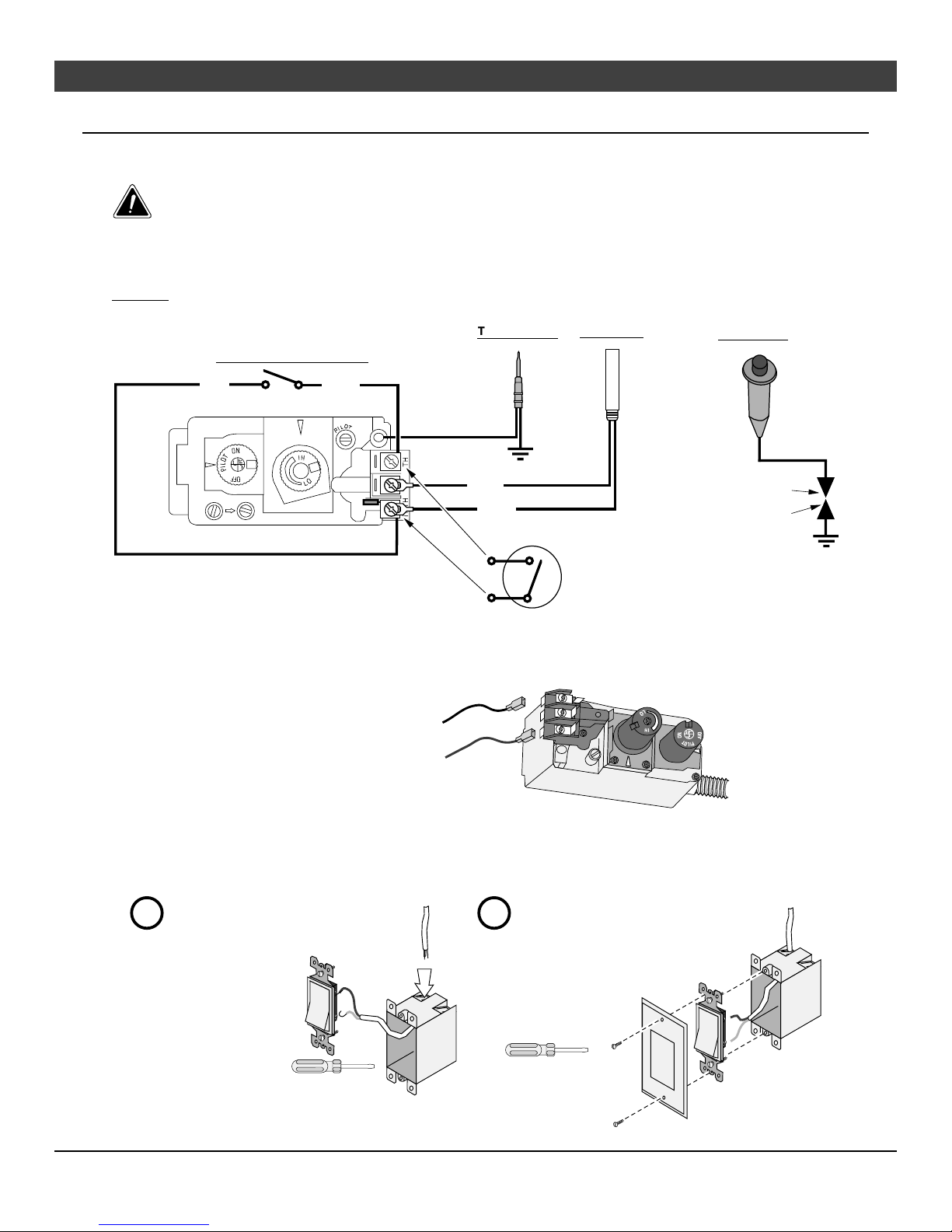

Wiring Diagram ( illivolt System)
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace. The switch must
be installed by a qualified installer.
The in luded wall swit h may be installed following the dire tions below. An optional thermostat
may also be installed. It is atta hed to the gas ontrol valve in the same manner.
Caution: Label all wires prior to dis onne tion when servi ing ontrols. Wiring errors an ause
improper and dangerous operation.
Orange
White
Piezo Igniter
Thermopile
Red
A
Thermocouple
Copper Co-Axial
Wire
Red
Spark Electrode
Pilot Hood
On/Off Switch (on fireplace)
Optional Wall Switch,
Thermostat, or
Remote Control
Brown
Wall Switch Installation
1. Atta h the in luded wire to the gas ontrol valve.
Attach the two wires to the top and
bottom posts on the gas control
valve (orientation does not matter).
2. Determine a lo ation for the wall swit h (the wire is a maximum 25' long). Route the wire through
the grommet near the gas inlet hole (either side) to the jun tion box and atta h following the
dire tions below. Set the on/off swit h on the applian e to "OFF" to ontrol the applian e with
the wall swit h.
a
Carefully pack the wires into the
junction box. Attach the switch
to the junction box. Attach the
switchplate to the switch.
b
Standard
Screwdriver
From
Appliance
Insert the wire
through the back of
the mounted
junction box (your
junction box may
look different).
Expose 1/2" of
each wire. Secure
the wires to the
posts on the side of
the on/off switch
(orientation does
not matter).
Standard
Screwdriver

18 Finalizing the Installation (for qualified installers only)
Travis Industries 4071126 100-01195_000
Vent Requirements
• The gas applian e and vent system must be vented dire tly to the outside of the building, and
never be atta hed to a himney serving a separate solid fuel or gas-burning applian e. Ea h
dire t vent gas applian e must use it's own separate vent system.
• In addition to the requirements listed here, follow the requirements provided with the vent.
• A firestop is required whenever the vent penetrates a wall, floor, or eiling (passes through
framing members). Horizontal vent less than 48" above the firepla e must use the Travis
Firestop (sku 93006094 - it in orporates a 3" learan e above, 1" learan e below and to the
sides of the vent). Other penetrations only require a 1" learan e and may use a standard
firestop (make sure the required 1" learan e is met).
• Always use the high-wind termination (if available from the vent manufa turer).

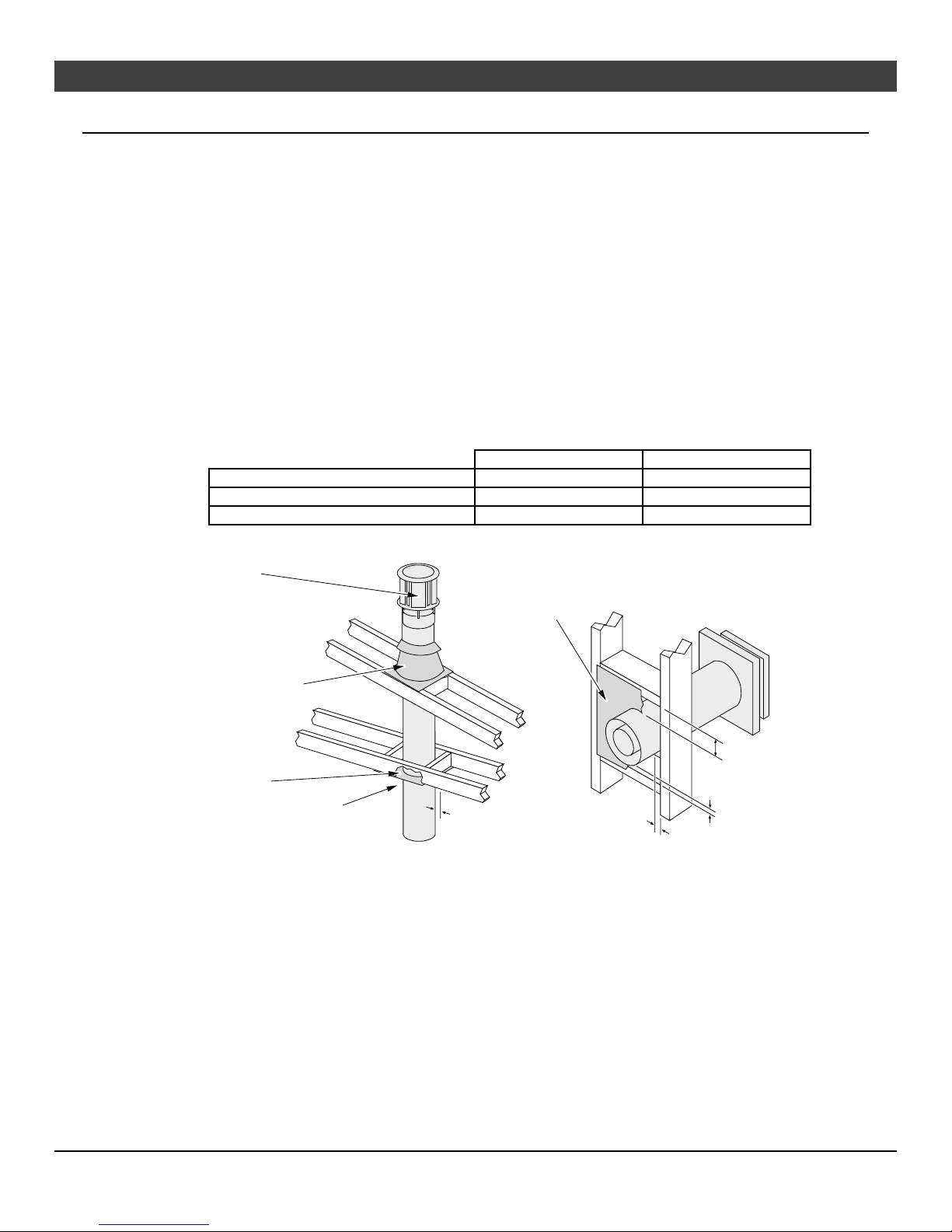

Vent Clearances
• The vent must maintain the required learan e to ombustible materials to prevent a fire. Do
not fill air spa es with insulation.
Before 48" Rise After 48" Rise
Sides 1" 1"
Above 3" 1"
Below Horizontal or 45° Se tion 1" 1"
Horizontal
Termination
Required Firestop
Min. 3"
(1" if a minimum 48"
above the fireplace)
Min. 1"
Min. 1"
Use a firestop whenever
passing through a ceiling
Vertical Termination
Use a roof flashing and storm collar
whenever passing through the roof
Min. 1"
Use a support box
on exposed vent
Altitude Considerations
• This heater has been tested at altitudes ranging from sea level to 6,000 feet. In this testing we have found
that the heater, with its standard orifi e, burns orre tly with just an air shutter adjustment.
• Failure to adjust the air shutter properly may lead to improper ombustion whi h an reate a safety hazard.
Consult your dealer or installer if you suspe t an improperly adjusted air shutter.

Finalizing the Installation (for qualified installers only) 19
© Travis Industries 4071126 100-01195_000
Approved Vent
• Side vent onfigurations use 8" diameter Simpson Dura-Vent Model Pro or GS vent.
• Top vent onfigurations use 8" or 6-5/8" diameter Simpson Dura-Vent Model Pro or GS vent. If
using 6-5/8" diameter vent, atta h the 8" to 6-5/8" redu er (Travis part # 98900165) to the
firepla e.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
A
A
AAAAA
AAAAA
AAAAA
AAAAAA
AAAAAA
AAAAAA
A
AAAAAA
AAAAAA
AAAAAA

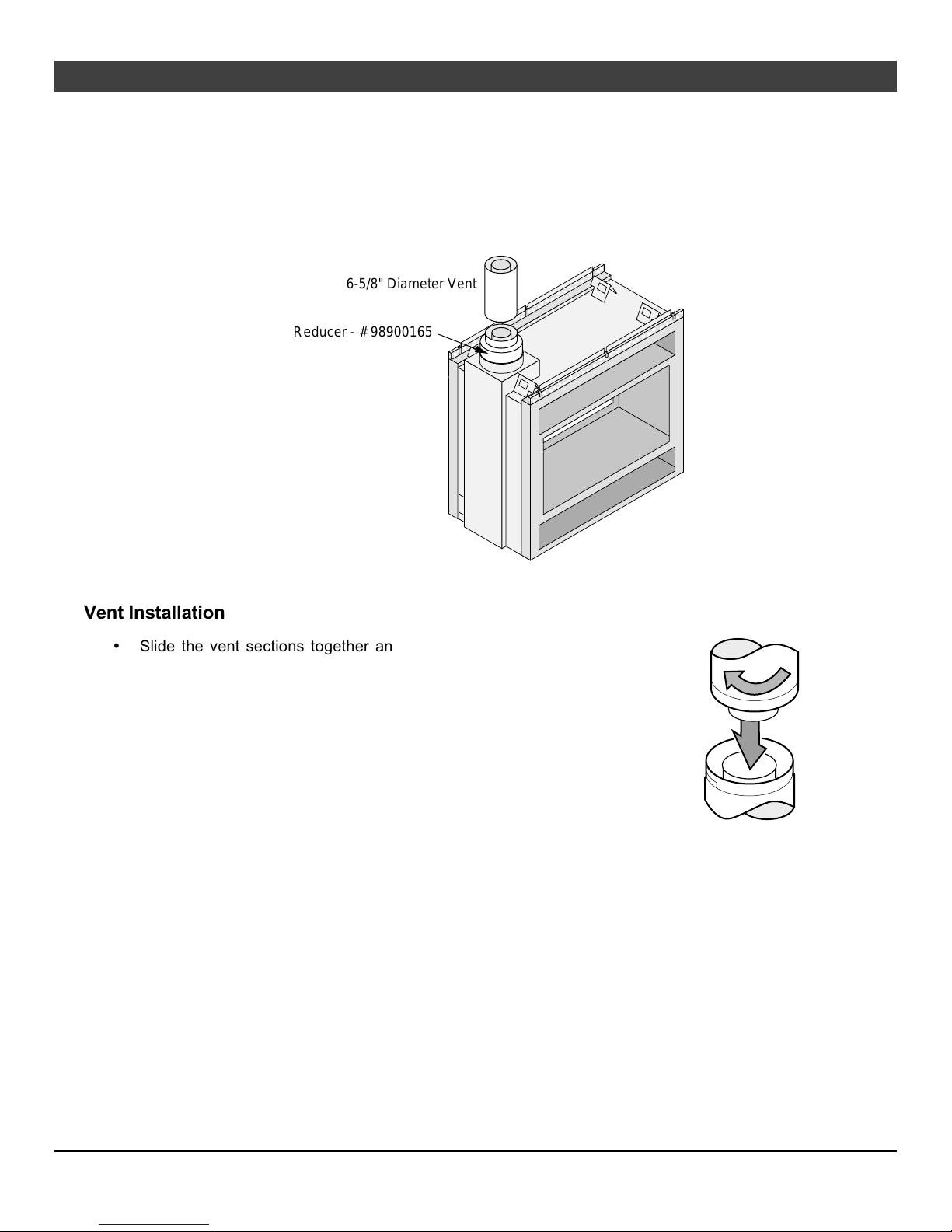

6-5/8" Diameter Vent
Reducer - # 98900165
Vent Installation
• Slide the vent se tions together and turn 1/4 turn until the se tions lo k
in pla e.
• S rews are not required to se ure the vent. However, three s rews may
be used to se ure vent se tions together if desired.
• High temperature sealant is re ommended at the applian e starter
se tion onne tion (use high-temperature sili one or Mill-Pa ®).
• If disassembly is required, at time of re-assembly he k to see if the vent
reates a tight fit. If it does not, apply high temperature sealant to the
joints of the affe ted se tions.
• Horizontal se tions require a 1/4" rise every 12" of travel.
• Horizontal se tions require non- ombustible support every three feet (e.g.: plumbing tape).

20 Finalizing the Installation (for qualified installers only)
Travis Industries 4071126 100-01195_000
Approved Vent Configurations
Restrictor Position
• Intake and exhaust restri tors are built into the applian e to adjust the flow rate of intake air and
exhaust gases. Depending upon the vent onfiguration, you may be required to adjust the
restri tor positions. The harts for a eptable vent onfigurations detail the orre t vent
restri tor positions.
Exhaust Restrictor Adjustment
If the diffuser is required to be in position # 2, you may wish to adjust the diffuser while the exhaust
restrictor is removed (see page 22).
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
A
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
Loosen these two screws
on the exhaust restrictor.
Slide the restrictor to the correct
restrictor position (see the illustration
below). The screw location indicates
restrictor position. In this example, the
restrictor is set in position # 3. Tighten
the screws to secure the restrictor.
(closed) #6
# 5
# 4
# 3
# 2
(open - stock position) # 1 Left (vent) Side of Firebox
Left Wall of Firebox
Firebox Roof
