Travis Industries Xtreme 6020 User manual

Xtreme 6020
(with screen)
Installation Manual
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Tested and Listed by
Report # 100866534PRT-001
Built-In Direct-Vent
Power-Vent Fireplace
Natural Gas – 98500325
LP (Propane) - 98500326
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
Copyright 2014, T.I. $10.00 4140717 100-01351

2 Introduction
© Travis Industries 4140717 100-01351
Overview
This manual details the installation requirements for
the Xtreme 6020 fireplace. For operating and
maintenance instructions, refer to the Owner's
Manual (part # 100-01247).
Listing Details
This appliance was listed by Intertek (Warnock
Hersey) to ANSI Z21.50b-2009 / CSA 2.22b-2009 -
report # 3183426 The listing label is chained to the
appliance near the glass frame. A copy is shown to
the right.
IAS (ICBO) Approval
This appliance was listed by Intertek (Warnock
Hersey) - IAS # TL271.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters
National Fireplace Institute
Report No. 100866534PRT-001
Control No. 4000515 Vented Gas Fireplace Heater
Xtreme 6020 L.P. Xtreme 6020 N.G.
Tested to: ANSI Z21.50b-2009/CSA2.22b-2009 “Vented Gas Fireplace” This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA54, or Natural Gas and Propane Installation Codes, CSA B149.1. This vented gas fireplace heater is equipped at the factory for use with gas fuel marked above. No conversion is allowed. This vented gas fireplace heater is not for use with air filters. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. See owner’s manual for approved brands of venting. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL
Minimum Clearances to Combustibles
Fireplace to Adjacent Wall Wood Floor Beneath Fireplace Back to Enclosure
3” (76mm)
0” (0mm) 0” (0mm)
Top to Enclosure Sides to Enclosure Base of Fireplace to a Mantel
37.5” (953mm)
3” (76mm)
See Owner’s Manual
Minimum Inlet Pressure (inches W.C.) Maximum Inlet Pressure (inches W.C.) Manifold Pressure on “HI” (inches W.C.)
L.P.
11”
13”
11”
N.G.
5.5”
7”
3.5”
Input Rate on “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr) Orifice Size - Center (DMS) Orifice Size - Sides (DMS)
L.P.
90,000 45,649
#46 #54
N.G.
90,000 57,896
#25 #46
This appliance is equipped for use only at altitudes 0-2,000 feet (0-610m) in the USA. In Canada, 0-4,500 feet (0-1370m). For altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed. See owner’s manual for information on making these changes.
2014 2015 2013
Feb. Mar. Jan.
May Jun. Apr.
Aug. Sep. Jul.
Nov. Dec. Oct.
MANUFACTURE DATE:
WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Manufactured by:
www.travisproducts.com
CAUTION:
Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.
0867

Table of Contents 3
© Travis Industries 4140717 100-01351
Overview...............................................................2
Listing Details .......................................................2
Installation Options ...............................................6
BTU Specifications................................................6

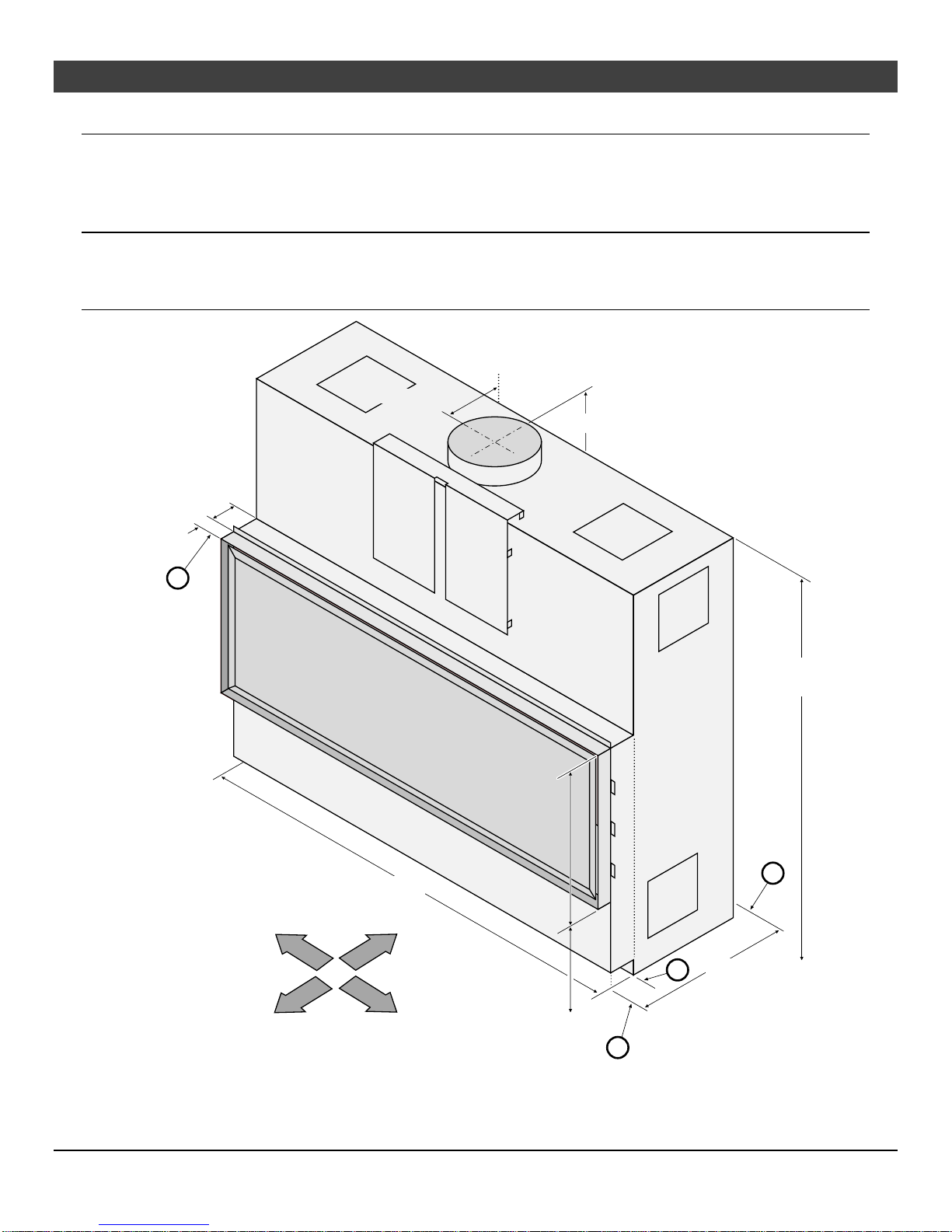

Dimensions...........................................................6
Packing List ..........................................................7
Additional Equipment............................................7
Recommended Installation Procedure..................8

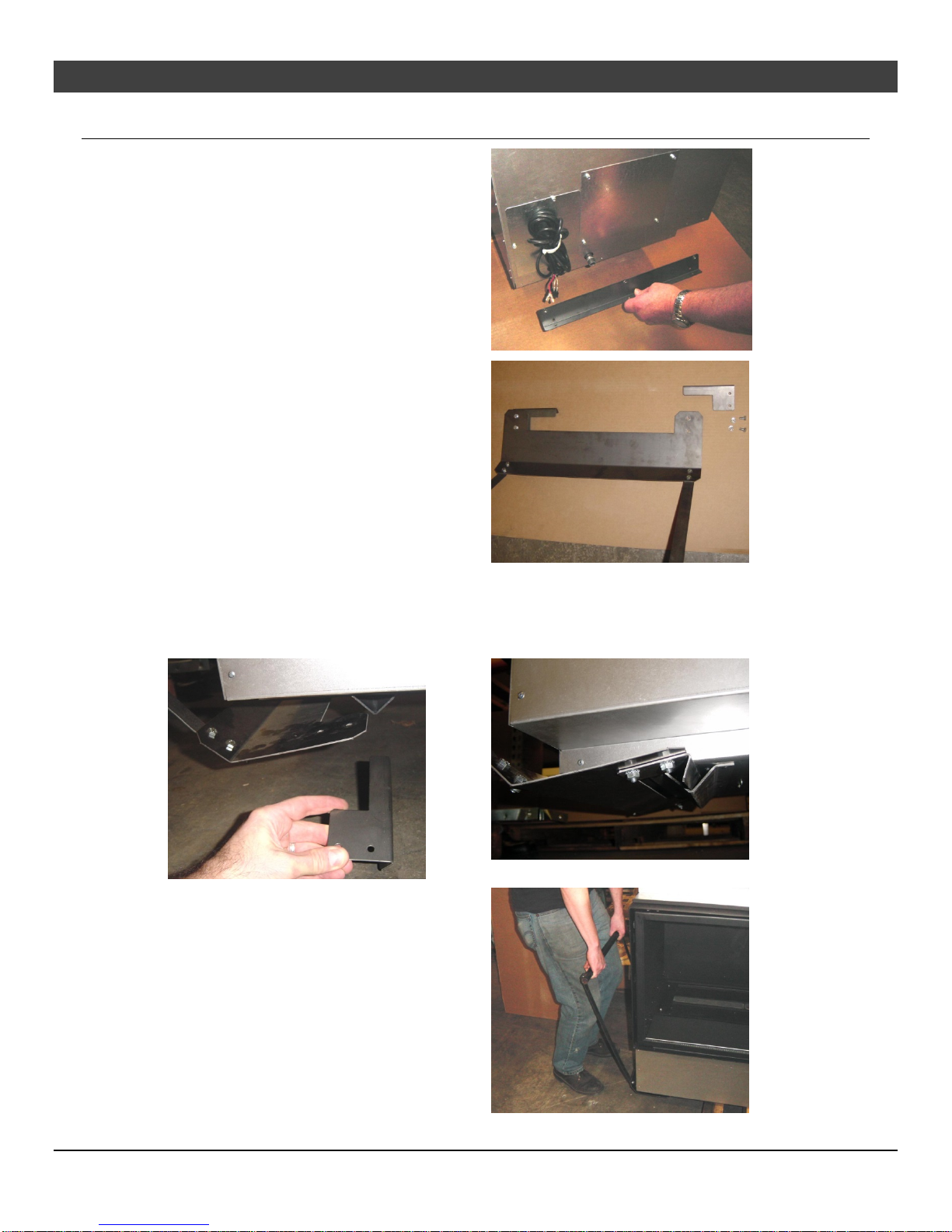

Lifting Handle Installation......................................9
Massachusetts Requirements............................... 10
Requirements for the Commonwealth of
Massachusetts .................................................. 10
MANUFACTURER REQUIREMENTS .............. 10
Fireplace Placement Requirements......................11

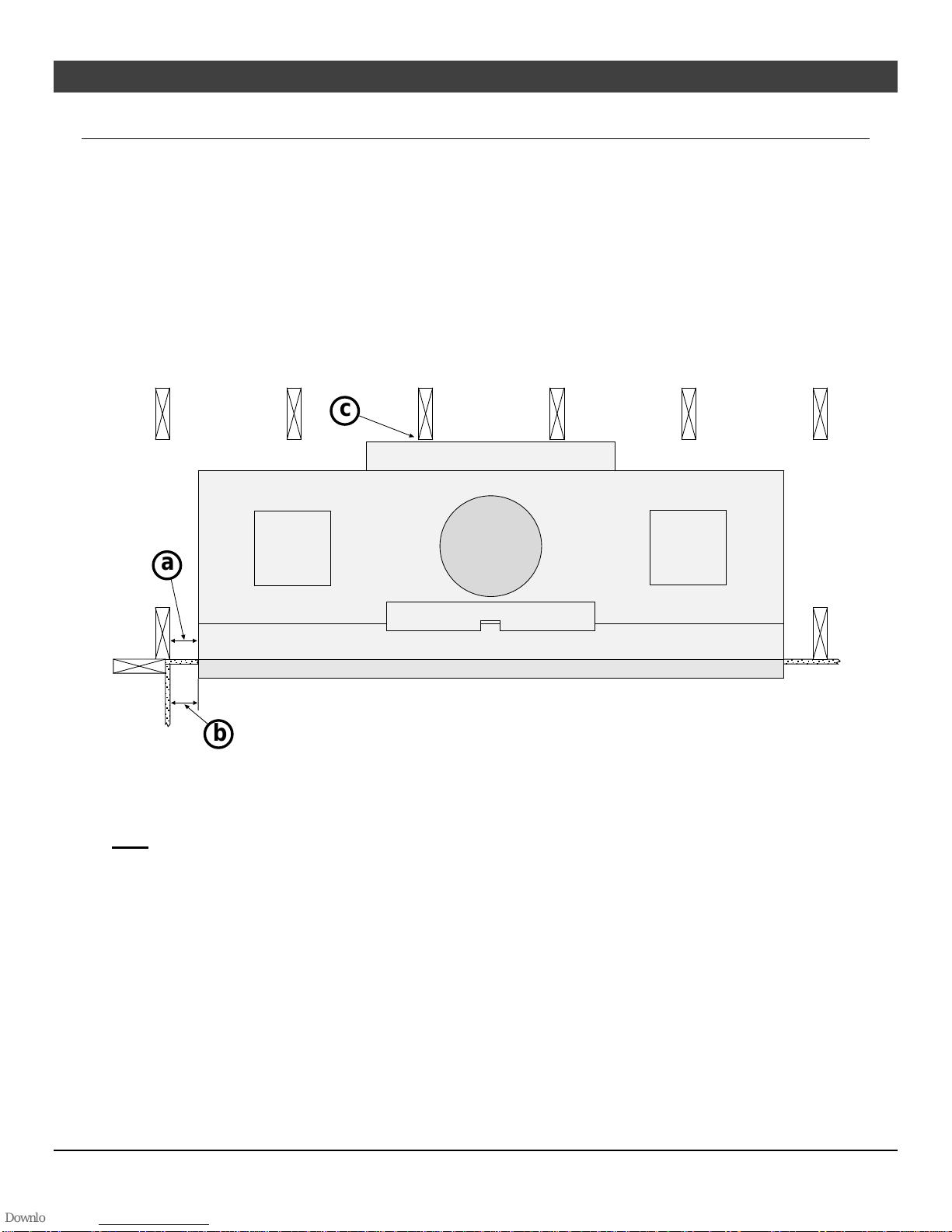

Clearances........................................................11
Raised Fireplaces..............................................11
Min. Framing Dims. – Air Inlet Through Rear Wall or
Sides................................................................. 12
Min. Framing Dims. – Air Inlet from Behind
Fireplace ...........................................................13
Floor Mounting Brackets ...................................14
Metal Framing................................................... 15

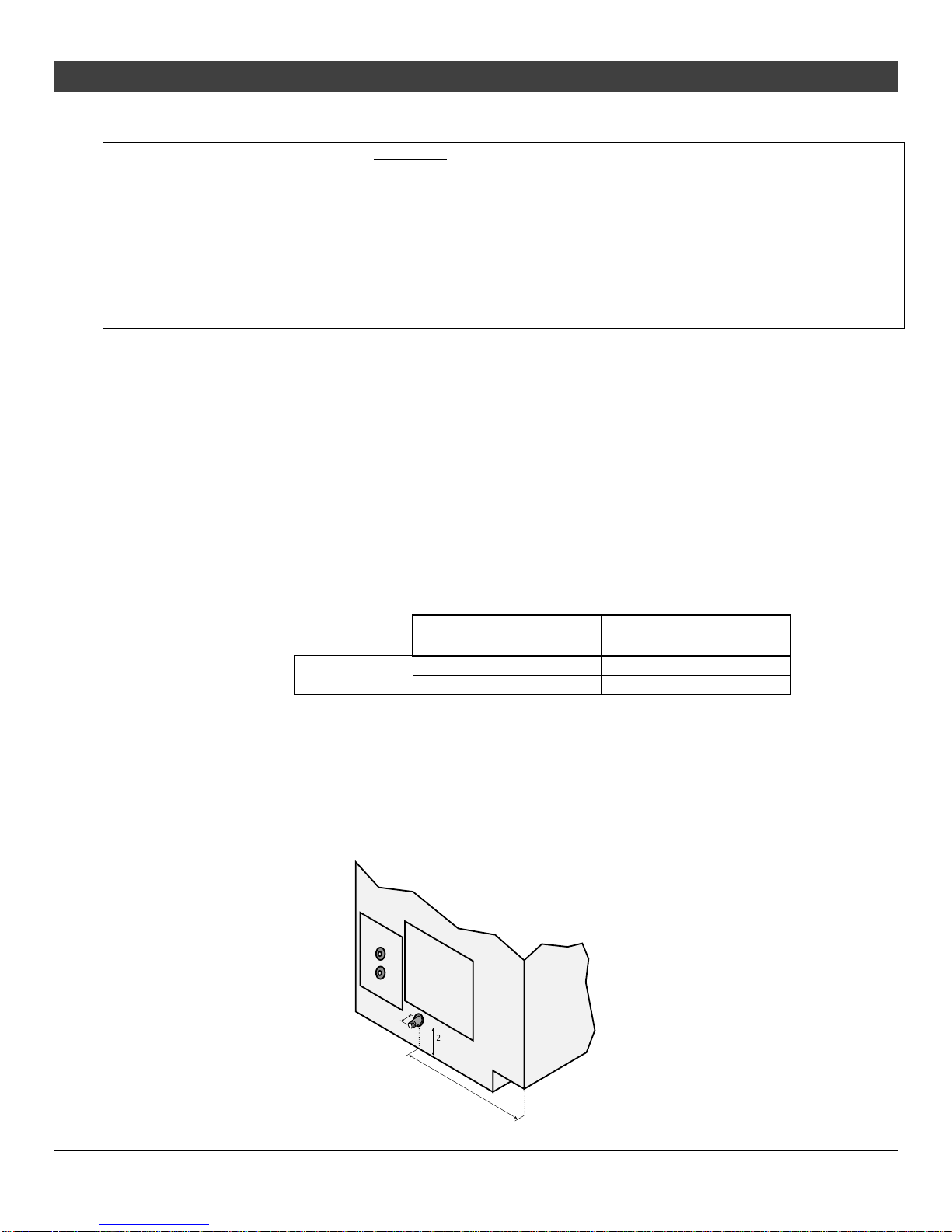

Gas Line Requirements.....................................16
Fuel................................................................... 16
Gas Line Connection......................................... 16
Gas Inlet Pressure.............................................16
Gas Line Location ............................................. 16

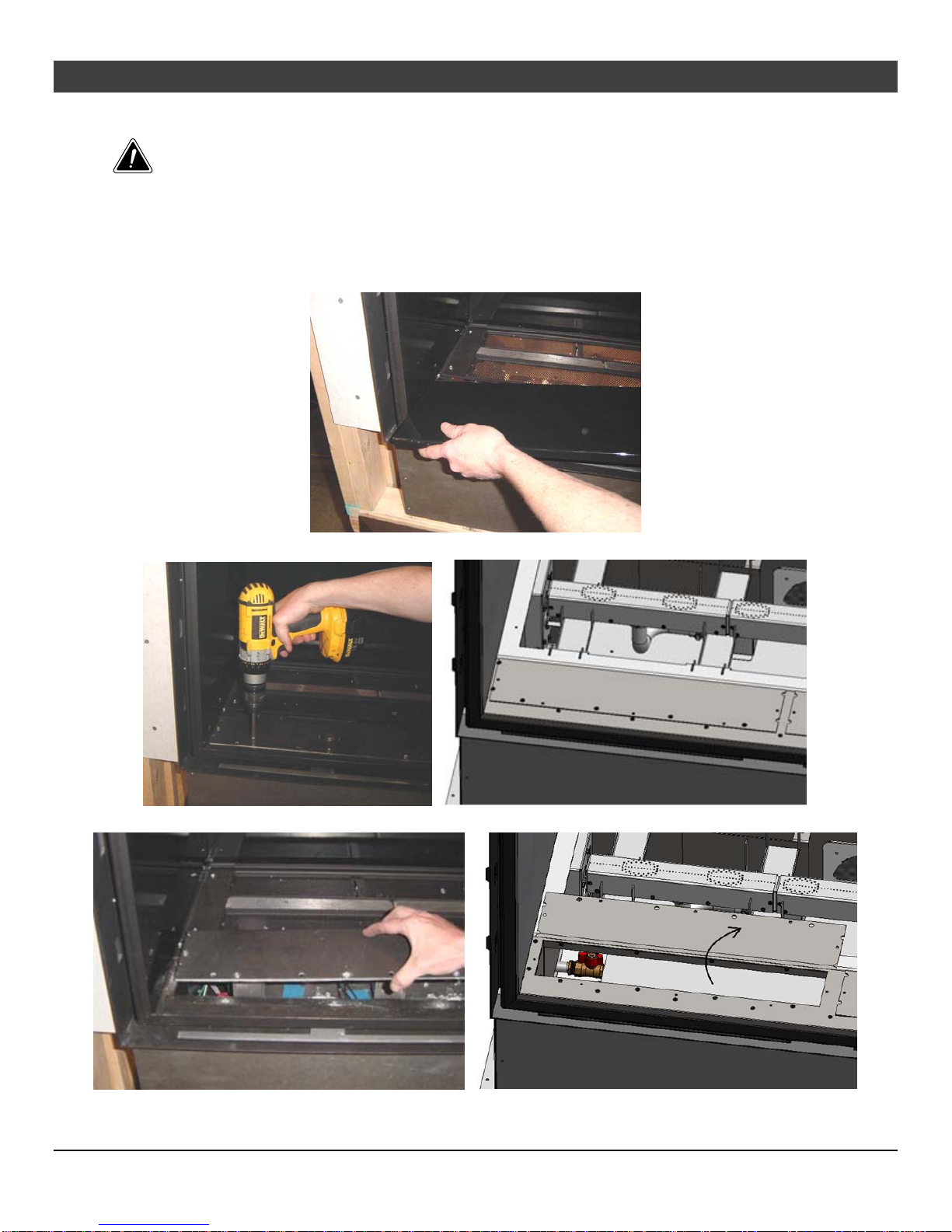

Accessing Internal Components........................ 17
Internal Shut Off Valve Access..........................18
Mounting the Battery Box...................................... 19
Overview of Battery Box Installation..................19
Mounting the Battery Box (continued)...................20
Electrical Connection............................................ 21
Wiring the Exhaust Blower....................................22
Wiring the Exhaust Blower (continued).................23
Air Inlet Requirements ..........................................24
Air Inlet Installation................................................25
Air Inlet Installation (continued)............................. 26
Vent Requirements...............................................27
Vent Clearances................................................ 27
Vent Firestop.....................................................27
Altitude Considerations .....................................27
Approved Vent ..................................................28
Vent Installation................................................. 28
Approved Vent Configurations.............................. 29
Maximum Vent Run and Rise............................ 29
Exhaust Baffle...................................................30
Rheostat Adjustment......................................... 31
Termination Requirements................................32
Exhaust Box Mounting..........................................33
Exhaust Box Dimensions ..................................33
Framing For Exhaust Box..................................34
Hearth Requirements............................................35
Facing Requirements............................................36
Fiber Board Installation .....................................37
Facing Example – Flush Drywall.......................39
Framing Setback...............................................40
Facing Example – Thick Facing ........................41
Mantel Requirements............................................42
Steps for Finalizing the Installation........................43
Air Shutter Adjustment.......................................43
Crushed Glass Installation.................................44
Glass Frame Removal and Installation..................45
Glass Screen (Barrier).......................................45
Glass Frame Removal.......................................46
Wiring Diagram......................................................47
Fuse Location....................................................48
Power Heat Duct Wiring........................................49

4 Safety Precautions
© Travis Industries 4140717 100-01351
Safety Warnings:
Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
Young children should be carefully supervised when they are in the same room
as the appliance. Toddlers, young children and others may be susceptible to
accidental contact burns. A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature
and should stay away to avoid burns or clothing ignition. Do not touch the hot
surfaces of the heater. Educate all children of the danger of a high-temperature
heater.
Due to the high temperature, the heater should be located out of traffic and away
from furniture and draperies.
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
Notify your insurance company before hooking up this fireplace.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.

Safety Precautions 5
© Travis Industries 4140717 100-01351
Safety Warnings (continued)
Because this heater can be controlled by a thermostat there is a possibility of the heater turning on
and igniting any items placed on or near the appliance.
Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
The viewing glass should be opened only for conducting service.
Allow the heater to cool before carrying out any maintenance or cleaning.
Operate the heater according to the instructions included in this manual.
If the main burners do not start correctly turn the gas off and call your dealer for service.
This unit is not for use with solid fuel.
Do not place anything inside the firebox (except the optional artwork).
Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance and shall be installed for the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this
appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative
that control compartments, burners, and circulating air passageways of the appliance be kept clean.
Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6 Features and Specifications
© Travis Industries 4140717 100-01351
Installation Options
Residential or Commercial Installations
Raised or Floor Placement
Internal or External Chase

Horizontal or Vertical Vent
Bedroom Approved
BTU Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 90,000 90,000
Dimensions
(a) Measurement to Cover Box (back edge) (b) Front Edge (front edge of framing
(c) Framing Set-Back (d) Facing Guide (protrudes to the front of drywall)
3-7/8" 98mm
62" 1575mm
a
b
c
d
1-7/8" 48mm
56-1/2" 1435mm
54-1/4"
1378mm
23-1/2"
597mm
11-1/2" 292mm
Left
Front Back
Right
12"
305mm
21-3/4"
552mm

Installation (for qualified installers only) 7
© Travis Industries 4140717 100-01351
Packing List
Set and Vent Hardware
ITEM Location Notes
Glass Latch Tool Attached to Front of Fireplace
Exhaust Box Assembly Top of Fireplace Replace screws after removing
exhaust box
2 Lifting Plate Assemblies Attached to pallet Requires Lifting Handles
98500711
Intake Damper (2) Box Labeled “HOYME” Includes sliding connector
Fiber Board Attached to Back of Fireplace (2) Top, (2) Side, (2) Ledge
Metal Framing Kit Shrink wrapped and attached to
pallet framing Upper and Lower Track, (5) Vertical Studs, (2) Mounting
Plates
Firestop Set and Vent Box Firestop with 2 side shields
Intake Damper Wall Mount (2) Set and Vent Box
Intake Starter Collar Set and Vent Box (2) 6” Diameter
Flex Duct Connector Set and Vent Box (2) 6” Diameter
Flex Duct Set and Vent Box (2) 20’ Lengths
Intake Wiring Harness Set and Vent Box (2) 25’ Lengths – 2 wires each
Battery Box with Junction Box
and Wall Plate Remote Box
Remote with wall mount and
batteries Remote Box
Finalization Hardware (install after fireplace is in place – you may hold at dealership)
ITEM Location Notes
Crushed Glass Finalization Hardware Box (8) 2.5 lb. bags
Operating Manual Finalization Hardware Box
Glass Latch Tool Finalization Hardware Box
Glass Screen Foam-Wrapped Above Tile Stop Installs with 6 magnets
Additional Equipment
ITEM REQUIRED WHERE SHIPPED SKU
Liner Yes
Shipped pre-installed
inside fireplace Black Painted 94700862 Black Enamel 94700863
Stainless Steel 94700864
Exhaust Damper
Wiring Harness Yes Shipped with fireplace 50 Foot 94700887
150 Foot 94700888
250 Foot 94700889
Artwork (Logs) No Shipped with fireplace if
ordered at same time Bamboo 94700880 Birch 94700881
Driftwood 94700882
Studio Trim No Shipped with fireplace if
ordered at same time 95400915
Power Heat Duct No Shipped with fireplace if
ordered at same time 98500769
Lifting Handles Yes Shipped with fireplace if
ordered at same time 98500711
5/8” Drywall Spacer Required for
5/8” Drywall Shipped with fireplace if
requested at same time 210-16972

8 Installation (for qualified installers only)
© Travis Industries 4140717 100-01351
Recommended Installation Procedure
Frame the opening for the fireplace. Make sure to allow for vent and inlet duct installation.
Place the fireplace in position and secure to floor.
Install the exhaust vent, air inlet, gas line, electrical line, and battery box (power heat ducts if
applicable).
Test operation of the fireplace before attaching fiber-board or drywall. This allows the installer to
verify all connections and diagnose issues with the fireplace exterior accessible.
Install included non-combustible framing above fireplace.
Attach included fiber-board to fireplace and framing. Install 2” fiber-board strip above facing
guide.
Install the drywall and/or facing.
Install the hearth (if applicable).
Install the facing (if applicable).
Install the mantel (if applicable).
Finalize the installation (see page 43).

Installation (for qualified installers only) 9
© Travis Industries 4140717 100-01351
Lifting Handle Installation
The Travis Industries lifting handles (sku
98500711) may be attached to the fireplace
to aid in placement. Two lifting plates,
included with the fireplace, allow for the
handles to attach. Follow the directions
below to install.
Remove the floor mounting brackets.
Attach the lifting handles to the lifting plates.
Remove one of the lifting plate tabs. This
will allow the tab to insert into the stand-offs
on the bottom of the fireplace.
Slide the lifting plate tab attached to the handle into the standoff below the fireplace. Then re-
attach the lifting tab that was removed earlier, making sure it inserts into the standoff. This will
secure the lifting plate to the fireplace
Take care when moving the fireplace to not
damage any structures or your back.
After positioning the fireplace remove the
lifting plates and re-install the floor mounting
brackets.

10 Installation (for qualified installers only)
© Travis Industries 4140717 100-01351
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 11
© Travis Industries 4140717 100-01351
Fireplace Placement Requirements
Fireplace must be installed on a level surface capable of supporting the fireplace and vent
Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
Fireplace should be located out of traffic and away from furniture and draperies.
Fireplace must be placed so the gaps below and above the glass frame do not become blocked.
Fireplace may be placed in a bedroom.
Clearances
(a) Clearance to Side of Fireplace: 3” (76mm). Do not place insulation in this space.
(b) When installed, walls in front of the fireplace must be a minimum 3" (76mm) to the side of the
fireplace.
(c) Clearance to Cover Box (Rear Edge): 0” (0mm)
Raised Fireplaces
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
and vent.
HINT: We typically have displayed this fireplace on a 24” to 36” raised platform. Keep in mind that the
firebox opening (base of the flames) is 12” above the base. Desired position may vary depending
upon room size, typical viewing angle, and aesthetic intent.





a
b
c

12 Installation (for qualified installers only)
© Travis Industries 4140717 100-01351
Min. Framing Dims. – Air Inlet Through Rear Wall or Sides
24"
610mm
68-1/2"
1740mm
77-1/2"
1969mm
Air Inlets
5"
127mm
5"
127mm
NOTE: An additional 5" (127mm) is required to each
side of the framing if the air inlets are routed vertically
from the sides (see "Air Inlet Requirements" for details).

Installation (for qualified installers only) 13
© Travis Industries 4140717 100-01351
Min. Framing Dims. – Air Inlet from Behind Fireplace
68-1/2"
1740mm
77-1/2"
1969mm
30-1/2"
775mm
Side View of Air Inlet From
Behind Fireplace
Air Inlet

14 Installation (for qualified installers only)
© Travis Industries 4140717 100-01351

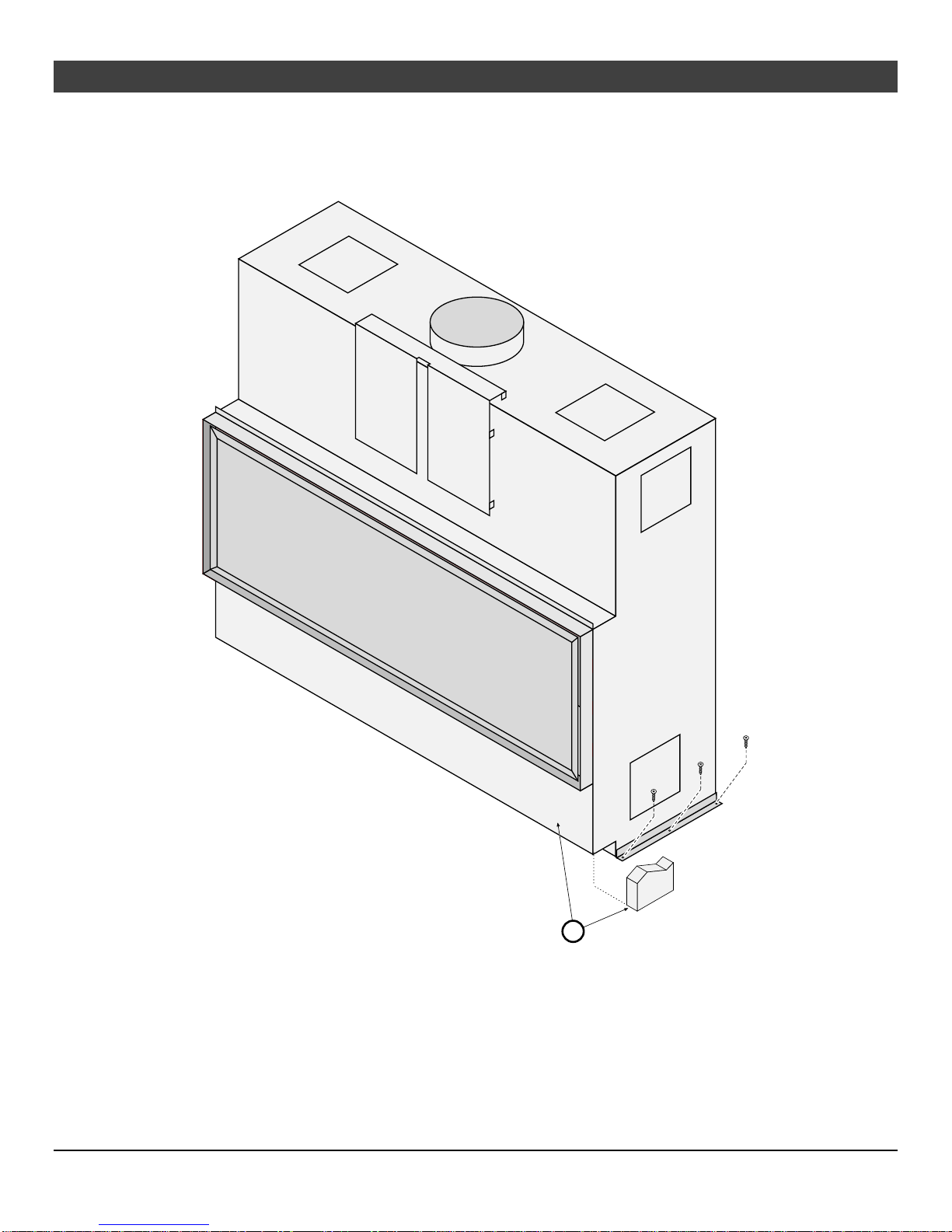

Floor Mounting Brackets
The fireplace has floor mounting brackets on both sides. Secure the fireplace to the flooring with
three screws..
(a) NOTE: Make sure the face of the fireplace is flush with the front of the framing.
a

Installation (for qualified installers only) 15
© Travis Industries 4140717 100-01351
Metal Framing
HINT: You may wish to install the metal framing after installing the vent and air inlet. This will allow for
easier access to the area above the fireplace.
The fireplace includes two (2) steel channels (see “a” and “b” below) and five (5) metal studs (see “c”
below). These non-combustible framing members are required in front of the fireplace to support the
facing. Secure the bottom channel (“a” – the thicker, 16 gauge channel) to the fireplace using sheet
metal screws (maximum screw length is 1”). Secure the top channel (“b”) to the framing. Then secure
the metal studs to the channels (the metal channel has pre-drilled holes for securing the studs).
c
a
b

16 Installation (for qualified installers only)
© Travis Industries 4140717 100-01351
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff valve must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
the requirements listed below.
The fireplace and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures under
1/2 psig (3.5 kPA), isolate the gas supply piping by closing the manual shutoff valve.
Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
The fireplace has an internal shutoff valve. An additional shutoff valve is required. It must be
accessible and within 6’ of the fireplace.
Fuel
This fireplace is designed either for natural gas or for propane (but not for both).
Gas Line Connection
Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a
licensed plumber/gasfitter).
Gas Inlet Pressure Maximum Input Pressure Minimum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 5.5” W.C. (1.37 kPA)
Propane 13" W.C. (3.23 kPA) 11” W.C. (2.74 kPA)
If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately
adjusted, and the total gas load for the residence does not exceed the amount supplied.
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the input pressure listed above. Contact the local gas supplier if the regulator is at an improper
pressure.
Gas Line Location
The gas line is located on the left side of the appliance in the location shown below. The gas inlet
accepts a 3/8” FPT.
13-1/2"
343mm

2-1/2"
64mm
1" 25mm

Installation (for qualified installers only) 17
© Travis Industries 4140717 100-01351
Accessing Internal Components
Turn off gas to the fireplace prior to accessing internal components to prevent accidental ignition. Shut
off electricity to the fireplace to prevent protect internal circuits.
Three access panels are provided along the front of the fireplace to allow access to the internal
components of the fireplace. Follow the directions below to remove the access panel(s). The left panel
is shown in the pictures below. The same process is used for the center and right side panel.
Remove the glass frame. Remove the front firebox tray (it is painted, enamel, or stainless steel). Take
care to prevent scratching any surfaces.
Remove the screws holding the left access panel in place.
Remove the access panel and place it aside (take care to prevent damage the wiring leading to the snap disc).

18 Installation (for qualified installers only)
© Travis Industries 4140717 100-01351
Internal Shut Off Valve Access
The internal shutoff valve may be accessed without removing the burner. See the instructions below.
NOTE: The shut off valve must be closed while pressure testing the gas line leading to the fireplace.
Turn off gas to the fireplace prior to accessing internal components to prevent accidental ignition. Shut
off electricity to the fireplace to prevent protect internal circuits.
Remove the left side access panel (see page 17)
The shutoff valve is located near the gas inlet. Reach in and turn the gas control valve or use a tool to
carefully reposition the valve knob.

Installation (for qualified installers only) 19
© Travis Industries 4140717 100-01351
Mounting the Battery Box
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace.
Overview of Battery Box Installation
Staple the wire near the junction
box. This prevents the wires
from slipping out of the junction
box during installation. Take
care to prevent damage to wires.
Junction Box
Battery Box
Cover Plate, Switch, and
Screws (included) -
Make sure the switch on the
cover plate lines up with the
switch on the battery box.
Battery Box Wire
Wire Length 12'
Do not route the wires over the top of
the fireplace.
Remove the cover plate
to access the batteries.

20 Installation (for qualified installers only)
© Travis Industries 4140717 100-01351
Mounting the Battery Box (continued)
This fireplace includes a battery box that must be installed in an accessible location. The battery box
has a switch for turning the fireplace on, off, or to remote. It also has a button for synchronizing the
remote to the fireplace.
The 12’ (3.5M) long battery box wire exits the fireplace on the left side.
Install the battery box m in a location that may be reached by the 12’ (3.5M) long battery box wire..
This location box must be accessible after installation.
Route the battery box harness through the back of a junction box and secure the wire with 3” to 6” of
slack.
Attach the battery box wire to the back of the battery box. Then secure the battery box to the
junction box with the included screws. Attach the cover plate to the battery box to finalize the
installation.
The battery box wire is shipped secured to the side of the fireplace.
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.
