Travis Industries 4415 HO GSR2 User manual

4415 HO GSR2
Fireplace
• Direct Vent Fireplace
• Natural Gas or Propane
• Vent Horizontally or Vertically
• Standard Residential
• Mobile Home Approved
Tested and Listed by
Report # 100866536PRT-001
ANSI Z21.88 CSA 2.33
WARNING: If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Installation Manual
Installer: After installation give this manual to the home-
owner and explain operation of this heater.
©Copyright 2014, T.I. $10.00 100-01353 4140108
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4140108 100-01353
Overview
This manual details the installation
requirements for the 4415 HO GSR2 fireplace.
For operating and maintenance instructions,
refer to the 4415 HO GSR2 Owner's Manual
(part # 100-01354).
Listing Details
This appliance was listed by Intertek Test Labs
to ANSI Z21.88. The listing label is attached to
the appliance near the gas control valve. A
copy is shown to the right.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters.
National Fireplace Institute
Report No. G100866536PRT-001
Control No. 4000515
Vented Gas Fireplace Heater
4415 GSR2
Tested to:ANSI Z21.88-2009/CSA 2.33-2009 “Vented Gas Fireplace Heater”, CGA2.17-M91 (R2009) “Gas Burning Heating Appliances for Manufactured Homes”, and CSAP.4.1-09 Testing method for measuring annual fireplace efficiency. This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSAB149.1. This appliance must be installed in accordance with the current Standard CAN/CSA Z240 MH, Mobile Housing, in Canada or with the Manufactured Home Constructions and Safety Standard, Title 24 CFR, Part 3280, in the UnitedStates, orwhen sucha standardis notapplicable,ANSI/NCSBCSA225.1/NFPA501A,Manufactured Home Installation Standard. Thisvented gas fireplaceheater is equippedat the factory for usewith natural gas.If conversion topropane (LP) is desired, the optional factory conversion kit must be used. Part No. 250-02897 register kit may be used. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket,permanently located,manufactured home (USAonly)or mobile home,where notprohibited by local codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. This vented gas fireplace heater is not for use with air filters. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. Use only approved coaxial direct vent system to vent this appliance to the exterior. See owner’s manual for approved brands of venting. If the vent-air intake system is disconnected for servicing or any other reason, it must be resealed and / or reinstalled. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL
Minimum Clearances to Combustibles
Fireplace to Adjacent Wall Wood Floor Beneath Fireplace Back to Enclosure
3” (77mm)
0” (0mm)
0.125” (4mm)
Base of Fireplace to Enclosure Top Sides to Enclosure Base of Fireplace to a Mantel
60” (1524mm)
0.625” (17mm)
See Owner’s Manual
FAN TYPE VENTED CIRCULATOR
Blower Electrical Rating: 120V., 4.5 Amps, 60 Hz, 540 Watts
Part No. 250-02898 / 250-02899 fan or blower assembly may be used.
DANGER! Risk of Electric Shock. Disconnect power before servicing unit.
Minimum Inlet Pressure (inches W.C.) Maximum Inlet Pressure (inches W.C.) Manifold Pressure on “HI” (inches W.C.)
L.P.
11”
13”
11”
N.G.
5.5”
7”
3.8”
Input Rate on “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr) Orifice Size - (DMS)
L.P.
42,000 21,413
#49
N.G.
42,000 21,672
#31
This appliance is equipped for use only at altitudes 0-2,000 feet (0-610m) in the USA. In Canada, 0-4,500 feet (0-1370m). For altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed. See owner’s manual for information on making these changes.
2014 2015 2013
Feb. Mar. Jan.
May Jun. Apr.
Aug. Sep. Jul.
Nov. Dec. Oct.
MANUFACTURE DATE:
WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Manufactured by:
www.travisproducts.com
CAUTION:
Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.
1070

Table of Contents 3
© Travis Industries 4140108 100-01353
Overview ................................................................... 2
Listing Details........................................................... 2
Installation Options.................................................. 6
Heating Specifications............................................. 6
Dimensions............................................................... 6
Packing List .............................................................. 7
Additional Items Required....................................... 7
Recommended Installation Procedure................... 7
Massachusetts Requirements ................................ 8
Requirements for the Commonwealth of
Massachusetts.................................................................8
MANUFACTURER REQUIREMENTS.............................8
Fireplace Placement Requirements ....................... 9
Clearances ......................................................................9
Raised Fireplaces............................................................9
Minimum Framing Dimensions........................................10
Nailing Brackets...............................................................11
Corner Installations..........................................................12
Removing the Front Panel....................................... 13
Gas Line Requirements........................................... 14
Fuel .................................................................................14
Gas Line Connection.......................................................14
Gas Inlet Pressure...........................................................14
Directions for Connecting a Gas Pressure Test Gauge...14
Gas Line Location............................................................15
Relocating the Gas Line to the Baseplate ......................15
Electrical Connection............................................... 16
Relocating the Electrical Line to the Baseplate ..............16
Vent Requirements................................................... 17
Vent Clearances..............................................................17
Vent Firestop...................................................................17
Altitude Considerations....................................................17
Approved Vent.................................................................17
Vent Installation...............................................................17
Vertical Pipe Shield .........................................................18
Pipe Shield ......................................................................19
Approved Vent Configurations............................... 20
Restrictor Position ...........................................................20
Exhaust Restrictor...........................................................20
Intake Restrictor ..............................................................21
Diffuser............................................................................22
Vent Configuration: Horizontal Termination
with 12” Vertical Rise (minimum) ........................... 23
Vent Configuration: Vertical Termination.............. 24
Vent Configuration: Horizontal Termination
with Vertical Rise...................................................... 25
Vent Configuration: Horizontal Termination
with Vertical Rise – 8” Vent..................................... 26
Termination Requirements...................................... 27
Hearth Requirements............................................... 28
Drywall Supports...................................................... 28
Facing Requirements...............................................29
Do Not Drill or Screw Zone..............................................30
Mantel Requirements...............................................31
Mantel Column Clearances...........................................31
Steps for Finalizing the Installation........................32
Air Shutter Adjustment ....................................................33
Glass Frame Removal and Installation ..................34
Fireback Installation.................................................36
Crushed Glass Installation......................................38
LP Conversion Instructions ....................................39
Wiring Diagram.........................................................43
Power Heat Duct Installation...................................44

4 Safety Precautions
© Travis Industries 4140108 100-01353
Safety Warnings
•Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
•This unit must be installed by a qualified installer to prevent the possibility of an explosion.
•This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
•A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
•All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
•Notify your insurance company before hooking up this fireplace.
•The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
•The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
•This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
•Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
•If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
•It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
•Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
•Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
•Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.
•Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
•Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
•Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
•The viewing glass should be opened only for conducting service.
•Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4140108 100-01353
Safety Warnings (continued)
•Allow the heater to cool before carrying out any maintenance or cleaning.
•Operate the heater according to the instructions included in this manual.
•If the main burners do not start correctly turn the gas off and call your dealer for service.
•This unit is not for use with solid fuel.
•Do not place anything inside the firebox (except approved Travis Industries components).
•Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
•Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
•Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals
out of the room and away from hot surfaces.
•Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition. Do not touch the hot surfaces of the heater. Educate all
children of the danger of a high-temperature heater.
•Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
•Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
•Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).

6 Features and Specifications
© Travis Industries 4140108 100-01353
Installation Options
•Residential or Mobile Home
•Straight or Corner Placement
•Raised or Floor Placement
•Internal or External Chase
•Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* Up to 2,100 Up to 2,100
Maximum BTU Input Per Hour 42,000 42,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.
Dimensions
Left
a' gauche
Front
avant
Right
droit
Rear
arrie're
48-3/4" *
1239mm *
16-1/2" *
420mm *
60"
1524mm
37-3/8"
924mm
1"
25mm
1/2"
12mm
* Includes the requisite clearance to framing (1/8"
4mm to rear, 5/8" 16mm to the sides)
Framing Opening
10-3/8"
264mm
15-3/4"
401mm
11-1/4"
286mm
7-5/8"
194mm
34-3/4"
883mm
1150mm
45-1/4"
255 lbs.
115 Kg.

Installation (for qualified installers only) 7
© Travis Industries 4140108 100-01353
Packing List
•Propane Conversion Kit
•Remote Control
•4 AA Batteries, 3 AAA Batteries
•Glass Latch Tool
•(2) Firestops (8” Diameter)
•Top Drywall Support
•Heat Shield
Additional Items Required
•If using LP (propane) a conversion kit is required (sku 94400999 – GSR Stepper Motor Kit).
•Gas Line Equipment (shutoff valve, pipe, etc.)
•Electrical Equipment (min. 14 gauge, grounded line)
•This Fireplace Requires Firebacks and 7 lbs. of 1/4” Crushed Glass
Firebacks 96100971 Stainless Steel
96100972 Black Enamel
96100973 Black Painted
96100974 Ledgestone
Crushed Glass 94500580 Platinum (10 lbs.)
94500581 Bronze (10 lbs.)
94500582 Cobalt (10 lbs.)
Recommended Installation Procedure
•Frame the opening for the fireplace. Make sure to allow for vent installation.
•This fireplace is designed to accommodate 1/2" (13mm) drywall (see "Nailing Brackets" on page 11 for
details). Secure the fireplace to the framing.
•Install the vent, gas line and electrical hook-up.
•Install the drywall.
•Install the hearth (if applicable).
•Install the facing (if applicable).
•Install the mantel (if applicable).
•Finalize the installation (see page 31).

8 Installation (for qualified installers only)
© Travis Industries 4140108 100-01353
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for
venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list
and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 9
© Travis Industries 4140108 100-01353
Fireplace Placement Requirements
•Fireplace must be installed on a level surface capable of supporting the fireplace and vent
•Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
•Fireplace should be located out of traffic and away from furniture and draperies.
•Fireplace must be placed so the gaps below and above the glass frame do not become blocked.
•Fireplace may be placed in a bedroom. Please be aware of the large amount of heat this appliance produces
when determining a location.
Clearances

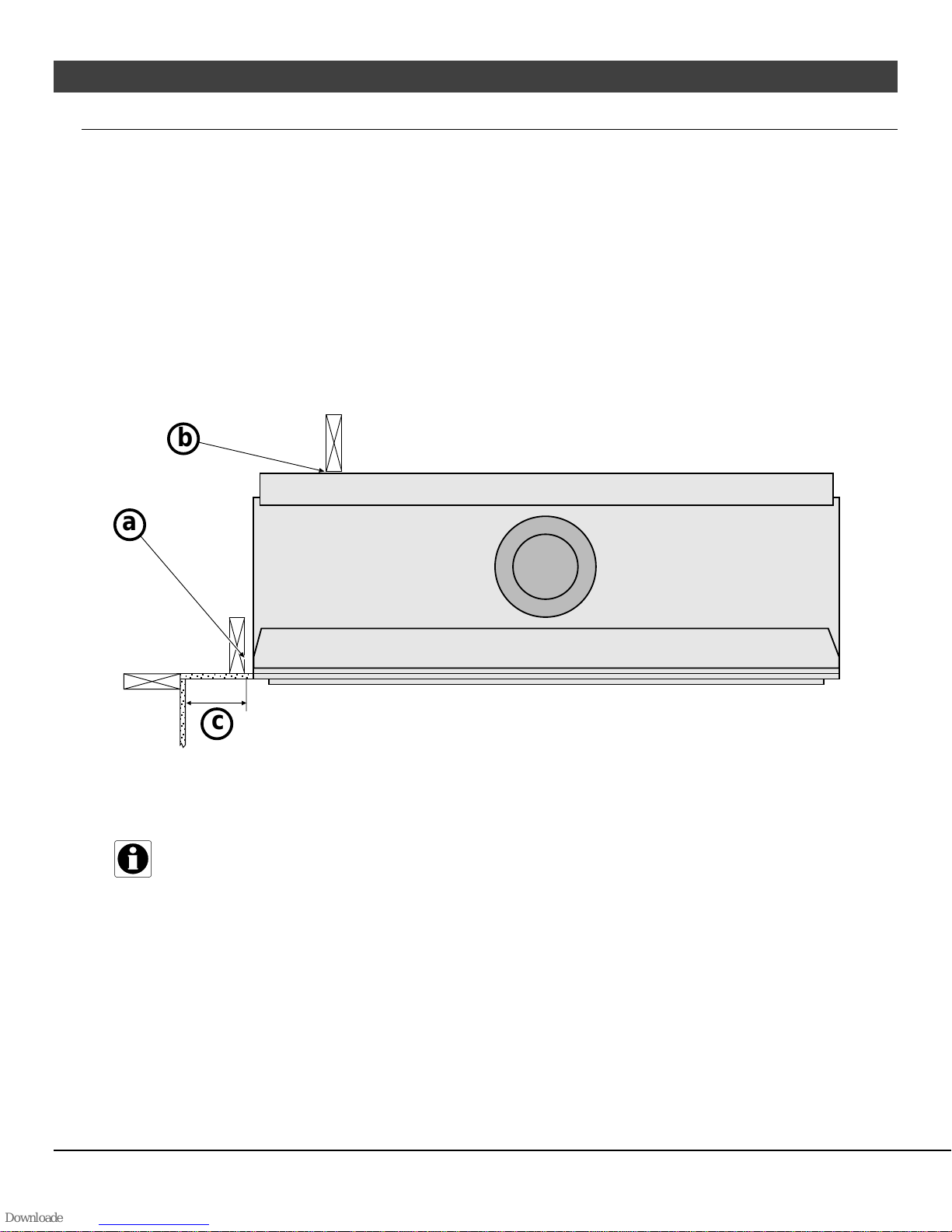

(a) Clearance to Side of Fireplace 5/8” (16mm). Do not place insulation in this space.
NOTE: Drywall or other combustible may contact the side of the fireplace in front of the framing. The
material must not protrude in front of the fireplace and may be a maximum ½” (13mm) thick.
(b) Clearance to Back of Fireplace 1/8” (4mm). Do not place insulation in this space.
(c) When installed, walls in front of the fireplace must be a minimum 3” (77mm) to the side of the fireplace.
Raised Fireplaces
•The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace and vent.
•The base of the fireplace must be a minimum 60” below the room ceiling.
The firebox opening is approximately 10.375” (264mm) above the base of the fireplace. For a
typical raised fireplace of 36” (915mm), place the fireplace on a platform 25.625” (651mm) tall.





a
c
b

10 Installation (for qualified installers only)
© Travis Industries 4140108 100-01353
Minimum Framing Dimensions
The fireplace enclosure must be a minimum 60” tall (do not build into the fireplace enclosure)
48-3/4"
1239mm
60"
1524mm
16-1/2"
420mm
a
60"
1524mm
a

Installation (for qualified installers only) 11
© Travis Industries 4140108 100-01353
Nailing Brackets

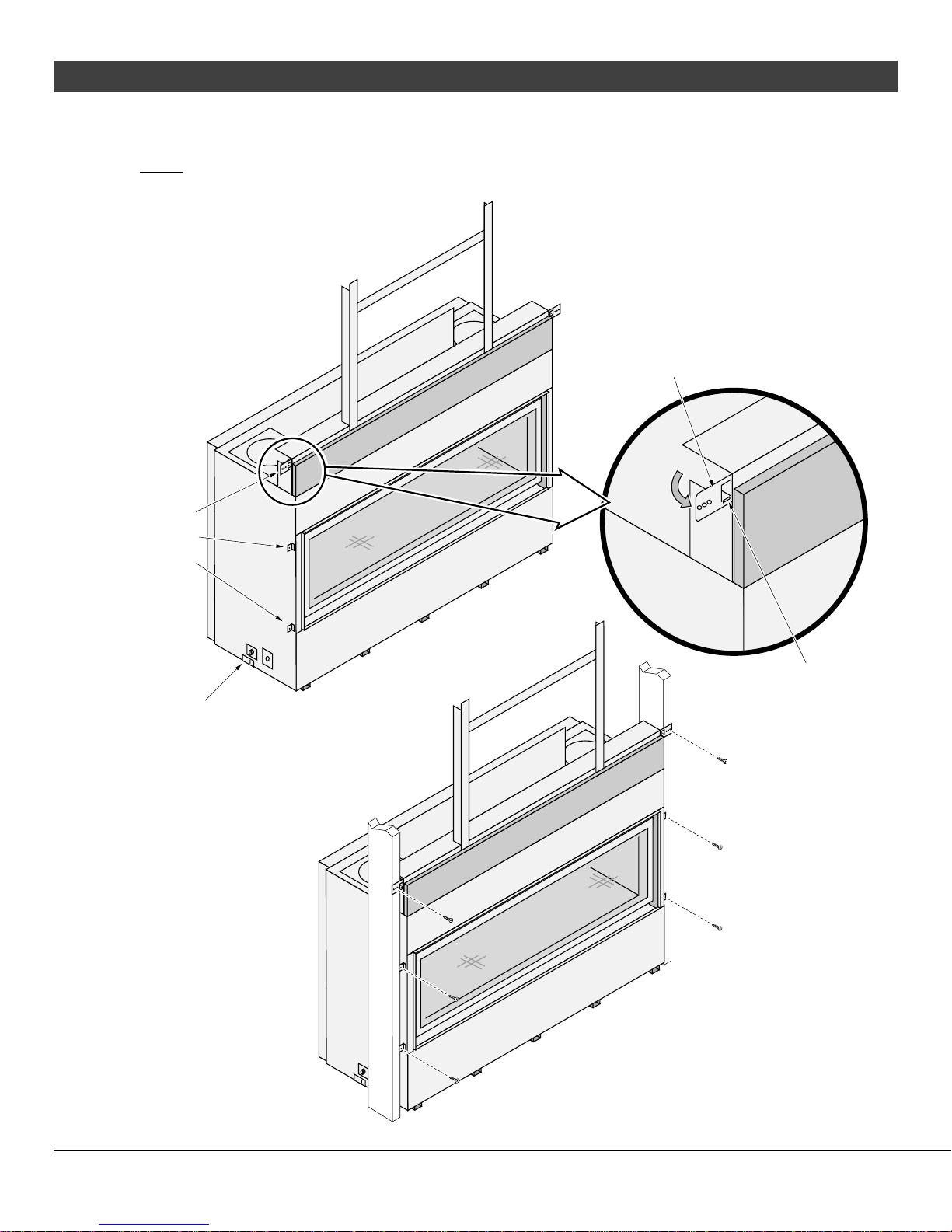

The fireplace has nailing brackets on both sides. Secure the fireplace to the framing.
NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-to-corner
the fireplace should be square. Use shims to insure the fireplace is square.
Bend the three
nailing brackets
out (each side)
NOTE: if you can not use the
front nailing brackets, an
additional bracket is supplied on
the side that allows the fireplace
to be secured to the floor (bend
tab down and secure).
Secure the fireplace to
the framing using the
nailing brackets
Nailing Bracket
This 5/8" (16mm)
tab acts as a
standoff and helps
center the fireplace
in the framing)

12 Installation (for qualified installers only)
© Travis Industries 4140108 100-01353
Corner Installations
A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still
apply).













































58-1/4" Min.
1480mm
Minimum 5/8" (16mm) Clearance





Typically
22-1/2"
572mm

Installation (for qualified installers only) 13
© Travis Industries 4140108 100-01353
Removing the Front Panel
The front cover may be removed to access the components. This is required when relocating the electrical or gas
inlet location. To remove the front cover
(a) Remove the
center nut.
(b) Loosen the
two outer
nuts.
(c) Rotate the
front panel
down.
(d) Remove the
front cover.
11/32" Nutdriver

14 Installation (for qualified installers only)
© Travis Industries 4140108 100-01353
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE
COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
•Flexible connector must not be longer than 36 inches.
•Shutoff valve must be a “T” handle gas cock.
•Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
•Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
•A carbon monoxide (CO) detector is required in the same room as the appliance.
•The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and NFPA
54(88), in Canada follow CSA B149.1 and the requirements listed below.
•The fireplace and gas control valve must be disconnected from the gas supply piping during any pressure
testing of that system at test pressures in excess of 1/2 psig (3.5 kPA). For pressures under 1/2 psig (3.5
kPA), isolate the gas supply piping by closing the manual shutoff valve.
•Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
•This unit has been listed using the included internal gas shutoff valve.
Fuel
•This fireplace is designed either for natural gas or for propane (but not for both).
Gas Line Connection
•Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts a licensed
plumber/gasfitter).
Gas Inlet Pressure Maximum Input Pressure Minimum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 5.5” W.C. (1.37 kPA)
Propane 13" W.C. (3.23 kPA) 11” W.C. (2.74 kPA)
•If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is adequately adjusted,
and the total gas load for the residence does not exceed the amount supplied.
•The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas
at the input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure.

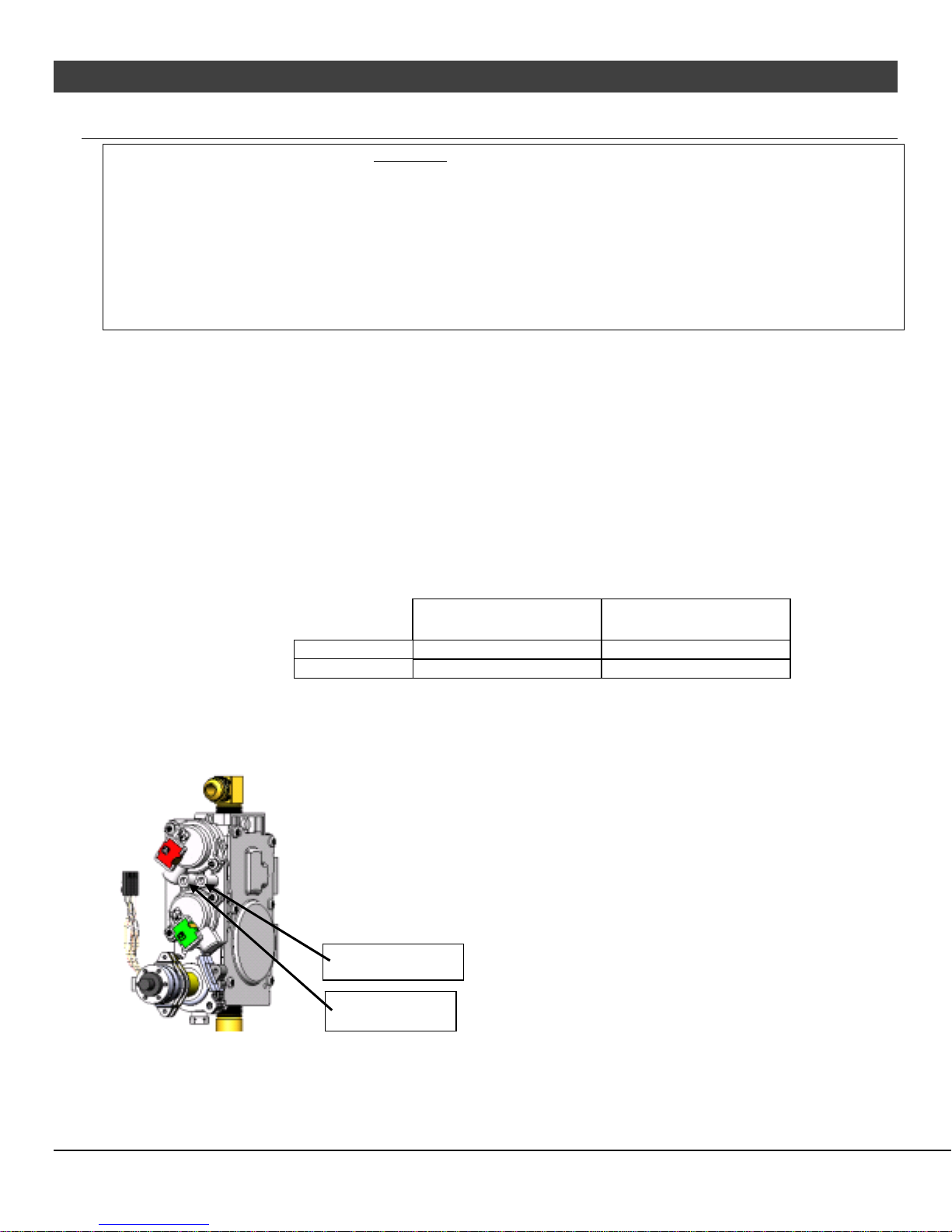

Directions for Connecting a Gas Pressure Test Gauge
The gas control valve (shown to the left) has two accessible ports for testing
line pressure and output pressure. Loosen the brass screw on either test port
and place a 5/16” i.d. rubber or plastic tubing over the tapered test port.
Connect the tubing to the test gauge.
WARNING: The brass screw must be tightened after testing to prevent gas
leakage.
Input pressure
Output pressure

Installation (for qualified installers only) 15
© Travis Industries 4140108 100-01353

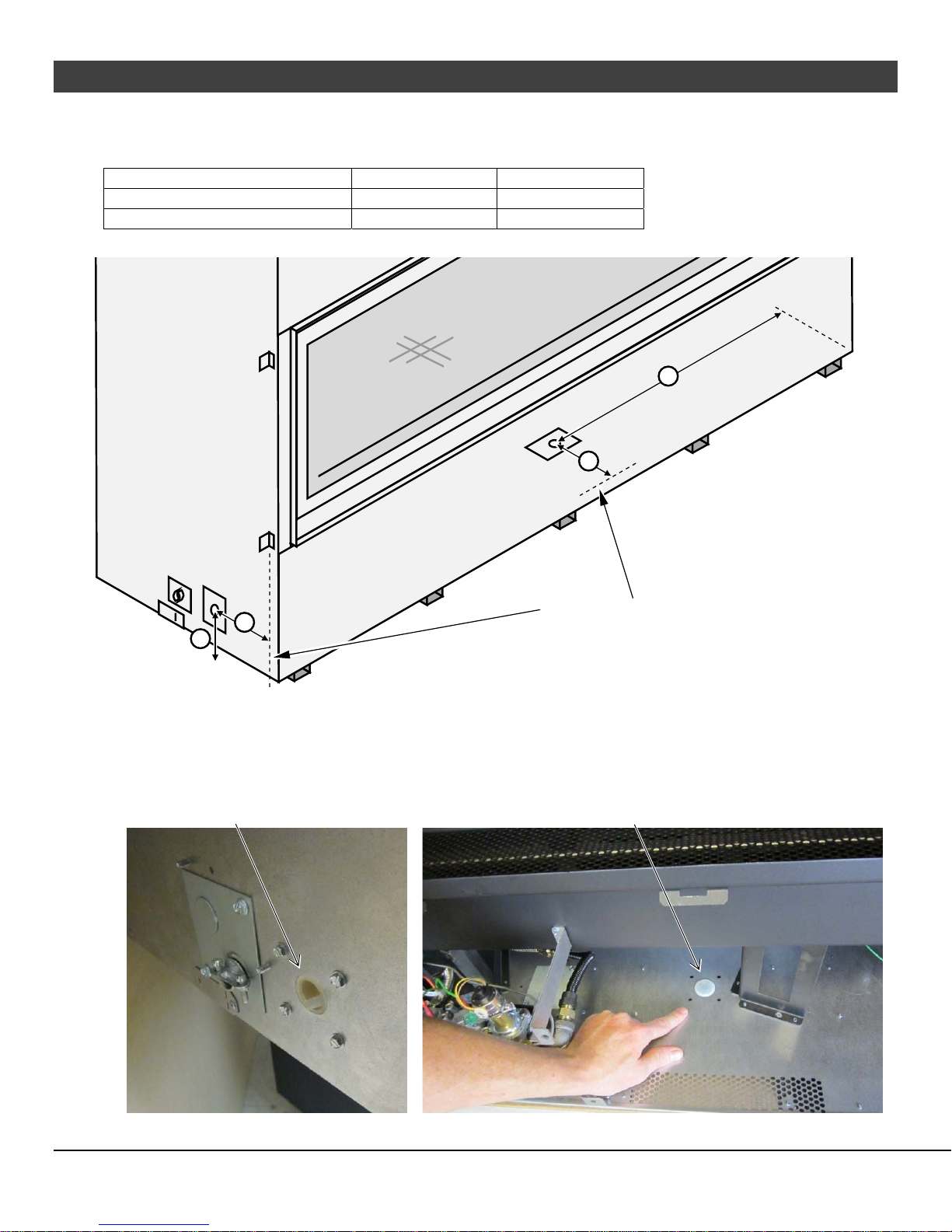

Gas Line Location
Gas line may be plumbed from the left side (stock) or below. See illustration and table below to determine gas line location.
a b
Left Side Gas Line Location (Stock) 4” (102mm) 3.25” (83mm)
Baseplate Gas Line Location 6.25” (159mm) 18.75” (477mm)
Relocating the Gas Line to the Baseplate
Remove the front panel (see page 13). Disconnect the gas inlet (shutoff valve) from the left side (keep the 4 screws). Re-
route the gas line to the baseplate and connect the gas inlet to the opening on the base using the 4 screws. Leak-test the gas
line to verify all connections are tight. Remove the plastic plug from the base and insert it into the hole on the left side.
Left Side Gas Line Location Baseplate Gas Line Location
Framing Opening
a
b
a
b

16 Installation (for qualified installers only)
© Travis Industries 4140108 100-01353
Electrical Connection
•The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and
must meet all local codes.
•Make sure the household breaker is shut off prior to working on any electrical lines.
•The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
•The electrical line must be a min. 14 gauge, and supply 120 Volts, 60 Hz, and 5.7 Amps.
•Route the electrical connection through the junction box cover plate and attach to the hookup wires pictured
below.
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace.
a b
Left Side
Electrical
Location
(Stock)
7”
(178mm) 3.5” (89mm)
Baseplate
Electrical
Location
7”
(178mm) 27” (686mm)
Relocating the Electrical Line to the Baseplate
Remove the front panel (see page 13). Remove the junction box from the left side (keep the screws). Remove the cover plate
from the baseplate (keep the screws). Attach the junction box to the baseplate (make sure all wiring is kept from contacting
hot or moving components). Attach the cover plate to the left side.
Junction Box Junction Box (from inside fireplace) Baseplate Cover Plate
abcd
Framing Opening
a
b
a
b

Installation (for qualified installers only) 17
© Travis Industries 4140108 100-01353
Vent Requirements
•The gas appliance and vent system must be vented directly to the outside of the building, and never be
attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance
must use its own separate vent system.
•In addition to the requirements listed here, follow the requirements provided with the vent.
Vent Clearances
•The vent must maintain the required clearance to combustible materials to prevent a fire. Do not fill air
spaces with insulation.
Minimum Vent Configurations (12” Rise – see page 23)
Minimum Clearance Above Vent 4" (104mm)
Minimum Clearance to Sides & Below Vent 1" (25mm)
NOTE: Make sure to use the included firestops with this configuration.
All Other Vent Configurations
Minimum Clearance to Vent 1" (25mm)
Vent Firestop
•A firestop is required whenever the vent penetrates a wall, floor, or ceiling (passes through framing
members).
Altitude Considerations
•This heater has been tested at altitudes ranging from sea level to 6,000 feet (1800 M). In this testing we have
found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
•Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Approved Vent
•Always use the high-wind cap. The high-wind sconce cap is not allowed.
•Installation instructions for Simpson Dura-Vent may be found at www.duravent.com.
Minimum Vent Configurations (12” Rise – see page 23)
Use 8" diameter Simpson Dura-Vent Model Direct-Vent Pro (or GS)*.
All Other Vent Configurations
Use 8" or 6-5/8” diameter Simpson Dura-Vent Model Direct-Vent Pro (or GS)* (see vent configuration for
details).
* Other vent may be approved with this fireplace. Check with the vent manufacturer for details).
Vent Installation
•Slide the vent sections together and turn 1/4 turn until the sections lock in place.
•Screws are not required to secure the vent. However, three screws may be used to secure vent sections
together if desired.
•High temperature sealant is recommended at the appliance starter section connection (use high-temperature
silicone or Mill-Pac®).
•If disassembly is required, at time of re-assembly check to see if the vent creates a tight fit. If it does not,
apply high temperature sealant to the joints of the affected sections.
•Horizontal sections require a 1/4" (6mm) rise every 12" (305mm) of travel.
•Horizontal sections require non-combustible support every three feet (e.g.: plumbing strap).

18 Installation (for qualified installers only)
© Travis Industries 4140108 100-01353
Vertical Pipe Shield
The vertical pipe shield must be bent to a vertical position after the fireplace is in position.

Installation (for qualified installers only) 19
© Travis Industries 4140108 100-01353

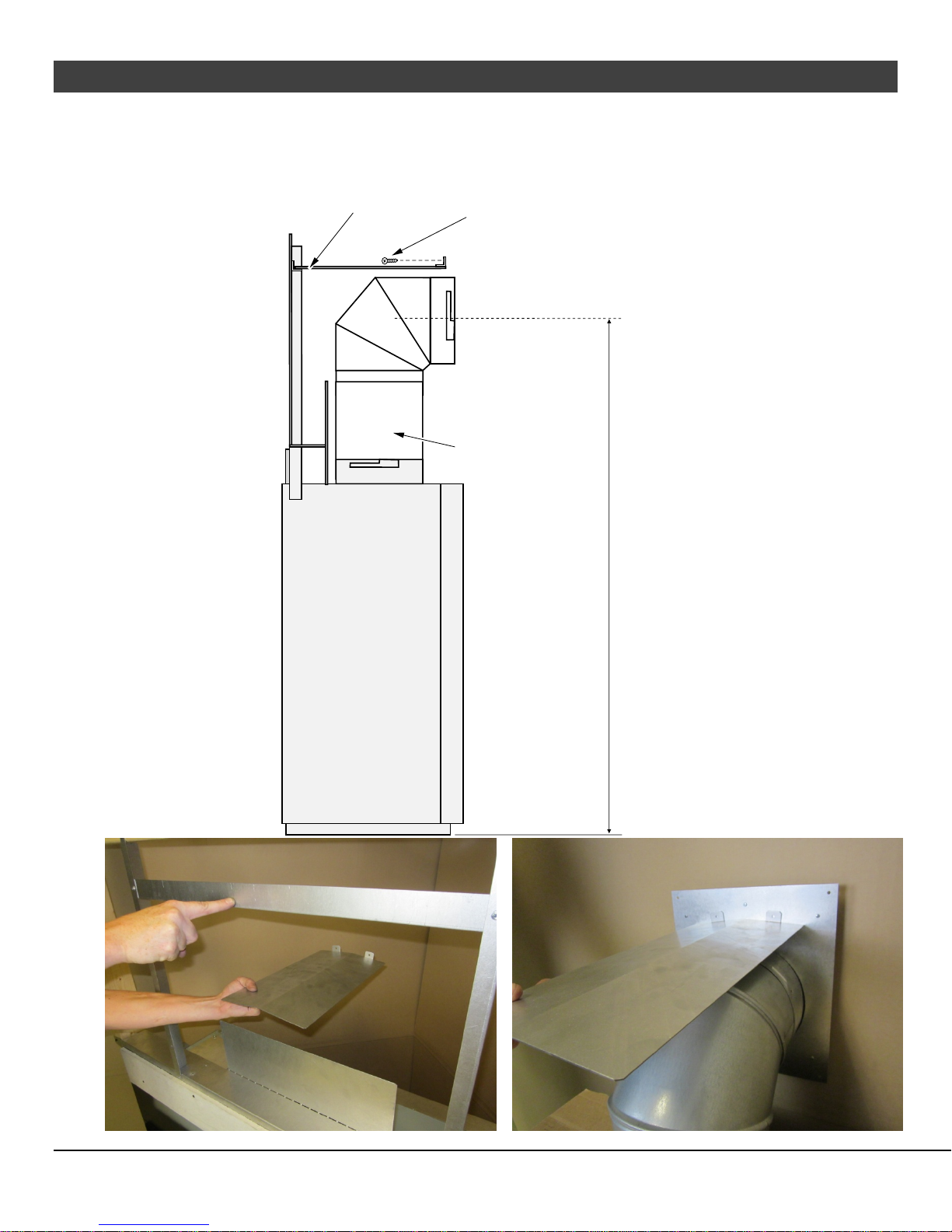

Pipe Shield
The pipe shield is shipped with the fireplace loose. It is only required for minimum vent configurations (12” rise –
see page 23). Attach the pipe shield as shown below.
The pipe shield rests on the
drywall support crossbeam.
12" Section (required)
Approximately
50-3/4"
1290mm
Secure the back of the pipe shield to the
firestop/framing to the rear of the fireplace.

20 Installation (for qualified installers only)
© Travis Industries 4140108 100-01353
Approved Vent Configurations
Restrictor Position
•Intake and exhaust restrictors are built into the appliance to adjust the flow rate of intake air and exhaust
gases. Depending upon the vent configuration, you may be required to adjust the restrictor positions. The
charts for vent configurations detail the correct vent restrictor positions.

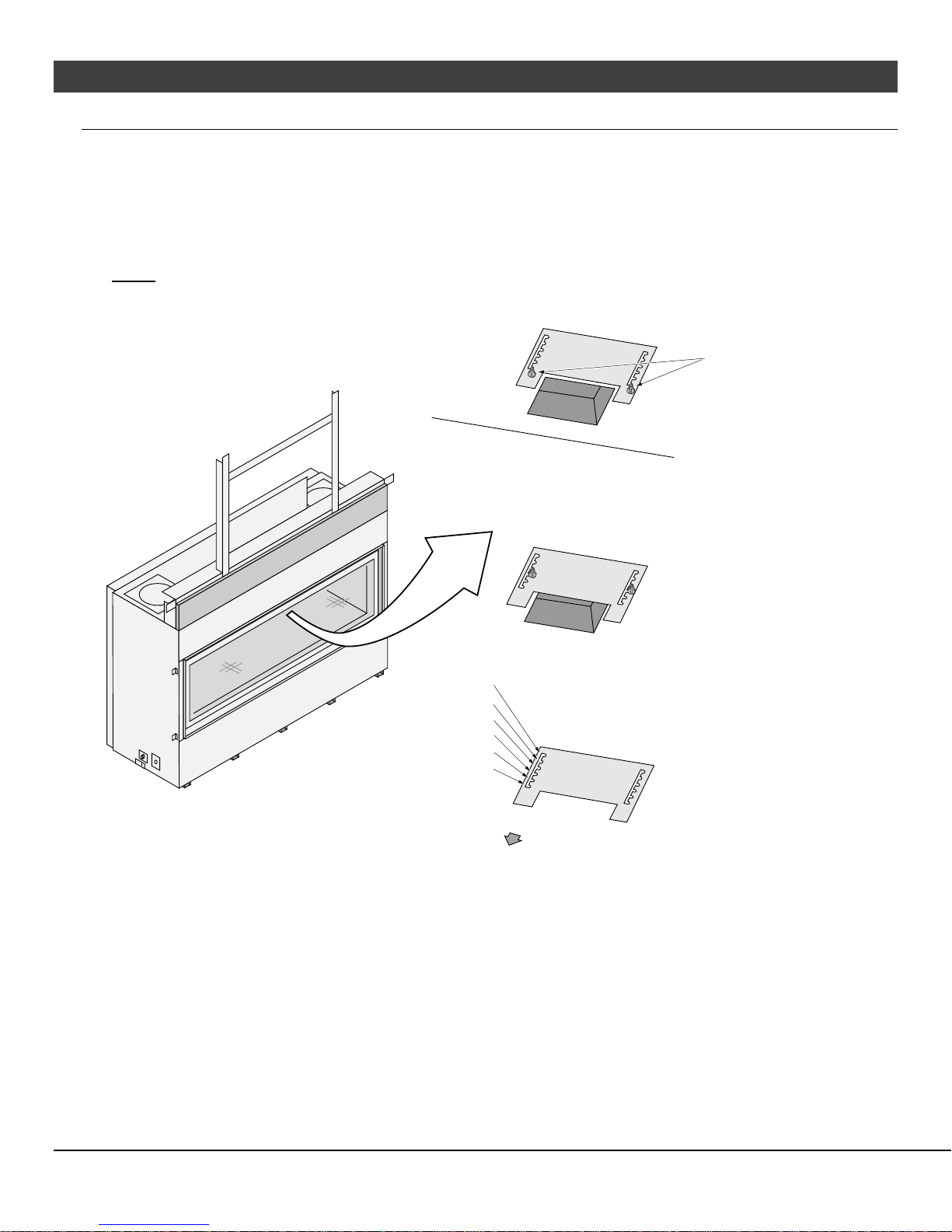

Exhaust Restrictor
NOTE: Certain vent configurations call for exhaust restrictor removal (position # 0). If this is the case, remove the
exhaust restrictor and replace the attachment screws in the firebox ceiling.
Loosen these 2 screws on
the exhaust restrictor.
Slide the restrictor to the correct
restrictor position (see the illustration
below). Screw location indicates
restrictor position. In this example, the
restrictor is set in position # 4. Tighten
the screws to secure the restrictor.
# 6
# 5
# 4
# 3
# 2
(open - stock position) # 1
Back of Firebox
Back Wall of Firebox
Firebox Roof
