Travis Industries DVS FIREPLACE User manual

DVS Insert
Direct Vent Fireplace Insert
¥ MASONRY or ZERO CLEARANCE
(METAL) FIREPLACE APPROVED
¥ MOBILE HOME APPROVED
Listed
ANSI Z21.44, Z21.11.4
CAN/CGA 1-2.19-M81, IR41, IR55, 2.17-M91
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this manual. For assistance or additional
information consult a qualified installer, service agency, or the gas supplier.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
- Installation must be performed by a qualified installer, service agency or the gas supplier
IF YOU SMELL GAS
¥ Do not try to light any appliance.
¥ Do not touch any electrical switch; do not use any phone in your building.
¥ Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
¥ If you cannot reach your gas supplier, call the fire department.
DVS INSERT
- November, 1999 -
Installer: After installation give this manual
to the homeowner and explain
operation of this heater.
Part # 93508098 $10.00
10850 117th Place N.E. Kirkland, WA 98033

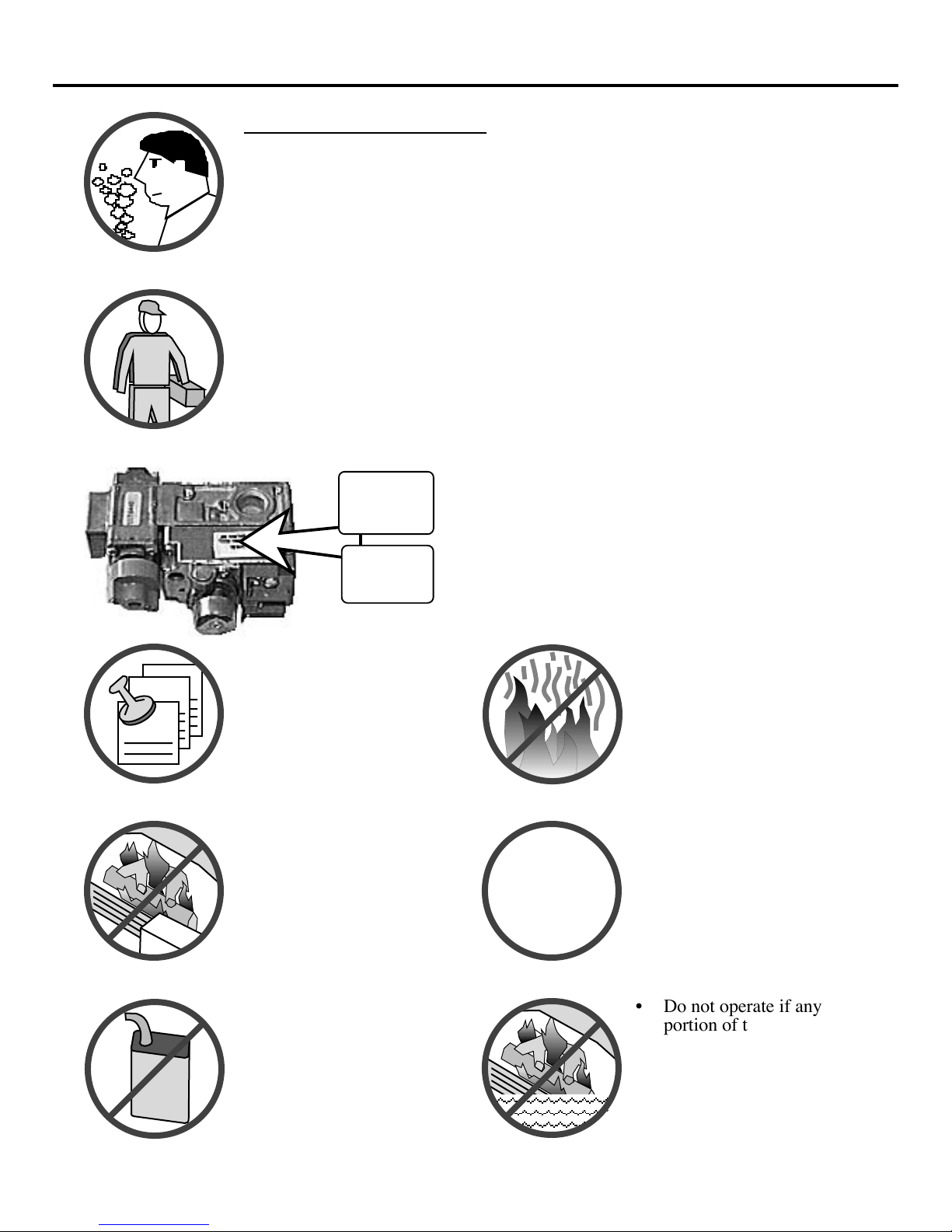

PAGE 2SAFETY PRECAUTIONS
¥ IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire department
¥ This unit must be installed by a qualified installer to prevent the possibility of
an explosion. Your dealer will know the requirements in your area and can
inform you of those people considered qualified. The room heater should be
inspected before use and at least annually by a qualified service person. More
frequent cleaning may be required due to excessive lint from carpeting,
bedding material, etc.
¥ The instructions in this manual must be strictly adhered to. Do not use
makeshift methods or compromise in the installation. Improper installation
will void the warranty and safety listing.
THIS CONTROL
HAS BEEN
CONVERTED TO
LP
THIS CONTROL
HAS BEEN
CONVERTED FOR
NATURAL GAS
¥ This heater is either approved for natural gas
(NG) or propane (LP). Burning the incorrect
fuel will void the warranty and safety listing and
may cause an extreme safety hazard. Check the
label above the gas control valve to make sure it
matches the fuel being used. Direct questions
about the type of fuel used to your dealer.
Ok
¥ Contact your local
building officials to
obtain a permit and
information on any
installation restrictions or
inspection requirements in
your area. Notify your
insurance company of this
heater as well.
¥ If the flame becomes
sooty, dark orange in
color, or extremely tall,
do not operate the heater.
Call your dealer and
arrange for proper
servicing.
¥ It is imperative that
control compartments,
screens, or circulating air
passageways of the heater
be kept clean and free of
obstructions. These areas
provide the air necessary
for safe operation. ?
¥ Do not operate the heater
if it is not operating
properly in any fashion or
if you are uncertain. Call
your dealer for a full
explanation of your heater
and what to expect.
Gas
¥ Do not store or use
gasoline or other
flammable liquids in the
vicinity of this heater.
¥ Keep all furniture or other
combustible items at least
36" away from the front
of the heater.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AA
AA
¥ Do not operate if any
portion of the heater was
submerged in water or if
any corrosion occurs.

SAFETY PRECAUTIONS (CONTINUED)PAGE 3
¥ Do not place clothing or
other flammable items on
or near the heater.
Because this heater can be
controlled by a thermostat
there is a possibility of the
heater turning on and
igniting any items placed
on or near it.
AA
AA
AA
AA
A
¥ Light the heater using the
built-in piezo igniter. Do
not use matches or any
other external device to
light your heater.
¥ Never remove, replace,
modify or substitute any
part of the heater unless
¥ The viewing glass should
be opened for service only
(see the maintenance
section of this manual).
¥ Any safety screen or
guard removed for
servicing must be
replaced prior to
operating the heater.
instructions are given in
this manual. All other
work must be done by a
trained technician. Don't
modify or replace orifices.
¥ Allow the heater to cool
before carrying out any
maintenance or cleaning.
¥ Operate the heater
according to the
instructions included in
this manual.
¥ If the main burners do not
start correctly turn the gas
off at the gas control
valve and call your dealer
for service.
¥ The pilot flame must
contact the thermopile
and thermocouple (see the
illustration to the left). If
it does not, turn the gas
control valve to "OFF"
and call your dealer.
AA
AA
AA
AA
¥ This unit is not for use
with solid fuel
¥ Do not place anything
inside the firebox (except
the included fiber logs).
¥ If the fiber logs become
damaged, replace with
Travis Industries log set.
This
Manual
¥ Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a
later time. Always follow
the instructions in this
manual.
¥ Do not touch the hot
surfaces of the heater.
Educate all children of the
danger of a high-
temperature heater.
Young children should be
supervised when they are
in the same room as the
heater.
¥ Plug the heater into a
120V grounded electrical
outlet. Do not remove the
grounding plug.
¥ Don't route the electrical
cord in front of, over, or
under the heater
¥ Instruct everyone in the
house how to shut gas off
to the appliance and at the
gas main shutoff valve.
The gas main shutoff
valve is usually next to
the gas meter or propane
tank and requires a
wrench to shut off.
¥Travis Industries, Inc.
grants no warranty,
implied or stated, for the
installation or
maintenance of your
heater, and assumes no
responsibility of any
consequential
damage(s).

PAGE 4TABLE OF CONTENTS
Introduction & Important Info. ...................1
Safety Precautions............................................2
Features & Specifications............................ 5
Installation Options ......................................... 5
Heating Specifications .....................................5
Dimensions..................................................... 5
Fuel, Compliance, Electrical ........................... 5
Insert Installation
Installation Preparation.................................. 6
Items Required for Installation ....................... 6
Packing Lists ................................................. 6
Order of Installation ....................................... 6
Insert Placement............................................ 7
Insert Clearances........................................... 7
Floor Protection ............................................. 8
Gas Line Installation ...................................... 8

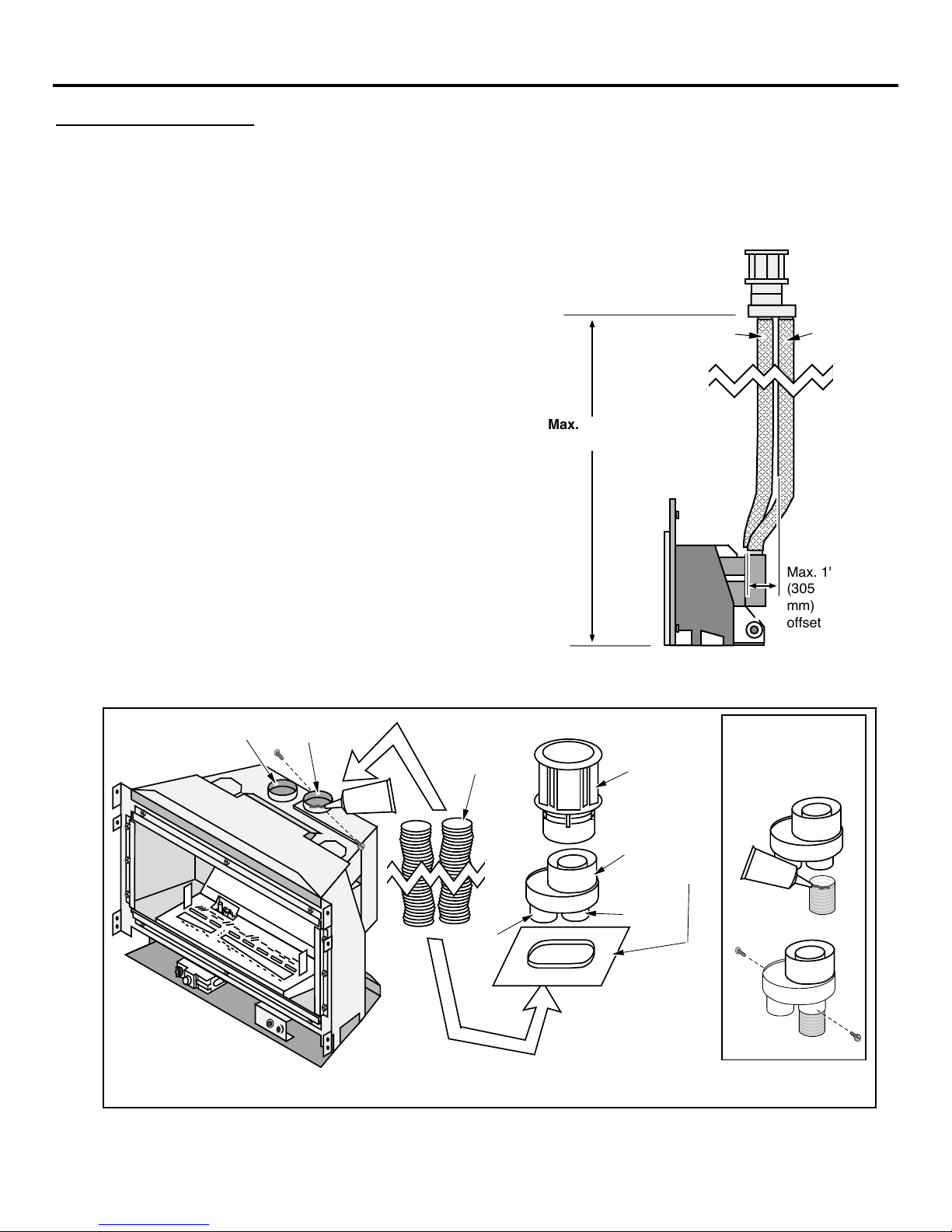

Vent Requirements........................................ 9

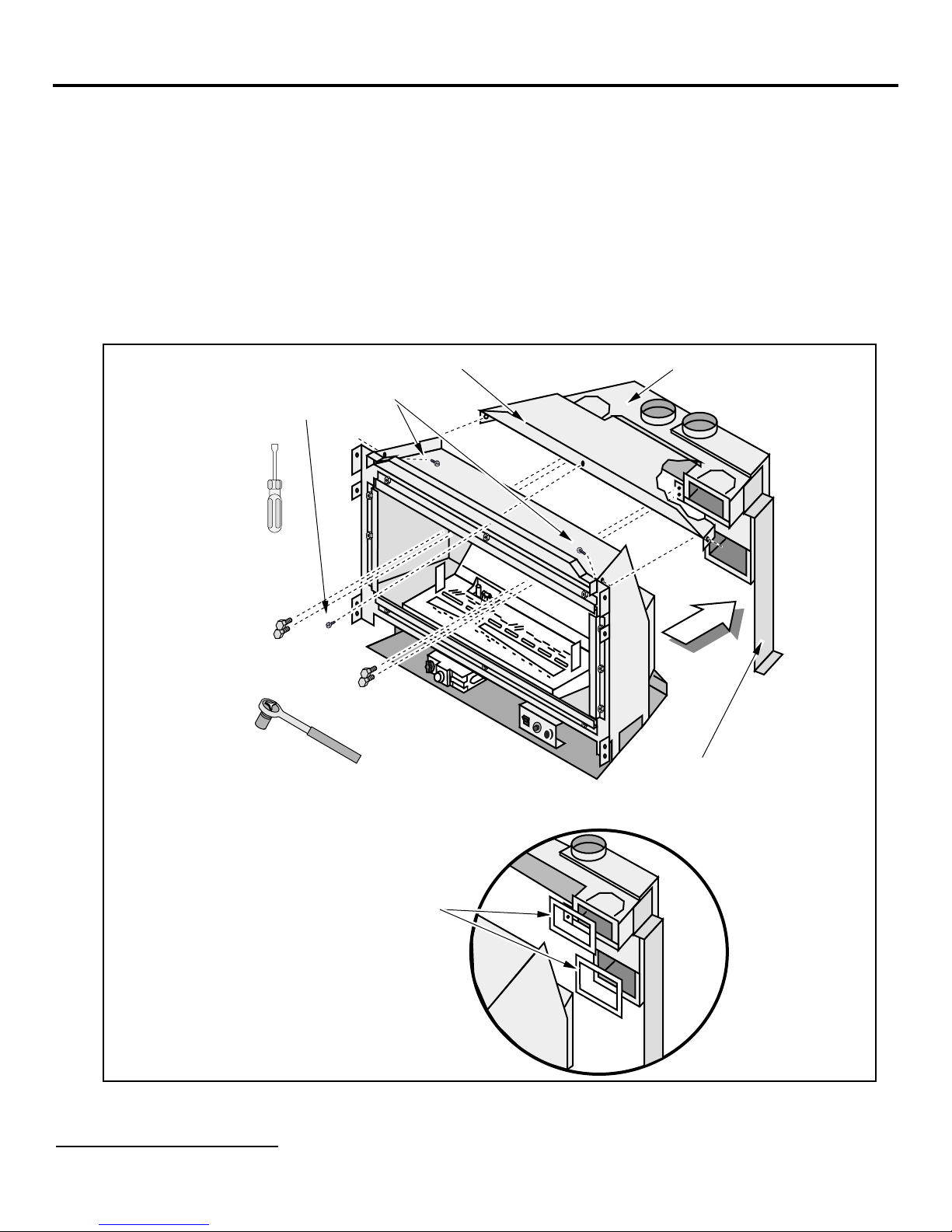

Surround Panel Installation ........................... 11
Manifold Removal and Installation................. 12
Finalizing the Installation
Glass Removal .............................................. 14
Log, Twig, and Ember Installation ................. 15
Purge and Leak Test the Gas Line................ 16

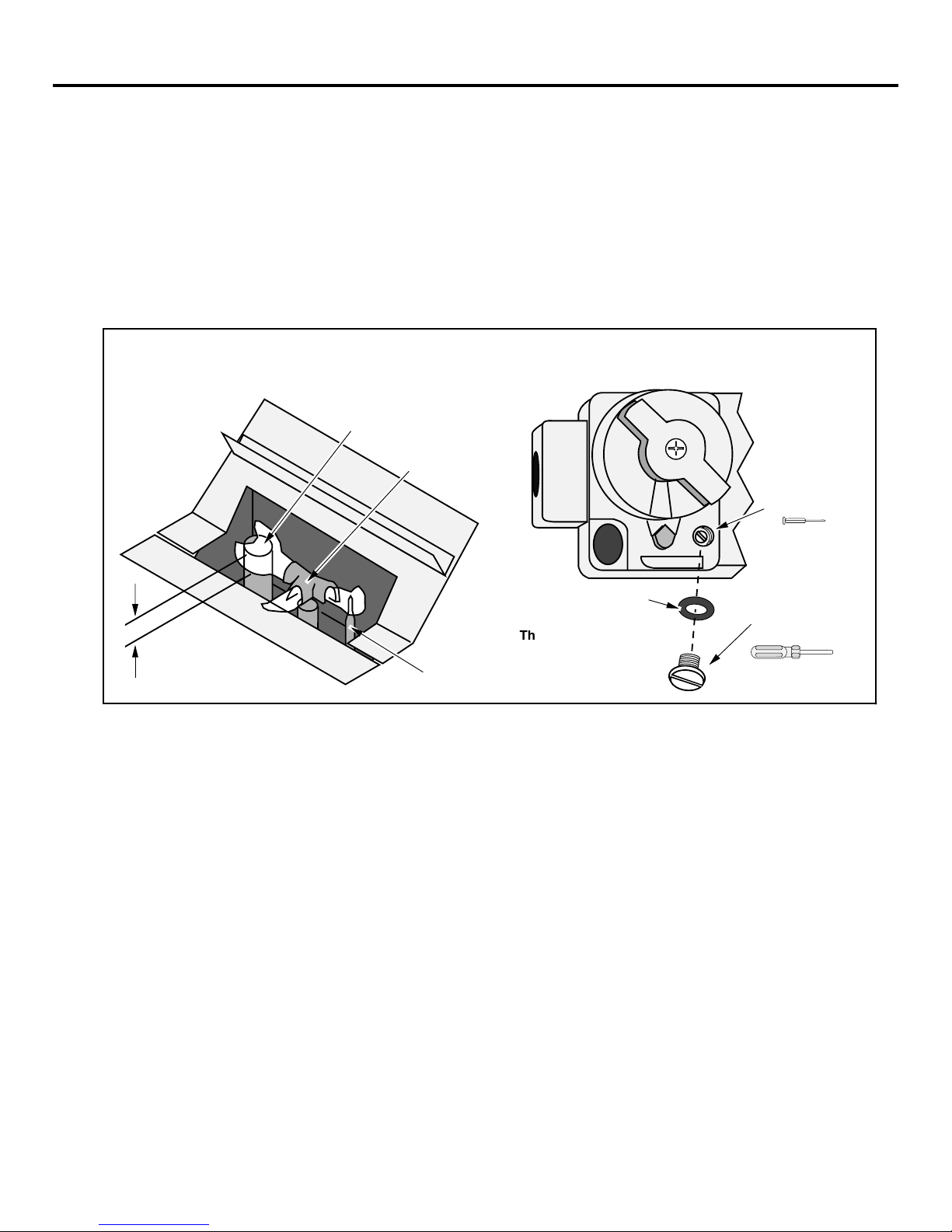

Pilot Flame Inspection ................................... 16

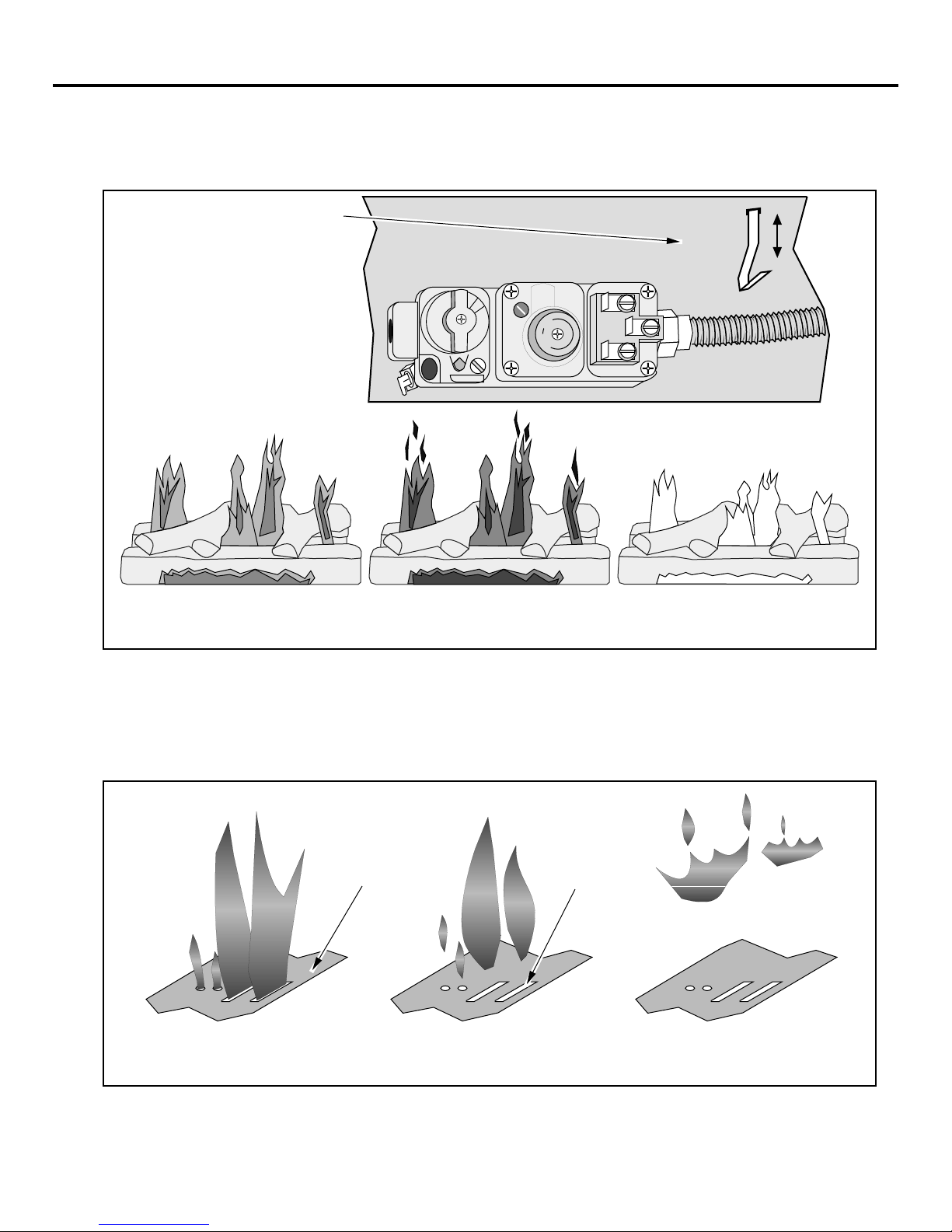

Air Shutter Adjustment................................... 17
Flame Inspection ........................................... 17
Explain Heater Operation to Owner............... 17
Operating Your Heater
Before You Begin.......................................... 18

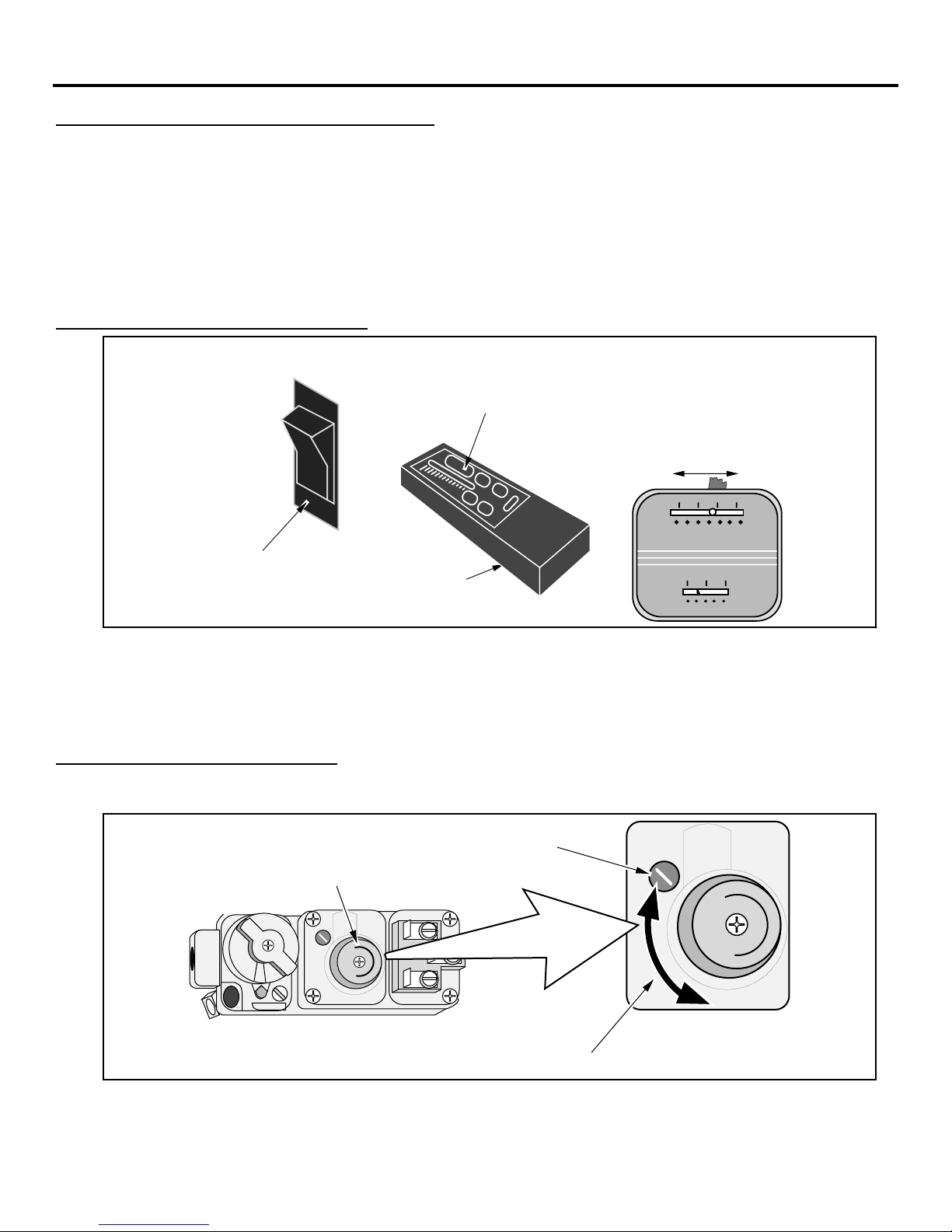

Location of Controls....................................... 18

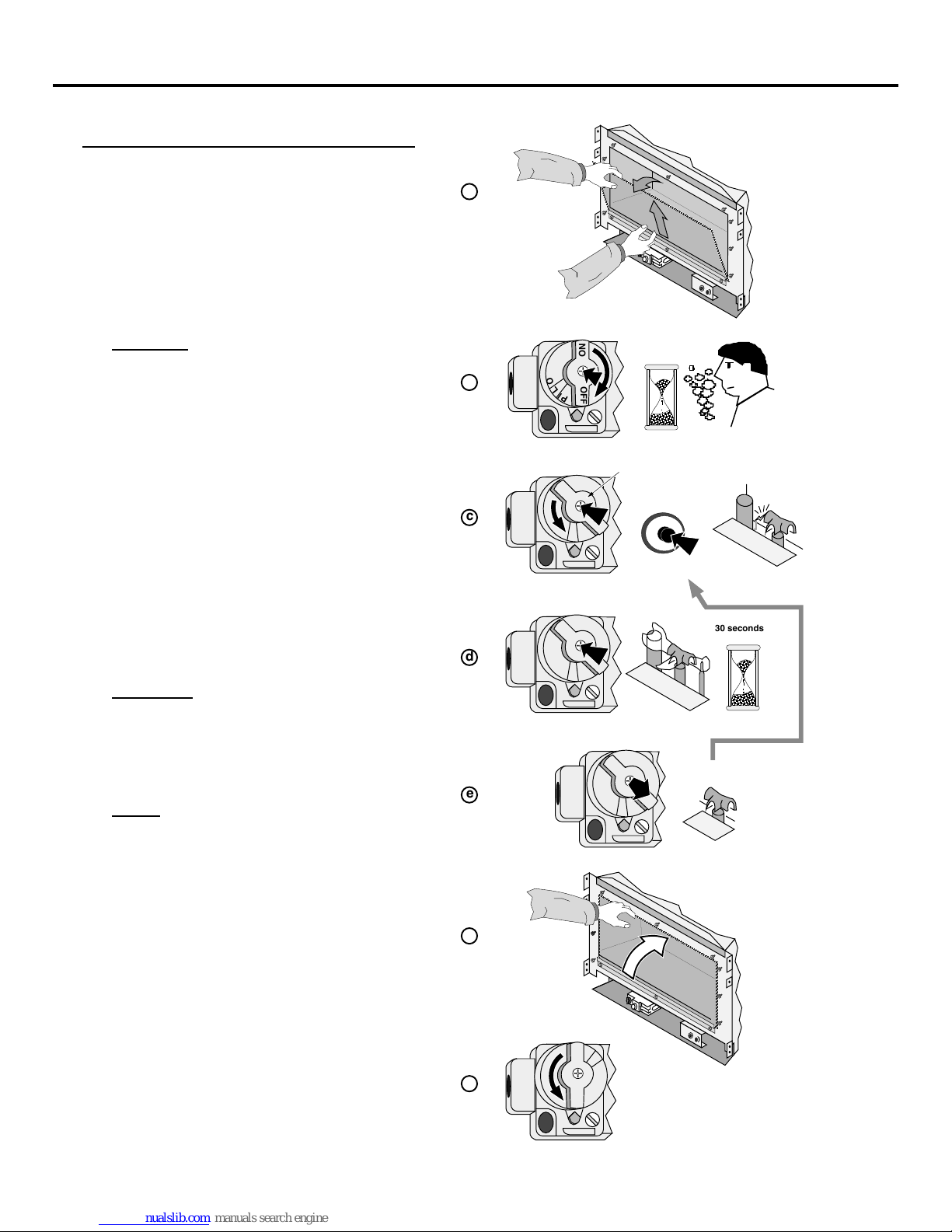

Starting The Pilot Flame ............................... 19
Starting the Heater for the First Time ............20
Turning the Heater On and Off ..................... 20
Adjusting the Flame Height............................20
Adjusting the Blower Speed.......................... 21
Normal Operating Sounds ............................. 21
Maintaining Your Heater
Maintaining Your Heater's Appearance ......... 22
Cleaning Your Heater ................................... 22
Yearly Service Procedure .............................. 22
Troubleshooting
Troubleshooting Table .................................. 23
How this Stove Works....................................24
Wiring Diagram ............................................. 25
Warranty................................................................ 26
Listing Information......................................... 27
Optional Equipment
Propane (LP) Conversion Kit ........................ 28
Thermostat.................................................... 34
Remote Control Thermostat ..........................35
Decorative Fireback....................................... 35
Addendum
Altitude Considerations ................................. 35
Index 36
Symbols Used in this Manual
The illustration below details what the symbols used along the left margin indicate.
Requirement
¥¥
¥¥ 11 11 !! !! ?? ?? ++ ++
Hint
NoteWarningStep

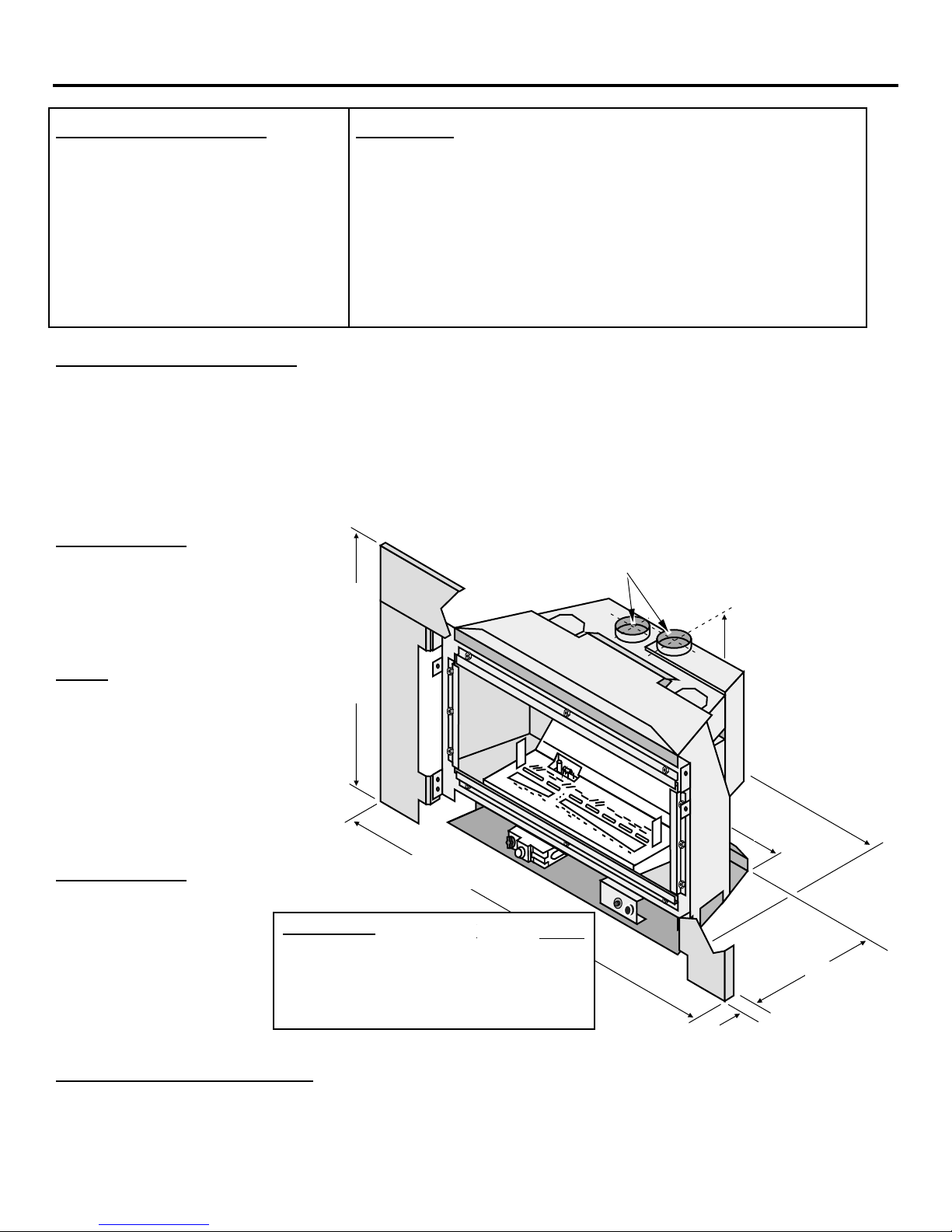

FEATURES AND SPECIFICATIONS PAGE 5
Installation Options:
¥ Residential or Mobile Home
¥ Fireplace Insert
¥ Masonry or Zero Clearance
(Metal) Fireplace Approved
Features:
¥ Works During Power Outages (standing pilot)
¥ High Efficiency
¥ Optional Thermostat or Remote Control
¥ Realistic "Wood Fire" Look
¥ Convenient Operating Controls
¥ Variable-Rate Heat Output
¥ Quiet Blower for Effective Heat Distribution
¥ Low Maintenance
Heating Specifications: Natural Gas LP (Propane)
Approximate Heating Capacity (in square feet)* 500 to 1,500 500 to 1,500
High Burn Input Rate (In BTU's) 31,000 31,000
Low Burn Input Rate (In BTU's) 18,600 16,000
Efficiency** 80 % 80.5 %
AFUE (Annual Fuel Utilization Efficiency) 71.3 % 71.8 %
* Heating capacity will vary with the home's floor plan and insulation, natural gas or Propane BTU rating, and outside temperature.
** Efficiency rating is a product of thermal efficiency rating determined under continuous operation independent of installed system.
To measure the net BTU's, multiply the BTU input by the efficiency percentage.
Dimensions:
Fuel:
This heater is
designed either for
natural gas or for
propane. Check
the sticker on top
of the gas control
valve.
Compliance:
This unit has
passed the ANSI
wall furnace
standard as tested
by OMNI
Environmental
Services, Inc.
40-3/8"* 8x10 Panels
44-3/8"* 10x13 Panels
28-7/8"*
8x10
Panels
31-7/8"*
10x13
Panels
15-3/4"*
* Includes trim & standoffs
1-3/8"*
24-3/8"
16-3/8"
19-1/8"
See the section "Vent Requirements"
for vent location.
Face Size: Width
32"
30"
31-5/8"
30-1/2"
33-7/8"
Discovery & Rosario (Avanti)
FPX 32 DVS
Heritage Bay
Salish Bay
Cambridge
Height
21-5/8"
22"
21-1/2"
22-1/2"
21-1/2"
Electrical Specifications:
120 Volts, 1.3 Amps, 60 Hz (150 watts on high)

PAGE 6INSERT INSTALLATION - For Qualified Installers Only!
Installation Preparation
! Failure to follow all of the requirements may result in property damage, bodily injury, or even
death.
! This appliance must be installed in accordance with all local codes, if any; if not, follow ANSI
Z223.1 and NFPA 54(88).
! In Manufactured or Mobile Homes must confirm with: In USA, Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280; In Canada, CSA Z240.4 and Gas-
Equipped Recreational Vehicles and Mobile Housing. This appliance may be installed in
Manufactured Housing only after the home is site located.
! This appliance is designed for natural gas but may be converted to propane (LP). Check the
sticker on top of the gas control valve.
! All exhaust gases must be vented outside the structure of the living-area. Combustion air is
drawn from outside the living-area structure.
! Notify your insurance company before hooking up this appliance.
! The requirements below are divided into sections - all requirements must be met
simultaneously.
Items Required for Installation
¥Face
¥Gas Hookup Equipment
¥Surround Panels (Includes hardware, trim, and insulation)
¥3" (75 mm) UL 1777 Gas Liner
¥Direct Vent Cap (Simpson Duravent Part # 991)
¥Direct Vent Adapter (Simpson Duravent Part # 923GK)
Items Packed with the Travis Ind. DVS
¥DVS Insert
¥Log Set (2 Logs, 2 Twigs, Embers)
¥Owner's Manual
¥Propane Conversion Kit
¥Two Leveling Bolts
¥6" Pipe Inlet (3/8")
Items Packed with the Face
¥Face (and door)
¥Attachment Screws (FPX 32 DV's include face mounting brackets)
¥Face Installation Instructions
Order of Installation
1If the heater is to use propane, install the propane conversion kit (see pages 28 - 33)
2Install gas line into the fireplace (do not connect to unit)
3Position the heater (see "Insert Placement")
5Connect the gas line and gas vent to the appliance.
6Install the optional surround panels and trim. Attach the on/off switch.
7Follow the instructions under "Finalizing the Installation" on pages 14 through 17.

INSERT INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 7
Insert
Placement
¥Insert must be
placed within a
code
conforming
masonry
fireplace or
any tested and
listed zero-
clearance
(metal)
fireplace
¥The fireplace
must be
undamaged
(repair any
damage prior
to installation).
The insert protrudes
15-3/4" (400 mm)
into the Fireplace.
Run the power cord to
either side of the
insert along the face.
Min. 30-3/8" (772 mm)
For tight fits (under 24" (610 mm)), you
may remove the manifold. See the
section "Removing the Manifold"
Use the leveling
bolts for fireplaces
with recessed floors.
Min. 19-1/8"
(486 mm)
Run the on/off switch wires to the
right, behind the surround panels.
The gas line and shutoff
valve should be installed
prior to insert placement.
- Includes 6" (150 mm)
for gas line installation
Insert Clearances
¥No combustibles may be within, or swing within, 36" (914 mm) of the front of the insert (drapes, doors)
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
Min. 6Ó (152 mm)
Side
Wall
Combustible Mantel
32Ó (813 mm)
Min. 6Ó (152 mm)
Top Facing
22Ó (559 mm)
Min. 8Ó (203 mm)
Side
Facing
Min. 10Ó (254 mm)
12Ó (305 mm)
Min.
Zero-Clearance (Metal)
Fireplace Requirements:
¥The damper ("A") and grate (with logset)
("B") must be removed (see the illustration
below)
¥The smoke shelf ("C"), internal baffles
("D"), screen ("E"), masonry lining or
refractory ("G" & "I"), and metal or glass
doors ("F") may be removed (if applicable)
¥The insulation ("H"), and any structured
rigid frame members (metal sides, floor,
door frame, face of the fireplace, etc.) may
not be removed or altered.
A
A
A
A
A
A
C
B
F
I
D
E
A
AA
AAA
AA
AA
AA
AA
G
AA
AAA
H

PAGE 8INSERT INSTALLATION (CONT.) - For Qualified Installers Only!
Floor Protection
¥The heater must be installed on a non-combustible hearth extending a minimum 12" (305 mm) from
the fireplace opening (local codes may require a larger hearth). Minimum width is 32" (813 mm).
Gas Line Installation
!The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI Z223.1
and the requirements listed below.
!The heater and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.45 kPA). For pressures under
1/2 psig (3.45 kPA), isolate the gas supply piping by closing the manual shutoff valve.
¥Leak test all gas line joints and the gas control valve prior to and after starting the heater.
Gas Line Connection
¥The location of the gas inlet is shown below
¥A manual shutoff valve is required on the gas line within 3' (914 mm) of the heater
PILOT ADJ
VENT
T
O
L
P
I
ON
OFF
HI
LO
Gas Control Valve
A 4" (102 mm) opening is provided on the left side. It is 2-1/2" (64 mm) tall.
3-3/8"
(86 mm)
The gas inlet on the gas control valve is
located 3" (76 mm) behind the fireplace
opening and 7" (178 mm) to the left of the
center of the appliance.
With the optional gas inlet pipe,
the inlet is located 3" (76 mm)
behind the fireplace opening
and 12-1/2" (318 mm) to the left
of center and 1-1/2" (38 mm)
above the base.
Shutoff Valve
6" (150 mm) Gas Inlet Pipe (shipped
with the insert in the accessory pack)
Shutoff Valve
Apply thread sealant to
both ends of the pipe prior
to installation.
Fuel
¥This heater is designed for natural gas but can be converted to propane. Check the sticker on the top
of the gas control valve to make sure the correct fuel is used.
Gas Inlet Pressure
¥With the heater off, the inlet pressure must meet the requirements listed in the table below
?If the pressure is not sufficient, make sure the piping used is large enough and the total gas load for
the residence does not exceed the amount supplied.
?The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank)
should supply gas at the suggested input pressure listed below. Contact the local gas supplier if the
regulator is at an improper pressure.
Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 11" W.C. (2.73 kPA)

INSERT INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 9
Vent Requirements
!The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas
appliance must use it's own separate vent system.
!Make sure the exhaust pipe on the heater connects to the exhaust portion of the cap. The illustrations
below show how the flex liners should be attached.
¥The exhaust vent must reline the entire length
of the chimney and terminate above the
chimney top
!If the heater is installed at an altitude over
3,000' (914 M) the flame quality will need to
be carefully evaluated. See Addendum #1,
"Altitude Considerations"(page 35).
!Be careful not to crimp or rupture the liner
when bending it into chimney offsets
¥When installed, the vent must meet all of the
vent manufacturer's requirements
¥Make sure to order the following:
¥ 3" (75 mm) UL 1777 Gas Liner
¥ Dura-Vent Adapter & Flashing (part #
923GK).
¥ Vertical Termination (part # 991)
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
Max. 1'
(305
mm)
offset
Max. Ht. 35' (10.7 M)
Min. Ht. 8' (2.4 M)
InletExhaust
Vent Installation
InletExhaust
Inlet
Exhaust
Termination
(Simpson
Part # 991)
DV Chimney
Liner Kit
(Simpson Part
# 923GK)
3Ó (75 mm)
UL 1777
Gas Liner
High-Temp.
Silicone
Apply high-temperature
silicone to the liners on
both ends and secure
with 2 screws.
Make sure to route the exhaust liner to the exhaust portion of the cap.
High-Temp.
Silicone

PAGE 10 INSERT INSTALLATION (CONT.) - For Qualified Installers Only!
Vent Location
2-1/2"
(64 mm) 15-3/4"
(400 mm)
2-1/2"
(64 mm)
13-1/2"
(343 mm)
Center Line
13-1/4"
(337 mm)
Inlet (3Ó (75 mm) Dia.)
Exhaust (3Ó (75 mm) Dia.)
Fireplace
Opening
Vent Configurations
Z.C. (Metal) firebox
Inlet & Exhaust Re-Line
AA
AA
AA
AA
AA
AA
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
Exhaust Only Re-Line
(recommended)
Direct Vent Cap
(part # 991)
Recommended Block-Off
Plate (non-combustible
metal and/or insulation).
Prevents odors from
chimney entering room.
3" (75 mm)
UL 1777
Gas Liner
Dura-Vent Termination Kit
(part # 923GK)
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
The block-off plate must
seal the intake to the
chimney space. This
way air is drawn down
the chimney for
combustion air.
Block-Off Plate
(non-combustible
materials)
NOTE: You may use either re-line configuration with a masonry or zero-clearance fireplace.
Inlet
Exhaust
Inlet
Exhaust
Masonry Fireplace
Suggestion:
Paint the fireplace cavity
with latex paint to eliminate
the possibility of odors from
the fireplace circulating into
the room.
Any cracks or
damage inside the
chimney must be
repaired.

INSERT INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 11
Installation Without Surround Panels
a
b
c
Keep the jumper wire in
place while installing.
Disconnect the on/off switch from
the red and brown wires. Insert
the switch into the hole until it
locks in place. Re-attach the red
and brown wires (orientation does
not matter).
Use a knife to cut out the on/off switch hole
(the label covers a square hole in the bracket).
AA
AA
AA
A
A
Use a lock tie or
other device to
bundle the
excess wire.
Then tuck it
below the piezo
igniter to keep it
from coming in
contact with the
burner pan.
The insert may be installed without surround panels if a 3/8"
(10 mm) gap is allowed between the sides and top of the face
and the fireplace (for ventiliation). Wire mesh screen may be
placed over this gap.
Min. 3/8"
(10 mm)
Face Size: Width
32"
30"
31-5/8"
30-1/2"
33-7/8"
Discovery & Rosario (Avanti)
FPX 32 DVS
Heritage Bay
Salish Bay
Cambridge
Height
21-5/8"
22"
21-1/2"
22-1/2"
21-1/2"
Surround Panel Installation
PANEL SIZE WIDTH HEIGHT PART #
8" x 10" 40-3/8" 28-7/8" 98500610
10" x 13" 44-3/8" 31-7/8" 98500611
1Follow the
instructions
to the right
for
installing
the side
panels.
Line up each side surround
panel and insert two screws from
the outside to secure in place.
b
a
5/16" Nutdriver
Pre-thread the holes on the panel mounting
brackets with the screws included in the
surround panel kit (both sides).
Run the wires from
the on/off switch and
the power cord
behind the surround
panel (cut the lock-
tie holding the on/off
switch in place). NOTE:
You may need to
pull the insert out
slightly while
installing the side
surround panels -
do not damage the
gas line or vents.
2Follow the
instructions
to the right
for
installing
the top
panel,
insulation,
and trim.
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AA
AA
Install the top panel so
the two tabs insert into
the slots on the side
panels.
Top
Panel
Top Trim
"L" Bracket
Double-Back
Tape
Right Side Trim
Construct the panel trim.
Insert one leg of each "L"
bracket into the top and side
trim piece. Align the trim to
form a precise corner, then
tighten the two set screws
with a small standard
screwdriver. Slide the trim
over the panels. Attach a
piece of included double-
back tape to the bottom of
each side trim to keep it from
flaring at the bottom.
Tighten the set
screws from the
back side with a
small standard
screwdriver
"L" Bracket
Right Side
Trim
Top Trim
c
b
a
Tuck the included insulation between
the top panel and the facing (not
along the sides). Cut off excess
insulation.

PAGE 12 INSERT INSTALLATION (CONT.) - For Qualified Installers Only!
Surround Panel Installation (continued)
3Install the on/off switch following the directions below.
AA
AA
AA
AA
AA
AA
AA
A
AA
AA
AA
Upper
Right
of Trim
Keep the jumper wire in
place while installing.
Disconnect the on/off switch from the red and brown
wires leading from the heater. Insert the switch into
the hole in the upper right of the panel trim until it locks
in place. Re-attach the red and brown wires
(orientation does not matter).
Manifold Removal and Installation
¥The manifold is shipped attached to the insert, but may be removed to facilitate especially tight
installations. See the directions below for installation.
1Remove the manifold and place it within the fireplace (see the instructions on the following page).
2Route the flex vent through the chimney from above (leave an extra 3' (914 mm) at the top).
3Attach the flex vent to the manifold (seal with silicone and attach with screws).
4Place the manifold in an upright position (so it rests on the manifold legs) and have a partner pull on
the excess flex vent. Temporarily attach the flex vent to the top of the chimney (leave extra slack).
5Slide the insert into place, guiding the convection top over the insert until fully in place.
6After removing any slack from the flex vent, attach the manifold to the appliance.
7Remove any excess slack in the flex line then attach the vent termination.
4
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
4
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
3
AA
AA
AA
AA
AA
AA
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
A
A
A
A
A
A
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
A
A
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
2
1
A
A
A
A
A
A
A
5
7
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
6
A
A
AA
A

INSERT INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 13
MANIFOLD REMOVAL:
1 Remove the glass (see the instructions on page 14).
2 Remove the four bolts inside the firebox that hold the manifold to the exhaust ducts.
3 Remove the three screws holding the convection top to the insert.
NOTE: When replacing the manifold, use the convection top to guide the manifold. You may also
reach through the exhaust ducts to guide the manifold forward to the appropriate location.
Remove the four bolts
inside the firebox.
7/16Ó
Socket
5/16" Nutdriver
Remove the three screws holding
the convection top to the insert.
Convection Top Manifold
Slide the
manifold
back.
NOTE: when installing the
manifold, make sure the
gaskets sealing the inlet and
exhaust ducts are in place. If
a gasket is loose, use high-
temperature silicone to
secure it to the manifold.
Shim the manifold legs if
installing into a fireplace
with a raised hearth.
Electrical Connection
¥Plug the power cord into a grounded 120 Volt outlet (do not remove the grounding plug).

PAGE 14 FINALIZING THE INSTALLATION - For Qualified Installers Only!
!Turn the gas control valve to "OFF" prior to conducting any service.
1Follow the instructions below to remove the glass.
AA
AA
Cross Section of
Glass Attachment
A
A
A
AA
AA
Glass
Glass Gasket
(3/4" self-adhesive
channel gasket)
Glass Clip
Glass Clip
Attachment Studs
Face of Heater
Glass Clip Nuts
Loosen the nuts on the
top and side glass clips
until they are flush with
the end of the stud (do
not remove the nuts).
a
3/8" Nutdriver
b
While holding the glass,
loosen the nuts on the
bottom glass clip until
they are flush with the
end of the stud. Pivot
the glass forward and
remove.
Tighten the nuts on the
bottom glass clip first, then
the top, then the sides.
Removing the Glass
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
While holding the glass, slide the
side and top glass clips off.
c
Replacing the Glass
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
With the bottom glass clip in place and
the nuts flush with the end of the stud,
position the glass over the bottom clip
(do not tighten the nuts).
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
Replace the top glass clip
(do not tighten nuts).
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
Center the glass then
replace the side glass clips
(do not tighten nuts).
a
b
c
d

FINALIZING THE INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 15
2Install the logs, twigs, and embers.
Rear Log (largest)
Front Log
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Burner Pan
The rear log has a
flat portion that
rests on this ledge.
The front log rests on
these platforms.
These clips keep the rear log
from tilting backwards.
Log Installation
Twig
Installation
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Slide the front log all the way
back against the air deflector.
The rear log
protrudes over the
burner pan on both
sides.
The front edge of
the front log rests
on this ledge.
The rear log contacts
the air deflectors.
Align the holes
in the left twig
over the pegs
on the front and
back logs.
Ember
Installation
Place the embers on this ledge at the
front of the firebox . Do not place the
embers over the burner holes.
A
A
A
A
A
A
AA
A
AA
A
A
AA
AA
A
A
Align the holes
in the right twig
over the pegs
on the left twig
and back log.
!We recommend you purge the gas line at this time (with the glass removed). This allows gas to be
detected once it enters the firebox, ensuring gas does not build up.
3Install the face following the instructions included with the face (NOTE: The FPX 32 DVS requires
the glass to be replaced prior to installing the face - see step 4 below).

PAGE 16 FINALIZING THE INSTALLATION (CONT.) - For Qualified Installers Only!
4Replace the glass. Make sure the glass is centered, the gasket remains in place, and the glass forms
an air-tight seal. Tighten the glass clips to secure the glass. See the illustration on page 14.
5Turn on gas to the heater. Leak test all gas joints prior to starting the appliance. Start the pilot. Start
the main burner. Leak test all gas joints again.
6Check the pilot flame to make sure it looks like the illustration below. Adjust the pilot flame if
necessary.
The pilot flame should impinge the top 3/8Ó (10 mm)
of the thermopile. If it does not, you may need to
turn the pilot up.
3/8Ó (10 mm)
Thermopile
Pilot Hood
Thermocouple
To adjust the pilot flame, remove the cover screw (and
gasket) and turn the needle valve. Clockwise lowers
the flame while counter-clockwise raises it.
PILOT ADJ
T
O
L
P
I
ON
OFF
Standard
Screwdriver
Micro (1/16Ó)
Standard
Screwdriver
A
A
The cover screw and
gasket must be
replaced to prevent gas
from leaking
Cover Screw
Cover Screw Gasket
Needle Valve

FINALIZING THE INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 17
7Let the heater burn for fifteen minutes. Adjust the air shutter, if necessary, to achieve the correct
flame (see the illustration below).
¥The air shutter adjusts the amount of air that mixes with the gas before it exits the burner holes.
It is used to fine-tune the flame for differences in altitude and vent configuration.
Gas Control Valve
PILOT ADJ
VENT
HI
LO
Correct
Flames should be blue at the
base, yellow-orange on the top.
If the flames are too tall or sooty on
the ends, push up on the lever.
If the flames are all blue and
short, pull down the lever.
Not Enough Air Too Much Air
Locate the air shutter adjustment
lever behind the gas control valve.
Move it up or down until the flame
is correct. Pushing up gives the
flame more air (making it bluer).
Pulling it down cuts air down,
making it more orange.
NOTE: If the air control is all the
way up, yet the flames remain
sooty, shut off gas to the fireplace
and contact a qualified gas service
technician. NOTE: The logs must be installed correctly to
monitor the flame while adjusting the air shutter.
T
O
L
P
I
ON
OFF
!If the air shutter is in its fully open position, yet the flames remain sooty, shut off gas to the
heater and contact your Travis Industries Dealer for a remedy.
!If the vent configuration is installed incorrectly the vent may cause the flames inside the heater to
lift or "ghost" Ð a dangerous situation. Inspect the flames after installation to insure proper
performance. If the vent configuration is correct, yet the flames are lifting or ghosting, shut off
gas to the heater and contact the dealer for information on remedying the problem.
The flames should burn right off
the top of the burner ports (if they
are too blue, adjust the air control).
If the flames are lifting, yet the
vent configuration is correct,
contact your dealer.
Burner Pan
Burner Ports
(consists of slots
and holes)
If the flames are ghosting, yet the
vent configuration is correct,
contact your dealer.
8Turn the flame adjust knob to its highest position - the flames should be approximately 8". Check
the flame on low position. The flames should burn off of each burner hole. If the heater does not
work correctly, contact your dealer for a remedy.
9Give this manual to the home owner and fully explain the operation of this heater.

PAGE 18 OPERATING YOUR HEATER
Before You Begin
! Read this entire manual before you use your new appliance (especially the section "Safety
Precautions" on pages 2 & 3). Failure to follow the instructions may result in property
damage, bodily injury, or even death.
Location of Controls - See explanation below
Swing the control cover down
to access the gas control valve,
igniter, and blower control.
Gas Control
Valve
PILOT ADJ
VENT
T
O
L
P
I
ON
OFF
HI
LO
Gas Control
Knob
Flame Adjust
Knob
Blower Knob
BLOWER
LO
OFF HI
PILOT
IGNITER
Pilot Igniter
ON/OFF Switch
The Pilot Flame
can be found
below the back
log on the left
side.
O
F
O
N
F
The on/off switch is
located on the upper
right corner of the
surround panels.
On/Off Switch This control is used to turn the main burner on and off.
Gas Control Knob This knob is used to control gas to the heater and for starting the pilot. There
are three positions, ON, OFF, & PILOT. The pointer directly below the knob
indicates the position this knob is in.
Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The
pointer to the upper left of the knob indicates the setting.
Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an
electrical charge to the pilot assembly. This creates a blue spark directly next
to the pilot, igniting the pilot flame.
Blower Knob This knob controls the speed of the internal convection blower that pushes the
heated air into the room.
?If using a remote control or thermostat, the On/Off Switch must be left "ON". Turning the On/Off
Switch "OFF" will keep the heater off always.

OPERATING YOUR HEATER (CONTINUED)PAGE 19
Starting The Pilot Flame
The pilot flame is required to ignite the main
burners (it also plays a safety role). It should
be left on once lit. It will stay lit unless the
gas control valve is turned to "OFF".
However, the pilot will go out if the gas is shut
off, the propane tank runs out (or low) or if the
stove malfunctions. If the pilot turns off
frequently, call your dealer for information.
To start the pilot follow the directions below:
WARNING:
When lighting or re-lighting the pilot, the
glass must be removed (see page 14).
aRemove the glass (see page 14 for details).
bPush the gas control knob in slightly and
turn it to the "OFF" position. The knob will
not turn from "ON" to "OFF" unless the
knob is depressed slightly. Wait five
minutes to let any gas that may have
accumulated inside the firebox escape. If
you smell leaking gas, follow the directions
on the cover "IF YOU SMELL GAS".
cTurn the gas control knob to the "PILOT"
position and press the knob in, this will
allow gas to flow to the pilot light. Press the
red button on the pilot igniter repeatedly
until you see the pilot light.
WARNING:
If the pilot does not light after 15
seconds, release the knob and call your
dealer for service. Do not attempt to
light pilot until service has been
performed.
NOTE:
You may wish to remove the log set to
gain a better view of the pilot (see page
15).
dKeep the gas control knob depressed for 30
seconds once it is lit.
eRelease the gas control knob. If the pilot
goes out, repeat step C. If the pilot refuses
to stay lit, call your dealer for service. With
the pilot lit, proceed to step ÒfÓ.
fReplace the glass.
gTurn the gas control knob counter-
clockwise to "ON". The pilot is now lit and
the heater can be turned on and off.
PILOT ADJ
T
O
L
P
I
ON
OFF
PILOT ADJ
T
O
L
P
I
ON
OFF
?
PILOT ADJ
T
O
L
P
I
ON
OFF
AA
AA
AA
A
A
A
A
30 seconds
PILOT ADJ
PILOT
IGNITER
T
O
L
P
I
ON
OFF
a
b
PILOT ADJ
AA
AA
AA
AA
A
A
A
A
5 minutes
T
O
L
P
I
ON
OFF
c
d
e
f
g
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA

PAGE 20 OPERATING YOUR HEATER (CONTINUED)
Starting the Heater for the First Time
+Start the heater and allow it to burn on medium for one hour. This will help cure the paint.
+ Fumes and smoke from the paint curing and oil burning off the steel may occur the first time you
start your heater. This is normal. We recommend you open windows to vent the room.
+ Condensation may appear on the glass each time you start the heater - this is normal.
+ Blue Flames will occur on the heater when it first comes on. After fifteen minutes the flames will
turn a more realistic yellow and orange color.
?Certain installations use a remote "wall switch" to turn the heater on and off. If this is the case, leave
the ON/OFF switch "ON".
Turning the Heater On and Off
O
FF
O
N
Use this switch to
turn the main burner
on and off manually.
After the pilot has been started...
See the instructions included
with the remote for details on
operation.
For systems with thermostats,
use this switch to control the
temperature (right is hotter, left
cooler). Some systems
require the on/off switch to be
on.
See the instructions
included with the
remote for changing
the battery.
!Do not place any combustible items on top of or directly in front of the heater, even temporarily.
The optional thermostat may start the heater causing a combustible item to ignite.
?If the heater turns on and off frequently while using the thermostat, you may want to adjust the flame
height down until it produces just enough heat needed.
Adjusting the Flame Height
+Your heater has an adjustable flame to tailor the look and heat output to your specific needs. It is
adjusted by turning the middle dial on the gas control valve.
Flame Height
Adjustment Knob
Index Mark
Turn clockwise to adjust the flame higher, counter-clockwise to lower.
PILOT ADJ
VENT
T
O
L
P
I
ON
OFF
HI
LO
VENT
HI
LO
