Traxxas E-Revo Brushless Edition 5608 User manual

• Refer to supplied Castle Creations Mamba Monster instruction manual
for full operation details.
• Read and follow all operating instructions prior to running the model.
• The information on this addendum and in the Castle Creations Mamba
Monster instructions supersedes the information in the Traxxas E-Revo
Owner’s Manual.
• Quick Start
Your E-Revo Brushless edition truck has been pre-programmed and
“bound” to the transmitter at the factory. Follow these instructions to
switch your model on:
1. Install the batteries in the transmitter as described in the E-Revo Owner’s
Manual on page 11.
2. Install the batteries in the E-Revo as described in
the E-Revo Owner’s Manual on page 11.
3. Make certain the Multi-Function knob is full left
and throttle neutral switch is set to 50/50.
4. Switch the transmitter on.
5. Switch the speed control on. You will hear a short sequence of tones as
ALL the LEDs blink. The sequence will then repeat twice more, then the
YELLOW LED will remain illuminated.
6. With the E-Revo’s wheels off the ground, confirm correct operation of the
throttle and steering system. Your E-Revo is ready to drive.
ATTENTION! LiPo Battery Users
The E-Revo Brushless Edition is programmed at the factory for use with LiPo
batteries. Your model will run properly with NiMH batteries. To obtain the
maximum performance from the included batteries refer to the Mamba Monster
manual included with your model for instructions on de-activating the LiPo
voltage cut off. If LiPo batteries are used be sure to reset the Mamba Monster
to the correct LiPo cutoff voltage for your batteries. Failure to properly reset the
Cutoff Voltage may lead to damage or failure of your LiPo batteries. Never use
LiPo batteries while Low-Voltage Detection is disabled.
• Slipper Clutch Break-In
The E-Revo Brushless Edition’s slipper clutch requires a break-in procedure
to ensure consistent operation with the extremely high power output of
the included Castle Creations Mamba Monster brushless motor system. The
slipper clutch has been adjusted to the correct initial setting for break-in.
Follow these steps to ensure maximum performance and life from your
slipper clutch:
1. Make your first runs with the model using the stock gearing and 6- or
7-cell NiMH packs, or 2S LiPo packs.
2. Drive normally. The slipper clutch should slip momentarily when
accelerating aggressively on high-traction surfaces (you will hear a
whirring sound when the slipper clutch allows the spur gear to slip).
3. If excessive slippage is noticed (slipping that lasts for more than 3
seconds under hard acceleration), or the slipper clutch slips anytime
the throttle is applied at any lever, stop driving immediately. Let the
slipper clutch cool for 10-15 minutes. When the clutch is cool, test-drive
the vehicle again. If you still experience excessive slippage, allow the
slipper to cool once more, then tighten the slipper nut ¼ turn (turn the
nut clockwise) and repeat the break-in process. Do not adjust the slipper
clutch before it has cooled.
4. Continue to run the vehicle and monitor slipper clutch performance as
noted above, and readjust if necessary. When the run is complete, the
slipper should be fully broken in.
After break-in, the slipper clutch is ready for any type of driving, with any
batteries up to 6S Lipo. Set the slipper clutch so it only slips for a moment
(if at all) under hard acceleration in high-traction conditions. If excessive
slippage is noticed, stop driving immediately. Continuing to drive with a
loose slipper will cause damage to the slipper unit. You must let the slipper
cool down to ambient temperature before tightening the slipper nut and
resuming driving.
• Make Sure The Axle Nuts Are Tight Before Each Run
Before operating your E-Revo Brushless Edition, take
a moment to make sure the axle nuts are tight, as
they may have loosened during shipping. The correct
size axle-nut wrench is supplied with the truck. Check
the tightness of the axle nuts before each run. The
E-Revo’s high speed and torque can loosen the nuts
over time if left unchecked.
STOP!
This is an E-Revo with a Castle Creations Brushless System pre-installed from the factory. It is designed to eliminate guesswork
and provide a truly Ready-To-Race® brushless powerhouse right out of the box. The E-Revo is manufactured by Traxxas and is
backed by full Traxxas factory support. The installed Mamba Monster power system (electronic speed control, motor, on/off switch)
is manufactured by Castle Creations. All support for the power system will be handled directly by Castle Creations and will be
subject to Castle Creations’ warranty and service terms. Traxxas will not provide direct service and support for the installed
power system. If you cannot accept this product support arrangement, do not run the model or open any of the enclosed
materials. Return the model to your hobby dealer. Note that your hobby dealer absolutely cannot accept an item for return or
exchange after it has been run or is otherwise no longer in as-new condition.
The Power System is NOT WATERPROOF.Do not expose the power system to any type of water,condensation,or moisture.
TRAXXAS.com
Traxxas, 1100 Klein Road, Plano, TX 75074, Phone: [phone], Fax: [phone], e-mail: [email protected]
KC1491-R00 111104
E-Revo Brushless Addendum
Covers Model #5608

Mamba Monster Specifications:
Cells .............................................................................18 NiCad / NiMH 6s LiPo
Continuous ........................................................ More than you can handle!
Resistance..................................................................0.0003 Ohms per phase
Brake ..................................................... Proportional with adjustable curve
Reversible .............................................................................. Yes - with lockout
Low Voltage Cutoff ................................................................. Programmable
Case Size .....................................................................................2.2" x 1.9" x 1.4"
Weight with Wires ........................................................................................121g
Connector Type ............................................................................6.5mm bullet
TRAXXAS.com
Traxxas, 1100 Klein Road, Plano, TX 75074, Phone: [phone], Fax: [phone], e-mail: [email protected]
Your Battery Selection and Pinion Gear
Selection Determines Your Speed.
How Fast Do You Want To Go?
Battery
Nominal Voltage
mAh
Skill Level
Battery
Pinion/Spur
Nominal Voltage
mAh
Skill Level
* With Included Optional Gearing
** 24T pinion not included. Optional gearing for high-speed running on smooth surfaces only.
25+mph25+mph 35+mph
35+mph **
#5608 E-Revo
Brushless Edition
18/6518/65 18/65
18/65 ****
16.8V
twin 6-Cell NiMH
(12 cell total)
twin 7-Cell NiMH
(14 cell total)
14.4V
3000+ mAh 4000+ mAh
14.8V
5000+ mAh
twin 3S LiPo
(6S total)
twin 2S LiPo
(4S total)
22.2V
5000+ mAh
twin 3S LiPo
(6S total)
22.2V
5000+ mAh
Your Battery Selection and Pinion Gear
Selection Determines Your Speed.
How Fast Do You Want To Go?
Battery
Nominal Voltage
mAh
Skill Level
Battery
Pinion/Spur
Nominal Voltage
mAh
Skill Level
* With Included Optional Gearing
** 28T pinion and 65T spur not included. Optional gearing for high-speed running on smooth surfaces with optional Talon tires only.
25+mph25+mph 35+mph
35+mph **
#3908 E-Maxx
Brushless Edition
18/6517/68 18/65
17/68 ****
16.8V
twin 6-Cell NiMH
(12 cell total)
twin 7-Cell NiMH
(14 cell total)
14.4V
3000+ mAh 4000+ mAh
14.8V
5000+ mAh
twin 3S LiPo
(6S total)
twin 2S LiPo
(4S total)
22.2V
5000+ mAh
twin 3S LiPo
(6S total)
22.2V
5000+ mAh
40+mph 50+mph 65mph
& Beyond
18/54 18/65 24/54
40+mph 50+mph 65mph
& Beyond
20/68 17/68 28/65
E-Revo Brushless Edition Recommended Speed Settings

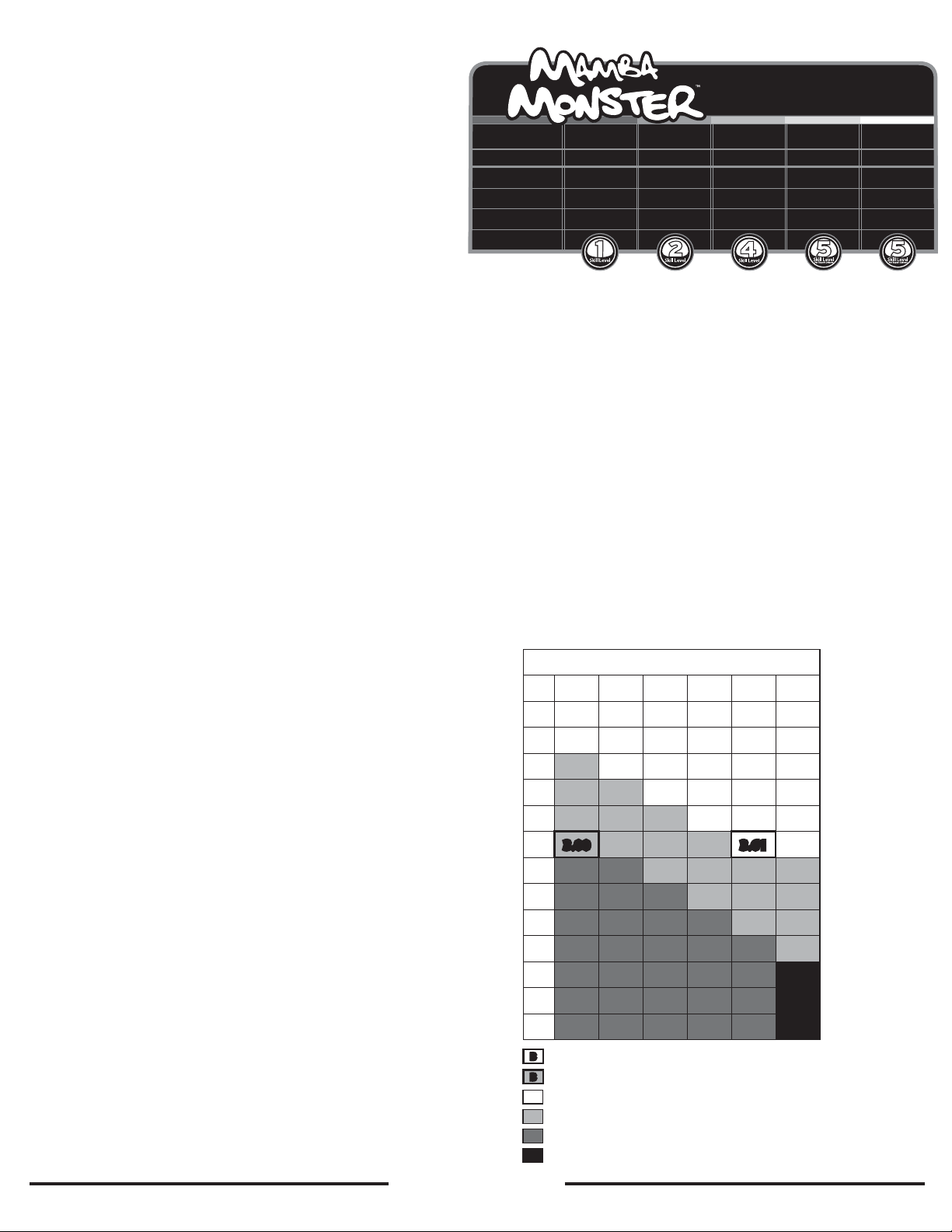

E-Revo Brushless Gearing Chart
54 56 58 62 65 68
12 4.50 4.67 4.83 5.17 5.42 5.67
13 4.15 4.31 4.46 4.77 5.00 5.23
14 3.86 4.00 4.14 4.43 4.64 4.86
15 3.60 3.73 3.87 4.13 4.33 4.53
16 3.38 3.50 3.63 3.88 4.06 4.25
17 3.18 3.29 3.41 3.65 3.82 4.00
18 3.00 3.11 3.22 3.44 3.61 3.78
19 NR NR 3.05 3.26 3.42 3.58
20 NR NR NR 3.10 3.25 3.40
21 NR NR NR NR 3.10 3.24
22 NR NR NR NR NR 3.09
23 NR NR NR NR NR DNF
24 NR NR NR NR NR DNF
25 NR NR NR NR NR DNF
Pinion Gear
Spur Gear
Stock gearing
Optional included gearing (4S LiPo)
Recommended gearing for all battery types
Recommended gearing for 4S LiPo only
Not recommended
Does not fit
B
B
CAUTION: Read before operating your model with 65+mph gearing!
• The 24/54 ratio for use with 6S LiPo batteries is designed for maximum speed
on smooth surfaces only, with steady acceleration to full throttle.
• Do not use this gear ratio for general driving.
• Avoid repetitive starting and stopping.
• Do not use the 24/54 ratio with NiMh batteries or low-capacity LiPo batteries.
5000mAh LiPo batteries are recommended.
• Allow the motor to cool between runs, and monitor motor temperature.
• Do not use the 24/54 gear ratio for off-road running or overheating and
damage may result.
• Do not allow the motor temperature to exceed 200° F or damage and motor
failure may result.
To accurately monitor motor temperature, Traxxas suggests the #4091
On-Board Temperature Gauge. The gauge features a large LCD screen, on/
off button for longer battery life, a min/max temp button, a Centigrade/
Fahrenheit button, and a clear Lexan splash guard. Visit your local dealer or
Traxxas.com for more information.
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
(1-888-872-9927) (U.S. residents only)
Speed Control Programming Instructions
The Castle Creations Mamba Max speed control should not need
reprogramming with normal use. However, if you install a different
radio system in your model, or change the transmitter’s throttle-neutral
setting from 50/50 to 70/30, you will need to reprogram the speed
control. Follow these instructions to reprogram the speed control:
1. Install the batteries of your choice in the battery compartments and
plug the batteries into the speed control.
2. Switch on your transmitter.
3. Hold full throttle while you switch on the Mamba Monster controller.
After a few seconds, you will hear multiple tones and the
RED LED will light.
4. Hold full brake. After a few seconds, you will hear multiple tones
and the YELLOW LED will light.
5. Release the trigger to the neutral position. After a few seconds,
you will hear multiple tones and ALL THE LEDs will light.
6. Wait a few more seconds for the speed control to ‘arm,’ indicated by
a double-tone. You are now ready to drive.
Disconnect Batteries After Use
Always disconnect the batteries from the speed control when
you are finished using your vehicle. The switch on the speed control
only shuts off power to the receiver and servos. The speed control
continues to draw power as long as it is plugged in and may over-
discharge your batteries if they are left connected to the speed control.
Castle Creations Mamba Monster Warranty
Your Castle speed control is warrantied for one (1) year from date of
purchase to be free from manufacturing and component defects. This
warranty does not cover abuse, neglect, or damage due to incorrect
wiring, over-voltage, or overloading. If you have any questions,
comments or wish to return your Castle speed control for warranty or
non-warranty repair or replacement, please contact Castle Creations, Inc.
Castle Creations, Inc., 235 South Kansas Avenue, Olathe, KS 66061
Phone: [phone], E-mail: [email protected]
www.castlecreations.com
