Trebs CC-120 User manual

Bluetooth Hands free & 2.4Ghz
Wireless Rearview Mirror System
User manual
Model No.: CC-120
TRE -BS-132

CONTENTS
*
*2.4 GHz devices as e.g. cell phones, navigation, bluetooth and
Wi-Fi system scan have influence on the performance of this
product.
Comfortcam is not responsible for any damage resulting from
installation and use of this product.
1.Foreword
2.Packing List
3.Structure
5.Specifications
1
1
2
9
4
4.Installation

FOREWORD
PACKING LIST
-1-
CONGRATULATIONS. CC-120 is a Bluetooth Hands free &
2.4GHz Wireless Rearview Mirror System with 3.5" TFT-LCD
monitor. The system can make you to drive more safely and
more convenient, and also provides you more recognition of
backside image display. The Rearview Camera, when used as
described, will give you years of dependable service in your car,
or mini-van. We have taken numerous measures in quality
control to ensure that your product arrives in top condition, and
will perform to your satisfaction.
① ② ③
④ ⑤ ⑥
⑦ ⑧ ⑨

1 Rearview Camera: Wired Camera with Night Vision.
2.Monitor: 3.5 inch TFT-LCD, with 960*240 resolution
3.Earphone
4.Wireless Transmission Box : Connected to wired camera, car
power wire. It transmits signals to monitor.
5.Power Adapter: 12 Volt Car Power Adapter and built in 2.4GHz
wireless receiver
6.
7.3Fuse and sticker. Fuse is accessory for power adaptor, and
sticker is for if necessary.
8.In-Line Wire Connectors: To expose reverse light wires.
9.Sheet Metal Screws: To install camera.
.
Audio cable for listening MP3.
wireless receiver

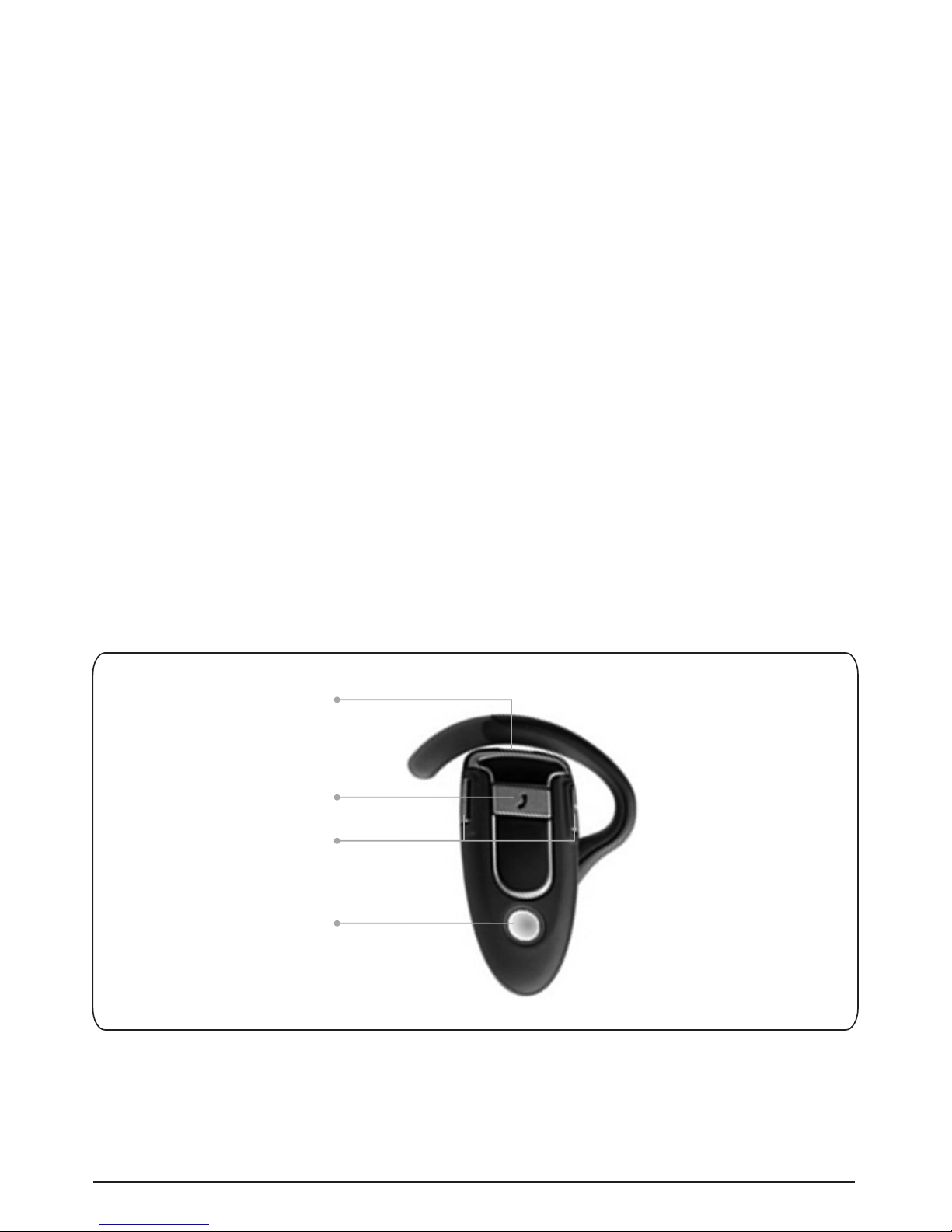

Earphone
Charge port
Power switch
No function
Indicator LED
(RED FOR POWER ON,
GREEN FOR CHARGING)
-2-

Wireless Transmission Box
-3-
TFT-LCD Monitor
Lens
IR LEDs
Frame
Rearview Camera
Power plug
Connect Wire
Rearview Camera
Wireless Transmission Box
Power Wire

We advise to test the system before installation to prevent any
damage on the vehicle. Follow the steps mentioned below
precisely to test the system.
1. Connect 12V car adaptor to the vehicle's cigarette lighter and
connect the black and yellow plugs to the monitor.
2. Search at the rear of the vehicle for find back up light wiring.
3. Splice the red wire of the Transmission Box power cable to
the reverse light's positive (+) wire of the vehicle.
4. Splice the black wire of the Transmission Box power cable to
the reverse light's negative (-) wire of the vehicle.
5. Replace the reverse light bulb, and then re-install the light
socket. Re-attach the negative battery cable to the battery.
6. Engage the parking brake and turn the ignition key to the
ON position. DO NOT start the vehicle. Put the gear shift
into reverse.
7. The camera will start broadcasting, and the monitor will
detect the signal and turn itself ON. If the monitor does
not come ON, press the ON/OFF button.
8. If the image does not match your rear view mirror, press
the mode button on the monitor to change the image
until it matches your rear view mirror.
9. When you take the gear shift out of reverse the camera
will turn OFF, and the monitor will turn black.
-4-

-5-
INSTALLATION

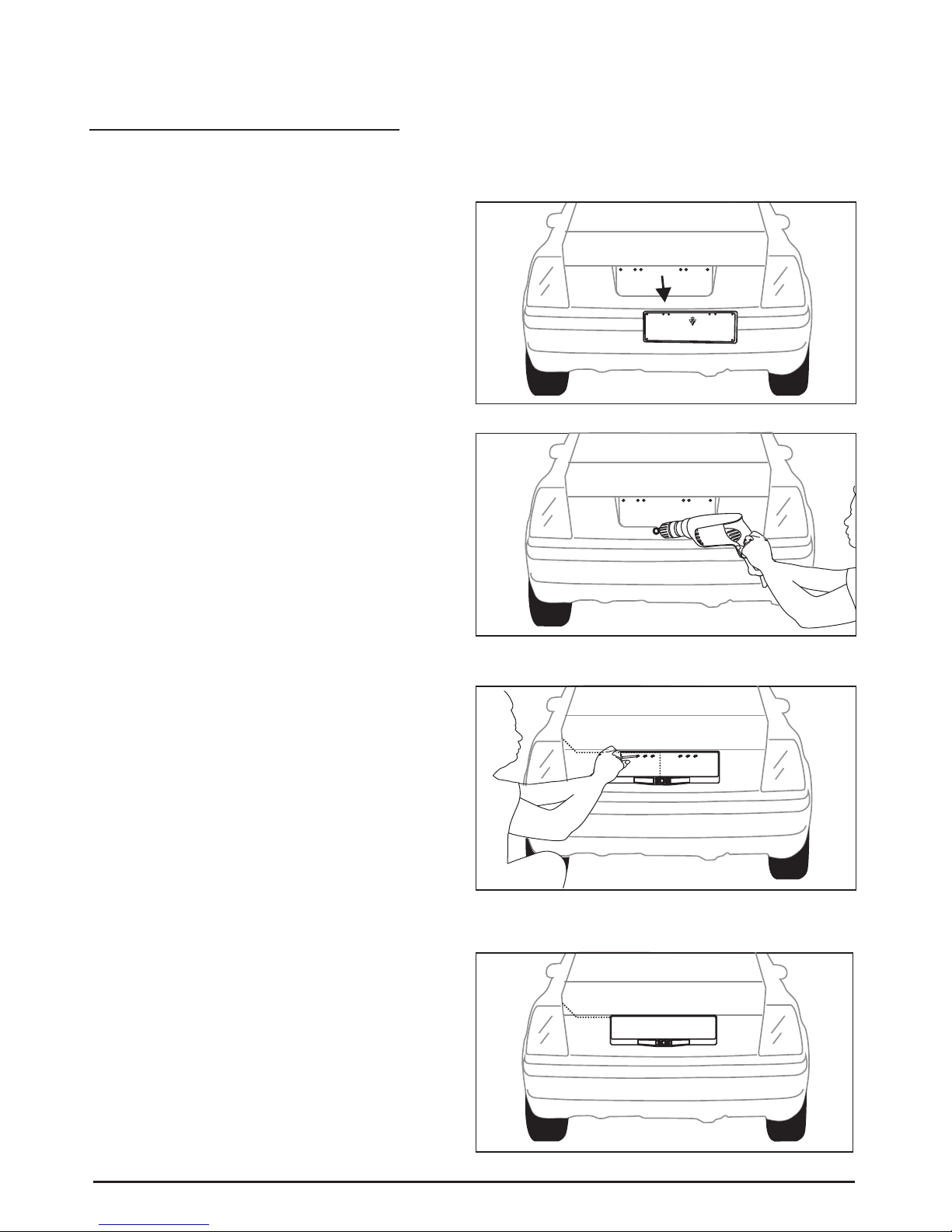

4. Install the license plate
to the frame.
TRE-BS-132
TRE-BS-132
1. Loosen the license plate
bolt or screw, and then
remove the license plate
on the rear of your car.
2. Drill one hole for power cable
in the middle of below license
plate, where the camera will
exist.
3. Install the frame camera
with bolt/screw, and adjust
the camera to a suitable
angle. Tow the power wire
into the car through the
interstices of the car.
Installation of the camera:
TRE-BS-132

+12V REV LAMP
DC
GROUND
Reverse Lamp
RED
BLACK
Wireless Transmission Box Installation
1. Wiring Connector Diagram
2. Basic Installation
1). Find proper spaces for install
the transmission box.
-6-
Wireless
Transmission
Box
Camera
3). Connect the yellow plug of the transmitter to the yellow
socket of the camera. Connect the black plug of the transmitter
to the red socket of the camera. If the cable is too short extend
with the supplied extension cable.
2). Connect the red wire of the transmitter to the positive wire
of the back up light. Connect the black wire of the transmitter
to the vehicle ground.
4). Instructions Line-In-Connection
Before connecting the transmitter you may use the line-in
connection.

-7-

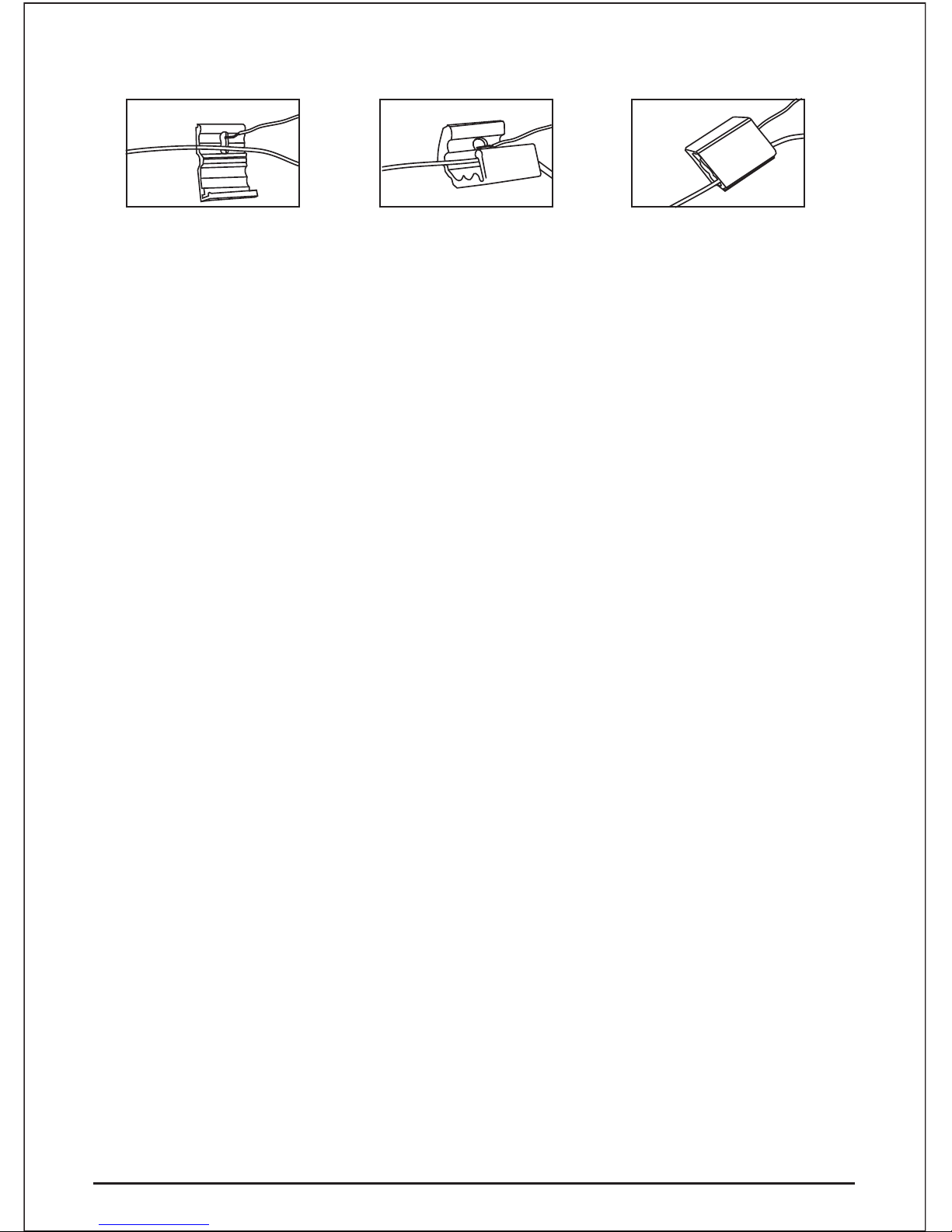

Insert the existing
wire to be tapped. Insert the wire to
be attached.
Crimp tap then
close lock

-8-
Installation of the monitor:
1. Camera is be attached the front rearview mirror instead
of the front rearview mirror.
2. Connect power of the monitor. To use the car power adapter
included in the package to get the power.
3. Power ON and adjust brightness etc. according to the details
manuals of Bluetooth.
3. BLUETOOTH installations
Please refer to extra manual of “BLUETOOTH User manual 3.0”.
1

SPECIFICATIONS
-9-
120mA
264g
525×148×45(mm)
LCD Screen Type
Effective Pixels
Power Supply Voltage
Transmission Frequency
960 × 240
285 ×90×24(mm)
370g
ISM 2,400~2,483 MHz
Received Sensitivity ≤-85dBm
Unobstructed Effective Range(Min.) 40m
720×480(NTSC)720×576(PAL)
Minimum Illumination
IR Night Range
Horizontal View Angle 80 degree
CC-120
0 Lux (IR ON)
4m
Supplied By Transmission Box
+12VDC
2mW/FCC,10wm/CE
Dimensions(W×D×H)
Consumption Current (Max.) 600mA
3.5″TFT-LCD
Monitor Camera
Imaging Sensor CMOS
Total Pixels
Transmission Power
Power Supply
Consumption Current(Max.)
Dimensions(W D H )× ×
Weight(about)
Weight(about)
Items
*Actual transmission range may vary according to the weather,
location, interference and building construction.
*All the specifications are subject to minor change without prior
notice.

CAUTIONS
1. is 9V~15V. Do NOT use the system
2.The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
3.
4.The adapter built in wireless transmission mould, don't
change it in any situation.
5.The camera/receiver can only be completely disconnected
from the mains by unplug the adapter.
6.Do not cut the DC power cable of the apparatus to fit with
another power source.
7.Attention should be drawn to the environment aspects of
battery disposal.
The system voltage for
vehicles with voltage system higher than 15V; this will cause
irreparable damage.
The transmitter is integrated in the car adaptor. Do not make
any adjustments.
-10-

Declaration of Conformity:
We, Trebs BV, declare under our sole responsibility that this
product is in conformity with the essential requirements and
other relevant requirements of the R&TTE Directive (1999/5/EC).
The product is compliant with the following standards and/ or
other normative documents:
EN 50371 : 2002
EN 60065 : 2002 + A1 : 2006
EN301 489-3 vl. 4.1 (2002-08)
EN300 440 -2 vl. 2.1 (2008-05)
Trebs BV.
Thermiekstraat 1
6361 HB Nuth
The Netherlands
Website: www.trebs.nl
email: [email protected]
Trebs Comfortcam is a brand of Trebs BV. All other brands in this
manual and/ or packaging do not belong to Trebs BV and have
another justified holder.

EU Environmental Protection
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your Local Authority or retailer for
recycling advice.

BLUETOOTH User manual 3.0
for model CC-120

WELCOME & DRIVE SAFELY ------------------------------------------2
ILLUSTRATION: Figure 1 ----------------------------------------------- 3
INTRODUCTION ---------------------------------------------------------4
INSTALLATION -----------------------------------------------------------5
POWER ON / OFF & PAIRING -----------------------------------------6
VOICE DIAL ----------------------------------------------------------------7
REDIALLING THE LAST DIALED NUMBER -------------------------8
CALL ANSWER AND CALL HANG UP ---------------------------------9
CALL REJECT -----------------------------------------------------------10
AUDIO TRANSFER------------------------------------------------------10
VOLUME CONTROL ----------------------------------------------------10
MUTE CONTROL --------------------------------------------------------10
ANSWER MODE SET ---------------------------------------------------11
SELECT RING TONE----------------------------------------------------11
BLUETOOTH AV DEVICE OPERATION------------------------------11
SWITCH AUDIO OUTPUT MODE AND PICTURE ADJUSTMENT---12
FM HEADSET USE ------------------------------------------------------13
To Set Audio On and Off-------------------------------------------------14
To Resume Factory Default Mode-------------------------------------14
WIRELESS CAMERA SYSTEM---------------------------------------14
PHONE BOOK------------------------------------------------------------15
SELECT LAST 10 CALLS DIAL-BACK FROM MIRROR-----------15
Frequently asked questions--------------------------------------------15
SPECIFICATION---------------------------------------------------------16
CONTENTS
-1-

It is dangerous to use cellphone when driving a car. It will increase
the possibility of accident.
Please reduce conversation time by mobile as possible as you
can while driving. It is good for you not to do any record or read.
You'd better observe the surroundings before using the mobile
first. When it's necessary (if the weather is bad;there is traffic jam;
there are children in the car or something wrong with the car),You
should leave the road and stop the car before dialing or receiving
a call.
Welcome
Thank you for the purchase of this Bluetooth Handsfree Car Kit.
For the sake of making full use of the functions of Bluetooth Car
Kit, please read the user manual carefully in advance.
Drive safely
-2-

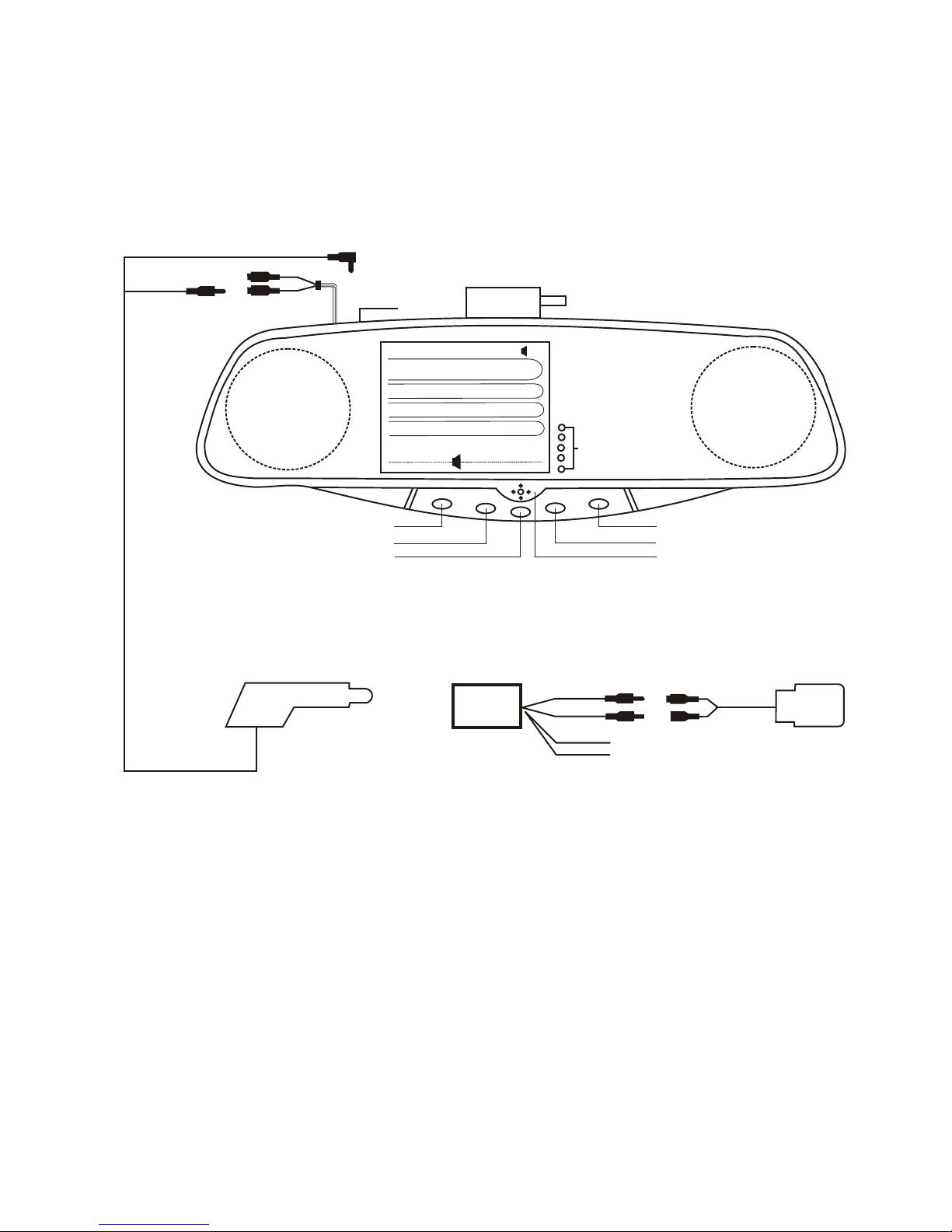

ILLUSTRATION: Figure 1
-3-
Buetooth Sstem
ly
I
CALL N
57075 123456 8
AKJ C
DC+12V OUTPUT
VID EO(Y ELLOW)
VIDEO(YELLOW) POWER
CHARGE HOLDER
SPEAKER
INDICATOR LAMP
SPEAKER
CIGARETTE POWER ANTENNA BOX
GND
BACKUP LIGHT
CAMERA
YELLOW — YELLOW
BLACK — RED
VOL+
VOL-
SEND/TALK
ON/OFF
MODE
PLAY
MICROPHONE
MP3/M P4 cable (whit e)
