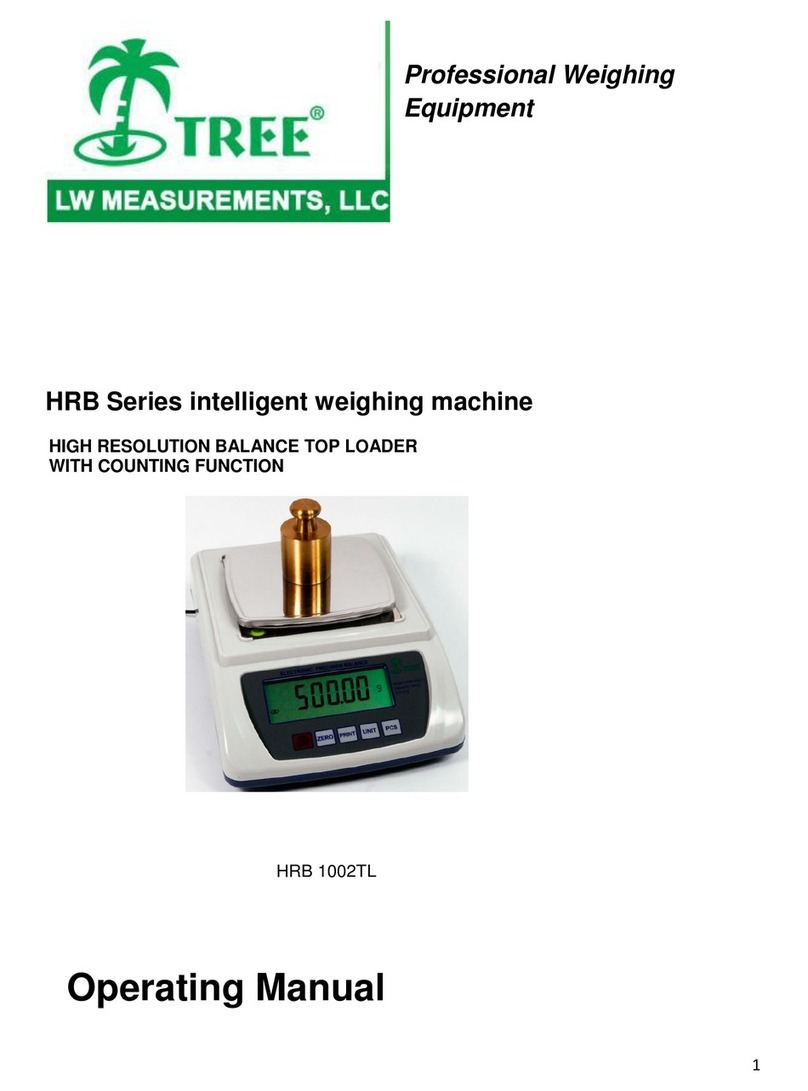

Tree HRB Series User manual

Professional Weighing
Equipment
Operating Manual
HRB Series intelligent weighing machine
HIGH RESOLUTION BALANCE
HRB 103 / 203 / 303 HRB 602 / 1002 HRB 3002 / 3001 / 6001 / 10001
HRB 10001LP / 20001 HRB 1002TL
NOTE: THIS PRODUCT HAS BEEN
CALIBRATED IN THE FACTORY.
PLEASE REFER TO THE MANUAL
BEFORE RE-CALIBRATING
PRODUCT!

2
Rev 4, 04.25.2019
Table of Contents
Section Page
Declaration of Conformity 3
Customer Service 4
Introduction 4
Safety 5
Your weighing machine 6
Functions 7-8
Application & Conformity 9
Data and parameters 9-10
Getting Started 11-13
Application Menu 14-16
Calibration 17
Maintenance & Service 18
Transportation & Storage 19

3
Rev 4, 04.25.2019
Declaration of Conformity
Declaration of conformity for apparatus with CE mark
We hereby declare that the product to which this declaration refers conforms to the following
standards.
Electronic scale: HRB - High Resolution Balances
Models:
Mark applied
EU Directive
Standards
2004/108/EC
EN 61326-1: 2006
Signature:
Boon Lim, R & D Manager
Date: 06.27.16
LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928
HRB 103
HRB 203
HRB 303
HRB 602
HRB 1002
HRB 1002TL
HRB 3002
HRB 3001
HRB 6001
HRB 10001
HRB 10001LP
HRB 20001

4
Rev 4, 04.25.2019
Customer Service
USA
LW Measurements LLC,
620 Carlson Court,
Rohnert Park, CA 94928
USA
Tel: [phone]
Fax: [phone]
http://lwmeasurements.com
EUROPE
LW Measurements Europe S.L.
Poligono Industrial La Vega, Calle Los Barrios,
Edificio 610, 11380 Tarifa · Cadiz · Spain
Phone : [phone]
Mobile : [phone]
http://www.lwmeasurements.eu
Introduction
What you should know about these Operating Instructions:
Tree® Professional Weighing Equipment products are simple to operate.
Nevertheless, you should read through these operating instructions in their entirety, so
that you can make optimum use of the full potential and the diverse possibilities of the
weighing machine in your daily work.
These operating instructions contain guidance with the aid of pictures and keyboard
diagrams, which should help you in finding the required information:
For the labelling of potential hazards and advice, please see Safety below.

5
Rev 4, 04.25.2019
Safety
Representations and symbols
Important instructions, which involve safety, are highlighted with the appropriate mark:
Safety recommendations
When using the weighing equipment in surroundings with increased safety
requirements, the corresponding regulations must be observed.
The weighing machine may only be used with the power adapter supplied exclusively
for use with the weighing machine.
Before inserting the power adapter, the user must ensure that the operating voltage
stated on the power adapter agrees with the mains voltage.
If not, please contact Customer Service at the address above.
If the power adapter or its cable is damaged, the weighing machine must immediately
be disconnected from the electricity supply (pull out the power adapter).
The weighing machine may only be operated from mains electricity supply with a power
adapter which is in perfect condition.
If there should be any reason to believe that it is no longer possible to operate the
weighing machine without danger, the weighing machine is to be immediately
unplugged from the electricity supply (pull out power adapter) and secured against
inadvertent operation.
In carrying out maintenance work, it is essential to follow the recommendations in
Chapter 11 Maintenance and servicing.
The weighing machine must not be operated in an area subject to explosion risks.
Care must be taken when weighing liquids to ensure that no liquid is spilt into the inside
of the weighing machine or into connections on the rear of the equipment or the power
adapter. If liquid is spilt on the weighing machine, it must immediately be unplugged
from the mains electricity supply (pull out power
adapter).
The weighing machine may be operated after it has first been re-checked by a service
technician.
These operating instructions must be read by each operator of the equipment and must
be available at the workplace at all times.

6
Rev 4, 04.25.2019
Your weighing machine
Construction and functions
Construction of the weighing machine
The weighing machine consists of the weighing machine body (1), the scale-pan (2), the
adapter (3) and this operating manual.
Figure 2.1 Your weighing machine
3
2
1

7
Rev 4, 04.25.2019
Functions
The HRB Series are high-quality electronic precision weighing machines with the
following specifications
Model number
Capacity
Graduation
Weighing pan Size
HRB103
100g
0.001g
Φ98mm
HRB203
200g
0.001g
Φ98mm
HRB303
300g
0.001g
Φ98mm
HRB 602
600g
0.01g
135mm x 120mm
HRB 1002
1000g
0.01g
135mm x 120mm
HRB 1002TL
1000g
0.01g
135mm x 120mm
HRB 3001
3000g
0.1g
180mm x 170mm
HRB 6001
6000g
0.1g
180mm x 170mm
HRB10001
10000g
0.1g
180mm x 170mm
HRB10001LP
10000g
0.1g
215mm x 198mm
HRB 20001
20000g
0.1g
215mm x 198mm
Net/gross weight
HRB 103 / 203 / 303 / 602 / 1002: 2.2kg / 3.1kg HRB 602 / HRB 1002: 2.2kg / 3.1kg
HRB 602 / 1002: 1.4kg / 2.2kg HRB 1002: 1.4kg / 2.2kg
HRB 3001 / 6001 / 10001: 1.4kg / 2.2kg HRB 10001LP /20001: 3.2kg / 3.9kg
Package
(Standard carton)
HRB 103 / 203 / 303: 35 × 28 ×35 (cm3) HRB 602 /1002: 35 × 28 ×35 (cm3)
HRB 602 / 1002: 36 × 23 ×14 (cm3)HRB 1002TL: 36 × 23 ×14 (cm3)
HRB 3001 / 6001 / 10001: 36 × 23 ×14 (cm3)
HRB 10001LP / 20001: 37 × 27 ×16 (cm3)
Package
(Master carton)
HRB 103 / 203 / 303 / HRB 602 / 1002: 2 units in one box: 59×38×39 (cm3)
HRB 602 / 1002 / HRB 1002TL: 6 units in one box: 54×35×40 (cm3)
HRB 3001 / 6001 / 10001: 6 units in one box: 54×35×40 (cm3)
HRB 10001LP / 20001: 4 units in one box: 56×39×34 (cm3)
Operating Temp.
0-40℃(32-104℉)
Power source
6 x AA dry cells(not included) or AC/DC Adapter 12V/500mA

8
Rev 4, 04.25.2019
FEATURES
−Auto zero tracking - Selectable beeper
−Low battery indication -Selectable beeper
−Large bright backlit LCD - Unit switching: g, oz, lb, dwt ... ...
−Large stainless steel pan - 1.3 million internal resolution
−Stability indication - 200,000 display resolution
−Auto calibration - 24 bit A/D processor
−Selectable auto back light - Highest quality sensor used
−Less than 1s display setting time
Bright back-lit display
Weighing pan
Figure 2.2 Details of your weighing machine
Weighing pan
Battery
compartment cover
Bright back-lit display
Battery
compartment
(batteries not
included)
Bubble level
Leveling feet
RS232 connection
Mains power connection
HRB 103 HRB 203 HRB 303
HRB 602 HRB 1002 HRB 3002
HRB 3001 HRB 6001 HRB 10001
HRB 3002 HRB 3001 HRB 6001
HRB 10001
HRB 10001LP HRB 20001
Weighing pan
Bubble level
Bright back-lit display
Weighing pan
Bubble level
Bright back-lit display
HRB 1002TL

9
Rev 4, 04.25.2019
Application & Conformity
Correct use of the weighing machine
The weighing machine may only be used for the weighing of solid-materials and of
liquids filled into secure containers.
The maximum allowable load of the weighing machine must never be exceeded,
otherwise the weighing machine may be damaged.
In using the weighing machine in combination with other appliances as well as with
appliances produced by other manufacturers, the appropriate regulations for the safe
use of the relevant attachments and their application in accordance with instructions
must be observed.
Conformity
The weighing machine has been manufactured and tested in accordance with the
standards and recommendations set out in the declaration of conformity.
The power adapter produced for the operation of the weighing machine and intended
exclusively for this application, complies with the appropriate electrical protection class.
Data and parameters
Technical data
The following applies to HRB series
Power supply:
. Input: 110 or 230V AC (+/-15-20%); 50 to 60Hz
. Output: 12v DC 500mA
Allowable ambient conditions
Temperature: 5°C . 40°C
Relative humidity: 25%... 85%, non-condensing
If you have any questions on the technical data or require detailed technical information
on your balance, please contact your technical representative.

10
Rev 4, 04.25.2019
RS232 Data interface
1. Connector: DB9
BALANCE PC
2 2
3 3
5 5
2. Transmissions Settings
Mode: Simplex Asynchronous Serial Baud Rate: 9600
Data Bit: 8 Parity Bit: None
Stop Bit: 1 Data Format: ASCII
3. Transmission Information Format：20 Byte ，blank=20H
1~2
3
4~13
14~18
19
20
‘W: ’
P
DATA
UNIT
CR
LF
W: Start of Data Transmission=57H+3AH
P : Polarity ‘+’ = 2BH = Positive ‘-’ = 2DH =Negative
DATA: ‘ 12.345’= 20H+20H+20H+20H+31H+32H+2EH+33H+34H+35H
UNIT: ‘g’ =67H+20H+20H+20H+20H
‘oz ’ =6FH+7AH+20H+20H+20H
‘lb’ =6CH+62H+20H+20H+20H
‘dwt’ =64H+77H+74H+20H+20H
‘ozt ’ =6FH+7AH+74H+20H+20H
‘ct ’ =63H+74H+20H+20H+20H
‘tl.T’ =74H+6CH+2EH+54H+20H
‘tl.H’ =74H+6CH+2EH+48H+20H
‘tl.J ’ =74H+6CH+2EH+4AH+20H
‘GN’ =47H+4EH+20H+20H+20H
‘dr’ =64H+72H+20H+20H+20H
‘MM’ =4DH+4DH+20H+20H+20H
‘tola’ =74H+6FH+6CH+61H+20H
‘gsm’ =67H+73H+6DH+20H+20H
‘T/A/R’ =54H+2FH+41H+2FH+52H
‘T/M/R’ =54H+2FH+4DH+2FH+52H
‘pcs’ =50H+43H+53H+20H+20H
CR: = 0DH
LF: = 0AH

11
Rev 4, 04.25.2019
Getting started
Unpacking the equipment
The machine is delivered in an environmentally-friendly carton, specifically developed
for this precision instrument, which provides optimum protection for the balance during
transportation.
We suggest that you retain the original packaging in order to avoid transportation
damage if shipping or transporting the balance and to allow the unit to be stored in the
best conditions if it is out of operation for
an extended period.
In order to avoid damage, attention must be given to the following points when
unpacking the balance:
Unpack the weighing machine carefully. It is a precision instrument.
When outside temperatures are very low, the balance should first be stored for some
hours in the unopened transport package in a dry room at normal temperature, so that
no condensation settles on the
unit when unpacking.
Check the weighing machine immediately after unpacking for externally visible damage.
If you should find transport damage, please inform your service representative
immediately.
If the unit is not to be used immediately after purchase but only at a later time, it should
be stored in a dry place where fluctuations in temperature are as low as possible (see
Chapter 12 .Transport, storage.).
Read through these operating instructions, even if you already have prior experience
with weighing equipment, before you work with the unit and pay attention to the Safety
recommendations (see Chapter 1 .Safety).
Scope of delivery
Inspect delivery for completeness immediately on unpacking all components.
Checklist for complete delivery
Component delivered present yes / no
Weighing unit body
Weighing pan
Power adapter
Operating manual

12
Rev 4, 04.25.2019
Assembling your weighing machine
The weighing machine is delivered in partly dismantled condition. Assemble the
individual components in the following sequence:
−Place the unit holder in position and add the weighing pan
−Insert the power adapter cable plug into the socket at the rear of the balance.
Choice of a suitable location
The environment in which your weighing machine is used is very important. Air
movement, temperature changes, vibrations, direct sunlight, etc. all influence the
performance of high precision weighing machines. Therefore, place your weighing
machine on a solid, sturdy surface that is free of air currents, vibration and not in direct
sunlight. The surface should not be magnetic and should be located away from doors,
windows, heaters, air conditioners and fans.
To summarize:
−Put the weighing machine on a solid, firm and preferably vibration-proof,
horizontal base
−Make sure that the weighing machine cannot be shaken or knocked over
−Protect from direct solar radiation
−Avoid drafts and excessive temperature fluctuations
Checking the mains voltage
The following Safety recommendations must be observed when connecting the balance
to the mains:
The balance may only be operated with the power adapter supplied.
Check before connecting the power adapter to the mains supply, that the operating
voltage stated on the power adapter agrees with the local mains voltage.
If the operating voltage is not the same as the mains voltage, the power adapter must
on no account be connected to the mains supply. Contact customer service.

13
Rev 4, 04.25.2019
Leveling the weighing machine
To function properly, the balance must be precisely horizontal. The balance is fitted with
one bubble level. and adjustable feet for level-control, with the aid of which it is possible
to compensate for small height differences and / or any unevenness in the surface on
which the balance is positioned.
The screw feet must be adjusted so that the air bubble is precisely in the center of the
sight glass of the bubble level (see Fig. 3.2)
Place the scale horizontally and keep the bubble inside the bubble level aligned with the
red circle (See
Fig.3.2). In order to get exact measurements, the balance must again be carefully
leveled after each relocation.
Fig. 3.2 Correct leveling with the aid of the bubble level
Calibration of the weighing machine
Since the effect of the Earth’s gravity is not the same everywhere every balance must
be adjusted to compensate for the gravity differences at each location in accordance
with the underlying physical weighing principles which apply to accurate weighing
machines. This adjustment process is known as calibration and must be carried out on
initial installation, regularly in accordance with internal quality systems and after each
subsequent relocation.
In order to ensure best measurement results it is recommended that the balance should
be calibrated regularly and often using a known external calibration weight (see Section
5 below).

14
Rev 4, 04.25.2019
Application Menu
Display messages and key functions
Display messages:
Key Functions:
1. The On/Off key is to turn the Balance On or Off (Note: it has an On/Off hard
switch at the bottom)
2. The ZERO key allows the subtraction of multiple container values through the
weighing range and is used to set or re-adjust the weighing machine in correct
zero position.
3. The Print key is send data to external device through RS232 connector.
4. The UNIT key is to toggle between different weighing units.
5. The TARE allows the user to subtract the container value and returns the display
to zero
6. The PCS key is for piece counting
Low battery indicator
Negative value indicator
Stable indicator
Tare indicator
Weighing units
Zero indicator
HRB 103 HRB 203 HRB 303
HRB 602 HRB 1002
HRB 3002 HRB 3001 HRB 6001
HRB 1002TL HRB 10001
HRB 10001LP HRB 20001

15
Rev 4, 04.25.2019
Program options
Please see our web-site at http://lwmeasurements.com for practical demonstrations of
application usage.
Interface Settings
−Press [ON/OFF] to turn on the scale, when instrument displays --------
−Press [PRINT], the display will show b xxx value
−Press [UNIT] to select among (1200,2400,4800,9600), default setting is 9600
−Press [ZERO] to enter Parity mode, the display will show P xxx
−Press [UNIT] to select odd, even or none ( odd stands for 7 data bits with odd
parity, even stands for 7 data bits with even parity, none stands for 8 data bit
without parity), default setting is none
−Press [ZERO] to enter Print mode, the display will show n xxx
−Press [UNIT] to select CON,OFF, KEY, STB
a) OFF stands for serial data output disabled
b) KEY stands for manual mode by pressing [PRINT]
c) STB stands for automatic print when scale is stable
d) CON stands for continuous print
Default setting is KEY
−Press [ZERO] again to return to weighing mode.

16
Rev 4, 04.25.2019
Parameter settings
Setting Zero range when power on
Press ON/OFF key, and when “- - - - - - “shows, press TARE(or PCS) key, display will
show “Pzr x.x”, press UNIT key to select, factory default setting is 20
Setting Zero range of ZERO key
Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then
press ZERO key, display shows “Kzr xx”, press UNIT key to select, factory default
setting is 4
Setting Zero range of TARE key
Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then
press ZERO key multiple times till display shows “Ktr xxx”, press UNIT key to select,
factory default setting is 100
Setting overload range
Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then
press ZERO key multiple times till display shows “Ovr xx”, press UNIT key to select,
factory default setting is 9d
Setting Beeper
Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then
press ZERO key multiple times till display shows “b2 ON” or “b2 OFF”, press UNIT key
to switch it ON or OFF.
Setting ZERO and TARE function merge function
Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then
press ZERO key multiple times till display shows “Zt ON” or “Zt OFF”, press UNIT key to
switch it ON or OFF.
Setting Auto Shut off
Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then
press ZERO key multiple times till display shows “A ON” or “A OFF”, Press UNIT key to
select Auto shut off mode “ON” or “OFF”.
Setting Backlight
Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then
press ZERO key multiple times till display shows “L ON”, “L OFF” or “ L AU”, Press
UNIT key to select backlight to be “On”, “Off” or “Auto”.

17
Rev 4, 04.25.2019
Calibration
Using an External Calibration Weight
Calibration is required when the weighing machine is initially installed or if the balance is
moved to a substantial distance from the original location or if ambient conditions
change considerably. 30 minutes’ warm-up of the balance is always needed before
weighing and calibration.
−Turn the Balance on and when display shows “--------”, press ZERO key
−The display will show “CAL”
−Press ZERO key again, the display will show “X000.00”, “X” is the flashing digit
−Press UNIT key, the flashing digit will move to right
−Press the TARE (or PCS, depending on the model) key to increase the value of
the flashing digit (“X” is the calibration weight can be set according to users’
requirements, we recommend a minimum weight of at least 50% of the Balance
capacity)
−Press the ZERO key, the display will show a series of digits known as the A/D
value, these numbers will continuously move, once the display shows the stable
indicator (please see page 16 for help locating the stable indicator), press the
UNIT key, the display will then show --------, then “X00.00” or “X000.00”
depending on the model and capacity.
−Place the corresponding test weight on the center of the pan
−The display backlight lights up and returns to weighing mode
−Now the calibration is completed
−Turn off the power, then turn on the power again, place a known weight on the
platform to verify if it is accurate.
−If the weight displayed does not correspond with the value of the calibration
weight, please repeat above steps.

18
Rev 4, 04.25.2019
Maintenance & Service
The weighing machine must be treated carefully and cleaned regularly. It is a precision
instrument.
For maintenance-work, the balance must be separated from the power supply (remove
power adapter plug from socket). Also ensure that the balance cannot be reconnected
to the power
supply during the work by a third party.
Take care during cleaning that no liquid penetrates into the appliance. If liquid is spilt on
the balance, the latter must immediately be disconnected from the electricity supply.
The balance may
only be used again after it has first been checked by a service engineer.
The connections on the rear of the appliance and the power adapter may not come into
contact with liquids.
Regularly dismantle the weighing pan and the weighing pan holder and remove any dirt
or dust from under the weighing pan and on the weighing machine housing with a soft
brush or a soft, lint-free cloth, moistened with a mild soap solution. The scale and the
holder can be cleaned under running water. Take
care that both parts are completely dry before they are re-installed on the scale.
Never use solvents, acids, alkalis, paint thinners, scouring powders or other aggressive
or corrosive chemicals for cleaning, since these substances attack the surfaces of the
scale housing and
can cause damage.

19
Rev 4, 04.25.2019
Transport & Storage
Transportation and shipping of the weighing machine
Your weighing machine is a precision instrument. Treat it carefully. Avoid shaking,
severe impacts and vibration during the transportation.
Take care that there are no marked temperature fluctuations during the transportation
and that the weighing machine does not become damp (condensation).
Storage of the weighing machine
If you would like to take the weighing machine out of service for an extended period,
disconnect it from the electricity supply, clean it thoroughly (see Section 6 .Maintenance
and servicing.) and store it in a place which meets the following conditions:
−No violent shaking, no vibrations
−Minimum temperature fluctuations
−No direct solar radiation
−Minimum moisture
The weighing machine should preferably be dispatched and transported in the original
packaging to avoid transportation damage.
The weighing machine should preferably be stored in the original packaging, since this
provides optimal protection for the weighing machine.

20
Rev 4, 04.25.2019
HRB Series Conversions Of Various International Weight
Units
Model
UNIT
Resolut
ion
103
203
303
602
1002
1002TL
602
1002
1002TL
3002
3001
6001
10001
10001LP
20001
g
0.001g
0.001g
0.001g
0.01g
0.01g
0.01
0.1g
oz
0.00005
0.00005
0.0001
0.0005
0.0005
0.001
0.005
lb
0.00001
0.00001
0.00001
0.00002
0.00002
0.00005
0.0002
dwt
0.001
0.001
0.001
0.01
0.01
0.01
0.1
ozt
0.00005
0.00005
0.00005
0.0005
0.0005
0.0005
0.005
ct
0.005
0.01
0.01
0.05
0.05
0.1
0.5
tlT
0.00005
0.00005
0.00005
0.0005
0.0005
0.0005
0.005
tlH
0.00005
0.00005
0.00005
0.0005
0.0005
0.0005
0.005
tlJ
0.00005
0.00005
0.00005
0.0005
0.0005
0.0005
0.005
gn
0.02
0.02
0.02
0.2
0.2
0.2
2
dr
0.001
0.001
0.001
0.01
0.01
0.1
0.1
MM
0.0005
0.0005
0.0005
0.005
0.005
0.005
0.05
tola
0.0001
0.0001
0.0001
0.001
0.001
0.001
0.01
gsm
0.1
0.1
0.1
0.1
0.1
1
10
T/A/R
0.01
0.1
0.1
0.1
0.1
1
1
T/M/R
0.01
0.1
0.1
0.1
0.1
1
1
